MODE D'EMPLOI G280446G050 Hoffman

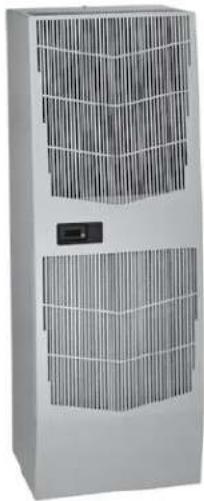

SPeCTraCool™ indoor/oUTdoor

G57 20000 BTU/Hr. 5861 Watt

G52 8000/12000 BTU/Hr. 2300/3500 Watt

G28 4000/6000 BTU/Hr. 1172/1758 Watt

indUSTrY STandardS

UL/cUL Listed; Type 12, 3R, 4; 4X optional; File No. SA6453

CE

GOST

IP 56 Internal Loop

IP 34 on External Loop

Telcordia GR-487 capable (Outdoor)

aPPIiCaTion

• Industrialautomation
  • Telecommunicationsequipment
• Waste water treatment systems
  • Package handling equipment
  • Security and defense systems
• Andmore

FeaTUreS

• Energy-efficient rotary compressor on most models
• R407c and R134a earth-friendly refrigerants
• 115, 230 and 400/460 VAC 3-phase power input on most models
- UL Listed to save customers time and money with agency approvals
• Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Exterior and partially recessed mounting options
- Attractive industrial design with minimal use of visible fasteners
- Reliable mechanical thermostat on enclosure side of the unit; indoor air conditioner models include digital display on ambient side
- Dual condenser-side air movers for performance redundancy on G52 and G57 models
- Galvanized sheet-metal cover for rugged factory and outdoor environments
- Easy-mount flanges for simple installation
- Cut-out adapter options for enclosures with GENESISTM and T-Series air conditioners, enable users to easily transition to the new unit

EtherNet√IP ^TM conformance tested

• Dust-resistant condenser coil allows the unit to be run filterless in most applications
• Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance

• Mounting hardware, gaskets and user manual furnished with the unit
  • Every unit functionally tested before shipping
  • Standard Indoor Air Conditioner models also include:

• Active condensate management with heater strip

• Power-off relay for door switch and other system requirements
• Malfunction switch

• Standard Outdoor Air Conditioner models also include:

• Telcordia GR-487 capable
• Corrosion-resistant components
• Malfunction switch
• Compressor heater
• Head pressure control
• Up to 2000 Watt (G28, G52) and 3000 Watt (G57) enclosure heater

SPeCiFiCaTionS

• Nominal cooling capacity:
G28 4000 & 6000 BTU/Hr. [1172 and 1758 W]
G52 8000 & 12000 BTU/Hr. (2344 and 3516 W)
G57 20000 BTU/Hr. (5861 W)
• Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C

FiniSH

• RAL 7035 light-gray, semi-textured powder-coat paint
- Other colors and textures available

noTeS

Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

Performance Data G28 Models 4000/6000 BTU/Hr. (1172/1758 Watt)

CATALOG NUMBER
Indoor Model	G280416G050	G280426G050	G280446G050	G280616G050	G280626G050	G280646G050
Indoor Model Stainless Steel Type 4X	G280416G051	G280426G051	G280446G051	G280616G051	G280626G051	G280646G051
Indoor Model with Remote Access Control*	G280416G060	G280426G060	G280446G060	G280616G060	G280626G060	G280646G060
Outdoor Model without Heat Pkg.	G280416G100	G280426G100	G280446G100	G280616G100	G280626G100	G280646G100
Outdoor Model Partial Recessed Mount	G280416G101	G280426G101	G280446G101	G280616G101	G280626G101	G280646G101
Outdoor Model without Heat Pkg.	G280416G102	G280426G102	G280446G102	G280616G102	G280626G102	G280646G102
Stainless Steel Type 4X
Outdoor Model with Heat Pkg.	G280416G150	G280426G150	—	G280616G150	G280626G150	—
Outdoor Model with Heat Pkg. Stainless Steel Type 4X	G280416G151	G280426G151	—	G280616G151	G280626G151	—
COOLING PERFORMANCE
Nominal:
BTU/Hr.	4600/4900	4600/4900	4600/4900	6000/6400	6000/6400	5400/6000
Watts	1347/1435	1347/1435	1347/1435	1757/1874	1757/1874	1581/1757
At 131 F/131 F (55 C/55 C):
BTU/Hr. (50/60 Hz)	4600/4900	4600/4900	4600/4900	6000/6400	6000/6400	5400/6000
W (50/60 Hz)	1347/1435	1347/1435	1347/1435	1757/1874	1757/1874	1581/1757
At 95 F/95 F (35 C/35 C):
BTU/Hr. (50/60 Hz)	4300/4600	4300/4600	4324/4655	5600/6000	5600/6000	5054/5685
W (50/60 Hz)	1260/1364	1260/1364	1267/1364	1641/1758	1641/1758	1481/1666
Refrigerant	R407C	R407C	R134A	R407C	R407C	R134A
Refrigerant Charge (ounces/grams)	20/567	20/567	16/454	20/567	20/567	16/454
Operating Temperature Range:
Maximum (°F/°C)	131 F/55 C	131 F/55 C	131 F/55 C	131 F/55 C	131 F/55 C	131 F/55 C
Minimum (°F/°C)	-40 F/-40 C	-40 F/-40 C	-40 F/-40 C	-40 F/-40 C	-40 F/-40 C	-40 F/-40 C
Air Flow at 0 Static Pressure:
Internal loop 50 Hz (CFM / m3/hr.)	189/321	189/321	189/321	189/321	189/321	189/321
External loop 50 Hz (CFM / m3/hr.)	291/494	291/494	291/494	291/494	291/494	291/494
Internal loop 60 Hz (CFM / m3/hr.)	221/375	221/375	221/375	221/375	221/375	221/375
External loop 60 Hz (CFM / m3/hr.)	300/509	300/509	300/509	300/509	300/509	300/509
Max. Heater W (Outdoor Models)	2000	2000		2000	2000
ELECTRICAL DATA
Rated Voltage	115	230	400/460 3~	115	230	400/460 3~
Frequency (Hz)	50/60	50/60	50/60	50/60	50/60	50/60
Operating Range	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%
Max. Power Consumption (W at 50/60 Hz)	1138.5/1311	1058/1334	680/874	1138.5/1311	1058/1334	680/874
Max. Nominal Current (A at 50/60 Hz)	9.9/11.4	4.6/5.8	1.7/1.9	9.9/11.4	4.6/5.8	1.7/1.9
Starting Current (A)	36.2	17.7	7.7	36.2	17.7	7.7

Agency Approvals
cUL Listed
CE
GOST
Terminal Block
Power Input Description

ENCLOSURE PROTECTION

UL Type	Type 12, 3R, 4 StandardType 4X Stainless Steel Optional
CONTROLLER
Description	Basic Mechanical Thermostat
Thermostat Location	Enclosure Side on All Base Models
Factory Thermostat Setting (°F/°C)	80/27	80/27	80/27	80/27	80/27	80/27
SOUND LEVEL
At 1.5 Meters	68dB(A)
UNIT CONSTRUCTION
Material	Galvanized Sheet Metal Standard (Optional: Stainless Steel)
Finish	Powder Coat RAL 7035 Light Gray Standard
ACCESSORIES
EASYSWAP Adaptor Plenum (GENESISTM M28)	Enables SPECTRACOOL to be mounted to GENESIS M28 air conditioner cutoutCatalog Number PLM28G28
EASYSWAP Adaptor Plenum (T-Series T29)	Enables SPECTRACOOL to be mounted to T-Series T29 air conditioner cutoutCatalog Number PLT29G28
UNIT DIMENSIONS
Height (in./mm)	28.55/725.1
Width (in./mm)	16.97/431.1
Depth (in./mm)	10.10/256.6
Weight (lb./kg)	84/38	84/38	84/38	84/38	84/38	84/38

*Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.

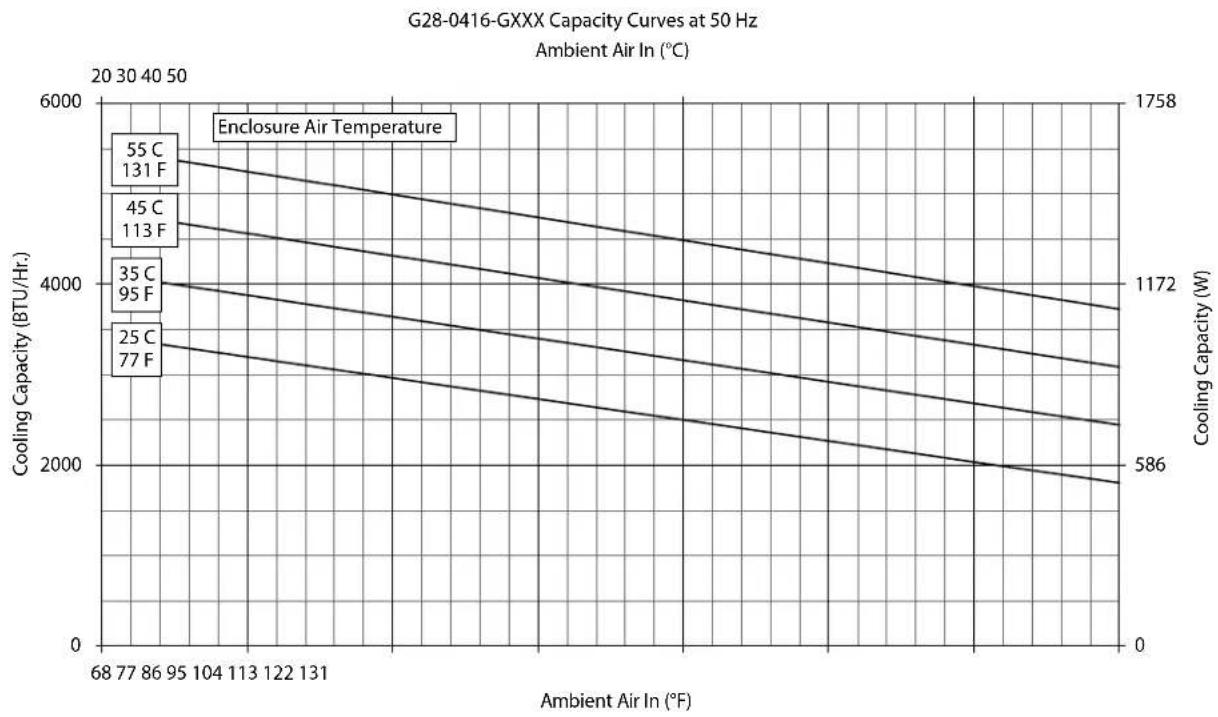

Performance Curves for G28 Models 4000 BTU/Hr. (1347/1435 Watt)

Performance Curves for G28 Models 4000 BTU/Hr. (1347/1435 Watt)

Performance Curves for G28 Models 4000 BTU/Hr. (1347/1435 Watt)

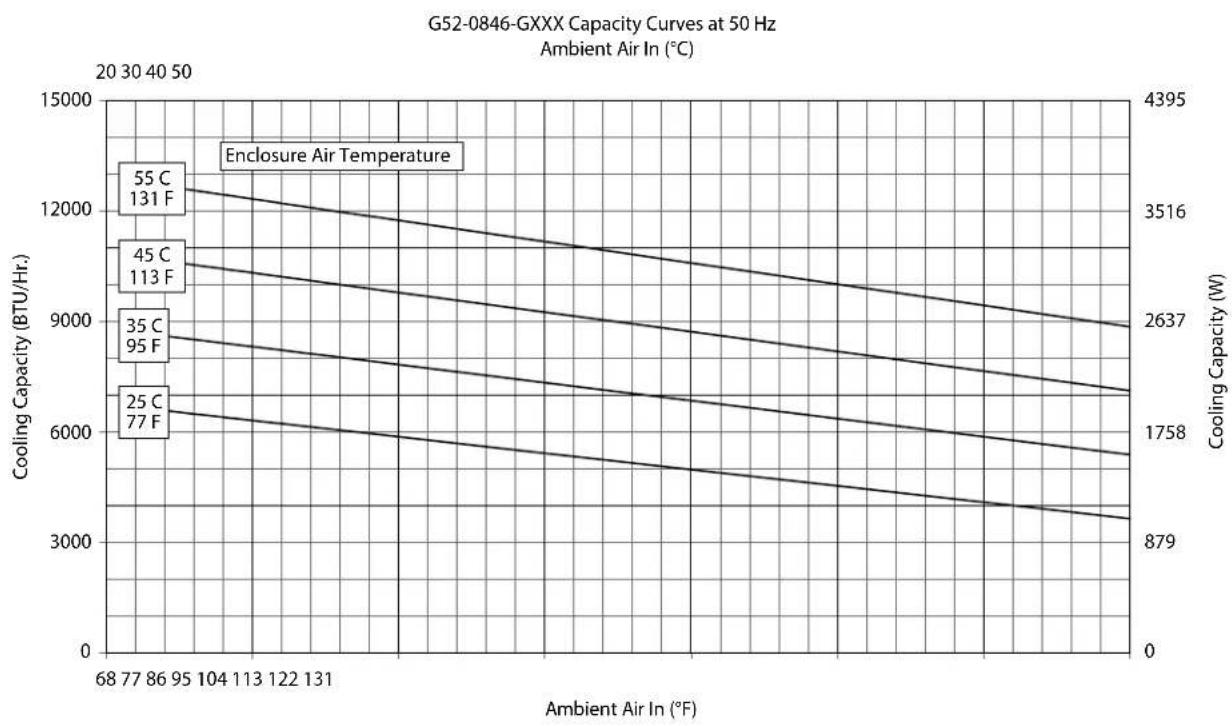

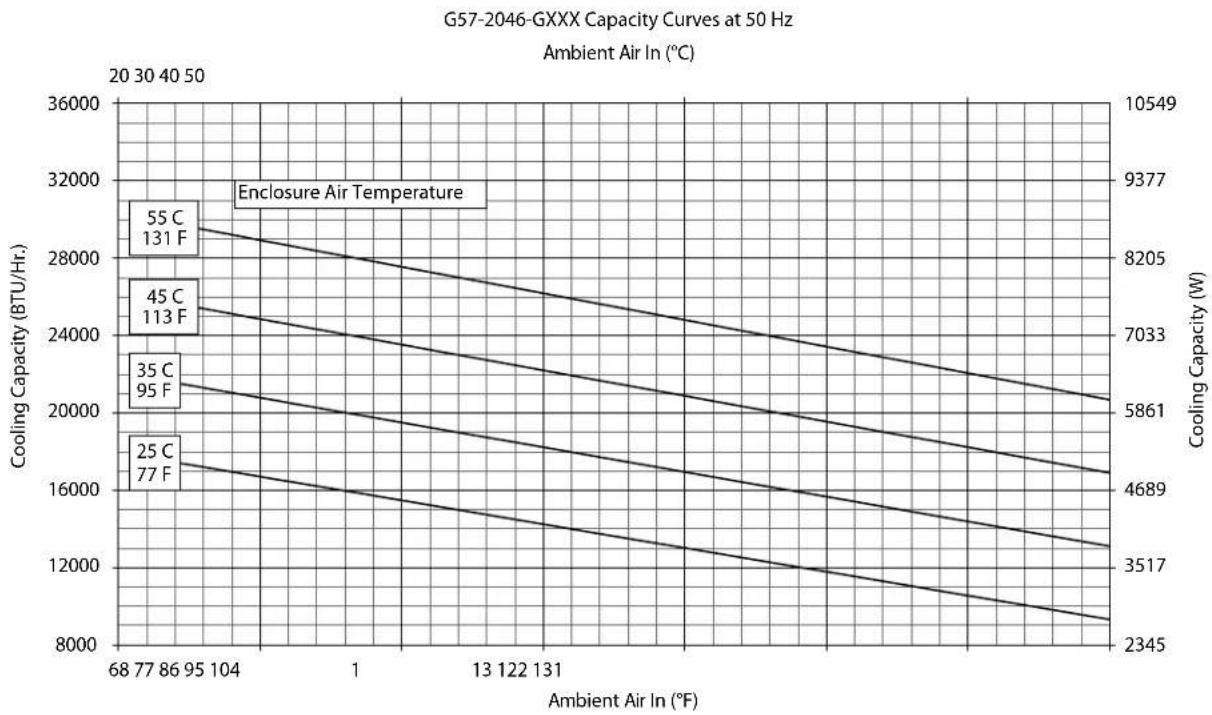

G28-0446-GXXX-Capacity Curves at 50 Hz; Without Filter

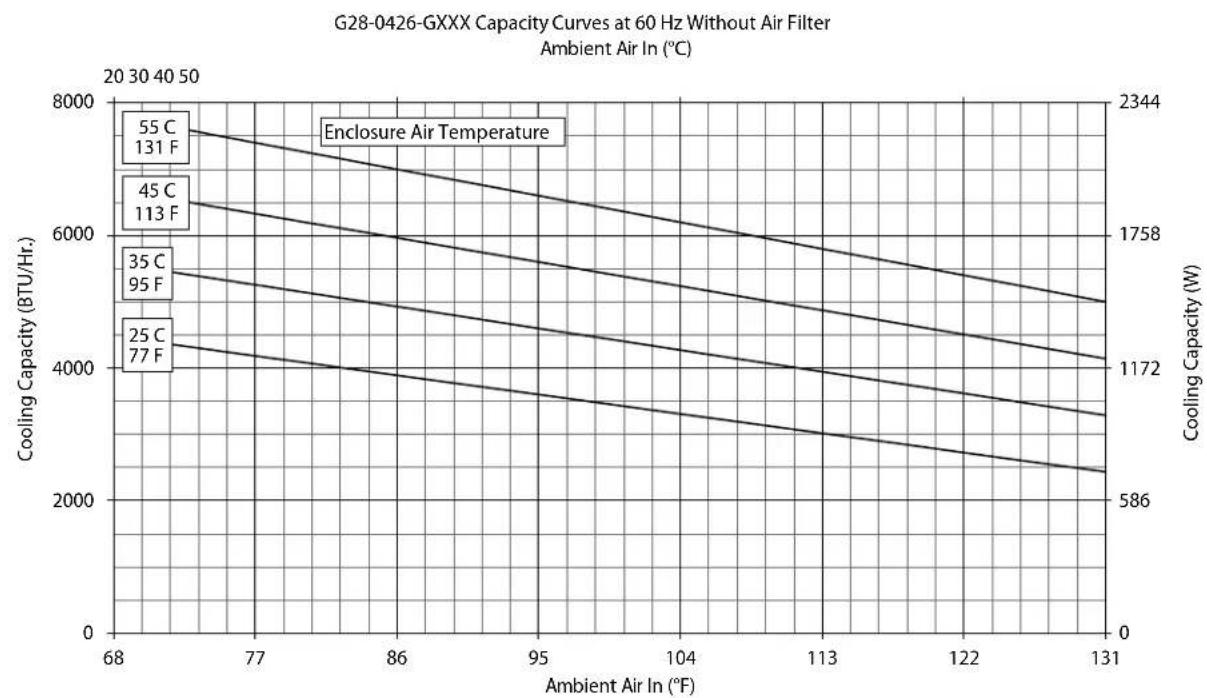

G28-0446-GXXX- Capacity Curves at 60 Hz; Without Filter

Performance Curves for G28 Models 4000/6000 BTU/Hr. (1172/1758 Watt)

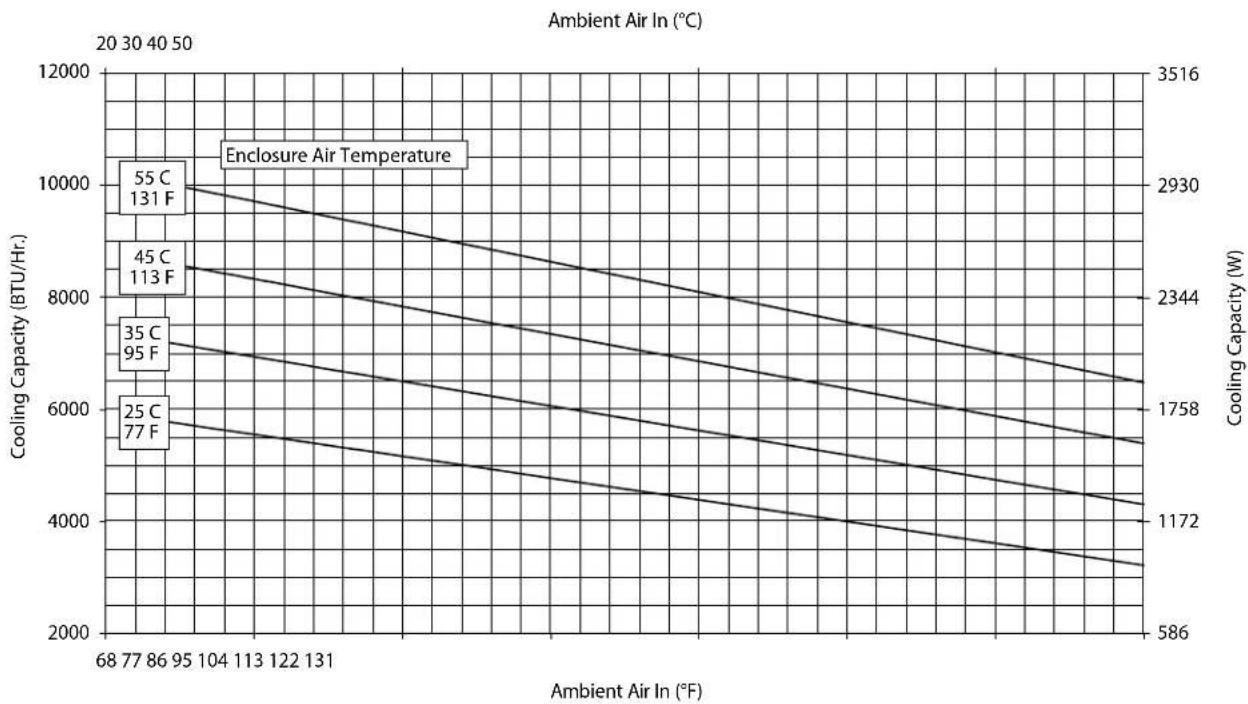

G28-06(1/2)6-GXXX Capacity Curves at 50 Hz Without Filter

G28-06(1/2)6-G002-P#2 Capacity Curves at 60 Hz Without Filter

Performance Curves for G28 Models 6000 BTU/Hr. (1758 Watt)

G28-0646-GXXX Performance Curve 400VAC/50Hz Without Air Filter

G28-0646-GXXX Performance Curve 460VAC/60Hz Without Air Filter

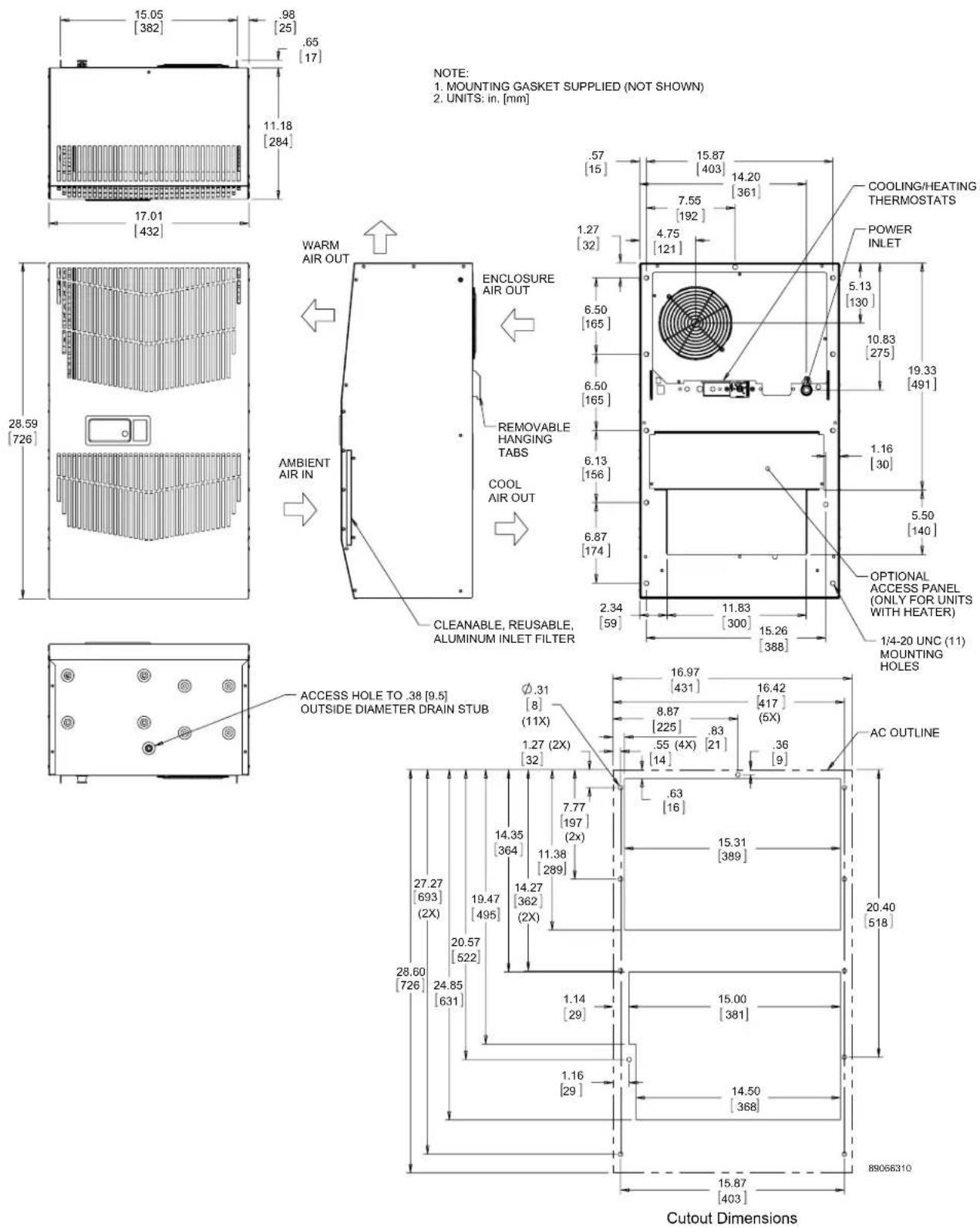

G28 Models 4000 BTU/Hr. 115 V (1172 Watt)

NOTE:

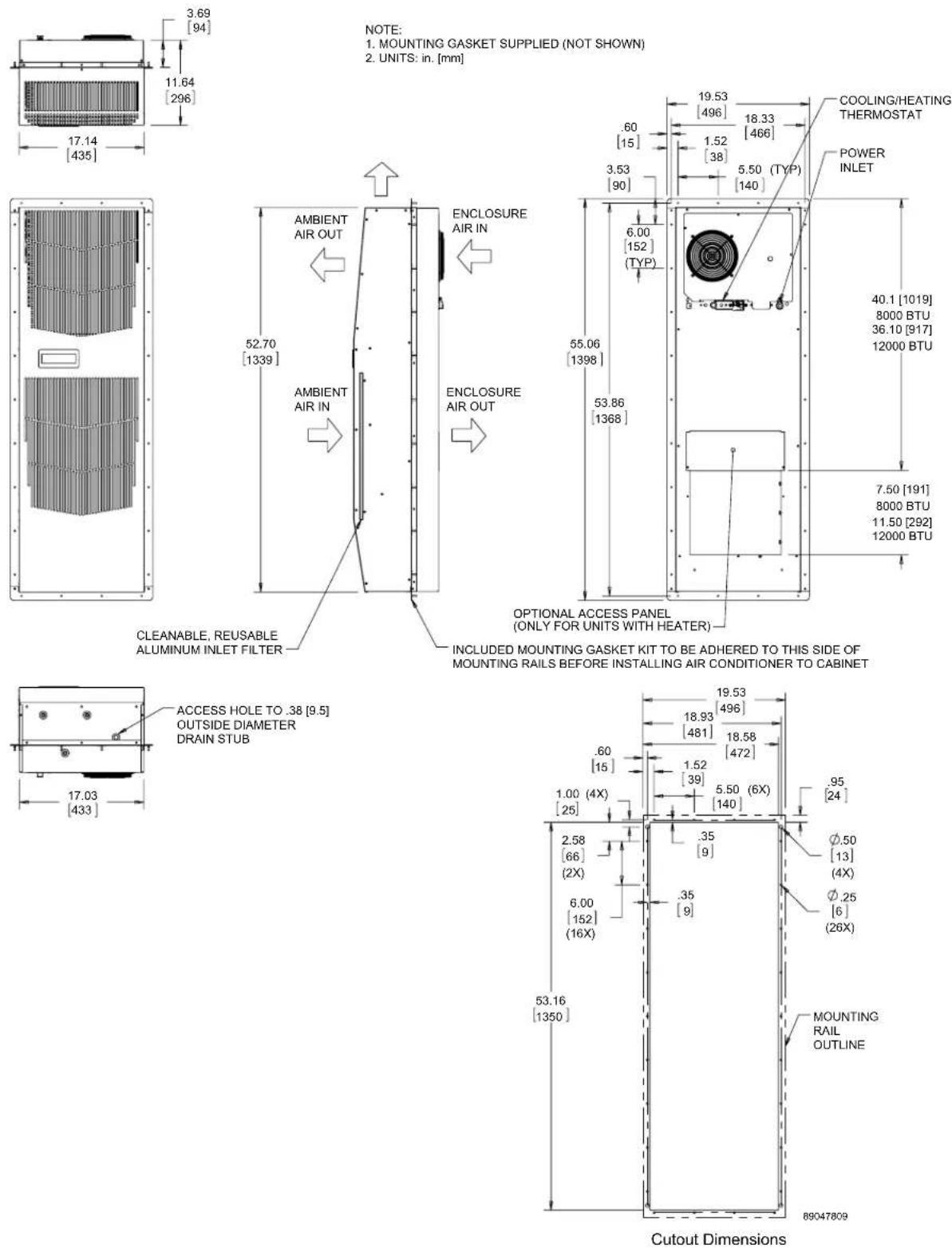

1. MOUNTING GASKET SUPPLIED (NOT SHOWN) 2. UNITS: in. [mm]
ACCESS HOLE TO .38 [9.5] OUTSIDE DIAMETER DRAIN STUB
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

G28 Models 4000 BTU/Hr. 230/460 V, 6000 BTU/Hr. 115/230/460 V (1172/1757 Watt)

NOTE:
1. MOUNTING GASKET SUPPLIED (NOT SHOWN)
2. UNITS: in. [mm]
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

G28 Models 4000 BTU/Hr. 115 V (1172 Watt) Partial Recess

ACCESS HOLE TO .38 [9.5] OUTSIDE DIAMETER DRAIN STUB
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

G28 Model 4000 BTU/Hr. 230/460 V, 6000 BTU/Hr. 115/230/460 V (1172/1758 Watt) Partial Recess

Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

Performance Data G52 Models 8000/12000 BTU/Hr. (2300/3500 Watt)

CATALOG NUMBER
Indoor Model	G520816G050	G520826G050	G520846G050	G521216G050	G521226G050	G521246G050
Indoor Model Stainless Steel Type 4X	G520816G051	G520826G051	G520846G051	G521216G051	G521226G051	G521246G051
Indoor Model with Remote Access Control*	G520816G060	G520826G060	G520846G060	G521216G060	G521226G060	G521246G060
Outdoor Model without Heat Pkg.	G520816G100	G520826G100	G520846G100	G521216G100	G521226G100	G521246G100
Outdoor Model Partial Recessed Mount	G520816G101	G520826G101	G520846G101	G521216G101	G521226G101	G521246G101
Outdoor Model without Heat Pkg. Stainless Steel Type 4X	G520816G102	G520826G102	G520846G102	G521216G102	G521226G102	G521246G102
Outdoor Model with Heat Pkg.	G520816G150	G520826G150	G520846G150	G521216G150	G521226G150	G521246G150
Outdoor Model with Heat Pkg. Stainless Steel Type 4X	G520816G151	G520826G151	G520846G151	G521216G151	G521226G151	G521246G151
COOLING PERFORMANCE
Nominal:
BTU/Hr.	8000	8000	8000	12000	12000	12000
Watts	2300	2300	2300	3500	3500	3500
At 131 F/131 F (55 C/55 C):
BTU/Hr.	7300/8200	7300/8200	8800/9800	12000/12500	12000/12500	11100/12000
Watts	2139/2403	2139/2403	2578/2871	3516/3662	3516/3662	3252/3516
At 95 F/95 F (35 C/35 C):
BTU/Hr.	6000/6800	6000/6800	7400/8200	9900/10700	9900/10700	9900/10700
Watts	1758/1992	1758/1992	2168/2402	2900/3135	2900/3135	2900/3135
Refrigerant	R134a	R134a	R134a	R134a	R134a	R134a
Refrigerant Charge (ounces/grams)	24/680	24/680	24/680	38/1077	38/1077	38/1077
Operating Temperature Range:
Maximum (°F/°C)	131/55	131/55	131/55	131/55	131/55	131/55
Indoor Minimum (°F/°C)	50/10	50/10	50/10	50/10	50/10	50/10
Outdoor Minimum (°F/°C)	-40/-40	-40/-40	-40/-40	-40/-40	-40/-40	-40/-40
Airflow at 0 Static Pressure:
Internal loop 50 Hz (CFM / m3/hr.)	285/484	285/484	285/484	287/487	287/487	287/487
External loop 50 Hz (CFM / m3/hr.)	650/1104	650/1104	650/1104	635/1078	635/1078	635/1078
Internal loop 60 Hz (CFM / m3/hr.)	310/527	310/527	310/527	305/518	305/518	305/518
External loop 60 Hz (CFM / m3/hr.)	700/1189	700/1189	700/1189	650/1104	650/1104	650/1104
Max. Heater W (Outdoor Models):	2000	2000	NA	2000	2000	NA
ELECTRICAL DATA
Rated Voltage	115	230/208-230	400/460 3~	115	230/208-230	400/460 3~
Frequency [Hz]	50/60	50/60	50/60	50/60	50/60	50/60
Operating Range	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%
Max. Power Consumption [W]	1250/1415	1250/1415	806/957**	2100/2427	1830/2130	910/1106**
Max. Nominal Current [A]	11.2/12.3	5.6/7.0-6.2	3.1/3.2	16.1/21.0	9.1/10.6-9.5	3.6/3.5
Starting Current [A]	48	27	16	57	38	16
Agency Approvals			cUL ListedCEGOSTOthers available upon request
Power Input Description			Terminal Block
ENCLOSURE PROTECTION
UL Type			Type 12, 3R, 4 standardType 4X Stainless steel optional
International Rating			IP56 internal loopIP34 external loop
CONTROLLER
Description			Basic mechanical thermostat with digital display
Thermostat Location			Enclosure side on all base models
Digital Display Location:
Indoor Models			Ambient side
Outdoor Models			Enclosure side
Factory Thermostat Setting (F/C)			80/27
SOUND LEVEL
At 1.5 Meters			68 dB(A)
UNIT CONSTRUCTION
Material			Galvanized sheet metal standardStainless steel optional
Finish			RAL 7035 light-gray, semi-textured powder-coat paint standardOther colors available
ACCESSORIES
Cleanable Re-usable Filter			Aluminum mesh Part #101000103
EASYSWAP Adaptor Plenum (GENESISTM M52)			Enables SPECTRACOOL to be mounted to a GENESIS M52 air conditioner cutoutCatalog Number PLM52G52
UNIT DIMENSIONS
Height (in./mm)			52.69/1338
Width (in./mm)			17.12/435
Depth (in./mm)			11.66/296
Weight (lb./kg)	128/58.1	128/58.1	138/62.6	131/59.4	131/59.4	141/64.0

*Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.
**Watts based on .65 power factor.

Performance Curves for G52 Models 8000 BTU/Hr. (23 Watt)

Performance Curves for G52 Models 8000 BTU/Hr. (2300 Watt)

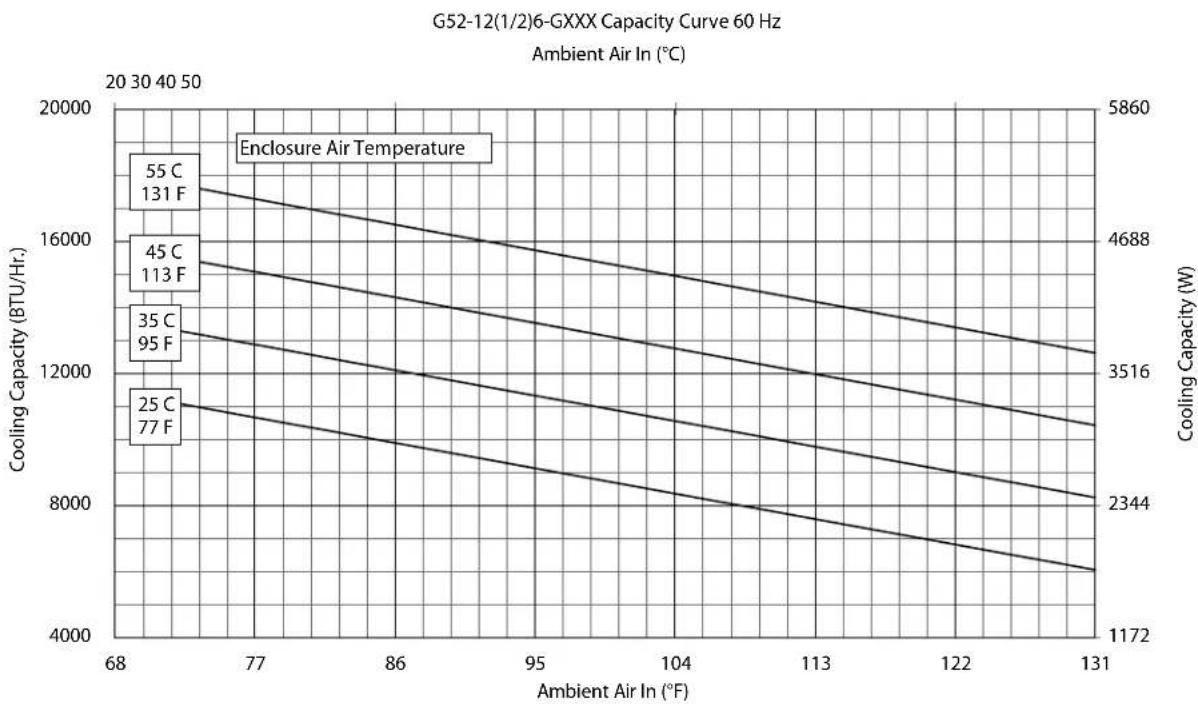

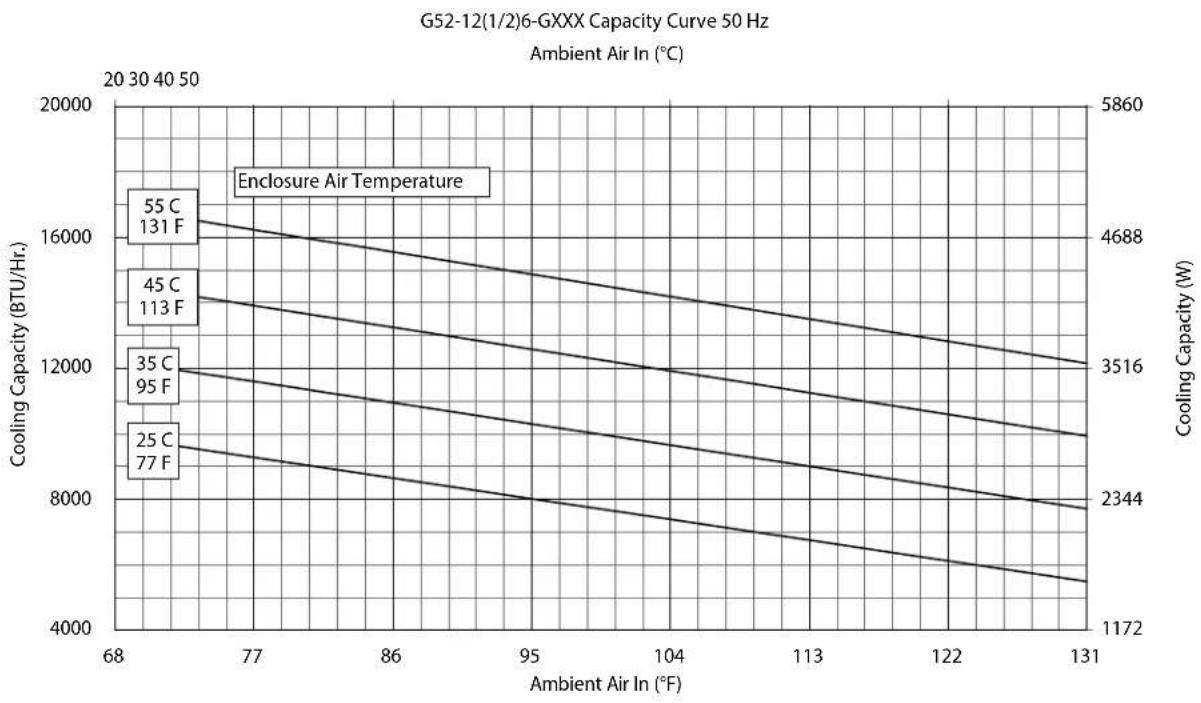

Performance Curves for G52 Models 12000 BTU/Hr. (3500 Watt)

Performance Curves for G52 Models 12000 BTU/Hr. (3516 Watt)

G52 Models 8000/12000 BTU/Hr. (2300/3500 Watt)

NOTE:
1. MOUNTING GASKET SUPPLIED (NOT SHOWN)
2. UNITS: in. [mm]
Cutout Dimensions
(Standard)
Cutout Dimensions
(G520846G150, G520846G151)
G521246G150, G521246G151 only)
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

G52 Models 8000/12000 BTU/Hr. (2344/3516 Watt) with Partial Recess

NOTE:
1. MOUNTING GASKET SUPPLIED (NOT SHOWN)
2. UNITS: in. [mm]
CLEANABLE, REUSABLE
ALUMINUM INLET FILTER
MOUNTING GASKET KIT TO BE ADHERED TO THIS SIDE OF G RAILS BEFORE INSTALLING AIR CONDITIONER TO CABINET
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

Performance Data G57 Models 20000 BTU/Hr. (5861 Watt)

CATALOG NUMBER
Indoor Model G572026G050 G572046G050
Indoor Model Stainless Steel Type 4X G572026G051 G572046G051
Indoor Model with Remote Access Control* G572026G060 G572046G060
Outdoor Model without Heat Pkg. G572026G100 G572046G100
Outdoor Model Partial Recessed Mount G572026G101 G572046G101
Outdoor Model with Heat Pkg. G572026G150 G572046G150
Outdoor Model without Heat Pkg. Stainless Steel Type 4X G572026G102 G572046G102
Outdoor Model with Heat Pkg. Stainless Steel Type 4X	G572026G151	G572046G151
COOLING PERFORMANCE
Nominal:
BTU/Hr.	20000	20000
Watts	5861	5861
At 131 F/131 F (55 C/55 C):
BTU/Hr. (50/60 Hz)	17500/19600	21400/23400
W [50/60 Hz]	5129/5744	6272/6857
At 95 F/95 F (35 C/35 C):
BTU/Hr. (50/60 Hz)	16000/18000	19300/21400
W [50/60 Hz]	4689/5275	5656/6272
Refrigerant	R407c	R407c
Refrigerant Charge (ounces/grams)	50/1417	48/1361
Operating Temperature Range:
Maximum (°F/°C)	131/55	131/55
Indoor Minimum (°F/°C)	50/10	50/10
Outdoor Minimum (°F/°C)	-40/-40	-40/-40
Airflow at 0 Static Pressure:
Internal loop 50 Hz (CFM / m3/hr.)	513/872	513/872
External loop 50 Hz (CFM / m3/hr.)	919/1562	919/1562
Internal loop 60 Hz (CFM / m3/hr.)	587/998	587/998
External loop 60 Hz (CFM / m3/hr.)	1055/1794	1055/1794
Max. Heater W (Outdoor Models)	3000	3000
ELECTRICAL DATA
Rated Voltage	230/230	400/460 3~
Frequency (Hz)	50/60	50/60
Operating Range	+/- 10%	+/- 10%
Max. Power Consumption (W at 50/60 Hz)	4508/5106	2400/3128
Max. Nominal Current (A at 50/60 Hz)	19.6/22.2	6.0/6.8
Starting Current (A)	63	27
Agency Approvals	cUL ListedCEGOSTOthers available upon request
Power Input Description	Terminal Block
ENCLOSURE PROTECTION
UL Type	Type 12, 3R, 4 standardType 4X stainless steel optional
International Rating	IP56 internal loopIP34 external loop
CONTROLLER
Description	Basic mechanical thermostat with digital display
Thermostat Location	Enclosure side on all base models
Digital Display Location:
Indoor Models	Ambient side
Outdoor Models	Enclosure side
Factory Thermostat Setting (°F/°C)	80/27
SOUND LEVEL
At 1.5 Meters	74.1 dB(A)
UNIT CONSTRUCTION
Material	Galvanized sheet metal standardStainless steel optional
Finish	RAL 7035 light-gray, semi-textured powder-coat paint standard
ACCESSORIES
Cleanable Re-usable Filter	Aluminum mesh part #101000103 BA
EASYSWAP Adaptor Plenum (T-Series T53)	Enables SPECTRACOOL to be mounted to a T-SeriesT53 air conditioner cutout part #57721601SP
UNIT DIMENSIONS
Height (in./mm)	57.69/1465.4
Width (in./mm)	20.87/530.1
Depth (in./mm)	15.28/388.1
Weight (lb./kg)	197/89

*Units with Remote Access Control utilize a digital controller and communicate via EtherNet/IP, Modbus TCP/IP and SNMP over ethernet or modbus RTU over USB.

Performance Curves for G57 Models 20000 BTU/Hr.

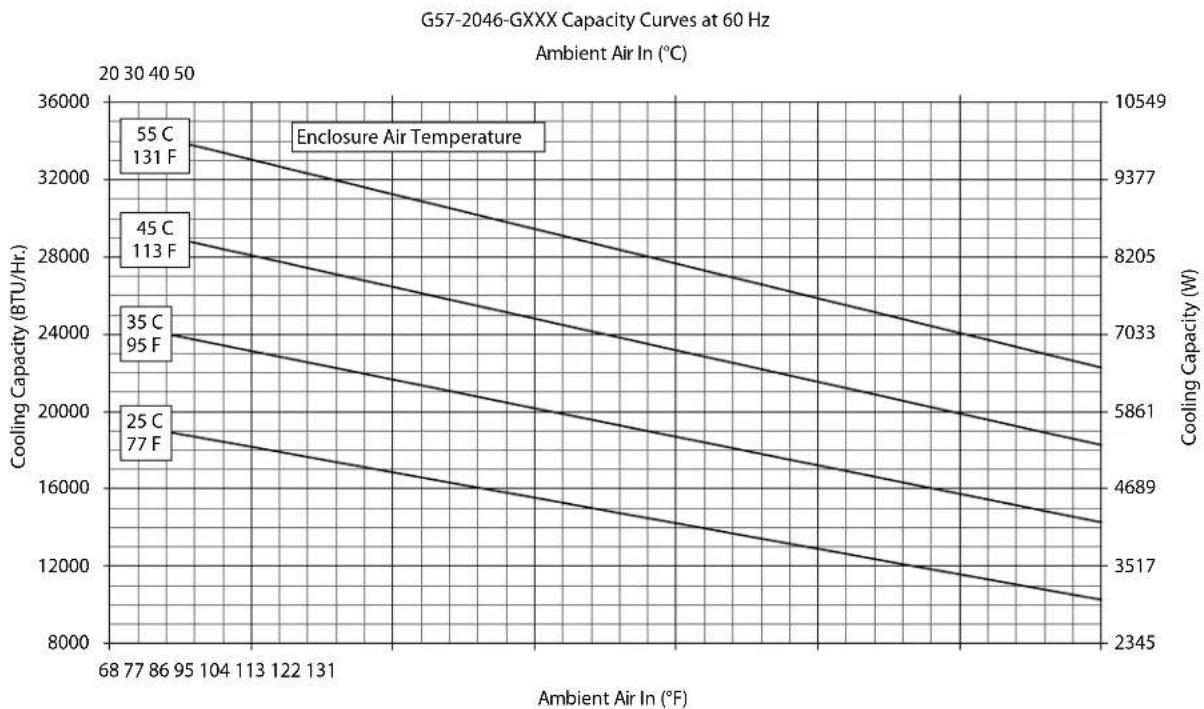

Performance Curves for G57 Models 20000 BTU/Hr.

G57 Models 20000 BTU/Hr. (5861 Watt)

NOTE: 1. MOUNTING GASKET SUPPLIED (NOT SHOWN) 2. UNITS: in. [mm]
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

G57 Models 20000 BTU/Hr. (5861 Watt) With Partial Recess

NOTE:
1. MOUNTING GASKET SUPPLIED (NOT SHOWN)
2. UNITS: in. [mm]
CLEANABLE, REUSABLE, ALUMINUM INLET FILTER
INCLUDED MOUNTING GASKET KIT TO BE ADHERED TO THIS SIDE OF MOUNTING RAILS BEFORE INSTALLING AIR CONDITIONER TO CABINET
Visit www.HoffmanOnline.com to download 2D and 3D CAD drawings into the overall design of your electronic system.

Notes
