Type de produit	Support de projecteur
Marque	Chief
Modèle	CPA380
Dimensions (L x l x h)	30 x 20 x 10 cm
Poids	2,5 kg
Matériau	Acier
Alimentation	Aucune (passif)
Fonctions principales	Inclinaison, rotation, mise à niveau
Capacité de charge maximale	15 kg
Compatibilité	Projecteurs jusqu'à 30 cm de large
Fixation	Au plafond ou au mur
Réglages	Inclinaison +/- 15°, rotation 360°
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec
Sécurité	Vérifier régulièrement les fixations
Pièces détachées et réparabilité	Disponibles sur demande
Garantie	2 ans
Informations générales	Notice d'utilisation incluse

FOIRE AUX QUESTIONS - CPA380 Chief

Comment installer le support CPA380 ?

L'installation nécessite de fixer la plaque murale ou au plafond à l'aide de vis adaptées (non fournies). Reportez-vous au schéma de la notice pour les distances de perçage. Utilisez un niveau à bulle pour garantir l'horizontalité.

Quel est le poids maximal supporté par le CPA380 ?

Le support peut supporter jusqu'à 15 kg. Vérifiez que votre projecteur ne dépasse pas cette limite.

Le CPA380 est-il compatible avec tous les projecteurs ?

Il est compatible avec la plupart des projecteurs standards, à condition que la distance entre les points de fixation soit comprise dans la plage de réglage (généralement de 10 à 30 cm). Consultez la notice pour les dimensions exactes.

Comment régler l'inclinaison et la rotation ?

Desserrez les vis de blocage, ajustez l'angle souhaité (inclinaison jusqu'à +/-15°, rotation 360°), puis resserrez fermement les vis. Utilisez un niveau pour vérifier l'horizontalité.

Quels outils sont nécessaires pour l'installation ?

Vous aurez besoin d'une perceuse, d'un niveau à bulle, d'un tournevis cruciforme et d'une clé Allen (souvent fournie avec le support). Les vis et chevilles pour le mur/plafond ne sont pas incluses.

Puis-je installer le CPA380 au plafond ?

Oui, il est conçu pour une fixation au plafond ou au mur. Assurez-vous que le plafond peut supporter le poids du projecteur et du support. Utilisez des ancrages adaptés au matériau.

Comment nettoyer le support ?

Utilisez un chiffon doux et sec pour dépoussiérer. Évitez les produits chimiques agressifs qui pourraient endommager la peinture.

Que faire si le support est endommagé ?

Contactez le service après-vente de Chief pour commander des pièces détachées ou une pièce de rechange. N'utilisez pas un support endommagé, car cela pourrait endommager votre projecteur.

Le CPA380 est-il livré avec des câbles ?

Non, le support ne contient pas de câbles. Il permet simplement de fixer et d'orienter le projecteur. Les câbles vidéo et alimentation sont ceux de votre projecteur.

Comment obtenir une copie de la notice ?

Vous pouvez télécharger la notice au format PDF sur notre site notice-facile.com. Une version traduite peut être demandée via le formulaire de la page.

MODE D'EMPLOI CPA380 Chief

INSTALLATION INSTRUCTIONS

Truss Ceiling Adapter Accessory

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located within the mounting system of the CPA380 does not exceed 250 lbs (113.4 kg).

- The weight capacity of the CPA380 may be LIMITED to the lowest weight capacity of any other component or accessory used within the mounting system.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: The CPA380 accessory is to be used vertically ONLY! Do NOT install accessory to pipe or truss horizontally.

WARNING: Do not use this accessory outdoors.

NOTE: Accessory is intended to be used with the UL Listed CPA Extension Column Series (not included).

IMPORTANT ! : The CPA380 accessory is designed for installation to a steel supporting truss or pipe with an outside diameter between 1.75" (44.45mm) and 2.0" (50.8mm).

IMPORTANT ! : The CPA380 accessory is intended to be used with the UL listed CPA Pipe Series.

--SAVE THESE INSTRUCTIONS--

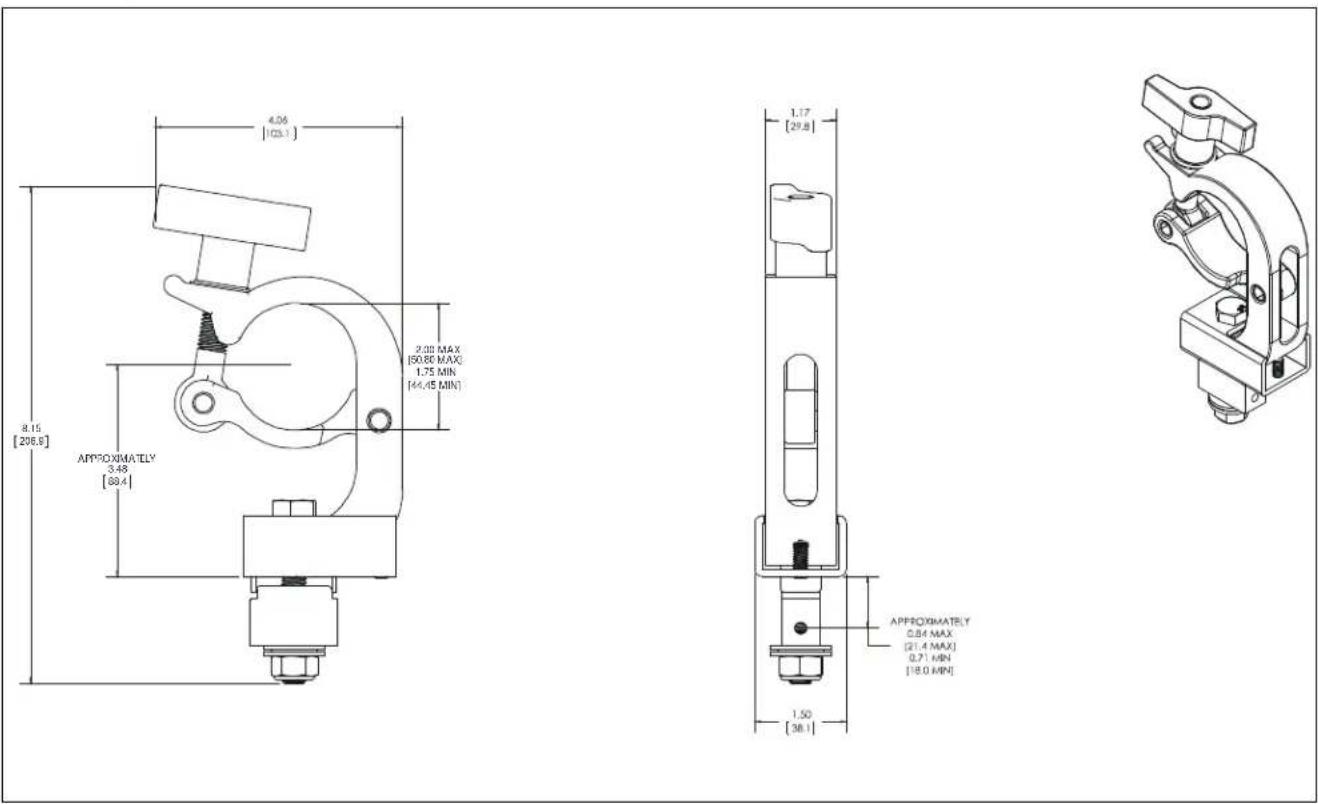

DIMENSIONS

LEGEND

	Tighten Fastener		Pencil Mark
	Apretar elemento de fijación		Marcar con lápiz
	Befestigungsteil festziehen		Stiftmarkierung
	Apertar fixador		Marcar com lápis
	Serrare il fissaggio		Segno a matita
	Bevestiging vastdraaien		Potloodmerkteken
	Serrez les fixations		Marquage au crayon
	Loosen Fastener		Drill Hole
	Aflojar elemento de fijación		Perforar
	Befestigungsteil lösen		Bohrloch
	Desapertar fixador		Fazer furo
	Allentare il fissaggio		Praticare un foro
	Bevestiging losdraaien		Gat boren
	Desserrez les fixations		Percez un trou
	Phillips Screwdriver		Adjust
	Destornillador Phillips		Ajustar
	Kreuzschlitzschraubendreher		Einstellen
	Chave de fendas Phillips		Ajustar
	Cacciavite a stella		Regolare
	Kruiskopschroevendraaier		Afstellen
	Tournevis à pointe cruciforme		Ajuster
	Open-Ended Wrench		Remove
	Llave de boca		Quitar
	Gabelschlüssel		Entfernen
	Chave de bocas		Remover
	Chiave a punte aperte		Rimuovere
	Steeksleutel		Verwijderen
	Clé à fourche		Retirez
	By Hand		Optional
	A mano		Opcional
	Von Hand		Optional
	Com a mão		Opcional
	A mano		Opzionale
	Met de hand		Optie
	À la main		En option
	Hex-Head Wrench		Security Wrench
	Llave de cabeza hexagonal		Llave de seguridad
	Sechskantschlüssel		Sicherheitsschlüssel
	Chave de cabeça sextavada		Chave de segurança
	Chiave esagonale		Chiave di sicurezza
	Zeskantsleutel		Veiligheidssleutel
	Clé à tête hexagonale		Clé de sécurité

TOOLS REQUIRED FOR INSTALLATION

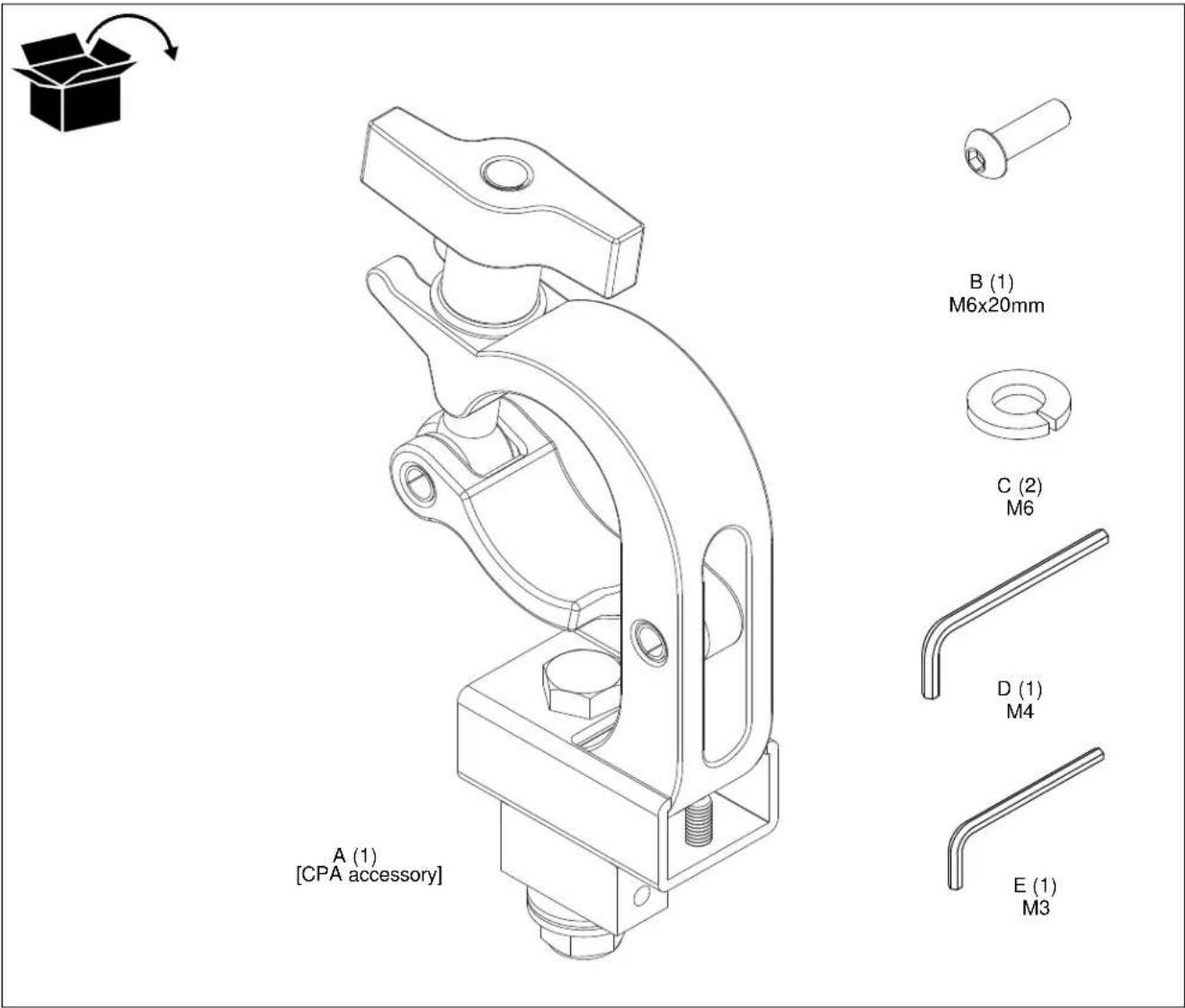

PARTS

Assembly And Installation

Display Enclosure Assembly

1. Turn knob counter-clockwise until the knob and retaining washer can be removed from the upper bar on the clamp. (See Figure 1)
2. Open the clamp so that it can be installed around a pipe or truss. (See Figure 1)

Figure 1

1. Wrap opened clamp around pipe or truss at desired mounting location. (See Figure 2)

Figure 2

1. Pull lower part of clamp up to its original position. (See Figure 3)
2. Tighten knob until clamp is securely installed to pipe or truss. (See Figure 3)

Figure 3

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components located within the mounting system of the CPA380 does not exceed 250 lbs (113.4 kg).

• The weight capacity of the CPA380 may be LIMITED to the lowest weight capacity of any other component or accessory used within the mounting system

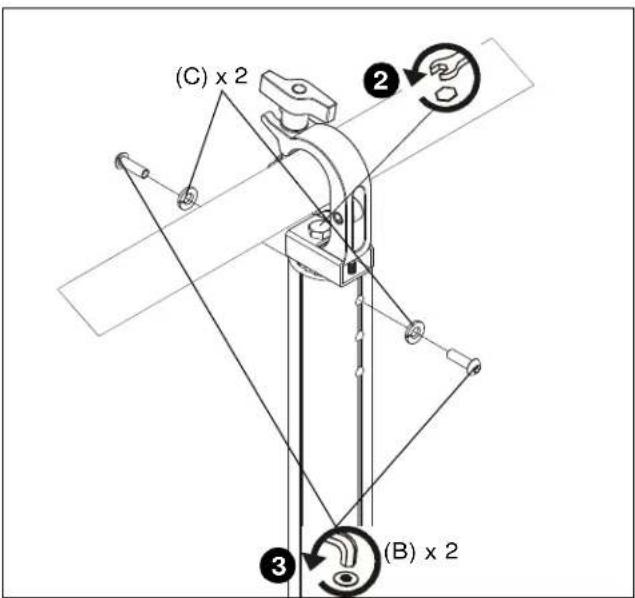

1. Making sure holes on extension column (not included) and CPA380 (A) are aligned, install column onto bottom of CPA380. (See Figure 4)
2. Use M4 hex key (D), two M6x16 button head screws (B) and two M4 lock washers (C) to secure CPA380 to CPA extension column. (See Figure 4)

Figure 4

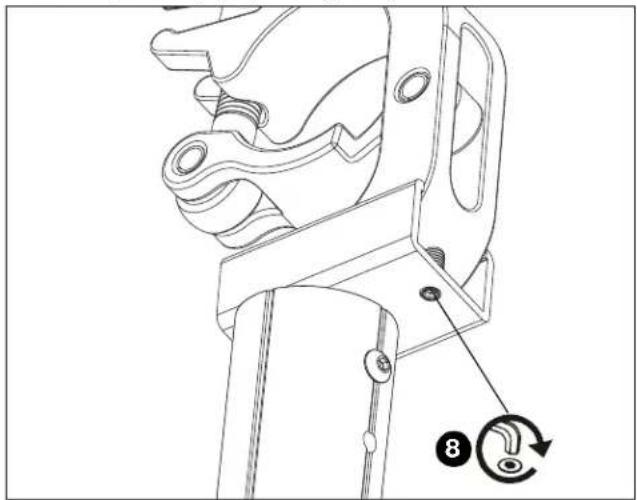

1. Use M3 hex key (E) to tighten set screw until screw engages with back of clamp. (See Figure 5)

Figure 5

1. Tighten hex head bolt holding pin connector to clamp using 17mm wrench. (See Figure 4)

Pipe Removal

Follow these steps to remove a pipe installed to the CPA380.

1. Use M3 hex key (E) to loosen set screw until screw is disengaged with back of clamp. (See Figure 6)

Figure 6

1. Loosen hex head bolt holding pin connector to clamp using 17mm wrench. (See Figure 7)
2. Remove two screws (B) and two lock washers (C) from pipe using M4 hex key (D). (See Figure 7)

Figure 7
