MODE D'EMPLOI P 76 EYB Arçelik
Hood
User manual
P 76 EYB
P 76 EYKV
EN
185.7303.73/03.10.2016
Please read this user manual first!
Dear Customer,
Thank you for purchasing this Arçelik product. We hope that you get the best results from your product which has been manufactured with high quality and state-of-the-art technology. Therefore, please read this entire user manual and all other accompanying documents carefully before using the product and keep it as a reference for future use. If you handover the product to someone else, give the user manual as well. Follow all warnings and information in the user manual.
Remember that this user manual is also applicable for several other models. Differences between models will be identified in the manual.
Explanation of symbols
Throughout this user manual the following symbols are used:
Important information or useful hints about usage.
Warning of hazardous situations with regard to life and property.
Warning of electric shock.
Warning of risk of fire.
Warning of hot surfaces.
1 Important instructions and warnings for safety and environment 4
General safety 4
Electrical safety 4
Product safety 5
Intended use 6
Children's safety....7
Compliance with AEEE regulation and disposal of waste products ....7
Package information 7
2 General information 8
Overview....8
Scope of delivery 9
Technical specifications 9
3 Installation 10
Installation....10
Future transportation....13
4 Operating the hood 14
5 Maintenance and care 16
General information.... 16
Replacing the lamp 17
6 Troubleshooting 18
7 Tüketici Hizmetleri 19
1 Important instructions and warnings for safety and environment
This section contains safety instructions that will help protect from risk of personal injury or property damage.
Failure to follow these instructions shall void any warranty.
General safety
- Risk of Toxicating! While the appliance is operating, air in the entire house is sucked. If adequate ventilation is not provided, waste and toxic gasses which are released as a result of burning will be drawn back into the house through chimney draught. Do not operate the appliance together with sources that may emit toxic gasses and create air draught (wood, gas, oil, and coal stoves, water heaters, kettles, etc.).
- Always have the authorized persons check the adequacy of ventilation and chimney draught in your building.
- The appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervised or instruction concerning use of the appliance by a responsible person for their safely.
Young children should be supervised to ensure that they do not
play with the appliance. Cleaning and user maintenance procedures should not be performed by the children unless they are under supervision.
- Always have the installation and repair procedures performed by Authorised Service Agent. Manufacturer shall not be held responsible for damages arising from procedures carried out by unauthorised persons.
- Do not operate the appliance if it is defective or has any visible damage.
• Make sure that the appliance is switched off after every use. - If the product is handed over to someone else for personal use or second-hand use purposes, the user manual, product labels and other relevant documents and parts should be also given.
- Call Authorised Service Agent for the installation of the appliance. Warranty period will start after this procedure.
Electrical safety
- To get your product ready for use, firstly you must have installation place and electric wiring prepared. Later, you may call Authorised Service nearest to you.
- If it has a failure, the product should not be operated without being repaired by the Authorised Service Agent. There is the risk of electric shock!
- Never connect the hood before installation is completed.
- Never touch the plug with wet hands! Do not unplug by pulling from the cable; always hold by the plug to unplug.
- Product must be disconnected from the mains during installation, maintenance, cleaning and repair procedures.
- When the power cable is damaged, have it replaced by the nearest service agent.
- Never connect power cable near to the hobs. If melted down, cable may lead to fire.
- Any work on electrical equipment and systems may only be carried out by authorised and qualified persons.
- In case of any damage, switch off the product and disconnect it from the mains. To do this, turn off the fuse at home.
• Make sure that fuse current is compatible with the product.
- Never wash down the product with water! There is the risk of electric shock!
Product safety
- The height between the lower surface of the hood and upper surface of the hob should not be less than 650 mm.
- Never touch the hood's lamp after they operated for a long time. Hot lamps may burn your hands.
- Never operate the product without oil filter. Never remove filters when the product is in use.
- Avoid big flames beneath the product. Otherwise, particles on oil filter may flame up and cause fire.
- Turn on the hobs after placing pans or pots on. Otherwise, rising temperature may deform certain parts of your product.
- Turn off the hobs before taking away pans or pots.
- Avoid inflammable materials under the hood.
- Do not expose the product to open flames beneath it. It can cause oils accumulated in the filter to catch fire. Do not operate the product without filter.
- Never leave the cooker unattended when frying foods, the oil may flame up and boiled oil may cause fire. Thus, be careful about cloths and curtains.
- If the hood is not periodically and properly cleaned, this may cause burning risk on your hood.
- For refreshing the kitchen's air from cooking smells and steams, please turn on your hood for 15 minutes more after cooking or frying has ended.
- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels. (Not applicable to appliances that only discharge the air back into the room)
- In the environment where the hood is being used, the exhaust of fuel oil or gas devices such as room heater must be absolutely insulated or device must be her-metical type.
- If there is a fuel oil or gas device in the environment, the room must be ventilated sufficiently.
- When a non-electrically operated device is concurrently used in the environment together with the hood, the negative pressure in the room must be maximum 0.4 mbar to avoid the hood's returning other device's exhaust into the room.
- Never connect the hood to the chimneys used for heaters, waste gas or with rising flames. Observe authorities' regulations on the draining of output air.
- When connecting to the chimney, use 120-mm diameter pipes.
Pipe connection must be as short as possible with fewer bends.
- Do not hang easily flammable and combustible materials on hood handles.
- Our company shall never be responsible for the problems arising from the use against the warnings above.
- There is a risk of fire if cleaning is not carried out in accordance with the instructions.
- Do not flambé under the range hood.
- Caution: Accessible parts may become hot when used with a cooking appliance.
- You are recommended to clean your filter once a month in normal use.
Intended use
This product is designed for domestic use. Commercial use is not admissible.
The manufacturer shall not be liable for any damage caused by improper use or handling.
Service life of your product is 10 years. Manufacturer shall provide the required spare parts for the product to perform as defined during this period.
Children's safety
- Keep children away from the product when it is operating and do not allow them to play with the product.
- Packaging materials are dangerous to children. Keep the packaging materials in a place where children cannot reach and sort and discard them in accordance with the waste disposal directives.
- Electrical products are dangerous to children. Keep children away from the product when it is operating and do not allow them to play with the product.
Compliance with AEEE regulation and disposal of waste products
- This product does not contain harmful and forbidden materials described in the "Directive on the Restriction of the Use of Certain Hazardous Substances in Waste Electrical and Electronic Equipment" (AEEE) issued by the T.R. Ministry of Environment and Urbanization. Complies with the AEEE Directive.
- This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose the product with normal domestic waste at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. Please consult your local authorities to learn the nearest collection point. Help protect the environment and natural resources by recycling used products. Before disposing of the product, cut off the power cable plug and make the door lock (if any) unusable to avoid dangerous conditions to children.
Package information
- Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.
2 General information
Overview
1 Hood body
2 Control panel
3 Aluminum filter lock
4 Aluminum filter
5 Lamp
Scope of delivery
Accessories supplied can vary depending on the appliance model. Not every accessory described in the user manual may exist on your appliance.
- User manual
- Wall connector
- Valves to prevent reverse air flow
- Distance ring
Technical specifications
| External dimensions (height/width/depth) | min. 730 mm max. 960 mm/598 mm/490 mm |
| Voltage/frequency | 220-240 V; 50 Hz |
| Control | 3 level + 1 Booster |
| Suction power | 730 m3/h |
| Total power consumption | max. 300 W |
| Fuse | min. 10 A |
| Air outlet pipe diameter | 120-150 mm |
Technical specifications may be changed without prior notice to improve the quality of the product.
Figures in this manual are schematic and may not exactly match the product.
Values stated on the markings of the product or in other printed documents supplied with the product are obtained under laboratory conditions as per relevant standards. Depending on operational and environmental conditions of the product, these values may vary.
3 Installation
Refer to the nearest Authorised Service Agent for installation of the product. Make sure that the electric installations are in place before calling the Authorised Service Agent to have the product ready for operation. If not, call a qualified electrician and fitter to have the required arrangements made.
Preparation of location and electrical installation for the product is under customer's responsibility.
DANGER:
The product must be installed in accordance with all local electrical regulations.
DANGER:
Prior to installation, visually check if the product has any defects on it. If so, do not have it installed. Damaged products cause risks for your safety.
DANGER:
Warning: Failure to install the screws or fixing device in accordance with the instructions may result in electrical hazards.
Installation
min.
The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 65cm.
The exhaust air must not be discharged into a flue which is used for exhausting fumes from other appliances burning gas or other fuels. (Not applicable for appliances which only discharge air back into the room) Regulations concerning the discharge of air have to be fulfilled.
Electrical connection
Manufactured with 2-track power cable, this device must be connected to the mains by an electrical switch with at least 3mm clearance between bipolar contact leads. Have a qualified electrician to install electric wiring.
• Install your product to ensure easy access to electricity connection (plug, wall outlet) after installation.
Installing the hood
Dimensions are given in mm.
Information required for the preparation of the installation place for your hood is given below.
Hood should be placed as aligned by the central axis of the cooking appliance. Cooking appliance and the hood's oil filters should be at least 650mm away from each other. Perform the following steps for the installation of the hood.
- Centering the cooking appliance, draw an axis line on the wall up to 925 mm height. Then, taking this axis line as reference, drill 7 holes with 8 mm diameter according to the above measurement.
- Insert the plastic plugs which are given with the packaging into these holes. Check whether the holes of the flue connection parts correspond to these holes or not.
- As shown in Figure 2, fix connectors (C) to the holes X1 and X2 via two fixing screws supplied with the accessories. Screw distance ring (D) on the Y hole as small-diameter side facing the wall.

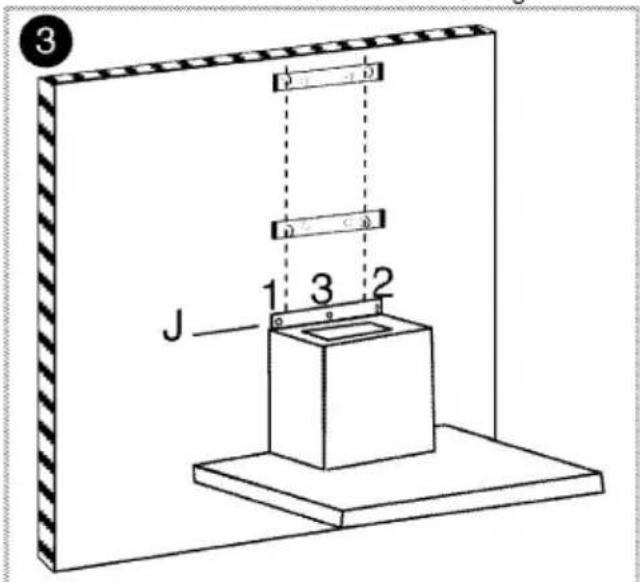

- Install the hood from the key hole on back plate onto the distance ring and pull downward to make sure that it is secured. Then, screw the body onto the wall from the holes J1 and J2 on the upper back of the body. To avoid the hood falling down accidentally for any reason, screw it also from the hole J3 shown in Figure 3.

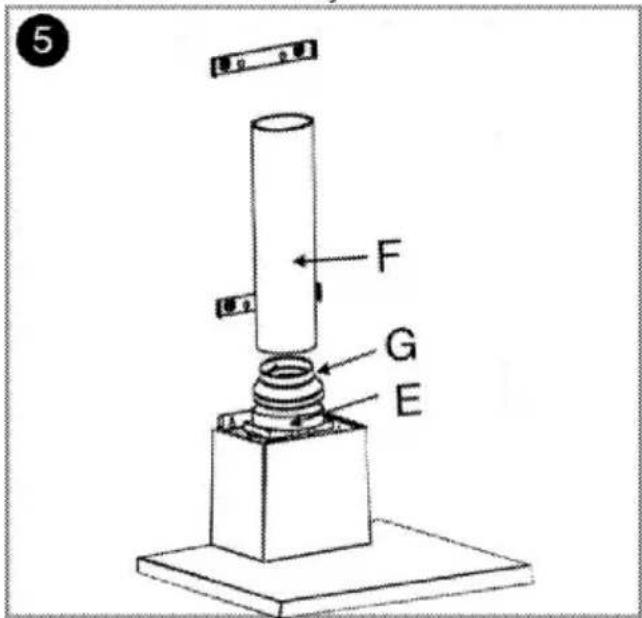

- As shown in Figure 4, place chimney outlet flange (E) to the rectangular outlet on the upper part of the hood; and screw the flange onto the body using 2.9-mm traced screws supplied with accessories.
6. For chimney connection usage:
In chimney-connected position, absorbed air will go through oil filters to the outlet and then will reach to the chimney though connection pipes and finally thrown out from the chimney.
When using this connection position, 150mm to 120 mm E connector should be installed on chimney outlet flange as shown in Figure 5.
Chimney connection pipes must be made of fireproof plastic material. When using flexible connection type, it should be considered that sharp corners and sudden contractions will have a negative impact on air suction. Flue connection should in no way be made to any flue to which another device was already connected for another purpose.
Connection pipe should not be bigger than 120 mm; on the contrary, this application prevents proper chimney connection.
7. Internal circulation (Use with carbon filter)
Vacuumed air in the medium in the internal circulation position is delivered back to the medium from over the grills on the flue after it passes through the oil filters, the carbon filters where it is cleaned from odours, and the air deflector.

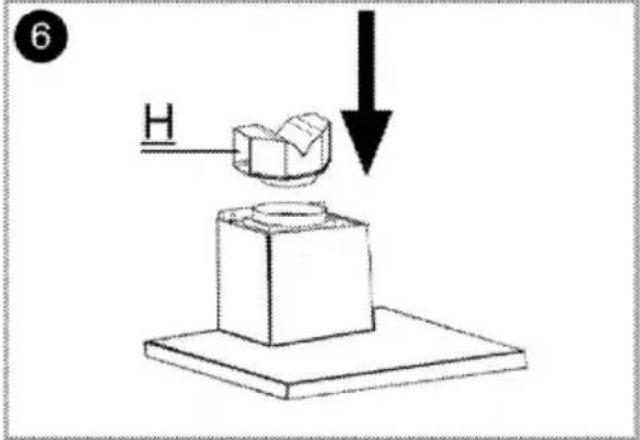

As shown in Figure 6, air directing component is installed on H point.
8. Flue installation
To install upper chimney A, secure the upper corners of the chimney on the connection (C) as shown below and screw it onto the connector with 2.9-mm screws.
Distance between the hole X1 and X2 is determined during the installation process depending on the usage length of the upper chimney.
You can use your hood in two ways:
1- Chimney-connected use
Vapors are discharged with the flue pipe secured on the connection ring on the hood. Diameter of the flue pipe should be equal to the diameter of connection ring. To allow the air easily going out of the room in horizontal arrangements, the pipe should be slightly tilted upwards (approximately 10°).
Carbon filter should be removed if it is installed in the hood.

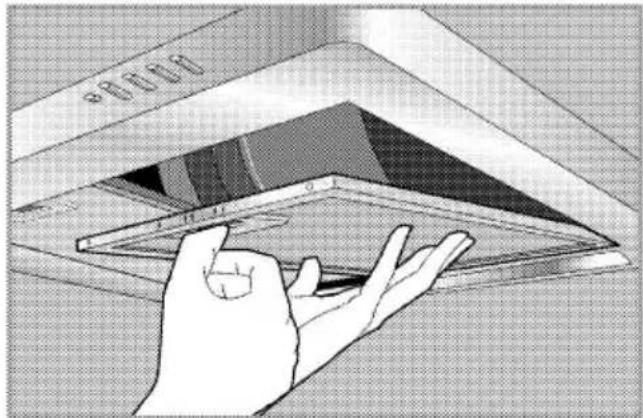

2- Use with no chimney connection
Air is filtered by the carbon filter and returned to the room. Carbon filter is used when there is no flue available in the house or when it is not possible to install the flue pipe.

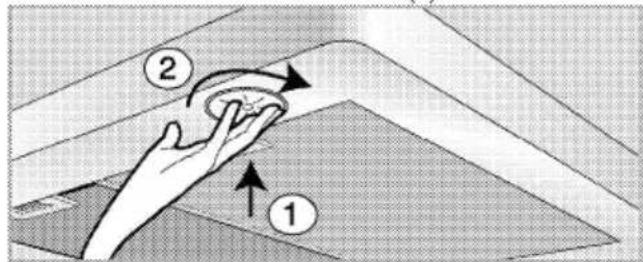

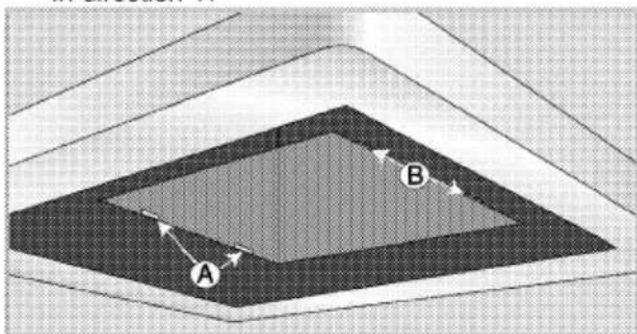

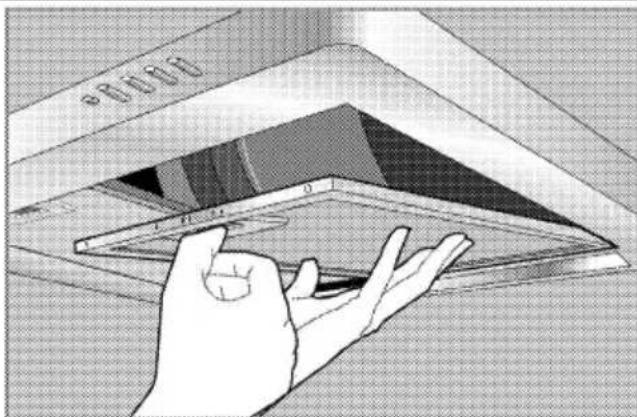

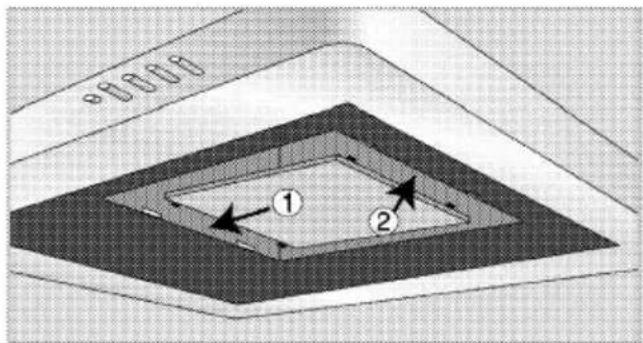

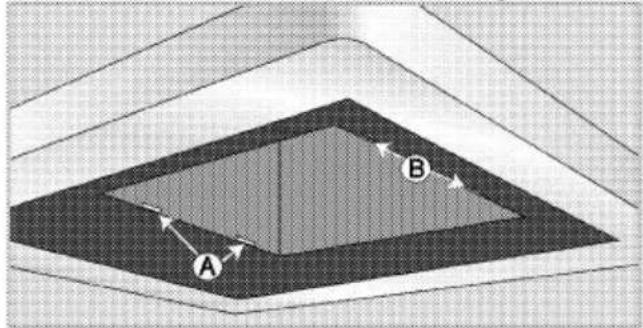

- Remove aluminum filters as shown below.
• Reinstall the aluminum filters.
Future transportation
- Keep the product's original carton and transport the product in it. Follow the instructions on the carton. If you do not have the original carton, pack the product in bubble wrap or thick cardboard and tape it securely.
Do not place any objects onto the product and move it in upright position.
Check the general appearance of your product for any damages that might have occurred during transportation.
4 Operating the hood
Hood is equipped with a motor with various speed settings.
For a better performance, we advise you to use low speeds in normal conditions, and high speeds when smell and vapors are intensified.

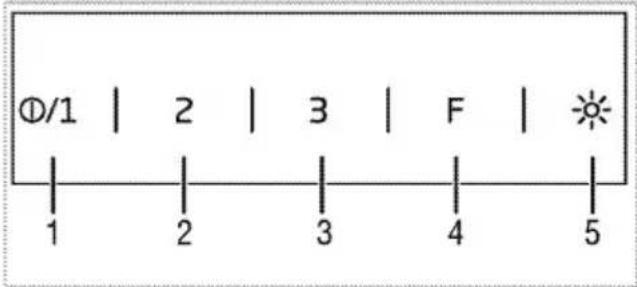

MODEL A
1 On/off key / Speed 1
2 Speed 2
3 Speed 3
4 Function key
5 Lamp key
MODEL B
1 On/off key / Speed 1
2 Speed 2
3 Speed 3 / Booster
4 Function key
5 Lamp key
Operating the hood
- Touch the on/off key to switch on the hood.
- Touch the Speed 2 and Speed 3 keys to change the speed level.
Do not touch both keys simultaneously. If touched, higher speed will be activated.
The appliance operates for 6 hours at the most when no key is touched while it is operating.
Level warning lamp level indicator
On/off (Speed 1): 1st level LED light is turned on
Speed 2: 2nd level LED light is turned on
Speed 3: 3rd level LED light is turned on
Booster: (3rd level LED light flashes continuously at 0.5 second intervals)
Automatic power-off mode (for A and B)
- If you touch the function key while the product is operating at a certain level, auto off mode will be activated, speed key LED light and function key LED light will be turned on.
- Product will continue to work 20 minutes on set level and after shut on automatically.
Auto off mode is cancelled when any level key other than the lamp key is touched.
Activating intense ventilation mode (Booster) (for model B)
Touch the Speed 3 key for more than two seconds. Intense ventilation mode will be activated and it will be active for maximum 7 minutes.
After 7 minutes, it will continue to operate in Speed 3 position.
In the intense ventilation mode, the 3rd level LED light flashes continuously at 0.5 second intervals.
During intense ventilation, if any of the speed keys are touched, then the operation will continue at that speed level.
Turning off the hood
- Touch the off key while your hood is operating at a certain speed.
Turning the lamp on
- Touch the lamp key to turn on the lamp.
Turning off the lamp
- Touch the lamp key again to turn off the lamp.
The Off key does not turn off the lamp; it only stops the operation of the hood.
Air filter mode (for model B)
- Touch the function key while the appliance is not operating at any speed.
» Air filter mode will be activated and the function key LED light will flash at 3 second intervals. - Air filter mode will operate for 10 minutes at speed 1 level and then stops for 50 minutes within 1 hour. If the air filter mod will not turned off, it will continue to operate for 10 minutes and stops 50 minutes for each each hour during 24 hours.
You can utilize air filter mode to remove odor found in-house in long term using low speed.
Turning off the air filter mode (for model B)
- Turn off the air filtering mode by touching any speed key or touching the off key while the air filtering mode is active.
While the air filter mode is active, when you turn on and off the appliance at any speed level, the air filter mode will not be remembered.
While the air filter mode is active, the program will be cancelled if there is a blackout.
Filter full warning (for model B)
After every 100 hours operation, the LED lights on the screen will flash at 0.5 intervals. Clean your filter. Filter full warning will not reset automatically after cleaning.
Filter full warning can be reset by touching any function.
When the hood gave filter full warning, the warning will not be reset if there is a blackout.
5 Maintenance and care
General information
Service life of the product will extend and frequent problems will decrease if the product is cleaned at regular intervals.
DANGER:
Disconnect the product from mains supply before starting maintenance and cleaning works.
There is the risk of electric shock!
- Clean the product thoroughly after each use. In this way it will be possible to remove cooking residues more easily, thus avoiding these from burning the next time the appliance is used.
- No special cleaning agents are required for cleaning the product. Use warm water with washing liquid, a soft cloth or sponge to clean the product and wipe it with a dry cloth.
- Do not use cleaning agents that contain acid or chloride to clean the stainless or inox surfaces and the handle. Use a soft cloth with a liquid detergent (not abrasive) to wipe those parts clean, paying attention to sweep in one direction.
The surface might get damaged by some detergents or cleaning materials.
Do not use aggressive detergents, cleaning powders/creams or any sharp objects during cleaning.
Do not use steam cleaners for cleaning.
Aluminum filter
This filter captures oil particles in the air. You are recommended to clean your filter once a month in normal use. Please firstly remove aluminum filters for this process. Wash the filters in liquid-detergent water and install them after drying. Aluminum filters might change colour in time due to washing. This is normal and you don't need to replace the filter.
You can also wash aluminum filters in dish-washer.
Removing aluminum filters
- Push aluminum filter lock forward.
- Slightly lower the filter and pull forth. Otherwise, you may bend the filter.
- After washing, reverse the steps above to re-install the aluminum filter.
Carbon filter (Use without chimney)
Carbon filter should never be washed.
It should be replaced once every 4 months in normal use. You may obtain carbon filters from the Authorised Service.
Fitting the carbon filter
- Remove aluminum filters
- After the filters are removed, insert the side with flexible-short tips of the carbon filter which provided with the product, into the slot A of the hood in direction 1.
- Insert the long-hard tips found on the other side of the carbon filter into the slot B in direction 2.
- Ensure that both ends of the carbon filter are secured firmly.
Replacing the lamp
DANGER:
Before replacing the lamp, make sure that the product is disconnected from mains in order to avoid the risk of an electrical shock. If hot, let the lamp cool down. Hot surfaces may cause burns!
For the specifications of the lamp, see Technical specifications, page 9. Oven lamps can be obtained from Authorised Service Agents.
Position of lamp might vary from the figure.
The lamp used in this appliance is not suitable for household room illumination. The intended purpose of this lamp is to assist the user to see foodstuffs.
- Remove the lamp pressing it towards its seat in clockwise direction (1) and then remove turning it in counterclockwise direction (2).
- Insert the new lamp turning it in clockwise direction.
- A "click" will be heard when the lamp is secured in its place.
6 Troubleshooting
Product does not operate.
- The mains fuse is defective or has tripped. >>> Check fuses in the fuse box. If necessary, replace or reset them.
• Product is not plugged into the socket. >>> Check the plug connection.
• Speed button might not be set. >>> Press the required speed button. - Power is cut. >>> Check if there is power. Check the fuses in the fuse box. If necessary, replace or reset the fuses.
Hood light does not work.
- Hood lamp is defective. >>> Replace the hood lamp.
- Power is cut. >>> Check if there is power. Check the fuses in the fuse box. If necessary, replace or reset the fuses.
Consult the Authorised Service Agent or the dealer where you have purchased the product if you cannot remedy the trouble although you have implemented the instructions in this section. Never attempt to repair a defective product yourself.
Consumer Services
Dear Valued Customer,
Arçelik Call Center provides services 24 hours, 7 days a week.
You can dial our call centre number without adding an area code from your mobile or fixed phones and ask for any service related with your product.
The calls you made to our call centre may be charged by your service provider based on your defined tariff.
You can also access our call centre by completing the form in "Consumer Services" section on the www.arcelik.com.tr website or by sending a fax to 0216 423 23 53.
For correspondence, our address is: Arçelik Çağrı Merkezi, Arçelik A.Ş. Ankara Asfaltı Yanı, 34950 Tuzla/İSTANBUL
Arçelik Call Centre 444 0 888
(Call the number without dialing the area code from your fixed or mobile phones)
Alternative Number 0216 585 8 888
Please follow the recommendations below.
1 When you purchase the product, have its Warranty Certificate approved by your Authorised Dealer.
2 Follow the instructions in user manual when using your product.
3 Please contact our Call Centre from the phone numbers above to submit your service request.
4 Please ask the service technician to present his/her "technician ID".
5 Do not forget to ask a "Service Receipt" from the technician when your job is completed. The "Service Receipt" you receive will be useful in case of any future problems related to your product.
6 Service life of the product is 10 years. (The manufacturer will provide spare parts during this period to ensure the product's operation)
Customer Satisfaction Policy
As Arçelik A.Ş., we adopt a customer oriented approach accepting the fact of providing superior customer experience without making any client profile discrimination by enabling the transmission of customer requests and suggestions for our brand that we provide service through all channels (call centre, e-mail, www.arcelik.com.tr, facsimile, letter, social media, resellers), collecting these in a single traceable, reportable, transparent and reliable information repository, handling and evaluating these in an objective, fair and confidential way as per the legal regulations, and continuously checking and improving the processes. In line with our approach, all processes are integrated with the management system, a self-checking structure has been developed and also the management targets are fed through this system.
Evaluating the service request
Usage Errors and Points to Take Into Consideration Regarding the Warranty
The issues specified below are remedied for a certain fee. The terms of warranty are not applied to these situations;
1) Damages and failures resulting from usage errors,
2) Damages and failures emerged during loading, unloading, transportation etc. after the product has been delivered to the customer;
3) Damages and failures resulting from the electricity, water, natural gas, telephone mains and/or network etc. or infrastructure where the product is being used.
4) Damages and failures resulting from nature events, fire, floods etc.,
5) Damages and failures resulting from using the product contrary to the points specified in the introduction and user manuals of the product,
6) Damages and failures resulting from using the product with commercial or professional purposes as specified in the Law No. 6502 on Consumer Protection.
The granted warranty will become void in the case that the product is maintained, repaired or interfered with any other purpose by unauthorised persons.
The warranty period of the product replaced within this period is limited to the remaining time of the previous product.
Manufactured by Arçelik A.Ş. Origin: Turkey
CERTIFICATE OF WARRANTY
CERTIFICATE OF WARRANTY
1) The warranty period shall commence upon the delivery of the product and is specified as 2 years.
2) Starting from the delivery date, this warranty shall cover the whole product including all the parts incorporated for material, workmanship and manufacturing errors during the period specified above on the condition that the product has been used in accordance with the introductory and user manuals and has not been interfered for maintenance, repair or another purpose by persons other than those authorised by Arçelik A.Ş.
3) If the product is defective, in compliance with the clauses laid down in the Article 11 of the Law no. 6502 on Consumer Protection; the consumer shall become entitled to use one of the rights listed below;
a- To cancel the contract,
b- To claim a deduction on the sale price,
c- To claim a free of charge repair,
d-To claim product replacement with a free of defects equivalent.
4) If the consumer prefers his/her right to get a free of charge repair; the seller shall be liable for repairing the product or have it repaired without charging any fees under the name of labour cost, replaced part cost or any other reason. Also, the consumer shall be able to use his/her right to get a free of charge repair against the manufacturer or the importer. The seller, the manufacturer and the importer shall be severally liable for the customer to use this right.
5) In the case that the consumer uses his/her right to get a free of charge repair, if;
- The product breaks down again within the warranty period,
- If the maximum duration required for repair is exceeded,
If the authorised service centre, the seller, the manufacturer or the importer designates the product as irreparable; the consumer shall be entitled to claim refund, deduction on the price in the ratio of the defect or a replacement with a free of defect equivalent, if present, from the seller. The seller shall not have the right to reject the consumer's claim. The seller, the manufacturer and the importer shall be severally liable in the event that this claim has been rejected.
6) The maximum repair duration for the product cannot exceed 20 workdays during its service life specified in the relevant legislation. This period shall commence; on the date of submitting the failure of product to the authorised service centre or to the seller within the warranty period, or on the date of delivery of the product to the authorised service station out of the warranty period. If the product under warranty cannot be repaired within 10 workdays, the manufacturer or the importer shall; be obliged to assign another product with similar specifications to the consumer's use until the defective product is repaired. If the consumer does not demand another product with similar specifications, the manufacturer or the importers shall be released from this obligation. If the product breaks down within the warranty period, the down time shall be added to the warranty period.
7) Damages and failures resulting from using the product contrastively with the rules specified in the user manual are not covered by the warranty.
8) The consumer shall be able to go to the Consumer Arbitration Court or the Consumer Court found in the area where the place of residence is included or where the consumer processes are carried out in the case of disputes regarding the rights that come with the warranty.
9) If this certificate is not provided by he seller, the consumer shall have the right to refer to the Ministry of Customs and Trade Consumer Protection and the General Directorate of Market Surveillance.
Manufacturer's or Importer's:
| Title: | Arçelik A.Ş. | Brand: | |
| Address: | Arçelik A.Ş. Karaağaç Caddesi No:2-6, 34445,Süthüce / İSTANBUL | Type: | Hood |
| Model: | |||
| Phone: | (0-216) 585 8 888 | Banderole and Serial No: | |
| Fax: | (0-216) 423 23 53 | Warranty Period: | 2 YEAR |
| web adress: | www.altus.com.tr | Maximum Repair Duration: | 20 Workdays |
GENERAL MANAGER
Arcelik A.S.
DEPUTY GENERAL MANAGER
The Seller's:
| Title: | Date and Number of Invoice: |
| Address: | Date and Place of Delivery: |
| Phone: | Authorised Signature: |
| Fax : | Company Seal: |
e-mail:
The Authorised Seller who sold you the product shall sign and stamp this field.
- Hood
- User manual
- Please read this user manual first!
- Explanation of symbols
- Important instructions and warnings for safety and environment 4
- General information 8
- Installation 10
- Operating the hood 14
- Maintenance and care 16
- Troubleshooting 18
- Tüketici Hizmetleri 19
- Important instructions and warnings for safety and environment
- General safety
- Electrical safety
- Product safety
- Intended use
- Children's safety
- Compliance with AEEE regulation and disposal of waste products
- Package information
- General information
- Scope of delivery
- Installation
- DANGER:
- Electrical connection
- Installing the hood
- For chimney connection usage:
- Internal circulation (Use with carbon filter)
- Flue installation
- You can use your hood in two ways:
- 1- Chimney-connected use
- 2- Use with no chimney connection
- Future transportation
- Operating the hood
- Operating the hood
- Level warning lamp level indicator
- Automatic power-off mode (for A and B)
- Activating intense ventilation mode (Booster) (for model B)
- Turning off the hood
- Turning the lamp on
- Turning off the lamp
- Air filter mode (for model B)
- Turning off the air filter mode (for model B)
- Filter full warning (for model B)
- Maintenance and care
- General information
- Aluminum filter
- Removing aluminum filters
- Carbon filter (Use without chimney)
- Fitting the carbon filter
- Replacing the lamp
- Troubleshooting
- Product does not operate.
- Hood light does not work.
- Consumer Services
- Dear Valued Customer,
- Arçelik Call Centre 444 0 888
- Alternative Number 0216 585 8 888
- Please follow the recommendations below.
- Customer Satisfaction Policy
- Usage Errors and Points to Take Into Consideration Regarding the Warranty
- CERTIFICATE OF WARRANTY
Marque : Arçelik
Modèle : P 76 EYB
Catégorie : Hotte
