BKO 9790 - Four BLOMBERG - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Four encastrable électrique
Dimensions de l'appareil (L x H x P)	59,5 x 59,5 x 54,8 cm
Poids net	32 kg
Alimentation électrique	220-240 V, 50 Hz, 16 A
Capacité intérieure	72 litres
Types de cuisson	Chaleur tournante, convection naturelle, grill, chaleur sole/voûte, décongélation
Nettoyage	Pyrolyse automatique
Fonctions de sécurité	Verrouillage enfant, arrêt automatique, porte froide
Éclairage intérieur	Lampe halogène
Panneau de commande	Affichage numérique tactile
Programmes automatiques	10 programmes prédéfinis
Sonde de température	Sonde à viande incluse
Classe énergétique	A+
Consommation annuelle (kWh)	0,85 kWh (cuisson classique), 0,60 kWh (chaleur tournante)
Réparabilité	Indice de réparabilité 8,5/10
Pièces détachées	Disponibles auprès de SAV Blomberg pendant 10 ans

FOIRE AUX QUESTIONS - BKO 9790 BLOMBERG

Comment installer mon four Blomberg BKO 9790 ?

L'installation doit être réalisée par un professionnel qualifié. Assurez-vous que l'emplacement dispose d'une arrivée électrique 220-240V et que les dimensions du meuble correspondent à celles de l'appareil (59,5 x 59,5 x 54,8 cm). Suivez le schéma de branchement fourni dans la notice.

Comment utiliser le programme de pyrolyse pour le nettoyage ?

Videz le four de tous les accessoires. Sélectionnez le mode Pyrolyse sur le panneau, réglez la durée (généralement 2 à 3 heures) et confirmez. Le four chauffe à haute température pour brûler les résidus. Une fois terminé, laissez refroidir et essuyez les cendres avec un chiffon humide.

Que faire si le four ne chauffe pas ?

Vérifiez d'abord l'alimentation : fusible, disjoncteur, prise. Si le problème persiste, le thermostat ou la résistance peuvent être défectueux. Contactez le service après-vente Blomberg pour un diagnostic. Ne tentez pas de réparation vous-même.

Comment régler l'horloge du four ?

Appuyez sur la touche Horloge jusqu'à ce que l'heure clignote. Utilisez les flèches + ou - pour ajuster les heures puis les minutes. Confirmez en appuyant à nouveau sur la touche Horloge.

Puis-je utiliser du papier aluminium dans le four ?

Oui, mais évitez de couvrir totalement la grille ou de toucher les parois. Placez le côté mat en contact avec les aliments. N'utilisez pas d'aluminium lors du mode pyrolyse car cela peut endommager l'appareil.

Comment déverrouiller le clavier enfant ?

Maintenez la touche Verrouillage (souvent représentée par une icône de cadenas) enfoncée pendant 3 secondes jusqu'à ce que le symbole disparaisse. Certains modèles nécessitent une combinaison de touches.

Quels accessoires sont fournis avec le four ?

Le four est livré avec une grille, une lèchefrite, un tournebroche (selon modèle) et une sonde de température à viande. Consultez la liste complète dans la notice.

Comment remplacer l'ampoule du four ?

Débranchez l'appareil. Retirez le capot en verre de l'ampoule en tournant ou en tirant (selon modèle). Remplacez l'ampoule par une ampoule halogène de mêmes spécifications (G9, 40W max). Revissez le capot. Ne touchez pas l'ampoule à mains nues.

Que signifie le code d'erreur E5 sur l'afficheur ?

Le code E5 indique généralement un problème de sonde de température. Éteignez le four et rallumez-le après quelques minutes. Si le code persiste, contactez le SAV. Évitez d'utiliser le four tant que le problème n'est pas résolu.

Où trouver la notice d'utilisation complète ?

La notice originale est disponible en téléchargement gratuit au format PDF sur le site notice-facile.com ou sur le site officiel Blomberg. Vous pouvez également demander une version imprimée auprès du service client.

MODE D'EMPLOI BKO 9790 BLOMBERG

BUILT-IN OVEN

FOUR ENCASTRABLE

INTEGRIERTER OFEN

BKO 9790

Gebrauschsanleitung

Blomberg

Please read these instructions before installation or using your appliance!

Dear Customer,

By purchasing this product you have chosen an appliance of advanced technology and high quality.

The appliance was produced in modern facilities which meet all environmental standards.

The instructions will help you to operate the appliance quickly and safely.

• Upon delivery, please check that the appliance is not damaged. If you note any transport damage, please contact your point of sale immediately and do not connect and operate the appliance!
• Before you connect and start using the appliance, please read this manual and all enclosed documents. Please note in particular the safety instructions.
• Keep all documents so that you can refer to the information again later on. Please keep your receipt for any repairs which may be required under warranty.
• When you pass on the appliance to another person, please provide all documents with it.

1 GENERAL INFORMATION ......4

Overview ....4

Technical Data....5

Accessories supplied with the unit......6

2 SAFETY INSTRUCTIONS ...... 7

Explanation of safety instructions......7

Basic safety instructions....7

Safety for children....8

Safety when working with electricity .....8

Intended use 8

Disposal 8

Packaging material 8

Old equipment 9

Future transportation....9

3 INSTALLATION....10

Before installation....10

Installation and connection....11

4 PREPARATION ....14

Tips for saving energy......14

Initial operation....14

Setting the time....14

First cleaning of the appliance......15

Initial heating....15

5 HOW TO OPERATE THE OVEN 16

General information on baking, roasting and grilling....16

How to use the electric oven....16

Operating modes....18

How to operate the oven control unit .....21

How to use the program lock ....22

Cooking times table....23

How to operate the grill ....25

Cooking times table for grilling....25

How to use the alarm clock....26

6 MAINTENANCE AND CARE.....27

General information 27

Cleaning the control panel....27

Cleaning the oven 27

Removal of oven door 28

Taking off the door inner glass ......29

Replacing the oven lamp 30

7 TROUBLESHOOTING......31

Overview

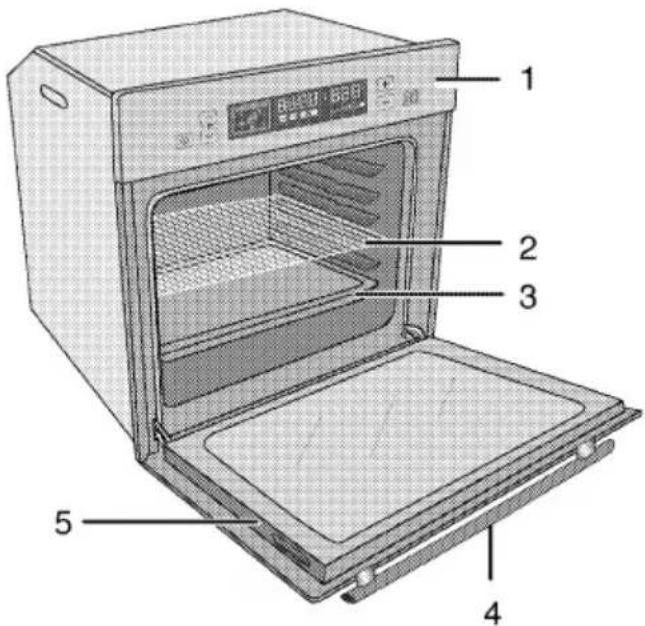

1 Control panel
2 Wire shelf
3 Tray
4 Handle
5 Door

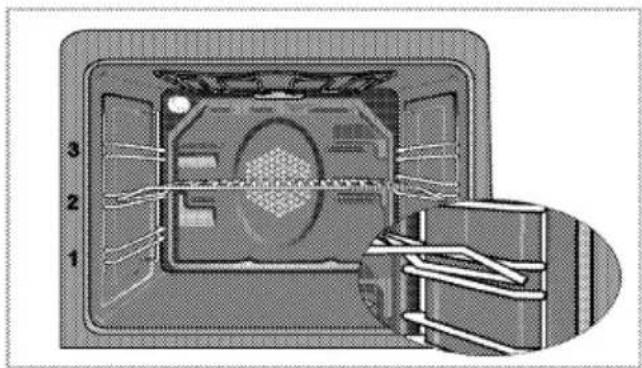

6 Shelf positions
7 Top heating element
8 Lamp
9 Fan motor (behind steel plate)

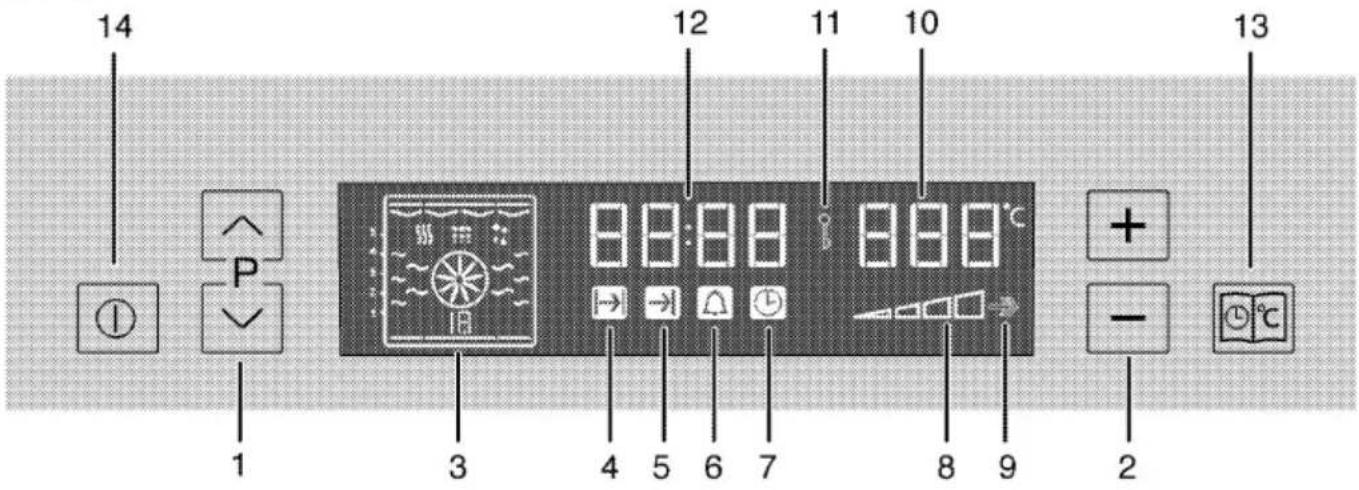

1 ON/OFF key
2 Program selection key

3 Temperature-time increase/decrease key
4 Menu key

Technical Data

Voltage/frequency	220-240 V ~ 50 Hz
Total electric consumption	2.9kW
Fuse protection	min. 16 A
Cable type / cross section	H05VV-FG3 x 1,5 mm ^2
Cable length	max. 2 m
Outer dimensions (height/width/depth)	455 mm/594 mm/567 mm
Installation dimensions (height/width/depth)	**450 or 460 mm/560 mm/min. 550 mm
Main oven	Multifunction oven
Energy efficiency class#	A
Inside illumination	15/25 W
Grill power consumption	2.2 kW

# Basis: In electrical ovens, the data on energy labels are in conformity with EN 50304.

Values were determined under standard load and convection/hot air (if available).

Heating mode with an energy efficiency rating specified by EN 50304 is determined in accordance with below priority order depending on functions (modes) availability on the product. 1- Eco fan heating, 2-Slow cooking, 3-Fan heating (hot air), 4-Top and bottom heat with convection air, 5-Top and bottom heating.

** See INSTALLATION, page 10.

Accessories supplied with the unit

Important

Accessories supplied can vary depending on the product model. All the accessories described in the user manual may not exist on your product.

Baking tray

Can be used for pastries, frozen foods and big roasts.

Gray square baking tray with grid pattern (no text or symbols)

Deep roasting tray

Can be used for pastries, big roasts, foods with liquid content and during grilling as dripping pan.

Exterior view of a rectangular baking tray (no text or symbols)

Pastry tray

It is recommended for pastries such as cookies and biscuits.

Rectangular baking tray with a grid pattern (no text or symbols visible)

Small baking tray

Can be used for small portions. This baking tray is placed onto the wire shelf.

Exterior view of a rectangular metal tray with grid pattern (no text or symbols)

Wire shelf

Can be used for roasting and as deposit for baking, roasting and casserole dishes.

Pure geometric diagram of a parallelogram with diagonal hatching lines (no text or symbols)

Isometric line drawing of a rectangular plate with horizontal slats (no text or symbols)

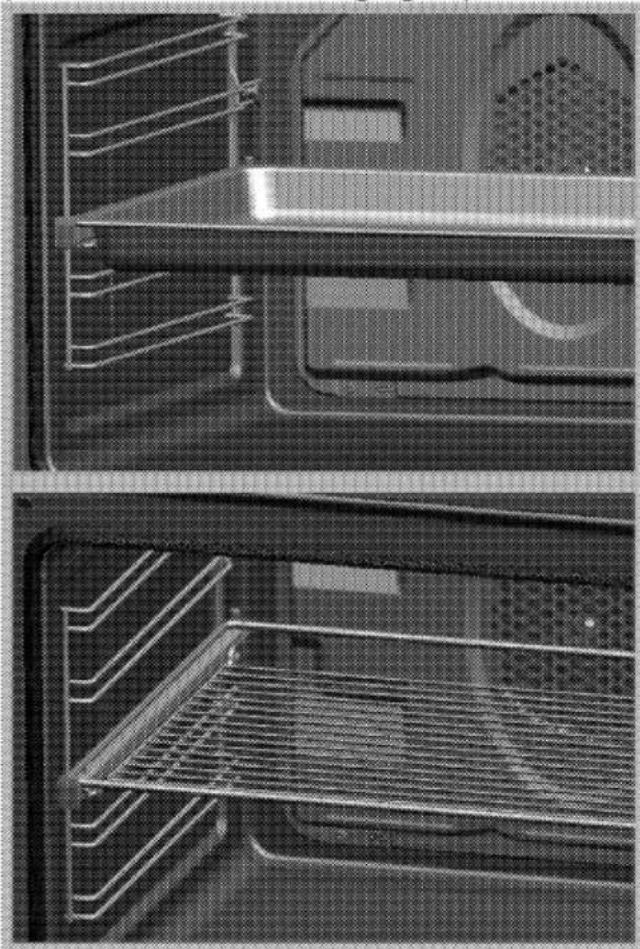

Proper positioning of the wire shelf and tray on sliding shelves

It is important to position the grill and/or dripping pan on the wire shelves correctly. Slide the grill or the dripping pan completely between the 2 rails and make sure it is stable before putting a dish on it (Please see the following figure).

Interior view of a kitchen appliance showing two exterior views with grilles and a horizontal shelf (no text or symbols visible)

Explanation of safety instructions

The following types of safety instructions and information are used in this manual. They can be distinguished by the symbol and the initial signal word.

DANGER

High risk of personal injury.

Non-observance may or will cause serious injuries or death.

CAUTION

Risk of personal injury.

Non-observance may or will cause minor or medium injuries.

NOTICE

Risk of material damage.

Non-observance may or will cause damage on the appliance or other objects.

Important

Tip for the user.

Useful information on how to use the appliance. No injury risk information.

Basic safety instructions

- The manufacturer reserves its right to make changes in the technical specifications in order to improve the appliance quality without any prior notice. Figures included in this manual are for schematic purpose only and may not match exactly with your appliance. Values stated on the markings of the appliance or in other printed documents supplied with the

appliance are obtained under laboratory conditions as per relevant standards. These values may vary according to the usage of the appliance and ambient conditions.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

- Do not operate the appliance if it is defective or shows any visible damage.

- Do not carry out any repairs or modifications on the appliance. However, you may remedy some malfunctions; see TROUBLESHOOTING, page 31.

- Be careful when using alcoholic drinks in your dishes. Alcohol evaporates in high temperatures and may cause fire since it will catch fire when it gets in contact with hot surfaces.

- Do not heat closed food containers and glass jars. Pressure that may build-up in the jar can cause it to burst.

- Ensure that no flammable materials are adjacent to the appliance as the sides become hot during use.

- Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The heat accumulation might damage the bottom of the oven.

• Appliance may be hot when it is in use. Never touch the hot burners, inner

sections of the oven, heating elements etc. Keep children away!

• Always use heat-resistant gloves when putting or removing the dishes into/from your oven.
• Rear surface of the oven gets hot when it is in use. Gas / Electric connection should not touch the rear surface, otherwise the mains cable may get damaged. Do not trap the mains cable between the hot oven door and frame. Do not route the mains cable over the hot cooking section. Otherwise, cable insulation may melt and cause fire as a result of short circuit.
• Check all controls on the appliance are switched off after use.

Important

For the warranty to be valid, the appliance must be installed by a qualified person in accordance with current regulations.

Safety for children

• Accessible parts of the appliance will become hot whilst the appliance is in use and until the appliance has cooled, children should be kept away.
• The packaging materials will be dangerous for children. Keep the packaging materials away from children. Please dispose of all parts of the packaging according to environmental standards.
• When the door is open, do not load any heavy object on it and do not allow children to sit on it. It may overturn or door hinges may get damaged.

Safety when working with electricity

• Any work on electric equipment and systems may only be carried out by authorized qualified persons.
• Even if the oven is off, the cooling fan continues working for a while after turning off the oven.
• In case of any damage, switch off the appliance and disconnect it from the mains supply by removing the fuse or switching off the circuit breaker.
  • Ensure that the fuse rating is correct.

Intended use

The appliance is designed for domestic use only. Commercial use is not admissible.

This appliance should not be used for heating purposes.

The manufacturer shall not be liable for any damage caused by improper use or handling errors.

Disposal

Packaging material

DANGER Risk of suffocation by the packaging materials!

Keep children away from the packaging materials.

The packaging material and transport locks are made from materials that are not harmful to the environment. Please dispose of all parts of the packaging according to environmental standards. This is beneficial to the environment.

Old equipment

This appliance bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this appliance must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities.

Electronic appliances not included in the selective sorting process are potentially dangerous for the environment and human health due to the presence of hazardous substances.

Future transportation

NOTICE

Do not place other items on the top of the appliance. The appliance must be transported upright.

Store the appliance's original box and transport the appliance in its original carton. Follow the guidance marks that are printed on the carton.

Important

Verify the general appearance of your equipment by identifying possible damage during the transportation.

To prevent the wire shelf and tray inside the oven from damaging the oven door, place a strip of cardboard onto the inside of the oven door that lines up with the position of the trays. Tape the oven door to the side walls.

If you do not have the original carton

Pack the appliance in bubble wrap or thick cardboard and tape it securely in order to prevent damage during transportation.

3 INSTALLATION

Before installation

The appliance is intended for installation in commercially available kitchen cabinets. A safety distance must be left between the appliance and the kitchen walls and furniture. See figure (values in mm).

- Surfaces, synthetic laminates and adhesives used must be heat resistant (100 °C minimum).

• Kitchen cabinets must be set level and fixed.
• If there is a drawer beneath the oven, a shelf must be installed between oven and drawer.
• A minimum distance of 30 mm must be provided to the side cabinets in case of self-cleaning ovens (pyrolysis).

* min.

* min.

Installation and connection

NOTICE

Material damage!

The door handle must not be used for lifting or moving the appliance.

• For installation the appliance must be connected in accordance with all local gas and/or electrical regulations.
• Carry the appliance with at least two persons.

- Use the slots or wire handles located at both sides to move the appliance.

NOTICE

If the appliance has wire handles, push the handles back into the side walls after moving the appliance.

Connection to the mains supply

Important

This appliance must be earthed!

Our company shall not hold responsible for any damage caused by using the appliance without an earthed socket.

DANGER

Risk of electric shock, short circuit or fire by unprofessional installation!

The appliance may be connected to the mains supply only by an authorized qualified person and the appliance is only guaranteed after correct installation.

DANGER

Risk of electric shock, short circuit or fire by damage of the mains lead!

The mains lead must not be clamped, bent or trapped or come into contact with hot parts of the appliance.

If the mains lead is damaged, it must be replaced by a qualified electrician.

• The mains supply must correspond to the data specified on the rating plate of the appliance. The rating plate can be seen when the front door is opened.
  • The appliance mains cable must correspond to the specifications and

the power consumption; see Technical Data, page 5.

DANGER

Risk of electric shock!

Before starting any work on the electrical installation, please disconnect the appliance from the mains supply.

1. If no all-pole separation from the mains supply is possible, a separation unit must be connected with a contact distance of 3 mm min. (fuses, line safety switches, contactors) all poles which should be adjacent to (but not above) the cooker in accordance with IEE regulations. Failure to observe this instruction may result in operational problems and invalidation of the appliance warranty.

Additional protection by a residual current circuit breaker is recommended.

If a cable without a plug is provided together with your appliance;

1. for mono-phase connection, take care to connect as below:

• Brown cable = L (Phase)
• Blue cable = N (Neutral)

- Green/yellow cable must be connected to ground (E) 1= line .

Installation

1. Slide the oven through the cabinet aperture, align and secure.

Technical illustration of a 3D oven with internal grating and ventilation slots (no text or symbols)

Fix your oven with the 2 screws and washers as indicated in the figure.

Final check

1. Connect the appliance to the mains supply and switch on the mains supply.

2. Check function.

For equipment with a cooling fan

1 Fan
2 Control panel
3 Door

The Built-in cooling fan cools both the built-in cabinet and the front of the appliance.

Cooling fan continues to run for up to 20-30 minutes (approx.) even after the oven is turned off.

Tips for saving energy

The following tips will help you to use your appliance in an ecological way and to save energy:

• Use dark coloured and enamel coated trays, since the heat transmission will be better.
• While cooking your meals, perform a preheating operation if it is advised in the user manual or cooking instructions.
• During cooking, do not open the oven door frequently.
  • Try to cook more than one type of meal within the oven at the same time (You can cook two different meals at

the same time by locating cooking bowls on the same shelf). It will be suitable to cook more than one meal after each other. The oven will already be hot.

• Defrost frozen meals before cooking them.
• You can save energy by switching off your oven a few minutes before the end of the cooking time (The oven door should not be opened).

Initial operation

Before first usage of your appliance, don't forget to remove the sticker on the digital timer screen

Setting the time

1 Program selection key
2 Temperature-time increasing/decreasing key
3 Function display
4 Cooking time symbol
5 Cooking end time symbol
6 Alarm period symbol
7 Current time symbol
8 Inner oven temperature symbol
9 Booster position
10 Temperature display

11 Keylock symbol
12 Current time display
13 Menu key
14 ON/OFF key
1. After switching on the oven for the first time, adjust the time of the day by slightly pressing the touch control key '+' or '-' (2).

Important

If the current time is not set, time setting will start increasing up from 12:00. Clock icon '7' will remain lit to indicate that the current time has not been set. This icon will disappear once the time is set.

Adjust the existing time

1. Activate the time of the day symbol '7' by pressing the key 13 twice for the time of the day.
2. Adjust the time of the day by slightly pressing + or - key (2).

Important

Current time settings are cancelled in case of power failure. It needs to be readjusted. Time of the day can not be changed if the oven is operating in a function.

First cleaning of the appliance

NOTICE

The surface might get damaged by some detergents or cleaning materials. Do not use aggressive detergents, cleaning powder/cream or any sharp objects.

1. Remove all packaging materials.
2. Wipe the surfaces of the appliance with a damp cloth or sponge and dry with a cloth.

Initial heating

WARNING

Hot surfaces may cause burns!

Do not touch the hot surfaces of the appliance. Use oven gloves. Keep children away from the appliance.

Important

Smell and smoke may emit during first heating. Ensure that the room is well ventilated.

Any production residues or conservation layers must be burnt off before the first use. Heat up the appliance for about 30 minutes and then switch it off.

Electric oven

1. Take all baking trays and racks from the oven.
2. Close oven door.
3. Select top and bottom heat with the function knob.
4. Select the highest temperature with the thermostat knob; see How to use the electric oven, page 16.
5. Heat approximately 30 minutes.
6. Switch off oven; see How to use the electric oven, page 16

Grill oven

1. Take all baking trays and wire shelf from the oven.
2. Close oven door.
3. Select highest power of the grill; see How to operate the grill, page 25.
4. Heat approximately 30 minutes.
5. Switch off grill; see How to operate the grill, page 25

General information on baking, roasting and grilling

DANGER

Risk of scalding by hot steam!

Take care when opening the oven door as steam may escape.

Tips for baking

• Use non-stick coated appropriate metal plates or aluminum containers or heat-resistant silicone moulds.
  • Make best use of the space on the rack.
• It is recommended to place the baking mould in the middle of the rack.
• Keep the oven door closed.

Tips for roasting

• Seasoning with lemon juice and black pepper will improve the cooking performance when cooking a whole chicken, turkey or a large piece of meat.
• Meat with bones takes about 15 to 30 minutes longer before it is cooked than a roast of the same size without bones.
• You should calculate about 4 to 5 minutes cooking time per centimeter height of the meat.
• Let meat rest in the oven for about 10 minutes after the cooking time. The juice is better distributed all over the roast and does not run out when the meat is cut.
• Fish in a fire-resistant dish should be placed on the rack at the medium or lower level.

Tips for grilling

Grilling is ideal for cooking meat, fish and poultry and will achieve a nice brown surface without it drying out to much. Flat pieces, meat skewers and sausages are particularly suited for grilling as are vegetables with a high water content such as tomatoes and onions.

• Distribute the pieces to be grilled on the wire shelf.
• If the grilling is on the wire shelf, locate a dripping pan under it in order to collect the fat.
• Add some water in dripping pan for easy cleaning.

How to use the electric oven

Turning the oven on

1 Program selection key
2 Temperature-time increase/decrease key
13 Menu key
14 ON/OFF key
1. Press key 14 for about 1 second to turn the oven on.

Select temperature and operating mode

After turning the oven on; nothing appears at the function display.

Blank rectangular frame with black border and corner arrows (no text or symbols)

NOTICE

Oven will switch off automatically within 10 seconds if no oven setting is made on this screen.

Temperature, cooking time, cooking end time and booster can be set in this position.

1. Slightly press ∧ or ∨ key (1) so that the desired function;
2. You can adjust the desired temperature by slightly pressing '+' or '-' key (2).

» Your oven will readily start operating in the desired function and will increase the inner temperature to the set temperature.

» Active heaters and suggested tray position appear on the function display.
» If no temperature setting is made previously, then the suggested temperature for the selected function is indicated on the temperature display.

Function table contains the functions that can be used as well as minimum and maximum temperatures that can be selected in the oven.

1 Shelf position
2 Bottom heater
3 Function number
4 Cleaning position
5 Turbo fan
6 Turbo heater
7 Defrost position
8 Grill heater
9 Upper heater
10 Warm keeping
* Functions can vary depending on the product model!

Function table :

Function	Suggested temperature (°C)	Temperature range (°C)
Static	200	40-280
Static + fan	175	40-280
Fan heating	180	40-280
3 D	205	40-280
Pizza	210	40-280
Grill + fan	200	40-280
Grill	280	40-280
Low grill	280	40-280
Slow cooking	180	160-220
Bottom heater	180	40-220
Warm keeping	60	40-100

Important

Maximum time that can be set for cooking period is limited with 6 hours at positions apart from keeping warm due to safety reasons. In case of power cut, program will be canceled. Reprogram is needed.

Important

While making any adjustment, related symbols on the clock will flash.

Important

Time of the day can not be adjusted when the oven is operating in any function or the clock is set to a semi-automatic or full automatic program.

NOTICE

Even if the oven is off, oven lamp lights up when the oven door is opened.

Switch off electric oven

Press key 14 for about 2 seconds to turn the oven off.

Shelf positions

It is important to position the wire grill on wire shelf correctly. The wire grill must be placed so that it will fit into the opening of the wire shelf as illustrated in the figure.

Operating modes

The order of operating modes shown here might deviate from the arrangement on your appliance.

1. Top and bottom heat

Simple geometric shape with dashed lines and a central square, no text or symbols present.

The foodstuffs are heated simultaneously from the upper and lower part. Suitable e.g. for cakes, cookies or cakes and casseroles in baking moulds. Cook with one tray only.

2. Top and bottom heat with convection air

Simple diagram with a three-blade fan inside a square frame, no text or symbols present.

Warm air heated by the lower and upper heaters is evenly distributed throughout the oven very fast by

means of the fan. Cook with one tray only.

3. Hot air

Simple diagram of a wind turbine with three blades, surrounded by wavy lines (no text or symbols)

Warm air heated by the rear heater is evenly distributed throughout the oven very fast by means of the fan. It is suitable for cooking your meals in different shelf levels and preheating is not required in most cases. Suitable for cooking with multi trays.

4. "3D" function

Simple diagram of a fan with a three blades inside, enclosed in a rectangular frame with wavy lines (no text or symbols)

Top heat, bottom heat plus ring heat with fan (in the rear wall) are on. The appliance to be cooked is evenly and quickly cooked all around. Cook with one tray only.

5. Pizza function

Simple diagram of a fan with three blades inside, enclosed in a rectangular frame (no text or symbols)

The bottom heat and the heating ring with fan (in the rear wall) are in operation. Suitable for baking pizza.

6. Strong grill with convection air

Simple line drawing of a boat hull with wavy lines above and a single triangular shape below (no text or symbols)

Warm air heated by the large grill is distributed very fast in the oven by means of the fan. It is suitable for grilling large amount of meat.

• Put big or medium-sized portions in correct shelf position under the grill heater for grilling.
• Set the temperature to maximum level.
  • Turn the food after half of the grilling time.

7. Surface grill

Simple line drawing of a rectangular frame with three horizontal wavy lines above it, and two vertical tick marks labeled 2 and 3 on the left (no text or symbols within the diagram itself)

The large grill (under the oven roof) is in operation. Suitable for grilling larger quantities.

• Put big or medium-sized portions in correct shelf position under the grill heater for grilling.
• Set the temperature to maximum level.
• Turn the food after half of the grilling time.

8. Grill-small

Simple line drawing of a square frame with three horizontal wavy lines and vertical tick marks on the left (no text or symbols)

The grill (under the oven roof) is in operation. Suitable for grilling.

• Put small or medium-sized portions in correct shelf position under the grill heater for grilling.
• Set the temperature to maximum level.
  • Turn the food after half of the grilling time.

9. Slow cooking

Simple diagram of a fan with three blades inside, surrounded by wavy lines (no text or symbols)

To save power, you can use this function instead of the cooking operations that you would perform by using turbo cooking at 160-220°C temperature range. But, the cooking time will increase a little bit.

Cooking times for this mode is given 'Slow cooking' table.

10. Bottom heat

Empty white square with a black border and small vertical lines on the left side (no text or symbols)

Only bottom heat is on. Is particularly suitable for dishes, such as pizza, which are required to be baked from bottom.

11. Warm keeping

Simple diagram of a fan with a triangular head and circular base, surrounded by wavy lines indicating water or heat (no text or symbols)

Can be used for keeping food warm at low temperature and over a longer period of time.

12. Operating with fan

Simple line drawing of a wind turbine with a small star-like symbol inside, enclosed in a square frame (no text or labels)

The oven is not heated. Only the fan (in the rear wall) is in operation. Frozen granular food is thawed slowly at room

temperature and cooked food is cooled down.

13. Pyrolytic cleaning - eco mode

Simple line drawing of a three-blade fan with dots above it, enclosed in a square frame (no text or symbols)

This function allows the oven to clean itself at a high temperature. It is recommended for lightly soiled ovens.

14. Pyrolytic cleaning

Simple line drawing of a three-blade fan with dots above it, enclosed in a square frame (no text or symbols)

This function allows the oven to clean itself at a high temperature. Read the description in the cleaning section to use this function.

NOTICE

When the oven door is opened, the fan motor will not run to keep the hot air inside.

How to operate the oven control unit

1 Program selection key
2 Temperature-time increasing/decreasing key
3 Function display
4 Cooking time symbol
5 Cooking end time symbol
6 Alarm period symbol
7 Current time symbol
8 Inner oven temperature symbol
9 Booster position
10 Temperature display
11 Keylock symbol
12 Current time display
13 Menu key
14 ON/OFF key

Switch on semi-automatic operation

In this operation mode, you may adjust the time period during which the oven will operate (cooking time). Oven starts to operate after the settings are made and runs at the set temperature throughout the cooking time. Oven turns off at the end of the cooking time.

1. Turn on the oven by pressing and holding key '14'.
2. Adjust the desired operation mode (function) by slightly pressing the key ∧ or ∨ (1).
3. Activate the cooking time symbol '4' by pressing the key '13' with while the oven is operating.
4. Adjust the cooking time by slightly pressing the key "+" or "-" (2).

» Cooking time symbol '4' remains lit after adjusting the cooking time.
5. Place your dish in the oven.
6. Adjust the cooking temperature by slightly pressing the key "+" or "-" no. (2).
» The oven will be heated up to the preset temperature and will maintain this temperature until the end of the cooking time you selected.

NOTICE

All segments of the inner oven temperature symbol (8) will turn on when your oven reaches the set temperature.

1. After the cooking process is completed, "End" will be displayed and the alarm signal will sound.
2. To stop the alarm signal, press key no. '13' or '14'.
   » Alarm will be silenced, oven will be turned off automatically and current time will be displayed on the screen.

Switch on automatic operation

In this operation mode you may adjust how long the oven will be operate (cooking time) and when it will be turned off (cooking end time).

1. Turn on the oven by pressing and holding key '14'.

2. Adjust the desired operation mode (function) by slightly pressing the key ∧ or ∨ no. (1)'.

3. Activate the cooking time symbol '4' by slightly pressing the key '13' with while the oven is operating.

4. Adjust the cooking time by slightly pressing the key "+" or "-" no. (2).

» Cooking time symbol 4 remains lit after adjusting the cooking time.

1. Activate the cooking end time symbol (5) by pressing the key 13 with short intervals.

2. Adjust the cooking end time by slightly pressing the key "+" or "-" no. '2'.

» Cooking end time symbol (5) remains lit after adjusting the cooking end time.

1. Place your dish in the oven.

2. Adjust the cooking temperature by slightly pressing the key "+" or "-" no. 2.

» Oven timer automatically calculates the startup time for cooking by using the end of cooking time you have set and the cooking period. Selected operation mode is activated when the startup time of cooking has come and the oven is heated up to the set temperature. It maintains this temperature until the end of the cooking time. Oven lamp lights up during cooking.

NOTICE

All segments of the inner oven temperature symbol (8) will turn on when your oven reaches the set temperature.

1. After the cooking process is completed, "End" will be displayed and the alarm signal will sound.

2. To stop the alarm signal, press key '13' or '14'.

» Alarm will be silenced, oven will be turned off automatically and current time will be displayed on the screen. Oven lamp will also switch off.

NOTICE

If you want to cancel the semi-automatic or automatic programming after you have set them, you need to reset the cooking time.

Setting the Booster (Quick Preheating)

It can be used to reach to the desired inner oven temperature more quickly by operating the oven heaters in a combination different than the selected function.

Important

Booster function can only be set while the oven is operating. Booster function can not be selected in defrosting and cleaning modes. Booster setting is cancelled in case of power failure.

1. For booster function, press key 13 with short intervals until the booster symbol '9' becomes active.
   » "OFF" will be displayed.
2. Activate the booster by slightly pressing the key "+" no (2).
   » After the booster is adjusted, "On" will be displayed and the booster symbol will remain lit.
   » Booster symbol turns off after the desired inner oven temperature is attained and oven resumes its operation with the function selected before the booster.
3. To cancel the booster function, press key 13 to activate the booster symbol (9).
   » "On" will be displayed.
4. Deactivate the booster by slightly pressing the key "-"no. (2).
   » "OFF" will be displayed.

How to use the program lock

Activate the program lock

You can prevent using of oven by activating the keylock feature.

Important

Keylock can be used either the oven is operating or not operating. Oven can still be turned off by keeping the key 14 pressed for 2 seconds even the key lock is activated while the oven is operating.

1. For keylock; press key 13 with short intervals until the keylock symbol "11" becomes active.

» "OFF" will be displayed.
2. Activate the keylock by slightly pressing the key "+" no.'2'.
» After the keylock is adjusted, "On" will be displayed and the keylock symbol will remain lit.

Deactivate the program lock

1. To deactivate the keylock, press key 13 with short intervals until the keylock symbol "11" becomes active.
   » "On" will be displayed.
2. Deactivate the keylock by slightly pressing the key "-" no. '2'.

» After the keylock is turned off, "OFF" is displayed and the keylock symbol '11' disappears.

Important

Oven buttons can not be used while the keylock function is active. Keylock function is not cancelled in a power failure.

Cooking times table

Important

The values indicated in the table below are data indicative. They may vary according to the type of food as well as your preferences of cooking.

Baking and roasting

Important

Level 1 is the bottom level in the oven.

Food	Cooking level number		Rack position	Temperature (°C)	Cooking time (min.) (approx.)
Cake in tray	One level		2	175	25 ... 30
Cake in mould	One level		1	175	40 ... 50
Cakes in paper	One level		2	175	25 ... 30
	One level		1	175	25 ... 35
Sponge cake	One level		2	200	5 ... 10
Cookies	One level		2	175	25 ... 30
	2 levels		1 - 3	170 ... 180	35 ... 45
Dough pastry	One level		2	200	30 ... 40
Filled savory pastry	One level		2	180	25 ... 35
	2 levels		1 - 3	190	35 ... 45
Leaven	One level		2	190	35 ... 45
Lasagna	One level		2	180	30 ... 40
Pizza	One level		2	200	15 ... 20
	One level		2	200	10 ... 15
Beefsteak (whole)/ Roast	One level		2	25 min. 250 after 180 ... 190	100 ... 120
Lamb haunch (casserole)Roast chicken	One levelOne level		21	25 min. 250 after 19015 min. 250 after 180 ... 190	70 ... 9055 ... 65
	One level		1	15 min. 250 after 180 ... 190	55 ... 65
Turkey (5.5 kg)	One level		1	25 min. 250 after 180 ... 190	140 ... 190
Fish	One level		2	200	20 ... 25
While cooking with 2 trays at the same time, place the oven tray at the upper shelf and pastry tray at the lower shelf.

Slow cooking

Food	Cooking level number			Rack position	Temperature (°C)	Cooking time (min.) (approx.)
Cakes in paper	One level		[KSW5]	1	185	35 ... 40
Cookies	One level			1	185	30 ... 35
Dough pastry	One level		[TSA4]	1	200	40 ... 45
Filled savory pastry	One level			1	200	40 ... 45

(**) In a cooking that requires preheating, preheat at the beginning of cooking until the temperature symbol (8) of the oven rises up to the highest level.

Tips for baking cakes

1. If pastry is too dry,

» Increase the temperature by 10°C and reduce the cooking time.

1. If pastry dropped,

» Use less liquid or lower the temperature by 10°C.

1. If pastry is too dark on top,

» Place it on a lower rack, lower temperature, and increase the cooking time.

1. If cooked well on the inside but sticky on the outside,

» Use less liquid, lower the temperature, and increase the cooking time.

Tips for baking pastry

1. If the pastry is too dry,

» Increase the temperature some 10°C and decrease the cooking time.

» Dampen the layers of dough with a sauce composed of milk, oil, egg and yoghurt.

1. If the pastry takes too long to bake,

» Pay care that the thickness of the pastry you have prepared does not exceed the depth of the tray and remain level with it.

1. If the upper side of the pastry gets browned, but the lower part is not cooked,

» Make sure that the amount of sauce you have used for the pastry is not too much at the bottom of the pastry. Try to scatter the sauce equally between and on the dough layers for an even browning.

» Cook the pastry in accordance with the mode and temperature given in the cooking table. If the bottom part is still not browned enough, place it on one-layer-lower shelf next time.

Tips for cooking vegetables

1. If the vegetable dish runs out of juice and gets to dry,
   » Since using a lid during cooking will keep the juice of the dish in the pan, cook your vegetable dishes in a pan with a lid instead of a tray.

How to operate the grill

WARNING Hot surfaces may cause burns! Close oven door during grilling.

Switch on grill

1. Press key 14 for about 1 second to turn the oven on.

Cooking times table for grilling

1. If a vegetable dish does not get cooked,
   » Boil the vegetables beforehand or prepare them like canned food and put in the oven.
2. Adjust the grill function by slightly pressing key ∧ or ∨ key (1).
3. You can adjust the desired temperature by slightly pressing key + or - (2).

Switch off grill

1. Press key 14 for about 2 seconds to turn the oven off.

Grilling with electric grill

Food	Insertion level	Grilling time (approx.)
Fish	2...3	20...25 min.#
Sliced chicken	2...3	25...35 min.
Lamb chops	2...3	20...25 min.
Roast beef	2...3	25...30 min.#
Veal chops	2...3	25...30 min.#
#depending on thickness

How to use the alarm clock

In addition to using the timer for cooking, it can be also used as a reminder or an alarm clock.

As soon as the defined period of time has expired, the alarm clock will emit a signal. The alarm clock has no influence on the functions of the oven.

1 Program selection key
2 Temperature-time increasing/decreasing key
3 Function display
4 Cooking time symbol
5 Cooking end time symbol
6 Alarm period symbol
7 Current time symbol
8 Inner oven temperature symbol
9 Booster position
10 Temperature display
11 Keylock symbol
12 Current time display
13 Menu key
14 ON/OFF key

Using the clock as an alarm

Alarm clock does not have any effect on the oven functions. It is used as a warning.

For example, you can use alarm clock to warn you for turning the dish in the oven round in a certain time.

Important

The maximum alarm time can be 23 hours and 59 minutes.

Important

Alarm clock can be used either the oven is operating or not operating.

Setting the alarm clock

1. Press key '13' with short intervals until the alarm symbol '6' becomes active.
2. Adjust it by slightly pressing the key "+" or "-" (2).
   » Alarm symbol remains lit after adjusting the alarm time.
3. After the alarm time is finished, alarm symbol will start flashing and an alarm signal is heard.
4. You can stop the alarm by pressing any button.

In order to cancel set alarm time;

1. To reset the alarm time, press key '13' to activate the alarm symbol (6).
2. Adjust it by slightly pressing the key "-" (2) until "00:00" is displayed.

General information

DANGER

Risk of electric shock!

Switch off the electricity before cleaning appliance to avoid an electric shock.

DANGER

Hot surfaces may cause burns!

Allow the appliance to cool down before you clean it.

NOTICE

The surface might get damaged by some detergents or cleaning materials.

Do not use aggressive detergents, cleaning powder/cream or any sharp objects.

Clean the appliance thoroughly after each use; in this way it will be possible to remove cooking residues more easily, thus avoiding these from burning the next time the appliance is used.

No special cleaning agents are required for cleaning the appliance. It is recommended to use warm water with washing liquid, a soft cloth or sponge and use a dry cloth for drying.

Do not use any abrasive cleaning materials!

Important

Do not use steam cleaners for cleaning.

Cleaning the control panel

NOTICE

Damage of the control panel! Do not remove the control knobs for control panel cleaning.

Clean control panel and control knobs.

Cleaning the oven

No oven cleaner or any other special cleaning agent is required for cleaning the oven. It is recommended to wipe the oven with a damp cloth while it is still warm.

To clean the side wall,

1. Remove the front section of the side rack by pulling it in the opposite direction of the side wall.
2. Remove the side rack completely by pulling it towards you.

Pyrolytic self-cleaning

DANGER

Hot surfaces may cause burns!

Do not touch the equipment and keep children away from the equipment during self-cleaning. Wait at least 30 minutes before removing residues.

The oven is equipped with pyrolytic self-cleaning. The oven is heated to approx. 480 °C and existing dirt is burned to ashes. A strong smoke development may arise. Provide for good ventilation. The pyrolysis should be used after approx. every 10th oven usage.

1. Remove all accessories from the oven. In models with side rack; do not forget to take out the side racks.

2. Before the cleaning cycle, remove dirts from exterior surfaces and oven interior with a damph cloth.

NOTICE

Do not clean the door sealing. The fibre glass sealing is very sensitive and can be damaged easily.

In case of a damage on the oven door gasket, replace with the new one from the authorized service.

1. "Pyrolysis" Select the pyrolitic function (self-cleaning).

» The self-cleaning time appears in the display. This duration can not be adjusted.

» The end of self cleaning cycle can be adjusted.

NOTICE

The health of some birds is extremely sensitive to the fumes given off during the Self-Cleaning cycle. Always move birds to another closed and well ventilated room. Keep the kitchen well-ventilated during the Self-Cleaning cycle.

1. Oven door cannot be opened and lock symbol 📄 appears on the time display during self cleaning. It remains locked for a while after the pyrolysis function ends. Do not force the door lock with handle until lock symbol 📄 disappears.

2. After a clean cycle, remove soil deposits with vinegar water.

Clean oven door

Don't use any harsh abrasive cleaners or sharp metal scrapers for cleaning the oven door. They could scratch the surface and destroy the glass.

Removal of oven door

1. Open the front door.

2. Open the clips at the hinge housing on the right and left hand sides of the front door by pressing them down as illustrated in the figure.

1 Front door
2 Hinge
3 Oven

Technical diagram of a mechanical joint or bracket with a directional arrow indicating rotation (no text or symbols present)

1. Move the front door to half-way.
2. Remove the front door by pulling it upwards to release it from the right and left hinges.

NOTICE

Steps carried out during removing process should be performed in reverse order (steps 4, 3, 2 and 1) to reattach the door. Do not forget to close the clips at the hinge housing when reinstalling the door.

Taking off the door inner glass

The inner glass panel of the oven door can be removed for cleaning.

1. Open oven door.

3D diagram of a mechanical component with labeled parts (1 and 2), showing internal structure without any text or symbols.

1 Frame
2 Plastic part

Remove the plastic part mounted upper side of the door by pulling towards yourself.

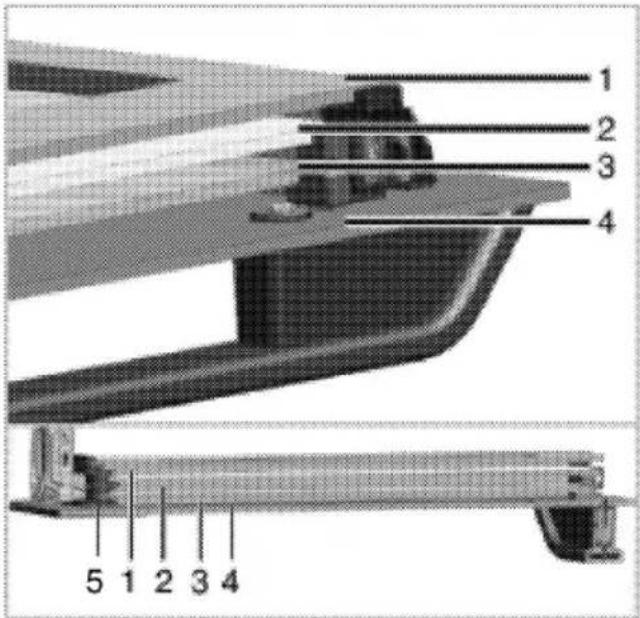

1 Inmost glass
2 Second inner glass
3 Third inner glass
4 Outer glass
5 Plastic housing for glass-bottom

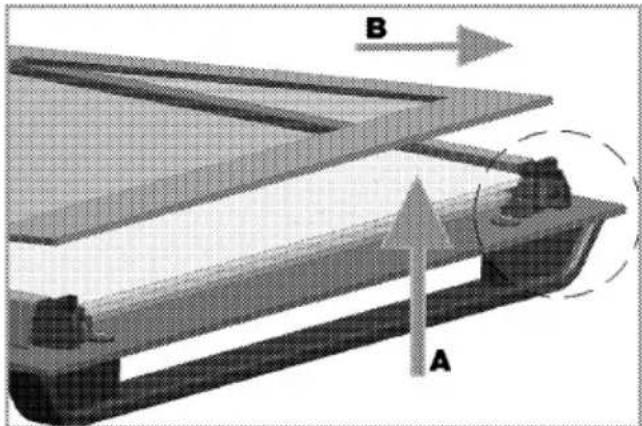

Diagram of a mechanical assembly with labeled components A and B, showing internal layered structure (no text or symbols beyond labels)

As shown in the figure, lift the inmost glass slightly in 'A' direction. Then remove the glass by pulling in 'B' direction.

Repeat this operation to remove the second and third inner glass.

Mechanical assembly diagram showing a cutting tool interacting with a workpiece, with no visible text or symbols.

First step of reassembling the door is to mount the second and third inner glasses.

Chamfered corner of the glasses should overlap the chamfer on the plastic housing as shown.

Mounting order of the second and third glasses is not important since they are interchangeable.

While mounting the inmost glass, take great care that the printed surface faces the second glass.

It is important in mounting all inner glasses to position the bottom corners of glasses into bottom plastic housings properly.

Push the plastic part against to the frame until you hear the "click" noise.

Important

All glass must be reassembled after cleaning.

Replacing the oven lamp

DANGER

Hot surfaces may cause burns!

Make sure that the appliance is switched off and cooled down in order to avoid the risk of an electrical shock.

The oven lamp is a special heat-resisting (T 300 °C) electric light bulb; see Technical Data, page 5. Oven lamps can be obtained from a good local electrical store.

NOTICE

Position of lamp might vary from diagram.

1. Switch off the current.
2. Remove the side racks as explained, see Cleaning the oven, page 27.

Diagram showing a device with a cable being inserted into a cover, with an arrow indicating the cable's direction (no text or symbols present)

1. Lift glass cover with a screwdriver.
2. Unscrew oven lamp and replace it by a new one.
3. Insert glass cover and side racks again.

DANGER

Risk of electric shock, short circuit or fire by unprofessional repairs!

Repairs on the appliance must be carried out by an approved service centre.

Normal operating conditions

• Smoke and smell may emit for a couple of hours during the first operation.
• It is normal that steam escapes during operation.
• When the metal parts are heated, they may expand and cause noise.

Before you call the service, please check the following points.

Electrical equipment

Malfunction/problem	Possible cause	Advice/remedy
The appliance does not work.	The mains fuse is defective or has tripped.	Check fuses in the fuse box. If necessary, replace or reset them.
	Timer buttons do not work.	Keylock may be enabled. Please disable it(See; How to use the program lock, page 22).
Oven light does not work	Oven lamp is defective.	Replace oven lamp.
	No current.	Check fuses in the fuse box. If necessary, replace or reset them.
Oven does not heat.	Function knob and/thermostat knob are not set.	Set function knob and thermostat knob.
	If the appliance has a timer, the timer may not be set.	Set the time.
	No power.	Check mains supply and fuse box.

If the problem has not been solved:

1. Separate unit from the mains supply (deactivate or unscrew fuse).
2. Call the technical service.

Important

Do not attempt to repair the appliance yourself. There are no customer service items inside the appliance.
