| Type de produit | Coffre de toit |
| Marque | Thule |
| Modèle | Touring Alpine |
| Volume | 190 litres |
| Dimensions (L x l x H) | 190 x 80 x 44 cm |
| Poids | 17 kg |
| Charge maximale | 50 kg |
| Matériau principal | ABS |
| Ouverture | Des deux côtés |
| Système de verrouillage | Centralisé avec clé |
| Montage | Sur barres de toit |
| Entretien | Nettoyage à l'eau savonneuse |
| Sécurité | Serrure à clé et fixation sécurisée |
| Pièces détachées disponibles | Clés, kit de montage |
| Réparabilité | Réparable par un professionnel |
| Garantie | 5 ans |
| Fabrication | Suède |
FOIRE AUX QUESTIONS - Touring Alpine THULE
Questions des utilisateurs sur Touring Alpine THULE
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Coffre de toit au format PDF gratuitement ! Retrouvez votre notice Touring Alpine - THULE et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil Touring Alpine de la marque THULE.
MODE D'EMPLOI Touring Alpine THULE
> Instructions
Thule Touring
6341, 6342, 6346, 6347, 6348
EN Roof box for roof-mounted racks
DE Dachbox für Dachträger
FR Coffre pour barres de toit
NL Dakkoffer
IT Box da tetto per portapacchi da installare sul tetto
ES Cofre portaequipajes para barras de techo
PT Caixa bagageira para barras de tejadilho
SV Takbox för takmonterade räcken
DK Tagboks til tagbøjler
NO Takboks til takmonterte stativer
FI Katolle asennettaviin telineisiin sopiva kuljetuslaatikko
ET Katusele paigaldatav katuseboks
LV Jumta kaste uz jumta uzstādāmiem bagāžniekiem
LT Ant stogo tvirtinamų skersinių bagažinės
PL Box dachowy na bagażnik montowany na dachu
RU Грузовой бокс на крышу автомобиля
UK Вантажний бокс для багажників для даху
BG Кутия за багаж за релси, монтирани върху покрива
CS Střešní box pro montáž na střechu
SK Strešný box na strešné nosiče
SL Strešni kovček za strešne prtljažnike
HR/BIH Krovna kutija za krovne nosače
RO Portbagaj de acoperiş pentru cadru de bare montate pe acoperiş
HU Tetőre szerelhető tetőbox
EL Μπαγκαζιέρα οροφής για μπάρες οροφής
TR Araç üstüne bağlanan raflar için tavan kutusu
He
صنوق سlevel للحوامل المثبة على السقف AR
ZH 用于车顶架的车顶箱
JA ルーフマウント型ラック用ルーフボックス
KO 루프 장착 략 루프 박스
TH กล่องบนหลังคาสำหรับแร็คหลังคา
CITY CRASH
Complies with ISO norm


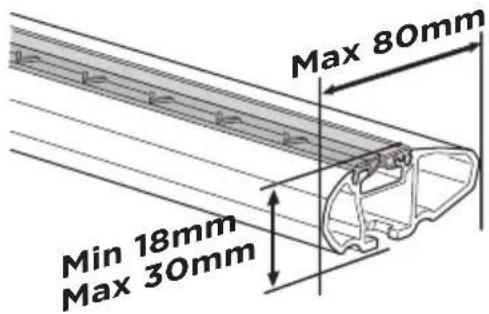

Thule WingBar Evo
Thule WingBar
Thule AeroBar
Thule SlideBar
Thule Squarebar
x1
x3
x2
i
Max 50 kg
| Touring 100/S 10 kg | |
| Touring 200/M 13 kg | |
| Touring 600/Sport 12 kg | |
| Touring 700/Alpine 15 kg | |
| Touring 780/L 15 kg |
other
| Value | |---| | 80 | | 90 | | 100 | | 120 | | 140 | | 160 | | 180 | | 200 |
i

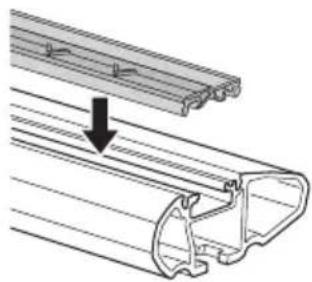

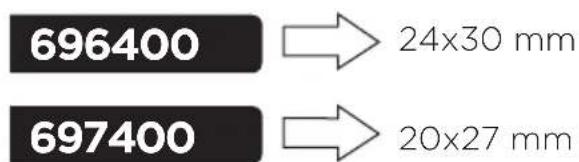

Thule T-track Adapter
696400
697400


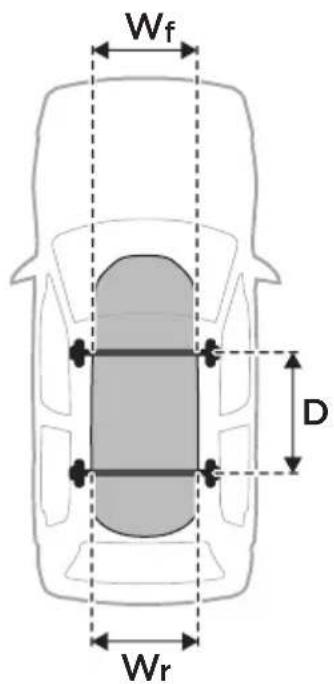

| D Min* | D Max* | Wf* Wr* | H* R Min* | |||
| Touring 100/S | 515 | 925 | 763 | 740 | 406 | 937 |
| Touring 200/M | 545 | 955 | 702 | 697 | 413 | 1149 |
| Touring 600/Sport | 545 | 955 | 525 | 528 | 359 | 1184 |
| Touring 700/Alpine | 545 | 955 | 587 | 583 | 382 | 1431 |
| Touring 780/L | 545 | 955 | 673 | 673 | 400 | 1250 |
*mm

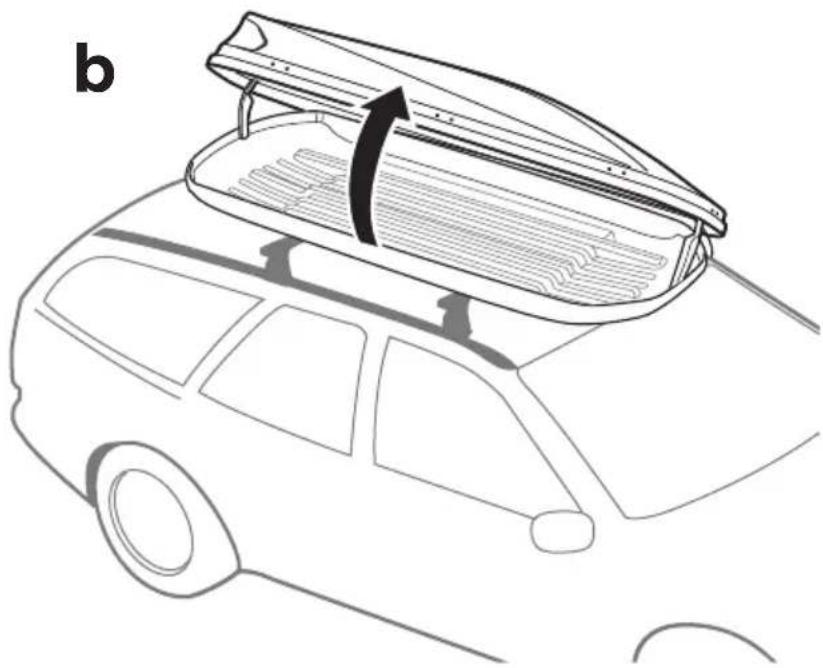

1


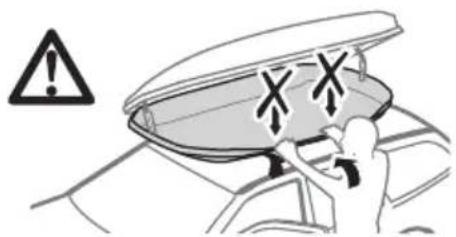

Line drawing of a car with two people installing a roof cover, one partially open and the other holding a tray (no text or symbols)2
a
x4
4


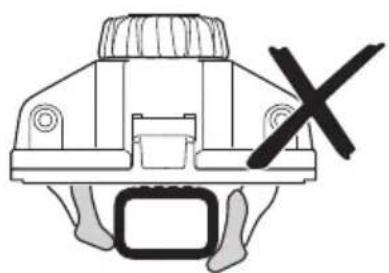

Technical line drawing of a mechanical component with a cross mark symbol (no text or labels)
7
EN Accessories
DK Tilbehør
DE Zubehör NE Tilbehør
FR Accessoires
FI Lisävarusteet
NL Accessoires
ET Lisavarustus
IT Accessori
LV Piederumi
ES Accesorios
LT Priedai
PT Acessórios
PL Akcesoria
SV Tillbehör
RU Аксессуары
UK Аксесуари
BG Принадлежности
CS Doplóky
SK Príslušenstvo
SL Dodatki
HR/BiH Dodaci
RO Accesorii
HU Tartozékok
EL Εξαρτήματα
TR Aksesuarlar
الملحقا AR
הַרְׁבָא GE
ZH 附件
JA アクセサリー
KO 액세서리
TH อุปกรณ์เสริม
Thule Box Light


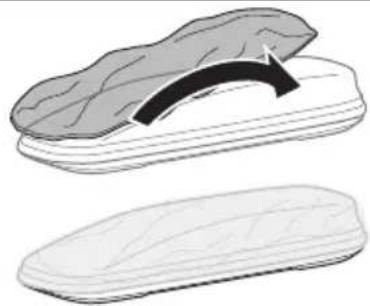

Illustration of a mobile phone with a stylized face and antenna (no text or symbols)Thule Box Lid Cover


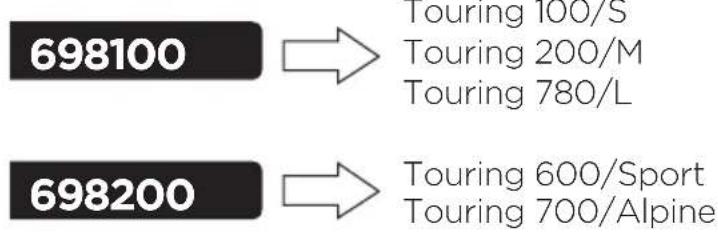

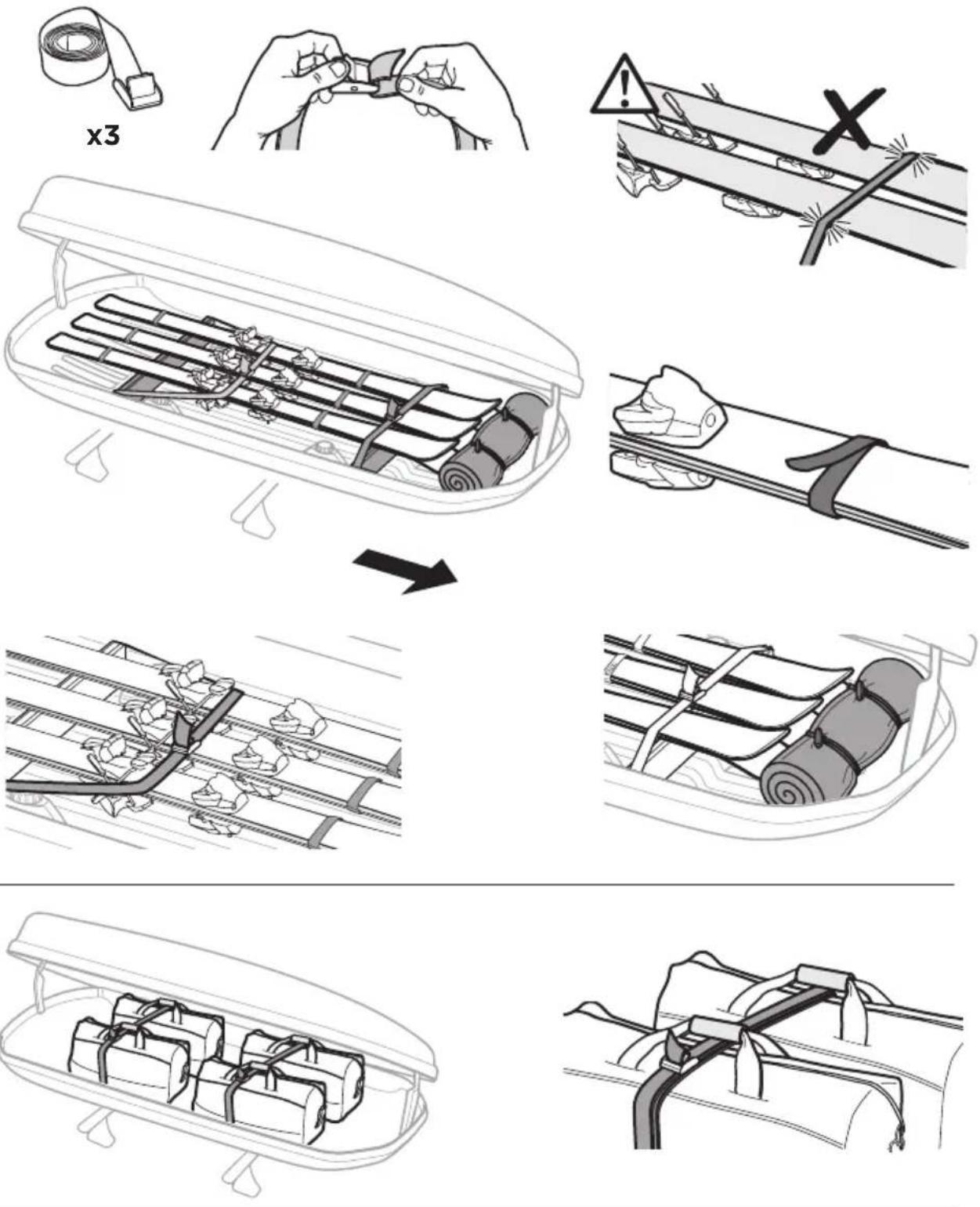

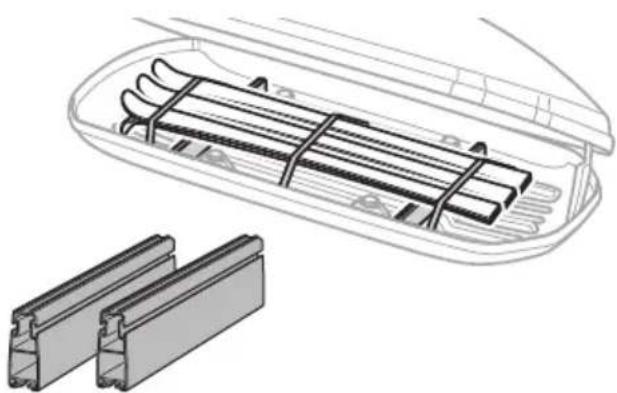

Thule Box Ski Carrier Adapter
other
| Value | Transition | | -------- | ----------------------- | | 694600 | Touring 600/Sport | | 694700 | Touring 700/Alpine | | 694800 | Touring 200/M Touring 780/L |
572004
450400 (x4)
450600 (x6)
450800 (x8)
451200 (x12)
451600 (x16)
1
2
3
4
5
6
7

