MODE D'EMPLOI SA-EX110 TECHNICS

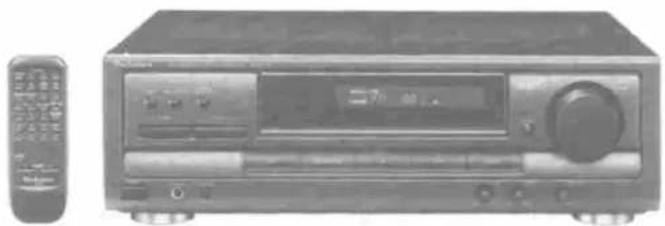

AV Control Stereo Receiver
SA-EX110
Operating Instructions
Technics®
Before connecting, operating or adjusting this product, please read these instructions completely. Please save this manual.
RQT3819-P
Dear Customer
Thank you for purchasing this Technics product.
For optimum performance and safety, please read these instructions carefully.
Table of contents
Precautions 3
Accessories 4
Concerning the remote control 4
Front panel controls 5
Equipment connections....6
Antenna connections....8
Speaker connections....10
Basic operations....11
To adjust the tone quality 12
To adjust the sound balance....12
To mute the sound level 12
To listen through headphones....12
Listening to radio broadcasts 13
Sequential tuning....13
Direct tuning....13
Preset tuning....14
Making a recording 16
Recording on the tape deck....16
Recording on the VCR....16
Listening caution....17
Product service....17
Technical specifications....18
Troubleshooting guide....19
CAUTION
Do not place a tape deck or CD player on top of this unit.
Heat radiated from the top of this unit may cause damage to the tape or CD software.
User memo:
DATE OF PURCHASE ____
DEALER NAME ____
DEALER ADDRESS ____
TELEPHONE NUMBER ____ ____
The model number and serial number of this product can be found on either the back or the bottom of the unit.
Please note them in the space provided below and keep for future reference.
MODEL NUMBER
SERIAL NUMBER
THIS PHRASE IS APPLIED ONLY FOR U.S.A.
CAUTION:
Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE, DO NOT EXPOSE THIS APPLIANCE TO RAIN, SPLASHING, DRIPPING OR MOISTURE.
CAUTION:
TO PREVENT ELECTRIC SHOCK MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE SCREWS. NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Accessories

Please check and identify the supplied accessories.
A □ AC power supply cord (SJA 172)....1 pc.
B □ AM loop antenna set (RSA0010)
• AM loop antenna....1 pc.
• AM loop antenna holder....1 pc.
• Screw....1pc.
C □ FM indoor antenna (RSA0006)....1 pc.
D □ Batteries....2 pcs.
E □ Remote control transmitter (EUR644346)....1 pc.
Use numbers indicated in parentheses when asking for replacement parts.
(Only for U.S.A.)
To order accessories call MSC Accessory Dept. 1-800-332-5368.
Concerning the remote control
Battery installation
A
- Thoroughly clean the battery compartment before inserting new batteries.
- Do not mix old and new batteries, or batteries of different types (carbon and alkaline, etc.).
- If you will not use the remote control for a long period of time, remove the batteries and store them in a cool, dark place.
- Do not use rechargeable type batteries.
- Do not attempt to recharge alkaline or carbon batteries.
- Always remove old, weak or worn-out batteries promptly and dispose of them properly.
- Never subject batteries to excessive heat or flame; do not attempt to disassemble them; and be sure they are not short-circuited.
- If the leaking electrolyte comes into contact with skin or clothes, flush with water immediately.
Battery life
Battery life is about one year.
The batteries should be replaced if the system fails to respond to commands from the remote control transmitter even when held close to the remote control signal sensor.
When you need to replace these batteries
Use two R6/LR6, AA size, UM-3
Method for use
B
Note
Be sure the transmission window and the signal sensor are free from dust. Excessive dust might affect performance.
The operation may not be correct if direct sunlight or another strong light source strikes the signal sensor of this unit. If there is a problem, place the unit away from the light source.

Front panel controls
① Power "STANDBY ⏻/ON" switch
(POWER, STANDBY ⏻/ON)
Press to switch the unit from on to standby mode or vice versa. In standby mode, the unit is still consuming a small amount of power.
② Tuning buttons (TUNING)
③ Band select button (BAND)
④ FM mode select button (FM AUTO/MONO)
⑤ Memory button (MEMORY)
⑥ Preset channel buttons (PRESET)
⑦ Remote control signal sensor (SENSOR)
⑧ Display
⑨ Muting button (MUTING)
⑩ Volume control (VOLUME)
⑪ Headphones jack (PHONES)
⑫ Speakers select button (SPEAKERS)
⑬ Input select buttons
⑭ Tape monitor button (TAPE MONITOR)
⑮ Tone controls (BASS, TREBLE)
⑯ Balance control (BALANCE)
Connecting audio equipment
Stereo connection cable (not included)

Note
Do not place books, etc., on top of this unit or block the heat radiation vents in any way.


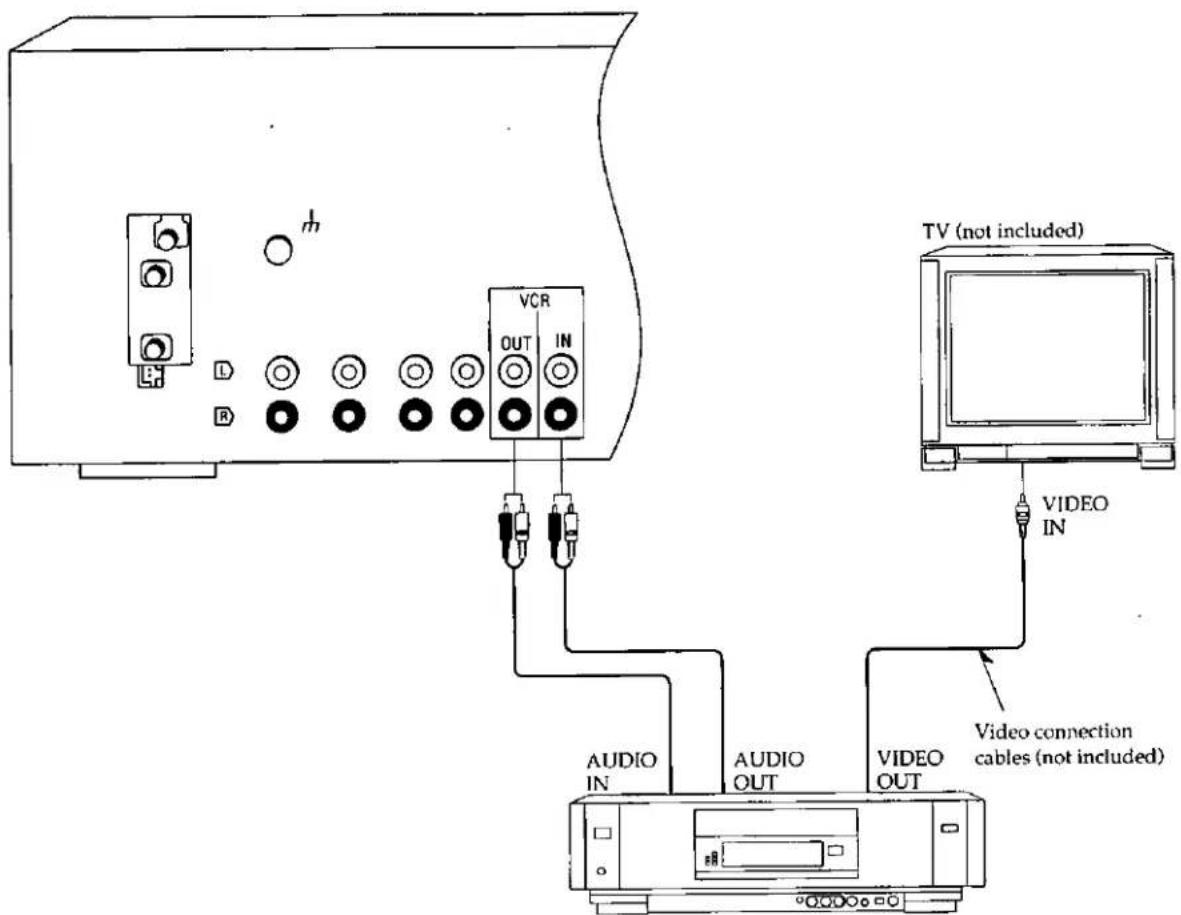

Connecting video equipment
Stereo connection cable (not included)


VCR (not included)
A

B


Antenna connections
FM indoor antenna (included)
A
This antenna is normally sufficient for reception of FM broadcasts.
Attach to a wall (using a tape) facing in the direction of best reception.
For best reception sound quality
An FM outdoor antenna is recommended.
AM loop antenna (included)
B
This antenna is normally sufficient for reception of AM broadcasts.

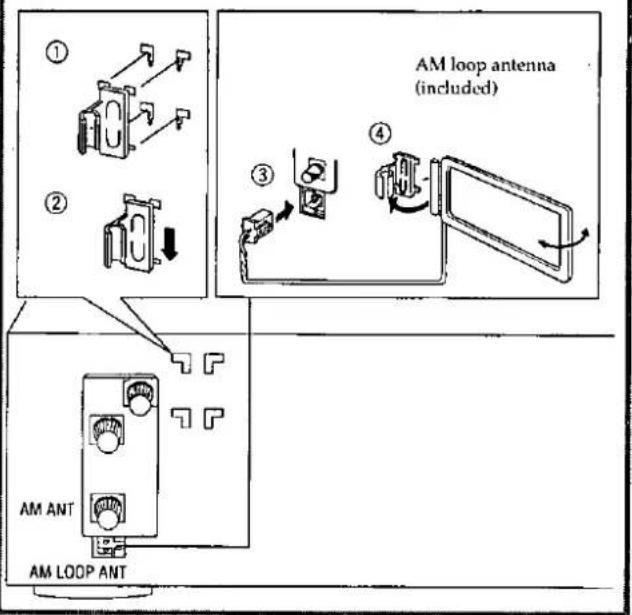

Install the AM loop antenna holder (included) at the rear panel of this unit and then attach the AM loop antenna to the AM loop antenna holder (facing in the direction of best reception).
Pay attention to the following points when mounting the antenna.
- Do not mount it horizontally (Doing so will impair reception).
- Do not mount it close to power cords, speaker wires or metal surfaces (Doing so will result in noise).
- Do not mount it close to a tape deck. When the tape deck is being used, chirping or beeping sounds may result.
When mounting the antenna to a column, a wall or rack C
Mount it vertically.
A

B

Antenna connections
FM outdoor antenna (not included)

The outdoor antenna should be used when using this unit in mountainous areas or in spaces enclosed by reinforced concrete where the FM indoor antenna (included) does not provide satisfactory reception.
Disconnect the FM indoor antenna if an FM outdoor antenna is installed.
Note
An outdoor antenna should be installed by a qualified technician only.

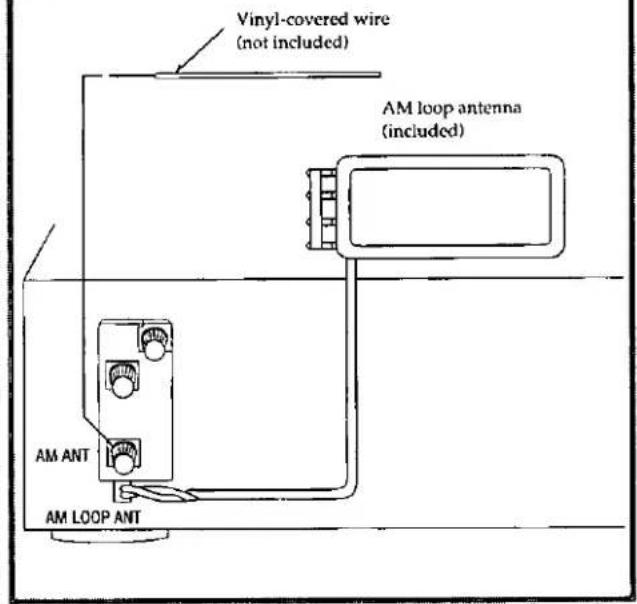

AM outdoor antenna (not included)

The outdoor antenna should be used when using this unit in mountainous areas or in spaces enclosed by reinforced concrete where the AM loop antenna (included) does not provide satisfactory reception.
Stretch 5–12 m (16–40 ft.) of vinyl-covered wire horizontally across a window frame or other convenient location, keeping it as high as possible from the ground.
When the unit is not in use, disconnect the outdoor antenna to prevent possible damage that may be caused by lightning. Never use an outdoor antenna during an electrical storm.
Note
Be sure to connect the AM loop antenna even when an outdoor antenna is used.




Speaker connections
Connecting speakers
A

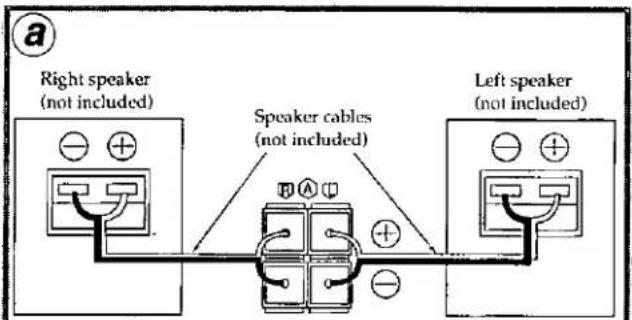

① Front"A" speakers
Speaker impedance: 8 Ω
⑥ Front "B" speakers
For connection to a second pair of speakers.
Speaker impedance: 8 Ω

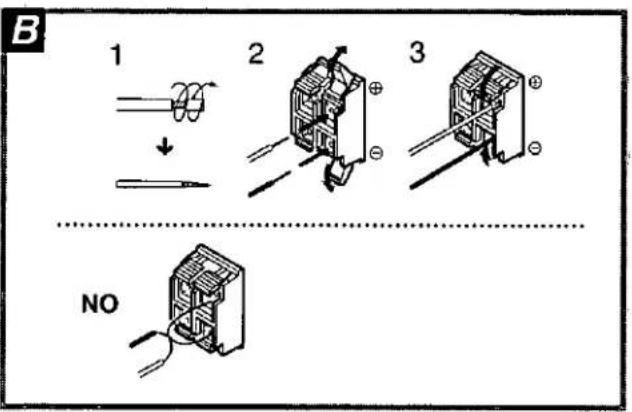

Connecting the speaker cables B
Note
To prevent damage to circuitry, never short-circuit positive (+) and negative (−) speaker wires.

1

2


3

4

A


Basic operations
Before operation, set VOLUME to the "MIN" position.
1
Press POWER.
2
Press SPEAKERS to select the speaker system to be used.
Changes as follows each time the button is pressed.
SPEAKERS A --- SPEAKERS B — (OFF)
Note
Speakers A and B cannot be used at the same time.
Caution
Before selecting your speaker system, make sure impedance is correct in the speakers you want to use. (See page 10.)
3
Press to select the desired source, and start the desired source.
(Refer to the appropriate operating instructions for details.)
VCR: To watch video tapes (VCR)
TAPE MONITOR: To listen to cassette tapes (The tape monitor indicator will appear.) (See below.)
CD: To listen to compact discs
TUNER: To listen to radio broadcasts
PHONO: To listen to phono discs
4
Turn VOLUME to adjust the volume level.
After listening is finished
Be sure to reduce the volume level, and switch the power to the standby condition by pressing POWER.
When the tape monitor indicator is lit or flashing A
This indicates that the tape monitor function of this unit is ON. To listen to sources other than a tape, be sure to press TAPE MONITOR and check the indicator goes out.

A


B

C


D


Basic operations
To adjust the tone quality
A
Turn BASS to adjust the low frequency sound. Turn TREBLE to adjust the high frequency sound.
To adjust the sound balance
B
Turn BALANCE to adjust the left/right sound balance.
To mute the sound level
C
Press MUTING.
The message "MUTING ON NOW" runs repeatedly from right to left across the display as long as the muting function is on.
Press once again to return to the previous volume level.
Note
When the receiver is turned off, the muting operation will be automatically canceled.
To listen through headphones
D
① Use VOLUME to reduce the volume level.
② Connect the headphones.
Plug type: 6.3 mm (1/4 in.) stereo
③ Use VOLUME to adjust the volume level.
If you do not want sound from the speakers, press SPEAKERS button and check the speaker indicator(s) goes out.
Note
Avoid listening for prolonged periods of time to prevent hearing damage.
A

1

2


3


B

1

2


(approx. 10 seconds)
3


Listening to radio broadcasts
Sequential tuning
A
You can use the tuning buttons to tune-in radio broadcasts.

Press TUNER.

Press BAND to select "FM" or "AM".

Press TUNING (∨) or (∧) to tune to the desired broadcast.
Tuning intervals
FM:0.2 MHz
AM:10 kHz
"QUARTZ LOCK" lights up when tuned.
"STEREO" lights up when an FM stereo broadcast is received.
To make an automatic search for broadcast stations
If TUNING (V) or (A) is held down for an instant until the frequency begins to scroll, the broadcast stations can be tuned in automatically when a broadcast station is found.
Note
Tuning may stop automatically if any jamming is encountered.
If noise is excessive in the FM stereo mode
Press FM AUTO/MONO.
(The "STEREO" indicator will go out, and the "MONO" indicator will light up.)
The broadcast will be monaural, but noise will be reduced.
If the button is pressed once more, the stereo mode will be resumed.
Direct tuning
B

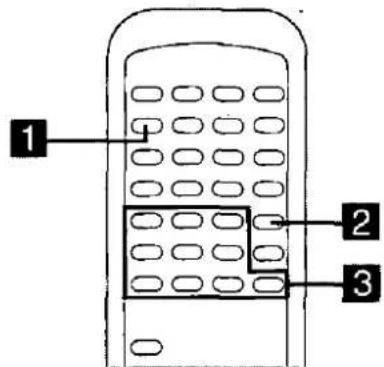

(Only available from the remote control.)
Specify the frequency using the numeric buttons on the remote control transmitter to directly tune to the desired broadcast station.
First select between FM and AM with the BAND button on the receiver.

Press TUNER.
This will set the remote control to operate the tuner.

Press DIRECT TUNING/DISC ENTER.

Press the appropriate numeric buttons to enter the frequency, while cursor display is flashing.
Tuning intervals
FM:0.1 MHz
AM:10 kHz
If the desired FM frequency is 107.9 MHz, press
$$ \boxed {1} \rightarrow \boxed {0} \rightarrow \boxed {7} \rightarrow \boxed {9} $$
If the frequency has been input correctly, the displayed frequency will blink once.
Note
-
If no button is pressed while the cursor display is flashing, the display will return to the frequency which is currently being received. To re-specify the frequency, repeat the procedure from step 2.
-
If the frequency has not been input correctly, "ERROR" indication will be displayed. In this case, re-enter the frequency.

1

2


A

Listening to radio broadcasts
Preset tuning
Presetting radio stations into the memory channels of this unit makes selecting stations easy and simple.
A total of 30 FM and AM stations can be preset.
Please remember this
If a new broadcast station is preset into a channel, the setting for the broadcast station which was previously entered in that channel will be automatically erased.
Automatic memory presetting
Automatic memory presetting allows this unit to automatically search for broadcast stations and then preset them into memory. With this method, the channels that can be preset into the memory are set as follows for different bands (FM or AM).
When FM broadcast stations are preset,
For FM broadcast stations....1-30
When FM and AM broadcast stations are preset,
For FM broadcast stations....1-20
For AM broadcast stations....21-30

Set to the frequency from which you want to start automatic memory presetting. (See page 13.)

Press MEMORY until the frequency begins to change.
(Automatic memory presetting will start.)
During automatic memory presetting, the memory indicator will flash while the frequency scrolls.
To stop, press MEMORY once again.
When a broadcast station is preset
The memory indicator and the preset channel number will be displayed for approximately 1 second.
When presetting is completed
The last broadcast station to be preset will be displayed.
Note
Frequencies may not be preset correctly in cases where the broadcast waves are too strong or too weak. In such cases, carry out presetting manually. (See page 15)
A

1

2


3


4


B

1


Listening to radio broadcasts
Manual memory presetting

The desired broadcast stations can be preset into the desired channels by the user.
1
Set to the desired broadcast.
(See page 13.)
If interference or static is keeping you from enjoying an FM broadcast, press FM AUTO/MONO and change to monaural. You can preset the memory in monaural just as in stereo.
2
Press MEMORY.
To cancel the memory function, press MEMORY again.
3
Press PRESET (∨) or (∧) to select the desired channel.
Holding the buttons down lets you scroll through channels faster.
4
Press MEMORY.
The channel will blink on the display.
To continue presetting
Repeat steps 1 through 4.
To listen to preset broadcast stations B
1
Press PRESET (∨) or (∧) to select the desired channel.
Holding the buttons down lets you scroll through channels faster.
To confirm the channel number of the broadcast station being received
Press TUNER.
(The channel number will be displayed for approximately 1 second.)
Note
The channel number is not displayed if you change the reception frequency or FM mode setting.
For your reference
Even if the power is switched to standby or the power cord is disconnected from the household AC outlet, the memory will retain its contents for approximately one month.
If frequency presettings are accidentally erased
Make the presettings once again.
The power cord should remain connected for one hour or more for the memory back-up to be effective.
A

1

B

C

Making a recording
A
Recording on the tape deck
Before recording, prepare the tape deck for recording (recording level adjustment, etc.).
See the tape deck's operating instructions for details.

Select the desired source to be recorded.
Press any button except TAPE MONITOR to select the source you want to record from.

Begin recording.
Follow your tape deck's operating instructions.

Begin the desired source to be recorded.
To check the sound recorded while a recording is being made B
With a tape deck with 3 head system, it is possible to check the sound recorded on the tape.
Press TAPE MONITOR on this unit and set the monitor button on the tape deck to "TAPE".
Press TAPE MONITOR once again to turn it off.
Recording on the VCR
Before recording, prepare the VCR for recording (recording level adjustment, input selector setting, etc.).
See the VCR's operating instructions for details.
Recording from an audio source C

Select the audio source to be recorded.
Press either CD, TUNER or PHONO to select the source you want to record from.
Note
Recording from the tape deck is not possible.

Begin recording on the VCR
Follow your VCR's operating instructions.

Begin the audio source to be recorded.
Listening caution


Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This manufacturer and the Electronic Industries Association's Consumer Electronics Group want you to get the most out of your equipment by playing it at a safe level. One that lets the sound come through loud and clear without annoying blaring or distortion—and, most importantly, without affecting your sensitive hearing.
We recommend you to avoid prolonged exposure to excessive noise.
Sound can be deceiving. Over time your hearing "comfort level" adapts to higher volumes of sound. So what sounds "normal" can actually be loud and harmful to your hearing.
Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.
To establish a safe level:
- Start your volume control at a low setting.
- Slowly increase the sound until you can hear it comfortably and clearly, and without distortion.
Once you have established a comfortable sound level:
- Set the dial and leave it there.
Taking a minute to do this now will help to prevent hearing damage or loss in the future. After all, we want you listening for a lifetime.
Product service
Do not attempt to remove the cover(s) or repair the unit yourself.
Refer servicing to qualified personnel only.
Product information
For product service, product information or assistance in product operation, refer to the servicenter directory.
■ AMPLIFIER SECTION
Rated minimum sine wave
RMS power output
40 Hz-20 kHz both channels driven
0.8% total harmonic distortion
100 W per channel (8 Ω)
1 kHz continuous power output
both channels driven
0.8% total harmonic distortion 103 W per channel (8 Ω)
Total harmonic distortion
rated power at 40 Hz-20 kHz 0.8% (8 Ω)
half power at 1 kHz 0.07% (8Ω)
Low frequency damping factor
Load impedance
A or B 8 Ω
Dynamic headroom
SMPTE intermodulation distortion
Frequency response
PHONO RIAA standard curve ±0.8 dB
CD, TAPE, VCR 10 Hz-70 kHz, ±3 dB
Input sensitivity
PHONO 0.4 mV (3 mV, IHF'66)
CD, TAPE, VCR 27 mV (200 mV, IHF'66)
S/N (IHF A)
PHONO 70 dB (78 dB, IHF'66)
CD, TAPE, VCR 75 dB (83 dB, IHF'66)
Input impedance
PHONO 47 kΩ
CD, TAPE, VCR 22 kΩ
Tone controls
BASS 50 Hz, +10 to -10 dB
TREBLE 20 kHz, +10 to -10 dB
FM TUNER SECTION
Frequency range
87.9-107.9 MHz
Sensitivity
11.2 dBf (2 μV, IHF '58)
50 dB quieting sensitivity
MONO
18.3 dBf (4.5 μV, IHF '58)
STEREO
38.3 dBf (45 μV, IHF '58)
Total harmonic distortion
MONO 0.2%
STEREO 0.3%
S/N
MONO 75 dB
STEREO 70 dB
Frequency response
20 Hz-15 kHz, +1 dB, -2 dB
Alternate channel selectivity
65 dB
Capture ratio
1 dB
Image rejection at 98 MHz
44 dB
IF rejection at 98 MHz
80 dB
Spurious response rejection at 98 MHz
75dB
AM suppression
50 dB
Stereo separation
1 kHz 40 dB
10 kHz 30 dB
Carrier leak
19 kHz -35 dB
38 kHz -50 dB
Antenna terminal
75 Ω (unbalanced)
■ AM TUNER SECTION
Frequency range
530-1710 kHz
Sensitivity
-20 μV, 330 μV/m
Selectivity
55 dB
Image rejection at 1000 kHz
40 dB
IF rejection at 1000 kHz
60 dB
GENERAL
Power supply
AC 120 V, 60 Hz
Power consumption
155 W
(In standby condition: 2W)
430×136×309 mm
(16-15/16"×5-11/32"×12-5/32")
Weight
6.4 kg (14.1 lb.)
Notes:
- Specifications are subject to change without notice.
Weight and dimensions are approximate
- Total harmonic distortion is measured by the digital spectrum analyzer.
Troubleshooting guide
Before requesting service for this unit, check the chart below for a possible cause of the problem you are experiencing. Some simple checks or a minor adjustment on your part may eliminate the problem and restore proper operation.
If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve the problem, refer to the directory of Authorized Service Centers (enclosed with this unit) to locate a convenient service center, or consult your Technics dealer for instructions.
(In U.S.A. consult MSC Authorized Servicenters for detailed instructions or call 1-800-545-2672 for the address of an authorized factory servicenter.)
Reference pages indicated in black circles.
| Problem | Probable cause(s) | Suggested remedy |
| While listening to FM broadcasts | ||
| An unusual hissing noise is heard when listening to the broadcast in stereo, but not heard when listening monaurally. | A slight noise may be heard because the method used for modulation of FM stereo broadcasts is different than that used for monaural broadcasts. | Try reducing the treble sound by using the treble control.(12)Try changing the location, height and/or direction of the antenna.(8 9)If an indoor antenna is being used, change to an outdoor antenna.(9)Try using an antenna with more elements. |
| Noise is excessive in both stereo and monaural broadcasts. | Poor location and/or direction of the antenna. | |
| Transmitting station is too far away. | ||
| The FM stereo indicator or the quartz lock indicator flickers, without completely illuminating. | Poor location and/or direction of the antenna. | Try changing the location, height and/or direction of the antenna.(8 9)If an indoor antenna is being used, change to an outdoor antenna.(9)Try using an antenna with more elements. |
| Transmitting station is too far away. | ||
| Excessive distortion in the sound of stereo broadcasts. | Nearby building or mountain. | |
| While listening to AM broadcasts | ||
| An unusual “beat” sound is heard. | Unit is being used at the same time as the television set. | Turn off the television set, or use this unit farther away from it. |
| Interference from adjacent broadcast signal. | Try reducing the treble sound by using the treble control.(12) | |
| A low-pitched “hum” sound is heard when the broadcast is tuned. | The AM loop antenna connection wires are too close to the power cord. | Place the antenna connection wires and the power cord farther apart. |
| The power supply frequency from the power cord is modulated and heard from the speakers. | Install a special outdoor antenna.(3) | |
| A strange hissing noise is produced continuously or intermittently. | Caused by the “discharge phenomenon” and the “oscillation phenomenon” of electric appliances (such as fluorescent lights, TV, small series-type motors, rectification equipment, etc.). | Try placing this unit farther away from such equipment. |
| Problems noted at all times | ||
| Power will not switch ON. | The power cord plug is not completely inserted. | Confirm that the power cord plug is connected completely. |
| No sound is heard. | The speaker indicator is turned off. | Turn on the speaker indicator. (10) |
| The tape monitor function is ON. | Press the tape monitor button. (11) | |
| The muting function is ON. | Press the muting button. (12) | |
| Connections are incomplete or incorrect to the speaker systems, etc. | Check to be sure that all connection wires are correctly connected. (13) | |
| The incorrect input selector has been pressed. | Check to be sure that the correct selector is pressed. (14) | |
| Sound stops during a performance, or no sound is heard when the power is switched ON.(The word “OVERLOAD” appears on the display.) | The protection circuitry has functioned because the positive and negative speaker connection wires are “shorted,” speaker systems with an impedance less than the indicated rated impedance of this unit are used or under severe use, such as loud volume, excessive power and in an excessively hot environment. | Switch off the power, and after determining and correcting the cause, switch on the power once again.Use a speaker system of the proper impedance rating. (15) |
Matsushita Consumer Electronics Company, Division of Matsushita Electric Corporation of America
One Panasonic Way Secaucus, New Jersey 07094
Panasonic Sales Company, Division of Matsushita Electric of Puerto Rico, Inc ("PSC")
Ave 65 de Infantería Km 95 San Gabriel Industrial Park, Carolina, Puerto Rico 00985
Panasonic Canada Inc 5770 Ambler Drive, Mississauga, Ontario L4W 2T3
