Type de produit	Support de projecteur
Marque	Chief
Modèle	CPA048
Catégorie	Accessoire de projecteur
Dimensions (L x l x h)	35,6 x 25,4 x 10,2 cm
Poids net	1,8 kg
Alimentation	Aucune (support passif)
Charge maximale supportée	22,7 kg
Matériau principal	Acier et aluminium
Couleur	Noir
Fonctions principales	Montage mural ou plafond, inclinaison, rotation et nivellement
Compatibilité	Projecteurs jusqu'à 22,7 kg avec fixation VESA standard
Réglages	Inclinaison ±15°, rotation ±5°, niveau par vis
Fixation fournie	Vis et chevilles pour béton et bois
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de produits abrasifs
Sécurité	Ne pas dépasser la charge maximale. Vérifier régulièrement la fixation
Pièces détachées et réparabilité	Pièces disponibles sur demande. Réparation par professionnel recommandée
Garantie	2 ans

FOIRE AUX QUESTIONS - CPA048 Chief

Comment installer le support CPA048 ?

Fixez d'abord la plaque murale au mur à l'aide des vis fournies, puis accrochez le projecteur sur la platine et serrez les vis de sécurité. Consultez la notice pour les étapes détaillées.

Quel est le poids maximal supporté ?

Le support Chief CPA048 peut supporter jusqu'à 22,7 kg (50 lb). Ne dépassez jamais cette charge.

Ce support est-il compatible avec tous les projecteurs ?

Il est compatible avec les projecteurs ayant une fixation VESA standard (100x100mm à 200x200mm). Vérifiez les dimensions de votre projecteur.

Puis-je incliner le projecteur après installation ?

Oui, le support permet une inclinaison de ±15° et une rotation de ±5° pour ajuster l'angle de projection.

Comment nettoyer le support ?

Utilisez un chiffon doux et sec. N'utilisez jamais de détergents agressifs ou d'éponges abrasives.

Le support est-il livré avec des vis ?

Oui, le support inclut un kit de fixation avec vis et chevilles pour murs en béton et bois.

Puis-je installer le support au plafond ?

Oui, le Chief CPA048 est conçu pour une installation murale ou au plafond. Utilisez les ancrages appropriés.

Comment cacher les câbles ?

Le support dispose de passages de câbles intégrés pour un aspect soigné. Acheminez les câbles à travers les ouvertures prévues.

Que faire si une pièce est manquante ?

Contactez le service client Chief pour obtenir des pièces de rechange. Conservez la preuve d'achat.

Comment régler le niveau du projecteur ?

Utilisez les vis de nivellement sur le support pour ajuster l'horizontalité. Serrez une fois l'alignement correct.

MODE D'EMPLOI CPA048 Chief

INSTALLATION INSTRUCTIONS

Extension Columns

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components and mounting systems attached to the CPA Extension Columns does not exceed 500 lbs (226.8 kg).

- The weight capacity of the CPA Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

NOTE: CPA Extension Columns are intended to be used with the following UL Listed products:

• CPA Ceiling Plates;
  • CPA Adapters; CPA265
• Ceiling Mount Models XCM1U, LCM1U, MCM1U, RLC1, RMC1;
• Ceiling Mounted Video Wall Models LCM2X2U, LCM3X2U, LCM3X3U;
• Ceiling Mounted Menu Board Models LCM2X1U, LCM2X1UP, LCM3X1U, LCM3X1UP, LCM5X1U, LCB2X1U, LCB2X1UP, LCM1UP (not included);
• Truss Ceiling Adapter Accessory Model CPA380.

--SAVE THESE INSTRUCTIONS--

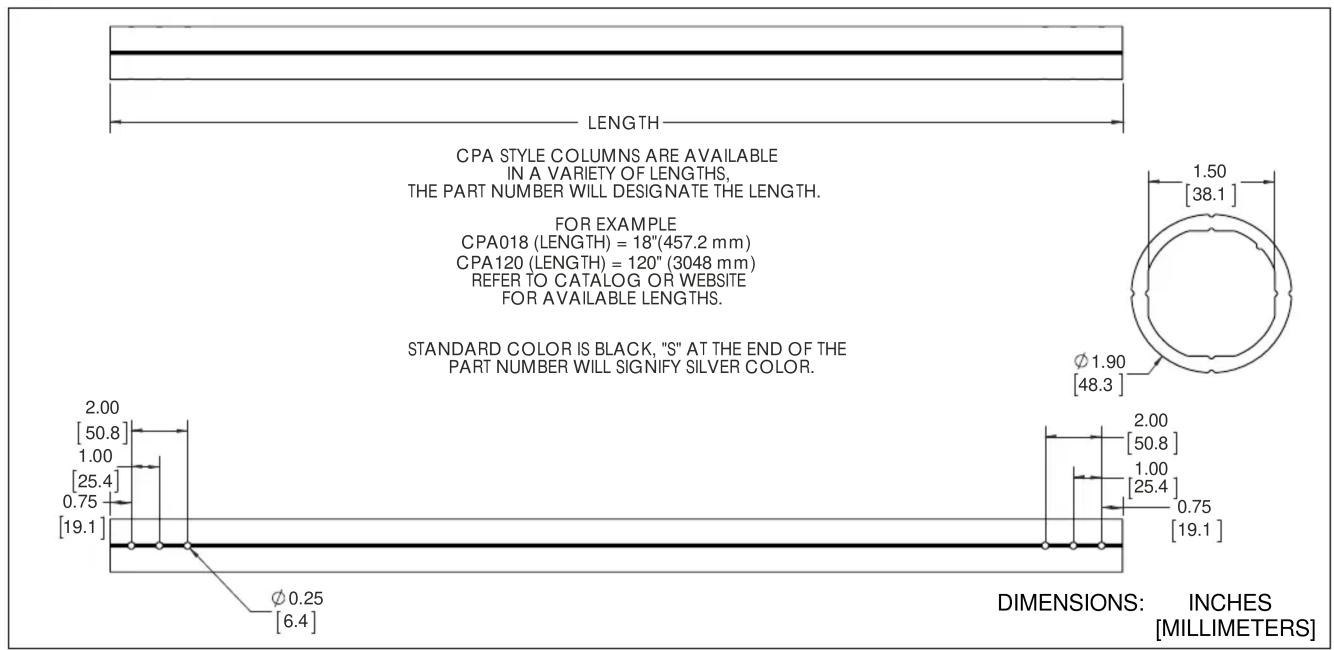

DIMENSIONS

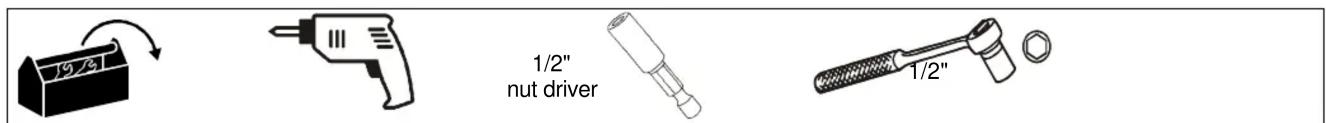

TOOLS REQUIRED FOR INSTALLATION

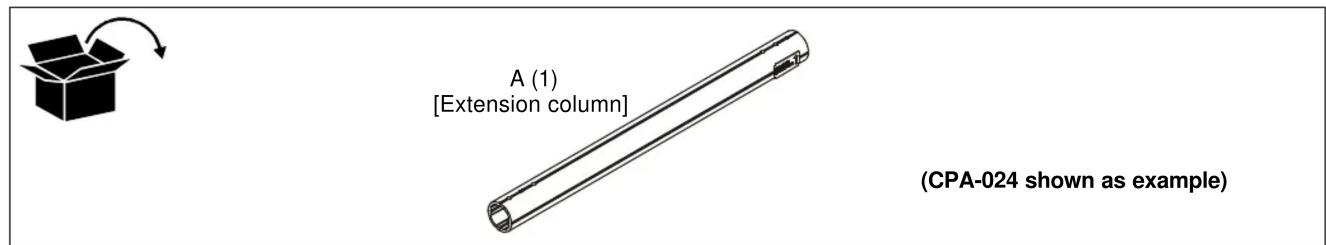

PARTS

INSTALLATION

IMPORTANT ! : The following procedure assumes that the UL Listed CPA ceiling plate (not included) has been properly installed following instructions provided with ceiling plate.

1. OPTIONAL: Route cables through extension column (A).

2. Install UL Listed CPA Series Extension column into UL Listed CPA ceiling plate (not included) following instructions included with ceiling plate.
   NOTE: Installation of hex head self-tapping screws (included with Listed Chief accessories and mounts) will be easier when screws are carefully aligned with holes in extension column, and a drill and nut driver is used. If a drill will NOT be used, a small amount of pressure will be needed to get the self-tapping screws started.

3. Secure extension column following instructions included with ceiling plate.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components and mounting systems attached to the CPA Extension Columns does not exceed 500 lbs (226.8 kg).

- The weight capacity of the CPA Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

1. Install and secure mount (not included) to lower end of extension column (A) following instructions included with mount.

CPA Series Columns

Installation Instructions
