CPA024 - Accessoire de projecteur Chief - Notice d'utilisation et mode d'emploi gratuit

Type de produit	Support de projecteur plafond/mural
Marque	Chief
Modèle	CPA024
Utilisation	Fixation au plafond ou au mur
Matériau	Acier à haute résistance
Poids supporté maximal	15 kg
Dimensions du support	30 x 20 x 5 cm
Poids du support	1,5 kg
Compatibilité	Projecteurs Chief et universels (jusqu'à 15 kg)
Couleur	Noir
Fixation	Vis et chevilles incluses
Inclinaison	±15°
Rotation	360°
Dégagement du plafond	10 cm
Garantie	2 ans
Installation	Mur ou plafond, boulonné
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec
Sécurité	Ne pas dépasser la charge maximale de 15 kg
Pièces détachées et réparabilité	Disponibles sur demande auprès du fabricant
Certifications	UL, CE
Fabrication	États-Unis

FOIRE AUX QUESTIONS - CPA024 Chief

Quel type de fixation est nécessaire pour le support Chief CPA024 ?

Le support se fixe au plafond ou au mur à l'aide des vis et chevilles fournies. Assurez-vous que la surface supporte au moins 4 fois le poids du projecteur.

Le support CPA024 est-il compatible avec tous les projecteurs ?

Il est compatible avec la plupart des projecteurs pesant jusqu'à 15 kg, notamment les modèles Chief et d'autres marques utilisant une fixation VESA standard.

Quels outils sont nécessaires pour l'installation ?

Vous aurez besoin d'une perceuse, d'un tournevis cruciforme, d'un niveau à bulle et d'une clé Allen (fournie).

Le support permet-il d'ajuster l'angle du projecteur ?

Oui, le CPA024 offre une inclinaison de ±15° et une rotation à 360° pour un positionnement précis de l'image.

Quelle est la distance minimale entre le plafond et le projecteur ?

Le dégagement minimal est d'environ 10 cm, mais peut varier selon les dimensions du projecteur.

Comment nettoyer le support Chief CPA024 ?

Utilisez un chiffon doux et sec pour dépoussiérer. Évitez les produits chimiques ou abrasifs qui pourraient endommager la finition.

Que faire si une pièce du support est manquante ou endommagée ?

Contactez le service client Chief pour commander des pièces détachées. Les pièces sont réparables et disponibles sur demande.

Le support peut-il être installé sur un plafond incliné ?

Oui, mais il peut nécessiter un adaptateur supplémentaire. Consultez la notice d'installation pour les configurations spéciales.

Quelle est la garantie du Chief CPA024 ?

Chief offre une garantie de 2 ans contre les défauts de fabrication. La garantie couvre le support, mais pas les dommages causés par une mauvaise installation.

Comment puis-je savoir si mon projecteur est compatible avec le CPA024 ?

Vérifiez le poids (max 15 kg) et les points de fixation. Le support utilise des plaques VESA standard. Consultez la liste de compatibilité sur le site de Chief.

MODE D'EMPLOI CPA024 Chief

INSTALLATION INSTRUCTIONS

Extension Columns

DISCLAIMER

Milestone AV Technologies and its affiliated corporations and subsidiaries (collectively "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies. All rights reserved.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the primary Chief product to which an accessory and/or component is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief product which is attached to a primary Chief product, and may have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item designed to be attached or resting on an accessory or mounting system such as a video camera, CPU, screen, display, projector, etc.

WARNING: A WARNING alerts you to the possibility of serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of damage or destruction of equipment if you do not follow the corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and follow all instructions can result in serious personal injury, damage to equipment, or voiding of factory warranty! It is the installer's responsibility to make sure all accessories are properly assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength for this accessory can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the structure to which this accessory is attached can support five times the combined weight of all equipment. Reinforce the structure as required before installing the accessory.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components and mounting systems attached to the CPA Extension Columns does not exceed 500 lbs (226.8 kg).

- The weight capacity of the CPA Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

WARNING: Use this accessory only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged. Return the accessory to a service center for examination and repair.

WARNING: Do not use this product outdoors.

NOTE: CPA Extension Columns are intended to be used with the following UL Listed products:

• CPA Ceiling Plates;
  • CPA Adapters; CPA265
• Ceiling Mount Models XCM1U, LCM1U, MCM1U, RLC1, RMC1;
• Ceiling Mounted Video Wall Models LCM2X2U, LCM3X2U, LCM3X3U;
• Ceiling Mounted Menu Board Models LCM2X1U, LCM2X1UP, LCM3X1U, LCM3X1UP, LCM5X1U, LCB2X1U, LCB2X1UP, LCM1UP (not included);
• Truss Ceiling Adapter Accessory Model CPA380.

--SAVE THESE INSTRUCTIONS--

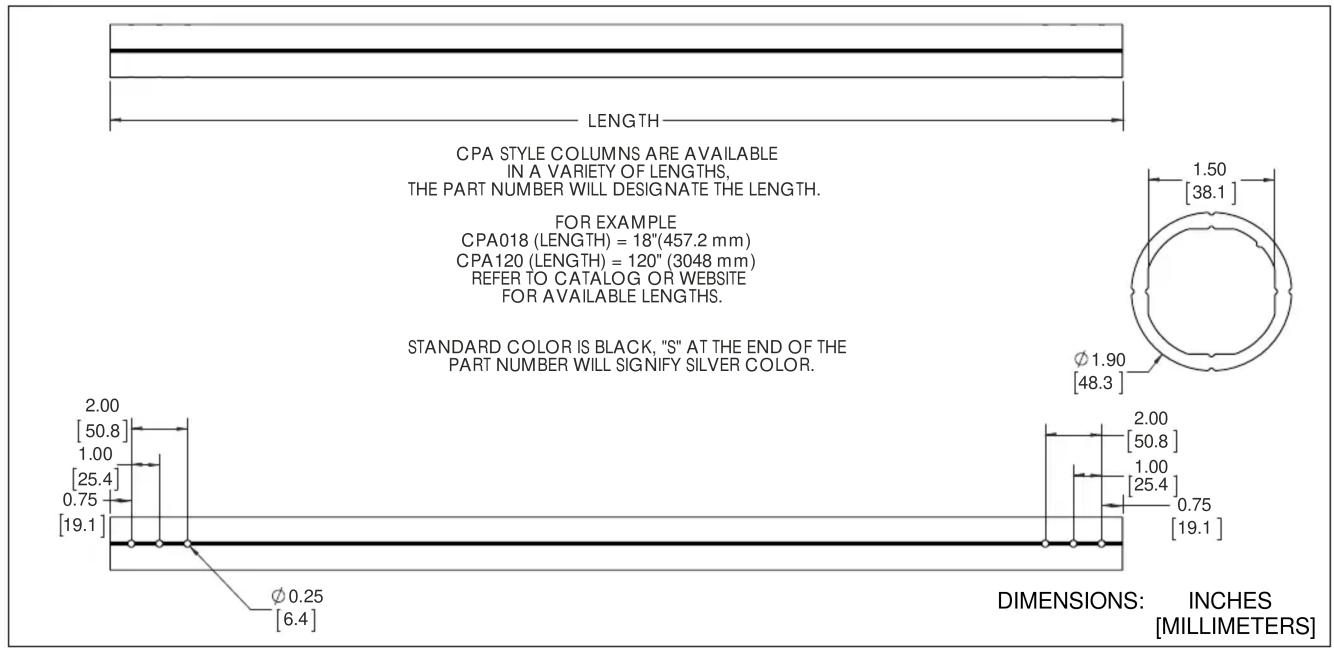

DIMENSIONS

TOOLS REQUIRED FOR INSTALLATION

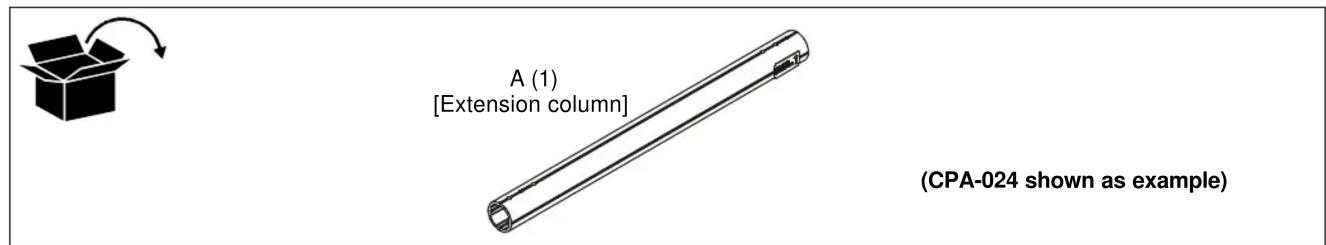

PARTS

INSTALLATION

IMPORTANT ! : The following procedure assumes that the UL Listed CPA ceiling plate (not included) has been properly installed following instructions provided with ceiling plate.

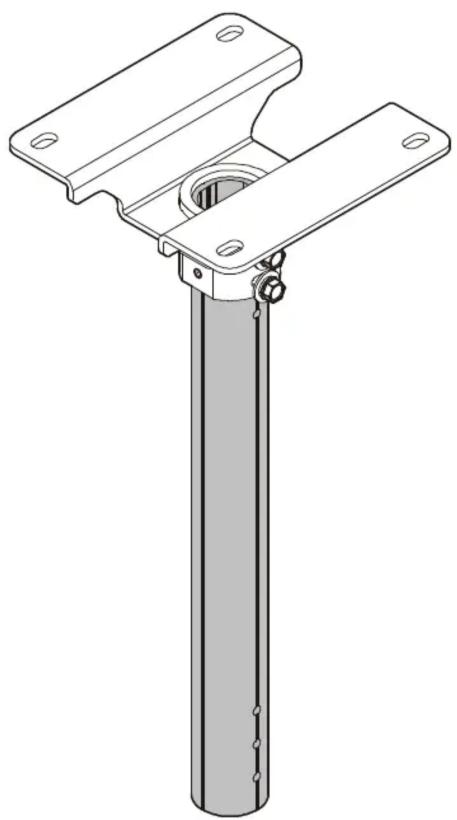

1. OPTIONAL: Route cables through extension column (A).

2. Install UL Listed CPA Series Extension column into UL Listed CPA ceiling plate (not included) following instructions included with ceiling plate.
   NOTE: Installation of hex head self-tapping screws (included with Listed Chief accessories and mounts) will be easier when screws are carefully aligned with holes in extension column, and a drill and nut driver is used. If a drill will NOT be used, a small amount of pressure will be needed to get the self-tapping screws started.

3. Secure extension column following instructions included with ceiling plate.

WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of all components and mounting systems attached to the CPA Extension Columns does not exceed 500 lbs (226.8 kg).

- The weight capacity of the CPA Extension Columns may be LIMITED to the lowest weight capacity of any other component, accessory or mounting system used with this accessory.

1. Install and secure mount (not included) to lower end of extension column (A) following instructions included with mount.

CPA Series Columns

Installation Instructions
