| Type de produit | Smartphone |
| Marque | Huawei |
| Modèle | Mate 9 Pro |
| Dimensions | 152 x 75 x 7,5 mm |
| Poids | 169 g |
| Capacité de la batterie | 4000 mAh |
| Type d'écran | AMOLED 5,5 pouces |
| Processeur | Kirin 960 |
| Mémoire RAM | 6 Go |
| Stockage interne | 128 Go |
| Appareil photo principal | Double capteur 12 + 20 Mpx |
| Appareil photo frontal | 8 Mpx |
| Système d'exploitation | Android 7.0 (Nougat) avec EMUI 5.0 |
| Fonctions principales | Lecteur d'empreintes, charge rapide, double SIM, NFC |
| Entretien et nettoyage | Essuyer avec un chiffon doux et sec. Éviter tout contact avec l'eau. |
| Sécurité | Lecteur d'empreintes digitales, déverrouillage par code PIN ou mot de passe |
| Pièces détachées et réparabilité | Batterie, écran, connecteur de charge, haut-parleur |
| Informations générales | Smartphone haut de gamme Huawei sorti en 2016 |
FOIRE AUX QUESTIONS - MATE 9 PRO HUAWEI
Questions des utilisateurs sur MATE 9 PRO HUAWEI
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Smartphone au format PDF gratuitement ! Retrouvez votre notice MATE 9 PRO - HUAWEI et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil MATE 9 PRO de la marque HUAWEI.
MODE D'EMPLOI MATE 9 PRO HUAWEI
HUAWEI MATE 9
PRO
User Guide
Contents
Foreword
Unboxing your Phone
Getting to know your phone 2
Charging your phone 2
Viewing the battery status 4
Getting Started
Setup wizard 5
Enabling or disabling a SIM card 5
Naming a SIM card 6
Selecting the default mobile data SIM 6
Setting the default SIM card 6
Connecting to the Internet 7
Importing data from your old phone 7
Viewing recommended settings 9
Screen and Display

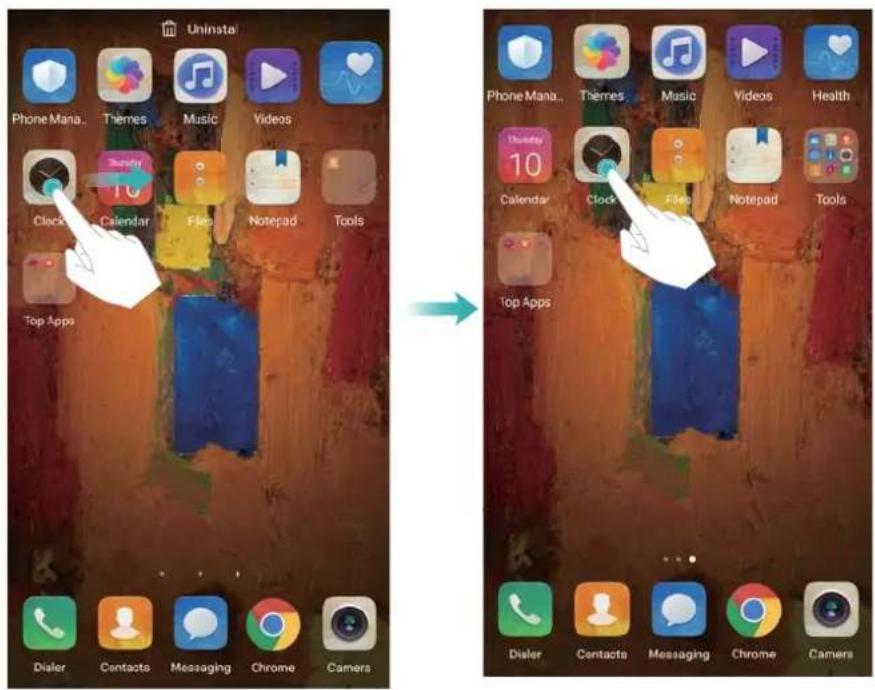

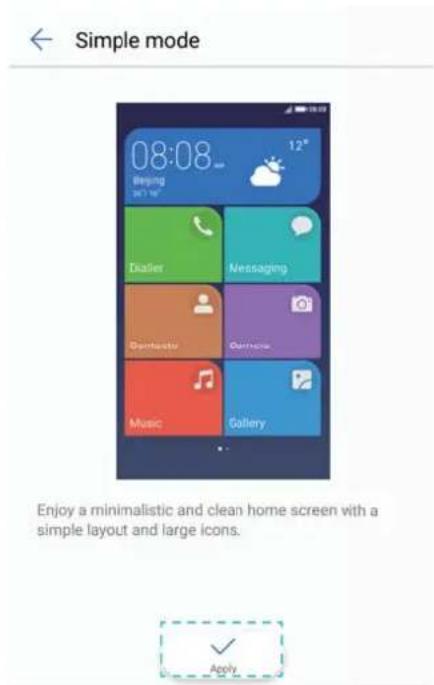

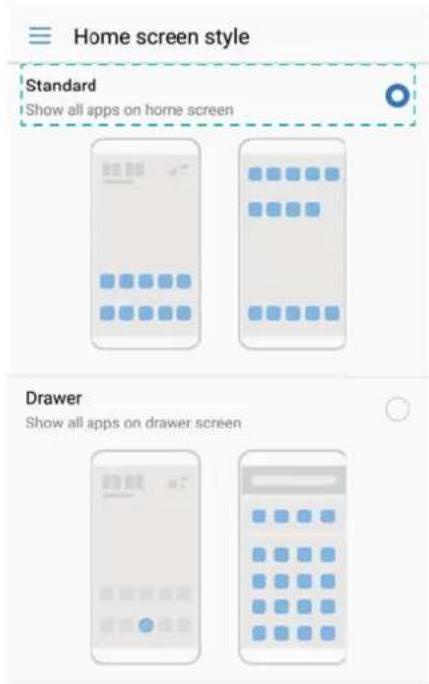

Home screen 11
Locking and unlocking the screen 27
Notification panel and status bar 31
Navigation bar 36
Themes 38
Floating dock 38
Global search 40
Screenshot 41
Screen recording 45
Split-screen mode 49
Using motion gestures 51
Eye comfort mode 52

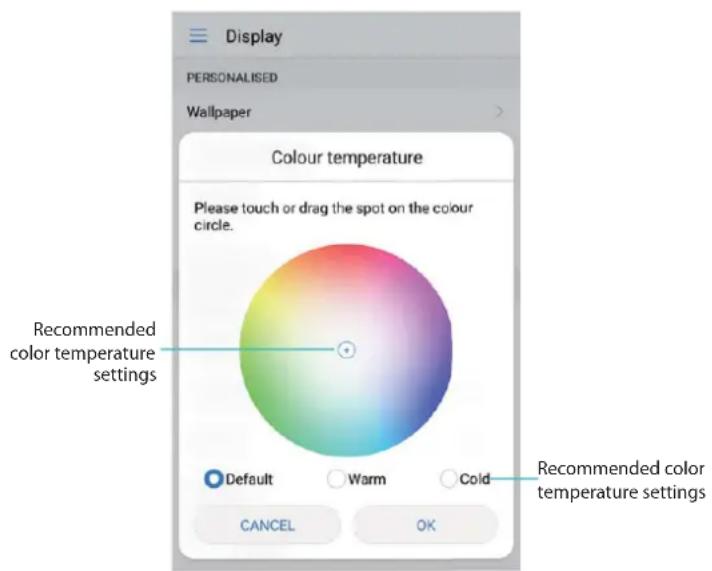

Display settings 53
Network and Sharing
Mobile Internet 57
Wi-Fi 59
Bluetooth 62
NFC 64
Multi-screen 66
VPNs 68
HiSuite 69
Using Huawei Share to transfer files between two Huawei
devices
Using a USB port to transfer data 71
Security and Backup
Fingerprint recognition 74
User accounts 75
Security settings 78
Backing up and restoring data 78
File management 81
Calls and Contacts
Making calls 86
Answering calls 89
Making a conference call 91
In-call options 92
Managing call logs 93
Call settings 94
Creating a contact card 98
Creating a new contact 99
Importing and exporting contacts 100
Managing contacts 102
Searching for contacts 104
Sharing contacts 104
Adding a contact to your favorites 105
Changing contact photos 105
Viewing call records for individual contacts 105
Assigning a ringtone to a contact 106
Contact groups 106
Messaging and Email
Sending a message 108
Replying to a message 109
Using RCS instant messaging 109
Searching for messages 110
Deleting message threads 110
Managing messages 110
Returning to the top of the message list 110
Pinning messages to the top of the list 111
Marking messages as read 111
Blocking spam messages 111
Adding a message signature 112
Configuring the message ringtone 112
Identifying malicious URLs in text messages 112
Receiving delivery reports 112
Adding an email account 113
Sending emails 113
Replying to emails 114
Managing emails 114
Searching emails 115
Viewing email folders 115
Managing VIP contacts 116
Managing email accounts 116
Configuring Mail 117
Calendar and Notepad
Changing the calendar view 118
Viewing global holidays 118
Birthday reminders 118
Syncing events 119
Creating an event 119
Sharing events 119
Deleting an event 120
Searching for events 120

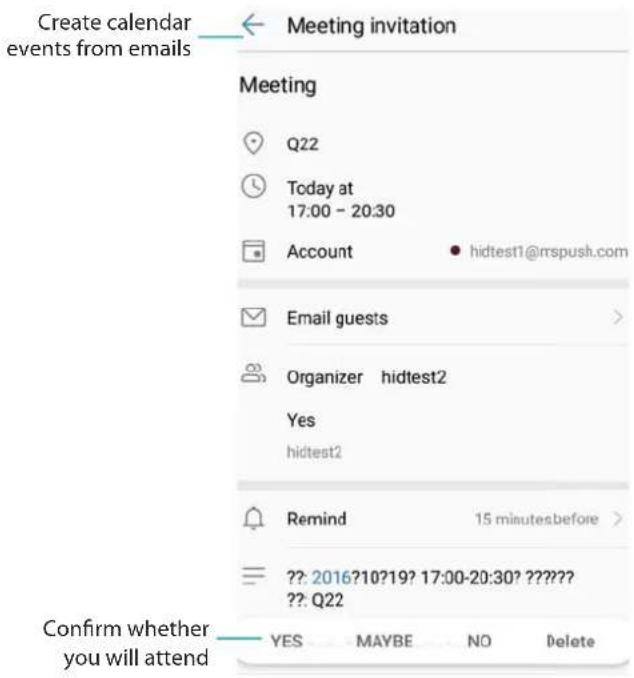

Sending event invitations 120
Creating a note 120
Managing notes 121
Backing up notes 122
Camera and Gallery
Camera options 123
Photos and video recordings 123
Object recognition and Pro camera mode 127
Wide aperture mode 129
Monochrome mode 129
Beauty mode 129
Perfect Selfie mode 130
HDR mode 130
Taking panoramic shots 130
Super Night mode 131
Light Painting mode 131
Slow motion recording 131
Time-lapse mode 132
Adding watermarks to photos 132
Audio notes 133
Document correction 133
Managing shooting modes 133
Configuring the camera settings 134
Viewing photos and videos 135
Organizing albums 137
Sharing photos and videos 138

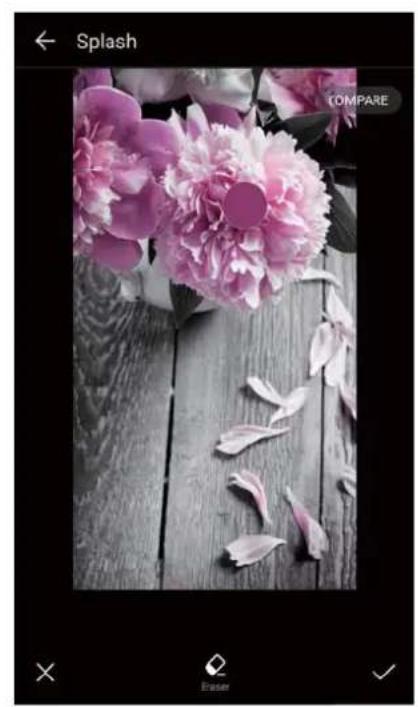

Editing a photo 138
Editing Videos 140
Configuring Gallery 141
Music and Video
About Music 143
Searching for music 143
Deleting songs 143
Creating a playlist 143
Playing a playlist 144
Controlling playback using a smart headset 144
Playing a video 144
Phone Manager
Optimizing performance 146
Enhancing speed 146
Managing data usage 146
Harassment filter 147
Battery management 148
Managing app permissions 149
Virus scanner 150
Encrypting apps 151
Setting apps to close automatically when the screen is locked 151
Configuring Phone Manager 152
Tools
Logging in to two social media accounts at the same time 153
Health 153
Weather 153
Clock 155
Smart Controller 158
Sound recorder 159
Calculator 161
Mirror 162
Compass 163
Flashlight 163
System Features and Settings
Power on and off timer 165
Restarting your phone 165
Changing the system language 165
Using the Google input method 166
Input method settings 166
Editing text 167
Airplane mode 168
Updating your carrier settings 168
Configuring the sound settings 169
One-hand mode 170
Gloves mode 170
Do not disturb 171
Setting up an account 174
Viewing memory and storage information 175
Setting the date and time 175
Enabling location access 176
Restoring system settings 177
Restoring the network settings 177
Restoring factory settings 177
OTA updates 177
Viewing product information 178

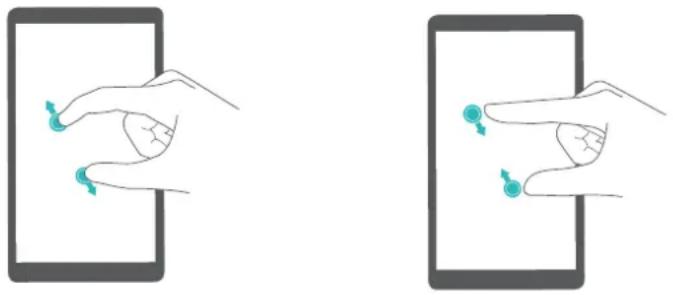

Accessibility features 179
Accessories
Flip Case Mode 185
Obtaining help
Personal Information and Data Security
List of safety features
Legal Notice
Foreword
Read this guide carefully before using your device.
All pictures and illustrations in this document are for your reference only and may differ from the final product.
Some features in this guide may not be supported by certain devices or carriers.
Symbols and definitions
| i | Description | Highlights important information and tips, and provides additional information. |
| ! | Reminder | Indicates potential problems that may arise if proper care or attention is not given, such as device damage or data loss. |
| ∅ | Warning | Warns you about potential hazards that could cause serious injury. |
Unboxing your Phone
Getting to know your phone
Do not cover the light sensor, as this may affect some of the phone's functions. When using a screen protector, ensure that it has a purpose-built cutout for the light sensor.
Charging your phone
A low battery warning will be displayed when the battery is nearly empty. Charge your phone immediately to prevent it from switching off automatically.
Using a charger to charge your phone
Connect your phone to a mains socket using the charger and USB cable that came with your phone.
You must use the charger and USB cable that came with your phone to benefit from quick charge speeds. Using other chargers or USB cables may cause your phone to continuously restart or increase the charging time. It may also cause the charger to overheat, or even damage your device or cause the battery to explode.
- If your phone does not respond when you press the power button, the battery is probably empty. Charge your battery for at least 10 minutes using a genuine Huawei charger, and then turn on your phone.
- Your phone will automatically conduct a safety check when you connect it to a charger or other devices. If your phone detects that the USB port is wet, it will automatically stop charging and display a safety message. If this message is displayed, unplug the USB cable from your phone and allow the USB port to dry out completely to avoid damaging your phone or the battery.

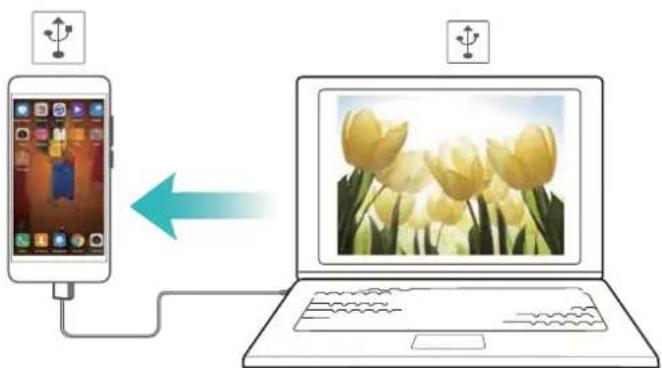

Using a USB port to charge your phone
If you don't have access to a charger, you can charge your phone by connecting it to a computer with a USB cable.
1 When you use a USB cable to connect your phone to a computer or another device, Allow access to device data? will be displayed in a popup dialog.
2 Touch NO, CHARGE ONLY.
If another USB connection mode has been selected, swipe down from the top of the screen to open the notification panel. Touch Charging via USB, and then select Charge only.
Charging other phones using a USB Type-C cable (reverse charging)
You can use your phone to charge other devices with a USB Type-C port (reverse charging).
1 Connect your phone to another device using a USB Type-C cable.
2 On your phone, swipe down from the status bar to open the notification panel, and then set the USB connection mode to Reverse charging.
3 On the other device, set the USB connection mode to Charge only.
To charge your phone using another device, set the USB connection mode to Charge only on your phone, and then set the USB connection mode on the other device to Reverse charging.
Safety information
- Only use genuine Huawei batteries, chargers, and USB cables to charge your phone. Third-party accessories are a potential safety hazard and may impair your phone's performance.
- You can recharge your battery many times, but all batteries have a limited lifespan. If you notice a significant deterioration in your phone's battery life, you will need to purchase a replacement battery. Do not attempt to remove built-in batteries. If your phone has built-in battery, contact an authorized Huawei service center for a replacement. If the battery is removable, replace it with a genuine Huawei battery.
-
Your phone may become warm after prolonged use or when exposed to high ambient temperatures. If your phone becomes hot to the touch, unplug the USB cable, disable non-essential features, and avoid prolonged skin contact. Place your phone in a cool location and allow it to cool down to room temperature.
-
Charging times may vary depending on the ambient temperature and the remaining battery level.
- Avoid using your phone when it is charging. Do not cover your phone or the charger.
For more information on charging and battery care, visit http://consumer.huawei.com/cn/ and search for your device's user guide.
Battery status information
The battery status is indicated by your phone's indicator light and the battery icon in the status bar.
| Status indicator | Battery icon | Battery status |
| Flashing or constant red | Less than 4% remaining | |
| Red Charging, less than 10% remaining | ||
| Orange Charging, 10–90% remaining | ||
| Green Charging, at least 90% remaining | If 100% is displayednext to the battery icon in the status bar, or a chargingcomplete message is displayed on the lock screen, thisindicates that charging is complete. | |
Viewing the battery status
You can view the battery status and configure the status bar to display the remaining battery percentage.
Viewing the battery status
The battery status is indicated by the battery icon in the status bar.
Touch Phone Manager > ☑ to view the remaining battery percentage and usage time.
Displaying the remaining battery percentage in the status bar
You can display the remaining battery percentage in the status bar in two ways:
- Touch Phone Manager > 📄 and switch on Remaining battery percentage.
- Touch Settings > Notification & status bar > Battery percentage. Select Next to icon or In icon to display the remaining battery percentage in the chosen location. Select Do not show if you do not want the remaining battery percentage to be displayed.
Getting Started
Setup wizard
Read the Quick Start Guide carefully before using your phone for the first time and ensure that the Nano SIM card is inserted correctly.
Press and hold the power button to turn on your phone. Follow the onscreen instructions to complete initial setup.
1 Select your language and region, and then touch NEXT.
2 Read the user terms and Huawei Privacy Policy carefully and then touch AGREE > AGREE to accept.
3 Follow the onscreen instructions to enable Wi-Fi+.
4 Your phone will automatically list nearby Wi-Fi networks. Select a network and enter the password to connect.
5 Read the Google services carefully and then touch NEXT.
6 On Set up your phone screen, you can:
- Touch Keep your apps & data, follow the onscreen instructions to restore a backup or copy from a device.
- Touch Set up as new, follow the onscreen instructions to migrate data, or touch SET AS NEW PHONE > OK to skip this step.
You can always migrate data later by going to Settings > Advanced settings > Data transmission.
7 Follow the onscreen instructions to add your fingerprint. You must also set a PIN or Password to unlock the screen in case fingerprint recognition fails.
It is important to remember this password so that you are always able to unlock your phone.
8 Touch GET STARTED to complete setup. Once EMUI launches, your phone is ready for use.
Enabling or disabling a SIM card
Disable or enable a SIM card to keep your work and private life separate.
1 Open Settings
2 Touch Dual SIM management.
3 Toggle the switch next to SIM 1 or SIM 2.
i Disabled SIM cards cannot be used to make calls, send messages, or access the Internet.
Naming a SIM card
By default, each SIM card is named after the carrier. You can rename your SIM card to make it easier to identify.
1 Open @ Settings.
2 Touch Dual SIM management
3 Select a SIM card. Enter a name and touch OK.
i Features may vary depending on your carrier.
Selecting the default mobile data SIM
You can select a default SIM card for mobile data services.
1 Open Settings.
2 Touch Dual SIM management.
3 Touch SIM 1 or SIM 2 next to Default mobile data.
i Features may vary depending on your carrier.
Setting the default SIM card
You can select a default SIM card for outgoing calls and messages.
1 Open Settings.
2 Touch Dual SIM management
3 Touch Default calling SIM and select SIM 1 or SIM 2
After you have selected the default SIM card, SIM 1 and SIM 2 will no longer be displayed on the dialer.
Connecting to the Internet
Connect to the Internet over Wi-Fi or mobile data to browse websites, check your emails, and chat to friends.

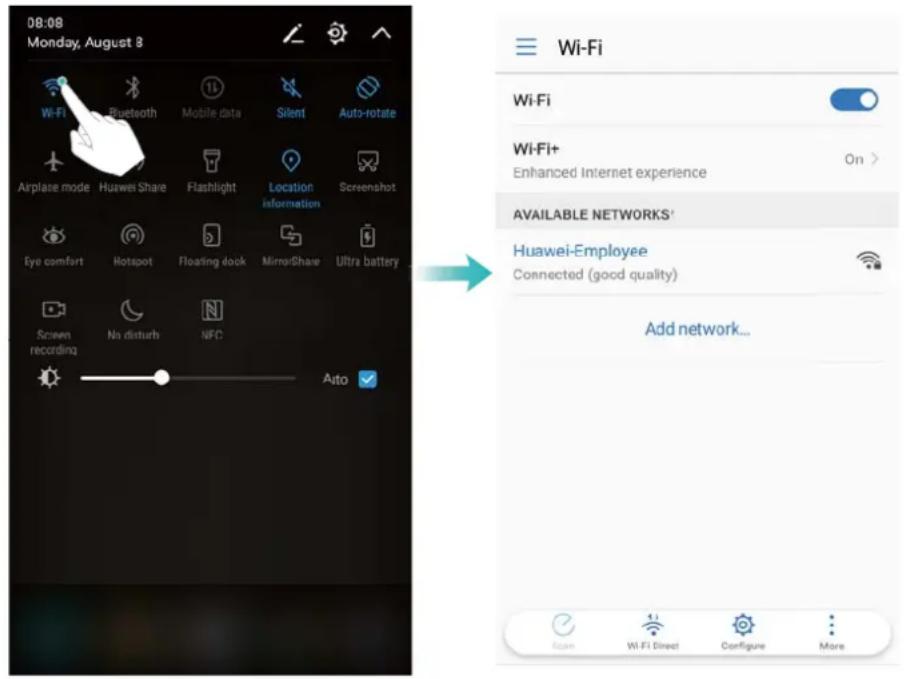

Connecting to a Wi-Fi network
1 Pull down the status bar to open the notification panel.
2 Touch and hold to open the Wi-Fi settings screen.
3 Switch on Wi-Fi. Your phone will list available Wi-Fi networks.
4 Select the Wi-Fi network you want to connect to: If the network is encrypted, enter the password when prompted.
Connecting to a mobile data network
Before using mobile data, ensure that you have a data plan with your carrier to avoid incurring excessive data charges.
1 Pull down the status bar to open the notification panel.
2 Touch ^14 to enable mobile data.
To save battery and reduce data usage, disable mobile data when you are not using it.
Importing data from your old phone
Transfer the data on your old phone to your computer and then transfer it to your new phone.
Open Data transmission
1 Open Settings.
2 Touch Advanced settings > Data transmission. You can:
Import data using HiSuite
i Back up the data on your old phone to your computer. For more information, see Transferring data using a computer.
1 Touch FROM HISUITE.
2 Connect your phone to your computer using a USB cable and touch Restore in HiSuite.
3 Select a backup file and touch Restore to restore it to your new phone.
Import data using Phone Clone
1 Touch FROM OLD PHONE(PHONE CLONE).
2 Choose whether your phone is an Android device or an iPhone and touch CONTINUE.
- If your old phone is an Android device: On your old phone, open phone clone. Touch Old phone(Send), and then connect to your new phone's portable Wi-Fi hotspot.
- If your old phone is an iPhone: Connect the iPhone to your new phone's portable Wi-Fi hotspot.
3 Once you have connected the devices, select the data you want to send and touch Send.
Using a browser to download Phone Clone
1 Open Settings.
2 Touch Advanced settings > Data transmission > From old phone (Phone Clone).
3 Choose whether your old phone is an Android device or an iPhone, and then touch Continue. Follow the onscreen instructions to download Phone Clone.
- If your old phone is an Android device: Touch Touch here to generate a QR code on your new phone to generate a QR code, and then scan the QR code.
- If your old phone is an iPhone: On your iPhone, go to the App Store to download and install Phone Clone.
Viewing recommended settings
After you have completed the initial setup process, your device will display a list of recommended settings.
Open Settings. Touch a recommended setting to configure it.
- Recommended settings include Screen lock, and Change wallpaper, and Add another email account.
- Touch next to a recommended setting to remove it from the list. Recommendations that have been removed from the list will no longer be displayed.
Screen and Display
Home screen
About the home screen
Use the home screen to access your apps and widgets.
Basic screen gestures
Use simple touchscreen gestures to perform a variety of tasks, such as launch apps, scroll through lists, and enlarge images.


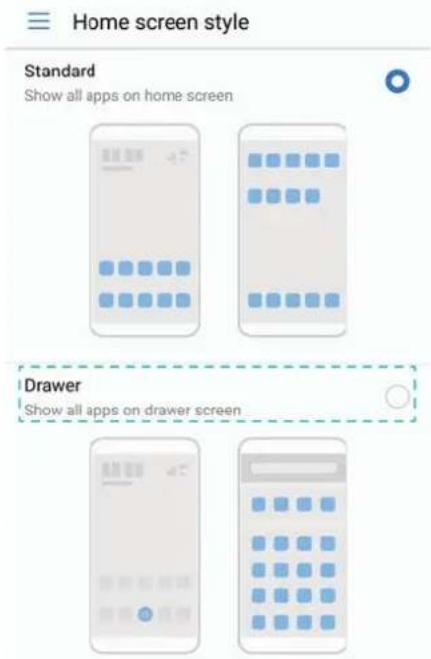

Enabling the Drawer home screen
Use the Drawer home screen to store app icons in a separate app drawer.
Enabling the Drawer home screen
1 Open Settings.
2 Touch Home screen style > Drawer.
Adding app shortcuts to the home screen
Add frequently used apps to the home screen for quick access.
1 On the home screen, touch ⏻ to view the list of apps.
2 Touch and hold an app icon until your phone vibrates, and then drag the app icon to the desired location on the home screen.
You must have enough space on the home screen. If there is not enough space, add another home screen or free up some space.
Reverting to the standard home screen
1 Open Settings.
2 Touch Home screen style > Standard.
Switching to simple home screen
Simple home screen uses large icons and fonts to display content in an easy-to-read format.
1 Open Settings.
2 Touch Advanced settings > Simple mode and select √.
3 On the simple home screen, you can:
- Touch app icons or widgets to open them.
- Touch and hold an icon to enter the home screen editor and add or delete apps and contacts.
- Touch Others to open the app list and view or open apps.
- Touch + Add to add a contact or app icons to the home screen.
- Touch Standard mode to switch back to the standard home screen.
Displaying or hiding notification badges
Notification badges appear in the top-right corner of app icons. The badge number indicates the number of new notifications. Open the corresponding app to view notification details.
1 On the home screen, pinch two fingers together to open the home screen editor.
3 Toggle the corresponding switch to enable or disable notification badges.
Setting the home screen wallpaper
Choose from a wide range of themes and wallpapers to personalize your phone.

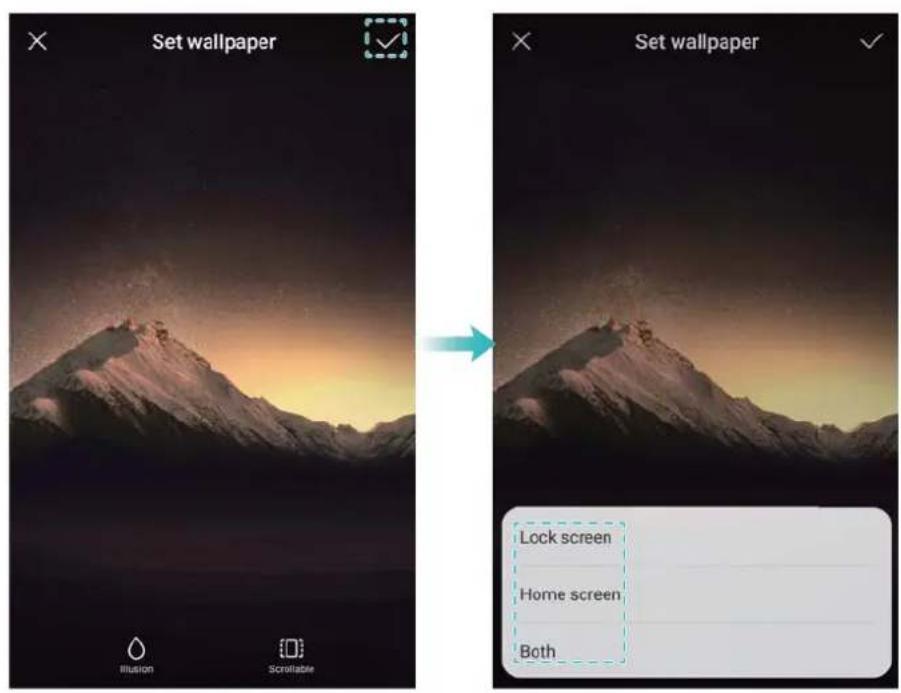

Changing the wallpaper
1 Open Settings.
2 Touch Display > Wallpaper > Set Wallpaper.
3 Select the desired wallpaper and follow the onscreen instructions to set it as the home screen or lock screen wallpaper (or both)
Changing the wallpaper automatically
1 Open Settings.
2 Touch Display > Wallpaper.
3 Switch Randomly change home screen wallpaper on or off.
When Interval is enabled, you can also configure the Interval and Album to display. Your wallpaper will change automatically at the specified interval.
Configuring the home screen transition effects
Configure home screen transition effects
1 On the home screen, pinch two fingers together to open the home screen editor.
3 Select your desired transition effect.
Enable or disable home screen loop.
1 On the home screen, pinch two fingers together to open the home screen editor.
3 Switch Home screen loop on or off.
Managing home screen icons
Moving home screen icons
On the home screen, touch and hold an app icon or widget until your phone vibrates. You can then drag the app icon or widget to the desired location.
Uninstalling apps from the home screen
On the home screen, touch and hold the app or widget you want to delete until is displayed at the top of the screen. Drag the unwanted app or widget to
Shaking your phone to auto-align icons
Gaps may appear on the home screen after you uninstall apps or move them into folders. Use the automatic align feature to arrange apps neatly on the home screen.
1 On the home screen, pinch two fingers together to open the home screen editor.
3 Return to the home screen and open the home screen editor again. Shake your phone to rearrange apps so that gaps are filled.
You can customize home screens to your liking.
Adding home screens
1 On the home screen, pinch two fingers together to open the home screen editor.
Deleting home screens
1 On the home screen, pinch two fingers together to open the home screen editor.
2 Touch× on a blank screen to delete it.
You cannot delete a home screen if it contains apps or widgets.
Moving home screens
1 On the home screen, pinch two fingers together to open the home screen editor.
2 Touch and hold the home screen you want to move and drag it to the desired location.
Setting the default home screen
1 On the home screen, pinch two fingers together to open the home screen editor.
2 Touch at the top of a home screen to set the chosen home screen as default.
Managing home screen widgets
\$GG□PRYH□RU□GHOHWH□ZLGJHWV□IURP□WKH□KRPH□VFUHHQ□
Adding widgets
1 2QWKHKRPHVFUHHQSLQFKWZRILQJHUVWRJHWKHUWRRSHQWKHKRPHVFUHHQ
i <RX□PXVW□KDYH□HQRXJK□VSDFH□RQ□WKH□KRPH□VFUHHQ□,I□WKHUH□LV□QRW□HQRXJK DQRWKHU□KRPH□VFUHHQ□RU□IUHH□XS□VRPH□VSDFH□
□
Moving widgets
On the home screen, touch and hold a widget until your phone vibrates, and then drag the widget to the desired location.
Deleting widgets
On the home screen, touch and hold a widget until your phone vibrates, and then drag the widget to Remove.
Managing home screen folders
Organize your apps into folders so that you can find them more easily.
Creating a folder
Group your apps into categorized folders to make them easier to find. For example, you could create a Social folder for your social media apps.
On the home screen, drag an icon onto another icon to create a folder containing both apps.
Renaming folders
To rename a folder, open it and touch the folder name.
Adding apps to a folder
1 Open the folder.
2 Touch+Add.
3 Select the apps you want to add and touch OK.
Removing apps from a folder
1 Open the folder.
2 Touch+Add.
3 Deselect the apps you want to remove and touch OK.
You can also touch and hold an icon and drag it outside a folder to remove it.
Deleting folders
1 Open the folder.
2 Touch+Add.
3 Deselect all of the apps and touch OK. The folder will be deleted automatically.
If there are more than two apps inside a folder, it cannot be deleted.
Locking and unlocking the screen
Changing the lock screen style
Set a screen lock password to prevent unauthorized access to your phone.
Changing the screen lock method
Magazine Unlock is set as the default lock screen style. To change the lock screen style, touch
Settings > Screen lock & passwords > Screen lock style and select a style.
For more information on Magazine Unlock, see Configuring Magazine Unlock images.
Setting the screen lock password
1 Open Settings.
2 Touch Screen lock & passwords > Password
3 You can choose to unlock the screen with an unlock pattern, PIN, or password:
- Touch Pattern and connect at least four dots twice to create a screen unlock pattern.
- Touch PIN. Follow the onscreen instructions to create a PIN containing at least four digits, and then touch OK.
- Touch Password. Follow the onscreen instructions to create a password containing at least four characters, and then touch OK.
You can also use your fingerprint to unlock the screen. Touch Enroll in the popup dialog to add your fingerprint. For more information on using your fingerprint to unlock the screen, see Adding a fingerprint for the first time.
To remove the screen unlock password, select None and follow the onscreen instructions.
Locking the screen
Lock the screen to reduce power consumption and prevent unintended presses or unauthorized access to your data.
- Manual lock: Press the Power button to manually lock the screen.
- Automatic lock: The screen will lock automatically and enter sleep mode after the preset sleep time to reduce power consumption and prevent unintended operations.
To change the screen sleep time, touch Settings > Display > Sleep and select a time. Your phone will continue to receive messages, notifications, and incoming calls when the screen is locked. The status indicator will flash green when you receive new notifications. When you receive an incoming call, the screen will turn on and display caller information.
Unlocking the screen
1 Press the Power button to turn on the screen.
2 Swipe on the screen in any direction.
- If your device has a fingerprint sensor, you can unlock the screen by placing your finger on the fingerprint sensor.
- If your device supports smart unlock, touch Settings > Screen lock & passwords > Smart unlock and follow the onscreen instructions to configure the unlock settings.
Configuring Magazine Unlock images
Swipe up from the bottom of the lock screen to display the Magazine Unlock options.
Adding online wallpapers to the viewing list
Magazine Unlock must be enabled in order to add online wallpapers to the viewing list. For more information on Magazine Unlock, see Changing the screen lock method.
Swipe up from the bottom of the lock screen to display the Magazine Unlock options, and then touch 📋 Touch + and select the wallpapers that you want to add to the viewing list.

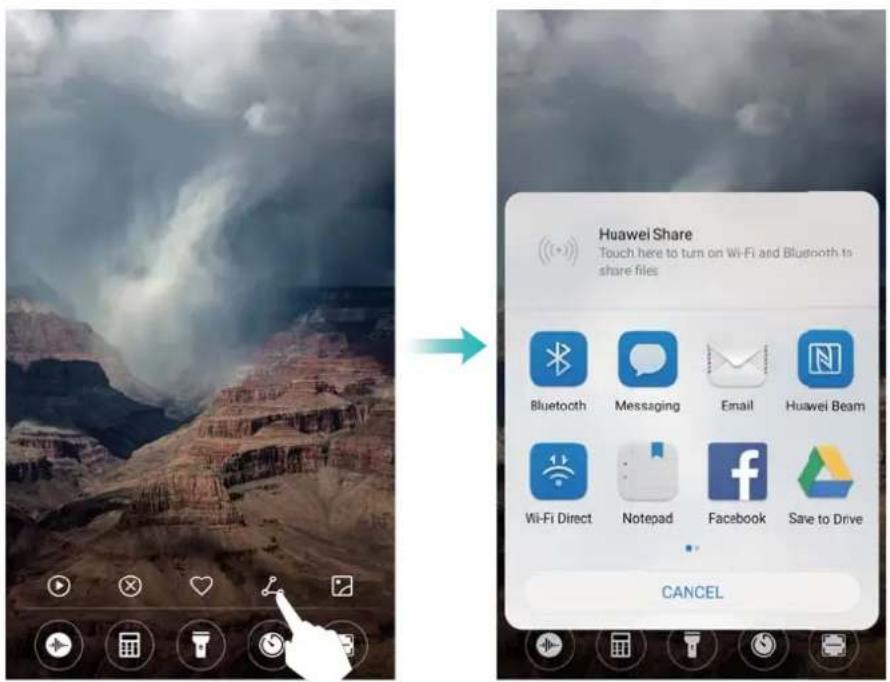

Sharing Magazine Unlock wallpapers
Share your favorite Magazine Unlock wallpapers with friends.
Swipe up from the bottom of the lock screen to display the Magazine Unlock options. Touch and select a sharing method to share the current wallpaper.
Adding offline wallpapers to the viewing list
1 Swipe up from the bottom of the lock screen to display the Magazine Unlock options, and then touch 📄
2 Touch Added by me and select+
3 Select the images that you want to add to the viewing list and touch √.
Updating Magazine Unlock covers
1 Touch Settings.
2 Touch Screen lock & passwords > Magazine unlock.
- Touch Subscriptions > Downloaded > Update to manually update your Magazine Unlock wallpapers.
- Switch on Auto-update over Wi-Fi to automatically update your Magazine Unlock wallpapers when your phone is connected to the Internet over Wi-Fi.
Accessing tools from the lock screen
Access tools directly from the lock screen.
1 Swipe up from the bottom of the lock screen to display lock screen features and tools.
To access the scan feature, you must enable camera permissions in ☐ Phone Manager.

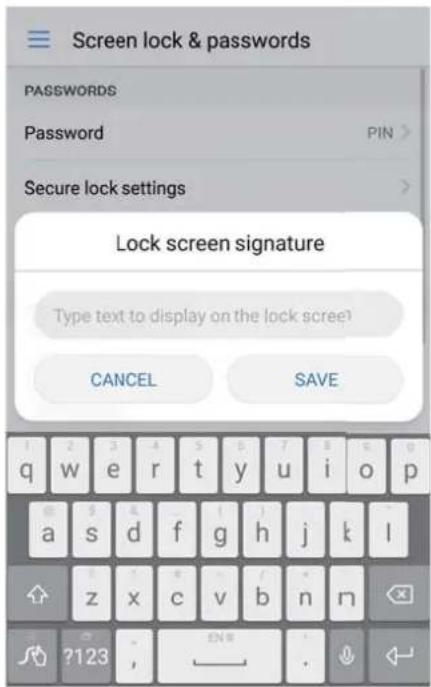

Configuring your lock screen signature
Configure a lock screen signature to personalize your lock screen.
1 Open Settings.
2 Select Screen lock & passwords > Lock screen signature.
3 Enter your lock screen signature and touch Save.
Your lock screen signature will be displayed on the lock screen.
Notification panel and status bar
About the status bar
Use the status bar to access the notification panel and check your phone's status.
Configuring the notification panel and status bar
Configuring the notification panel from the lock screen
1 Turn on the screen and swipe down from the status bar to open the notification panel.
3 Enter the screen lock password and touch Notification & status bar to configure the settings.
Configuring the notification panel when the screen is unlocked
Open Settings and touch Notification & status bar to configure the settings.
About notification and status icons
Status icons
Status icons are displayed on the right-hand side of the notification bar and tell you about your phone's status, including network connections, signal strength, battery, and time.
Status icons may vary according to your region or carrier.
| ..lll | Signal strength No signal |
| 4G | Connected over 4G Connected over 3G |
| 2G | Connected over 2G Connected over HSPA |
| H+ | Connected over HSPA+ Connected over LTE |
| HD | VoLTE enabled NFC enabled |
| R | Roaming Airplane mode enabled |
| * | Bluetooth enabled Connected over Wi-Fi |
| Wi-Fi network available Receiving location data from GPS | |
| Vibration mode enabled Silent mode enabled | |
| Alarm enabled Charging | |
| Battery full Battery low | |
| Headset inserted No SIM card found |
Notification icons
Notification icons are displayed on the left-hand side of the status bar when you receive a new message, notification, or reminder.
| Missed calls New emails | ||
| Connected to a VPN New voicemail | ||
| ↓ | Downloading data Uploading data ↑ |
Upcoming events
Phone memory full
Synchronizing data
Synchronization failed
Login or synchronization issue More notifications
Configuring notifications
You can configure the notification settings for each app.
1 Open Settings.
2 Touch Notification & status bar > Notifications management.
3 Select the app that you want to configure and enable or disable notifications as desired.
i Displaying notifications in do not disturb mode: Under Notifications management, select an app and switch on Priority display. This will let the app use sound or vibrate notifications even when the phone is in do not disturb mode.
Configuring the screen to turn on when you receive a notification
Configure the screen to turn on when you receive a new notification to avoid missing important information.
1 Open Settings.
2 Select Notification & status bar.
3 Toggle the Notifications turn on screen switch.
Configuring the status bar
Open Settings > Notification & status bar. Toggle the Display carrier name, Display network speed, or Battery percentage switches to configure which information is displayed in the status bar.
Using shortcut switches to access settings
Use shortcut switches to enable or disable functions quickly without using a settings menu.
Opening the shortcut switches tab
Swipe down from the status bar to open the notification panel.
1 Swipe down from the status bar to open the notification panel.
2 Touch ^2 . Touch and hold a switch and drag it to the desired position.
Enabling shortcut switches
Open the shortcut switches tab and touch a switch to enable or disable the corresponding function.
Touch ∨ to display all of the shortcut switches.
Using shortcut switches to access settings
Open the shortcut switches tab and touch and hold an icon to configure the desired settings.
i Some switches do not support the touch and hold action, such as the flashlight switch.
Navigation bar
Changing the navigation bar style
1 Open @ Settings and touch Navigation.
2 Select the desired navigation bar style.
Managing recent tasks

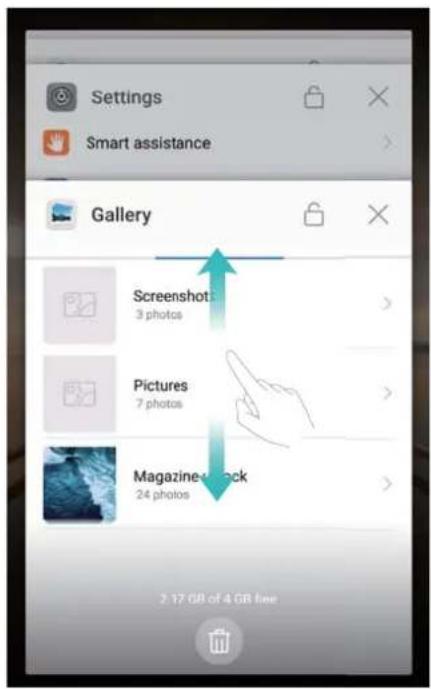

Viewing recent tasks
Touch Recent to display recent tasks. Swipe up and down to browse them.
Switching between recent tasks
1 Touch Recent.
2 Swipe up or down to find the task you want to switch to and select it.
Ending recent tasks
1 Touch Recent.
2 To end a task, swipe it to the left or right or touch the ✗ icon in the top-right corner.
- Touch 📄 to end all tasks.
- To prevent a task from ending, touch the 🔊icon in the top-right corner. This will lock that task. To unlock a task, touch the 🔊icon in the top-right corner.
Themes
About themes
Themes help you to personalize your home screen by changing the wallpaper, app icons, and more.
Changing the theme
Changing the theme
1 Open Themes.
2 You can:
- Select a theme and touch APPLY.
- Touch Customize to mix and match lock screen methods, wallpapers, app icons, and more.
Floating dock
About the floating dock
Use the floating dock to access frequently-used options and features, such as the back key, home key, and one-touch optimization. You can move the floating dock around the screen for easy one-handed use.
Enabling or disabling the floating dock
1 Open Settings.
2 Touch Smart assistance > Floating dock and switch Floating dock on or off.
i Drag the floating dock to move it to other parts of the screen.
Using the floating dock
Once enabled, the floating dock will be shown on all screens except the lock screen and notification panel.
Touch to expand the floating dock menu. You can:
- Touch ◀ to return to the previous screen or exit the current app.
- Touch to return to the home screen.
- Touch □ to display the list of recently used apps.
- Touch 🔒 to lock the screen.
- Touch Ⓞ to clean up the phone memory and close all apps running in the background.
- Touch × to collapse the menu.
Global search
About global search
Use global search to find apps, contacts, and messages on your phone.
Swipe down on a blank part of the home screen to open the global search window, and then enter your search terms.
Searching for contacts
1 Swipe down on the home screen.
2 Enter the name, initials, or number of a contact in the search bar. Your phone will display matching contacts.
i Enter the name, initials, or number of a contact in the dialer. Your phone will display matching contacts.
Searching for SMS messages
Use the message search feature to find messages quickly.
1 Swipe down on the home screen.
2 Enter one or more keywords in the search bar. Your phone will display matching messages.
You can also search for messages in Messaging.
Searching for emails
1 Swipe down on the home screen.
2 Enter one or more keywords in the search bar. Your phone will display matching emails.
Searching for apps
1 Swipe down on the home screen.
2 Enter one or more keywords in the search bar. Your phone will display matching apps.
- When using the Drawer home screen layout, you can also search for apps by touching and entering the app name in the search bar.
- When your phone is connected to the Internet, matching apps in the HiApp store will also be displayed. Connect to a Wi-Fi network before searching for cities to avoid incurring unexpected data charges.
Searching for settings
1 Swipe down on the home screen.
2 Enter one or more keywords. Your phone will display matching menu options from Settings.
Screenshot
Capturing the entire screen
Taking a screenshot with the power and volume down buttons
Press the Power button and Volume down button to take a full screenshot.
Open the notification panel, and then touch Screenshot in the Shortcuts tab to take a full screenshot.
Using your knuckle to take a screenshot
To take a screenshot of the whole screen, knock the screen twice with your knuckle.
Knock the screen with your knuckle. Keep your knuckle on the screen and encircle the area you want to capture. The area inside the blue line will be captured.
To use a predefined shape, select the screenshot box at the top of the screen, and then touch to save the screenshot.
i After creating a screenshot, touch Share to share it with friends.
Taking scrolling screenshots
Use scrolling screenshots to take screenshots longer than one page (such as web pages or conversation threads).
Taking a scrolling screenshot
1 Open the notification panel, and then touch Screenshot in the Shortcuts tab to take a full screenshot.
2 After taking a screenshot, touch Scrollshot to take a scrolling screenshot.
i Ensure that you touch Scrollshot within 3 seconds of taking the screenshot.
Using your knuckle
Draw an "S" on the screen using your knuckle. The screen will scroll down and capture all of the content in one screenshot.
i Touch the screen to stop scrolling and capture the preceding content.
Viewing, editing, deleting, and sharing screenshots
Viewing a screenshot
1 After taking a screenshot, open Gallery.
2 On the Albums tab, open Screenshots to view your screenshots.
Editing a screenshot
1 After taking a screenshot, touch Edit.
2 Choose the desired editing method and edit the image.
3 Touch ☐ to save the screenshot.
Sharing a screenshot
1 Touch Gallery > Screenshots.
2 Select the screenshot you want to share and touch
3 Choose how you want to share the screenshot.
Deleting a screenshot.
1 Touch Gallery > Screenshots.
2 Select the screenshot you want to delete and touch 📄.
Screen recording
About screen recordings
Use the screen recording feature to record video game footage or show friends and family how to use phone features.
Screen recorder
Using the screen recorder shortcut switch
To start a screen recording, open the notification panel and touch Screen recording.
Pressing buttons to record
Press the Volume up button and Power button simultaneously.
To start a screen recording, knock the screen twice with two knuckles.
- Audio will also be recorded, so make sure that you are in a quiet environment.
- Recording will stop automatically when you make or receive a call.
- When making a screen recording, you will not be able to use the recording feature in other applications.
- Longer recordings will take up more space on your phone's internal storage, so ensure there is enough space before recording.
You can stop a screen recording in three ways:
- Knock the screen twice with two knuckles
- Press the volume up and power buttons simultaneously.
- Touch the screen recording icon in the upper left corner of the status bar.
Viewing, sharing, and deleting screen recordings
Viewing screen recordings
Go to the Screenshots or Screen recordings folders in
Gallery to view screen recordings.
Sharing screen recordings
1 Touch Gallery > Screen recordings.
2 Select the screen recording you want to share and touch.
3 Choose how you want to share the screenshot.
Deleting screen recordings
1 Go to the Screenshots or Screen recordings folders in Gallery.
2 Touch and hold the screen recording that you want to delete and select Delete.
Split-screen mode
About split-screen mode
Use split-screen mode to use two apps at once. For example, you can watch video while talking to your friends on WhatsApp.
Enabling split screen mode
Split screen mode is not available for all apps. Some apps may not function properly in split screen mode.
Using your knuckle to enable split screen mode
If the screen is in portrait view, slide a knuckle across it horizontally. If the screen is in landscape view, slide a knuckle across it vertically.
Open an app that supports split screen mode, and then touch and hold □Recent.
Using swipe gestures to enable split screen mode
Open an app that supports split screen mode, and then swipe up from the bottom of the screen with two fingers.
Switching to full screen mode
In split screen mode, touch and hold 🐘 and swipe up or down to switch to full screen mode.
Moving screens
In split screen mode, touch , and then touch
to switch the position of the screens.
Changing the screen orientation
Swipe down from the status bar and switch on Auto-rotate to enable automatic screen rotation.
Accessing the home screen
In split screen mode, touch Home to access the home screen.
Exiting split-screen mode
To exit split-screen mode, touch and select .×
Using motion gestures
Use motion gestures to mute incoming calls, decrease the ringtone volume, answer calls, and more.
Open Settings. Touch Smart assistance > Motion control and select the motion gestures you want to enable under Motions
- Flip: Mute sounds and disable vibrations for incoming calls, alarms, and timers.
Eye comfort mode decreases the amount of blue light emitted from the screen to reduce eye strain.
Eye comfort mode
1 Open Settings.
2 Touch Display > Eye comfort and switch on Eye comfort.
i 🌿 will be displayed in the status bar when eye comfort mode is enabled.
Adjusting the color temperature
Eye comfort mode reduces the amount of blue light emitted from the screen, which may give the screen a slightly yellow hue. You can adjust the color temperature to control the amount of blue light.
When Eye comfort is enabled, swipe left or right on the color temperature slider to adjust the color temperature. Cooler color temperatures produce a white or blue hue, whereas warmer color temperatures produce a red or yellow hue.
Enabling and disabling eye comfort mode
You can use the shortcut switch in the notification panel to enable or disable eye comfort mode.
Swipe down from the status bar. Touch ▼ to display all shortcut switches, and then toggle the Eye comfort switch.
Configuring the timer
Configure the timer to enable eye comfort mode automatically at a preset time, such as when you finish work or before you go to bed.
1 Open Settings.
2 Touch Display > Eye comfort.
3 Switch on Schedule and configure the Start time and End time.
Display settings
Configuring the display settings
Configure the display settings to adjust the font and icon size.
1 Open Settings.
2 Touch Display > View mode.
3 Select Large, Medium, or Small as desired, and then touch Apply. Touch OK to restart your phone and apply the settings.
Changing the font size
1 Open Settings.
2 Touch Display > Font size and choose a font size.
You can choose from the following font sizes: Small, Normal, Large, Huge, and Extra huge. The Extra huge font size will only be displayed in Messaging, Contacts, and Dialer.
Configuring Daydream
Enable Daydream to display a slideshow of your photos when your phone is charging.
1 Open Settings.
2 Touch Display > Daydream.
3 Switch on Daydream and configure the Picture source and Duration.
Adjusting the screen brightness
Adjust the screen brightness to suit your needs.
1 Open Settings.
2 Touch Display > Brightness and switch on Automatic brightness.
Your phone will automatically adjust the screen brightness according to the ambient brightness.
i Manually adjust the screen brightness: Swipe down from the status bar. Touch √ to disable Automatic brightness, and then drag the slider to adjust the brightness. The screen brightness will stay constant, regardless of the ambient brightness.
Changing the color temperature
Change the color temperature of your phone's display. Select a warmer color temperature for a softer look, or a cooler color temperature for a sharper image. Selecting a cooler color temperature increases the amount of blue light emitted from the screen, which can cause eye strain.
1 Open Settings.
2 Touch Display > Color temperature. Select Default. Warm, or Cold, and then touch OK to apply the settings.
i Change the color temperature manually: Touch or drag the dot on the color temperature wheel, and then touch OK to apply the settings.
The color temperature cannot be changed when Eye comfort mode is enabled.
Changing the screen-off time
The screen will lock automatically and enter sleep mode after it has been idle for a certain period to reduce power consumption and prevent unintended operations.
1 Open Settings.
2 Touch Display > Sleep and select a screen-off time.
Configuring the screen rotation settings
When you rotate your phone, some apps will automatically adjust the screen orientation to make them easier to use.
1 Open Settings.
2 Touch Display and switch on Auto-rotate screen.
i Quickly enable auto-rotation: Swipe down from the status bar and open the shortcut switches tab, and then touch the Auto-rotate switch to enable Auto-rotate.
Network and Sharing
Mobile Internet
Using mobile data
Enabling mobile data
Before enabling mobile data, ensure that you have activated mobile data services with your carrier.
1 Open Settings.
2 Touch More > Mobile network.
3 Switch on Mobile data to enable mobile data.
i Disable mobile data when not required to save battery power and reduce data usage.
Enabling 4G
Before enabling 4G, ensure that you have activated 4G services with your carrier and that you are using a 4G SIM card.
1 Open Settings.
2 Touch More and switch on Enable 4G to enable 4G.
Enabling VoLTE
Enable VoLTE (Voice over LTE) to make high-quality audio and video calls over 4G networks.
1 Open Settings.
2 Touch More > Mobile data.
3 Switch on VoLTE calls.
Enabling data roaming
Enable data roaming to access the Internet when you travel abroad.
You may incur roaming charges when data roaming is enabled. Contact your carrier for details.
1 Open Settings.
2 Touch More > Mobile network.
3 Switch on Data roaming.
Sharing your mobile Internet with other devices
Setting up a portable Wi-Fi hotspot
1 Enable Settings.
2 Touch More > Tethering & portable hotspot.
3 Touch Portable Wi-Fi hotspot and switch on the hotspot.
4 Touch Configure Wi-Fi hotspot. Set the Wi-Fi hotspot name, encryption mode, and password, and then touch Save.
Limit the amount of data that other devices can use: Touch Data limit on the Portable Wi-Fi hotspot screen, and then follow the onscreen instructions to set the data limit. Your phone will automatically disable the Wi-Fi hotspot when connected devices exceed this limit.
Using USB tethering
Depending on your computer's operating system, you may need to install phone drivers on the computer or establish a network connection in order to use USB tethering. Refer to your operating system instructions.
1 Use a USB cable to connect your phone to the computer.
2 Enable Settings.
3 Touch More > Tethering & portable hotspot.
4 Switch on USB tethering to share your mobile Internet.
Using Bluetooth tethering
Before using Bluetooth tethering, pair your phone with the device that wants to use your mobile Internet. For more information, refer to Using Bluetooth to connect your phone to other devices.
1 Enable Settings.
2 Touch More > Tethering & portable hotspot.
3 Switch on Bluetooth tethering to share your mobile Internet.
4 On the Bluetooth screen, touch ⓘ next to the paired device, and then switch on Internet access to share your mobile Internet.
Wi-Fi
About Wi-Fi
Connect to a Wi-Fi network to access the Internet and reduce mobile data usage.
Your personal data and financial information may be at risk if you connect to insecure public Wi-Fi networks.
Connecting to the Internet using Wi-Fi
Enable Wi-Fi to connect to the Internet using a Wi-Fi access point or hotspot.
Connecting to a Wi-Fi network
1 Open Settings.
2 Touch Wi-Fi and switch on Wi-Fi. Your phone will list available Wi-Fi networks.
- Search manually for Wi-Fi networks: Touch Scan. Your phone will search for available Wi-Fi networks.
- Add a WLAN network that is not shown in the list: Touch Add network.... Follow the onscreen instructions to configure the Wi-Fi settings and password.
3 Select the Wi-Fi network you want to connect to:
- If the Wi-Fi network does not require a password, your phone will connect automatically.
- If the network is protected, enter the password when prompted and touch Connect.
Once your phone is connected to a Wi-Fi network, it will display the 📤icon in the status bar. Your phone will remember Wi-Fi networks that you have used before and reconnect to them automatically.
Connecting to a Wi-Fi network using WPS
WPS allows your phone to connect to a WPS-enabled router without having to remember a password.
1 Open Settings.
2 Touch Wi-Fi and switch on Wi-Fi.
3 Touch : > Advanced settings. There are four options:
- Touch WPS connection and press the router's WPS button.
- Touch WPS PIN connection to generate a PIN, and then enter the PIN on the router.
Once your phone is connected to a Wi-Fi network, it will display the 📷 icon in the status bar. Your phone will remember Wi-Fi networks that you have used before and reconnect to them automatically.
Using Wi-Fi+
When Wi-Fi+ is enabled, your phone will automatically enable or disable Wi-Fi and connect to the Wi-Fi network with the best signal.
You may incur additional data charges when downloading large files or watching online videos over mobile data. To avoid incurring excessive data charges, purchase a data plan. Contact your carrier for details.
1 Open Settings.
2 Touch Wi-Fi > Wi-Fi+ and turn on the Wi-Fi+ switch.
When Wi-Fi+ is enabled, your phone will record your Wi-Fi connection history and monitor your signal strength and location. This information is then used to enable or disable Wi-Fi and connect to the Wi-Fi network with the strongest signal.
- Smart switching between Wi-Fi and mobile data: Evaluates available Wi-Fi networks and automatically connects to the best network (a small amount of Wi-Fi data may be used to perform a connectivity test). If Wi-Fi connectivity is poor, your phone will revert to mobile data. To configure the default network selection settings, go to your mobile network settings.
- Turn on/off Wi-Fi automatically: Automatically enables or disables Wi-Fi based on your location and your Wi-Fi connection history.
- Evaluate available Wi-Fi networks: Automatically monitors the signal strength and connection speeds of nearby public hotspots. Your phone will only connect to hotspots that have a working Internet connection.
Using a QR code to share a Wi-Fi network
Use a QR code to share a Wi-Fi password with other devices.
1 Open Settings.
2 Touch Wi-Fi and then turn on the Wi-Fi switch. Connect to the Wi-Fi network you want to share.
3 Touch the network to generate a QR code.
4 On the other device, swipe down on the home screen to access the search bar. Touch ^[3] to scan the QR code and follow the onscreen instructions to connect to the network.
- QR codes can be generated for the following wireless encryption methods: WPA, WPA2, WEP, WPA-PSK, and WPA2-PSK. You cannot use a QR code to connect to Wi-Fi networks that are encrypted using the EAP protocol.
- This feature is currently only supported on Huawei phones and in some third-party apps.
Transferring data using Wi-Fi Direct
Use Wi-Fi Direct to transfer photos and files between your phone and another device without connecting to a Wi-Fi network. Wi-Fi Direct is similar to Bluetooth but offers faster transfer speeds, making it suitable for the transfer of larger files such as videos.
Connecting two devices using Wi-Fi Direct
1 Open Settings and touch Wi-Fi. Switch on Wi-Fi and touch
2 Repeat the above steps on the other device and keep the Wi-Fi Direct search screen open on both devices.
3 When your phone detects the other device, select it. Follow the onscreen instructions to establish a Wi-Fi Direct connection between the two devices.
Wi-Fi Direct can only be used to transfer data between two Huawei devices. Check that both devices support Wi-Fi Direct.
To terminate the Wi-Fi Direct connection, touch 🔊 to open the Wi-Fi Direct screen. Select the device you want to disconnect from and touch OK to confirm.
Using Wi-Fi Direct to send and receive files
i Ensure Wi-Fi is enabled on both devices before using this feature.
1 Open Files. Touch and hold to select the files you want to send.
2 Touch More > Share > Wi-Fi Direct. Select the device that you want to connect to.
3 On the receiving device, touch Accept to accept the file transfer request.
Open the notification panel to monitor the file transfer progress.
By default, received files are saved to the Wi-Fi Direct folder in Files.
Configuring the Wi-Fi settings
Configure the Wi-Fi and mobile data settings to suit your needs.
Configuring the Wi-Fi sleep settings
1 Open Settings.
2 Touch Wi-Fi > Configure.
3 Touch Keep Wi-Fi on during sleep. There are three options:
- Always: Always stay connected to Wi-Fi when the screen is off.
- Only when plugged in: When the screen is off, only stay connected to Wi-Fi when your phone is charging.
- Never (increases data usage): Always switch to mobile data when the screen is off.
When Never (increases data usage) is selected, your phone will disconnect from Wi-Fi and switch to mobile data when the screen turns off.
Viewing your MAC and IP address
1 Open Settings.
2 Touch Wi-Fi > Configure to view the MAC and IP address.
Renaming your device
Give your device a different name so it is easier to identify when using Wi-Fi Direct.
1 Open Settings.
2 Touch Wi-Fi > Wi-Fi Direct.
3 Touch Device name and enter a new device name.
Bluetooth
About Bluetooth
Use Bluetooth to share files, connect to peripherals, and more.
Using Bluetooth to connect your phone to other devices
Enabling Bluetooth and pairing with other devices
1 Open Settings.
2 Touch Bluetooth and switch on Turn on Bluetooth. Your phone will automatically list available devices.
i • Ensure Visibility is switched on.
- If the device you want to pair with is not displayed, check that the device is discoverable.
3 Select the device you want to pair with and follow the onscreen instructions.
Unpairing Bluetooth devices
1 Open Settings.
2 Touch Bluetooth and switch on Turn on Bluetooth.
3 Touch the ⓘ icon next to the device name and select Unpair.
Transferring data using Bluetooth
Using Bluetooth to share files
i Ensure that Bluetooth is enabled and configured as discoverable on both devices.
1 Select the file you want to send. Touch Share > Bluetooth. Your phone will search for discoverable Bluetooth devices.
2 Select the receiving device.
3 On the receiving device, select Accept from the popup dialog to accept the file transfer request. Open the notification panel to view file transfer progress.
i By default, received files are saved to the bluetooth folder in Files.
Sharing photos and videos quickly with Bluetooth
When viewing photos or videos in full screen, you can use the Transfer feature for fast Bluetooth sharing.
i Ensure that Bluetooth is enabled and configured as discoverable on both devices.
1 Touch Gallery > More > Settings and switch on Slide up to enable Transfer.
2 Open Gallery and select the photo or video you want to send in full screen.
3 Swipe up and touch Start. Your phone will search for discoverable Bluetooth devices.
4 Select the receiving device.
5 On the receiving device, select Accept from the popup dialog to accept the file transfer request. Open the notification panel to view file transfer progress.
i By default, received files are saved to the bluetooth folder in Files.
Bluetooth settings
Renaming your phone
Your phone model is used as the default Bluetooth device name. If you want, you can change this to a more memorable name.
1 Open Settings.
2 Touch Bluetooth > Device name.
3 Enter a new name, and then touch Save.
Making your phone discoverable for pairing
1 Open Settings.
2 Touch Bluetooth. Switch on Visibility to make your phone discoverable to other Bluetooth devices.
3 Touch More > Visibility timeout and configure the discovery timeout.
- When the timeout has expired, Visibility will be disabled.
- When Visibility is disabled, other Bluetooth devices will not be able to discover your phone.
NFC
About NFC
NFC (Near-field communication) is a wireless communication technology that enables the exchange of data between devices. NFC-enabled devices support three modes of operation: card emulation mode, reader/writer mode, and peer-to-peer mode.
In card emulation mode, your device can emulate contactless smart cards (such as bank, transit, and access cards). Reader/writer mode allows you to scan NFC tags (for example, you can scan an NFC tag to top up your transit card), and peer-to-peer mode allows you to quickly transfer music, images, apps, and other content between two NFC-enabled devices.
You can download banking, payment, and other apps that support NFC to make contactless payments and turn your phone into a mobile wallet.
Enabling NFC
1 Open Settings.
2 Touch More > Near Field Communication (NFC).
3 Switch on Near Field Communication (NFC) to enable NFC.
When NFC is enabled, your phone will display the Nicon in the status bar.
To disable NFC, turn off the Near Field Communication (NFC) switch.
Using NFC to make contactless payments
Use NFC to turn your phone into a virtual bank or transit card and make contactless payments.
Using a SIM card to make payments
Use an NFC-enabled SIM card to make payments in shops and on public transport.
This feature is only available on phones that support NFC SIM cards. If necessary, contact your carrier to obtain an NFC SIM card.
1 Insert your SIM card into a NFC-enabled SIM card slot.
2 Switch on Near Field Communication (NFC). NFC security chipSelect a SIM card which supports NFC. Select your carrier's payment app as the Default payment app.
3 Open your carrier's payment app and follow the onscreen instructions to associate a bank card and add credit.
4 To make a payment, place your phone against the NFC sensor on the payment terminal.
You can also make payments when your phone is switched off. Before switching your phone off, ensure that Near Field Communication (NFC) is switched on.
Using card emulation to make payments
Use your phone as a virtual bank card to make secure, contactless payments in store.
Before using this feature, download the app for your bank card and follow the onscreen instructions to add your card. For more details, contact your bank.
1 Switch on Near Field Communication (NFC). Default payment appSelect the app for your bank card.
2 To make a payment, unlock your phone and place it against the contactless symbol on the payment terminal.
Using NFC to beam content
Use NFC to quickly share content between two NFC-enabled devices.
Check that the screen is unlocked on both devices and ensure that NFC and Huawei Beam are enabled.
1 Select the content that you want to beam (such as web pages, contacts, images, or videos).
2 Hold your device and the receiving device back to back so that the NFC sensors on each device touch each other. Once a connection is established, a sound will be played and a thumbnail of the shared content will appear on the screen.
3 When prompted, touch the screen to beam the content to the other device. Do not separate the devices until beaming has started.
To view the received files, touch Settings > More > Near Field Communication (NFC) and go to More > Received files.
Using NFC to share Internet with other devices
Use NFC to quickly connect your phone to other devices over Bluetooth or Wi-Fi Direct and share your Wi-Fi network or portable hotspot.
- Check that the screen is unlocked on both devices and ensure that NFC and Huawei Beam are enabled. To pair the devices over Bluetooth, switch on Bluetooth on both devices.
- Wi-Fi Direct can only be used to transfer data between two Huawei devices. Check that both devices support Wi-Fi Direct.
1 Open Settings and go to the Bluetooth, Wi-Fi, or Wi-Fi Direct screen. Go to the same screen on the other device. For example, if you want to pair the devices over Bluetooth, go to the Bluetooth screen on both devices.
2 Hold your device and the receiving device back to back so that the NFC sensors on each device touch each other. Once a connection is established, a sound will be played and a thumbnail will be displayed on the screen.
3 When prompted, touch the screen to establish a Bluetooth or Wi-Fi Direct connection or share your Wi-Fi network or portable hotspot.
Multi-screen
Using multi-screen
Use multi-screen to mirror your phone screen to a television, projector, or other display device. You can also push photos, music, and videos from your phone to another screen to share them with others.
i Display devices (including TVs and projectors) must support Miracast. This is supported on some Android Smart TVs. If your display device does not support Miracast, you can purchase a TV dongle that supports this protocol and connect it to your display device.
Mirror your phone's screen to an external display to play games and view files on a larger screen.
1 Swipe down from the status bar to open the notification panel. Touch ☐.
On some phones, the 📋icon is hidden. Touch to expand or find it on the Settings > Smart assistance screen.
2 Select a display device (or TV dongle) from the list. Your phone's screen will be mirrored to this device.
You may need to enable Miracast on some display devices (or TV dongles) for your phone to detect them. For instructions on how to enable Miracast, please see the manual for your display device.
To stop mirroring the screen, touch ➕ Disconnect.
VPNs
About VPNs
A VPN (virtual private network) is a secure connection that allows you to send and receive data across shared or public networks. You can use a VPN to connect to your company network and email server.
Connecting to a VPN
Use a virtual private network (VPN) for secure, remote access to company data and other network resources.
i Contact your VPN administrator to obtain the server information.
1 Open Settings.
2 Touch More > VPN.
3 Touch Add VPN network. When prompted, enter the server name, select the server type, and then enter the server address. Touch Save to save the server settings.
4 To connect to the VPN, touch the VPN name, enter your username and password, and then touch Connect.
i Contact your VPN administrator to obtain your username and password.
HiSuite
Using HiSuite
Use HiSuite to manage your phone's apps and data from your computer. Download and install apps with a single click and get the most out of your smartphone.
- Manage apps and data: Use HiSuite to manage contacts, messages, multimedia files, and to sync your calendar and contacts.
- Back up and restore data: Back up data from your phone to your computer, or restore data to any Huawei phone.
- Repair or update the system: If your phone won't turn on or boot properly, use HiSuite to perform a factory reset. You can also check for software updates and install them on your phone.
- Screen mirroring: Use HiSuite to display your phone screen on your computer and take screenshots.
Installing HiSuite
System requirements
Before installing HiSuite, check that your computer meets the following system requirements:
• Microsoft Windows 7 (32 or 64-bit versions)
• Windows Vista (32 or 64-bit versions)
- Windows XP (32 or 64-bit versions).
• Hard disk space: 500 MB
- RAM: 1 GB
• Monitor: 1024 x 768 resolution with 16-bit color
Installing HiSuite and connecting your phone to a computer
1 On the computer, visit http://consumer.huawei.com/minisite/HiSuite_cn/. Download and install HiSuite. Once installation is complete, the HiSuite icon will appear on your desktop.
2 Use a USB cable to connect your phone to the computer. HiSuite will launch automatically.
3 If the Allow connection in HDB mode dialog appears on your phone, touch OK.
4 On your computer, click Continue. If your phone does not come with HiSuite preinstalled, your phone will download it automatically and connect to your computer.
Once the connection has been established, your phone screen and model will be displayed on your computer.
If your phone does not connect to the computer automatically, go to Settings > Advanced settings > Security and switch on Allow HiSuite to use HDB. You do not need to enable USB debugging mode.
Using Huawei Share to transfer files between two Huawei devices
Use Huawei Share to quickly transfer files between two Huawei devices. Huawei Share uses Bluetooth to detect nearby Huawei devices and share files over Wi-Fi Direct.
Enabling Huawei Share
1 Pull down the status bar to open the notification panel.
2 Touch Huawei Share and select ALLOW to enable Huawei Share.
- Switching on Huawei Share will automatically enable Wi-Fi and Bluetooth.
- If you switch off Wi-Fi or Bluetooth, Huawei Share will be automatically disabled.
Using Huawei Share to transfer files
i Ensure that Huawei Share is supported on both devices. Huawei Share must be enabled on the receiving device and the screen must be switched on.
1 Select the files you want to send and touch Share.
- If Wi-Fi and Bluetooth are switched on, your phone will automatically search for nearby devices.
- If Wi-Fi or Bluetooth are switched off, touch Huawei Share to search for nearby devices.
When you touch Huawei Share, your device will switch on Wi-Fi and Bluetooth automatically.
2 Select the receiving device.
3 On the receiving device, select ACCEPT from the popup dialog to accept the file transfer request. Open the notification panel to view file transfer progress.
• To cancel sending, touch the name of the receiving device on your phone.
- By default, received files are saved to the Huawei Share folder in Files.
Using a USB port to transfer data
Selecting the USB connection mode
1 When you use a USB cable to connect your phone to a computer or another device, Allow access to device data? will be displayed in a popup dialog.
2 Touch NO, CHARGE ONLY.
3 Swipe down from the status bar to open the notification panel, and then touch Charging via USB. You can choose from the following USB connection modes:
- Charge only: Charge your phone only.
- Reverse charging: Use your phone to charge another device with a USB Type-C cable.
- Device file manager (MTP): Transfer files between your phone and a computer.
- Camera (PTP): Transfer images between your phone and a computer. If your phone does not support MTP, the PTP protocol will be used to transfer files and images between your phone and computer.
- MIDI: Use your phone as a MIDI input device and play MIDI files on your computer.
Transferring data between your phone and a computer
Use a USB cable to connect your phone to a computer and transfer data between the two devices.
Transfer files
MTP (media transfer protocol) is a protocol for transferring media files. You can use MTP to transfer files between your phone and a computer. Before using MTP, ensure that you have Windows Media Player 11 or later installed on your computer.
Swipe down from the status bar to open the notification panel, and then set the USB connection mode to Device file manager (MTP). Your computer will automatically install the necessary drivers. To view files stored on your phone, wait until the drivers have been installed, and then click the new drive icon that appears on your computer (the drive is named after your phone model). If you are using a Windows computer, use Windows Media Player to browse multimedia content on your phone.
Transferring images
PTP (picture transfer protocol) is an image transfer protocol. Use PTP to transfer images between your phone and a computer.
Swipe down from the status bar to open the notification panel, and then set the USB connection mode to Camera (PTP). Your computer will automatically install the necessary drivers. To view images stored on your phone, wait until the drivers have been installed, and then click the new drive icon that appears on your computer (the drive is named after your phone model).
Transferring MIDI data to your phone
MIDI (Musical Instrument Digital Interface) is a music technology protocol that allows digital music instruments to communicate with each other.
Swipe down from the status bar to open the notification panel, and then set the USB connection mode to MIDI. You can use your phone to receive or process MIDI data from other devices.
Transferring data between your phone and a USB storage device
USB OTG is designed to transfer data directly between two USB devices (such as phones, tablets, digital cameras, and printers) without the need for a computer. Use a USB On-The-Go (OTG) cable to connect your phone to a USB storage device and back up your files.
Transferring data between your phone and a USB storage device
Your phone can access data on USB flash drives, card readers, and other storage devices using a USB OTG cable.
- This feature is only available on phones that support USB OTG cables.
- If your phone has a USB Type-C port, purchase a micro USB to USB Type-C adapter, or use a USB OTG cable with a USB Type-C connector.
1 Connect your phone to a USB flash drive with a USB OTG cable.
2 Touch Files > Local > USB drive to browse data on the flash drive. You can select and copy data to a destination folder.
3 When you have finished browsing, touch Settings > Memory & storage > USB drive > Eject.
4 Disconnect the USB OTG cable from your phone and the USB flash drive.
Security and Backup
Fingerprint recognition
Adding a fingerprint for the first time
Use a fingerprint to unlock your screen, open encrypted files, unlock apps, and make secure payments.
To better protect your privacy, you can only use the fingerprint screen unlock feature when the unlock method is set to PIN or Password.
1 Open Settings and touch Fingerprint ID.
2 Touch Fingerprint management(optional).
3 Select PIN or Password, and then follow the onscreen instructions to set a screen lock password.
4 Once you have set a password, touch New fingerprint to add your fingerprint.
5 Place your fingertip on the fingerprint sensor. Press down lightly on the sensor until your phone vibrates. Repeat this step using different parts of your fingertip.
6 Once you have added your fingerprint, touch OK.
To unlock the screen, place your fingertip on the fingerprint sensor.
You will be asked to enter your backup PIN or password when you restart your phone or if fingerprint recognition fails.
Adding, deleting, or renaming a fingerprint
Add multiple fingerprints to make it easier to unlock your phone. You can also delete or rename fingerprints.
1 Open @ Settings and touch Fingerprint ID.
2 Touch Fingerprint management(optional).
3 Enter the screen lock password and touch Next.
4 In the Fingerprint list section, you can:
- Touch New fingerprint to add other fingerprints. You can add up to five fingerprints.
- Touch a previously added fingerprint to rename or delete it.
Accessing Safe with your fingerprint
Use your fingerprint to access your Safe without entering the password.
1 Open Settings and touch Fingerprint ID.
2 Touch Fingerprint management(optional).
3 Enter the screen lock password and touch Next.
4 Touch Access safe, and then follow the onscreen instructions to enter your Safe password and enable fingerprint recognition.
Once you have completed the settings, touch Files > Safe. You can now use your fingerprint to access your Safe.
Accessing App Lock with your fingerprint
Use your fingerprint for quick access to apps in your App Lock. You do not need to enter the App Lock password.
1 Open Settings and touch Fingerprint ID.
2 Touch Fingerprint management(optional).
3 Enter the screen lock password and touch Next.
4 Touch Access app lock. Follow the onscreen instructions to enter your App Lock password and enable fingerprint recognition.
To view the App Lock status, touch Phone Manager > App lock once you have completed the settings, and then place your finger on the fingerprint sensor. To access a locked app from the home screen, touch the app icon and place your fingertip on the fingerprint sensor.
Using fingerprint sensor navigation gestures
The fingerprint sensor doubles up as a navigation key, allowing you to use touch gestures instead of the virtual navigation bar.
- Gently tap the fingerprint sensor to return to the previous screen.
- Touch and hold the fingerprint sensor to return to the home screen.
- Swipe left or right on the fingerprint sensor to display the list of recently used apps. To exit the list of recently used apps, swipe left or right again.
- Swipe up from the bottom of the screen to launch the voice assistant.
User accounts
About user accounts
Create multiple user accounts to prevent others from viewing your confidential information, or to keep your work and personal life separate.
There are three different user types:
- Owner: Only the owner can log in to this account. As the owner, you can control all user permissions. For example, you can add or delete users and guests, or authorize other users to use calling and messaging services.
- Sub-user: Suitable for close family and friends. Sub-users can use most features, apart from those that may affect the owner, such as restoring factory settings and enabling do not disturb mode.
- Guest: Guests only have limited access to your phone's features. For example, guests cannot use messaging services or install applications from unknown sources.
Create user accounts
Create multiple user accounts to keep your work and personal life separate.
1 Open Settings.
2 Touch Advanced settings > Users.
3 Touch Add. Enter a nickname, and then touch Create.
4 Once you have added a user, switch to the new user account and follow the onscreen instructions to customize the user settings.
- You can also create a new user account from the lock screen. Under Lock screen settings, switch on Add users when device is locked, and then swipe down from the status bar on the lock screen.
- You can add up to three user accounts.
Deleting user accounts
Delete unused accounts to free up storage space.
Log in as the owner. You can delete a user account in two ways:
- Swipe down from the status bar and touch > More settings. Select the user that you want to delete and touch Delete user > Delete.
- Open Settings > Advanced settings > Users. Select the user that you want to delete and touch Delete user > Delete.
Switching between user accounts
Quickly switch between user accounts.
- To switch to another user account, swipe down from the status bar, touch 🔥, and then select a profile picture or username.
- Open Settings > Advanced settings > Users. Select the user that you want to switch to and touch Switch user.
Configuring usernames and profile pictures
You can change your username and profile picture at any time.
1 Open Settings.
2 Touch Advanced settings > Users.
3 Select the desired user.
4 Touch . You can:
- Select Take photo to take a photo and use it as your profile picture.
- Select Choose photo from Gallery to choose a profile picture from Gallery.
5 Enter a new name and touch OK.
Creating a guest account
Create a guest account so your friends can use your phone.
1 Open Settings.
2 Touch Advanced settings > Users.
3 Touch Add guest > ADD.
You can also create a guest account from the lock screen. Under Lock screen settings, switch on Add users when device is locked, and then swipe down from the status bar on the lock screen.
Deleting the guest account
Log in as the owner. You can delete the guest account in two ways:
- Swipe down from the status bar, touch 📷 > More settings, and then touch Guest > Delete guest.
- Open Settings > Advanced settings > Users and touch Guest > Delete guest.
Authorizing users to make calls and access the call log
You can authorize users to access your contacts, call log, and call and messaging features.
Log in as the owner. You can authorize a user or guest to make calls and access your contacts in two ways:
- Swipe down from the status bar and touch > More settings. Select a user, and then touch Allow calls and messages, and sharing of communication history.
- Open Settings > Advanced settings > Users, select an user, and then touch Allow calls and messages, and sharing of communication history.
Adding a secure storage space
Create a secure storage space to prevent others from accessing your messages, photos, videos, and other files.
Ensure that you have configured your fingerprint ID. For more information, see Adding a fingerprint for the first time.
1 Open Settings
2 Touch Advanced settings > Users.
3 Touch Add PrivateSpace. Enter a name for your secure storage space and touch Create.
4 Touch Switch to view your secure storage space.
5 Follow the onscreen instructions to complete the settings and add a fingerprint to access your storage space.
Once you have completed the settings, you can access your secure storage space from the lock screen by using the corresponding fingerprint.
Delete or exit your secure storage space: Go to your storage space. Touch Settings >
Advanced settings > Users and select or as desired.
Security settings
Setting your SIM card PIN
Enable the SIM lock to prevent others from using your SIM card. You will need to enter your SIM card PIN each time you turn on your phone or insert your SIM card into another phone.
i Make sure you have received a SIM card PIN from your carrier before enabling the SIM lock.
1 Open Settings.
2 Touch Advanced settings > Security and select card lock to access the SIM lock settings.
3 Switch on Lock SIM card. Enter your SIM card PIN and touch OK.
To change your SIM card PIN, touch Change SIM PIN and follow the onscreen instructions.
- You will need to enter the PUK code if you exceed the maximum number of incorrect PIN attempts. The SIM card will be permanently locked if your enter the PUK code incorrectly too many times.
- For details about these limits, contact your carrier.
Backing up and restoring data
Backing up data to your phone's internal storage
Back up data to your phone's internal storage to avoid losing your files. Only back up smaller files, such as your contacts, messages, call logs, and calendar.
1 Open Backup.
2 Touch Backup > Internal storage > Next.
3 Select the data you want to back up and touch Back up. When prompted, enter a backup password. No backup password is required for photos, audio files, videos, or documents.
- Set a password reminder to ensure you don't lose access to your files.
- By default, backup files are saved to the HuaweiBackup folder in Files.
4 To restore data, open Backup.
5 Touch Restore >Restore from internal storage >Next.
6 Select the backup you want to restore.
i If the backup data is encrypted, enter the encryption password when prompted.
7 Select the data you want to restore and touch START RESTORATION.
Backing up data to a USB storage device
Use a USB On-The-Go (OTG) cable to connect your phone to a USB storage device and back up your files. Compatible USB storage devices include USB flash drives, card readers, and phones with a microSD card.
1 Open Backup.
2 Touch Backup > USB storage > Next.
3 Select the data you want to back up and touch Back up. When prompted, enter a backup password. No backup password is required for photos, audio files, videos, or documents.
- Set a password reminder to help you remember your password and prevent you from losing access to your files.
- By default, backup data is saved to the HuaweiBackup folder on the USB storage device.
4 To restore data, open Backup.
5 Touch Restore >Restore from external USB storage >Next.
6 Select the backup you want to restore.
i If the backup data is encrypted, enter the encryption password when prompted.
7 Select the data you want to restore and touch START RESTORATION.
Transferring data using a computer
Back up data to your computer to avoid losing your files.
Install HiSuite before using your computer to back up and restore data. For more information, see Installing HiSuite.
1 Connect your phone to a computer using a USB cable. HiSuite will launch automatically.
If your old phone is not a Huawei device, use manufacturer-provided software to back up data to your computer, and then proceed directly to step 4.
2 Go to the backup screen in HiSuite. Select the data that you want to back up and touch Back Up.
Follow the onscreen instructions to set a password reminder to help you remember your password and prevent you from losing access to your files.
3 Click OK once the backup is complete.
4 Use a USB cable to connect your new phone to the computer.
5 In HiSuite, select Restore to copy data to your new phone. If the backup files are encrypted, you will need to enter the encryption password when you are prompted to recover data.
File management
Creating folders
Keep your phone organized by creating folders for your files.
1 Open Files.
2 In the Local tab, touch Internal storage or SD card.
3 Touch+. Enter the name of the new folder and touch Save.
Viewing files
Viewing files by category
Open Files. Select the "Categories" tab to view your files by category.
Finding files quickly
Locate files quickly using the file search feature.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and enter the file name or keywords. Search results will be displayed beneath the search bar.
Sorting files
Use the sort feature to arrange your files by type, name, size, or date.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch≡ and then sort files by type, name, size, or date.
Viewing downloads
1 Open Files.
2 On the "Categories" tab, touch Downloads and favorites to view files you have downloaded or received from other devices.
Adding and viewing favorites
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and hold the file or folder you want to add and touch > Add to favorites.
4 On the "Categories" tab, touch Downloads and favorites to view favorites.
Creating file shortcuts on the home screen
Create a shortcut to frequently-used files on the home screen for easy access.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and hold the file or folder you want to add and touch > Create desktop shortcut.
Sharing files
Use the file sharing feature to share files, photos, and videos.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Select the files you want to share and touch > Share.
4 Choose a sharing method and follow the onscreen instructions to share your files.
Renaming files
Give your files memorable names so that you can find them quickly.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and hold the file or folder you want to rename and then touch >Rename.
4 Enter a new name and touch OK.
Copying, moving, or deleting files
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and hold the files and folders you want to copy, move, or delete. You can:
- Copy files to a destination folder: Touch ☐. Select a destination folder and touch ☐.
- Move files to a destination folder: Touch ☐. Select a destination folder and touch ☐.
- Delete files or folders: Touch > Delete.
Creating or extracting archives
Compress files in a zip archive to free up space and share files more easily.
1 Open Files.
2 On the Local tab, touch Internal storage or SD card.
3 Touch and hold the file or folder you want to compress, and then touch > Compress.
4 Choose the archive destination. The selected files will be compressed into a zip file, which will be named automatically.
To extract an archive, touch and hold the archive file. Touch > Extract to and select where the contents of the archive should be extracted to.
Hiding small image files
When you browse your images in Files, you might also see some cached images from websites. You can prevent these images from being displayed as follows:
1 Open Files.
2 Touch > Settings and switch on Filter small pictures to hide files that are smaller than 30 KB. This should hide most cached images.
Storing files securely
Enable Safe, set a password, and move files into a safe to encrypt them. You can remove files from a safe at any time.
You can add images, audio files, videos, and documents to a safe.
1 Open Files.
2 In the Local or "Categories" tab, touch Safe.
3 Touch "Enable" and set the safe storage location.
4 Follow the onscreen instructions to set a password and security question, and then touch "Done" to open Safe.
5 Touch↓. Follow the onscreen instructions to select files, and then touch ↓to add your files to the safe.
- Remove files from a safe: In Safe, open a folder and touch and hold the files you want to remove, and then touch
- Destroy a safe: In Safe, touch Settings > "Destroy safe". Follow the onscreen instructions to remove files from the safe and destroy it.
- Change the safe password: In Safe, touch Settings > "Change password". Follow the onscreen instructions to change the password.
- Change the safe password: In Safe, touch Settings > Change security question. Follow the onscreen instructions to change the password.
- Switch to another safe: In Safe, touch Settings > "Switch safe". Follow the onscreen instructions to select another safe.
- View the storage location: In Safe, touch Settings > "Safe location" to view the safe's storage location.
Don't change the storage location folder, otherwise you may not be able to access your files.
Calls and Contacts
Making calls
Smart dialing
Enter the name, initials, or number of a contact in the dialer. Your phone will display matching contacts.
1 Open Dialer.
2 Enter the name, initials, or number of a contact in the dialer (for example, John Smith or JS). Your phone will search your contacts and call log and list the results above the dialer.
3 Select the contact you want to call from the list. If your phone has dual SIM support, touch
or
to make a call.
i The call status will be displayed on the screen (for example, ringing or call forwarding).
4 Touch to end the call.
To end a call using the power button, go to switch on Power button ends call.
Dialer, touch
Settings, and then
Making a call from Contacts
1 Open Contacts.
2 Touch the search bar and enter the name or initials of the person you want to call.
3 Touch the contact number. If your phone has dual SIM support, select 📞 or 📞 to initiate the call.
Making a call from the call log
1 Open Dialer.
2 Slide the list up and down to view all calls. Touch the name or number of the person that you want to call. If your phone has dual SIM support, select 📞 or 📞 to initiate the call.
Calling contacts when the screen is off
Call people quickly when the screen is switched off.
1 Open Dialer.
2 Touch : > Settings > Quick calling and switch on Quick calling.
Press and hold the volume down button for one second when the screen is off. When you hear the alert sound, release the volume down button and say the name of the contact you want to call. The phone will dial their number.
When using a Bluetooth headset, press and hold the talk/send key to enable quick calling.
Making video calls
Before making a video call, check that your phone and the recipient's phone support VoLTE and that you have both enabled this service with your carrier. Both you and the recipient must be in a location with VoLTE network coverage.
1 Open Settings.
2 Touch More > Mobile network and switch on VoLTE calls.
3 Open Contacts.
4 Touch the search bar and enter the name or initials of the person you want to call.
5 To initiate a video call, touch □.
To switch to a video call during an audio call, touch
Making RCS calls
RCS (Rich Communication Suite) provides a range of enhanced communication services including phonebook services, voice calls, instant messaging, and file sharing.
- Before making an RCS call, check that you and the recipient have enabled RCS and logged in to your RCS accounts.
- This feature may not be supported by all carriers.
During a call, you can choose to switch to a video call, send a message, and more.
Making an emergency call
In the event of an emergency, you can make emergency calls from your phone, even without a SIM card. However, you must be in an area with cellular coverage.
1 Open Dialer.
2 Enter the emergency number for your location in the dialer, and then touch.
If you are in an area with good cellular reception, your phone will automatically obtain your location and display it on the screen.
The ability to make emergency calls can depend on local regulations and carriers in your area. Poor network coverage or environmental interference may prevent your call from being connected. Never rely solely on your phone for essential communication during emergencies.
Making international calls
Before making a long-distance call, contact your carrier to activate an international calling or roaming service.
1 Open Dialer.
2 On the dialer screen, touch and hold the 0 key to enter a + symbol, and then enter the country code, area code, and phone number.
3 To touch to initiate the call. If your phone has dual SIM support, select or to initiate the call.
Auto redial
Use auto redial to keep redialing a contact's number until your call is connected.
- The first time a call does not connect (or is interrupted), your phone will display the single redial screen. Touch 📞 to redial the number once.
- If a call does not connect after the first redial attempt, your phone will display the infinite redial screen. Touch 📞 to redial the number until the call connects.
- Ensure you promptly touch 📋. The redial screen will close if you don't redial within 10 seconds.
- Touch to cancel a redial attempt.
Making a call while roaming
Use Contacts to call a contact when you're overseas.
Open Contacts. To initiate a call, select the contact you want to call, and then touch the contact's number.
Answering calls
Answering or rejecting a call
When a call comes in, press the volume button to mute the ringtone.
If the screen is locked:
- Drag right to answer the call.
- Drag left to reject the call.
- Touch 🔔 to reject the call and send an SMS.
- Touch ⏻ to configure a callback reminder.
If the screen is unlocked:
- Touch to answer the call.
- Touch ⏻ to reject the call.
- Touch 🔔 to reject the call and send an SMS.
- Touch ⏻ to configure a callback reminder.
- To use an app during a call, touch □ Recent to open the list of recently used apps. You can also swipe left or right on the front-facing fingerprint sensor , if it is available on your phone. Touch the desired app. The Dialer app will continue to run in the background.
If you receive a call when you are entering text or using full-screen mode (for example, when you are viewing an image or playing a game), the incoming call will be displayed at the top of the screen in a floating window. Touch to answer the call or to decline the call.
Switching between calls
i Ensure that you have turned on call waiting before using this feature. For details, contact your carrier.
1 If you receive an incoming call when in another call, touch 📋. You can then answer the incoming call and hold the other line.
2 To switch between the two calls, touch ⇌ or select the call that is on hold.
Making a conference call
Set up a conference call using the multi-party call feature. Call one contact's number (or receive a call), and then call another number to add it to the conference call.
i Conference calling must be supported by your carrier. Please ensure you have activated this service. For details, contact your carrier.
1 Call the first participant.
2 Once the call is connected, touch +, and then dial the second participant's number. The first participant will be placed on hold.
3 When the second call is connected, touch ↑ to start a conference call.
4 Repeat steps 2 and 3 to add more people to the conference.
5 During a call, touch > to view the list of participants. You can:
- Touch next to a contact to remove the contact from the call.
- Touch Y next to a contact to remove the contact from the conference call and keep them in a separate call.
- Touch ← to return to the main call screen.
6 Touch to end the conference call.
In-call options
Do not cover the microphone during a call.
During a call, your phone will display an in-call menu.
- Hide the in-call menu: Touch ○ Home or △ Back. You can also touch the front-facing fingerprint sensor , if it is available on your phone. Touch the green status bar at the top of the screen to return to the in-call menu.
- Start a three-way call: Contact your carrier to find out how to use this feature.
- Adjust the volume: Press the volume up button to increase the volume, or the volume down button to decrease the volume.
Managing call logs
Viewing missed calls
1 Open Dialer.
2 To display all missed calls, swipe down in the call log and touch the Missed tab.
You can also view missed calls in the All tab. Missed calls are marked in red.
3 Touch ⓘ next to a call log to return the call, send a message, and more.
Managing unknown numbers in the call log
1 Open Dialer.
2 Touch Unknown.
3 Select a number and touch ⓘ. You can:
- Add the number to your contacts: Touch + to create a new contact, or touch 🔊 to add the number to an existing contact.
- Add the number to the blacklist: Touch > Add to blacklist.
- Share the number: Touch : > "Send number" to send the number as a text message.
Merging call logs
Merge call logs belonging to the same contact or number to keep your call log organized.
1 Open Dialer.
2 Touch : > Settings > Merge call log.
3 Touch By contact. Your phone will automatically merge call logs belonging to the same contact or number. Touch ⓘ next to a call log to view detailed call log information.
Clearing the call log
Open Dialer. You can clear the call log in two ways:
- Delete one entry: Touch and hold a log entry, and then touch Delete entry.
- Delete multiple entries: Touch 📄. Select the entries you want to delete, and then touch 📄.
Backing up the call log
1 Open Backup.
2 Touch Backup > SD card or Internal storage to back up the call log to a microSD card or your phone's internal storage.
3 Select Call log and touch Back up.
4 Follow the onscreen instructions to configure a password.
Call settings
Configuring dialpad touch tones
1 Open Dialer.
2 Touch : > Settings > Dialer touch tones and configure the touch tone settings.
The preset touch tone will be played when you touch the dialer. If your phone is in silent mode, touch tones will be muted.
Enabling call forwarding
If you are unavailable to take a call, you can configure your phone to forward calls to another number.
1 Open Dialer.
2 Touch : > Settings.
3 Under SIM 1 or SIM 2, select Call forwarding.
4 Select a forwarding method. Enter the destination number and touch ENABLE.
When call forwarding is enabled, your phone will forward certain calls (such as unanswered calls) to the number you specified.
Enabling call waiting
Call waiting allows you to take an incoming call when you are already in a call and switch between the two conversations.
i You may need to contact your carrier to enable this feature.
1 Open Dialer.
2 Touch : > Settings.
3 Under SIM 1 or SIM 2, select Additional settings and switch on Call waiting.
When you receive an incoming call while already in a call, touch to answer the new call, and to switch between the two calls.
Enabling VoWi-Fi
Enable VoWi-Fi (Voice over Wi-Fi) to make calls over a mobile data or Wi-Fi network.
i This feature may not be supported by all carriers.
1 Open Dialer.
2 Touch : > Settings > Wi-Fi calling.
3 Switch on Wi-Fi calling and select Turn on.
4 Touch Mode. You can choose from three different priority modes for outgoing calls:
• Wi-Fi preferred: Wi-Fi takes priority.
Enabling pocket mode
Enable pocket mode to make sure you don't miss calls when your phone is in your pocket. The ringtone volume will gradually increase when you receive a call.
1 Open Dialer.
2 Touch : > Settings.
3 Switch on Pocket mode.
Enabling fixed dialing numbers
Use fixed dialing numbers to restrict outgoing calls to whitelisted numbers.
Your PIN2 code is required to enable fixed dialing numbers. To obtain your PIN2 code, contact your carrier.
1 Open Dialer.
2 Touch : > Settings > Additional settings > Fixed Dialing Numbers. If your phone has dual SIM support, touch Additional settings > Fixed Dialing Numbers under SIM 1 or SIM 2.
3 To enable fixed dialing numbers, touch Enable FDN, enter your PIN2 code, and then touch OK.
You will be prompted to enter the PUK2 code after three incorrect attempts to enter your PIN2 code. To obtain the PUK2 code, contact your carrier.
4 To add a contact, touch +.
After enabling fixed dialing numbers, you will only be able to make calls to whitelisted numbers.
Rejecting calls with a text message
Send a predefined text message when you're not available to take a call.
1 Open Dialer.
2 Touch : > Settings > Reject calls with SMS.
3 Touch a predefined text message to edit the message content. Once you have finished, touch OK to save the message.
When you are unavailable to take an incoming call, touch 🔒 and select a predefined message to send to the caller.
Configuring the harassment filter
The harassment filter automatically blocks calls and messages from unknown or blacklisted numbers.
1 Open Dialer.
2 Touch : > Harassment filter.
3 Touch to configure the harassment filter settings and the blacklist.
You can also configure the harassment filter settings and the blacklist in Phone Manager > Blocklist >
Configuring the call ringtone
Choose from a selection of system ringtones or pick a song from your music library.
1 Open Dialer.
2 Go to : > Settings > Phone ringtone. Choose a system ringtone or select a song from your music library.
Alternatively, go to Settings > Sound, touch Call ringtone & vibration, and then configure the ringtone settings.
Configuring voicemail
Divert calls to your voicemail when your phone is switched off or when there is no cellular coverage. Callers can leave a voice message which you can listen to later.
Voicemail must be supported by your carrier. Please ensure that you have subscribed to this service. Contact your carrier for information about their voicemail service.
1 Open Dialer.
2 Touch : > Settings.
3 Touch Additional settings. If your phone has dual SIM support, touch SIM 1 or SIM 2, and then touch Additional settings.
4 Touch Voicemail > Voicemail number and enter your voicemail number.
Configuring TTY mode
Connect your phone to a TTY (teletypewriter) device and enable TTY mode to send and receive written messages during a call. A TTY is a special device that enables hearing and speech-impaired users to communicate over the phone.
- Before enabling TTY mode, use a suitable cable to connect a TTY device to your phone's headphone socket.
- This feature may not be supported by all carriers.
1 Open Dialer.
2 Touch : > Settings > TTY mode. There are four options:
- TTY Full: Text-only communication on both sides of the phone call.
- TTY HCO: Hear a voice read the incoming text and type the outgoing text.
- TTY VCO: Speak the outgoing text and receive a text message back.
- TTY Off: Standard voice communication on both sides of the phone call.
Creating a contact card
Create a contact card to quickly share your contact information. You can share your contact information by scanning the QR code or by sending the contact card using an instant messaging service such as WhatsApp.
1 Open Contacts.
2 Touch Me.
3 Set your profile picture. Enter your name, company, telephone number and other contact information, and then touch √. Your phone will automatically create a contact card with a QR code.
Share your contact card: Touch Select the card format and sharing method, and then follow the onscreen instructions.
Creating a new contact
Creating a contact
1 Open Contacts.
2 Touch + . Touch Create a new contact if you are creating a contact for the first time.
3 In the options menu, select a location to save the contact.
The number of contacts you can store on your phone depends on the size of your phone's internal storage. The number of SIM card contacts varies depending on your SIM card's storage capacity.
4 Touch the contact's profile picture to choose a photo. Enter the contact's name, company, phone number and other contact information, and then touch √.
- If you add the contact's birthday, your phone will automatically create a birthday reminder in Calendar.
- The contact's photo will be displayed when the contact calls you. Other contact information such as company name and job title will also be displayed.
You can also add phone numbers, email addresses, and other contact information in Call log, Messaging, or Email to your contacts.
Quickly adding contact details
Enter contact information on your phone more rapidly. Simply scan or take pictures of business cards to automatically add names, phone numbers, and other information to your contacts.
1 Open Contacts.
2 Touch Business cards > Scan.
3 You can:
- Take a photo of one card: Place the business card on a flat surface. Adjust the viewfinder frame so that the card fits the guidelines, and then touch
- Take a photo of multiple cards: Switch to Burst mode and follow the onscreen instructions.
After you have finished scanning or taking photos, contact information will automatically be saved to Business cards.
Sharing your QR code
Share your QR code with your friends so that they can add you to their contacts quickly. On the contact details screen, touch the QR code at the top of the screen to display your personal QR code.
Importing and exporting contacts
Importing contacts from a storage device
1 Open Contacts.
2 Touch : > Import/Export > Import from storage.
3 Select one or more .vcf files, and then touch OK.
Exporting contacts to a storage device
1 Open Contacts.
2 Touch : > Import/Export > Export to storage.
3 Touch Export.
4 Choose where you want to export the contacts from and touch OK.
By default, the exported .vcf file is saved to the root directory of your phone's internal storage.
Open Files to view the exported file.
Importing contacts from a SIM card
1 Open Contacts.
2 Touch : > Import/Export > Import from SIM. If your phone has dual SIM support, touch : > Import/Export > Import from SIM 1 or Import from SIM 2.
3 Select the contacts you want to import and touch →.
4 Choose the import location. Your phone will automatically import the contacts.
Exporting contacts to a SIM card
1 Open Contacts.
2 Touch : > Import/Export > Export to SIM. If your phone has dual SIM support, touch : > Import/Export > Export to SIM 1 or Export to SIM 2.
3 Select the contacts you want to export and touch ☐.
4 Touch Continue.
Importing contacts using Bluetooth
1 Open Contacts.
2 Touch : > Import/Export > Import from another phone.
3 Select Supports Bluetooth and touch Next.
4 Enable Bluetooth on the device from which you want to import contacts, and then set the device to be visible to other Bluetooth devices.
5 Touch Next. Your phone will automatically turn on Bluetooth and search for nearby devices.
6 Touch the Bluetooth device from which you want to import contacts. Once connected, your phone will automatically import contacts from the other Bluetooth device.
Importing contacts using Wi-Fi Direct
Use Wi-Fi Direct to import contacts from another Huawei device.
1 Open Contacts.
2 Touch : > Import/Export > Import from another phone.
3 Select Import via Wi-Fi Direct and touch Next. Your phone will prompt you to enable Wi-Fi and scan for Wi-Fi Direct devices.
4 Select a Wi-Fi Direct device. Your phone will automatically import contacts from the device.
Using the Huawei Backup app to import contacts
1 Open Backup.
2 Touch Restore >Restore from internal storage and select Next.
3 Select the backup you want to restore.
i If the backup data is encrypted, enter the encryption password when prompted.
4 Select Contacts and touch Start restoration.
Using the Huawei Backup app to back up your contacts
1 Open Backup.
2 Go to Backup > Internal storage, and then touch Next.
3 Select Contacts. Touch Back up and follow the onscreen instructions to set a password.
By default, backup data is saved to the HuaweiBackup folder in Files.
Managing contacts
Editing a contact
After creating a contact, you can edit their contact information at any time. This includes adding or deleting default information such as phone numbers or email addresses. You can also choose a custom ringtone and add a birthday, nickname, or photo.
i Contact photos cannot be added for contacts stored on your SIM card.
1 Open Contacts.
2 Touch and hold the contact you want to edit, and then touch Edit.
3 Touch the contact's portrait to choose another image. Update the contact's information, and then touch √.
i Add multiple numbers for one contact: Select a contact from the contact list and touch Edit > Add phone number.
Merging duplicate contacts
When you add contacts to your phone from different sources, you may end up with duplicate entries. These duplicate entries can be merged into one to help keep your contacts organized.
1 Open Contacts.
2 Touch : > Organize contacts > Merge duplicate contacts.
3 Select the contacts you want to merge and touch √.
Deleting contacts
1 Open Contacts.
2 Touch : > Organize contacts > Delete contacts by batch.
3 Select the contacts you want to delete, and then touch 📄.
4 Touch Delete.
Alternatively, touch and hold a contact until a popup menu appears. From here, select Delete to delete the contact.
Deleting contact history
Delete call records and text messages by contact to protect your privacy.
1 Open Contacts.
2 Select a contact and touch : > Erase trace > Erase.
Your phone will delete all call records and text messages for the selected contact.
Adding contacts to the blacklist
1 Open Contacts.
2 Touch and hold the contact that you want to add to the blacklist, and then touch Add to blacklist.
Your phone will automatically block incoming calls and messages from blacklisted contacts.
i View blacklisted contacts: Open 📋 Phone Manager and touch Blocklist > 🔗 . Touch Numbers blacklist to view blacklisted contacts.
Remove contacts from the blacklist: Open 📋 Contacts. Touch and hold the contact that you want to remove from the blacklist, and then touch Remove from blacklist.
Identifying contacts with incomplete information
1 Open Contacts.
2 Touch : > Organize contacts > Contacts with incomplete info.
3 Your phone will display a list of contacts with incomplete information. You can then choose to add missing information or delete unwanted contacts.
Viewing contacts from different accounts
1 Open Contacts.
2 Touch : > Display preferences.
3 Select the account you want to display, or customize the display options.
- Hide contact photos, company information, and job title: Touch > Display preferences on the contacts screen and switch on Simple layout.
- View storage information: Touch > Display preferences on the contacts screen. Go to Accounts to view the available and total storage space on your phone or SIM card.
Searching for contacts
Search contacts stored on the phone, SIM card, or linked to an online account.
Finding contacts
1 Open Contacts.
For more complete search results, ensure that Contacts is configured to display all of your contacts. On the contacts screen, touch > Display preferences and select All contacts.
2 On the contact list, use one of the following methods to find a contact:
- Swipe the contact list up or down.
- Slide your finger up or down the index on the right-hand side of the screen to scroll through your contacts.
- Enter the contact name, initials, phone number, email address, or other information in the search bar at the top of the contact list. Search results will be displayed underneath.
3 Select a contact. You can call them, send a text message, or edit their contact information.
If an error message is displayed or you are unable to search for a contact, touch Organize contacts and select Rebuild index data.
Searching for a contact from the home screen
1 Swipe down on the home screen to display the search bar.
2 Enter one or more keywords (such as the contact's name or email address). The search results will be displayed beneath the search bar.
3 Select a contact. You can then choose to call them, send them a text message, or edit their contact information.
Sharing contacts
Share a contact's vCard
1 Open Contacts.
2 Touch : > Import/Export > Share contact.
3 Select the contacts you want to share, or touch "Select all" to select all contacts, and then touch Share contact.
4 Choose your sharing method and follow the onscreen instructions.
Share a contact's QR code
1 Open Contacts
2 Select the contact you want to share. Touch the QR code and select Share.
3 Choose your sharing method and follow the onscreen instructions.
If the other device has a camera that can scan QR codes, you can also share a contact by scanning the contact's QR code.
Adding a contact to your favorites
Add frequently-contacted people to your favorites to make them easier to find.
1 Open Contacts.
2 Touch and hold the contact you want to add to your favorites, and then touch Add to favorites.
- When viewing contact details, touch ☆ to add the contact to your favorites.
- Edit your favorites: Touch Edit on the favorites screen. Drag — next to a contact to adjust the position of the contact in your favorites list.
- Remove contacts from your favorites: Touch Edit on the favorites screen. Select the contacts that you want to remove from your favorites, and then touch Remove.
Changing contact photos
i Contact photos cannot be added for contacts stored on your SIM card.
1 Open Contacts.
2 Touch and hold the contact you want to edit, and then touch Edit.
3 Touch the contact's photo. You can choose to select a photo from Gallery or take a photo with the camera.
4 Touch√.
The contact's photo will be displayed when you receive a call from them.
Viewing call records for individual contacts
1 Open Contacts.
2 Select the desired contact and touch Call log.
3 Swipe up on the list to view all entries. You can:
- Call the contact: Touch an entry to call the contact.
- Delete an entry: Touch 📄.
- Edit an entry: Touch and hold the entry that you want to edit.
Assigning a ringtone to a contact
Assign a unique ringtone to frequently used contacts so that you can easily tell who is contacting you.
1 Open Contacts.
2 Select the desired contact and touch Phone ringtone.
3 Select the desired ringtone or music file, and then touch √.
Contact groups
Creating a group
1 Open Contacts.
2 Touch Groups and select ^+ .
3 Enter the group name (for example, Family or Friends) and touch OK.
4 Touch+. Select the contacts you want to add to the group and touch √.
Using smart groups
Use smart groups to automatically group contacts by company, location, or contact frequency.
1 Open Contacts.
2 Touch Groups.
3 Under Smart groups, open a group, and then touch 🔒 to send a group message or ✉ to send a group email.
Editing a group
Add or remove people from a group, or change the group name.
1 Open Contacts.
2 Touch Groups and select the group you want to edit.
3 Touch+ and add new members to the group.
4 Touch : . There are three options:
- Touch Remove members to remove members from the group.
- Touch Delete group to delete the group.
- Touch Rename to edit the group name.
Sending a group text message or email
1 Open Contacts.
2 Touch Groups and select which group you want to send a message or email to.
3 Touch to send a message or to send an email.
Deleting a group
1 Open Contacts.
2 Touch Groups.
3 Touch and hold the group you want to delete, and then touch Delete.
4 Touch Delete.
i Deleting a group will not remove the contacts in the group from your phone.
Messaging and Email
Sending a message
You can add a range of different content to messages, such as emoticons, images, and recordings.
1 Open Messaging.
2 In the list of message threads, touch +.
3 Select the recipient box and enter the contact name or phone number. You can also touch to open your contact list and choose a contact or contact group.
4 Select the text field to begin composing your message. If you enter more than two lines of text, touch ↗to switch to full screen mode.
- Touch 📋 to add an attachment to your message.
- Touch △ Back to save the message as a draft. You can also touch the front-facing fingerprint sensor , if it is available on your phone.
5 Touch ▶. If your phone has dual SIM support, touch ▶ or ▶ ^2 .
Cancel a message: You can cancel a message up to six seconds after it was sent. Touch > Settings and switch on Cancel send. To cancel sending, double touch the message.
Replying to a message
1 Open Messaging.
2 Touch a message to view the message content. Your phone will automatically highlight phone numbers, web addresses, email addresses, times, and other information. Touch highlighted information to access a range of shortcuts. You can also:
- Save message attachments: Touch the attachment that you want to save and touch
- Call the sender: Touch 🔔 at the top of the message.
- Add the caller's number to your contacts: Touch > Create new contact or Save to existing contact at the top of the message.
3 To send a reply, select the text field and enter your message, and then touch. If your phone has dual SIM support, touch or.
i Quickly reply to message: New messages will be displayed in the notification bar. Touch the button to compose a reply.
Using RCS instant messaging
- Before using RCS instant messaging, check that you and the recipient have enabled RCS and logged in to your RCS accounts.
- This feature may not be supported by all carriers.
1 Open Messaging.
2 In the list of message threads, touch +.
3 Touch☐ to open your contact list and choose an RCS contact.
i Start a group chat: Touch : > Group chat to add RCS contacts.
4 You can send text or attachments.
Searching for messages
You can search for messages in two ways:
- In the list of message threads, touch the search bar at the top of the screen and enter one or more keywords. The results will be displayed beneath the search bar.
- Swipe down on the home screen to display the search bar. Touch the search bar and enter one or more keywords. The results will be displayed beneath the search bar.
Deleting message threads
Delete unwanted or old threads to tidy up your message list.
You can delete a message thread in two ways:
i Deleted threads cannot be retrieved, so please proceed with caution.
- To delete a single thread, swipe left on the thread that you want to delete and touch 📄
- To delete multiple threads, touch and hold one of the threads that you want to delete. Select the other threads and touch Delete.
Managing messages
Delete unwanted messages, forward messages to other contacts, copy and paste message content, and lock messages or add them to your favorites to prevent them from being deleted by accident.
1 Open Messaging.
2 In the list of message threads, touch a contact name or phone number to view your conversations.
3 Touch and hold a message, and then follow the onscreen instructions to forward, archive, lock, or share the message.
Returning to the top of the message list
If you have a long list of messages, use a shortcut to return to the top of list without swiping the screen.
1 Open Messaging.
2 In the list of message threads, double touch the bar at the top of the screen. Your phone will automatically return to the top of the list or display unread messages.
Pinning messages to the top of the list
Pin important messages to the top of your message list so that you can access them quickly.
1 Open Messaging.
2 In the list of message threads, touch and hold the message that you want to pin to the top.
3 Select the desired message and touch ↑. Pinned messages will be displayed below text message alerts.
Marking messages as read
Mark unwanted messages as read to keep your inbox organized.
Open Messaging. In the list of message threads, you can:
- Mark all messages as read: Touch : > Mark all as read.
- Mark a message as read: Swipe left on the message that you want to mark as read, and then
touch
Blocking spam messages
1 Open Messaging.
2 In the list of message threads, touch : > Harassment filter.
3 Touch to configure the harassment filter settings and the blacklist.
Alternatively, open Phone Manager and touch Blocklist >
Adding a message signature
Add a message signature to save you time when sending messages.
1 Open Messaging.
2 Touch : > Settings > Advanced > Signature in the list of message threads, and then switch on Attach signature.
3 Touch Edit signature. Enter your signature and select OK.
Configuring the message ringtone
1 Open Messaging.
2 In the list of message threads, touch : > Settings > Ringtones and vibration.
3 Touch Notification tone. If your phone has dual SIM support, select SIM 1 vibrate or SIM 2 vibrate. You can then choose a system ringtone or music file.
Identifying malicious URLs in text messages
Set your phone to automatically identify malicious URLs to protect your personal data and financial information.
i Ensure that your phone is connected to the Intenet before enabling this feature.
1 Open Messaging.
2 In the list of message threads, open : > Settings.
3 Switch on Malicious website identification.
Receiving delivery reports
Enable delivery reports to receive confirmation when text messages are delivered to the recipient.
i Some carriers may not support this feature.
1 Open Messaging.
2 In the list of message threads, open > Settings > Delivery reports.
3 Select Text message and Multimedia message, and then touch OK.
A delivery report will be displayed when your message has been successfully delivered. If the recipient's phone is powered off or their number is out of service, a message will be displayed indicating that the message failed to send.
Adding an email account
If you don't know your account settings, please consult your email service provider.
Adding a personal email account
1 Open Email.
2 Choose an email service provider or touch Others.
3 Enter you email address and password, and then touch Sign in.
4 Follow the onscreen instructions to configure your account. The system will automatically connect to the server and check your settings.
Your Inbox will be displayed once the account has been set up.
Adding an Exchange account
Microsoft Exchange is a corporate email management solution. Some email service providers also provide individual and family Exchange accounts.
1 Open Email.
2 Touch Exchange.
3 Enter your email address, user name, and password. Touch Next.
4 Follow the onscreen instructions to configure your account. The system will automatically connect to the server and verify your settings.
Your Inbox will be displayed once the account has been set up.
Sending emails
1 Open Email.
2 Touch+.
3 In To:, enter one or more recipients.
4 Touch Cc/Bcc, From: to add Cc and Bcc recipients, and select the email account to use.
5 Enter the email subject and body. Touch to add an attachment.
6 Touch.
Your email service provider may have an attachment size limit. If attachments exceed the limit, you can send them in separate emails.
To save your email as a draft and send it later, touch ←, and then touch Save.
Replying to emails
1 Open Email.
2 Open the email you want to reply to and touch
To reply to all recipients of the original email, touch
3 After drafting your message, touch
Configuring fast responses: Touch : > Settings. Select an account and touch Quick responses to create or edit a fast response.
Managing emails
Viewing emails
Open Email. Swipe down to refresh your inbox and download new emails.
1 On the Inbox screen, touch ≡ and select the account you want to use.
2 Open an email. You can perform the following operations:
- Touch ☆ to star the email.
- Choose from the options below to reply to, forward, or delete the email.
To delete multiple emails, go to the Inbox screen. Select a contact picture or touch and hold an email to activate the email management interface. Select the emails you want to delete and touch
- Swipe left or right to read the next or previous email.
Saving email attachments
Open an email and touch ↓ to preview the attachment. Touch to save the attachment to your phone.
For large attachments, open the link provided in the email to download.
Moving multiple emails
1 Open Email.
2 Go to the Inbox screen. Select a contact picture or touch and hold an email to activate the email management interface.
3 Select the emails you want to move. Touch☐ and then select a destination folder for the emails.
Syncing emails
On the Inbox screen, swipe down to refresh your inbox.
1 Open Email.
2 Touch : > Settings.
3 Select the account you want to configure. Switch on Sync email.
To sync your emails automatically, touch Sync schedule and select a sync interval.
Searching emails
You can search for emails in two ways:
- On the inbox screen, enter one or more keywords in the search bar, such as the email title, content, or the attachment filename.
- On the home screen, swipe down to open the search bar. Enter search keywords, such as the email title, content, or the attachment filename.
Viewing email folders
1 Open Email.
2 Touch.
3 Open the inbox or VIP inbox folder to view email sub-folders.
Show or hide folders: Touch ≡ > Show all folders > 2. Select the folders you want to display. Folders that are not selected will be hidden.
Managing VIP contacts
If you want to make sure you never miss messages from important contacts, you can add them to your VIP contact list. Your phone will automatically place emails from these contacts in your VIP inbox.
1 Open Email.
2 Touch : > Settings > VIP contacts.
3 From VIP list, touch Add > Create or Add from contacts.
You can also open an email, touch the sender's profile picture, and then touch Add to VIP list from the popup menu.
Add or delete VIP contacts: On VIP list touch + or 📋 to manage your VIP contacts.
Configure VIP contact email notifications: On the inbox screen, touch : > Settings > VIP notifications.
Managing email accounts
Adding an email account
1 Open Email.
2 Touch : > Settings > +
i Alternatively, On the inbox screen, touch ≡Touch add account.
3 Select a service provider and enter your details to add an account. For more information on how to add an account, see Adding an email account.
Switching between email accounts
On the inbox screen, touch 📄.Touch the account image to switch to that account.
Configuring an email account
On the inbox screen, touch :> Settings and select an account. You can perform the following operations:
- Rename the account: Touch Account name and enter an account name in the popup dialog box.
- Set as default: Switch on Default account to make the account the default account.
- Delete the account: Touch Remove account to delete the account.
Configuring Mail
Configuring automatic replies
Configure automatic replies when you are out of office.
i You must log in to your Exchange account to use this feature.
1 Open Email.
2 Touch : > Settings.
3 Choose the Exchange account you want to configure and switch Automatic replies on.
4 Switch on Automatic replies to configure a message and set the start and end time.
5 Touch Done to save your settings.
Configuring an email signature
1 On the inbox screen, touch : > Settings.
2 Select the account you want to configure and touch Signature.
3 Enter a signature and touch OK.
Configuring email notifications
1 On the inbox screen, touch : > Settings.
2 Select the account you want to configure and switch Email notifications on.
3 Select a notification sound or enable vibration alerts.
Configuring the email view
On the inbox screen, touch : > Settings > General. You can configure the following:
- Only download attachments over Wi-Fi: Switch Don't download images over mobile network on.
- Group emails with the same title: Switch Organize by subject on.
- Display contact images: Switch Sender profile picture on to display contact images next to emails.
Configuring how emails are sorted
On the inbox screen, touch :> Sort by and select a sort method.
Calendar and Notepad
Changing the calendar view
To view your schedule for a specific day, touch Go to, select a date, and then touch Done.
Open Calendar and touch >"Settings". There are three options:
- Configure the weekend settings: Touch Customize weekend and configure the settings.
- Configure the first day of the week: Touch Week starts on and configure the settings.
Viewing global holidays
Enable global holidays to view public holiday information for different countries.
i This feature requires an Internet connection.
1 Open Calendar.
2 Touch≡> "Settings" > Global holidays.
3 Turn on the switch next to the country whose holidays you want to view. Your phone will automatically download the country's holiday information.
Birthday reminders
Configure Calendar to import birthday information from your contacts and automatically create birthday reminders.
Before using this feature, ensure that you have added birthday information to your contacts. For more information, see Creating a contact.
1 Open Calendar.
2 Touch≡ and select Contacts' birthdays.
Once you have enabled this feature, Calendar will automatically import birthday information from your contacts and send you birthday reminders.
Syncing events
Syncing events from your Exchange account
i Ensure that you have enabled the Exchange calendar sync feature in the email account settings.
1 Open Calendar.
2 Touch≡. Select an Exchange account to sync events to your phone.
Creating an event
Add events and set reminders to help you plan ahead.
1 Open Calendar.
2 Touch+.
3 Enter the event name, location, and start and end time. Touch More > Remind to create a reminder.
4 Touch√ to save the event.
- You can add up to 5 reminders for an event. To add a reminder, touch Add reminder.
- In month or week view, touch and hold an area on the screen to create an event for the corresponding date.
Sharing events
You can share events with your contacts.
1 Touch Calendar.
2 Open the event that you want to share and touch
3 Choose how you want to share the event and follow the onscreen instructions.
You cannot share birthday reminders that are created automatically. To share birthday information, manually create an event, and then share the event with your friends.
Deleting an event
Open Calendar. You can delete an event in two ways:
- Delete a single event: Open the event that you want to delete and touch 📄.
- Delete multiple events: Touch 📄, and then touch and hold an event to activate the event management interface. Select the events that you want to delete and touch 📄
To delete a birthday reminder, go to Contacts, and then delete the contact's birthday information, or delete the corresponding contact.
Searching for events
You can search for events in two ways:
- In Calendar, touch 🔒 Enter one or more keywords in the search bar, such as the event name or location.
- Swipe down on the home screen to display the search bar. Enter one or more keywords, such as the event name or location.
Sending event invitations
Send event invitations to your friends or colleagues to keep track of who is attending.
Before using this feature, log in to your Exchange account.
1 Open Calendar.
2 Touch+. Enter the event name, location, and start and end time.
3 Touch More. Under "Guests", enter the exchange accounts of the people that you want to invite.
4 Touch √ to save the event and send the invitations.
i Event invitations are displayed in the notification panel. To respond to an invitation, touch Email guests.
Creating a note
1 Open Notepad.
2 Touch + and enter your note. You can choose to add an image, to-do marker, or reminder.
i Ensure that you are connected to the Internet before configuring the Smart departure settings or location-based reminders.
3 Touch√ to save the note.
Managing notes
Adding a note to favorites
Open Notepad. You can add a note to your favorites in two ways:
- In the list of notes, swipe left on a note and touch ☆.
- Touch the note that you want to add to your favorites and touch ☆.
Sharing a note
In the list of notes, open the note that you want to share and touch Choose your sharing method and follow the onscreen instructions.
Deleting a note
You can delete a note in three ways:
- In the list of notes, swipe left on the note that you want to delete and touch 📄.
- Touch and hold a note to activate the note management interface. Select the notes that you want to delete and touch 📄
- Touch the note that you want to delete and touch : > Delete.
Searching your notes
You can search your notes in two ways:
- In the list of notes, touch the search bar and enter one or more keywords.
- Swipe down on the home screen to display the search bar, and then enter one or more keywords.
Backing up notes
Backing up notes
1 Open Backup.
2 Touch Backup > Internal storage > Next > More.
3 Select Notes and touch√.
4 Touch Back up and follow the onscreen instructions to configure a password.
Importing notes
1 Open Backup.
2 Touch Restore >Restore from internal storage >Next.
3 Select the notes that you want to restore. In the popup dialog, enter the password and touch OK.
4 Touch More. Select Notes and touch√.
5 Touch Start restoration.
Camera and Gallery
Camera options
Open Camera to display the viewfinder.
Swipe right on the viewfinder to display the list of shooting modes. Swipe left on the viewfinder to access the camera settings.
Swipe left on the viewfinder to access the camera settings.
Photos and video recordings
Taking a photo
Open Camera and touch or the volume down button.
You can also assign other functions to the volume button. For more information, see Configuring the camera settings.
Geotagging photos
Enable geotagging to record the location of photos and video recordings. In Gallery, you can view the shooting location of photos and videos or display all photos and videos on a map.
1 Open 📄 Camera. When opening Camera for the first time, enable location services in the popup dialog.
2 Swipe left on the screen and switch on GPS tag.
Zooming in and out
Spread two fingers apart to zoom in, or pinch them together to zoom out. A slider will be displayed on the screen. Drag the slider to continue zooming in or out.
The rear camera has a 2x optical zoom lens. Continuing to zoom in after the maximum optical zoom has been reached may impair image quality.
Adjusting the exposure
The camera automatically adjusts the exposure according to the ambient brightness. A higher exposure produces brighter images.
Manually adjust the exposure: In the viewfinder, touch the screen and swipe up or down to adjust the exposure.
Turning on the flash
Touch the flash icon in the top-left corner of the viewfinder to turn on the flash. There are four options:
- Automatically enables or disables the flash based on the ambient brightness.
- : Disables the flash.
- :Enables the flash.
- : Keeps the flash on when you open Camera.
Using filters and color modes to enhance images
The camera comes with a number of image filters and color modes to give your photos a unique look. In the viewfinder, you can:
- Touch, and then select a filter.
- Touch to select a color mode.
Ultra Snapshot
Press the volume down button twice to take a photo when the screen is off.
1 Open Camera.
2 Swipe left and touch Ultra snapshot > Open camera and take quick snapshot.
3 When the screen is off, point the camera at the desired object and press the volume down button twice in quick succession to take a photo. The camera will automatically take a photo and display the capture time.
i Disable Ultra Snapshot: Touch Ultra snapshot > Off in the camera settings.
Burst shooting
Use burst shooting when you want to take a photo of a moving subject, such as during a football match. The camera will capture several images in quick succession and automatically select the best photo.
This feature is not available in HDR mode, Panorama mode, Super Night mode, and Light Painting mode.
1 Open Camera.
2 Touch and hold to start the burst sequence. The number of captured photos will be displayed above
3 Release ● to stop shooting.
You can take up to 100 photos in one burst sequence, provided that there is enough storage space on your phone.
Select the best shot: Touch the image thumbnail to view the image in Gallery, and then touch ☐ to select a photo. Touch and follow the onscreen instructions to save the photo.
Self timer
Use a self timer to include yourself in shots.
1 Open 📄 Camera. Swipe left on the screen to access the camera settings.
2 Touch Timer and select a countdown time (2, 5, or 10 seconds).
3 Touch ◀ to return to the viewfinder.
4 Rest your phone on a stable surface and frame the scene you want to capture.
5 Touch ⚙ to start the countdown timer. Your phone will automatically take a photo when the countdown time has elapsed.
Audio-controlled shooting
Use voice commands to control the camera remotely, or set the camera to take a photo when it detects a loud sound.
1 Open 📄 Camera. Swipe left on the screen to access the camera settings.
2 Touch Audio control and switch on Audio control.
3 You can then:
- Say Cheese to take photos: Take a photo when you issue a voice command. You cannot configure custom voice commands.
- Take photos when your voice reaches a certain decibel level: Set the camera to take a photo when the ambient noise reaches a certain decibel level.
4 Frame the scene you want to capture. Your phone will take a photo automatically when you issue a voice command or the phone detects a loud sound.
In the Audio control settings, open Show Audio control icon on main camera view. Toggle the switch in the viewfinder to enable or disable audio control.
Muting the camera shutter
Mute the camera shutter to avoid disturbing others in quiet surroundings.
1 Open 📄 Camera. Swipe left on the screen to access the camera settings.
2 Switch on Mute.
In some countries or regions the shutter sound cannot be disabled due to privacy protection laws.
Adding a Leica watermark
Add a Leica watermark to photos taken with the rear camera.
1 Open 📄 Camera. Swipe left on the screen to access the camera settings.
2 Switch on Automatically add watermarks.
When this feature is enabled, a Leica watermark will be automatically added to the bottom-left corner of photos taken with the rear camera.
Shooting a video
Open Camera and touch to switch to recording mode. Touch to start a video recording.
Touch ⏻ to pause the recording and touch ⏻ to resume. Touch ⏱ to save the current scene as a photo.
Zooming in and out
Spread two fingers apart to zoom in, or pinch them together to zoom out.
Turning on the flash
Touch the flash icon in the top-left corner of the viewfinder. There are two options:
- Keep the flash on when you are recording.
- : Disable the flash.
Object recognition and Pro camera mode
Pro camera options
Pro camera settings
Selecting the metering mode
Touch ☐ to select the metering mode. The metering mode affects how your camera determines the exposure. You can select matrix metering, center-weighted metering, or spot metering.
Adjusting the ISO
The ISO determines the camera's sensitivity to light. Increasing the ISO will create a brighter image, but there will be a noticeable increase in noise. Touch ISO and drag the slider to change the ISO settings. You can configure the camera to adjust the ISO automatically, or you can adjust it manually.
Adjusting the shutter speed
Touch S and drag the slider to set the shutter speed. By default, the shutter speed is set to Auto.
Adjusting the exposure compensation
Touch EV to set the exposure compensation. Select an exposure setting to increase or decrease the brightness. Touch and hold the icon to lock the current exposure setting.
The camera will automatically determine the ambient brightness. If the current exposure setting is too high or too low, 🧑 or 🧑 will be displayed.
Changing the focus mode
Touch AF to set the focus mode. You can select touch to focus (AF-S), continuous autofocus (AF-C), or manual focus (MF). Continuous autofocus is set by default. When continuous autofocus is selected, touch and hold AF-C to enable the focus lock.
Setting the white balance
Touch AWB to select a white balance according to the ambient light conditions. You can choose from daylight, tungsten bulb, fluorescent lamp, and more. You can also adjust the color temperature. Touch and hold AWB to lock the white balance.
Using the spirit level
Enable the spirit level to ensure that the camera is level.
In the Pro camera viewfinder, swipe left and switch on Horizontal level. When this feature is enabled, a spirit level will appear on the viewfinder. Ensure that the solid line covers the dotted line.
Saving images in RAW format
Save photos in RAW format to retain all image data for post processing.
In the Pro camera viewfinder, swipe left and switch on RAW format. Photos will be saved in RAW and JPEG format.
Wide aperture mode
Use wide aperture mode for close-up shots of objects and people. You can adjust the focal point after taking a photo to blur the background and make the subject stand out.
For optimal results, ensure that the subject is no more than 2 meters (6 ft) from the camera.
1 Open Camera.
2 Touch the wide aperture icon (✗) at the top of the screen to enable wide aperture mode. Touch the icon again to exit wide aperture mode. If the icon is not displayed, swipe right and select Photo mode.
3 Touch the viewfinder to focus on a particular area.
For optimal results, the focal length is fixed and cannot be adjusted.
4 Touch ⚙️ and swipe left or right on the slider to adjust the aperture. A higher aperture will produce an out-of-focus background.
5 Touch to take a photo.
Adjust the background blur: Open 📄 Gallery and touch a photo tagged with the 📋 icon, and then touch 📋 to adjust the focal point and aperture. Touch 📋 to save the photo.
Monochrome mode
The camera comes with a separate monochrome lens that takes black and white photos with greater contrast and detail.
1 Open Camera.
2 Swipe left and touch Monochrome.
3 Touch.
Beauty mode
Use beauty mode for stunning selfies and smoother-looking skin.
You will be prompted about Perfect selfie when using Beauty for the first time. If you enable Perfect selfie, follow the onscreen instructions to configure beauty settings. If you do not enable Perfect selfie, the camera will use the default Beauty settings.
1 Open ● Camera and swipe right on the screen.
2 Touch Beauty.
3 Touch the beauty icon at the bottom-right corner of the screen and drag the slider to adjust the effect.
4 Touch to take a photo.
Perfect Selfie mode
Use Perfect Selfie mode to automatically apply custom beauty settings to your face.
1 Open Camera.
2 Swipe right and touch Beauty.
3 Swipe left and touch Perfect selfie.
4 Switch on Perfect selfie and follow the onscreen instructions to take three photos of your face from the front, side, and with your head lowered.
5 Configure skin tone, pupils, and face shape settings. Choose a higher value for a more noticeable effect. Touch √ to save your settings.
Change your calibration photos: On the camera settings screen, touch Perfect selfie > Edit personal info to update your calibration photos.
Adjust your beauty settings: In the camera settings, touch Perfect selfie > Set beauty effects to adjust the beauty settings, such as skin tone and face shape.
HDR mode
Use HDR mode when shooting into the sun to prevent under or overexposure and ensure clarity in every shot.
i HDR mode is not available for the front camera.
1 Open 📄 Camera. Swipe right and touch HDR.
2 Touch to take a photo.
Taking panoramic shots
Taking a panoramic self-portrait
Take wide-angle self-portrait shots to capture your surroundings.
1 Open Camera. Touch to select the front-facing camera.
2 Swipe right on the screen and touch Panorama.
3 Touch to take the first photo.
4 Follow the onscreen instructions and slowly turn the camera to the left. The camera will take the second photo automatically when the blue box lines up with the box on the left-hand side of the screen.
5 Slowly turn your camera to the right. The camera will take the final photo when the blue box lines up with the box on the right-hand side of the screen.
Taking a panoramic photo
Use Panorama mode to take wide-angle shots.
1 Open 📄 Camera. Swipe right on the screen and touch Panorama.
2 Touch to start shooting, and then follow the onscreen instructions to take the photo. Slowly move your phone from left to right, ensuring that the arrow stays level with the center line. To take a panoramic shot in portrait mode, touch → and slowly move your phone in a vertical direction.
Super Night mode
Use Night shot mode to improve the quality of images taken at night and in low-light conditions. Super Night mode accentuates the detail of darker areas to produce brighter, more colorful images.
i Use a tripod to minimize camera shake.
1 Open 📄 Camera. Swipe right on the viewfinder and touch Night shot.
i Touch ISO AUTOR and drag the slider to manually adjust the ISO and shutter speed.
2 Hold your phone steady (or use a tripod) and touch ⚙. The camera will automatically take several images and merge them into one photo.
Light Painting mode
Light Painting mode enables you to take stunning shots of light trails without the need to manually adjust the aperture or shutter speed. Four different settings are available for different shooting scenarios.
Open 📄 Camera. Swipe right on the viewfinder and touch Light painting. Touch the button at the bottom-right corner of the screen to choose a setting:
- Tail light trails: Capture trails of light made by cars at night.
- Light graffiti: Capture trails of light in a dark environment.
- Silky water: Capture silky-smooth images of flowing water.
- Star track: Capture stunning images of star trails in the night sky.
Light Painting mode uses longer exposures. To minimize camera shake, place your phone on a stable surface or use a tripod.
Slow motion recording
Record videos in slow motion to watch fast-moving scenes in detail.
1 Open 📄 Camera. Swipe right on the screen and touch Slow-mo.
2 Touch to start a video recording. Touch the screen to focus on an object or area during recording.
3 Touch to end the recording.
Select a clip: Touch the thumbnail to play back the recording in slow motion. During playback, you can touch the screen and adjust the sliders to select which portion should be played in slow motion. When you are done, touch Back.
i Slow motion recording works best in bright surroundings.
Time-lapse mode
Time-lapse mode allows you to capture and speed up subtle changes in the natural world. For example, you can record the opening of a flower or the movement of clouds.
1 Open 📄 Camera. Swipe right and touch Time-lapse.
2 Place your phone on a stable surface or use a tripod. Touch to start a video recording.
The camera will automatically select a suitable frame rate according to the length of the recording. The zoom cannot be adjusted during recording.
3 Touch to end the recording.
When you play the video in Gallery, it will be played back at a higher frame rate. The frame rate is determined automatically by the camera and cannot be adjusted.
Adding watermarks to photos
Add watermarks to personalize your photos and help you remember where they were taken.
1 Open 📄 Camera. Swipe right on the screen and touch Watermark.
2 When you add a watermark for the first time, you will be prompted to connect to the Internet to obtain weather and location information.
3 Touch: and select a watermark type (such as time or location).
4 Swipe left or right on the screen to select a watermark.
5 Drag the watermark to adjust its position.
6 You can add text to some watermarks. Touch the flashing text box inside the watermark to enter text. Touch √ to add the text to the watermark.
7 Touch to take a photo.
After selecting a watermark category, touch or to preview watermarks.
Audio notes
Add audio notes to bring your photos to life.
1 Open 📄 Camera. Swipe right and touch Audio note.
2 Frame the scene you want to capture.
3 Touch ⚙ to take a photo with an audio note. The camera will record a short audio clip of up to 10 seconds to add to your photo.
4 Touch to stop recording.
Photos with audio notes are indicated by the icon in Gallery.
When viewing a photo with an audio note, touch 📋 to play the audio note.
Document correction
Automatically straighten out images of text taken from an angle to make them easier to read.
1 Open 📄 Camera. Swipe right and touch Document scan.
i Touch AUTO to turn off automatic shooting mode and take a photo manually. If you take a photo manually, you will need to select the part of the image containing text.
2 Focus on the subject (for example, a PPT, poster, or screen), and then touch to take a photo. Your phone will automatically identify the part of the image containing text and adjust its orientation so that it is easier to read.
To adjust the size of the corrected area, touch 📋, select 📋, and then drag the four dots to the desired position.
Managing shooting modes
Rearranging the shooting mode list
Move your favorite shooting modes to the top of the list to make them easier to find.
1 Open 📄 Camera. Swipe right to display the list of shooting modes.
2 Touch/.
3 Drag mode icons to the desired position.
Updating shooting modes
Update your camera's shooting modes to the latest version for enhanced features and better image quality.
Open Camera and go to the list of shooting modes. A red dot will be displayed on the icon when an update is available. Touch ↓ and select the shooting mode that you want to update. Your phone will download and install the latest version.
Deleting shooting modes
Delete unwanted shooting modes to free up storage space.
i Pre-installed shooting modes cannot be deleted.
1 Open 📄 Camera. Swipe right to display the list of shooting modes.
2 Touch/. Shooting modes that can be deleted are indicated by the icon.
3 Touch the icon next the shooting mode that you want to delete.
To restore a shooting mode to the list, touch ↓ in the viewfinder and select ADD next to the desired shooting mode.
Configuring the camera settings
Configure the camera settings to suit your needs.
Setting the photo and video resolutions
Increase the resolution for higher quality images and videos. Larger resolution images take up more space on your phone. Changing the resolution will also change the image dimensions.
i Some resolutions may not be supported in certain shooting modes.
Open Camera. Swipe left and touch Resolution to change the resolution.
Configuring the default storage location for photos and videos
By default, photos and videos are saved to your phone's internal storage. Set the default storage location to the microSD card to free up storage space on your phone.
Open Camera. Swipe left and switch on Priority save in SD card to change the default storage location to the microSD card. This option is only available when a microSD card is inserted. If the microSD card is full, photos will be saved to your phone's internal storage.
Adding an overlay
Add a grid or spiral overlay to the viewfinder to help you compose your image.
i Overlays may not be available in some shooting modes.
Open 📄 Camera. Swipe left on the screen, touch Assistive grid, and then select an overlay. To disable the overlay, touch Off.
You can choose from a 3 x 3 grid, phi grid, or spiral overlay. Use the 3 x 3 grid for general shooting scenarios. The phi grid is similar to the 3 x 3 grid, but uses the golden ratio to divide the viewfinder into distinct sections. Use the spiral overlay for indoor photography or portrait shots.
Configuring the volume button function
By default, the volume button functions as the shutter button. You can change the function of the volume button to adjust the zoom or focus.
Open 📄 Camera. Swipe left on the screen. Touch Volume button function and select Shutter, Zoom, or Focus as desired.
Configuring the touch and hold settings for the shutter
By default, touch and hold the shutter to take burst shots. You can change the function of the shutter to adjust the focus.
Open Camera. Swipe left on the screen. Touch Touch & hold shutter icon and select Burst shoot or Focus as desired.
Other camera settings
Your camera also comes with a number of other settings to help you shoot high-quality images in a variety of different shooting scenarios.
i Some settings may not be available in certain shooting modes.
Swipe left on the viewfinder to configure the following settings:
- Touch to capture: Touch the viewfinder to take a photo.
- Capture smiles: The camera will automatically take a photo when it detects a smile.
- Object tracking: Touch the object you want to focus on. The camera will track and focus on the selected object.
- Image adjustment: Adjust saturation, contrast, and brightness.
- Stabilizer: Corrects hand shake in video recordings.
Viewing photos and videos
Viewing photos in full screen mode
Open Gallery and touch a photo to view it in full screen. Touch the screen to show or hide the menu.
When viewing photos in full-screen mode, you can:
- Zoom in or out: Spread two fingers apart to zoom in, or pinch two fingers together to zoom out.
- View image details: Touch to ⓘ view the image details, such as the ISO, exposure compensation, and resolution.
- Rename photos: Touch : >Rename. Enter a new name and select OK.
- Set photo as the home screen wallpaper, or assign the photo to a contact: Touch > Set as > Wallpaper or Contact photo.
- Enable auto-rotation: In 📄 Gallery, touch : > Settings > Photo orientation > Always rotate to rotate photos when you change the screen orientation.
Viewing photos and videos in chronological order
Go to the Photos tab. Photos and videos are automatically displayed in chronological order.
Touch : > Settings and switch on Show time to display the date when the photo was taken.
In the Photos tab, zoom in or out to switch between month and day view.
Viewing photos by location
If GPS tag is switched on in Camera, you can view photos and videos by location in Gallery.
Go to the Photos tab and touch 📋 to view your geotagged photos on a map.
Viewing photos and videos by album
Go to the Albums tab. Photos and videos are automatically sorted into default folders. For example, videos that you take with the camera are automatically added to the Camera videos folder, and screenshots are added to the Screenshots folder.
i Touch : > Hide albums and turn on the switch next to albums that you want to hide. These albums will not appear in the album list.
Viewing photos as a slideshow
Go to the Photos tab and touch > Slideshow. Touch the screen to stop the slideshow.
Organizing albums
Adding photos or videos to a new album
1 Open Gallery.
2 On the Albums tab, touch + . Enter the album name and touch OK.
3 Select the images or videos that you want to add to the new album and touch √.
4 Move or copy the photos or videos to the new album:
- Copy files to the new album: The files will not be removed from the original album.
- Move files to the new album: The files will be removed from the original album.
Moving photos and videos
Combine photos and videos from separate albums.
1 Open Gallery.
2 On the Albums tab, there are two ways you can select files:
- Move one file: Touch and hold the file that you want to move until √ appears in the bottom-right corner.
- Move multiple files: Touch and hold a file that you want to move until √ appears in the bottom-right corner, and then select other files.
3 Touch☐.
4 Select the destination album.
Files are deleted from their original album after they have been moved.
Moving albums
De-clutter your photo collection by moving less important albums to Others.
• The Camera, Camera videos, and Screenshots albums cannot be moved to Others.
- Moving an album created by a third-party app to Others will not prevent the app from functioning.
1 Open Gallery.
2 On the Albums tab, touch and hold an album, and then select the albums you want to move.
3 Touch↓ to move the selected album or albums to Others.
In Others, touch and hold an album, and then touch ↗ to restore the album to its original location.
Rearranging albums
Change the order in which albums are displayed so you can always find your favorite photos.
i You cannot rearrange Camera or Screenshots.
1 Open Gallery.
2 Go to the Albums tab, and then touch and hold an album until — appears on the left of all your albums.
3 Touch and hold—next to the album that you want to move and drag it to the desired position.
Deleting photos and videos
1 Open Gallery.
2 Touch and hold an image or video thumbnail to open the file selection interface, and then select the files you want to delete.
3 Touch > Delete.
Sharing photos and videos
Use Gallery to share photos and videos with your friends and family.
1 Open Gallery.
2 Touch and hold a photo or video thumbnail and select the files that you want to share.
3 Touch ✦. Choose a sharing method and follow the onscreen instructions to share your files.
Editing a photo
The Gallery app features powerful image editing tools that you can use to draw graffiti, add watermarks, or apply filters.
1 Open Gallery.
2 Touch an image to view it in full-screen mode. In full-screen view, touch _ to open the photo editor and edit your photo using the available tools.
- Rotate an image: Touch ⏻ and swipe the screen to adjust the angle of rotation.
- Crop an image : Touch ☐ to select the crop ratio (for example, 16:9). Drag the dotted edges to crop the image to the desired size.
- Add a filter: Touch ⚙ and select the desired filter.
- Accentuate colors: Touch anywhere on the image to select a color you want to accentuate. All other colors will be converted to black and white.
- Adjust image parameters: Touch Ⓞ. You can adjust the brightness, contrast, saturation, and more to make your image look more vivid.
- Apply facial enhancement effects: Touch 😊 to apply facial enhancement effects to people in an image. You can choose from various skin and eye enhancement effects.
- Apply mosaic effects: Touch 📋 and select the desired mosaic effect.
- Draw graffiti: Touch ⚙ to select the brush and color.
- Add a watermark: Touch Ⓐ to add a watermark and personalize your photo. You can choose from time, location, weather, activity, and other watermarks.
- Add a label: Touch 🔒, and then select the desired label type and font. You can use labels to record your mood or thoughts.
Editing Videos
Editing a video
Select highlights from videos and save them as separate files.
1 Open Gallery.
2 Select the video that you want to edit and touch
3 On the video editing screen, drag the sliders to select the portion of the video that you want to keep.
4 Touch ▶ to preview the video.
5 Touch√ to crop and save the video.
To change the resolution, select a resolution on the video editing screen. The resolution cannot be changed if the original resolution is already low.
Cropping slow-motion videos
Use the video editing tool in Gallery to crop slow-motion videos.
1 In Gallery, touch the slow-motion video that you want to edit to start playback.
2 Touch to preview the video.
3 Touch the screen to display the slow-motion editing sliders.
4 Drag the sliders to select the portion you want to view in slow motion.
To save the edited slow-motion video as a separate video, touch the editing interface.
Configuring Gallery
Displaying the photo date and location
1 Open Gallery.
2 Touch : > Settings.
3 You can configure the following two settings:
- Switch on Show location. When viewing a geotagged photo, the photo's location will be displayed.
- Switch on Show time. When viewing a photo, the date and time at which the photo was taken will be displayed.
Music and Video
About Music
You can add songs to your phone in three ways:
- Copy songs from your computer using a USB cable.
- Download songs from the Internet.
- Send songs from another device using Bluetooth or Wi-Fi Direct.
i Listening to music at excessive volumes can cause hearing damage..
Searching for music
Sort your music by category or search with a keyword to find your music files quickly.
1 Open Music.
2 Touch Local songs.
3 Touch© to search for and view music stored on your phone.
4 You can choose to organize your music by song name, artist, album name, or folder. To search for a specific song, touch and enter the song name, artist, or album in the search bar.
Deleting songs
Delete unwanted songs to free up storage space.
1 Open Music.
2 Touch Local songs.
3 Go to the Songs tab. Touch and hold the list of songs and select the songs that you want to delete.
4 Touch : > Delete.
5 Touch DELETE.
Creating a playlist
Organize your music by creating customized playlists that contain your favorite songs.
1 Open Music.
2 Touch Playlists > Create new playlist.
3 Name the playlist and touch SAVE.
4 Touch ADD in the popup dialog.
5 Select the songs you want to add and touch √.
i Touch : next to the playlist to Rename or Delete the playlist.
Playing a playlist
1 Open Music.
2 Touch Playlists.
3 Select the desired playlist. Touch a song to start playback, or touch Shuffle all to shuffle all songs.
Controlling playback using a smart headset
When smart headset control is enabled, you can use the buttons on a headset to control playback without turning on the screen.
- Some headsets may not be compatible with your phone. Use a Huawei headset for optimal results.
- You can also use a headset to control video playback (some video players may not support this feature).
1 Open Settings.
2 Touch Smart assistance > Smart headset control > Smart headset control.
3 Switch on Smart headset control.
Use the following buttons to control playback:
- Volume up button: Press once to increase the volume, or twice to add the current song to your favorites.
- Pause button: Press once to pause or resume playback, twice to skip to the next song, or three times to go to the previous song.
- Volume down button: Press once to decrease the volume, or twice to change the playback mode.
Playing a video
View a list of recently played videos to find videos quickly.
1 Open Videos.
2 Select the video that you want to play.
3 Touch the thumbnail to start the video.
During playback, you can:
- Adjust the playback speed: Touch 1.0x in the bottom-right corner and drag the slider. The playback speed can be adjusted between 0.5x and 1.5x.
- Adjust the screen brightness: Swipe up or down on the left-hand side of the screen. Swipe up to increase the brightness, or swipe down to decrease the brightness.
- Adjust the volume: Swipe up or down on the right-hand side of the screen. Swipe up to increase the volume or swipe down to decrease the volume.
- Rewind or fast-forward: Drag the progress bar left to rewind or right to fast-forward.
Phone Manager
Optimizing performance
Use Phone Manager to make your phone run faster and optimize performance.
Open 📋 Phone Manager and touch OPTIMIZE. Your phone will automatically optimize performance, enhance security, and reduce power consumption.
Enhancing speed
Clear the app cache and delete residual files and system trash to optimize performance.
1 Open Phone Manager.
2 Touch Cleanup to clear the app cache and system trash.
To free up more storage space, you can:
- Touch Storage manager to clear large files, images, and app data.
- Restore an app to its default settings. Touch Application restore. Select the app you want to restore and touch Delete. The app will be restored to its default settings, and all app-specific data will be deleted.
3 Touch Finish to exit.
Managing data usage
Phone Manager comes with a data management feature that you can use to monitor data usage and avoid exceeding your monthly allowance.
Open 📄 Phone Manager and touch Mobile data. You can view detailed data usage statistics or configure the following settings:
• Data usage ranking: View data usage for each app.
• Networked apps: Manage Internet access permissions for each app.
- Total monthly data available: Touch > Total monthly data available to configure your data plan settings and data usage reminders. Your phone will calculate your mobile data usage and remaining data allowance for the billing period you specify. When you have used up your monthly allowance, you will receive a reminder, or your phone will disable mobile data.
- Mobile hotspots or Mobile network settings: Touch > Mobile hotspots or Mobile network settings to configure the portable hotspot or mobile network settings.
- Data saver: Enable data saver and choose the apps that you do not want to restrict data for.
Harassment filter
Use the harassment filter to block unwanted calls, messages, and push notifications.
Open 📋 Phone Manager. Touch Blocklist > ⚙️ and follow the onscreen instructions to configure a call blacklist or whitelist, keywords, and spam settings.
Battery management
Viewing battery usage statistics
Use Phone Manager to view detailed battery usage statistics for each app.
Open Phone Manager. Touch remaining and swipe up on the screen. You can:
- Touch Battery usage details to view detailed battery usage statistics.
- Touch Consumption level to see which phone hardware and software is using the most power.
- Touch Optimize to check for power consumption problems and optimize performance.
- Switch on Remaining battery percentage to display the remaining battery perecentage in the status bar.
Reducing power consumption
Use Phone Manager to optimize performance and reduce power consumption.
Open 📄 Phone Manager and touch remaining. You can:
- Optimize performance: Touch Optimize. Your phone will check for power consumption problems and optimize performance. To further reduce power consumption, touch items need to be optimized manually, and then select View or Optimize to adjust the power settings manually.
- Restrict background apps: Touch Close apps after screen lock and turn off the switches next to the apps that you do not want to run in the background when the screen is locked. - Close battery-draining apps: Touch Apps using power in background and select the apps that you want to close.
A message will appear in the notification panel if battery-draining apps are running in the background. If you don't want to receive these notifications, touch and switch off Power-intensive prompt.
- Reduce the screen resolution: Switch on Low resolution power saving to reduce the screen resolution and lower power consumption.
• Automatically close power-intensive apps: Touch and switch on Close excessively power-intensive apps.
Managing app permissions
Phone Manager comes with a permission manager that you can use to restrict app permissions and protect your personal data.
1 Open Phone Manager.
2 Touch Permissions and configure the desired permissions.
Virus scanner
Use the virus scanner in Phone Manager to remove malware.
1 Open Phone Manager.
2 Touch Virus scan. Your phone will automatically identify and remove malware.
i Touch ⚙️ You can:
- Enable Cloud scan to scan your phone using the latest antivirus database. An Internet connection is required to access the online database.
- Enable Scan reminder to receive a notification when you have not conducted a virus scan for 30 days.
- Select a scan mode. The Full scan takes longer and scans for malicious files, whereas the Quick scan only scans important files and installed apps.
- Configure the update settings for the antivirus database.
- Switch on Only update over Wi-Fi to reduce mobile data usage.
Encrypting apps
Use App Lock to encrypt apps and prevent unauthorized access.
1 Open Phone Manager.
2 Touch App lock. When you access App Lock for the first time, follow the onscreen instructions to set a four-digit PIN and password reminder.
3 Turn on the switch next to the apps that you want to encrypt. You will need to enter the PIN each time you open an encrypted app.
On the App Lock screen, touch 📋 to change the PIN or disable App Lock.
Setting apps to close automatically when the screen is locked
Choose which apps you want to close when the screen is locked to reduce power consumption and mobile data usage.
1 Open Phone Manager.
2 Touch Lock screen cleanup.
3 Turn on the switch next to the apps that you want to close.
The selected apps will close automatically when the screen is locked. You may not receive new messages from email, messaging, and social networking apps after they are closed.
Configuring Phone Manager
Adding shortcuts
Create home screen shortcuts for frequently-used Phone Manager features.
1 Open Phone Manager.
2 Touch ⚙️ > Shortcuts and switch on the feature that you want to add to the home screen.
Tools
Logging in to two social media accounts at the same time
Log in to two Whatsapp or Facebook accounts at the same time to keep your work and personal life separate.
i This feature only works with Facebook and WhatsApp.
1 Open Settings.
2 Touch App twin. Turn on the Facebook or WhatsApp switches as desired.
- When App twin is enabled for an app, two app icons will appear on the home screen, allowing you log in to two accounts at the same time.
- Press and hold the App twin icon to disable the feature.
Health
Recording exercise data
Record workout data to monitor your fitness.
1 Open Health.
2 Choose an activity. Enter your exercise goals and touch Get started to start your workout. Your phone will automatically record exercise data, including your route, time, distance, speed, and calorie count.
Weather
Viewing weather information
Access detailed weather information and weather forecasts to help you plan ahead.
Open Weather. You can:
- View the current weather: View the current weather conditions, temperature, air quality index, comfort index, wind direction, wind speed, sunrise/sunset times, and moon phase.
- View weather warnings: View alerts about extreme weather conditions.
- View the weather forecast: Swipe up on the screen to view an hour-by-hour forecast for the next 24 hours, as well as predicted maximum and minimum temperatures for the next few days.
- Refresh weather information: Swipe down on the screen to refresh the weather forecast for the current city. Weather forecasts are updated regularly throughout the day. The forecast
publication time is displayed underneath the city name; swipe down on the screen to view the time that the forecast was last updated.
- View weather for other cities: Swipe left or right on the screen to view the weather forecast for other cities.
- Enable weather sounds: Weather sounds are disabled by default. To enable them, touch
, and then turn on the Weather tones switch.
- Change temperature unit: The temperature unit is set according to the system language.
Touch
Temperature unit to change the unit to Fahrenheit or Celsius.
Adding and deleting cities
Add multiple cities to keep track of the weather in cities of interest to you.
Configuring your home city
1 Open Weather.
2 Touch 📁 > Weather widget and select Add city under Home city. Choose a city from the list, or search for a city in the search bar.
- When you are in your home city, only the home city's weather forecast will be displayed on the home screen.
- When you are not in your home city, the weather forecast for your current location and your home city will be displayed on the home screen.
Managing cities
1 Open Weather.
2 Touch. You can:
- Add a city: Touch + . Select a city from the list, or search for a city in the search bar. You can add up to 10 cities.
- Remove a city: Touch and hold the city you want to remove, and then touch ✗ > √.
- Move a city: Touch and hold a city, and then touch and hold the = icon next to a city and drag it to the desired position, touch ✗️.
Updating weather information
1 Open Weather.
2 Swipe left or right to find the desired city.
3 Swipe down on the screen to update the weather information.
You can also configure automatic weather updates. Touch 📋 and switch on Auto update. Configure the Update interval. Your phone will automatically update weather data at the scheduled interval.
Adding a weather widget
Add a widget to view weather information on the home screen.
1 On the home screen, touch and hold a blank area or pinch two fingers together to open the home screen editor.
2 Touch Widgets. Select Weather and choose a widget style.
Clock
Managing alarms
Set an alarm to wake you up or remind you about important events.
Open Clock. From the Alarm tab, you can:
- Add an alarm: Touch + and set the alarm time, ringtone, repeat settings, and more. Touch √ to apply the settings.
- Enable or disable an alarm: Touch the switch next to an alarm.
- Configure the alarm settings: Touch ⚙️ and go to ALARM to configure the snooze duration, silent mode settings, and volume button behavior.
- Delete an alarm: Touch and hold the alarm you want to delete, and then touch ✗ > √.
- Turn off an alarm: Touch Slide to turn off alarm at the bottom of the lock screen.
-
Mute an alarm: Press the volume down button.
-
Snooze for 10 minutes: Press the power button. The alarm will go off again after 10 minutes. To turn off the alarm, swipe down from the top of the screen to open the notification panel, and then touch the alarm notification.
- Enable alarms when your phone is powered off: Select Keep alarm active, will ring in. Alarms will still go off when your phone is switched off.
Configuring the world clock
Add multiple clocks to view the time in various cities around the world.
1 Open Clock.
2 From the World clock tab, you can:
- Add a city: Touch + . Enter a city name or select a city from the list.
- Set the home time zone: Touch ⚙️. Switch on Display home clock, touch Home time zone, and then select your home time zone.
- Set the system date and time: Touch ⚙ > Date & time and configure the settings.
- Delete a city: Touch and hold the city you want to delete. Touch ✗ next to the city, and then touch √.
Enabling dual clocks
By default, your phone displays the network time. Enable dual clocks to display the time in your current time zone and your home time zone on the lock screen.
1 Open Clock.
2 Under World clock, touch ⚙ > Date & time > Dual clocks.
3 Switch on Dual clocks. Touch Home city and select your home time zone from the list of cities.
Current network time zone
Home time zone
i Only one clock is displayed when the local time zone is the same as the home time zone.
Stopwatch
1 Open Clock.
2 Go to the Stopwatch tab and touch ▶ to start the stopwatch.
While the stopwatch is running, touch ⏻ to count laps. Swipe up on the timer in the middle of the screen to view your lap data.
3 Touch ^⑪ to pause the stopwatch.
4 Touch▶ to resume the stopwatch, or 🔍 to reset the stopwatch.
i The screen will stay on when the stopwatch is running.
Timer
1 Open Clock.
2 Go to the Timer tab and swipe up or down to set the countdown time.
3 Touch ▶ to start the timer.
4 When the timer goes off, swipe the screen to silence the ringtone.
When the timer is counting down, touch ⏻ to pause the countdown, or to reset the timer.
Smart Controller
About Smart Controller
Your phone features an infrared sensor. Use the Smart Controller feature to pair your phone with infrared appliances. You can then use your phone to control TVs, air conditioners, set-top boxes, DVD players, cameras, projectors, and network devices.
- For help, touch ☐ Help.
- Smart Controller works with infrared appliances. It does not support other control protocols such as Bluetooth.
- There is currently no industry standard for infrared codes. As a result, Smart Controller might not be compatible with all infrared appliances.
Adding a remote control
Smart Controller has built-in support for thousands of remote controls from different brands. You can find and add appliances by product type and brand.
1 Open Smart Controller.
2 Touch+ to add a remote.
3 Select the appliance category and brand. A frequently-used button for that appliance will then appear on the screen (such as the power button.)
4 When prompted, point your phone at the appliance from a close distance and press the button on the screen. Check to see if the appliance responds.
- If the appliance functions properly, touch Yes, and then test another button.
- If the device does not respond or does not function properly, touch No to try a different remote.
5 After checking that frequently-used buttons function properly, touch OK to save the remote.
Customizing a remote control
If your appliance is not listed, you can add a remote manually. To do this, point your phone at the remote control and use the auto-learn feature to learn the IR code for each button.
- You will need the physical remote control for your appliance.
- You cannot use the auto-learn feature with air-conditioner remotes.
1 Open Smart Controller.
2 Touch + > Customize.
3 Swipe left or right on the screen to select a remote control template (for example, for a TV or set-top box).
4 Select the button that you want to auto-learn.
5 When prompted, align the infrared sensor at the top of the phone with the infrared emitter on the physical remote. Both devices should be within 5 cm (2 inches) of each other. On the physical remote, press and hold the button you want to auto-learn for at least two seconds.
6 If auto-learn is successful, the Save button at the bottom of the screen will become available. Touch this to save the IR code and continue adding other buttons.
7 Repeat steps 4, 5, and 6 to configure other buttons.
8 Touch > OK to save the remote.
Using Smart Controller
After adding remotes, open Smart Controller and select the remote for the appliance you want to operate. To use a remote, first point the infrared emitter on your phone at the appliance. The appliance must be within range and in direct line of sight.
If the appliance does not respond to one of the buttons on the remote, touch the 📋icon at the top of the screen. Select the unresponsive button and follow the onscreen instructions to re-learn it.
Managing remotes
You can pin, edit, rename, or delete Smart Controller remotes. You can also enable or disable keypress sounds and vibrations.
Pinning, editing, renaming, or deleting a remote
1 Open Smart Controller.
2 Touch and hold a remote. You can then Delete, Rename, Pin to top or Edit it.
- You cannot pin a remote if it is already at the top of the list.
- You cannot edit air conditioner remotes.
Configure keypress sounds
1 Open Smart Controller.
2 Touch ≡ to open the Settings interface. You can switch Keypress sound and Keypress vibration on or off.
Sound recorder
Recording sound
Use the Recorder app to record sound in a variety of different scenarios, such as meetings, interviews, or your own voice.
1 Touch Sound Recorder.
2 Swipe left or right to select a recording mode.
- Meetings: Select Meeting to automatically detect the direction of the sound source and increase the frequency response for that direction. Recommended for meetings with three or more participants.
• Interviews: Select Interview for conversations between two people.
- Standard: Select Normal to record music or your own voice.
3 Touch Start to start recording.
4 Touch Pause or Resume to pause or resume the recording.
Add a tag: Add a Quick tag or Photo tag for easy reference.
5 Touch Stop to end the recording. Enter a file name (New recording) and touch to save.
- Your phone will not ring if you receive a call during a recording.
- When the Recorder app is recording sound in the background, use the controller in the notification panel to Pause, Resume, or Stop the recording.
Playing a recording
Play sound from a particular direction, or start playback from a tagged location.
1 Touch Sound Recorder.
2 Select Recordings.
3 Select a recording. On the playback screen, you can:
- Play or mute sound from a particular direction: When playing an omnidirectional recording, touch a blue speaker icon to mute sound from that direction, or drag the icon in the center of the circle to a blue speaker icon to play sound from that direction.
- Select a tag: Swipe left on the playback screen to view recording tags, and then select a tag to start playback from the corresponding location.
- Change the playback mode: Switch between Earpiece and Speaker.
Managing recordings
Share, rename, and sort recordings.
1 Touch Sound Recorder.
2 Select Recordings.
3 On the file management screen, you can sort, share, and rename recordings.
Calculator
Use the calculator
1 Open Tools.
2 Touch Calculator to open the standard calculator.
3 Rotate the screen to access the scientific calculator.
Calculator shortcut
Swipe up from the bottom of the lock screen to display lock screen features and tools, and then touch ☐ to open the calculator.
i The calculator will still rotate when auto-rotation is disabled.
Mirror
Your phone can double up as a mirror.
Open Mirror. You can:
- Save an image: Touch the screen and select 📄 to save the image to Gallery. Your phone will return to the mirror once the image has been saved.
- Zoom in or out: Drag the slider at the bottom of the screen.
- Adjust the brightness: Touch the plus or minus symbol at the top of the screen.
- Steam up the mirror: When you blow into the microphone, the mirror will display a 'steamed up' effect. Wipe the screen to remove this effect.
- Crack the mirror: Touch and hold the screen. The mirror will crack, and you will head a sound effect. Touch the mirror to remove this effect.
Compass
When opening Compass for the first time, follow the onscreen instructions to tilt your phone and calibrate the compass.
Touch Compass to open the compass and view your bearings. The compass also displays the latitude, longitude, atmospheric pressure, and altitude. Swipe left to view the spirit level.
Touch 📍 and switch on Online altitude calibration to connect to the Internet for more accurate latitude, longitude, atmospheric pressure, and altitude data.
NW 327°
Calibrate
altimeter
Flashlight
Using the flashlight
1 Swipe up from the bottom of the lock screen to display lock screen features and tools.
2 Touch 📋 to turn on the flashlight.
- When the screen is unlocked, swipe down from the status bar and touch 📋 to turn on the flashlight.
- Alternatively, open Tools and touch Flashlight >
Turning off the flashlight
Turn off the flashlight after use to avoid draining the battery.
1 Swipe up from the bottom of the lock screen to display lock screen features and tools.
2 Touch 📋 to turn off the flashlight.
- When the screen is unlocked, swipe down from the status bar and touch 📋 to turn on the flashlight.
- Alternatively, open Tools and touch Flashlight >
System Features and Settings
Power on and off timer
Use the power on and off timer to reduce power consumption and prevent disturbances when you're asleep.
Touch Settings > Smart assistance > Scheduled power on/off. Switch on Scheduled power off and Scheduled power on, and then configure the power on and off time and repeat settings.
Your phone will automatically turn on or off at the preset time.
To disable the timer, switch off Scheduled power off and Scheduled power on.
Restarting your phone
You may notice a drop in performance when your phone has been powered on for a long time. Restart your phone regularly to clear cached files and ensure optimal performance.
To restart your phone, press and hold the power button for 3 seconds, and then touch Restart.
To force your phone to restart, press and hold the power button until your phone vibrates.
Changing the system language
You can change the system language at any time.
1 Open @ Settings.
2 Touch Advanced settings > Language & input.
3 Touch Language and select the desired language.
REGION FORMAT EXAMPLE
English (United Kingdom)
Thursday, 7 April 2016
01:03
12.345.67
78.9%
Search for more languages: If the language you are looking for is not listed, touch Add language to search for a language and add it to the list.
Using the Google input method
The Google input method supports a wide range of languages. Touch 📄> Advanced settings > Language & input > Google Keyboard > Input languages and switch off Use system language.
Input method settings
Adding a keyboard
1 Open Settings.
2 Touch Advanced settings > Language & input and select Virtual keyboard under Keyboard & input methods.
3 Touch Add virtual keyboard and switch on the keyboard that you want to add.
i After adding a keyboard, you can configure the keyboard settings to suit your needs.
Displaying the onscreen keyboard when your phone is connected to a physical keyboard
When your phone is connected to a physical keyboard, you can choose whether to disable the onscreen keyboard.
1 Open Settings.
2 Touch Advanced settings > Language & input and select Physical keyboard under Keyboard & input methods.
3 Switch on Show virtual keyboard.
Selecting the default input method
1 Open Settings.
2 Touch Advanced settings > Language & input. Under Keyboard & input methods, touch Default keyboard and select the desired input method. Your phone will automatically enable the default input method when you enter text.
Editing text
Select, cut, copy, paste, and share text.
Selecting text
1 Touch and hold the text until ^2 appears.
2 Drag and to select a section of text, or touch Select all to select all text.
Copying text
Select the text you want to copy and touch Copy to copy it to the clipboard.
Cutting text
Select the text you want to cut and touch Cut to move it to the clipboard.
Pasting text
Touch and hold where you want to insert the text, and then touch Paste.
The pasted text will remain available in the clipboard until you cut or copy other content.
Sharing text
Select the text you want to share and touch Share. Choose how you want to share the text and follow the onscreen instructions.
Airplane mode
To avoid interference, please enable airplane mode when you are on board a plane. When enabled, you will not be able to make or receive calls, or use mobile data, Bluetooth or Wi-Fi. However, you will still be able to play music, watch videos, and use apps that do not require an Internet connection.
Use any of the following methods to enable or disable airplane mode:
- Use the shortcut switch: Swipe down from the status bar to open the notification panel. In the
Shortcuts tab, touch √ to display all shortcut switches, and then toggle the Airplane mode switch.
- Go to Settings: Open 📄 Settings and toggle the Airplane mode switch.
When airplane mode is on, Wi-Fi, Bluetooth, and mobile data will be disabled automatically, and you will not be able to make or receive calls. 🙏 will be displayed in the status bar.
Updating your carrier settings
Update your carrier settings to improve cellular network connectivity and call quality.
1 Open Settings.
2 Touch More > Link+ live update > Automatic data update and follow the onscreen instructions to configure the update settings.
By default, carrier settings are updated automatically when you connect to the Internet over Wi-Fi. When you select to update automatically over all networks, your phone will automatically download carrier updates over Wi-Fi and mobile data. Data charges may apply.
Configuring the sound settings
Adjusting the system volume
Adjust the ringtone, media, alarm, and call volume to suit your needs.
1 Open @ Settings.
2 Touch Sound > Volume to adjust the ringtone, media, alarm, and call volume.
Configuring silent mode
Enable silent mode to avoid disturbing others in quiet surroundings, such as when you are in a meeting. Once enabled, your phone will not ring when you receive an incoming call or message, but the screen will still turn on. If you have enabled vibrations, your phone will vibrate to alert you of incoming calls and messages.
1 Open Settings.
2 Touch Sound, switch on Silent mode. Your phone will not ring when you receive an incoming call or message, but the screen will still turn on.
- Vibrate in silent mode: When Silent mode is enabled and Vibrate in silent mode is switched on, your phone will vibrate when you receive an incoming call or message.
Quickly switch between Silence mode, Vibration, Sound mode
Quickly switch between Silence mode, Vibration, Sound mode from the status bar.
Swipe down from the status bar and open the shortcuts tab. Touch to switch between Sound, Silent, and Vibration mode.
Setting the default notification tone
Choose a preset ringtone or a music file as the notification tone for messages, emails, and other notifications.
1 Open Settings.
2 Touch Sound > Default notification tone and choose a new notification Ringtone or a Music file.
Configuring dialpad touch tones
1 Open Settings.
2 Touch Sound > Dialer touch tones and select Default, Melody or None.
Enabling or disabling system alert sounds and haptic feedback
1 Open Settings.
2 Touch Sound. You can enable or disable Touch sounds, Screen lock sound, Screenshot tone, and Vibrate on touch.
When Vibrate on touch is enabled, your phone will vibrate when you touch a key on the navigation bar or unlock the screen.
One-hand mode
Enable mini screen view or the shifting keyboard to make it easier to use your phone with one hand.
1 Open Settings.
2 Touch Smart assistance > One-hand UI. You can:
- Shrink the screen: Switch on Mini screen view. The screen will shrink to the bottom left or right corner, bringing everything within reach.
- Enable the shifting keyboard: Switch on Shifting keyboard. The dialer, in-call menu, and lock screen dialpad will shrink to the corner of the screen for easier one-handed typing. Touch the arrow next to the keyboard to move the keyboard to the other side of the screen.
Gloves mode
Enable gloves mode so that you can continue to use your phone when wearing gloves.
1 Open Settings.
2 Touch Smart assistance and switch on Gloves mode.
Do not disturb mode
Do not disturb mode allows you to work or relax in peace and quiet. Your phone will only notify you about important calls or messages.
1 Open Settings.
2 On the Do not disturb screen, switch on Do not disturb.
3 Touch Do not disturb mode. You can:
- Configure the incoming call and message settings: Select Allow only priority interruptions. Touch Define priority interruptions and add contacts to the Calls and Messages lists. When do not disturb mode is enabled, your phone will only ring when you receive calls or messages from contacts in the list.
i Select Whitelist only to only receive calls or messages from contacts in your Call/message whitelist.
- Enable alarm ringtones in do not disturb mode: Select Alarms only to only allow alarm ringtones. Your phone will not ring when you receive incoming calls or messages. You cannot configure priority interruptions.
- Disable all interruptions: Select Don't interrupt to disable all ringtones and vibrations. The screen will not turn on for incoming calls, messages, or alarms. You cannot configure priority interruptions.
Configuring the do not disturb timer
Configure the timer to automatically enable or disable do not disturb mode at a preset time.
1 Open Settings.
2 Touch Do not disturb and select Time rule to access the SIM lock settings.
3 Configure the Repeat settings and the Start time and End time.
4 On the Do not disturbscreen, switch on Time rule.
Enabling do not disturb mode for events in your Exchange calendar
Log in to your Exchange account and sync the calendar. A message will be displayed on the notification bar when you receive a meeting invitation in your Exchange account. Your phone will decide whether to enable do not disturb mode based on your response to the invitation.
To add an Exchange account, see Adding an email account. For more information on how to sync the calendar with your Exchange account, see Syncing events.
1 Open Settings.
2 Touch Do not disturb and select Event rule to access the SIM lock settings.
3 Touch During events for and select your Exchange account.
4 Touch When reply to event is. You can:
- When Yes, Maybe, or Not replied is selected, do not disturb mode is enabled for meetings if you responded Yes or Maybe to the Exchange meeting invitation, or if you did not respond. Do not disturb mode is not enabled if you declined the invitation.
- When Yes or Maybe is selected, do not disturb mode is enabled for meetings if you responded Yes or Maybe to the Exchange meeting invitation. Do not disturb mode is not enabled if you declined the invitation or did not respond.
- When Yesis selected, do not disturb mode is enabled for meetings if you responded Yes to the Exchange meeting invitation. Do not disturb mode is not enabled if you responded Maybe, declined the invitation, or did not respond.
i Select Any calendar to automatically enable do not disturb mode for all events, including events in Calendar and your Exchange account.
Enabling do not disturb mode for events in your calendar
Set your phone to automatically enable do not disturb mode for events in Calendar.
1 Open Settings.
2 Touch Do not disturb. touch Event rule to configure the settings.
3 Touch During events for and select Phone.
4 On the Do not disturbscreen, switch on Event rule.
- Enable do not disturb mode automatically for events in your phone's Calendar. For more information on how to add an event, see Creating an event.
- Select Any calendar to automatically enable do not disturb mode for all events, including events in Calendar and your Exchange account.
Adding do not disturb rules
1 Open Settings.
2 Touch Do not disturb > Add rule.
3 Select Time rule or Event rule, and then touch OK to configure a time or event rule.
Setting up an account
Adding an account
Add an email or social media account to sync your emails and messages to your phone.
1 Open Settings.
2 Touch Accounts > Add account. Select an account type and follow the onscreen instructions to enter the account information.
- You must install the corresponding app before you can add a third-party account.
- For more information on adding email and company accounts, see Adding an email account.
Deleting an account
1 Open Settings.
2 Touch Accounts and select an account type.
3 Select the account that you want to delete and follow the onscreen instructions.
Syncing data with your phone
Enable the sync feature to keep all of your phone's data up-to-date and prevent data loss. You can sync emails, contacts, and other data from your old phone or computer.
i The type of data that can be synced depends on the account type.
1 Open Settings.
2 Select Accounts.
3 Touch : in the top-right corner of the screen. Select Auto-sync data and follow the onscreen instructions.
If the data sync switch is turned off, you can sync data manually by selecting an account and touching
Viewing memory and storage information
View detailed memory and storage information and clear system trash to optimize performance.
1 Open Settings.
2 Touch Memory & storage to view memory and storage information.
- View app storage information: Touch Memory > Memory used by apps to see which apps are taking up the most space.
- Clear system trash: Select Storage cleaner. Your phone will automatically scan for system trash and prompt you to delete unnecessary files to optimize performance.
- Manage storage: Touch Storage cleaner > Storage manager to batch delete or uninstall apps and other data.
Setting the date and time
Your phone automatically sets the date and time using network-provided values. You can also set the time manually and display it in 12 or 24-hour format.
1 Open Settings.
2 Touch Advanced settings > Date & time. You can:
- Set the time and date automatically using network-provided values: Switch on Automatic date & time. Turn off the switch to set the time manually.
- Set the time zone automatically using network-provided values: Switch on Automatic time zone. Turn off the switch to set the time zone manually.
- Display the time in 24-hour format: Switch on Use 24-hour format to display the time in 24-hour format. By default, the time is displayed in 12-hour format.
Enabling location access
Enable location-based services to ensure that map, navigation, and weather apps can access your location information.
Configuring the location settings
- Features may vary depending on your carrier.
1 Open Settings.
2 Touch Advanced settings > Location access.
3 Switch on Access my location. You can choose from three different modes:
- Use GPS, Wi-Fi, and mobile networks: Uses GPS and your phone's Internet connection. Enable this option for highly accurate positioning.
- Use Wi-Fi and mobile networks: Only uses your phone's Internet connection. Enable this option for reduced power consumption and longer standby times.
- Use GPS only: Does not require an Internet connection. Enable this option to reduce mobile data usage.
Increasing indoor positioning accuracy
Your phone uses Wi-Fi and Bluetooth for more accurate positioning when you are indoors.
1 Open Settings.
2 Touch Advanced settings > Location access.
3 Touch : > Scan settings. You can:
- Switch on Wi-Fi scanning. Location apps and services will continually scan for Wi-Fi networks for more accurate positioning.
- Switch on Bluetooth scanning. Location apps and services will search for Bluetooth devices for more accurate positioning.
Restoring system settings
Restore the network, fingerprint ID, and screen lock settings on a regular basis to keep your phone secure.
1 Open Settings.
2 Touch Advanced settings > Backup & reset
3 Touch Reset all settings and follow the onscreen instructions to restore the settings.
Restoring the network settings
Your phone will automatically connect to previously used Wi-Fi networks and Bluetooth devices. You can restore the network settings to clear your connection history.
1 Open Settings.
2 Touch Advanced settings > Backup & reset.
3 Touch Network settings reset and follow the onscreen instructions to restore the settings.
Restoring factory settings
Restore factory settings if your phone crashes or is slow to respond.
Restoring factory settings will erase all personal data from your phone, including account information, downloaded apps, and system settings. Back up important data on your phone before restoring factory settings.
1 Open Settings.
2 Touch Advanced settings > Backup & reset.
3 Touch Factory data reset and choose whether to format your internal storage.
Selecting Erase internal storage will delete all files on your internal storage, such as music and images. Proceed with caution.
4 Touch Reset phone to restore your phone to its factory settings.
OTA updates
Update your phone's system to the latest version to enhance performance.
i Ensure that your phone is connected to the Internet before updating. Connect to a Wi-Fi network before updating to avoid incurring data charges. In addition, ensure that your phone has sufficient battery power remaining.
- Using unauthorized third-party software to update your phone may render your phone unusable or put your personal information at risk. For optimum results, use the OTA update feature or take your phone to your nearest Huawei service center.
- Your personal data may be erased during a system update. Always back up important data before updating your phone.
- When updating, ensure that your phone has at least 20% battery power remaining.
- After updating, you may find that some third-party apps are incompatible with your system, such as Internet banking applications and games. This is because it takes a while for third-party application developers to release updates for new Android releases. Please wait until a new version of the application is released.
i Touch Settings > About phone > Build number to view your phone's version number.
1 Open Settings.
2 Touch Updater. Your phone will automatically check for updates.
3 Select the latest version to download the update package.
4 Once the download is complete, touch Update. The update process may take a while to complete. Do not use your phone before it has finished updating. Your phone will restart automatically when it has finished updating.
Viewing product information
Renaming your device
Rename your device to make it easier to find when connecting other devices to your portable Wi-Fi hotspot, or when pairing other devices over Bluetooth.
1 Open Settings.
2 Touch About phone > Device name and rename your device.
Viewing your model number and version information
View your model number and system version information.
1 Open Settings.
2 Touch About phone to view your model number, version number, EMUI version, and Android version.
Viewing your IMEI
All phones have a unique 15-digit IMEI that you can use to verify if your device is genuine.
1 Open Settings.
2 Touch About phone to view the IMEI.
Dual-SIM phones have two IMEIs.
Viewing your phone's specifications
View your phone's specifications using a few simple steps. You can view information about your processor, memory, screen resolution, and more.
1 Open Settings.
2 Touch About phone. Swipe up or down on the screen to view information about the processor, RAM, internal storage, screen resolution, and more.
Accessibility features
About TalkBack
TalkBack is an accessibility service that provides audible prompts and captions to help visually and hearing impaired users interact with their devices.
Enabling TalkBack
TalkBack is an accessibility feature designed for visually and hearing impaired users. It provides audible prompts and captions to help you operate your phone. When TalkBack is enabled, your phone will issue audible prompts for all content that you touch, select, or enable.
i Audible prompts are not available for all languages. If your language is not available, you can download a third-party speech synthesis engine. For more information, see Text To Speech (TTS) output.
1 Open Settings.
2 Touch Advanced settings > Accessibility > TalkBack.
3 Switch on TalkBack and touch OK.
An audible tutorial will be played when you enable TalkBack for the first time. To replay the tutorial, touch 📋 to access TalkBack Settings, and then select the tutorial.
4 Touch 🔒 and select Explore by touch. To enable audible prompts for content that you touch, enable Explore by touch.
i Disable TalkBack: Touch and hold the screen for three seconds while holding down the power button.
Using TalkBack to control your phone
After you have enabled TalkBack, use gestures to:
Browse the screen: Use two fingers to swipe the screen (instead of one). Swipe up or down with two fingers to scroll through menu lists. Swipe left or right to move between screens.
Configuring the TalkBack settings
TalkBack settings can be customized to suit your needs.
1 Open Settings.
2 Touch Advanced settings > Accessibility > TalkBack >
3 You can adjust the feedback volume, audible feedback settings, control gestures, and more.
Captions
In addition to providing audible prompts, TalkBack also displays captions for hearing-impaired users.
1 Open Settings.
2 Touch Advanced settings > Accessibility > Captions
3 Switch on Captions and configure the language, font size, and caption style.
Magnification gestures
Use magnification gestures to zoom in on a specific area.
i The keyboard and the navigation bar cannot be magnified.
1 Open Settings.
2 Touch Advanced settings > Accessibility > Magnification gestures.
3 Turn on the Magnification gestures switch.
- Zoom in: Touch the screen three times in quick succession to zoom in. Touch the screen three times again to zoom back out. To disable Magnification gestures, turn off the Magnification gestures switch.
Using the power button to end a call
1 Open Settings.
2 Touch Advanced settings > Accessibility and switch on Power button ends call.
When this feature is enabled, press the power button to end a call.
Audible password prompts
This feature provides audible feedback for visually impaired users. When you enter a password, your phone will read out the letters and numbers as you type. Text To Speech (TTS) output requires TalkBack to be enabled.
1 Open Settings.
2 Touch Advanced settings > Accessibility and switch on Say passwords.
When this feature is disabled, audible password prompts will only be played when a headset is connected.
Text To Speech (TTS) output
This feature converts text into speech for visually impaired users. Text To Speech (TTS) output requires TalkBack to be enabled.
1 Open Settings.
2 Touch Advanced settings > Accessibility. Switch on Text-to-speech output, and then select the desired speech synthesis engine and voice speed.
Configuring the touch and hold delay
Change the time that it takes for your phone to respond to touch and hold gestures.
1 Open Settings.
2 Touch Advanced settings > Accessibility and select Touch & hold delay.
3 Select Short, Medium, or Long as desired.
Color correction
Color correction mode adjusts colors to make it easier for color vision impaired users to distinguish between different parts of the screen.
i Enable this mode with caution, as it may affect your phone's performance.
1 Open Settings.
2 Touch Advanced settings > Accessibility and select Color correction.
3 Switch on Color correction and select Correction mode.
Enabling shortcuts for accessibility features
Use the power button to quickly enable accessibility features.
1 Open Settings.
2 Touch Advanced settings > Accessibility and select Accessibility shortcut.
3 Switch on Accessibility shortcut. You can enable accessibility features in two ways:
- a Hold down the power button until you hear a confirmation tone or your phone vibrates.
b Touch and hold the screen with two fingers until you hear a confirmation tone.
Accessories
Flip Case Mode
About flip case mode
Use a flip case to protect your phone from scratches and prevent screen damage. If the cover of your flip case has a window, you can view the time, weather forecast, missed calls, and unread message notifications without lifting the cover.
We recommend that you use a Huawei-approved case designed for your phone model.
Enabling flip case mode
1 Touch Settings > Smart assistance > Smart cover and switch on Smart cover.
2 Select Window or No window as appropriate.
Opening and closing the flip case cover
Opening the flip case cover
When you flip open the cover, the screen will automatically turn on and display the lock screen.
Closing the flip case cover
The screen will lock automatically when you close the flip cover.
If you close the flip cover during a call, the screen will turn off, but the call will stay connected. To end the call, flip open the cover and touch the corresponding option on the screen.
When an alarm goes off, close the cover to turn off the screen and snooze for 10 minutes.
If the cover of your flip case has a window, the date, time, weather forecast, missed calls, unread message notifications, and step count will be displayed in the window shortly after you close the cover.
If you are away from your home city, the local time and weather forecast will also be displayed.
Answering a call in flip case mode
If the cover of your flip case has a window, you can view incoming call information and answer or reject calls without opening the cover.
If you are using two SIM cards, the SIM slot number and carrier information will be displayed within the window.
If the caller is in your contacts, the caller's name will be displayed.
The caller's company and job title will also be displayed if you have entered this information in your contacts. If there is no company or job title information available, the caller's location will be displayed.
On the incoming call window, you can:
- Drag to to decline the call.
- Drag ⊙ to 📞 to answer the call.
During a call, you can drag Ⓞ to 📋 to hang up.
Controlling music playback in flip case mode
If the cover of your flip case has a window, you can control playback without opening the cover.
- Touch or ▷ to play the previous or next song.
- Touch || or ▷ to pause or resume playback.
Using the alarm in flip case mode
To snooze an alarm in flip case mode, open and close the cover or press the power button. The alarm will go off again after the preset snooze time.
If the cover of your flip case has a window, you can perform the following operations without opening the cover:
- Disable an alarm: Swipe in the direction of the arrow.
- Snooze an alarm: Follow the onscreen instructions to snooze the alarm. The alarm will go off again after the preset snooze time.
Enabling flip case mode does not affect other alarm settings such as flip to mute, using the volume down button to mute an alarm, or enabling the alarm to go off when your phone is powered off or in silent mode.
Obtaining help
Read the Quick Start Guide included with your phone.
Touch Settings > About phone > Legal information to read the legal information.
Visit http://consumer.huawei.com/en/ for more information.
Personal Information and Data Security
The use of some functions or third-party applications on your device could result in your personal information and data being lost or becoming accessible to others. Use the following measures to help you protect your personal information:
- Put your device in a safe place to prevent unauthorized use.
- Set your device screen to lock and set a password or unlock pattern.
- Periodically back up personal information stored on your SIM card, memory card, or your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.
- Periodically back up personal information stored on your memory card, or your device memory. If you change to a different device, be sure to move or delete any personal information on your old device.
- Do not open messages or emails from strangers to prevent your device from becoming infected with a virus.
- When using your device to browse the Internet, do not visit websites that might pose a security risk to avoid your personal information from being stolen.
- If you use services such as the portable Wi-Fi hotspot or Bluetooth, set passwords for these services to prevent unauthorized access. Turn these services off when they are not in use.
• Install device security software and regularly scan for viruses. - Be sure to obtain third-party applications from a legitimate source. Downloaded third-party applications should be scanned for viruses.
- Install security software or patches released by Huawei or authorized third-party application providers.
- Using unauthorized third-party software to update your device may damage your device or put your personal information at risk. It is recommended that you update through your device's online update feature or download official update packages for your device model from Huawei.
- Some applications require and transmit location information. As a result, a third-party may be able to share your location information.
- Some third-party application providers may collect detection and diagnostic information on your device to improve their products and services.
List of safety features
Huawei phones come with a number of security features to keep your data secure.
| Lock screen style and password | Set a screen lock password to prevent unauthorized access to your phone. For more information, see Changing the lock screen style. |
| Fingerprint recognition | Use a fingerprint to unlock your screen, open encrypted files, unlock apps, and make secure payments. For more information, see Fingerprint recognition. |
| Setting your SIM card PIN | Enable the SIM lock to prevent others from using your SIM card. You will need to enter your SIM card PIN each time you turn on your phone or insert your SIM card into another phone. For more information, see Setting your SIM card PIN. |
| Blocking spam messages | Use the harassment filter and blacklist in Phone Manager to block spam calls and messages. For more information, see Blocking spam messages. |
| Identifying malicious URLs in messages | Enable URL recognition to receive warnings about malicious URLs. For more information, see Identifying malicious URLs in text messages. |
| VPNs | You can use a VPN to connect to your company network and email server. For more information, see VPNs. |
| Harassment filter | Use the harassment filter and blacklist in Phone Manager to block spam calls and messages. For more information, see Harassment filter. |
| App Lock | Use the App Lock in Phone Manager to lock apps and prevent unauthorized access. The App Lock password is required to open locked apps. For more information, see Encrypting apps. |
| Managing data usage | Use the data management feature in Phone Manager to keep track of your mobile data usage. Mobile data will be automatically disabled when you exceed the preset limit to prevent you from incurring excessive data charges. For more information, see Managing data usage. |
| Virus scanner | Use the virus scanner in Phone Manager to remove malware. For more information, see Virus scanner. |
| Multi-user mode | User accounts: Create separate user accounts, each with their own user profile and data. For more information, see User accounts. |
| Adding a secure storage space | Create a secure storage space in which you can install private apps that other users cannot see or access. For more information, see Adding a secure storage space. |
Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2016. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means without prior written consent of Huawei Technologies Co., Ltd. and its affiliates ("Huawei").
The product described in this manual may include copyrighted software of Huawei and possible licensors. Customers shall not in any manner reproduce, distribute, modify, decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense the said software, unless such restrictions are prohibited by applicable laws or such actions are approved by respective copyright holders.
Trademarks and Permissions
HUAWE and
trademarks or registered trademarks of Huawei Technologies Co., Ltd.
Android ^TM is a trademark of Google Inc.
The Bluetooth ^® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Huawei Technologies Co., Ltd. is under license.
Other trademarks, product, service and company names mentioned may be the property of their respective owners.
Notice
Some features of the product and its accessories described herein rely on the software installed, capacities and settings of local network, and therefore may not be activated or may be limited by local network operators or network service providers.
Thus, the descriptions herein may not exactly match the product or its accessories which you purchase.
Huawei reserves the right to change or modify any information or specifications contained in this manual without prior notice and without any liability.
Third-Party Software Statement
Huawei does not own the intellectual property of the third-party software and applications that are delivered with this product. Therefore, Huawei will not provide any warranty of any kind for third party software and applications. Neither will Huawei provide support to customers who use third-party software and applications, nor be responsible or liable for the functions or performance of third-party software and applications.
Third-party software and applications services may be interrupted or terminated at any time, and Huawei does not guarantee the availability of any content or service. Third-party service providers provide content and services through network or transmission tools outside of the control of Huawei. To the greatest extent permitted by applicable law, it is explicitly stated that
Huawei shall not compensate or be liable for services provided by third-party service providers, or the interruption or termination of third-party contents or services.
Huawei shall not be responsible for the legality, quality, or any other aspects of any software installed on this product, or for any uploaded or downloaded third-party works in any form, including but not limited to texts, images, videos, or software etc. Customers shall bear the risk for any and all effects, including incompatibility between the software and this product, which result from installing software or uploading or downloading the third-party works.
This product is based on the open-source Android™ platform. Huawei has made necessary changes to the platform. Therefore, this product may not support all the functions that are supported by the standard Android platform or may be incompatible with third-party software. Huawei does not provide any warranty or representation in connect with any such compatibility and expressly excludes all liability in connection with such matters.
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA, GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLY TO LIABILITY FOR PERSONAL INJURY TO THE EXTENT APPLICABLE LAW PROHIBITS SUCH A LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and be responsible to obtain all necessary governmental permits and licenses in order to export, re-export or import the product mentioned in this manual including the software and technical data therein.
This guide is for reference only. The actual product, including but not limited to the color, size, and screen layout, may vary. All statements, information, and recommendations in this guide do not constitute a warranty of any kind, express or implied.
Please visit http://consumer.huawei.com/en/support/hotline for recent updated hotline and email address in your country or region.
Model: LON-L29
V100R001_01
- HUAWEI MATE 9
- User Guide
- Contents
- Foreword
- Unboxing your Phone
- Getting Started
- Screen and Display
- Network and Sharing
- Security and Backup
- Calls and Contacts
- Messaging and Email
- Calendar and Notepad
- Camera and Gallery
- Music and Video
- Phone Manager
- Tools
- System Features and Settings
- Accessories
- Obtaining help
- Personal Information and Data Security
- List of safety features
- Legal Notice
- Getting to know your phone
- Charging your phone
- Using a charger to charge your phone
- Using a USB port to charge your phone
- Charging other phones using a USB Type-C cable (reverse charging)
- Safety information
- Battery status information
- Viewing the battery status
- Displaying the remaining battery percentage in the status bar
- Setup wizard
- Enabling or disabling a SIM card
- Naming a SIM card
- Selecting the default mobile data SIM
- Setting the default SIM card
- Touch Default calling SIM and select SIM 1 or SIM 2
- Connecting to the Internet
- Connecting to a Wi-Fi network
- Connecting to a mobile data network
- Importing data from your old phone
- Open Data transmission
- Import data using HiSuite
- Import data using Phone Clone
- Using a browser to download Phone Clone
- Viewing recommended settings
- Home screen
- About the home screen
- Basic screen gestures
- Enabling the Drawer home screen
- Adding app shortcuts to the home screen
- Reverting to the standard home screen
- Touch Home screen style > Standard.
- Switching to simple home screen
- Displaying or hiding notification badges
- Setting the home screen wallpaper
- Changing the wallpaper
- Changing the wallpaper automatically
- Configuring the home screen transition effects
- Configure home screen transition effects
- Enable or disable home screen loop.
- Switch Home screen loop on or off.
- Managing home screen icons
- Moving home screen icons
- Uninstalling apps from the home screen
- Shaking your phone to auto-align icons
- Managing home screens
- Adding home screens
- Deleting home screens
- Moving home screens
- Setting the default home screen
- Managing home screen widgets
- Adding widgets
- Moving widgets
- Deleting widgets
- Managing home screen folders
- Creating a folder
- Renaming folders
- Adding apps to a folder
- Removing apps from a folder
- Deleting folders
- Locking and unlocking the screen
- Changing the lock screen style
- Changing the screen lock method
- Setting the screen lock password
- Locking the screen
- Unlocking the screen
- Configuring Magazine Unlock images
- Adding online wallpapers to the viewing list
- Sharing Magazine Unlock wallpapers
- Adding offline wallpapers to the viewing list
- Updating Magazine Unlock covers
- Accessing tools from the lock screen
- Configuring your lock screen signature
- Notification panel and status bar
- About the status bar
- Configuring the notification panel and status bar
- Configuring the notification panel from the lock screen
- About notification and status icons
- Status icons
- Notification icons
- Configuring notifications
- Configuring the screen to turn on when you receive a notification
- Configuring the status bar
- Using shortcut switches to access settings
- Opening the shortcut switches tab
- Rearranging shortcut switches
- Enabling shortcut switches
- Navigation bar
- Changing the navigation bar style
- Managing recent tasks
- Viewing recent tasks
- Switching between recent tasks
- Ending recent tasks
- Themes
- About themes
- Changing the theme
- Floating dock
- About the floating dock
- Enabling or disabling the floating dock
- Using the floating dock
- Global search
- About global search
- Searching for content on your phone's internal storage
- Searching for contacts
- Searching for SMS messages
- Searching for emails
- Searching for apps
- Searching for settings
- Screenshot
- Capturing the entire screen
- Screenshot shortcut
- Using your knuckle to take a screenshot
- Capturing part of the screen
- Taking scrolling screenshots
- Taking a scrolling screenshot
- Using your knuckle
- Viewing, editing, deleting, and sharing screenshots
- Viewing a screenshot
- Editing a screenshot
- Sharing a screenshot
- Deleting a screenshot.
- Screen recording
- About screen recordings
- Screen recorder
- Using the screen recorder shortcut switch
- Pressing buttons to record
- Using knuckle gestures to record
- Viewing, sharing, and deleting screen recordings
- Viewing screen recordings
- Sharing screen recordings
- Deleting screen recordings
- Split-screen mode
- About split-screen mode
- Enabling split screen mode
- Using your knuckle to enable split screen mode
- Using the Recent key to enable split screen mode
- Using swipe gestures to enable split screen mode
- Using split screen mode
- Switching to full screen mode
- Moving screens
- Changing the screen orientation
- Accessing the home screen
- Exiting split-screen mode
- Using motion gestures
- Eye comfort mode
- Adjusting the color temperature
- Enabling and disabling eye comfort mode
- Configuring the timer
- Display settings
- Configuring the display settings
- Changing the font size
- Configuring Daydream
- Adjusting the screen brightness
- Touch Display > Brightness and switch on Automatic brightness.
- Changing the color temperature
- Changing the screen-off time
- Configuring the screen rotation settings
- Mobile Internet
- Using mobile data
- Enabling mobile data
- Enabling 4G
- Enabling VoLTE
- Enabling data roaming
- Sharing your mobile Internet with other devices
- Setting up a portable Wi-Fi hotspot
- Using USB tethering
- Wi-Fi
- About Wi-Fi
- Connecting to the Internet using Wi-Fi
- Connecting to a Wi-Fi network using WPS
- Using Wi-Fi+
- Using a QR code to share a Wi-Fi network
- Transferring data using Wi-Fi Direct
- Connecting two devices using Wi-Fi Direct
- Using Wi-Fi Direct to send and receive files
- Configuring the Wi-Fi settings
- Configuring the Wi-Fi sleep settings
- Viewing your MAC and IP address
- Renaming your device
- Bluetooth
- About Bluetooth
- Using Bluetooth to connect your phone to other devices
- Enabling Bluetooth and pairing with other devices
- Unpairing Bluetooth devices
- Transferring data using Bluetooth
- Using Bluetooth to share files
- Sharing photos and videos quickly with Bluetooth
- Bluetooth settings
- Renaming your phone
- Making your phone discoverable for pairing
- NFC
- About NFC
- Enabling NFC
- Using NFC to make contactless payments
- Using a SIM card to make payments
- Using card emulation to make payments
- Using NFC to beam content
- Using NFC to share Internet with other devices
- Multi-screen
- Using multi-screen
- Mirroring your screen to a display device
- VPNs
- About VPNs
- Connecting to a VPN
- HiSuite
- Using HiSuite
- Installing HiSuite
- System requirements
- Installing HiSuite and connecting your phone to a computer
- Using Huawei Share to transfer files between two Huawei devices
- Enabling Huawei Share
- Using Huawei Share to transfer files
- Using a USB port to transfer data
- Selecting the USB connection mode
- Transferring data between your phone and a computer
- Transfer files
- Transferring images
- Transferring MIDI data to your phone
- Transferring data between your phone and a USB storage device
- Fingerprint recognition
- Adding a fingerprint for the first time
- Adding, deleting, or renaming a fingerprint
- Accessing Safe with your fingerprint
- Accessing App Lock with your fingerprint
- Using fingerprint sensor navigation gestures
- User accounts
- About user accounts
- Create user accounts
- Deleting user accounts
- Switching between user accounts
- Configuring usernames and profile pictures
- Creating a guest account
- Deleting the guest account
- Authorizing users to make calls and access the call log
- Adding a secure storage space
- Security settings
- Setting your SIM card PIN
- Backing up and restoring data
- Backing up data to your phone's internal storage
- Backing up data to a USB storage device
- Transferring data using a computer
- File management
- Creating folders
- Viewing files
- Finding files quickly
- Sorting files
- Viewing downloads
- Adding and viewing favorites
- Creating file shortcuts on the home screen
- Sharing files
- Renaming files
- Copying, moving, or deleting files
- Creating or extracting archives
- Hiding small image files
- Storing files securely
- Making calls
- Smart dialing
- Making a call from Contacts
- Making a call from the call log
- Calling contacts when the screen is off
- Making video calls
- Making RCS calls
- Making an emergency call
- Open Dialer.
- Making international calls
- Auto redial
- Making a call while roaming
- Answering calls
- Answering or rejecting a call
- Switching between calls
- Making a conference call
- In-call options
- Managing call logs
- Viewing missed calls
- Managing unknown numbers in the call log
- Merging call logs
- Clearing the call log
- Backing up the call log
- Call settings
- Configuring dialpad touch tones
- Enabling call forwarding
- Enabling call waiting
- Enabling VoWi-Fi
- Enabling pocket mode
- Enabling fixed dialing numbers
- Rejecting calls with a text message
- Configuring the harassment filter
- Configuring the call ringtone
- Configuring voicemail
- Configuring TTY mode
- Creating a contact card
- Creating a new contact
- Creating a contact
- Open Contacts.
- Quickly adding contact details
- Sharing your QR code
- Importing and exporting contacts
- Importing contacts from a storage device
- Exporting contacts to a storage device
- Importing contacts from a SIM card
- Exporting contacts to a SIM card
- Importing contacts using Bluetooth
- Importing contacts using Wi-Fi Direct
- Using the Huawei Backup app to import contacts
- Using the Huawei Backup app to back up your contacts
- Managing contacts
- Editing a contact
- Merging duplicate contacts
- Deleting contacts
- Deleting contact history
- Adding contacts to the blacklist
- Identifying contacts with incomplete information
- Viewing contacts from different accounts
- Finding contacts
- Searching for a contact from the home screen
- Sharing contacts
- Share a contact's vCard
- Share a contact's QR code
- Adding a contact to your favorites
- Changing contact photos
- Viewing call records for individual contacts
- Assigning a ringtone to a contact
- Contact groups
- Creating a group
- Using smart groups
- Editing a group
- Sending a group text message or email
- Deleting a group
- Sending a message
- Replying to a message
- Using RCS instant messaging
- Searching for messages
- Deleting message threads
- Managing messages
- Returning to the top of the message list
- Pinning messages to the top of the list
- Marking messages as read
- Blocking spam messages
- Adding a message signature
- Configuring the message ringtone
- Identifying malicious URLs in text messages
- Receiving delivery reports
- Adding an email account
- Adding a personal email account
- Adding an Exchange account
- Sending emails
- Replying to emails
- Managing emails
- Viewing emails
- Saving email attachments
- Moving multiple emails
- Syncing emails
- Searching emails
- Viewing email folders
- Managing VIP contacts
- Managing email accounts
- Switching between email accounts
- Configuring an email account
- Configuring Mail
- Configuring automatic replies
- Configuring an email signature
- Configuring email notifications
- Configuring the email view
- Configuring how emails are sorted
- Changing the calendar view
- Viewing global holidays
- Birthday reminders
- Syncing events
- Syncing events from your Exchange account
- Creating an event
- Sharing events
- Deleting an event
- Searching for events
- Sending event invitations
- Creating a note
- Managing notes
- Adding a note to favorites
- Sharing a note
- Deleting a note
- Searching your notes
- Backing up notes
- Importing notes
- Camera options
- Photos and video recordings
- Taking a photo
- Geotagging photos
- Swipe left on the screen and switch on GPS tag.
- Zooming in and out
- Adjusting the exposure
- Turning on the flash
- Using filters and color modes to enhance images
- Ultra Snapshot
- Burst shooting
- Self timer
- Audio-controlled shooting
- Muting the camera shutter
- Adding a Leica watermark
- Shooting a video
- Object recognition and Pro camera mode
- Pro camera options
- Pro camera settings
- Selecting the metering mode
- Adjusting the ISO
- Adjusting the shutter speed
- Adjusting the exposure compensation
- Changing the focus mode
- Setting the white balance
- Using the spirit level
- Saving images in RAW format
- Wide aperture mode
- Monochrome mode
- Beauty mode
- Perfect Selfie mode
- HDR mode
- Taking panoramic shots
- Taking a panoramic self-portrait
- Taking a panoramic photo
- Super Night mode
- Light Painting mode
- Slow motion recording
- Time-lapse mode
- Adding watermarks to photos
- Audio notes
- Document correction
- Managing shooting modes
- Rearranging the shooting mode list
- Updating shooting modes
- Deleting shooting modes
- Configuring the camera settings
- Setting the photo and video resolutions
- Configuring the default storage location for photos and videos
- Adding an overlay
- Configuring the volume button function
- Configuring the touch and hold settings for the shutter
- Other camera settings
- Viewing photos and videos
- Viewing photos in full screen mode
- Viewing photos and videos in chronological order
- Viewing photos by location
- Viewing photos and videos by album
- Viewing photos as a slideshow
- Organizing albums
- Adding photos or videos to a new album
- Moving photos and videos
- Moving albums
- Rearranging albums
- Deleting photos and videos
- Sharing photos and videos
- Editing a photo
- Editing Videos
- Editing a video
- Cropping slow-motion videos
- Configuring Gallery
- About Music
- Searching for music
- Deleting songs
- Creating a playlist
- Playing a playlist
- Controlling playback using a smart headset
- Playing a video
- Optimizing performance
- Enhancing speed
- Managing data usage
- Harassment filter
- Battery management
- Viewing battery usage statistics
- Reducing power consumption
- Managing app permissions
- Virus scanner
- i Touch ⚙️ You can:
- Encrypting apps
- Setting apps to close automatically when the screen is locked
- Configuring Phone Manager
- Adding shortcuts
- Logging in to two social media accounts at the same time
- Health
- Recording exercise data
- Weather
- Viewing weather information
- Adding and deleting cities
- Configuring your home city
- Managing cities
- Updating weather information
- Adding a weather widget
- Clock
- Managing alarms
- Configuring the world clock
- Enabling dual clocks
- Stopwatch
- Timer
- Smart Controller
- About Smart Controller
- Adding a remote control
- Customizing a remote control
- Using Smart Controller
- Managing remotes
- Pinning, editing, renaming, or deleting a remote
- Configure keypress sounds
- Sound recorder
- Recording sound
- Playing a recording
- Managing recordings
- Calculator
- Use the calculator
- Calculator shortcut
- Mirror
- Compass
- Flashlight
- Using the flashlight
- Turning off the flashlight
- Power on and off timer
- Restarting your phone
- Changing the system language
- Using the Google input method
- Input method settings
- Adding a keyboard
- Displaying the onscreen keyboard when your phone is connected to a physical keyboard
- Selecting the default input method
- Editing text
- Selecting text
- Copying text
- Cutting text
- Pasting text
- Sharing text
- Airplane mode
- Updating your carrier settings
- Configuring the sound settings
- Adjusting the system volume
- Configuring silent mode
- Quickly switch between Silence mode, Vibration, Sound mode
- Setting the default notification tone
- Enabling or disabling system alert sounds and haptic feedback
- One-hand mode
- Gloves mode
- Do not disturb
- Do not disturb mode
- Configuring the do not disturb timer
- Enabling do not disturb mode for events in your Exchange calendar
- Enabling do not disturb mode for events in your calendar
- Adding do not disturb rules
- Setting up an account
- Adding an account
- Deleting an account
- Syncing data with your phone
- Viewing memory and storage information
- Setting the date and time
- Enabling location access
- Configuring the location settings
- Increasing indoor positioning accuracy
- Restoring system settings
- Restoring the network settings
- Restoring factory settings
- OTA updates
- Viewing product information
- Viewing your model number and version information
- Viewing your IMEI
- Viewing your phone's specifications
- Accessibility features
- About TalkBack
- Enabling TalkBack
- Using TalkBack to control your phone
- Configuring the TalkBack settings
- Captions
- Magnification gestures
- Using the power button to end a call
- Audible password prompts
- Text To Speech (TTS) output
- Configuring the touch and hold delay
- Color correction
- Enabling shortcuts for accessibility features
- Flip Case Mode
- About flip case mode
- Enabling flip case mode
- Opening and closing the flip case cover
- Opening the flip case cover
- Closing the flip case cover
- Answering a call in flip case mode
- Controlling music playback in flip case mode
- Using the alarm in flip case mode
- Trademarks and Permissions
- Notice
- Third-Party Software Statement
- DISCLAIMER
- Import and Export Regulations
Marque : HUAWEI
Modèle : MATE 9 PRO
Catégorie : Smartphone
