Type de produit	Lave-linge frontal
Capacité de lavage	6 kg
Vitesse d'essorage maximale	1000 tr/min
Classe énergétique	A++
Consommation d'eau annuelle	9000 L
Consommation d'énergie annuelle	220 kWh
Niveau sonore (lavage/essorage)	56 dB / 76 dB
Nombre de programmes	15
Départ différé	Oui
Sécurité enfants	Oui
Diamètre de tambour	50 cm
Matériau du tambour	Inox
Hauteur (cm)	85
Largeur (cm)	60
Profondeur (cm)	50
Poids net (kg)	65
Alimentation électrique	220-240 V ~ 50 Hz
Puissance maximale	2200 W
Longueur du câble d'alimentation	1,5 m
Raccordement à l'eau	Eau froide
Type d'installation	Libre

FOIRE AUX QUESTIONS - CLA6005W CORBERO

Comment installer le lave-linge CLA6005W ?

Placez l'appareil sur une surface plane et solide. Retirez les vis de transport à l'arrière. Raccordez le tuyau d'arrivée d'eau au robinet d'eau froide, et placez le tuyau de vidange dans un évier ou une canalisation. Branchez le câble d'alimentation à une prise mise à la terre. Consultez la notice pour les détails.

Quels sont les programmes de lavage disponibles ?

Le lave-linge offre 15 programmes dont : coton, synthétiques, délicats, laine, lavage rapide 15 min, essorage, vidange, et un programme spécial pour les vêtements foncés.

Comment utiliser le départ différé ?

Sélectionnez le programme souhaité, puis appuyez sur la touche 'Départ différé' pour choisir le délai (1 à 24 heures). Appuyez sur 'Départ/Pause' pour lancer le compte à rebours. La machine démarrera automatiquement à la fin du délai.

Que faire si le lave-linge ne s'allume pas ?

Vérifiez que la fiche est bien branchée et que la prise est alimentée. Assurez-vous que la porte est correctement fermée. Si le problème persiste, vérifiez le fusible ou le disjoncteur.

Comment nettoyer le filtre de vidange ?

Le filtre se trouve en bas à droite de l'appareil. Placez un récipient sous le bouchon, dévissez-le et retirez les résidus. Nettoyez-le sous l'eau courante. Revissez-le bien.

Pourquoi la machine vibre-t-elle fortement ?

Assurez-vous que les vis de transport (situées à l'arrière) ont été retirées. Vérifiez que l'appareil est de niveau en ajustant les pieds. Ne surchargez pas le tambour.

Comment entretenir le joint de porte ?

Nettoyez régulièrement le joint en caoutchouc avec un chiffon humide pour éviter l'accumulation de saleté et de moisissure. Laissez la porte entrouverte après chaque lavage pour aérer.

Quelle est la capacité maximale de lavage ?

La capacité est de 6 kg pour le programme coton. Pour les autres programmes, réduisez la charge selon le type de textile.

Que faire en cas de code erreur ?

Reportez-vous à la section 'Dépannage' de la notice. Par exemple, le code E01 indique un problème de vidange : nettoyez le filtre. Si l'erreur persiste, contactez le service après-vente.

Comment activer le verrouillage enfants ?

Appuyez simultanément sur les touches 'Prélavage' et 'Départ différé' pendant 3 secondes. Un symbole de cadenas s'affiche. Pour désactiver, répétez l'opération.

MODE D'EMPLOI CLA6005W CORBERO

WASHING MACHINE

User

Manual

CHAPTER-1: BEFORE USING THE APPLIANCE

• Correct Usage 6-7
• General warnings 8-9-10-11
  • Safety warnings 12-13-14-15-16-17
  • Packaging and Environment 18
  • Savings Information 19

CHAPTER-2: OVERVIEW OF YOUR DEVICE

• General Appearance 20-21
• Specifications .22

CHAPTER-3: INSTALLATION

• Removing transportation safety screws 23-24......
• Adjusting the feet ....25-26-27....
  • Electrical connection 28
  • Water inlet hose connection 29-30
  • Water discharge connection 31......

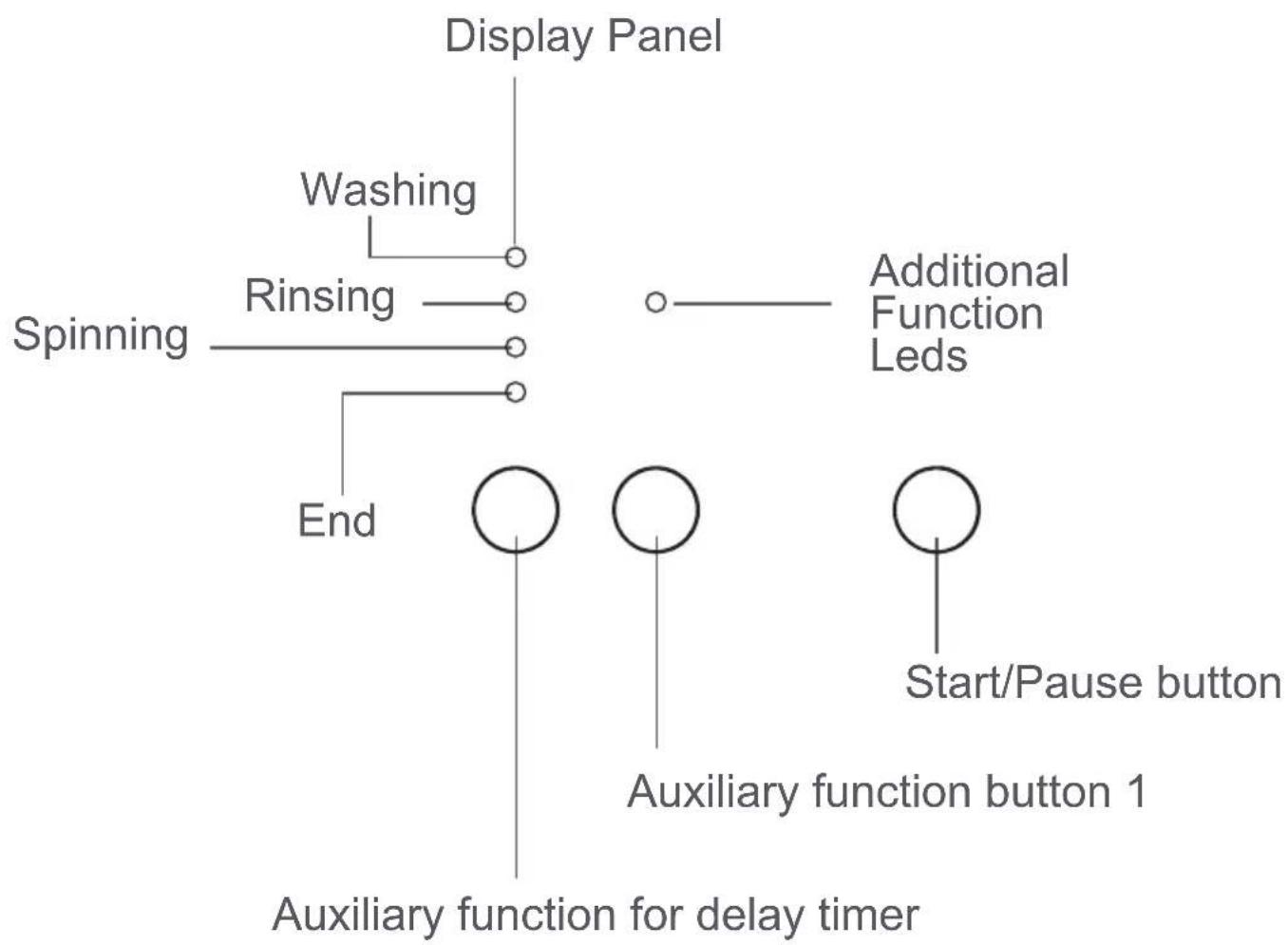

CHAPTER-4: INTRODUCTION OF CONTROL PANEL .....32

• Detergent drawer 33-34
• Program selection 35
Electronic display 36-37

CHAPTER-5 PRELIMINARY PREPARATION FOR LAUNDERING

• Separating the laundry 38-39

CONTENTS

• Putting laundry in the machine 40
• Adding detergent into machine 41
  • Operating your machine 42-43-44
  • Auxiliary Functions 45-46-47-48-49-50-51-52-53-54

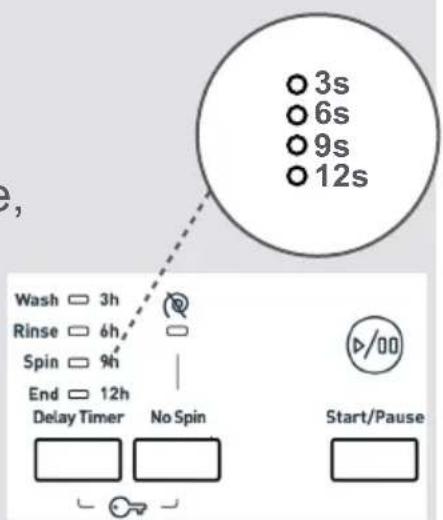

  • Child lock 55
• Cancelling programme 56
  • Finishing programme 57

CHAPTER-6: PROGRAM TABLE ..... 58-59-60-61-62-63-64-65

CHAPTER-7: MAINTENANCE AND CLEANING OF YOUR MACHINE

• Warning 66
  • Water inlet filters 67
• Pump filter 68-69
  • Detergent drawer 70......
  • Liquid detergent apparatus 70

CHAPTER-8: FLUSH STOPPER / BODY / DRUM .....71

CHAPTER-9: TROUBLE SHOOTING 72-73-74-75-76

CHAPTER-10: AUTOMATIC FAULT WARNINGS AND

WHAT TO BE DONE 77

CHAPTER-11: PRACTICAL INFORMATION 78-79-80-81

• How to read the energy label and saving energy 82-83...
• Disposal of your old machine 84

- Definitely read the user’s manual. - Your machine is designed to be used domestically. Commercial use will change the warranty conditions.

Please see your warranty card for details

• Keep your pets away from your machine.
• Please check the packaging of your machine before installation, and the outer surface after the package is opened. Do not operate damaged machines or machines with opened package.
• Have your machine installed only by authorized service. Any interference to your machine by anyone other than authorized services shall cause your warranty to be void.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Use your machine only for laundry that have been specified as suitable for washing by the manufacturer.

- Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee).

• Your machine is not covered under warranty for faults caused by any kind of external factors (pesticides, fire, etc.).
• Please do not throw away this user manual; keep it for future reference. You or somebody else might need it in the future.

Note: Machinery specifications may vary depending on the product purchased.

• The necessary ambient temperature for your machine’s ideal operation is 15-25°.
• Frozen hoses can tear and explode. In regions where temperature is below zero, ambient temperature might endanger the safe operation of electronic card.
• Please ensure that the clothes you will place in your machine do not contain any foreign substances (nail, needle, coins, lighter, matches, clip etc.) in their pockets. These foreign substances can damage your machine.

It is recommended to perform the first washing operation in 90° Cotton programme and without laundry by add 1/2 the quantity of detergent in 2nd compartment of the detergent drawer. It is recommended to perform the first washing operation in 90° Cotton programme and without laundry by add 1/2 the quantity of detergent in 2nd compartment of the detergent drawer.

• As detergent or softener exposed to air for a long time may cause residues, put your detergent or softener in the detergent drawer at the beginning of every washing.
• It is advised that you unplug your machine and close the water inlet tab if you will not use your machine for a long time. Also, leaving the door of your machine open will prevent the formation of bad odors due to humidity.
• Some water might be left in your machine after the trials and tests conducted due to Quality Control procedures. This will not damage your machine.
• Remember that packaging materials of your machine may be dangerous for children.
• Keep the packaging materials in a place where children cannot reach or dispose of them appropriately.
• Use pre-wash programs only for very dirty laundry.

- Never open the detergent drawer when the appliance is running.

- In case of any breakdown, unplug the appliance first and then turn the tap off. Do not attempt to repair by yourself, always contact for authorized service advice.

- The amount of laundry you put in your washing machine should not exceed the maximum amount indicated.

- Never force the door to open when the machine is running.

- Washing floury or very dusty clothes in your machine damages the machine. Do not wash floury clothes in your machine.

• Please adhere to detergent/fabric conditioner manufacturers’ the use of fabric conditioner or similar products in your machine.
• Set up your machine in a place where its door can be completely opened. (Do not set up your machine in places where its door cannot be fully opened.)
• Set up your machine at locations that can be fully ventilated and could have constant air circulation.

You must read these warnings. You can thus protect yourself and your beloved ones against fatal injuries and risks.

DANGER OF GETTING BURNT!

Do not touch discharging hose and water during discharging as the appliance may reach high temperatures when running.

DEATH RISK DUE TO ELECTRICAL CURRENT!

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged plug sockets
• Never pull the cable when unplugging – always grip the plug itself.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Never touch the machine with wet hands or feet.
• Call the nearest authorized service for a replacement if the power cord malfunctions.

Flooding risk!

- Check whether the water runs fast or not before placing the discharge hose on the sink.

• Take necessary measures to prevent the slipping of your hose.

- If the drain hose is connected to a sink, ensure the drain hose is secure as the water can pump out with sufficient force to cause the hose to slip and cause a flood. Don’t forget to remove the sink plug !If the drain hose is connected to a sink, ensure the drain hose is secure as the water can pump out with sufficient force to cause the hose to slip and cause a flood. Don’t forget to remove the sink plug !

Danger of Fire!

• Do not keep inflammable liquids near your machine.
• The sulphure content of paint removers might cause corrosion. For this reason, never use paint-removing materials in your machine.
• Never use products that contain solvent material (like washing gas) in your machine.
• Remove all the objects in the pockets of your laundries (needle, paperclip, lighter, matches etc.) when placing them your machine.

Fire and Explosion risk may occur.

Fall and injury hazard!

• Do not climb on your machine. The top of your machine may break and you might get injured.
• Tidy the hose, cable and packaging of your machine during installation. You might trip over and fall.
• Do not turn your machine upside down, or on its side.
• Do not lift your machine by holding it by the detergent drawer or door. These parts might break and cause you to be injured.
• There’s the risk of tripping and injury if the materials like hose and cables are not properly stored after your machine is installed.

Machine must be carried by 2 people or more.

Child safety!

- Do not leave children unattended near the machine. Children might lock themselves up into the machine and death risk might occur.

- Door glass and surface might be extremely hot while your machine operates. Thus, especially touching the machine might give damage to the skins of children.

• Keep packaging material away from children.
• Poisoning might occur if the detergent and maintenance materials are consumed, and eyes or the skin might be irritated if they come into contact with the skin. Keep the cleaning materials away from the reach of children.

Removal of packaging materials

Packaging materials protect your machine from any damage that might occur during transportation. Packaging materials are environment friendly as they are recyclable. Recycling material provides both raw material savings and decreases waste production.

Disposal of old machine

Electrical or electronical old devices might still contain salvagable parts. So, never throw away your old devices that you do not use into the waste.

Ensure that the parts of your old electronic or electrical devices are reused by giving them to the gathering centres foreseen by related authorities.

Please ensure your old appliances are kept in an appropriate place for the safety of children until they are taken outside the house.

Some important information to get more efficiency out of your machine:

- The amount of laundry you put in your washing machine should not exceed the maximum amount indicated.

By this way, your machine shall run in saving mode.

- Not using the pre-wash feature for little and normal-dirty laundry shall save electricity and water.

Transportation Safety Screw

Water Inlet Valve

Discharging Hose

Power Cable

Transportation Safety Screw

Transportation Safety Screw

Transportation Safety Screw

CHAPTER -2: OVERVIEW OF YOUR DEVICE TECHNICAL SPECIFICATIONS

Operating voltage / frequency (V/Hz)	(220-240) V~/50Hz
Total current (A)	10
Water pressure	Maximum: 1 MpaMinimum : 0.1 Mpa
Total power (W)	2100
Maximum dry laundry capacity (kg)	5
Spinning revolution (rev / min)	1000
Programme number	15
Dimensions (Height x Width x Depth) (mm)	845 x 597 x 497

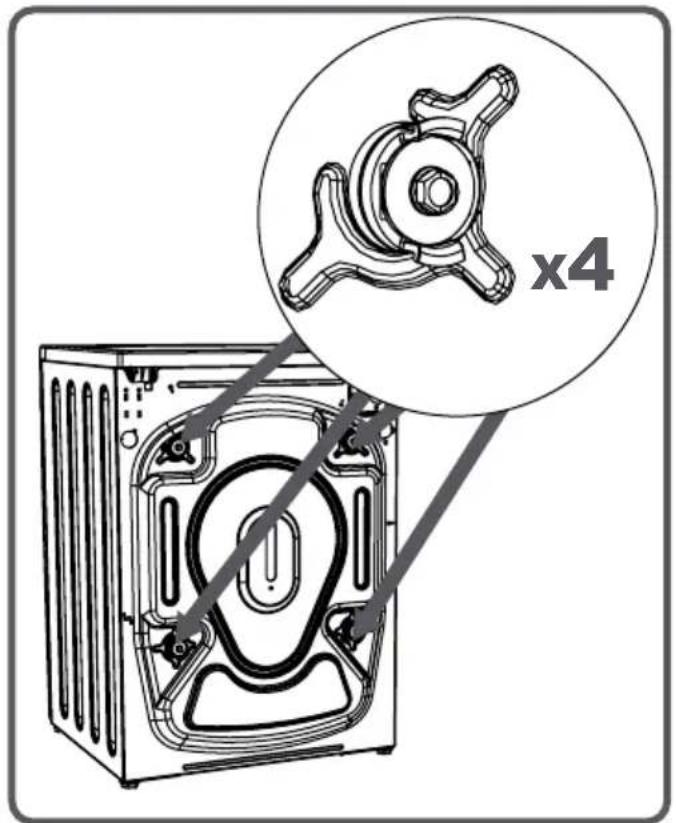

Before operating the washing machine, remove the 4 transportation screws and rubber spacers from the back of the machine. If the screws are not removed, it may cause heavy vibration, noise and product malfunction, (voiding the guarantee).

The transportation safety screws must be removed by being rotated in anti-clockwise direction using an appropriate spanner.

Transportation screws shall be removed by pulling out.

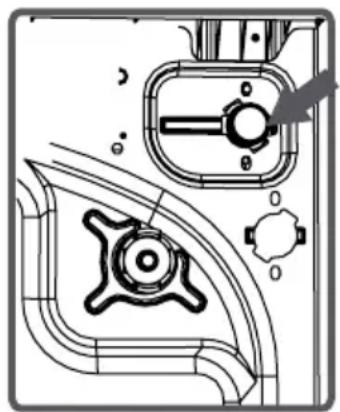

Fit the plastic transportation screw caps delivered in accessories bag to the palces where transportation screws have been removed.

The transportation safety screws should be stored to be used in case of transportation.

NOTE: You must remove the transportation screws of your machine before the first usage. Faults occurring in the machines operated with transportation screw fitted shall be out of scope of warranty.

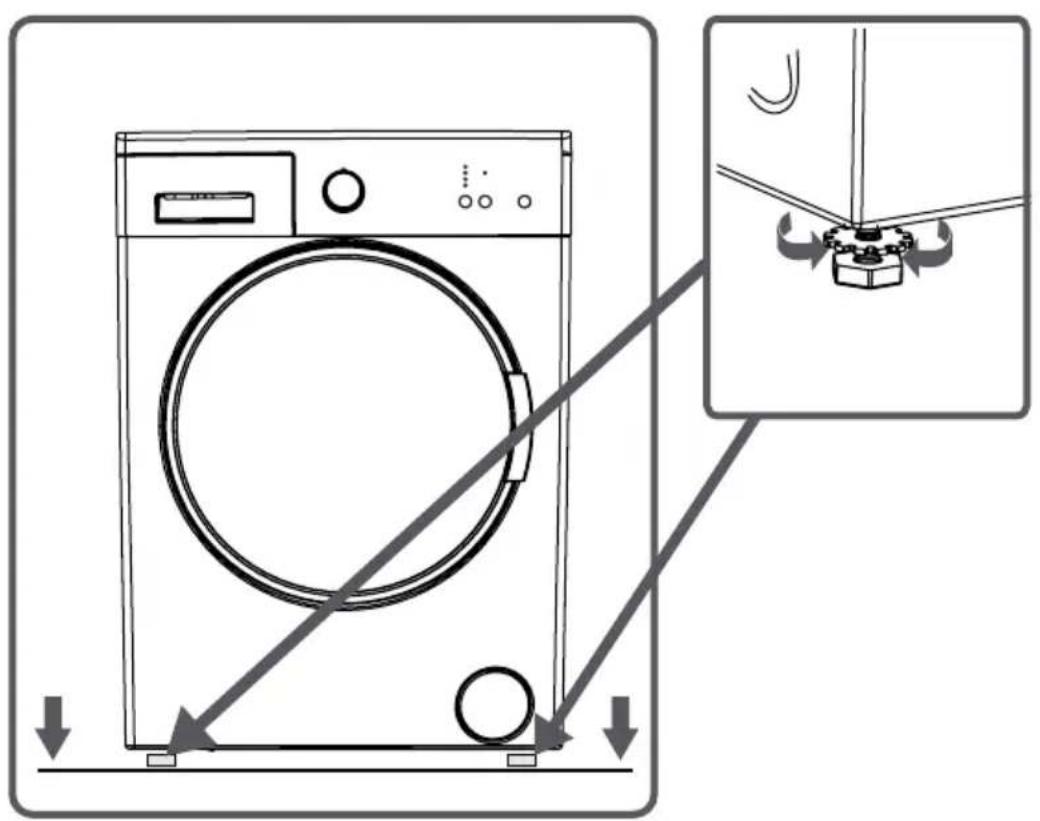

• Do not install your machine on a carpet or such grounds that would prevent the ventilation of its base.
• To ensure silent and vibration-free operation of your machine, it should be deployed on a non-sliding and firm ground.

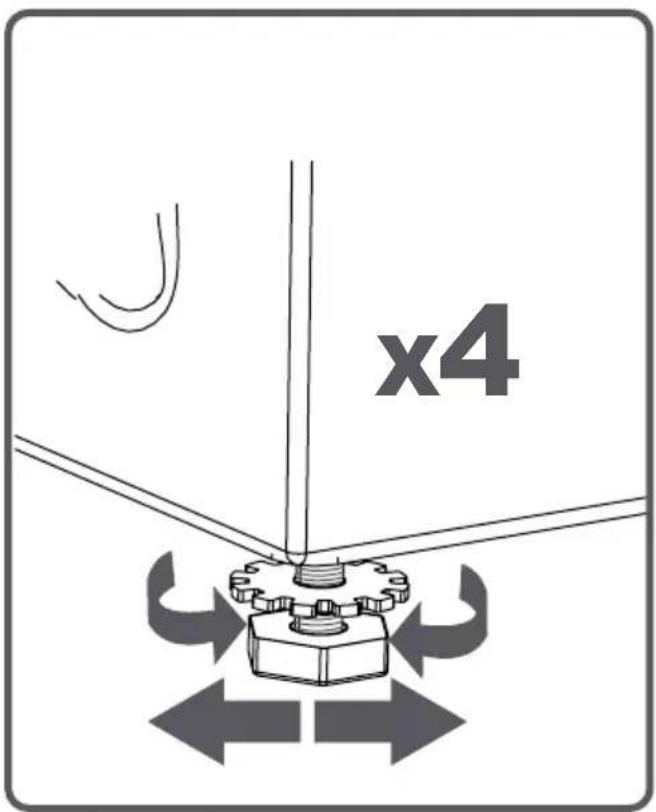

• You can adjust the balance of your machine through the feet.
• Loosen the plastic adjustment nut.

CHAPTER -3: INSTALLATION OF THE MACHINE (Adjusting the feet)

• Adjust the feet upward and downward by rotating them.
  • After maintaining the balance, compress the plastic adjustment nut upward again.

CHAPTER -3: INSTALLATION OF THE MACHINE (Adjusting the feet)

• Never put cardboard, wood or suchlike materials under your machine if you are intending to stabilize the distortions on the floor.
• When cleaning the floor, on which your machine rests, be careful not to cause the machine to be unstable and wobble, always check all 4 feet are in contact with the floor.

• Your washing machine is set to 220-240V and 50Hz.
• The mains cord of your washing machine is equipped with a specific earthed plug. This plug should always be inserted to a earthed socket of 10 amps.
• The current value of the fuse should be 10 amps. Fuse current value of the power line connected to this plug should also be 10 amperes.
• If you don’t have such a receptacle and fuse confirming with this, please have it done by a qualified electrician.
• We do not take the responsibility of the damages that occur due to ungrounded usage.

NOTE: Operating your machine under low voltage will cause the life cycle of your machine to be reduced and its performance to be restricted.

- Your machine may have either a single inlet (cold) or double water inlets (cold/hot) based on its specifications.

White-capped hose should be connected to cold water inlet and red-capped hose to hot water inlet (applicable for machines with double water inlets).

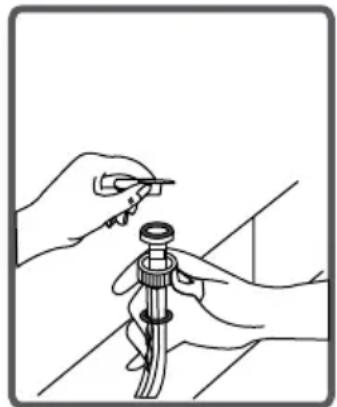

- To eliminate water leakages in points of contact, 1 or 2 nuts are provided in the hose package (applicable for machines with double water inlets). Fit these nuts to the ends of new water inlet hoses on the side of tab.

- Mount new water inlet hoses to a 3/4 ", threaded tab.

- Connect the white-elbow end of the water inlet hoses to the white-filtered water inlet valve on the rear side of the machine and the red-elbow end to red-filtered one (applicable for machines with double water inlets).

Tighten plastic parts of the junctions using your hand.

In uncertain conditions, have the connection works be done by a qualified plumber.

- Flow of water with pressure of 0,1-1 Mpa will allow your machine to operate more efficiently.) (0,1 Mpa pressure means that more than 8 litres of water will flow through a fully open tap per one minute.)

- Ensure that points of contact do not leak by tapping the tap completely after carrying making the connections.

CHAPTER -3: INSTALLATION OF THE MACHINE (WATER INLET HOSE CONNECTION)

• Ensure that the new water inlet hoses are not bent, broken, crushed and resized.
• If your machine has double hot water inlets, the temperature of hot water inlet should be maximum 70°C .

Note: Use only the new water inlet hose coming with your machine while making water inlet connections of your machine. Never use old, used or damaged water inlet hoses.

• The end of water discharge hose can be fitted to a specific apparatus directly attached to the spigot below the sink.
• Never attempt to extend the drain hose by extending it. Extending may cause draining problems or fails to pump out the water from the machine.
• Do not put discharging hose of your machine in a vessel, bucket or sink.
• Make sure that the water discharge hose does not bend, buckle, be crushed or extended.
• Please note the water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the floor.

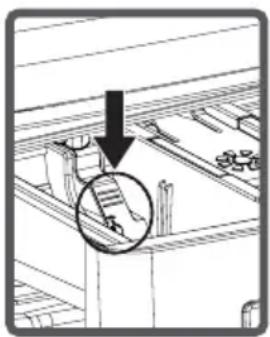

- You can use the liquid level determination plate when you want to wash your laundry with liquid detergent. You can use your liquid detergents in all programs without prewashing. Place the liquid detergent apparatus in the second compartment (which is available inside the machine) of the detergent drawer (*) and set the detergent amount. (Use the recommended amount of liquid detergent by detergent producers).

Do not exceed the MAX level, use only for liquid detergent, do not use this aparatus for powder detergent and take it out.)

Liquid Detergent Apparatus

Main wash detergent compartment

Softener

Compartment

Pre-wash detergent compartment

Powder detergent level stages

Powder detergent spade (*)

(*) Machinery specifications may vary depending on the product purchased.

SECTIONS

Main wash detergent compartment:

In this compartment, only materials like detergent (liquid or powder), lime preventer and such can be used.

You can find the liquid detergent apparatus inside your machine at first installation. (*)

Fabric conditioner, starch, detergent compartment:

You can use softener for your laundry (recommended amount and type by the producer is recommended). Sometimes the fabric conditioners you use for your laundry may remain in this compartment. The reason for this is that the conditioner is not viscous. To prevent this situation, more viscous liquid softeners are recommended to be used or the softener could be thinned and then used.

Pre-wash detergent compartment:

This compartment must only be used when

the pre-wash feature is selected.

Pre-wash feature is recommended for very dirty

laundry.

(*) Machinery specifications may vary depending on the product purchased.

• You can select the programme you want to wash your laundry in through programme knob.
• You may set the programme selection operation by rotating the programme knob in both directions.
• Ensure that the programme knob is exactly on the programme you want to select.

From the function LED's of your machine, you can see how much longer it will start to run after, the auxiliary functions you have selected and the stage of the programme you are running on your machine.(☐ pre wash / wash state, ☐ rinsing stage, ☺ spinning stage).

Furthermore, electronic display will warn you by means of led combinations that will turn on its display when a fault occurs on your machine and notify you of the completion of the washing programme by displaying “Finished” on the display as soon as the washing programme you have selected has finished as well.

• Your laundry has product labels on them that specify their specifications. Wash or dry your laundry according to the specifications on the product label.
• Separate your laundry according to their types (cotton, synthetic, sensitive, wool etc.), their temperatures (cold, 30° , 40° , 60° , 90° ) and degree of contamination (slightly stained, stained, highly stained).
• Never wash your coloured and white laundry together.
• Wash your coloured laundry separately in the first washing as they may bleed.
• Ensure that there are no metallic materials on your laundries or in the pockets; if so, take them up.

CAUTION: WARNING: Faults that will emerge in case of penetration of foreign substances into your machine are not included within the scope of warranty.

• Zip up and button up your laundries.
• Remove the metallic or plastic hooks of tulle curtains or curtains or place them in a washing net or bag and then muzzle them.
• Reverse textiles such as pants, knitwear, t-shirt and sweat suit.
• Wash socks, handkerchief and suchlike small laundries in a washing net.

• Open the door of your machine.
• Spread your laundry in your machine.

NOTE: Note: Maximum loading capacity may vary based on the laundry type you will wash, degree of contamination and the programme you have chosen. Do not exceed maximum dry loading capacity indicated in the programme table for washing programmes.

You can take the following table of weights as an example.

LAUNDRY TYPE WEIGHT (gr)
Towel	200
Linen	500
Bathrobe	1200
Quilt cover	700
Pillow slip	200
Underwear	100
Tablecloth	250

• Put each item of laundry separately.
• Ensure that no laundry is stuck between the door and the door seal when closing the door of your machine.
• Push the door of your machine until hearing the "click" sound to close it.
• Close the door of your machine properly, otherwise your machine will not start the washing operation.

The amount of detergent you will put in your machine will depend on the following criteria:

• Your detergent utilization will be based on how dirty your clothes are and the hardness of the water. Do not prewash your less dirty clothing, and put the right amount of detergent in the 2nd compartment of the detergent drawer.
• For your very dirty laundry, select a programme including pre-washing, and put 1/4 of the detergent you will put in the detergent drawer in the 1st compartment of the detergent drawer while putting the remaining 3/4 of it into 2nd compartment.
• Use detergents produced for automatic washing machine in your machine. The amount of detergent you will use for your laundries is printed on the detergent package.
• The higher the degree of hardness of the water the more detergent you will use.
• The amount of the detergent you will use will increase as the amount of your laundry increase.
• Put the softener in the softener compartment in the detergent drawer. Do not exceed the MAX level. Otherwise, softener will flow into washing water through flushing.
• Softeners with high density are required to be thinned to a degree before being put in the drawer. Because high-density softener will clog the flush and avoid the flow of the softener.
• You can use your liquid detergents in all programs without prewashing. For this, fit liquid detergent level plate in the accessories bag or the liquid detergent apparatus (*) into 2nd compartment of the detergent drawer and set the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid detergent plate.

(*)Machinery specifications may vary depending on the product purchased.

• Plug your machine in.
• Open the water tap.
• Open the machine door.
• Spread your laundry in your machine.
• Push the door of your machine until hearing the “click” sound to close it.

Selecting programme

Select the convenient programme for your laundries on the programme table.

AUXILIARY FUNCTIONS

Before starting the programme, you can optionally select an auxiliary function.

• Press on the button of auxiliary function you would like to select.
• If auxiliary function symbol on electronic display flashes continuously, the auxiliary function you have selected will be activated.
• If auxiliary function symbol on electronic display flashes, the auxiliary function you have selected will not be activated.

Reason for non-activation:

• The auxiliary function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed through the stage, during which the auxiliary function you would like to select would be implemented.

HALF-LOAD DETECTION SYSTEM

Your machine features a half-load detection system.

In case yuo put approximately half or less amount of launderies of maximum laundry capacity in your machine, your machine will run so as to save washing time, water consumption and energy in some programmes. When the half-load function is active, the machine can complete the programme you have set in a shorter time.

1- Delay timer

By using this auxiliary function, you can make your machine to start the washing operation with delays between “3h, 6h, 9h, 12h”.

To use auxiliary function of delayed start:

• Press the delayed start button once.
• “3 h” led shall appear.
• Press on delayed start button until the time, on which you want washing operation to be started.
• To activate the time delay you have selected in the programme, you may press on any auxiliary function button you like except "Start/Standby" button.

If you have skipped the time delay you want to set, you can go back to the time desired by keeping pressed on time delay button.

If you want to cancel the time delay, you are required to press the time delay button once symbol will no longer flash on electronic display.

To run time delay function, your machine is required to be operated by pressing on Start/Pause button.

2- No Spin

If you don't want to perform spinning on your laundry, you can use this auxiliary function.

By pushing the no spin button, button, 🔒 when the led light of the symbol turns on.

Start/Pause button

By pressing on the Start/Pause button, you may start the programme you have selected or suspend a running programme. If you switch your machine to the standby mode, the Start/Standby led on the electronic display will flash.

CHAPTER -5: PRELIMINARY PREPARATION FOR LAUNDERING (CHILD LOCK)

To avoid programme flow from being affected if programme buttons are pressed or programme button is turned when performing washing operation in your machine, child lock is available.

Child lock will be activated in case pressed on both auxiliary functions 1 and 2 at the same time for more than 3 seconds. You can see the auxiliary function LED's on the display when activated.

If pressed any button while child lock is active, the Additional Function LED's will flash on the display.

If while the child lock is engaged and any programme is running, the programme knob is switched to the CANCEL position and another programme is selected, the programme previously selected continues from where it left.

To deactivate it, it will be sufficient to press on the same buttons for more than 3 seconds. When the child lock is deactivated, the Additional Function LED's will flash on the display.

If you want to cancel any programme running:

1- Switch the programme knob to "CANCEL" position.
2- Your machine will stop the washing operation and the programme will be cancelled.
3- To get rid of the water accumulated in the machine switch the programme knob to any programme.
4- Your machine will perform the necessary discharge operation and cancel the programme.
5- You can run your machine by selecting a new programme.

Your machine will stop by itself as soon as the programme you have selected finishes.

- End LED will flash on the display panel.

• You can open the machine's door and remove the laundry.
• Leave the door of your machine open to allow the inner part of your machine to dry after removing your laundries.
• Switch the programme knob to CANCEL position.
• Unplug your machine.
• Turn the water tab off.

COTTON 90°

Washing temperature (°C)	90°
Maximum dry laundry amount (kg)	5,0
Detergent compartment	2
Programme duration (Min.)	191
Laundry type / Descriptions	Very dirty, cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 2,5 kg), bedclothes, etc.

Pre-Wash Cotton

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	5,0
Detergent compartment	1&2
Programme duration	160
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 2,5 kg), bedclothes, etc.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

COTTON ECO 60 C°

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	5,0
Detergent compartment	2
Programme duration (Min.)	190
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 2,5 kg), bedclothes, etc.

COTTON 40 C°

Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	5,0
Detergent compartment	2
Programme duration (Min.)	180
Laundry type / Descriptions	Dirty cotton and flax textiles. (Underwear, linen, tablecloth, towel (maximum 2,5 kg), bedclothes, etc.

ECO 20°

Washing temperature (°C)	20°
Maximum dry laundry amount (kg)	2,5
Detergent compartment	2
Programme duration (Min.)	98
Laundry type / Descriptions	Less dirty, cotton and linen textiles. (Underwear, bedsheet, tablecloth, towel (max. 2 kg) bedcloth, etc.

EASY CARE

Washing temperature (°C)	40°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration (Min.)	91
Laundry type / Descriptions	Very dirty or synthetic-mixed textiles. (Nylon socks, shirts, blouses, synthetic-including trousers etc.)

WOOL

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	50
Laundry type / Descriptions	Woollen laundry with machine wash labels.

RINSING

Washing temperature (°C)	-
Maximum dry laundry amount (kg)	5,0
Detergent compartment	-
Programme duration	36
Laundry type / Descriptions	If you want to additionally rinse your laundry upon completion of washing operation, you may use this programme for any kind of laundries.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

SPINNING

Washing temperature (°C)	-
Maximum dry laundry amount (kg)	5,0
Detergent compartment	-
Programme duration	15
Laundry type / Descriptions	If you want to additionally Spinning your laundry upon completion of washing operation, you may use this programme for any kind of laundries.

SENSITIVE/HAND WASH

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	91
Laundry type / Descriptions	Laundry recommended for hand wash or sensitive laundry.

SPORTS WEAR

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	80
Laundry type / Descriptions	Sportswear.

MIXED

Washing temperature (°C)	30°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	87
Laundry type / Descriptions	Dirty cotton, synthetics, colour and flax textiles can be washed together.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

BLOUSES / SHIRTS

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	3,0
Detergent compartment	2
Programme duration	106
Laundry type / Descriptions	Dirty cotton, synthetic and synthetic-mixed shirts and blouses can be washed together.

DAILY 60 min.

Washing temperature (°C)	60°
Maximum dry laundry amount (kg)	2,0
Detergent compartment	2
Programme duration	60
Laundry type / Descrip-	You can wash your dirty cotton, colour and flax textiles at 60°C in 60 minutes.

If you have the rapid washing auxiliary function in your machine, then if you put 2 kg or less laundry in your machine, your machine will automatically wash for laundry for 30 minutes.

NOTE: PROGRAM DURATION MIGHT CHANGE ACCORDING TO THE AMOUNT OF LAUNDRY, TAP WATER, AMBIENT TEMPERATURE AND SELECTED ADDITIONAL FUNCTIONS.

RAPID 15 min.

Washing temperature (°C) 30°

Maximum dry laundry amount (kg) 2,0

Detergent compartment 2

Programme duration 15

Laundry type / Descriptions You can wash your slightly stained, cotton, colured and flax textile within only 15 minutes.

NOTE: As the washing period is short, less amount of detergent is required to be used compared to other programmes. The programme period will increase if your machine detects instable loading. You can open the door of your machine 2 minutes after the completion of washing operation. (The duration of 2 minutes required to open the door of your machine is not included in the washing period.)

tal	Time (min)	Max. T (°C)	Total Water Consumption (lt)	Total Energy Consumption (kwh)	Number of Rinse
Cotton 90°C 191 9	0 69 2,22 3
Cotton Prewash 16	0 60 75 1,23	3
Cotton Eco 190 60	43 0,85 2
Cotton 40 180 40	43 0,72 2
Eco 20°C 98 20	43 0,19 2
Easy Care 91 40	39 0,49 2
Wool 50 30 40	0,14 3
Rinse 36 - 37 0	,09 3
Spin 15 -- 0,04	-
Hand Wash / Delicate	91 30 65 0	32 3
Sports Wear	80 30 36 0	26 2
Mix	87 30 48 0	28 2
Blouses / Shirts	106 60 37 0	93 2
Daily 60'	60 60 31 0,86	1
Rapid 15' 15 30	28 0,09 1

• Temperature may vary depending on the heating time
- Durations may vary according to wash load (weight and type), tap water, ambient temperature and selected extra functions.

Unplug your machine before starting the maintenance and cleaning of your machine.

Turn the tap water off before starting the maintenance cand cleaning of your machine.

CAUTION: Your machine's parts might be damaged if cleaners with solvent agents are used.

Do not use cleaning materials with solvent agents.

Filters to avoid dirt and foreign substances in the water from penetrating into the machine are available both on the side of tap and on the ends of water valves along the water inlet hose

of your machine.

If your machine cannot intake sufficient amount of water despite water tap being open, these filters should be cleaned.

(It is recommended that you clean your pump filter once in 2 months.)

• Detach the water inlet hoses.
• Remove the filters on water inlet valves using pliers and then clean it with a brush in water.
• Disassemble the filters on the side of tab side of water inlet hoses manually and clean it.
  • Having the filters cleaned, you can fit them in the reverse of the removal method.

CAUTION:

Filters of water inlet valves may be clogged due to contaminated water tab or lack of necessary maintenance or valves may be broken down, causing water leaking into your machine continuously.

The breakdowns that may arise due to these reasons are out of the scope of warranty.

A filter system which avoids threads remaining from your laundries and tiny materials from entering into the pump during water discharging operation carried out by your machine after completing washing so prolonging the lifecycle of your pump is available. It is recommended that you clean your pump filter once in 2 months. To clean pump filter:

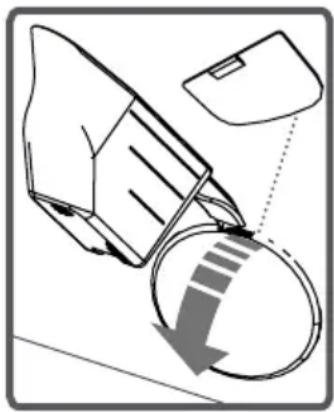

• To open the pump cover, you can use the powder detergent spade (*) or liquid detergent level plate coming out of your machine.
• Fit the end point of the plastic part to the gap of the pump cover and push it back. This will open the cover.
• Before opening the filter cover, put a tray below the filter cover to prevent the water remained in the machine from flowing on the floor.
• Loosen the filter cover in anti-clockwise -clockwise and then empty water.

Note: You may have to empty the water collection tray several times according to the amount of water in the machine.

(*) Machinery specifications may vary depending on the product purchased.

CHAPTER -7: MAINTENANCE AND CLEANING OF YOUR MACHINE (PUMP FILTER)

- Clean the foreign materials in the filter with a brush.

• After cleaning the filter, fit the filter cover and tighten it by rotating it in clockwise direction.

- While closing the pump cover, ensure that the parts on the inner side of the cover to match the holes on the front panel side.

- You can reattach the pump cover in the reverse order that you removed it.

WARNING!

As water in the pump may be hot, wait un-til it cools down.

Your detergents may deposit residue in detergent drawer and housing of detergent drawer over time.

To clean the residue formed, disassemble the detergent drawer in particular periods. It is recommended that you clean your pump filter every 2 months.

To the detergent drawer:

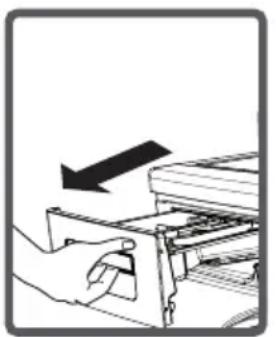

- Pull the detergent drawer up to the end

- Keep on pulling by depressing on the section shown below in the detergent drawer and keep pulling and then the detergent drawer.

• Clean the detergent drawer with a soft brush like an old toothbrush.
• Collect residues in the housing of the detergent drawer without dropping them inside the machine.
• Assemble the detergent drawer after drying it using a towel or dry cloth.
• Do not wash your detergent drawer in dishwasher.

Liquid Detergent Apparatus (*)

Take out the liquid detergent level apparatus for cleaning and maintenance purposes as shown in the picture and clean well detergent residues. Put the apparatus back into its place. Make sure no residues are left inside.

(*) Machinery specifications may vary depending on the product purchased.

CHAPTER -8: FABRIC CONDITIONER SIPHON / BODY / DRUM

Fabric conditioner siphon

Remove the detergent drawer. Remove the Fabric conditioner siphon and clean the softener residues completely. Refit the-Fabric conditioner siphon after cleaning it. Check it has settled properly.

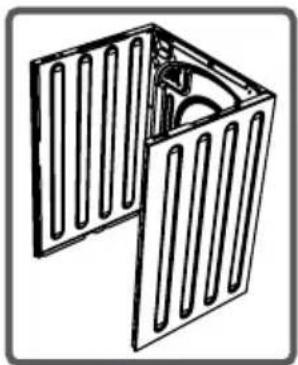

Body

Clean the outer body of your machine with warm water and a non-inflammable cleaning agent that will not abrade the body of your machine. After rinsing with some water, dry it using a soft and dry cloth.

Drum

Do not leave metallic objects such as needles, paper clips, coins etc. in your machine. This objects lead to formation of rust stains in the drum. To clean such rust stains, use a non-chlorine cleaning agent and follow the instructions of manufacturers of the cleaning agent. Never use wire wool or similar hard objects for cleaning rust stains.

All repairing operations required for your machine should be carried out by our authorised service. If your machine requires a repair or if you cannot remove the fault by the help of the information provided as follows:

• Unplug your machine.
• Turn the water tap off.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Your machine does not start.	It is not plugged. Plug machine in.
	Fuse “blown”	Replace the fuses.
	Electricity cut-off.	Check mains power.
	Start/Pause button not pressed.	Press on Start/Pause button.
	Programme dial ‘stop’ position.	Switch the programme button to the desired position.
	The machine door is not completely closed.	Close the machine door.
Your machine does not intake water.	Water tap is turned off.	Turn your tab on.
	Water inlet hose may be twisted.	Check water inlet hose and untwist.
	Water inlet hose clogged.	Clean water inlet hose filters. (*)
	Valve inlet filter clogged.	Clean the valve inlet filters. (*)
	The machine door not completely closed.	Close the machine door.

(*) See the chapter regarding maintenance and cleaning of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Your machine does not discharge water.	Discharging hose clogged or twisted.	Check the discharging hose, then either clean or untwist.
	Pump filter clogged.	Clean the pump filter. (*)
	Laundry settled in the machine unevenly	Spread your laundry in the machine evenly.
Your machine vibrates.	The feet of your machine have not been adjusted.	Adjust the feet on your machine. (**)
	Safety stays fitted for transportation not removed.	Disassemble the safety stays of your machine. (**)
	Less amount of laundry in the appliance.	This will not block operation of your machine.
	Your machine is overloaded with laundry or laundry settled unevenly.	Do not put in laundry more than the amount recommended and settle the laundry in the machine evenly
	Your machine rests on a hard surface.	Prevent your machine from resting on hard surfaces.

(*) See the chapter regarding maintenance and cleaning of your machine.
(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Excessive foam is formed in the detergent drawer.	Excessive amount of detergent used.	Press on Start/Pause button. To eliminate foam formation, mix a spoon of softener with half litres of water, and pour the mixture in the detergent drawer. After 5-10 minutes, Press on Start/Pause button again. In your next washing operation, Adjust the detergent dose accordingly.
	Wrong detergent used.	Use detergents produced only for automatic washing machines in your machine.
Unsatisfactory washing result.	The contamination degree of your laundry does not match the programme you have chosen.	Select the programme appropriate for the contamination degree of your laundries. (See programme table)
	Amount of detergent used insufficient.	Adjust the amount of detergent based on the amount and contamination degree of your laundries.
	Laundry in excess of maximum capacity put in your machine.	Load your machine with laundries, amount of which will not exceed maximum laundry capacity.
Unsatisfactory washing result.	Water being hard. (Contaminated, lime water etc.)	Adjust the amount of detergent based on the instruction of detergent manufacturer.
	Laundry settled in the machine unevenly	Spread your laundry in the machine evenly.
As soon as the machine is loaded with water, water discharges.	The end of water discharging hose is too low for the machine.	Set the water discharging hose on appropriate height. (**)
No water appears in the drum during washing.	No fault. Water is in the unseen part of the drum.	——
Laundry have detergent residues on them.	Non-dissolving particles of some detergents may stick to your laundry as white spots.	Perform an Extra rinse by setting your machine to “Rinsing” programme, or clean the spots using a brush after your laundry dry.
Grey spots appear on the laundry.	The reason for such spots may be oil, cream or ointment.	Apply the maximum amount of detergent instructed by the detergent manufacturer in the next washing operation.

(**) See the chapter regarding installation of your machine.

FAULT	POSSIBLE CAUSE	TROUBLE-SHOOTING
Spinning operation is not performed or runs late.	No fault. Unbalanced load control system has been activated.	Unbalanced load control system will try to spread your laundries evenly.Spinning operation will begin after your laundry is spread. Place the laundry in the machine in a balanced fashion the next time.

Your machine is equipped with the systems which are capable of both taking necessary precautions and warning you in case of any breakdown by means of continuous self-checking during washing operations.

TROUBLE CODE		POSSIBLE FAULT	WHAT TO DO
EC		The door of your machine is left open.	Close the machine door. If your machine persists to indicate fault, turn off your machine, unplug it and contact the nearest authorised service immediately.
E1		The water pressure or the water level inside the machine is low.	Turn on the tab. Mains water may be cut-off. If the problem still continues, your machine will stop after a while automatically. Unplug the machine, turn off your tab and contact the nearest authorised service.
EC		The pump is faulty or pump filter is clogged or electrical connection of the pump is faulty.	Clean the pump filter. If the problem persists, contact the nearest authorised service. (*)
EC		Your machine has excessive amount of water.	Your machine will discharge water by itself. Pursuant to discharging operation, turn off your machine and unplug it. Turn off your tab and contact the nearest authorised service.

Please see the warranty card for details on how to contact the Service Centre

(*) See the chapter regarding maintenance and cleaning of your machine.

Alcoholic drinks: Spotted area should initially be washed using cold water, and then be wiped with glycerine and water and rinsed with vinegar-mixed water.

Shoe polish: Spot should be rubbed out gently without damaging the cloth and be scrubbed and rinsed with detergent. If not removed, it should be scrubbed using the mixture obtained by adding 1 scale of alcohol (96°) into 2 scales of water, and then be washed with warm water.

Tea and coffee: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour hot water as much as the type of your laundry can resist.

In case the type of your laundry permits, wash with bleacher.

Chocolate and cocoa: After submerging your laundries in cold water and rubbing it using soap or detergent, wash it in temperature that fabric type of your laundry can resist. In case the oil stain is still visible, wipe with oxygen water (3%).

Tomato paste: After rubbing out the dried substances without damaging your laundry, submerge it in water for 30 minutes, and then scrub and wash it with detergent.

Bouillon-Egg: Remove dried spot residues on your laundry, and then wipe it with a sponge or soft cloth submerged in cold water previously. Scrub with detergent, wash with diluted bleacher.

Grease and oil stains: Firstly, wie the residues. Scrub the spot with detergent and wash it with warm soapy water.

Mustard: Apply glycerine on spotted area. Scrub with detergent and wash. If the spot cannot be removed, wipe with alcohol. (For synthetic and colour fabrics, a mixture of 1 scale of alcohol and 2 scales of water should be used)

Fruit: Stretch the spotted area of your laundry throughout the opening of a vessel, and pour cold water on it. Do not pour hot water on the spot. Wipe with cold water and apply glycerine. Allow 1-2 hours, wipe with a few drops of white vinegar, and rinse it.

Grass stain: Wipe the stained part with detergent. If the type of your cloth permits bleacher using, wash with bleacher. Wipe your woollen laundries with alcohol. (For colour fabrics, a mixture of 1 scale of pure alcohol and 2 scales of water)

Oil paint: Spot should be removed by applying thinner before drying. Then it should be wiped with detergent and washed.

Burn stain: If your laundry is suitable for applying bleacher, you can add bleacher into washing water. For wool fabric, a cloth previously submerged in oxygen water should be covered over the stain and it should be ironed after putting a dry cloth on this cloth. It should be washed after being rinsed properly.

Blood stain: Submerge your laundries in cold water for 30 minutes. If the stain is not removed, then submerge in a mixture of water and ammoniac (3 spoons of ammoniac in 4 litres of water) for 30 minutes.

Crema, ice cream and milk: Submerge your laundries in cold water and scrub the spotted area with detergent. If the spot is not removed, apply bleacher to the extent suitable for your laundries. (Do not use bleacher for colour laundries.)

Mould: Mould stains should be cleaned as soon as possible. Stain should be washed with detergent water, nevertheless if it cannot be removed, it should be wiped with oxygen water (3%).

Ink: Subject the spotted area to running water and wait until the flow of inked water ends. Then wipe it with lemon-added water and detergent, and wash it after allowing 5 minutes.

Energy and water consumption may vary based on water pressure, water hardness, water temperature, ambient temperature, laundry amount, additional function selection, voltage fluctuations. It will reduce energy and water consumption to use your machine with the laundry capacity proposed for the selected programme, wash your laundries less dirty or daily laundries in short programmes, carry out cleaning and maintenance periodically, use your machine in convenient time intervals specified by electricity vendor.

This symbol on the product or package implies that the product should not be treated as domestic waste. Instead, it should be delivered to applicable waste collection places recycling electrical and electronic equipment.

You will contribute to avoid potential negative results regarding environment and human health, which will arise due to wrong waste procedure for the product by ensuring that this product is annihilated properly.

Recycling materials will help natural resources be preserved.

For more detailed information regarding recycling of this product, please contact local municipality, domestic waste annihilation service or the shop you have purchased the product.

CE
