Type de produit	Montre-bracelet
Marque	Seiko
Modèle	7548
Mouvement	Quartz
Calibre	7548 (batterie)
Résistance à l'eau	200 mètres (20 ATM)
Type de verre	Minéral
Boîtier	Acier inoxydable
Diamètre du boîtier	44 mm (approximatif)
Épaisseur	13 mm (approximatif)
Largeur entre cornes	20 mm
Poids	Environ 110 g (bracelet acier)
Alimentation	Pile (type SR920SW ou équivalent)
Fonctions principales	Heure, minute, seconde, date, couronne vissée
Lunette	Rotative unidirectionnelle, graduations 60 min
Bracelet	Acier inoxydable à maillons, boucle déployante
Entretien et nettoyage	Rincer à l'eau douce après usage en mer, éviter les solvants
Sécurité	Ne pas actionner la couronne sous l'eau, vérifier l'étanchéité régulièrement
Pièces détachées et réparabilité	Disponibles via centres agréés Seiko, pile facilement remplaçable
Informations générales	Fabriquée au Japon, montre de plongée professionnelle des années 1980

FOIRE AUX QUESTIONS - 7548 SEIKO

Comment régler la date sur une Seiko 7548 ?

Tirez la couronne en position 1 (premier cran) et tournez-la dans le sens horaire pour faire défiler la date. Évitez de régler la date entre 21h et 3h pour ne pas endommager le mouvement.

Quelle pile utilise la Seiko 7548 ?

La Seiko 7548 utilise une pile SR920SW (ou équivalent comme la 370). Sa durée de vie est d'environ 3 à 5 ans.

Comment changer la pile de ma Seiko 7548 ?

Il est recommandé de confier le changement à un horloger professionnel pour préserver l'étanchéité. Si vous le faites vous-même, ouvrez le fond à l'aide d'un outil adapté, remplacez la pile et vérifiez le joint torique.

La Seiko 7548 est-elle étanche ?

Oui, elle est étanche jusqu'à 200 mètres (20 ATM). Convient pour la plongée sous-marine. Vérifiez régulièrement les joints et ne manipulez pas la couronne sous l'eau.

Comment utiliser la lunette rotative ?

La lunette rotative unidirectionnelle permet de mesurer le temps écoulé. Alignez le repère des 60 minutes avec l'aiguille des minutes. Tournez la lunette pour suivre la durée. Elle ne tourne que dans le sens antihoraire pour éviter les erreurs.

Comment remonter et régler l'heure sur la Seiko 7548 ?

Tirez la couronne en position 2 (second cran) pour régler l'heure. Tournez-la pour avancer ou reculer les aiguilles. Remettez la couronne en position initiale après réglage.

Que signifie le boîtier vissé ?

Le boîtier vissé et la couronne vissée assurent l'étanchéité. Pour accéder à la couronne, dévissez-la en tournant dans le sens antihoraire avant de la tirer. Après réglage, revissez-la fermement.

Comment ajuster la longueur du bracelet ?

Utilisez un outil de démaillage pour pousser les goupilles. Retirez des maillons par paires pour symétrie. Consultez un bijoutier si nécessaire.

Quelle est la précision de la Seiko 7548 ?

Mouvement quartz avec précision d'environ +/- 15 secondes par mois. Le calibre 7548 est réputé fiable.

Où trouver des pièces détachées pour Seiko 7548 ?

Contactez un centre de service agréé Seiko ou cherchez sur des sites spécialisés comme SeikoParts ou eBay. Les bracelets, joints et couronnes sont encore disponibles.

MODE D'EMPLOI 7548 SEIKO

SEIKO QUARTZ DIVER'S WATCH

Cal. 2625, 7548, 7549

INSTRUCTIONS

Your SEIKO Quartz Diver's Watch is a very accurate timepiece, the result of SEIKO's advanced precision technology. It is a product of K. Hattori & Co., Ltd., and its SEIKO industrial group.

Your SEIKO Quartz Diver's Watch is a battery-powered electronic wristwatch, incorporating a quartz crystal oscillator, and IC (integrated circuit) for excellent timekeeping and a micro-miniature step motor which moves the second hand in precise one second intervals.

It is specially designed for deep-sea diving and has excellent water-resistant quality. The 600 meter model (Cal. 7549) has been water-tested to a pressure of 60 atmospheres (600 meters or 2000 ft.), the 300 meter model (Cal. 7549) to a pressure of 30 atmospheres (300 meters or 1000 ft.) and the 150 meter model (Cal. 2625 and 7548) to a pressure of 15 atmospheres (150 meters or 500 ft.). In addition, the 600 meter model (Cal. 7549) and 300 meter model (Cal. 7549) are designed for use in saturation diving using helium gas, and the one-piece titanium case makes the 600 meter diver's model (Cal. 7549) light and durable. The specified battery powers your watch for approximately three years and the battery life indicator indicates when the battery needs to be replaced.

The extreme accuracy is the result of the highly stable oscillations of the quartz crystal. A fixed voltage current passes through the crystal which is cut at a special angle to achieve the precise oscillation rate and aged to assure the most stable oscillations over a long period of time.

Now SEIKO Quartz watches are changing the world's standard of accuracy.

CHARACTERISTICS

1. Frequency of crystal oscillator: 32,768 Hz (Hz = Hertz—Cycle per second)
2. Driving System: Step motor system
3. Calendar mechanism:

Cal. 7548, 7549: Day displayed in either of two languages and date.

Cal. 2625: Date displayed.

1. Battery: Silver oxide battery U.C.C. 301 (Cal. 7548, 7549), SEIKO TR726SW or SB-DL (Cal. 2625)
2. Battery life indicator: The second hand moves in two second intervals.
3. IC (Integrated Circuit): C-MOS-IC (Complementary Metal Oxide Silicon Integrated Circuit)

4. Water-resistance: 600 meter, 300 meter and 150 meter water tested models are available.

5. Model with "DIVER'S 600m" mark on the dial (Cal. 7549): Water-tested to a pressure of 60 atmospheres (600 meters or 2000 ft.)

6. Model with "DIVER'S 300m" mark on the dial (Cal. 7549): Water-tested to a pressure of 30 atmospheres (300 meters or 1000 ft.)

7. Model with "DIVER'S 150m" mark on the dial (Cal. 2625 and 7548): Water-tested to a pressure of 15 atmospheres (150 meters or 500 ft.)

8. Rotating ring: Can be rotated clockwise and counterclockwise.

The 600 meter model ... Each click rotates the scale one half of a position (mark).

The 300 meter model and 150 meter model ... Each click rotates the scale one position (mark).

HOW TO SET THE TIME AND CALENDAR TO SET THE TIME

1

2

Close-up of a mechanical watch face with visible gears and adjustment knobs (no text or symbols)

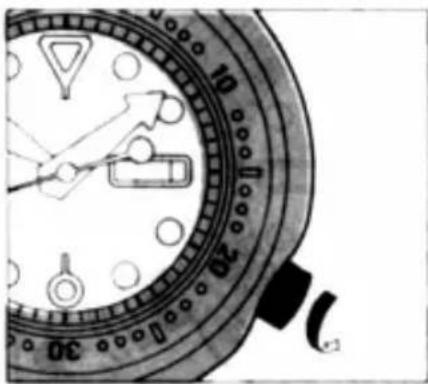

Unscrew the crown by turning it counterclock wise.

Close-up illustration of a mechanical stopwatch with dial and wrist (no text or symbols visible)

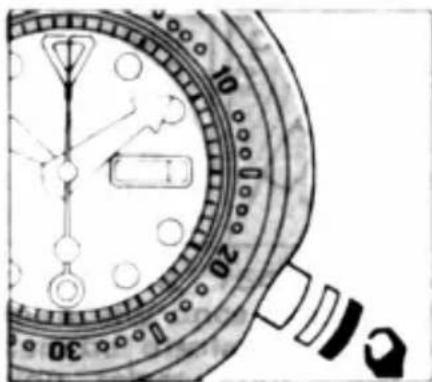

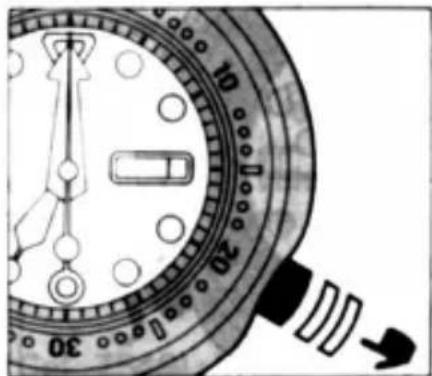

Pull the crown all the way out to the second click. The second hand will stop and the time is ready to be adjusted. For the most accurate setting of the time, we suggest that you stop the second hand on the 12 o'clock mark.

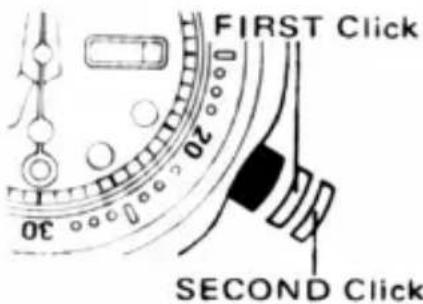

Note: The crown can be pulled out to the first click or the second click as required.

FIRST Click:

Set the calendar.

SECOND Click:

Stop the movement.

Set the hour and minute hands.

Set the second hand.

TO SET THE SECOND HAND

3

4

Close-up illustration of a analog stopwatch with dial and buttons (no text or symbols visible)

Advance the hands by turning the crown.

Turn the hands past the 12 o'clock mark to determine whether the watch is set in the AM or PM period. If the calendar changes when the hour hand passes 12 o'clock, the time will then be set in the AM period. If the calendar does not change, the time will then be set in the PM period.*

Note: To set the correct time we suggest that you advance the minute hand four or five minutes ahead and then return it to the exact minute.

Close-up of a analog stopwatch with hand and dial (no visible text or numbers)

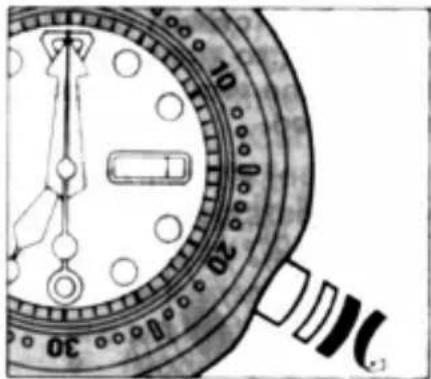

The second hand stopped when you pulled the crown out to the second click.

Depress the crown in accordance with a time signal for exact to the second time setting.

• The date will change between 11:00 P.M. and 12:00 A.M. The day will change between 12:00 A.M. and 3:00 A.M.

TO SET THE CALENDAR

5

6

Close-up of a analog stopwatch with hand and dial (no visible text or numbers)

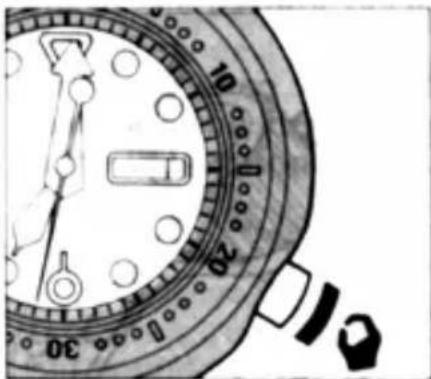

Pull the crown out to the first click. The second hand continues to move during calendar adjustments.

Cal. 7548, 7549: Turn it clockwise to set the date and counterclockwise to set the day of the week and language.

Cal. 2625: Turn it counterclockwise to set the date.

Cal. 7548, 7549: The calendar will change automatically once every 24 hours. The day of the week can be displayed in either of two languages. Once you select your desired language it will appear correctly every day.

Cal. 2625: The date will change automatically once every 24 hours.

Note: If the setting of the calendar is made between 9:30 P.M. and 12:30 A.M. (Cal. 7548, 7549) or 9:00 P.M. and 12:00 A.M. (Cal. 2625), the calendar may not change to the next day. This is not a malfunction of your watch. The setting must be made before or after this time period.

When the calendar automatically changes to the next day, the other language will appear temporarily until the day change is completed and the selected language appears (Cal. 7548, 7549).

TO LOCK THE CROWN

7

8

9

Close-up of a mechanical dial with a pointer and scale markings (no readable text or symbols)

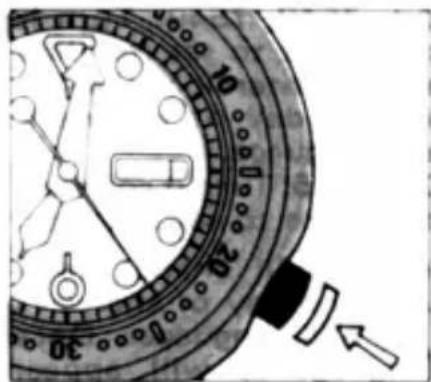

After all adjustments for the time and calendar are completed, push the crown back to the normal position and lock it in place by following the procedures in 8 and 9.

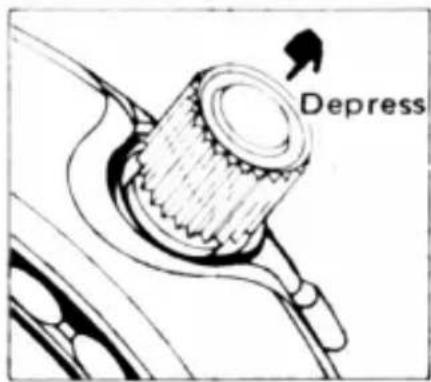

Depress the crown.

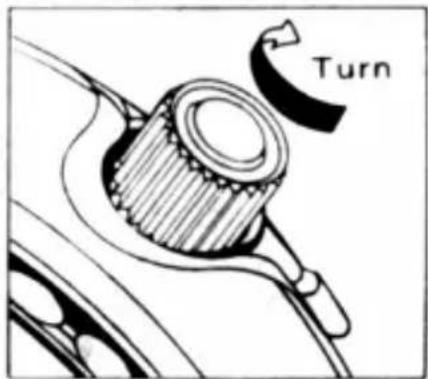

While the crown is depressed, turn it clockwise until it locks in place.

Be sure to read "BATTERY CHANGE" on page 8 and the following instructions before the watch is used.

BATTERY CHANGE

The miniature battery which powers your watch should last approximately three years for Cal. 7548, 7549 (U.C.C. 301) or two years for Cal. 2625 (SEIKO TR726SW or SB-DL). However, because it is inserted at the factory, the actual life of the battery once in your possession may be shortened to less than these periods.

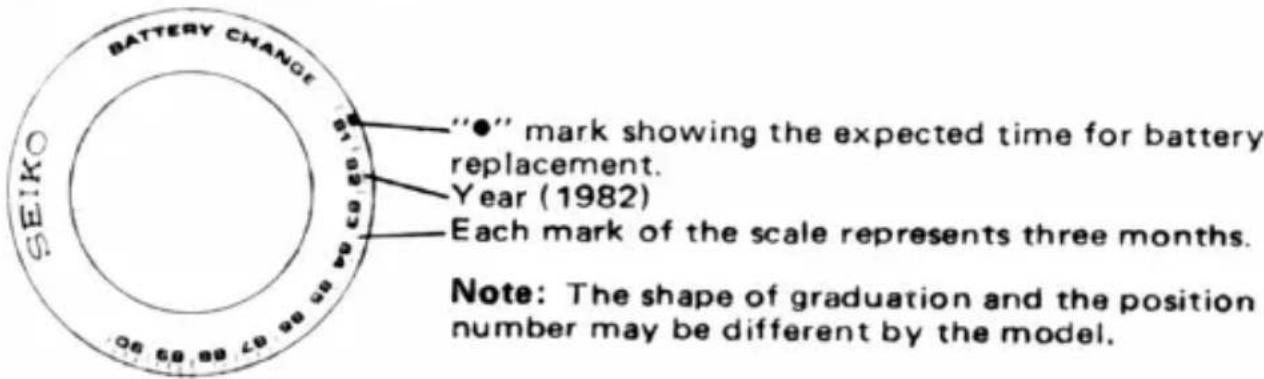

To show when the battery must be replaced, the expected time (month and year) for the first battery replacement is inscribed on the case back as shown in the illustration below.

If the “●” mark indicates that a battery change is necessary, we recommend that you contact a SEIKO SERVICE CENTER for replacement.

With each battery change, be sure to have the SEIKO SERVICE CENTER inscribe a new “●” mark at the position which corresponds to three years (Cal. 7548, 7549) or two years (Cal. 2625) after the battery has been replaced.

BATTERY LIFE INDICATOR (by second hand)

The battery needs to be replaced when you see the second hand moving in two second intervals instead of the normal one second interval. However, the watch will remain accurate during this period.

CHECK THE FOLLOWING ITEMS BEFORE DIVING:

• Check to see if the second hand is moving in one second intervals. (See "BATTERY LIFE INDICATOR")
• Check the “●” mark before diving plan is made to be sure it indicates that you are within the expected life of the battery. (See “BATTERY CHANGE”)
• Check to see if the time and calendar are appropriately set.
• Check to see if the rotating ring is turning smoothly (the rotation must not be too loose or too tight) and that it is set at the desired time. (The rotation may get slightly harder in the water but this is not a malfunction.)
• Check to see that the crown is locked tightly in place.
• Check for any visible cracks and/or breaks in the glass.
• Check the push pin to be sure it firmly attaches the strap to the watch.
• Check the buckle to be sure it can secure the strap firmly to the wrist. If there are any malfunctions, we recommend that you contact a SEIKO SERVICE CENTER.

THE CARE OF YOUR WATCH

The crystal oscillator in your watch is sealed in a vacuum capsule which is specially designed to protect against shock. Consequently, external conditions will have little effect on your watch in general use. However, remember that your watch contains a highly precise electronic circuit, and to maintain its high accuracy, you should not subject the watch to violent shocks or extreme temperatures.

TO PRESERVE THE WATER RESISTANT QUALITY OF YOUR SEIKO QUARTZ WATCH

Please follow the instructions below:

• Before using in water, be sure the crown is locked in place.
• Do not operate the crown when the watch is wet or in water.
  • After the watch is used in water, or when it is wet, wipe it thoroughly dry.
• If it is exposed to sea water, rinse it in fresh water and then wipe it dry.

PERIODICAL CHECK

In order to maintain the excellent water-resistant quality of the diver's watch, we recommend you have it overhauled by a SEIKO SERVICE CENTER when the battery is replaced every three years (Cal. 7548, 7549) or every two years (Cal. 2625).
