| Type de produit | Taille-haies électrique |
| Marque | Florabest |
| Modèle | FHT 600 A1 |
| Tension d'alimentation | 230 V ~, 50 Hz |
| Puissance | 600 W |
| Longueur de coupe | 600 mm |
| Capacité de coupe | 24 mm |
| Mouvements de couteau | 2960 par minute |
| Poids | 3,6 kg |
| Classe de protection | II (double isolation) |
| Indice de protection | IP20 |
| Niveau de pression acoustique (LpA) | 84,4 dB(A), K=3 dB |
| Niveau de puissance acoustique garanti | 98 dB(A) |
| Vibrations (poignée avant) | 2,248 m/s², K=1,5 m/s² |
| Vibrations (poignée arrière) | 2,636 m/s², K=1,5 m/s² |
| Fonctions principales | Double lame de sécurité, protection de main, interrupteur homme mort, protection d'impact sur la barre de coupe |
| Entretien et nettoyage | Nettoyer la barre de coupe après chaque usage avec un chiffon huilé ; affûter les lames si émoussées ; stocker dans un endroit sec avec le protège-lame |
| Sécurité | Porter des équipements de protection (lunettes, casque antibruit) ; ne pas utiliser sous la pluie ; débrancher avant tout entretien |
| Pièces détachées et réparabilité | Pièces disponibles via le service après-vente Grizzly ; garantie 36 mois (usage domestique), 12 mois (usage commercial) |
| Contenu de la livraison | Taille-haies, protection de main avec vis, protège-lame |
FOIRE AUX QUESTIONS - FHT 600 A1 FLORABEST
Questions des utilisateurs sur FHT 600 A1 FLORABEST
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Taille-haies au format PDF gratuitement ! Retrouvez votre notice FHT 600 A1 - FLORABEST et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil FHT 600 A1 de la marque FLORABEST.
MODE D'EMPLOI FHT 600 A1 FLORABEST
FHT 600 A1
florabest®
GB IE
Electric Hedge Trimmer
Translation of original operation manual
GB IE
Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.
Before first using the machine, please read this instruction manual carefully, for your own safety and for the safety of others. Keep the manual in a safe place and pass it on to any subsequent owner to ensure that the information contained therein is available at all times.
Content
Notes on Safety 5
Symbols on the Equipment 5
Symbols in the manual 6
General Safety Directions for Power Tools 6
Hedge trimmer safety warnings ..... 8
Intended Use 8
General Description 8
Function Description 8
Overview 9
Scope of delivery 9
Mounting the Hand Protection ..... 9
Operating the Hedge Trimmer ..... 9
Switching On and Off 9
Working with the Electric Hedge Trimmer 10
Cutting Techniques 10
Maintenance/Cleaning......11
Storage 11
Spare Parts....11
Guarantee 11
Technical Data 12
Waste Disposal and Environmental
Protection 13
Trouble Shooting 14
EU declaration of conformity .... 15
Exploded Drawing 16
Grizzly Service-Center 17
Notes on Safety
Before working with the equipment, familiarise yourself with all operating components. Practice handling the equipment and have the function, operation and working methods explained to you by an experienced user or specialist. Ensure that you can shut off the equipment immediately in an emergency. Inappropriate use of the device may result in serious injury.
Symbols on the Equipment
Caution!
Read through the instruction manual carefully.
Wear eye and ear protection.
Do not use the hedge trimmer in the rain or on wet hedges.
Pull out the power plug immediately if the cable is damaged, has been badly twisted or is completely cut through and in the event that the device is left unattended for a short time.
Information of the acoustic power level L_WA in dB.
Machines are not to be place with domestic waste.
Safety class II
Cutting length
Symbols in the manual
Warning symbols with information on damage and injury prevention.
Instruction symbols (the instruction is explained at the place of the exclamation mark) with information on preventing damage.
Help symbols with information on improving tool handling.
General Safety Directions for Power Tools
WARNING! Read all safety directions and instructions. Omissions in the compliance with safety directions and instructions can cause electrical shock, fire and/or severe injuries.
Retain all safety directions and instructions for future use.
Work area safety
- Keep work area clean and well lit. Cluttered or dark areas invite accidents.
- Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
- Keep children and bystanders away while operating a power tool. Stractions can cause you to lose control.
Electrical safety
- Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators.
There is an increased risk of electric shock if your body is earthed or grounded. - Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
- Where possible, connect the equipment only to a plug socket with a leakage-current-operated circuit breaker (FI switch), with a rated current of not more than 30 mA.
- If the supply cord of this power tool is damaged, it must be replaced by a specially prepared cord available through the service organization.
Personal safety
- Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention white operating power tools may result in serious personal injury.
- Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
- Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
- Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
- Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
- If devices are provided for the connection of dust extraction and collection facilities, ensure these are
connected and properly used. Use of dust collection can reduce dust-related hazards.
Power tool use and care
- Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
- Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjust -ments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
- Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
- Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
GBIE
- Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
- Carefully inspect the area to be cut and remove all wires or other foreign bodies.
Service
- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Hedge trimmer safety warnings
- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the switch is off when clearing jammed material. A moment of inattention while operating the hedge trimmer may result in serious personal injury.
- Carry the hedge trimmer by the handle with the cutter blade stopped. When transporting or storing the hedge trimmer always fit the cutting device cover. Proper handling of the hedge trimmer will reduce possible personal injury from the cutter blades.
- Keep cable away from cutting area. During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.
Intended Use
The equipment is specified for use only for the cutting and trimming of hedges, bushes and ornamental shrubs in the domestic environment. Any other use that is not explicitly approved in these instructions may result in damage to the equipment and represent a serious danger to the user.
The equipment is designed for use by adults. Adolescents over the age of 16 may use the device only under supervision. Do not use the hedge trimmer in the rain or on wet hedges.
The operator or user is responsible for accidents or damage to other people or their property.
The manufacturer is not liable for damages caused by unspecified use or incorrect operation.
Before use, check that the blades are sharp. Ensure that the blades are sharpened whenever blunt, in order to avoid overstressing of the machine. Damages caused by cutting with blunt blades are not covered by the guarantee.
General Description
See the front fold-out page for illustrations.
Function Description
The electric hedge trimmer is driven by an electronic motor. The equipment is double-insulated for safety and does not require earthing.
The hedge trimmer is equipped with a double-sided safety cutter bar. When
cutting, the blades move backwards and forwards in linear motion. The impact protection on the tip of the cutter bar prevents unpleasant recoils should the trimmer come into contact with walls, fences and so on.
The unit can only be operated with the deadman switch depressed, in order to protect the operator. In addition, the hand guard protects against branches and briars.
Please note the following descriptions for the function of the operating components.
Overview
1 Contact protection guard with predrilled holes for hanging the trimmer up
2 Safety blade
3 Hand protection
4 Loop grip with deadman switch
5 Vents
6 On/off switch
7 Tension relief
8 Grip
9 Mains cable
10 Blade protection with predrilled holes for hanging the trimmer up
Scope of delivery
Unpack the device and check it for completeness.
- Electric hedge trimmer
- Hand protection with 2 screws included
- Blade protection
Mounting the Hand Protection
Pull out the power plug before carrying out any work on the equipment.
Use only original parts.
- Slide the hand protection (3) onto the equipment and secure in place using the screws on either side of the unit.
Operating the Hedge Trimmer
Do not use the equipment without the hand guard. Wear suitable clothing and work gloves when working with the equipment.
Ensure that the equipment is functional before each use. The On/Off switch and the safety switch must not be held closed. They must switch off the motor when on is released. Should a switch be damaged, stop working with the equipment. Ensure that the mains voltage value matches the label on the equipment.
Note noise protection and local specifications.
Switching On and Off
Ensure that you are standing in a firm position with both hands gripping the hedge trimmer away from the body. Ensure that the trimmer
is in contact with no other objects before switching on.
-
For tension relief of the cable, form a loop of the end of the extension cable and bring this through the opening at the handle and suspend in the tension relief at the grip (7).
-
Connect the device to the mains voltage.
-
Hold the safety switch on the loop handle (4) and push the On/Off switch on the grip (6) at the same time to switch the unit on. The hedge trimmer will be run at maximum speed.
-
Release one of the two switches to switch the trimmer off.
Working with the Electric Hedge Trimmer
During cutting work, ensure that no contact is made with objects, e.g. such as wire fencing or main plant stems. This may result in damage to the cutter bar.
- Switch off the equipment immediately in the event that the blades are blocked by solid objects, pull out the power plug then remove the object.
- Always work away from the mains power outlet. Set the cutting direction before starting work. Ensure that the power cable is kept well away from the working area. Never lay the cable over the hedge, where it could easily be caught up in the trimmer blades.
- Avoid overstraining the equipment during work.
Pull out the power plug immediately if the cable is damaged, badly twisted or has been completely cut through.
Cutting Techniques
- Cut thick branches beforehand using a branch clippers.
- The double-sided cutter bar enables cutting in both directions or, with a swinging action, from one side to the other.
- In case of vertical cutting, move the hedge trimmer uniformly forward or up and down in an arc movement.
- In case of horizontal cutting, move the hedge trimmer in a sickle-shaped movement to the edge of the hedge, so that cut branches fall to the ground.
- In order to achieve long straight lines, the placing of tensioned guiding cords is recommended.
Cutting Shaped Hedges:
It is recommended that hedges be cut in a trapezoidal shape, in order to prevent stripping off of the lower branches. This corresponds to the natural plant growth and allows the hedge to thrive optimally. During cutting, only the new annual growths are reduced and thus a dense branching and a good screen will develop.
-
Cut the sides of a hedge first. To do this, move the hedge trimmer in the direction of growth from bottom to top. If you cut down from the top, the thinner branches will move out, which may result in some areas having sparse growth or holes.
-
Cut the top edge, according to
taste, in a flat shape, roof shape or rounded shape
- Trim young plants to the required shape. The main growth should remain undamaged until the hedge has reached the planned height. All other shoots are lopped off to half size.
Care of Free-Growing Hedges:
Free-growing hedges are not shaped when cut, although they must be regularly maintained so the hedge does not become too high.
Maintenance/Cleaning
Repair and servicing work not described in this manual should always be carried by our Service Centre (see p.17 for address). Use only original parts.
Pull out the power plug before carrying out any work on the equipment.
Wear gloves while handling the blades.
Carry out the following maintenance and cleaning work regularly. This will guarantee a long and reliable service life.
- Before each use, check the hedge trimmer for obvious defects such as loose, worn or damaged parts. Check the secure seating of the bolts in the cutter bar.
- Do not use the unit if the blades are blunt or worn. This will overstress the motor and gearbox of the machine.
• Check coverings and safety devices for
damage and correct seating. Replace these where necessary.
- Keep the ventilation slots and motor housing of the device clean. Use a damp cloth or a brush to do this. Do not wash down the equipment with water, or sub-merge it in water.
- Do not use any cleaning agents or solvents. These could cause irreparable damage to the equipment. Chemical substances can attack the plastic parts of the equipment.
- Clean the cutter bar carefully after each use. Wipe it off with an oily cloth or spray it with a metal protective spray.
- Keep the hedge trimmer dry and covered with the blade protection supplied and out of reach of children.
Storage
- Keep the trimmer in the blade guard supplied, in a dry place and out of reach of children.
Spare Parts
Replacement parts may be ordered directly from our Service Centre (see p.17 for address).
When ordering, always specify the machine type and the part number in the exploded drawing.
Guarantee
This unit has a guarantee period of 36 months, or 12 months for units used on a commercial basis or for replacement units according to the statutory regulations. The guarantee does not include damages that are attributable to natural wear, overloading
or inappropriate use. Certain component parts are subject to normal wear and are excluded from the guarantee. In particular, cutter bars, eccentric drives and carbon brushes are included here, providing the complaints cannot be attributed to material defects.
Furthermore, a condition of the guarantee services is that the maintenance intervals indicated in the operating instructions have been observed and the instructions for cleaning, care and maintenance have been followed. Damages due to material or manufacturer faults will be repaired free of charge by replacement delivery or repair. However, this is conditional upon the unit being returned complete and assembled to our Service Centre, together with proof of purchase and guarantee slip.
Repairs that are not covered by the guarantee can be carried out by our Service Centre for a fee. Our Service Centre will be happy to provide you with a cost estimate. We can deal only with equipment that has been packaged correctly and which has been sent to us with the correct postage paid. If you have a justified guarantee claim, please contact our Service Centre by telephone, from which you will then be advised on how the claim will be processed.
Caution: The sender shall bear the cost of any material damages during transport. In case of complaint or for servicing, please send your equipment cleaned and with an indication of the defect, to our service address.
Equipment sent in with freight collect – by bulk freight, express or with other special freight – are not accepted.
Defective units returned to us will be disposed of for free.
Technical Data
Electrical Hedge Trimmer.... FHT 600 A1
Input voltage rating .....230V\~, 50 Hz Input power ..... 600 W
Safety class ...... □ II
Protection category.... IP 20
Knife movements per minutes .....2960
Weight 3,6 kg
Cutting length 600 mm
Cutting capacity 24 mm
Sound pressure level (L_pA) .....84,4 dB (A), K_pA=3
Sound power level ( L_wA ) guaranteed ....98 dB(A) measured .... 96,1 dB(A); K_wA=1,9
Vibration (an) at the handle ..... 2,248 m/s; K=1,5 m/s² at the bow handle ...2,636 m/s²; K=1,5 m/s²
The stated vibration emission value was measured in accordance with a standard testing procedure and may be used to compare one power tool to another.
The stated vibration emission value may also be used for a preliminary exposure assessment.
Warning:
vibration emission value may differ during actual use of the power tool from the stated value depending on the manner in which the power tool is used.
Safety precautions aimed at protecting the user should be based on estimated exposure under actual usage conditions (all parts of the operating cycle are to be considered, including, for example, times during which the power tool is turned off and times when the tool is turned on but is running idle).
Noise and vibration values have been determined according to the standards and regulations mentioned in the declaration of conformity.
Technical and optical changes may be undertaken in the course of further development without notice. All dimensions, references and information in this instruction manual are therefore not guaranteed. Legal claims made on the basis of the instruction manual can therefore not be considered as valid.
Waste Disposal and Environmental Protection
Be environmentally friendly. Return the tool, accessories and packaging to a recycling centre when you have finished with them.
Electrical machines do not belong in domestic waste.
Take the equipment to a waste disposal site. The plastic and metal parts that are used can be separated out into pure grade, which allows recycling. Ask our Service Centre for details (see p.17 for address). Defective units returned to us will be disposed of for free.
Trouble Shooting
| Problem Possible cause | use Fault correction | |
| Device does not start | Mains voltage not on | Check plug socket, cable, line and plug, where appropriate, have repaired through electrical specialist |
| On/Off switch (A 6) defective | Repair by Service Centre | |
| Worn carbon brushes | ||
| Defective motor | ||
| Device runs with interruptions | Power cable is damaged | Check the cable and have it changed by the Service Centre if necessary |
| Internal loose electrical connection | Repair by Service Centre | |
| On/Off switch (A 6) defective | ||
| Blades become hot | Blades are blunt | Have the blades (A 2) sharpened or replaced (Service Centre) |
| Blades are notched | Have the blades (A 2) checked or replaced (Service Centre) | |
| Too much friction due to lack of lubrication | Oil the blades (A 2) |
| EU declaration of conformity |
| We hereby confirm that theFHT 600 A1 series Electric Hedge Trimmer(serial number 1010900001-1012060200)conforms with the following applicable relevant version of the EU guidelines as of model year 2011: |
| 2006/42/EC • 2004/108/EC • 2000/14/EC |
| In order to guarantee consistency, the following harmonised standards as well as national standards and stipulations have been applied: |
| EN 60745-1:2009 • EN 60745-2-15:2009 • EN 55014-1:2006EN 55014-2:1997+A1:2001+A2:2008 • EN 61000-3-2:2006 • EN 61000-3-3:2008 |
| We additionally confirm the following in accordance with the 2000/14/EC emissions guideline:Guaranteed sound power level: 98 dB(A)Measured sound power level: 96,1 dB(A)Compliance evaluation process carried out in accordance with Appendix V, 2000/14/EC |
Grizzly Gartengeräte GmbH & Co. KGAm Gewerbepark 264823 Groß-Umstadt 21.01.2011CE  (Andreas Gröschl(Techn. Director and Documentation Representative) |

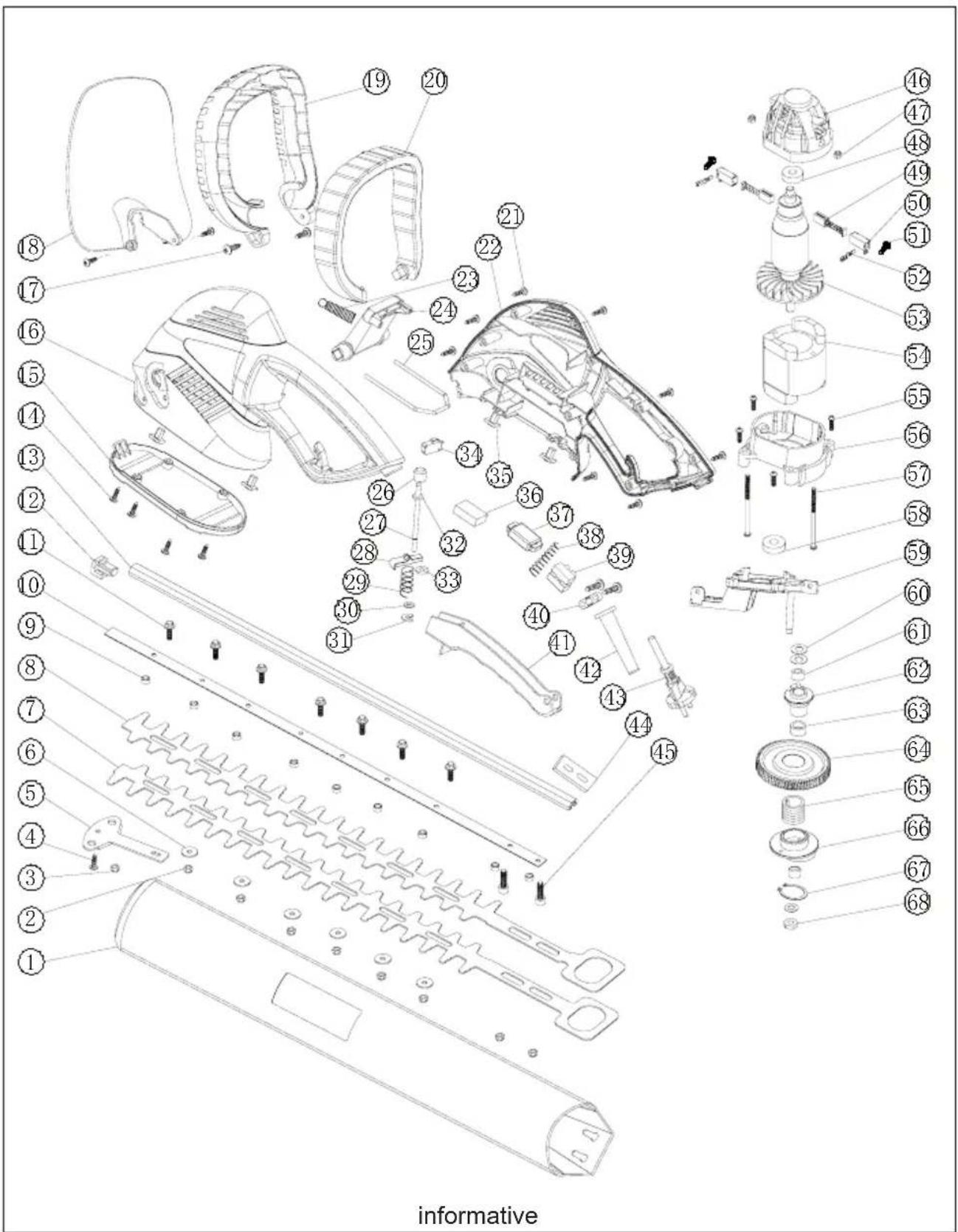

Exploded Drawing
Grizzly Service-Center
DES UK Ltd.
Unit B7
Oxford Street Industrial Park
Vulcan Road
Bilston, West Midlands WV14 7LF
Tel: 0870 787 6177
Tel from Ireland: 0044 870 787 6177
Fax: 0870 7876168
Fax from Ireland: 0044 870 787 6168
Email: grizzly@deslimited.com
2010-10-11_BK56206_rev02_gs
IAN 56206
Grizzly Gartengeräte GmbH & Co. KG
Am Gewerbepark 2
D-64823 Groß-Umstadt
Last Information Update: 09 / 2010
Ident.-No.: 76002161092010-6
- FHT 600 A1
- florabest®
- Electric Hedge Trimmer
- GB IE
- Content
- Notes on Safety
- Symbols on the Equipment
- Symbols in the manual
- General Safety Directions for Power Tools
- Work area safety
- Electrical safety
- Personal safety
- Power tool use and care
- GBIE
- Service
- Hedge trimmer safety warnings
- Intended Use
- General Description
- Function Description
- Overview
- Scope of delivery
- Mounting the Hand Protection
- Operating the Hedge Trimmer
- Switching On and Off
- Working with the Electric Hedge Trimmer
- Cutting Techniques
- Cutting Shaped Hedges:
- Care of Free-Growing Hedges:
- Maintenance/Cleaning
- Storage
- Spare Parts
- Guarantee
- Equipment sent in with freight collect – by bulk freight, express or with other special freight – are not accepted.
- Technical Data
- Electrical Hedge Trimmer.... FHT 600 A1
- Warning:
- Waste Disposal and Environmental Protection
- Exploded Drawing
- Grizzly Service-Center
Marque : FLORABEST
Modèle : FHT 600 A1
Catégorie : Taille-haies
