Type de produit	Système home cinéma 5.1 canaux
Marque	Denon
Modèle	DHT-1356XP
Amplificateur - Dimensions (L x H x P)	434 x 147 x 417 mm
Amplificateur - Poids	10,4 kg
Amplificateur - Alimentation	AC 230 V, 50 Hz, 350 W
Amplificateur - Puissance de sortie (Front/Center/Surround)	75 W + 75 W + 75 W + 75 W + 75 W (8 ohms, 20 Hz-20 kHz, 0,08 % THD)
Amplificateur - Entrées audio numériques	1 optique, 2 coaxiales
Amplificateur - Entrées audio analogiques	8 (CD, TUNER, DVD/VDP, TV/DBS, AUX, VCR, CDR/TAPE, VAUX)
Amplificateur - Sorties vidéo	2 composites (VCR, MONITOR)
Amplificateur - Modes surround	Dolby Digital, DTS, Dolby Pro Logic II, DTS Neo:6, DSP (Rock Arena, Jazz Club, etc.)
Amplificateur - Fonctions spéciales	Cinema Equalizer, Personal Memory Plus, 5 Channel Stereo, Night Mode
Enceinte satellite - Dimensions (L x H x P)	84 x 189 x 110 mm
Enceinte satellite - Poids	1,2 kg
Enceinte centrale - Dimensions (L x H x P)	263 x 84 x 110 mm
Enceinte centrale - Poids	1,4 kg
Caisson de basses - Dimensions (L x H x P)	210 x 353 x 379 mm
Caisson de basses - Poids	9,2 kg
Caisson de basses - Amplificateur intégré	50 W (6 ohms) / 100 W dynamique
Entretien et nettoyage	Nettoyer avec un chiffon doux et sec. Ne pas utiliser de produits abrasifs ou de solvants.
Sécurité	Ne pas exposer l'appareil à l'humidité ou à des températures extrêmes. Débrancher avant nettoyage.
Réparabilité et pièces détachées	Contacter un service agréé Denon pour toute réparation. Pièces disponibles auprès des revendeurs agréés.

FOIRE AUX QUESTIONS - DHT-1356XP DENON

Comment connecter un lecteur DVD à l'amplificateur ?

Utilisez une connexion HDMI ou audio numérique (optique/coaxiale) pour la meilleure qualité. Branchez la sortie vidéo du lecteur sur l'entrée DVD/VDP de l'amplificateur.

Quel est le mode surround recommandé pour les films ?

Le mode Dolby Digital ou DTS est idéal pour les films encodés. Pour les sources stéréo, utilisez Dolby Pro Logic II ou DTS Neo:6.

Comment régler le niveau des enceintes ?

Utilisez le menu de configuration de l'amplificateur. Accédez aux réglages avancés via la télécommande pour ajuster le niveau de chaque canal individuellement.

Puis-je utiliser des enceintes d'autres marques ?

Oui, l'amplificateur accepte des enceintes d'impédance 6 à 8 ohms. Assurez-vous que la puissance et l'impédance sont compatibles.

Comment activer le mode Night ?

Appuyez sur la touche NIGHT de la télécommande. Ce mode réduit les écarts de volume pour ne pas déranger.

Que faire si le son est distordu ?

Vérifiez les connexions des enceintes et réduisez le volume. Assurez-vous que l'impédance des enceintes correspond à la sortie de l'amplificateur (6-8 ohms). Évitez de pousser le volume au maximum.

Comment mémoriser une station radio ?

Syntonisez la station souhaitée, puis maintenez enfoncée la touche MEMORY jusqu'à ce que le numéro de préréglage clignote. Utilisez les touches fléchées pour choisir un emplacement et appuyez à nouveau sur MEMORY.

Le caisson de basses ne fonctionne pas, que vérifier ?

Vérifiez que le caisson est allumé et que le câble de connexion (subwoofer) est bien branché sur la sortie SUBWOOFER de l'amplificateur. Réglez le niveau dans le menu de configuration.

Comment nettoyer l'amplificateur et les enceintes ?

Utilisez un chiffon doux et sec. Pour les taches tenaces, humidifiez légèrement le chiffon avec de l'eau. Ne jamais utiliser de produits chimiques ou de nettoyants abrasifs.

Puis-je connecter un casque ?

L'amplificateur ne dispose pas de sortie casque dédiée. Utilisez un adaptateur si nécessaire, mais évitez de connecter un casque directement sur les bornes d'enceinte.

MODE D'EMPLOI DHT-1356XP DENON

Product photo of a modern audio streaming setup including speakers, audio equipment, and a speaker tower (no visible text or labels)

RDS

Radio TEXT

■ High-Quality Surround Sound Reproduction
• High Resolution 32bit Floating Point DSP
• 96 kHz Processing Circuit

■ Fully Discrete, Equal Power 5 Amplifier Channels, 75 Watts Each

Front 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Center 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

Surround 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)

For optimum Dolby Digital and DTS reproduction, the AVR-1306 features high quality, wideband audio amplification, providing 75 watts power output for each of the 5 main channels. A large capacity power supply includes a high current power transformer along with discrete power output devices on all 5 amplifier channels for highest dynamic range and superb reproduction clarity.

■ DENON's Basic Design for High-Quality Sound Reproduction

• Power Transformer for High Power Driven

The chassis that supports the large transformer has been designed to absorb vibration, and the transformer is housed inside a highly rigid frame to secure it more solidly to the chassis. In addition, a cushioning material has been placed around the core of the transformer to minimize interference on the signal and enable more faithful reproduction of the original sound. The AVR-1306 inherits those low-noise design from higher-end models.

- Twin Drive Rectifier

DENON's Twin Drive Rectifier design uses two rectifying diodes in parallel to bring out the maximum potential of the large transformer. Since the rectifiers recharge the large block capacitors at low impedance, they are able to supply ample current to reproduce deep basses as well as sudden bursts of sound from percussion or other musical instruments.

• Large Aluminum Extruded Heatsink

DENON uses large heatsink made of extruded aluminum. They have been placed in a design that ensures mostly uniform temperatures throughout the heatsink so that the output transistors for all channels can be driven under uniform conditions. This in turn ensures that all channels respond with equal performance to the demands of the audio signals.

■ Wide-Range Play Capability for DVD-Audio and Super Audio CD

The power amp circuits of the AVR-1306 have been meticulously designed to reproduce the exceptionally high sound quality with wide frequency response from 10 Hz to 100 kHz.

■ Cinema Equalizer

The sound from movie sources recorded in Dolby Digital, DTS or other formats emphasizes high-frequency range due to a theater's front speakers being placed behind the movie screen. If this sound is reproduced in the home theater without correction, the high-frequency range is too strong. The AVR-1306 features a Cinema Equalizer to correct those high-frequency components so that the sound is clearer and easier to listen to. (For Dolby Digital, Dolby Pro Logic II, Dolby Digital and DTS surround modes)

■ Personal Memory Plus, for Easy Operation

The AVR-1306 includes the Personal Memory Plus function that automatically remembers the surround mode you last used for each program source, so that you do not need to select the mode again for that program.

■ Acclaimed Customization Feature

As with all of DENON's high-grade A/V receiver, the AVR-1306 lets you adjust delay times and other parameters so that you can customize the performance of the AVR-1306 to suit your own home theater and enhance operating ease. The adjustments are easy to make via a dialog format on the fluorescent display on the front panel. These customized features are then stored, for each source input and surround mode, in Personal Memory Plus so constant readjustments are not required.

■ Multi-Function Preset Memory Remote Controller with Glo-keys

■ DENON's Latest Surround Technology Faithfully Recreates the Surround Sound Produced at the Dubbing Stage.

• DTS 96/24 Decoding for DVD-Video
• DTS (NEO:6)
• Dolby Digital
• Dolby Pro Logic II

■ 5 Channel Stereo Mode

DENON's popular 5 Channel Stereo mode transforms your favorite 2-channel sources such as CD, tape, stereo radio and stereo video sources into exciting surround sound, free of delay effects and unnatural artifacts, from all 5 speakers. This 5 Channel Stereo mode was originally developed by DENON to enhance music lovers' enjoyment with home theater ambience.

■ DENON DSP Surround Modes Add Listening Excitement

Put yourself in the middle of your favorite concert hall and music environments with DENON's DSP acoustic environment simulation modes. These DSP modes add spacious surround sound enhancements to your favorite music and video sources, and include these distinctly different sounding effects:

1.5 Channel Stereo 5. Video Game
2. Virtual Surround 6. Matrix
3. Rock Arena 7. Mono Movie
4. Jazz Club

■ Adjustable Cross-Over Switching

The AVR-1306 supports subwoofer cross-over switching with a choice of 8 cross-over frequencies: 40/60/80/100/120/150/200/250Hz. This lets you more accurately match the performance characteristics of the subwoofer to the main speaker system.

Other features

■ Night Mode for not disturbing others

■ Front Panel Inputs

■ Front A/B Speaker Terminals

■ Frequency Synthesis Tuning

• 56-Station AM/FM Random Preset Memory Tuning
• Auto Preset Memory

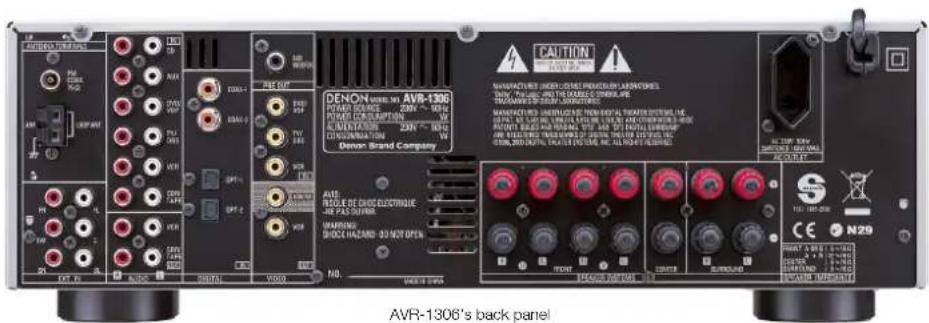

Input/Output Terminals for Every A/V System (AVR-1306)

Audio Inputs8 Analog Inputs CD, (TUNER), DVD/VDP, TV/DBS,AUX, VCR, CDR/TAPE, VAUX(FRONT)6 Analog EXT. Inputs FRONT L/R, CENTER,SURROUND L/R, SUBWOOFER3 Digital Inputs OPTICAL X 1COAXIAL X 2
Audio Outputs1 Analog PRE OUT Terminal SUBWOOFER2 Analog REC OUT Terminals VCR, CDR/TAPE
Video Inputs4 Composite Inputs DVD/VDP, TV/DBS, VCR, VAUX (FRONT)
Video Outputs2 Composite Outputs VCR, MONITOR
Specifications■ AVR-1306Power Amplifier SectionRated output *TI-D figures are power amp stage values.Front 75 W + 75 W (6 ohms, 20 Hz - 20 kHz, 0.08 % THD)110 W = 110 W (6 ohms, 1 kHz, 0.7 % THD)Center 75 W (6 ohms, 20 Hz - 20 kHz, 0.08 % THD)110 W (6 ohms, 1 kHz, 0.7 % THD)Surround 75 W + 75 W (8 ohms, 20 Hz - 20 kHz, 0.08 % THD)110 W + 110 W (6 ohms, 1 kHz, 0.7 % THD)
Preamplifier SectionInput sensitivity/ImpedanceCD, DVD/VDP, TV/DBS, VCR, CDR/TAPE, AUX,V.AUX(FRONT)200 mW/47 kohmsOutput level/Load ImpedanceSUBWOOFER 1.2 V/10 kohmsCDR/TAPE, VCRFrequency responseSignal-to-noise ratioTone control	200 mW/47 kohms10 Hz - 100 kHz (11, -3 dB) (Tone Defeat On)98 dB (II IF-A weightco) (Tone Defcat On)Treble: ±10 dB at 10 kHzBass: ±10 dB at 100 Hz
FM SectionTuning frequency rangeUsable sensitivity	87.5 - 108.0 MHz1.0 μV (11.2 dB)
AM SectionTuning frequency rangeUsable sensitivity	522 - 1611 kHz18 μV
GeneralPower supplyPower consumptionDimensionsWeight 10.4 kg	AC 230 V, 50 Hz350 W434 (W) x 147 (H) x 417 (D) mm

■ 5.1 ch Speaker System: SYS-56HT

SC-A56 (Satellite speaker system)
Type	Full-range 2 speakers
Magnetic shielding	Yes
Input impedance	6 ohms
Dimensions	84 (W) x 189 (H) x 110 (D) mm
Weight 1.2 kg
SC-C56 (Center speaker system)
Type	Full-range 2 speakers
Magnetic shielding	Yes
Input impedance	6 ohms
Dimensions	263 (W) x 84 (H) x 110 (D) mm
Weight 1.4 kg
DSW-56 (Subwoofer system with built-in Amplifier)
Driver unit	16 cm Woofer x1
Amplifier Output	50W (6ohms) / 100 W (Dynamic Power)
Input impedance	22 kohms
Power supply	AC 230 V, 50 Hz
Dimensions	210 (W) x 353 (H) x 379 (D) mm (with fast)
Weight 9.2 kg
