Delice Compact OF2658 - Four TEFAL - Notice d'utilisation et mode d'emploi gratuit

Marque	Tefal
Modèle	Delice Compact OF2658
Type de produit	Four compact
Capacité	24 litres
Alimentation	220-240 V ~ 50/60 Hz
Puissance	1400 W (estimation)
Fonctions	Cuisson, Grill, Turbo (convection), Décongélation, Éclairage

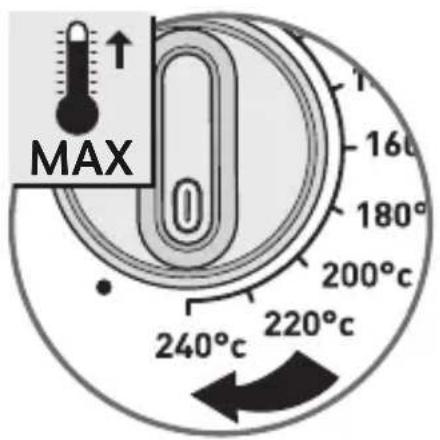

Plage de température	Jusqu'à 240 °C
Minuteur	Mécanique, jusqu'à 60 minutes
Éclairage intérieur	Oui
Parois autonettoyantes	Oui (Cleantech)
Porte à double vitrage	Oui
Grille réversible	Oui
Panier turbo	Oui (selon modèle)
Nettoyage	Parois à revêtement autonettoyant, ne pas utiliser de produits abrasifs
Sécurité	Prise avec terre, câble d'alimentation protégé, surfaces chaudes
Pièces détachées	Disponibles via service après-vente Tefal

FOIRE AUX QUESTIONS - Delice Compact OF2658 TEFAL

Comment allumer le four Tefal Delice Compact OF2658 ?

Branchez l'appareil, tournez le bouton de mode sur la fonction souhaitée (cuisson, grill, turbo, etc.), puis réglez la température et le minuteur. Le voyant rouge indique que l'appareil est sous tension, le voyant vert indique que la température est atteinte.

Quelle est la capacité de ce four ?

Le four a une capacité de 24 litres, idéal pour les petits plats et les repas quotidiens.

Comment utiliser la fonction Turbo ?

La fonction Turbo utilise la convection pour faire circuler l'air chaud autour des aliments, garantissant une cuisson homogène et rapide. Placez les aliments dans le panier turbo si fourni, ou sur la grille réversible, et sélectionnez le mode Turbo sur le bouton de fonction.

Comment nettoyer les parois autonettoyantes ?

Les parois sont recouvertes d'un revêtement Cleantech qui facilite le nettoyage. Essuyez simplement avec un chiffon humide après refroidissement. N'utilisez pas de produits abrasifs ni d'éponges métalliques.

Que faire en cas de fumée lors de la première utilisation ?

Il est normal d'avoir un peu de fumée lors de la première utilisation. Faites chauffer le four vide à température maximale pendant 20 minutes pour éliminer les odeurs de neuf.

Comment régler le minuteur ?

Tournez le bouton du minuteur au-delà du temps souhaité, puis revenez en arrière jusqu'au temps désiré. Le minuteur fonctionne mécaniquement et émet un signal sonore en fin de cuisson.

Puis-je utiliser du papier aluminium dans le four ?

Évitez de placer du papier aluminium au fond du four ou sur les résistances, car cela pourrait endommager l'appareil. Vous pouvez l'utiliser sur la grille, mais pas en contact direct avec les éléments chauffants.

Comment décongeler des aliments avec ce four ?

Sélectionnez la fonction Décongélation sur le bouton de mode. Placez les aliments dans le four sans les recouvrir. La fonction utilise une circulation d'air douce pour décongeler sans cuire.

Quels accessoires sont inclus avec le four ?

Le four est livré avec une grille réversible et, selon le modèle, un panier turbo. Le plat de cuisson n'est pas fourni.

Que faire si le four ne chauffe plus ?

Vérifiez que le four est correctement branché et que le minuteur est réglé. Si le problème persiste, contactez le service après-vente Tefal agréé. N'essayez pas de réparer l'appareil vous-même.

MODE D'EMPLOI Delice Compact OF2658 TEFAL

Tefal®

DELICE 24 L

EN

ZH

Two different food cooktop models: a standard one with a flat lid and a standard one with a black oven (no visible text or symbols)

Summary·目錄

1. Description - 介紹 ____ 3
2. Safety instructions - 安全指引 ____ 6
3. Installation - 安装 10
4. Cooking modes - 煮食模式 ____ 11
5. Cleaning advises - 清潔建議 ____ 15
6. User guide - 使用說明 ____ 17

1. Description - 介紹

OF2611 Grill OF2658Turbo

Line drawing of a rectangular tray with horizontal slats and a labeled number 8 pointing to the top edge (no text or symbols on the tray itself)

Line drawing of a woven mesh tray with a 9th-order angle标注 (no text or symbols on the tray itself)

1 - Hinged top heating element
2 - Interior light
3 - Self cleaning internal walls
4 - Double wall door

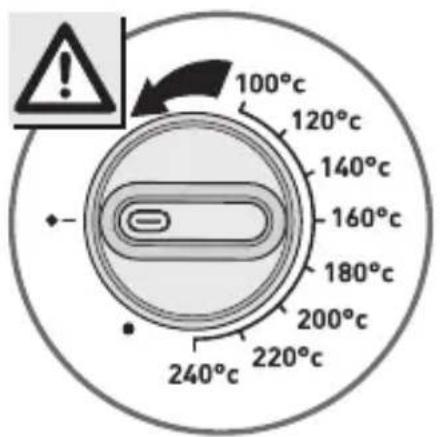

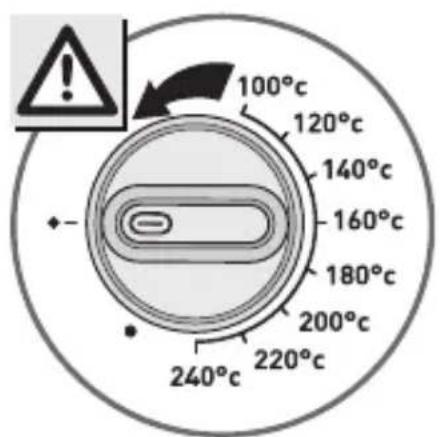

5 - Temperature setting knob
6 - Operating mode knob :

a - Oven / b - Grill / c - Turbo*

d - Defrost function* / e - Light

7 - Timer knob
8 - Reversible shelf
9 - Turbo basket*

1 - 頂部發熱線
2 - 内壁燈*
3 - 自動清洗內壁
4 - 雙層門
5 - 溫度調節旋鈕
6 - 調較旋鈕：

a-焗/b-燒烤/c-特快焗*

d - 解凍功能* / e - 内壁燈

1. 時間旋鈕
   8 - 兩面網架
   9 - 強效烤架*

Defrosting, ideal for all the food, even the most delicate.

解凍功能適用於所有食物，包括脆的食物

Powerful grill to crisp and brown all your preparations: meat, fish, crèmes brûlées, ...

燒烤功能 糖 蛋 … 將所有食物變得金黃：肉類、魚類、焦糖燉蛋…

Turbo function*: convection makes hot air circulate around the food and generates homogeneous and fast cooking results.

特快焗功能*: 受熱空氣對流令食物平均受熱，達到快捷均勻的煮食效果。

Light function, to watch your food after the cooking.

內壁燈功能 察確保閣下於烹調時可觀察食物

Oven function

焗爐功能

Simple diagram showing clock, pill, and thermometer icons (no text or labels)

Indicator lights

On indicator lights: a red indicator shows that the oven is powered, a green indicator shows that the desired temperature is reached.

指示燈

指示燈亮起時：紅燈表示焗爐已接上電源，綠燈表示已調較到所需溫度。

2. Safety instructions - 安全指引

EN Important safeguards

Take the time to read all instructions and refer to the "User Guide".

• This appliance is not intended to function using an external time-switch or a separate remote control system.
• For your safety, this appliance meets applicable standards and regulations (Low Voltage Directive, Electromagnetic Compatibility, Food Compliant Materials, Environment, ...).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children must be supervised to ensure that they do not play with the appliance.
• Do not move or carry the appliance during use.
• This appliance is not designed to be built-in to a cupboard. Place the oven on a flat, stable, heat-resistant surface or on a kitchen counter that can stand a minimum temperature of 90°C. Let the air circulate all around the appliance.
• During use, the rear face of the appliance must be placed against a wall.

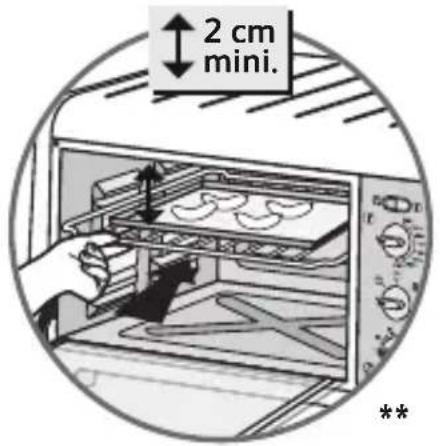

• Leave approximately 2 cm between the food and the grill element in grill function.
• Run your oven (without shelf) for the first time (EMPTY) for 20 minutes, at maximum temperature, to eliminate the smell of newness. Some smoke may be produced initially, this is perfectly normal and will soon disappear.
• Check that the mains voltage is that shown on the appliance (alternating current only). This appliance must be earthed.

• Do not use the appliance if :

• It has a faulty or damaged power cord,

• The appliance has been dropped and shows visible signs of damage or of malfunction.

In each of these cases, to avoid any risks to your safety the appliance should be sent to the nearest approved service center.

In all cases, the appliance must be sent to the nearest approved after-sales service centre so as to avoid any danger.

• To ensure safety, if the power cord is damaged, it must be replaced by either the manufacturer, its approved service centre or similar qualified persons.
• Make sure that the electrical installation is sufficient for supplying an appliance of this wattage.
• Always use an earthed plug to connect the appliance.
• Do not let the cord hang down or touch hot parts of the oven.
• Do not disconnect the appliance by pulling on the cord.
• Only use an extension lead that is in good condition, with an earthed plug and power cable at least equivalent to the cord supplied with the product.

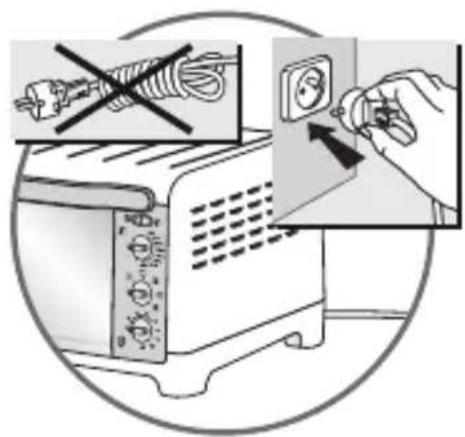

• Disconnect the appliance when not in use and before cleaning it.
• So as to avoid electric shocks, do not immerse the electric cord, plug or appliance in water or any other liquid.
• Do not place the appliance close to a heat source. Do not put it on the top of another appliance.

• Surfaces may become hot during use. This electrical appliance functions at high temperatures which may cause burns. Do not touch the metal parts or the glass of your oven.

• The door and the external surface may become hot when the appliance is in use.

• Use the handles and knobs. Use oven gloves when necessary.
• Handle the door of your oven with care: any hard shocks or excessive thermal constraints may cause the glass to break. The door is made of tempered glass to prevent any risk of glass being projected and consequently any danger for the user.
• If any part of the product should catch fire, do not attempt to extinguish with water. Smother flames with a damp cloth. Disconnect the appliance and do not open the door.
• Do not keep flammable products close to or under the unit where the appliance is placed.
• Do not operate the appliance under a wall unit, shelf, or close to flammable materials such as blinds, curtains, drapes, etc.
• Do not use the appliance as a source of heat.
• Never put paper, cardboard or plastic in the appliance and do not place anything on top (utensils, racks, objects, etc.).
• Do not place dishes directly onto the bottom heating element.
• Do not place aluminium foil under the appliance or between the heating elements or on the side panels or on the bottom heating element. You will risk to damage the oven functions seriously or to damage the work surface.
• Do not put anything into the air vents, or obstruct them.
• For walls and oven floor: do not use harsh cleaning products (such as caustic soda cleaning compounds), or scouring sponges, or abrasive pads.
• For your own safety, never dismantle the appliance yourself; as this will negate the guarantee; send to an approved service centre. Any commercial use, inappropriate use or failure to comply with the

instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

- As this appliance is for household use only, it is not intended for use in the following applications and the guarantee will not apply for:

• staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• The lamp* must be exclusively used for the lighting of the oven. It must not be used on lamps for the lighting of premises.

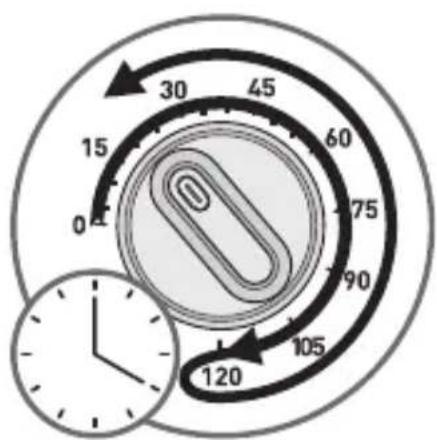

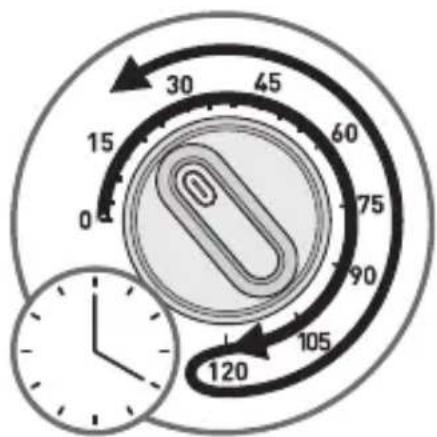

• To use the timer: turn the timer knob passed the time required, then move the timer knob back to the required cooking time.
• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply.

Keep these instructions

Environment protection first!

① Your appliance contains valuable materials which can be recovered or recycled.
Leave it at a local civic waste collection point.

ZH 繁體中文

重要注要事項：

• 請詳閱以下守則。
• 此爐具並不能以外置計時開關，或遙系控系統操作。
• 為確保安全，這件爐具遵照應用爐具的標準與規定製造。(低壓準則、電磁相容性、與食物接觸的物料、環境等)。
• 此爐具並不適用於以下人士：孩童、傷殘人士、長者、智障人士、對此爐具之運作不熟識或缺乏操作經驗者。以上人士如要使用此爐具，必須有能確保其安全之負責人監察陪同，或在其使用前說明此爐具的使用守則。
• 該負責人必須監管孩童，確保他們不會玩弄爐具

• 鑒於多樣的有效標準，如在購買爐具的國家以外使用產品，請於指定的維站修站進行檢查及維修。

• 請檢查輸電電壓與爐具上所顯示的電壓是否相符合。(僅為其他標準下)。

• 如遇以下情況，切勿使用爐具：
• 供應線有瑕疵或出現破損。
• 燼具倒下和功能明顯下降及出現反常情況。
• 如遇以上任何情況，爐具必須送往最近的指定服務中心進行維修，以免發生危險。
• 如果電源線受損，必須由指定服務中心或擁有相關專業資格之技工，使用相同的造料進行更換，以防發生危險。
• 請確保電力裝置足以提供爐具負荷。
• 燼具應常插上接地線插頭 (16A)。
• 不要將供應線懸著或接觸焗爐熱的部分。

移·爐具使用期間，•城籠移動。切勿拉扯電源供應線。

• 身 此爐具並收要進行計製造、請將籠籠包或遇上雷置於平面、穩固和耐熱的煮食枱或能 雨雨時，請勿拔下插頭。 抵 90 抵禦90度高溫以上的煮食傢具之上。
• 四 周 • 使用完好的延長線、接地線插頭及與位產品所提供鐵電纖線段相周類管纖氣位置
- 首 建議於首次運作時，不要在爐內爐數時將插頭拔掉。任何東西(不要烤焗食物)。
• 請於食物及電熱元件之間預留至少投進水中或其他液體中。 2cm 首的空間。首次使用焗爐時，如有 輕微的出煙情況或有新機器味，均屬 正常。此正常現象很快就會消失。 • 切勿將爐具放近會發熱或帶電的地方。請勿將爐具置於另一爐具旁。 • 爐具燈只供焗爐照亮之用。此燈不應 當作家居照明用途(按型號而定)。 • 使用爐具時，爐具必須背靠牆壁。

• 使用中時，爐面會隨之變熱。此電子爐在高溫下或會燒焦食品。切勿接觸爐具的金屬面或玻璃。

• 燼具使用中時，門蓋及爐面的溫度可以很高。

• 切勿將鋁紙放在爐具之下來保護煮食枱面。切勿將易燃物品放入爐具，或與內牆或電阻相接觸，會有嚴重損壞焗爐功能或損毀煮食枱之危險。

• 切勿將任何物品放進通風口，切忌將之堵塞。

- 手柄使用手柄或按鈕操作打開內蓋。如將使用強烈的清潔物品(尤其是含碳酸鈉的脫漆劑)、肥皂鋼絲球、海棉磨手套需要，請使用手套。

- 意 安 清潔產品。全 震 因 致 因溫度改變所 爆玻璃爆裂。玻璃門以強化玻璃製造為確保安全，切勿自行拆開爐具。請止 者 聯繫指定的服務中心。 危險。

- 燼口打開時，切勿將碟子擺放在玻璃上。

- 被 水種。拔掉爐具插頭，切忌打開門蓋。用濕溼的毛巾撲熄火焰。

- 切勿在置放爐具的地方附近或傢俬底下儲存易燃物品。

- 切勿將爐具放在掛壁傢具、櫥櫃之下或接近易燃物品(如倉庫、窗簾、帷簾)之附近範圍內使用。

- 切勿將爐具作發熱來源使用。請勿於無人照顧的情況下操作爐具。

切勿請紙張、咭紙或塑膠放進爐具。請勿置放任何東西於爐具上(餐具、鐵格子、物品、盛放已煮熟食物的碟子等)。

• 除 清洗操控板邊時，請勿除去板上的鈕。

* 視乎不同型號

- 閣下的器材為家居產品，只適合家居使用。由於此器材並非為以下場所或人士而設，故以下情況均不包括在保養範圍：

• 只供商店辦公室及其他專業環境之人士使用的廚房範圍。
  -農舍。
• 酒店、汽車旅館及其他具住宅用途的住客。
• 與酒店房間用途相類之範圍。

請好好保存這份守則。

支持環保！

① 閣下的器材含有多種有價值及可循環再造之物料。
請將此器材棄置於指定之收收集站，使之能有效地得以循環再造。

清洗操控板邊時，請勿除去板上的

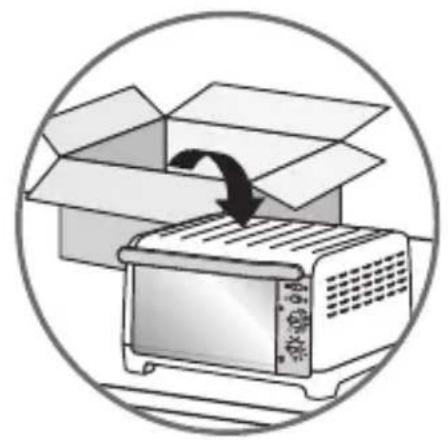

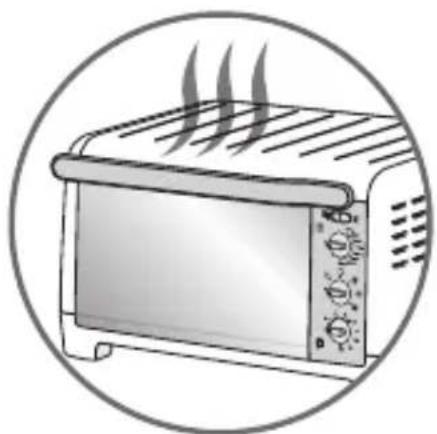

3. Before first use-首次使用前

Illustration of an open cardboard box being placed next to a toaster (no text or symbols)

Illustration of a toaster with an open box and a circular arrow indicating rotation (no text or symbols)

Diagram showing two views of a kitchen appliance: top view with a drain and sink, bottom view with an open oven (no text or symbols)

Illustration of a kitchen appliance with a hand cleaning the oven and a crossed-out 'X' symbol (no text or labels)

Illustration of a toaster oven with steam rising from its side (no text or symbols)

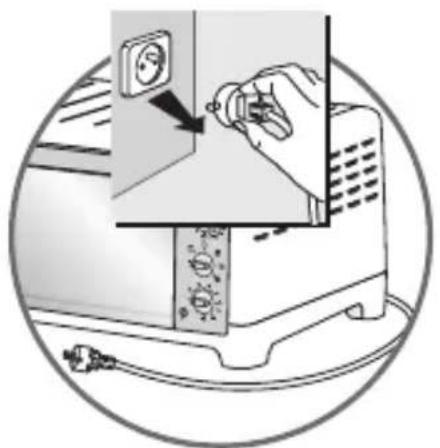

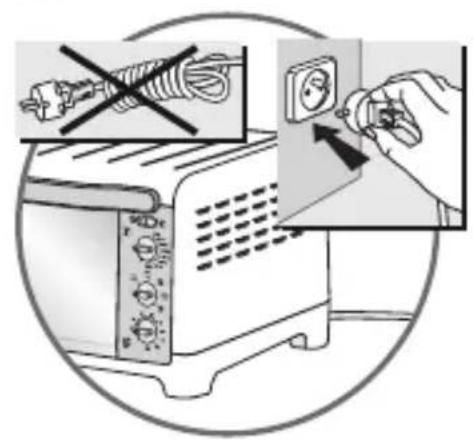

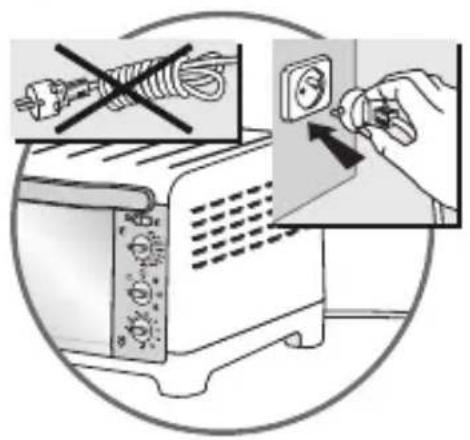

Illustration of a toaster with an electrical outlet and a hand inserting a plug into the tray (no text or symbols)

4. Cooking modes - 煮食模式

Oven function 焗爐功能

Illustration of a microwave oven with a cylindrical stove inside, showing airflow direction (no text or symbols)

Diagram of a device inside a chamber with an eye symbol and internal components (no text or labels)

Diagram of a furnace or reactor with heat dissipation indicated by arrows (no text or symbols present)

Illustration of a hand using a power switch to clean or adjust the top panel of an electric toaster (no text or symbols visible)

* Depending on model 視乎不同型號
** The dish is not supplied with the appliance
產品不附送烤盤

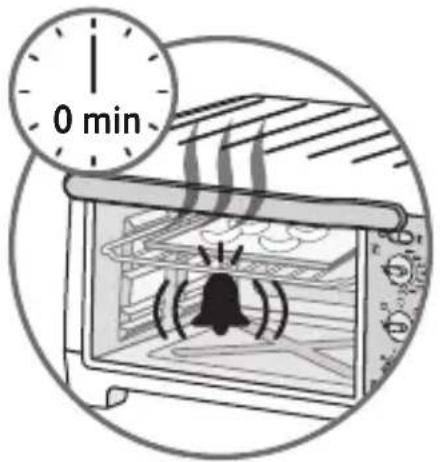

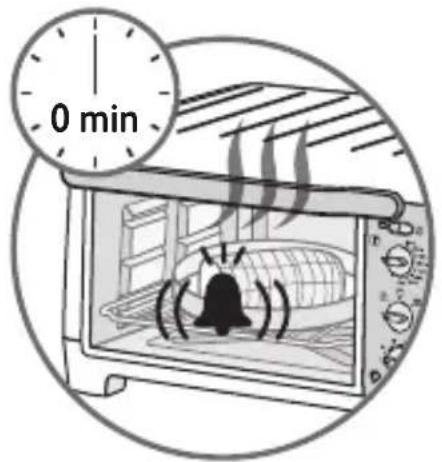

Grill function - 燒烤功能

Diagram of a kitchen oven with a magnified view showing internal structure and window (no text or symbols)

Illustration of a hand using a power switch to adjust or install a device on a microwave (no text or symbols visible)

** The dish is not supplied with the appliance - 產品不附送烤盤

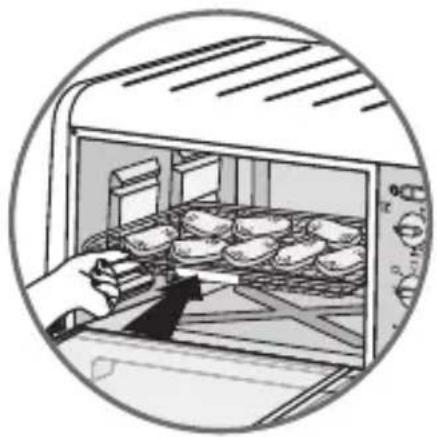

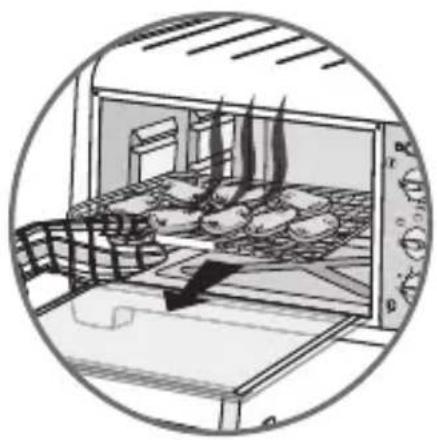

Turbo\* function - 特快焗\*功能

Illustration of a microwave oven with an open lid and a hand inserting a plug into the air gap, alongside a crossed-out electrical socket (no text or symbols present)

Illustration of a hand placing food into an oven with a black arrow indicating direction (no text or symbols)

Illustration of a poultry farm interior with chickens and a feeding tray, no text or symbols present

Illustration of a hand using a power switch to adjust or install a device on a microwave oven (no text or symbols visible)

Line drawing of a woven mesh tray or container (no text or symbols)

The micro-mesh basket\*

allows you to cook food by distributing the heat evenly while keeping it crispy: nuggets, cordons bleus, pre-cooked chips, etc.

網架的煮食方式

播 持

炸口感：炸雞塊、cordons ble

藏薯冷藏薯條等

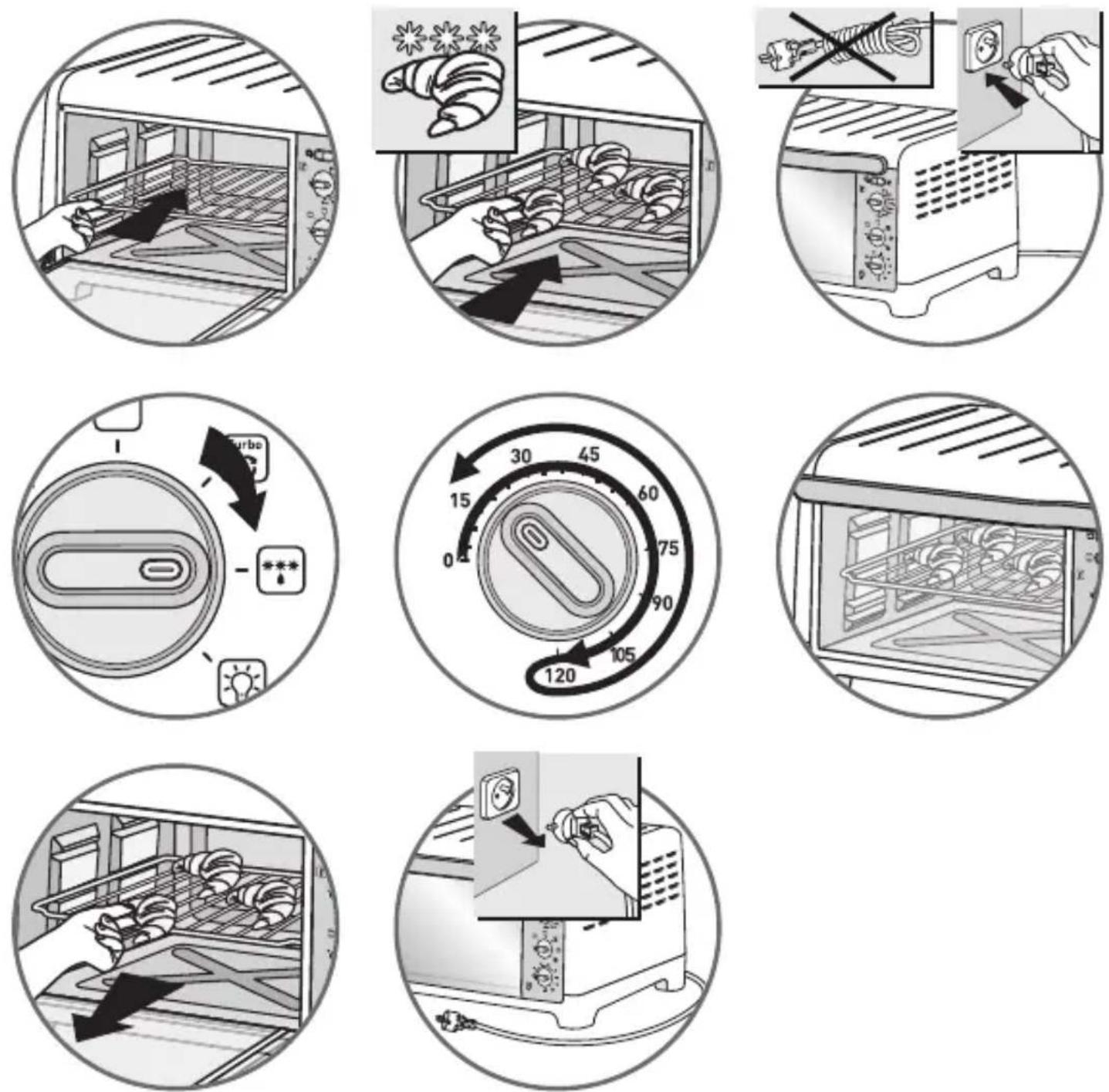

Defrosting ^* - 解凍功能 ^*

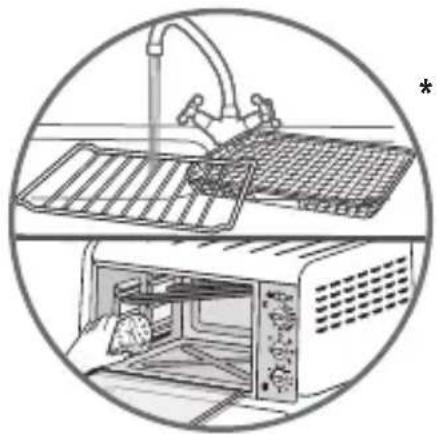

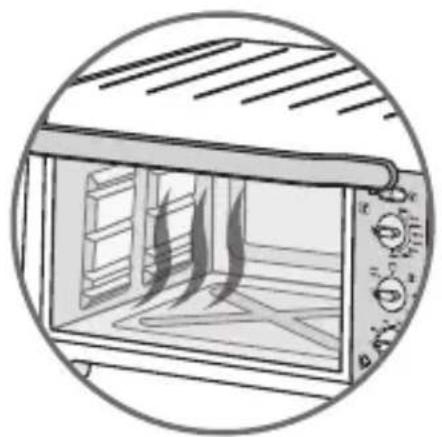

5. Cleaning advises - 清潔建議

Cleantech

Illustration of a toaster with a clock and thermometer, no text or symbols present

Illustration of a toaster oven with a hand placing a cup into the tray (no text or symbols)

Illustration of a microwave oven with a showerhead and a kitchen sink (no text or symbols)

Illustration of a microwave oven with heat exchanger and control knobs (no text or symbols)

Illustration of a microwave oven with visible dust lanes and control knobs (no text or symbols)

Illustration of a hand using a power switch to switch an electrical outlet on a toaster (no text or symbols present)

6. User guide - 使用說明

The cooking times indicated may vary according to the weight, size or thickness of the food as well as its initial temperature. They can be increased or decreased to suit your taste. The temperatures in the table below are given as an indication only.

不同。

小煮食時間僅供參考：按份

			OF2611 Grill	OF2628 Turbo
	225 g x 2				240°C 10 min.		20 min.
							25 min.
	1,4 Kg 240°C					-	65 min.
							70 min.
	1 Kg 240°C					-	70 min.
							80 min.
							75 min.
	1 Kg				240°C	-	30 min.
	1,15 Kg 38 min.
	1,2 Kg 240°C					-	80 min.
					240°C	-	20-25 min.
					240°C	-	20-25 min.
					210°C 10 min.		10 min.
							12 min.
					240°C 15 min. 17 min.

* Depending on model - 視乎不同型號

			OF2611 Grill	OF2628 Turbo
		[CTSY]			220°C	-	30 min.
							40 min.
		[ZAST]		[DSWK]	200°C	-	50 min.
					220°C 10 min.		25 min.
							30 min.
					170°C 5 min. 50 min.
				[KK6B]	220°C 10 min. 30 min.
					180°C 10 min. 50 min.
				[h2SZ]	220°C	7 min. 35 min.
						10 min. 40 min.
					160°C	-	30 min.
							25 min.
					180°C 6 min.		35 min.
							40 min.
	600 g 220						15 - 20 min.
	600 g 200						10 - 15 min.

EN 6 - 7

ZH 8 - 9
