KAPPA

52.11i/62.11i/462.11cfp/682.11cf/693.11i

OWNER'S MANUAL

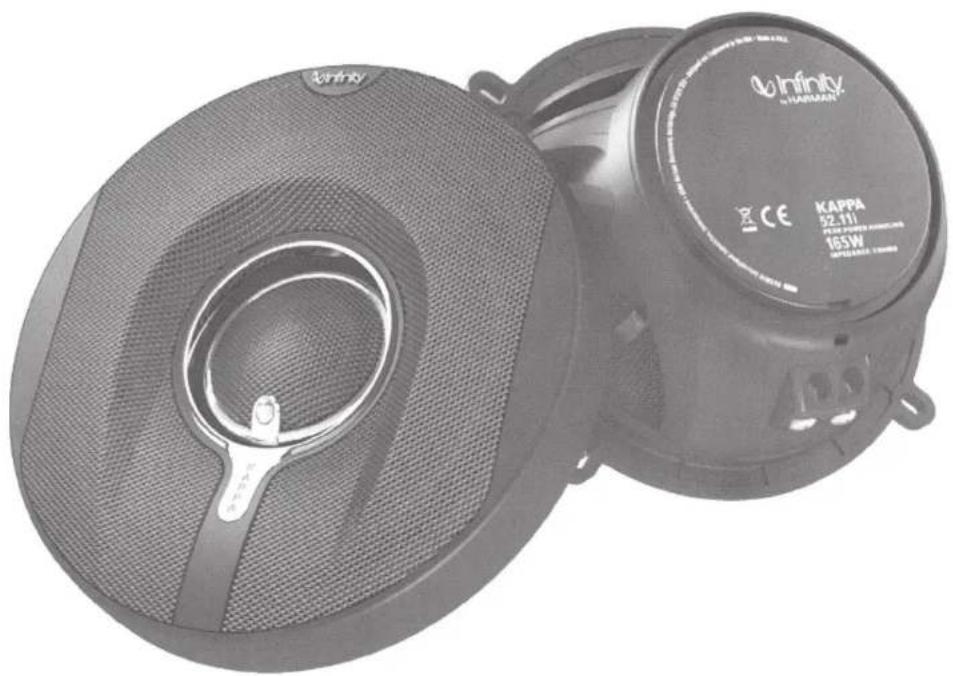

52.11i

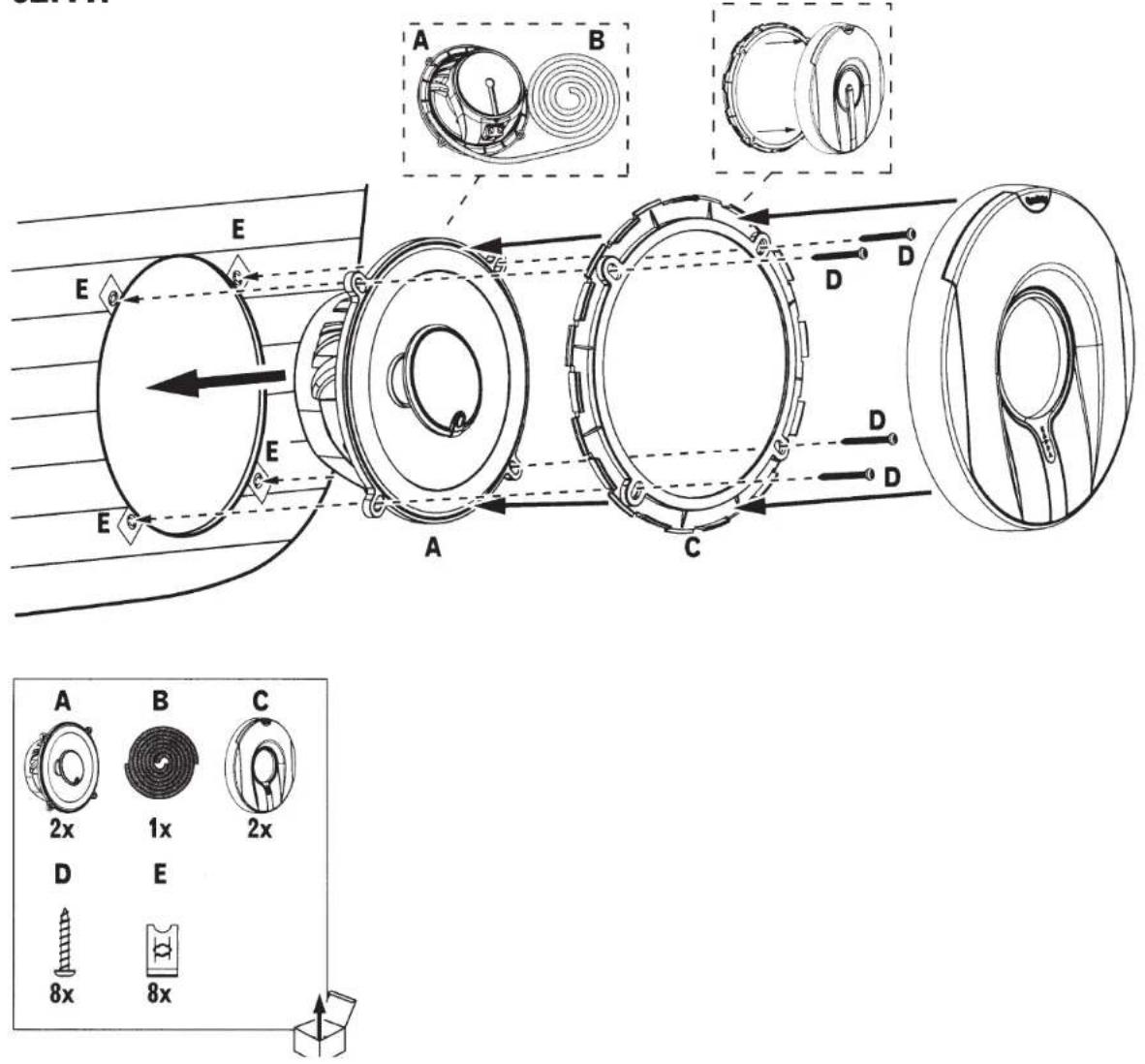

A B C D E E E A B C D E A B C D E 2x 1x 2x D E 8x 8x

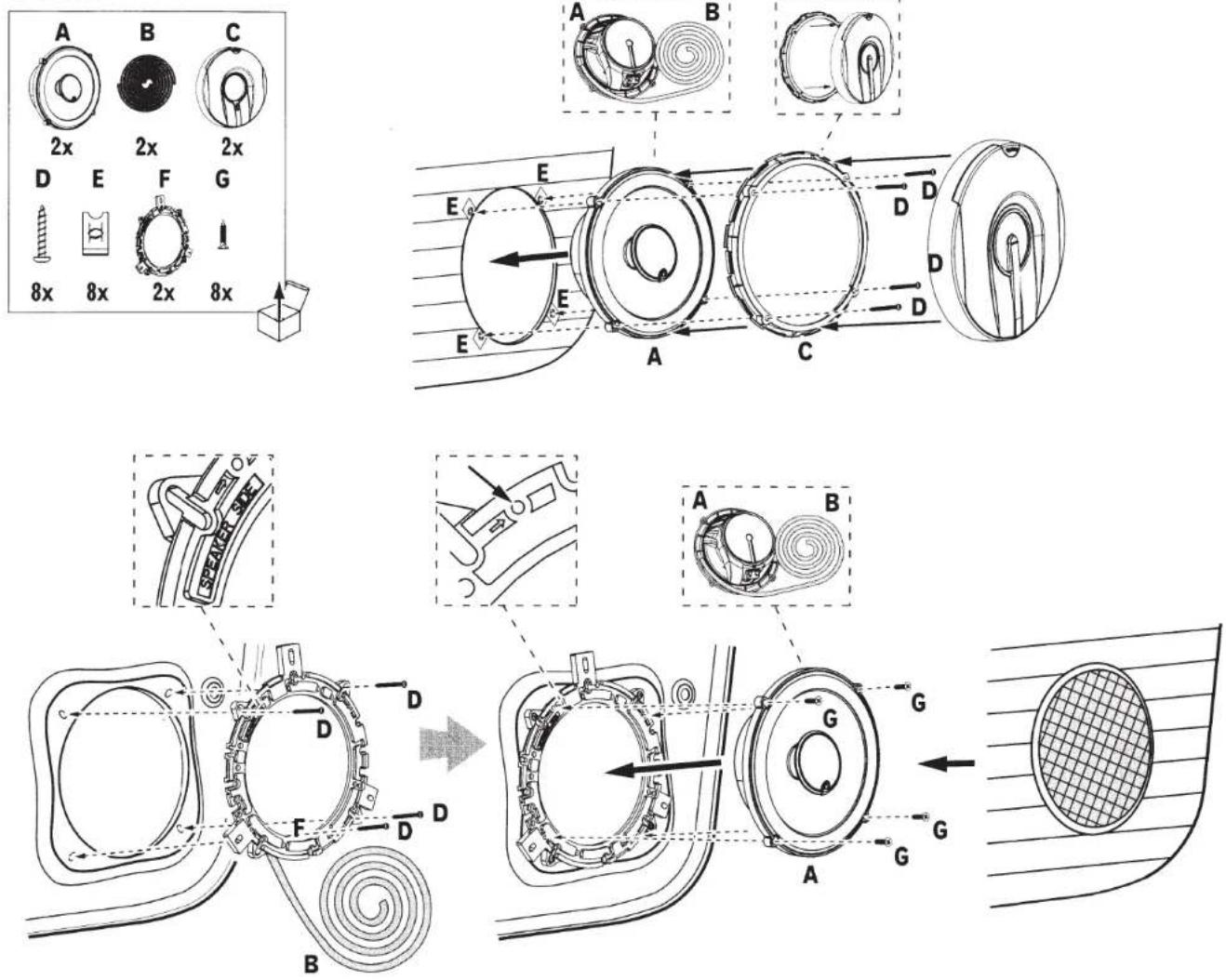

62.11i

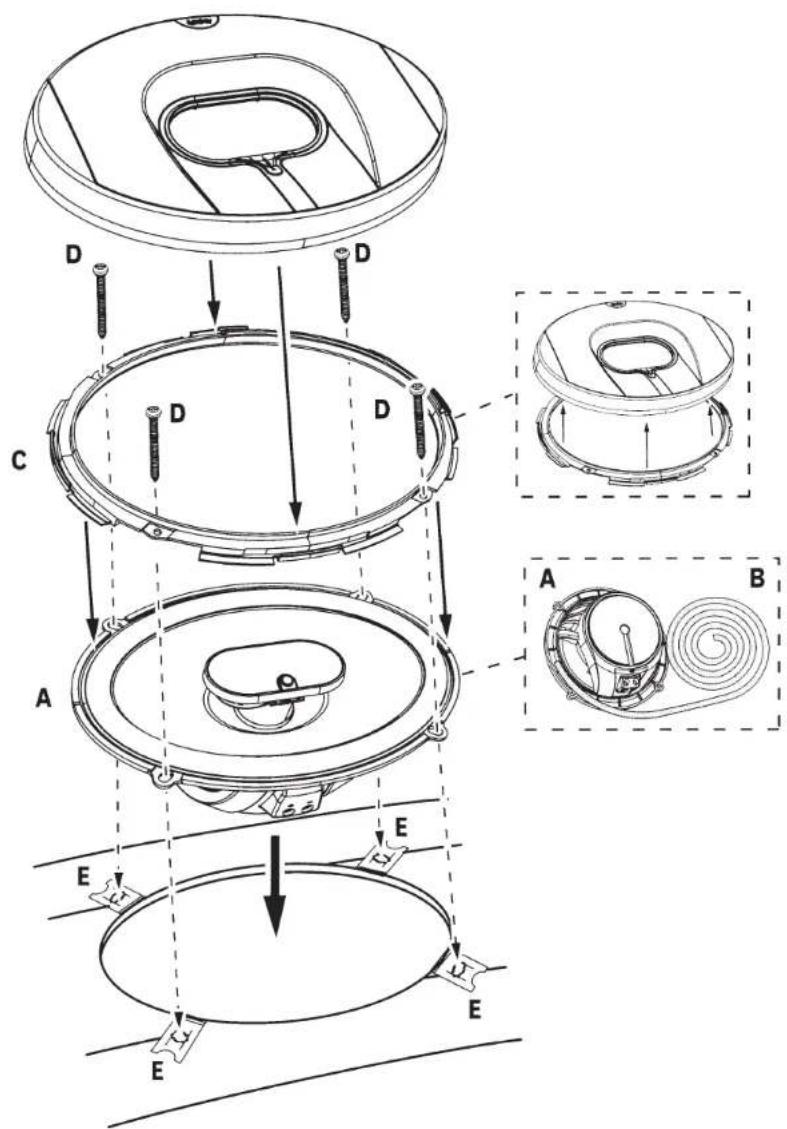

A B C 2x 2x 2x D E F G 8x 8x 2x 8x A B E E D D A C D D A B D D F D D G G A G

462.11cfp

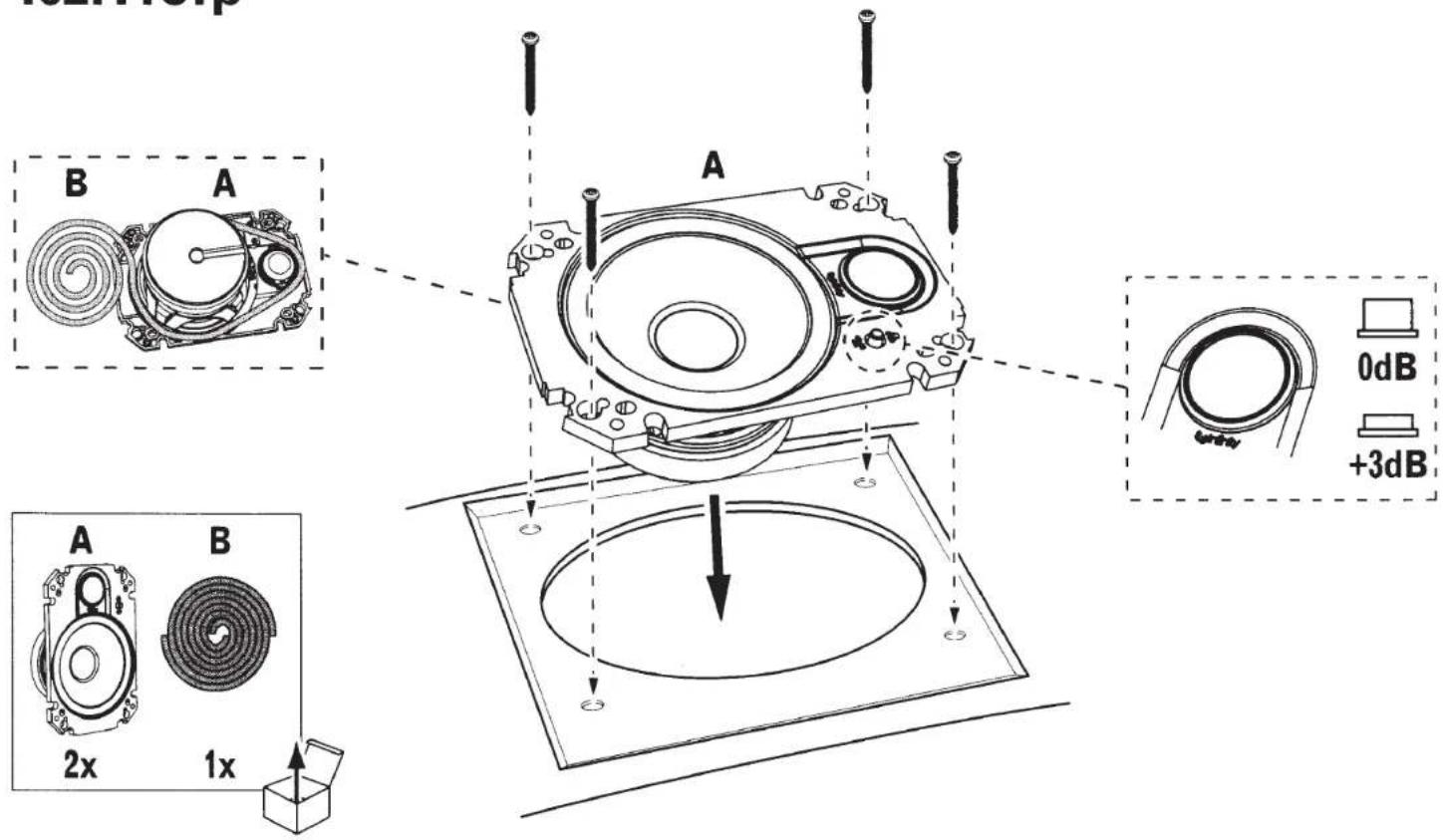

162.45.4p A B A A A 0dB +3dB A B 2x 1x

682.11cf

693.11i

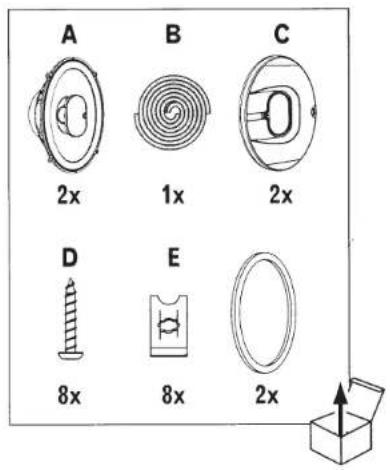

A 2x B 1x C 2x D 8x E 8x 2x

Technical diagram illustrating the assembly of a circular device with labeled components (A, B, C, D, E) and internal structure details.

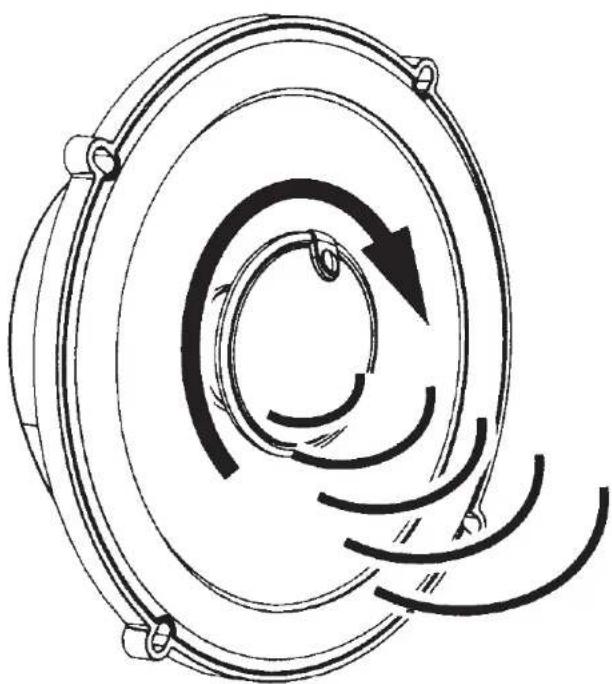

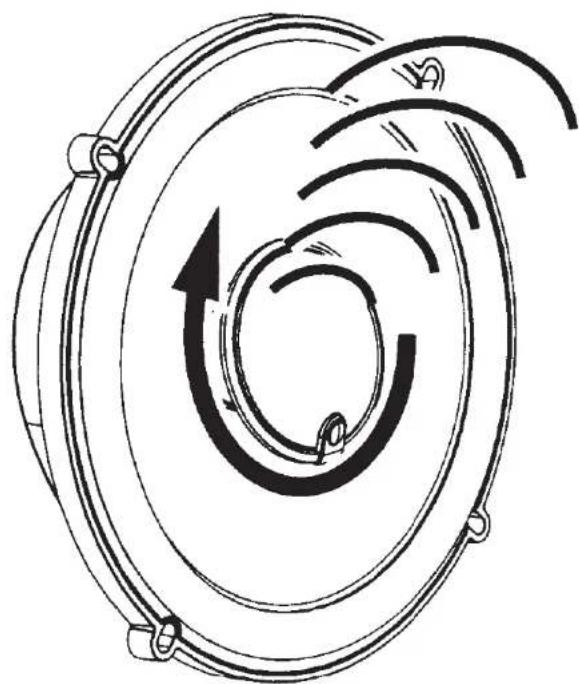

52.11i/62.11i/682.11cf

Diagram of a circular mechanical component with internal curved arrows indicating rotational motion (no text or symbols)

Diagram of a circular mechanical component with curved arrows indicating rotational motion (no text or symbols)

52.11i/62.11i/682.11cf

Simple line drawing of a circular ring with a central hole and a downward arrow, no text or symbols present.

693.11i

Pure diagram of a rounded rectangular object with a central hole and a dashed arrow indicating direction (no text or symbols)

Simple line drawing of a circular ring with a small protrusion at the bottom (no text or symbols)

0dB

+3dB

Simple line drawing of an oval-shaped object with a small circular hole at the bottom (no text or symbols)

0dB

+3dB

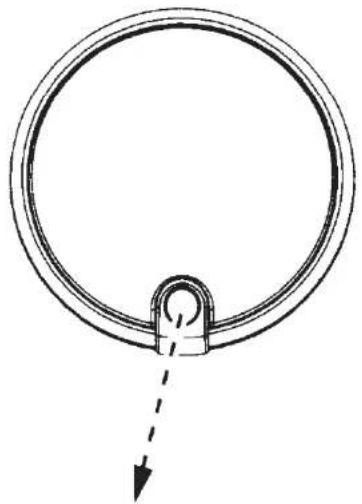

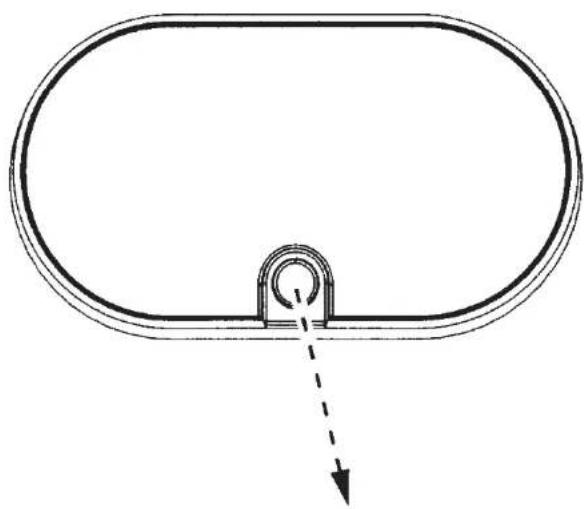

52.11i/62.11i/ 682.11cf/693.11i

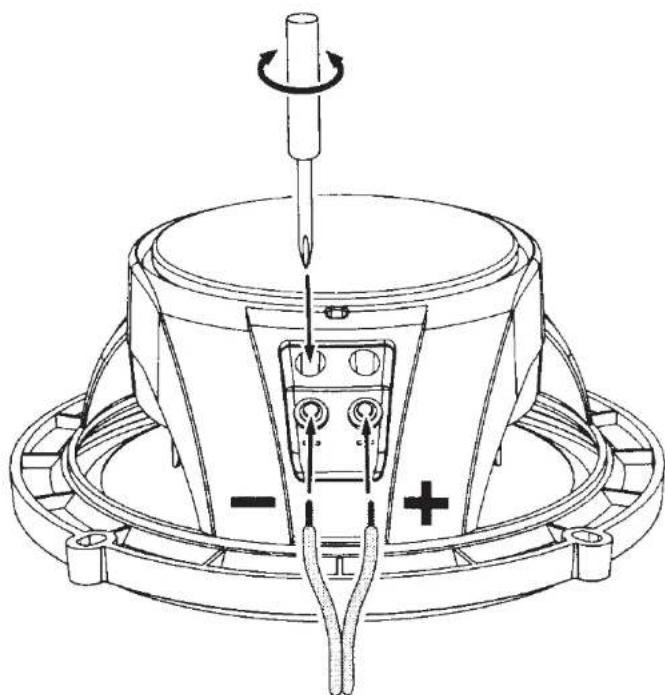

Technical line drawing of a speaker base with a screwdriver and indicator lights (no text or symbols)

462.11cfp

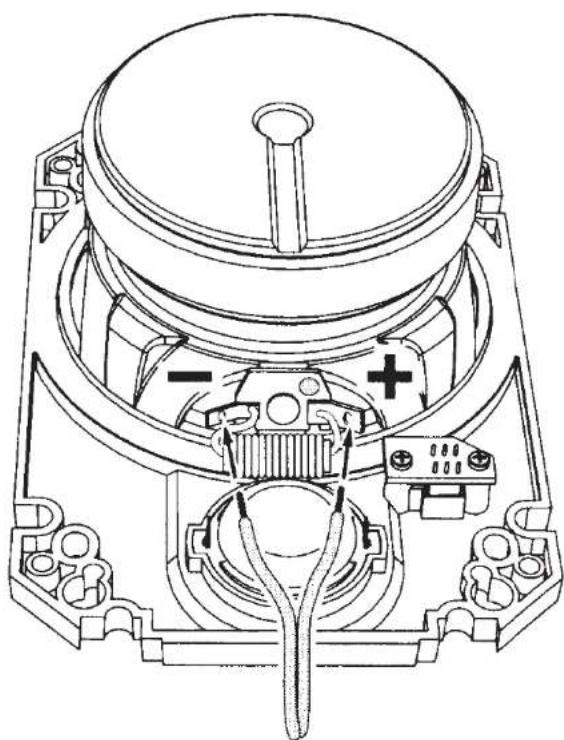

Technical line drawing of a mechanical device with no visible text or symbols

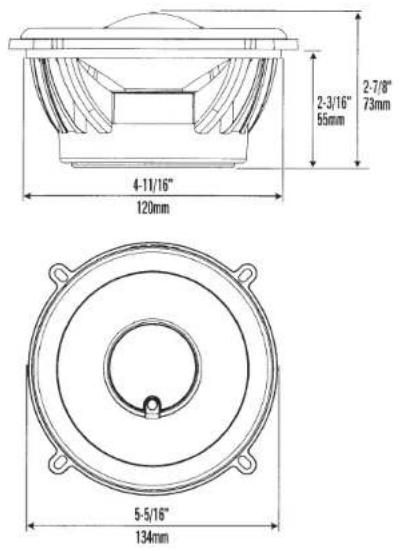

52.11i

62.11i

2-1/8" 53mm 2-15/16" 73mm 5-1/8" 129mm

6-3/16" 156mm

462.11cfp

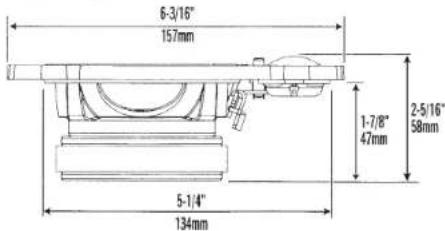

6-3/16" 157mm 1-7/8" 47mm 2-5/16" 58mm 5-1/4" 134mm

4-1/8" 104mm 3-3/16" 80mm

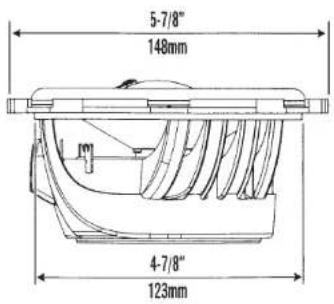

682.11cf

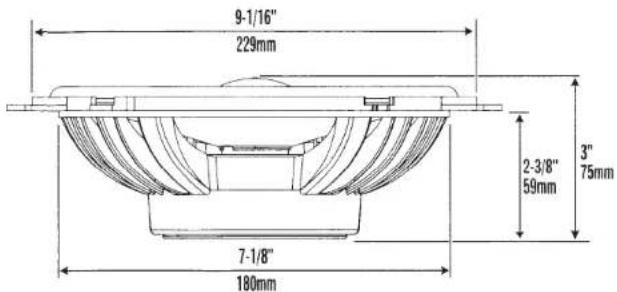

9-1/16" 229mm 2-3/8" 59mm 3" 75mm 7-1/8" 180mm

5-7/8" 148mm 4-7/8" 123mm

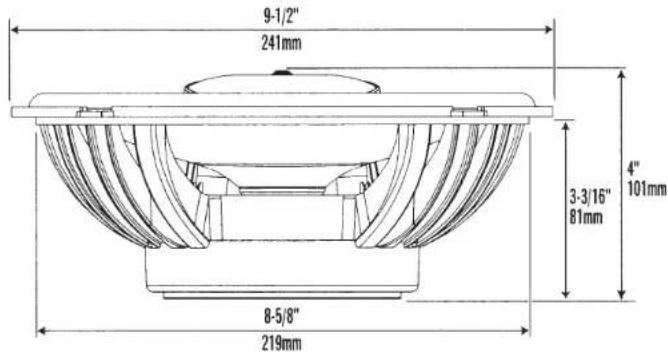

693.11i

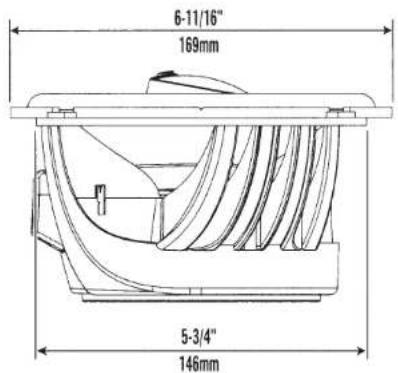

9-1/2" 241mm 3-3/16" 81mm 4" 101mm 8-5/8" 219mm

6-11/16" 169mm 5-3/4" 146mm

	52.11i	62.11i	462.11cfp	682.11cf	693.11i
BL (Tm)	3.51	4.1	2.72	4.26	5.51
DCR (ohm)	2.25	2.3	2.3	2.32	2.35
Mms (g)	8.71	12.73	5.24	16.6	24.45
Sd (cm2)	95.03	128.68	54.11	164.88	227.37
Cms (μm/N)	0.319	0.308	0.331	0.242	0.279
Vas (l)	4.04	7.17	1.36	9.25	20.29
Fs (Hz)	95.5	80.3	120.8	79.4	60.9
Qes	0.95	0.88	1.24	1.06	0.72
Qms	4.23	6.18	6.05	3.76	6.45
Qts	0.78	0.77	1.03	0.82	0.65

Specifications	52.11i	62.11i	462.11cfp	682.11cf	693.11i
Type:	5-1/4" two-way car audio loudspeaker	6-1/2" two-way car audio loudspeaker	4" x 6" two-way car audio loudspeaker	6" x 8" / 5" x 7" two-way car audio loudspeaker	6" x 9" three-way car audio loud-speaker
Peak power handling:	165W	225W	180W	300W	330W
Power handling, continuous average:	55W RMS	75W RMS	60W RMS	100W RMS	110W RMS
Recommended amplifier RMS power range:	5W – 75W	5W – 125W	5W – 100W	5W – 150W	5W – 200W
Frequency response:	55Hz – 25kz	45Hz – 25kHz	75Hz – 25kHz	40Hz – 25kHz	35Hz – 30kHz
Nominal impedance:	2 ohm	2 ohm	2 ohm	2 ohm	2 ohm
Sensitivity (2.83V/m):	94dB	95dB	94dB	94dB	96dB

ENGLISH

GENERAL CARE: Clean the speaker grilles with a damp cloth. Do not use any cleaners or solvents on the grilles or on the speaker units.

WARRANTY: Kappa series speakers are warranted against defects. The duration of the speaker's warranty depends on the laws in the country in which it was purchased. Your local Infinity® car audio retailer can help you determine the length of your warranty. To register your product, please go to www.infinitysystems.com.

HARMAN International Industries, Incorporated 8500 Balboa Boulevard, Northridge, CA 91329 USA

© 2012 HARMAN International Industries, Incorporated. All rights reserved. Infinity is a trademark of HARMAN International Industries, Incorporated, registered in the United States and/or other countries. Features, specifications and appearance are subject to change without notice. Part No. 950-0427-001 Rev. A
