dLAN® Highspeed Ethernet II NEW! Easy Home Networking Power saving Up to 85 Mbps

The new generation of high-speed HomePlug adapters

dLAN® Highspeed II connects your computers and expands your Internet connection into every room of the house over the electrical wiring.

• HomePlug adapter for data communication over the household power supply grid
• High transfer rates of up to 85 Mbps.
- No configuration is necessary – plug it in and enjoy!
- Perfectly informed with the new, clearly arranged 3 LED status display.
- Reduced energy consumption thanks to the patented power save mode

Energy consumption reduced by 30%

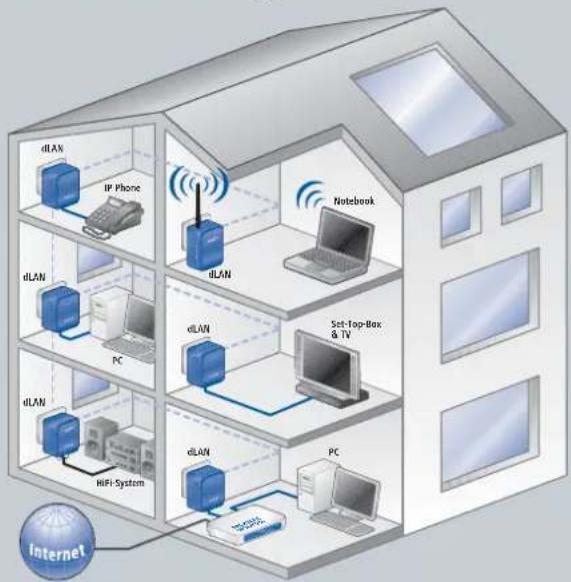


devolo

devilo iRAN® Regional Ethanol

devloLo eLAN High speed II 100% 500x

devilo GAS Advanced 8 SAP-605-01

dLAN® Highspeed Ethernet II

dLAN Highspeed Ethernet II dLAN Highspeed II Starter Kit dLAN Highspeed II Network Kit

Highspeed Ethernet II: Out of the box. Into the wall outlet. Network.

The new generation of high-speed HomePlug adapters connects your computers and brings the Internet into every room of the house over the electrical wiring. Now with patented power save mode and new, clearly arranged 3-LED design. Unlike wireless networks (WLAN), thick walls and

long distances make no difference to HomePlug. the HomePlug technology uses the household electrical wiring as the network cable – offering a range of up to 200 m (656"). Fast and secure surfing on the Internet with high transfer rates of up to 85 Mbps and DESpro encryption.

Application scenarios:

Simple network data transfer (PC to PC)


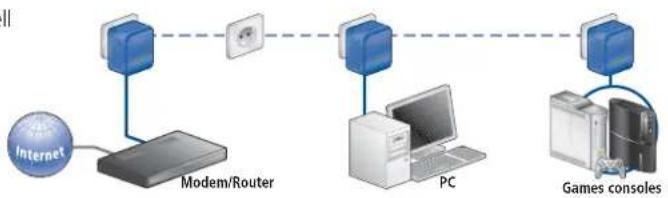

Internet extension as well as online gaming with games consoles


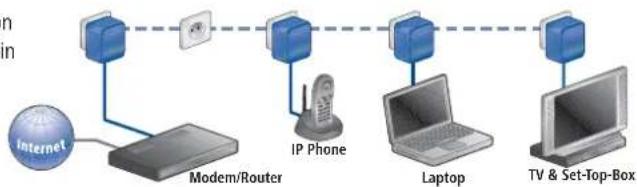

Voice-over-IP, video extension and transfer to any location in the house


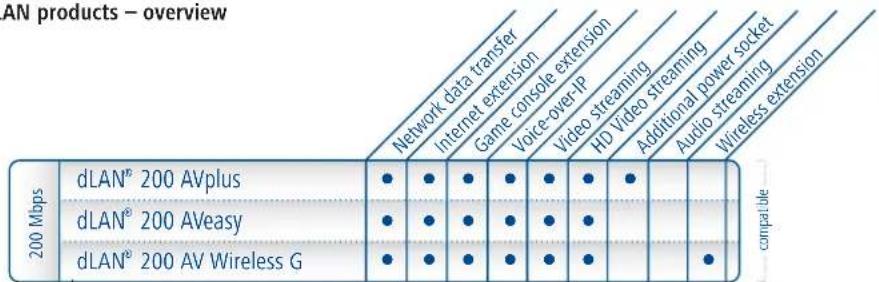

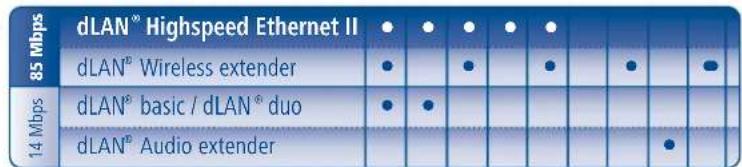

dLAN products – overview

compatible

Product-Highlights

• Perfectly informed with the new, clearly arranged 3-LED status display.
• Reduced energy consumption thanks to the patented power save mode: energy consumption is reduced by 30% in standby mode.
• Long range of 200 m (656') in buildings – dLAN works in every room, anywhere in the building.
• High transfer rates of up to 85 Mbps thanks to the HomePlug technology.
• Setting up your home network is easy with additional network-compatible devices such as network printers or NAS hard drives and the dLAN adapters by devolo.
• No configuration is necessary – plug the adapter into the power outlet, connect it to your computer via the network cable and you are ready to go!
  • High interception protection thanks to DESpro encryption.
• For pros: Configuration software for PC (Windows XP / Windows Vista), Mac and Linux is included.
  • Full compatibility with devolo adapters of the first HomePlug generation (14 or 85 Mbps).
  • 3-year warranty!

System requirements

• Optimally suited for Windows ^ XP32bit/Vista32bit/64bit, Linux ^ and Mac OS ^ X
  • Available network port, on a PC, modem/router or other Home Entertainment devices (RJ45)
  • Additional dLAN ^® adapter (HomePlug 1.0) for networking over the household electrical grid

Security features

- DESpro encryption protects the dLAN ^ network against intruders for maximum security without extensive configuration work.

devolo green-it Responsible and sustainable www.devolo-green-it.com PowerSave 30% less Highly Recyclable Active Waste Management RoHS Compliant
