be quiet!

GERMANY'S #1 IN POWER SUPPLIES SINCE 2006*

SYSTEM POWER 7

BETTER, QUIETER, MORE RELIABLE

700W · 600W · 500W · 450W · 400W · 350W · 300W

Best price to performance system builds

Silent office or home PCs

Entry to mid-level gaming systems

Value-conscious and quality-oriented SIs

HIGHLIGHTSIDEAL FOR

96% of power available for 12V

Meets current and future standards

Highest efficiency in the class

Market leader in quiet solutions

Better, Quieter, More Reliable

Your customers deserve more, and you want the best price-for-performance available - so be quiet! designed the new System Power 7. Offering the best possible combination of power, quietness, features and efficiency, System Power 7 lets you build cost-effective systems with superior performance - a key differentiator in these days of identical commodities.

New and improved features »

• 120mm be quiet! fan reduces system noise
  • Certified 80PLUS Bronze / Silver efficiency (up to 90%)
  • Stronger +12V rails support bigger system builds
  • Supports Multi-GPU Systems based on ATI or nVidia graphic cards (400-700W)
• Sleeved cable lengths for improved cooling and more attractive appearance (450-700W)
  • Meets Intel C6, ErP 2013 and Energy Star 5
  • Power consumption in stand by below 0.25W
• Safe operation in ambients of up to 40°C
  • Full suite of top safety protections defends against over-currents, over- and under-voltages, short circuits, overheating and overloads, thus safeguarding valuable components
  • Follows RoHS, WEEE and REACH regulations
  • German product conception, design and quality control
• Three year warranty

System Power 7 »

An excellent choice for stability, performance and superior quiet. From the #1 manufacturer of PSUs in Germany for six years running.

SYSTEM POWER 7

BETTER, QUIETER, MORE RELIABLE

Technical Data »

IN GENERAL	Continuous power (W)	700W	600W	500W	450W	400W	350W	300W
	Model BN146 BN145 BN144 BN143 BN142 BN141 BN140
	Voltage / Frequency 100-240Vac	50-60Hz	100-240Vac50-60Hz	100-240Vac50-60Hz	100-240Vac50-60Hz	100-240Vac50-60Hz	100-240Vac50-60Hz	100-240Vac50-60Hz
	ATX 12V 2.31 / EPS 12V 2.92	√/√	√/√	√/-	√/-	√/-	√/-	√/-
	Dimensions (LxWxH)	150 x 140 x 86	150 x 140 x 86	150 x 140 x 86	150 x 140 x 86	150 x 140 x 86	150 x 140 x 86	150 x 140 x 86
	be quiet! fan (mm)	120	120	120	120	120	120	120
	Noise level at 20 / 50 / 100% load	15.4 / 15.4 / 32.5	15.7 / 15.7 / 26.8	13.9 / 13.9 / 24.7	13.9 / 13.9 / 17.7	15.5 / 16.0 / 25.2	14.5 / 15.1 / 23.1	13.9 / 14.7 / 20.7
	Efficiency % (at 230V)	up to 90%	up to 90%	up to 90%	up to 90%	up to 87%	up to 87%	up to 87%
	12V Rails	4	4	2	2	2	2	2
	Active PFC	√	√	√	√	√	√	√
	OCP, OVP, UVP, SCP, OPP, OTP	√	√	√	√	√	√	√
	Certifications	80Plus SilvernVidia SLIAMD CrossFireX	80Plus SilverAMD CrossFireX	80Plus Silver	80Plus Silver	80Plus Bronze	80Plus Bronze	80Plus Bronze
	Energy Star 5.0 compatible	√	√	√	√	√	√	√
	ErP Lot 6 ready	√	√	√	√	√	√	√
	Lifetime of fan at 25°C (h)	100.000	100.000	100.000	100.000	100.000	100.000	100.000
CABLES	No. of cables	8	7	5	5	5	5	4
	Maximum cable length (cm)	110	110	110	110	110	100	100
	Length of ATX-connection cable (cm)	55	55	55	55	50	45	45
	Sleeved cables	√	√	√	√	-	-	-
CONNECTORS	ATX-Mainboard (20+4-pin)	1	1	1	1	1	1	1
	PCI-Express (6-pin/6+2-pin)	4	2	2	2	2	1	-
	P8-/P4-connector	1x P4+4	1x P4+4	1x P4+4	1x P4+4	1x P4+4	1x P4+4	1x P4+4
	S-ATA (5-pin)	9	9	6	6	6	4	4
	IDE (4-pin)	3	3	2	2	2	2	2
	FDD (Floppy)	1	1	1	1	1	1	1

Output Data »

SYSTEM POWER 7300W	AC Input	100-240Vac 50-60Hz 4-2A
	DC Output	3.3V	5V	12V1	12V2	-12V	5VSB
	Max.Current	21A	15A	18A	18A	0.3A	2.5A
				24A
	Max.Combined Power	103W		288W		3.6W	12.5W
		300W
SYSTEM POWER 7350W	AC Input	100-240Vac 50-60Hz 5-2.5A
	DC Output	3.3V	5V	12V1	12V2	-12V	5VSB
	Max.Current	21A	15A	18A	18A	0.3A	2.5A
				28A
	Max.Combined Power	110W		336W		3.6W	12.5W
		350W
SYSTEM POWER 7400W	AC Input	100-240Vac 50-60Hz 6-3A
	DC Output	3.3V	5V	12V1	12V2	-12V	5VSB
	Max.Current	24A	15A	24A	20A	0.3A	3A
				32A
	Max.Combined Power	120W		384W		3.6W	15W
		400W
SYSTEM POWER 7450W	AC Input	100-240Vac 50-60Hz 7-3.5A
	DC Output	3.3V	5V	12V1	12V2	-12V	5VSB
	Max.Current	24A	15A	26A	20A	0.3A	3A
				36A
	Max.Combined Power	120W		432W		3.6W	15W
		450W

SYSTEM POWER 7500W	AC Input	100-240Vac 50-60Hz 7-3.5A
	DC Output	3.3V	5V	12V1		12V2		-12V	5VSB
	Max.Current	24A	15A	28A		20A		0.3A	3A
				40A
	Max.Combined Power	120W		480W				3.6W	15W
		500W
SYSTEM POWER 7600W	AC Input	100-240Vac 50-60Hz 8-4A
	DC Output	3.3V	5V	12V1	12V2	12V3	12V4	-12V	5VSB
	Max.Current	25A	18A	18A	18A	18A	18A	0.3A	3A
				48A
	Max.Combined Power	140W		576W				3.6W	15W
		600W
SYSTEM POWER 7700W	AC Input	100-240Vac 50-60Hz 9-4.5A
	DC Output	3.3V	5V	12V1	12V2	12V3	12V4	-12V	5VSB
	Max.Current	25A	20A	18A	18A	18A	18A	0.3A	3A
				66A
	Max.Combined Power	150W		672W				3.6W	15W
		700W

SYSTEM POWER 7

BETTER, QUIETER, MORE RELIABLE

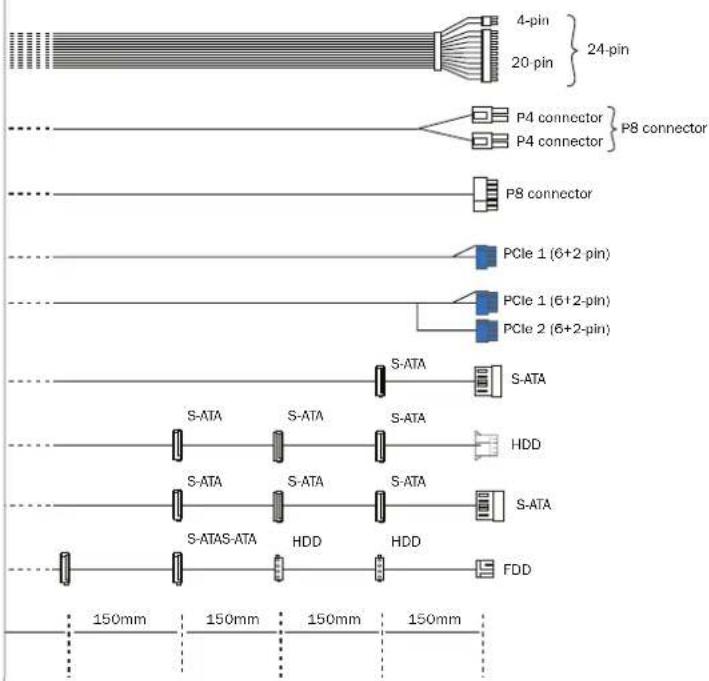

Cablemanagement »

4-pin 20 pin 24-pin P4 connector P4 connector P8 connector P8 connector PCIe 1 (6+2 pin) PCIe 1 (6+2-pin) PCIe 2 (6+2-pin) S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA S-ATA HDD HDD FDD 150mm 150mm 150mm 150mm

300W 350W 400W 500W 600W 700W

450mm	450mm	500mm	550mm	550mm	550mm
450mm	450mm	550mm	600mm	600mm	600mm
-	-	-	-	-	600mm
-	550mm	-	-	-	-
-	-	500mm	500mm	500mm	500mm2x
400mm*	400mm*	-	-	-	-
-	-	-	-	500mm*	500mm*
-	-	500mm*	500mm*	500mm*	500mm*
400mm*	400mm*	500mm*	500mm*	500mm*	500mm*

*cable length to first connector

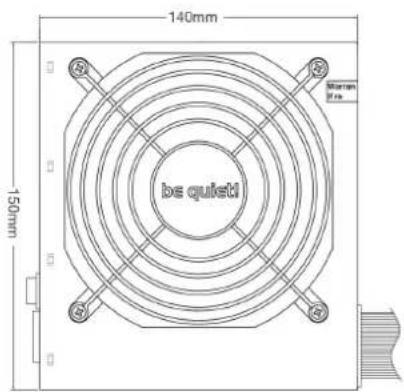

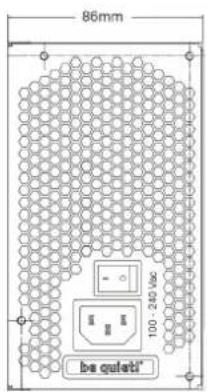

Dimensions »

86mm 100 - 240 Vac be quiet

140mm 150mm be quicked
