MODE D'EMPLOI BGH826 RYOBI
RYOBI
8 in. BENCH GRINDER
MODEL NO. BGH826
REPAIR SHEET


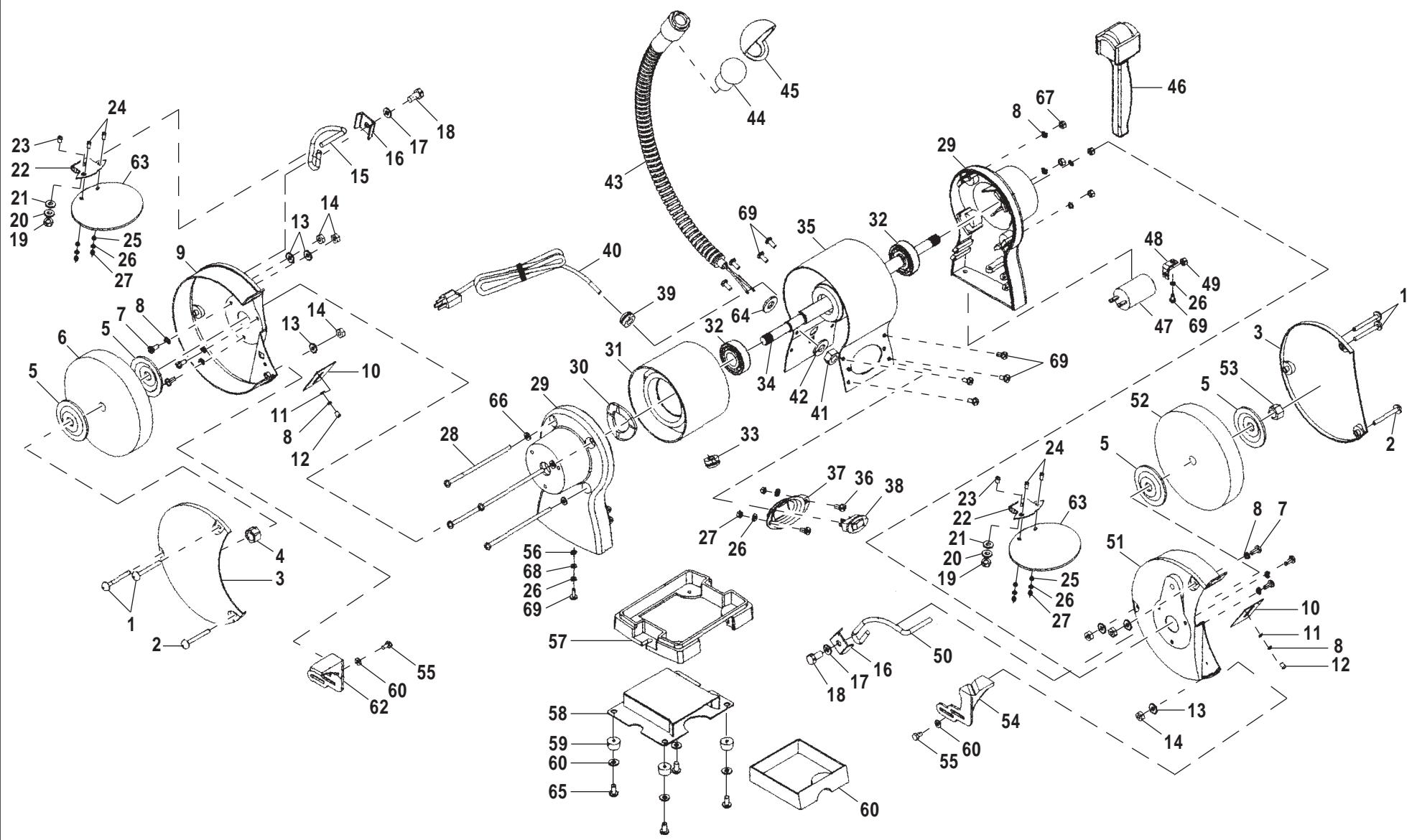

Exploded view diagram of a mechanical assembly with numbered components and labeled partsThe model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your Bench Grinder or when ordering repair parts.
PARTS LIST
| Key No. | Part Number | Description | Qty. |
| 1 | 800206 | * SCREW (M5 X 45 mm) | 4 |
| 2 | 803802 | * SCREW (M5 X 50 mm) | 2 |
| 3 | 800302 | WHEEL COVER | 2 |
| 4 | 800401 | * HEX NUT LEFT SIDE (M16) | 1 |
| 5 | 800504 | WHEEL FLANGE | 4 |
| 6 | 803602 | * WHEEL (36#) (200 X 25 X 15.88 mm) | 1 |
| 7 | 600112 | * SCREW (M5 X 10 mm) | 6 |
| 8 | 600212 | * LOCK WASHER (5 mm) | 12 |
| 9 | 803902 | LEFT WHEEL GUARD | 1 |
| 10 | 800702 | SPARK DEFLECTOR | 2 |
| 11 | 600306 | * WASHER (5 mm) | 2 |
| 12 | 604704 | * SCREW (M5 X 8 mm) | 2 |
| 13 | 800806 | * TOOTHED LOCK WASHER (5 mm) | 6 |
| 14 | 600506 | * HEX NUT (M5) | 6 |
| 15 | 600601 | LEFT EYESHIELD MOUNT ROD | 1 |
| 16 | 600702 | EYESHIELD MOUNT ROD BRACKET | 2 |
| 17 | 600806 | * WASHER (8 mm) | 2 |
| 18 | 600902 | * HEX BOLT (M8 X 14 mm) | 2 |
| 19 | 601002 | * HEX NUT (M6) | 2 |
| Key No. | Part Number | Description | Qty. |
| 20 | 601104 | * LOCK WASHER (6 mm) | 2 |
| 21 | 601204 | * WASHER (6 mm) | 2 |
| 22 | 601302 | EYESHIELD BRACKET | 2 |
| 23 | 601402 | * CARRIAGE BOLT (M6 X 16 mm) | 2 |
| 24 | 601504 | * SCREW (M4 X 10 mm) | 4 |
| 25 | 601610 | * WASHER (4 mm) | 4 |
| 26 | 601711 | * LOCK WASHER (4 mm) | 8 |
| 27 | 601808 | * HEX NUT (M4) | 6 |
| 28 | 800904 | * SCREW (M5 X 130 mm) | 4 |
| 29 | 801002 | END CAPS | 2 |
| 30 | 801101 | WAVY WASHER | 1 |
| 31 | 801202 | STATOR | 1 |
| 32 | 801302 | BEARING | 2 |
| 33 | 601901 | CORD BUSHING | 1 |
| 34 | 801402 | ROTOR | 1 |
| 35 | 801501 | MOTOR HOUSING | 1 |
| 36 | 602003 | * SCREW (M4 X 8 mm) | 2 |
| 37 | 801601 | SWITCH PLATE | 1 |
| 38 | 602101 | SWITCH | 1 |
WARNING: Improper repair of a double insulated tool can result in damage to the double insulation system possibly causing electrical shock or electrocution. Any repairs requiring disassembly of your tool requires safety testing and should only be performed by a Ryobi Authorized Service Center. For the service center nearest you call 1-800-525-2579.
* Standard Hardware Item – May Be Purchased Locally
The model number will be found on a plate attached to the motor housing. Always mention the model number in all correspondence regarding your Bench Grinder or when ordering repair parts.
PARTS LIST
| Key No. | Part Number | Description | Qty. |
| 39 | 602201 | CORD CLIP | 1 |
| 40 | 602301 | POWER CORD | 1 |
| 41 | 801701 | * HEX NUT (M10 X 1 mm) | 1 |
| 42 | 801801 | * LOCK WASHER (10 mm) | 1 |
| 43 | 801901 | LAMP PIPE | 1 |
| 44 | 802002 | * BULB (12V, 10W) | 1 |
| 45 | 802101 | LAMP SHADE | 1 |
| 46 | 802202 | WHEEL DRESSER | 1 |
| 47 | 802302 | CAPACITOR | 1 |
| 48 | 802401 | CAPACITOR SUPPORT | 1 |
| 49 | 602401 | * HEX NUT (M8) | 1 |
| 50 | 602501 | RIGHT EYESHIELD MOUNT ROD | 1 |
| 51 | 802502 | RIGHT WHEEL GUARD | 1 |
| 52 | 806002 | * WHEEL (60#) (200 X 25 X 15.88 mm) | 1 |
| 53 | 802601 | * HEX NUT (M16) | 1 |
| 54 | 802701 | RIGHT WORK REST | 1 |
| 55 | 802802 | * HEX BOLT (M5 X 10 mm) | 2 |
| 56 | 602601 | * TOOTHED LOCK WASHER (4 mm) | 1 |
| Key No. | Part Number | Description | Qty. |
| 57 | 802901 | MOTOR BASE | 1 |
| 58 | 803001 | BOTTOM COVER | 1 |
| 59 | 605404 | RUBBER FOOT | 4 |
| 60 | 602704 | * WASHER (5 mm) | 6 |
| 61 | 803101 | COOLANT TRAY | 1 |
| 62 | 803201 | LEFT WORK REST | 1 |
| 63 | 803302 | EYESHIELD | 2 |
| 64 | 803401 | WASHER | 1 |
| 65 | 800206A | * SCREW (M5 X 45 mm) | 4 |
| 66 | 600306A | * WASHER (5 mm) | 4 |
| 67 | 600506A | * HEX NUT (M5) | 4 |
| 68 | 601610A | * WASHER (4 mm) | 1 |
| 69 | 602003A | * SCREW (M4 X 8 mm) | 10 |
| 70 | 803501 | COOLANT TRAY STICKER (NOT SHOWN) | 1 |
| 71 | 803703 | DATA PLATE (NOT SHOWN) | 1 |
| 72 | 803701 | DOME LABEL (NOT SHOWN) | 1 |
| 972000-953 | OPERATOR'S MANUAL | ||
| 972000-953R | REPAIR SHEET | ||
| 9-22-03 |
