| Caractéristiques | Détails |
|---|---|
| Type de produit | Voiture coupé |
| Motorisation | Moteur essence ou diesel |
| Puissance | De 110 à 240 ch selon la version |
| Transmission | Manuelle ou automatique |
| Dimensions | Longueur : 4 610 mm, Largeur : 1 830 mm, Hauteur : 1 420 mm |
| Poids | Environ 1 500 kg |
| Capacité du réservoir | 60 litres |
| Consommation de carburant | Entre 5 et 9 L/100 km selon la version |
| Émissions de CO2 | De 130 à 220 g/km selon la version |
| Système de sécurité | Airbags, ABS, ESP, assistance au freinage |
| Équipements de confort | Climatisation, système audio, régulateur de vitesse |
| Entretien et nettoyage | Révisions tous les 15 000 km, nettoyage régulier de la carrosserie |
| Pièces détachées et réparabilité | Disponibilité des pièces chez les concessionnaires et en ligne |
| Garantie | 2 ans ou 100 000 km, selon la première échéance |
| Compatibilités | Accessoires compatibles avec les modèles Renault Laguna |
FOIRE AUX QUESTIONS - LAGUNA COUPE MONACO GP RENAULT
Questions des utilisateurs sur LAGUNA COUPE MONACO GP RENAULT
0 question sur cet appareil. Repondez a celles que vous connaissez ou posez la votre.
Poser une nouvelle question sur cet appareil
Téléchargez la notice de votre Automobile au format PDF gratuitement ! Retrouvez votre notice LAGUNA COUPE MONACO GP - RENAULT et reprennez votre appareil électronique en main. Sur cette page sont publiés tous les documents nécessaires à l'utilisation de votre appareil LAGUNA COUPE MONACO GP de la marque RENAULT.
MODE D'EMPLOI LAGUNA COUPE MONACO GP RENAULT

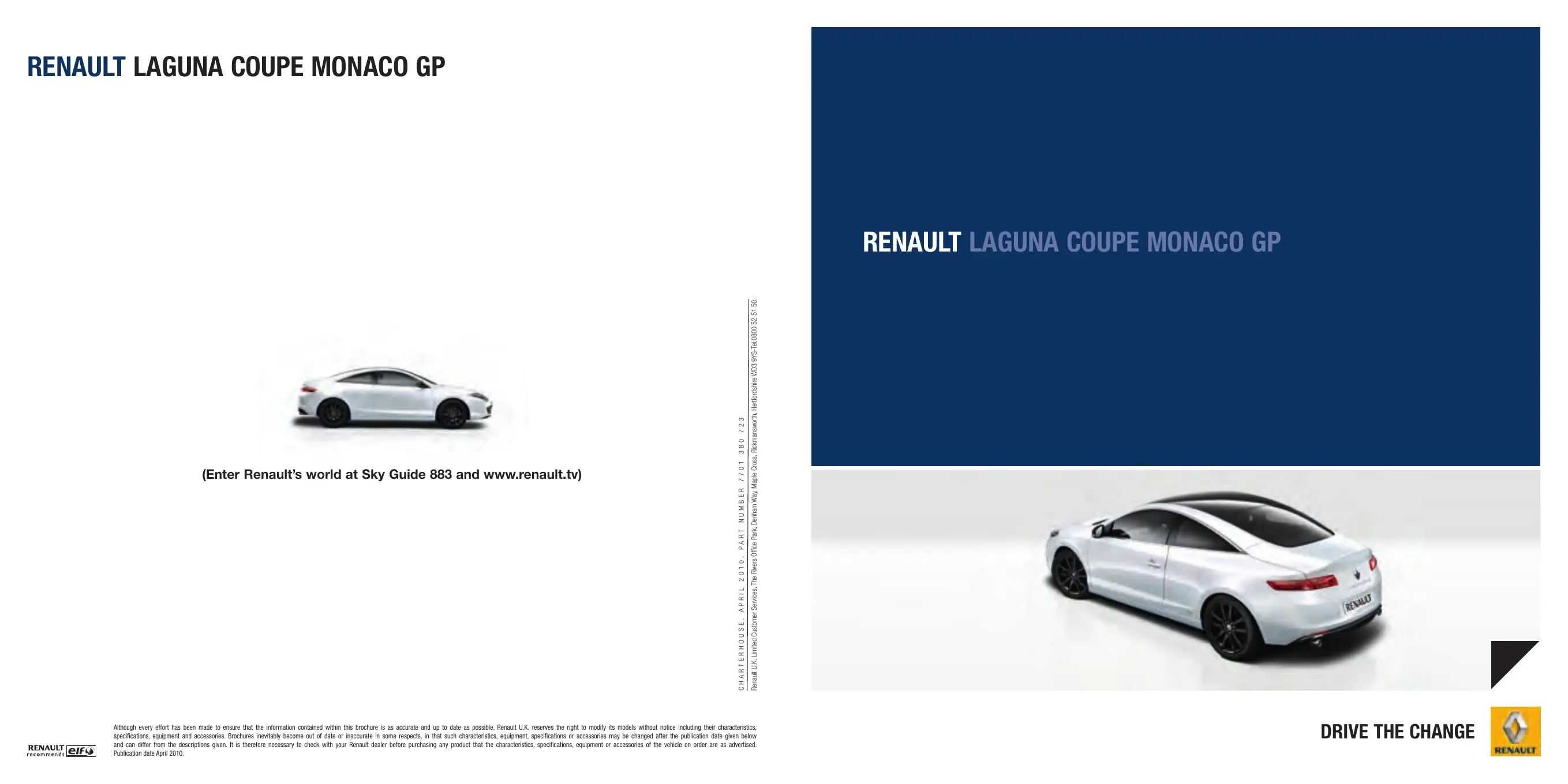

RENVAULT LAGUNA COUPE MONACO GP
(Enter Renault's world at Sky Guide 883 and www.renault.tv)
CHARTERHOUSE.APRIL2010.PART NUMBER7701380723
Renault U.K. Limited Customer Services, The Rivers Office Park, Denham Way, Maple Cross, Rickmansworth, Hertfordshire WD3 9YS-Tel:0800 52 51 50.
RENVAULT LAGUNA COUPE MONACO GP
LAGUNA MONACO GP:
SEDUCTION AT FIRST SIGHT.
NOT SO MUCH A MEETING,
MORE A LIFETIME'S AFFAIR.
MEET UP WITH THE NEW PERFECTION.
Renault presents the ultimate limited edition version of one of the world's most striking coupés. Heads naturally turn as it passes – for this is the unique Laguna Monaco GP – expressing all the effortless luxury and style of the world famous F1 street circuit it celebrates. Its dazzling Pearlescent White metallic bodywork contrasts daringly with the Pearl Black roof, matching gloss black alloy wheels and folding door mirrors.
Imagine yourself in Monaco's Casino Square, as this stylish grand tourer becomes the sports coupé and fashion accessory you want to be seen in. Only a few will earn the privilege and pleasure. Make it your own.
One glance at the interior tells you all you need to know about the Monaco GP's genetic affinity with luxury. Anthracite leather upholstery with highlighted grey stitching plays very cleverly on the contrast with the white bodywork. Then, there's the highest quality equipment on board. From the latest technology TomTom Carminat® SatNav to the awesome Bose® audio system, it leaves an undeniable expression of superiority wherever it goes. But that's why your particular rendezvous with the Laguna Coupe Monaco GP will always be a very special event.
TECHNICAL SPECIFICATIONS
| 2.0 dCi 180 | ||
| Emissions conformance | Euro 5 | |
| Engine type | M9Rk 816 | |
| With particle filter (FAP) | FAP | |
| Induction capacity | (cc) | 1995 |
| Bore x stroke | (mm) | 84 x 90 |
| Compression ratio | 16:1 | |
| Balancing shaft | Yes | |
| Timing gear type | Chain | |
| Maximum power | (kw ISO) | 131 |
| Maximum power | (hp DIN) | 180 |
| Maximum power | (rpm) | 3750 |
| Maximum torque | (Nm ISO) | 400 |
| Maximum torque | (rpm) | 2000 |
| Fuel type | Diesel | |
| Injection type | "Commonrail" | |
| Number of cylinders | 4 | |
| Number of valves | 16 | |
| Valve gear | SOHC | |
| WEIGHTS | ||
| Kerb weight | (kg) | 1539 |
| (lb) | 3393 | |
| Max. (driver only) towing weight braked | (kg) | 1500 |
| (lb) | 3308 | |
| Max. (driver only) towing weight unbraked | (kg) | 650 |
| (lb) | 1433 | |
| GEARBOX | ||
| Number of forward gears | 6 | |
| Manual / Automatic | Manual | |
| Gearbox type | PK4 | |
| Vehicle speed (mph) @ 1,000 rpm | in 1st | 5.09 |
| 2nd | 9.46 | |
| 3rd | 14.35 | |
| 4th | 20.41 | |
| 5th | 26.33 | |
| 6th | 31.19 | |
| Reverse | 5.43 | |
| BRAKING SYSTEM | ||
| ABS | Standard | |
| Front Ø / width | (mm) | 320/28 |
| Rear Ø / width | (mm) | 300/11 |
| SUSPENSION | ||
| Front anti-roll bar Ø | (mm) | 24 |
| Rear anti-roll bar Ø (mm) | (mm) | 31.3 |
| STEERING | ||
| Power assisted | Hydraulic variable | |
| WHEELS AND TYRES | ||
| Tyre manufacturers | Bridgestone | |
| 18" tyres with 4Control (4WS) | 225/45R18 95 W | |
| Spare wheel | Inflation kit | |
| CAPACITY | ||
| Fuel tank | (litres) | 66 |
| Oil reservoir capacity | (litres) | 6.6 |
| PERFORMANCE | ||
| SCx | 0.66 | |
| 0-62mph (0-100kph) | (segments) | 8"50 |
| Maximum speed | mph (kph) | 137.8 (222) |
| Standing qtr mile (400m) | (segments) | 16"2 |
| Standing 1000m | (segments) | 29"6 |
| EMISSIONS | ||
| CO2 with 18" tyres | (g/km) | 163 |
| FUEL CONSUMPTION | ||
| Urban cycle | (mpg) | 34.9 |
| (litres/100km) | 8.1 | |
| Extra urban cycle | (mpg) | 53.3 |
| (litres/100km) | 5.3 | |
| Combined cycle | (mpg) | 45.6 |
| (litres/100km) | 6.2 | |
| SERVICING INTERVALS | ||
| Oil change interval in miles / 1 year | 12,000 | |
| Service interval (whichever is sooner) in miles | ||
| WARRANTY | ||
| 3 years / 100,000 miles - 24 months on unlimited mileage | ||
EQUIPMENT
ABS with EBD (Electronic Brake Distribution)
- ESP (Electronic Stability Programme) with ASR traction control and CSV understeer control
- Brake assist
Deadlocking
- Driver and front passenger two stage auto adaptive airbags
- Anti-whiplash front headrests
- Front lateral / thorax airbags
- Front passenger airbag deactivation
- Front and rear curtain airbags
- Height, front to back and incline adjustable driver's
- Front seat seatbelts with load limiter
Insurance approved (category 1) alarm
Insurance approved engine Immobiliser
- ISOFIX child seat mounting points - outer rear seats
R.A.I.D. (Renault Anti Intruder Device)
Rear headrests
- Heated rear windscreen
- Front sports seats
Automatic headlights and windscreen wipers
Cruise control and speed limiter
Super Fold System - folding flat rear seats in one touch - 3D Sound (Arkamys): 4 × 45W single CD / radio with MP3 CD reader and Bluetooth
- 4Control chassis (4 wheel steering)
- Renault hands free keycard
- Electrochrome rear view mirror
Automatic parking brake - GT leather steering wheel
- Illuminated vanity mirror passenger side
18" Interlagos' alloy wheels in Gloss Black - Carminat TomTom® with joystick control
-
White inserts (dash and panels)
-
4 x 45W single CD radio with MP3 CD reader, Bluetooth® and BOSE sound system
Multi-functional TunePoint
Pearl White metallic paint with Pearl Black roof
Electrically heated and adjustable front seats
Full dark grey leather upholstery with Monaco GP logos - Gloss Black electrically heated, adjustable and folding door mirrors
COLOUR
PEARL WHITE
