BRUKSANVISNING PR750RTXL2U CyberPower

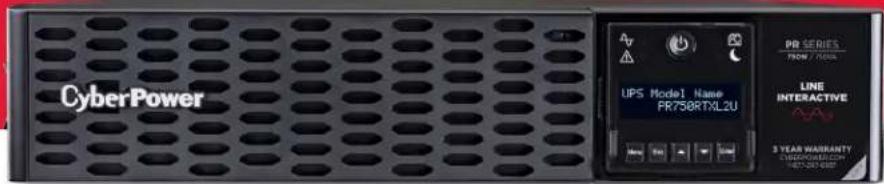

CyberPower PR750RTXL2U SMART APP SINEWAVE UPS
Protect corporate and network servers, telecom installations, and VoIP systems
The PR750RTXL2U is a New Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's New Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.
The New Smart App Sinewave PR750RTXL2U improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The new chassis design with an easy-to-access toolless front panel, color-coded rear panel, and captive screws for battery panel access make installations and battery changes simple and fast. The PR750RTXL2U also has a new LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
TYPICAL APPLICATIONS
- Servers
- Workstations
• Network Devices - Telecom Equipment
FE ATURES
- 750 VA/750 W
• Line Interactive Topology
• GreenPower UPS™
• 2U Rack Mount/Tower Convertible
SPECIFICATIONS
GENERAL
| UPS Topology Line-Interactive | |
| Energy Saving | GreenPower UPSTM Bypass Technology |
| ENERGY STAR® Qualified Yes | |
| Active PFC Compatible Yes | |
| INPUT | |
| Voltage 100 - 125 Vac | |
| Frequency 47 - 63 Hz | |
| Input Voltage Range 70 - 155 Vac | |
| Plug Type NEMA 5-15P | |
| Plug Style Right Angle, 45° Offset Right | |
| Cord Length 10 ft. | |
OUTPUT
| VA 750 | |
| Watts 750 | |
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On Battery Voltage 100/110 | 120/125 Vac ± 5% |
| On Battery Frequency | 50/60 Hz +/- 1% |
| On Battery Waveform | Sine Wave |
| Outlets - Total | 8 |
| Outlet Type | NEMA 5-15R |
| Outlets - Critical Load | 4 |
| Outlets - Battery & Surge Protected | 8 |


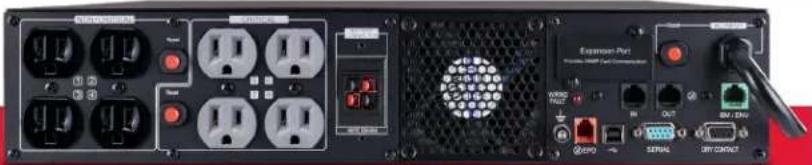

Front view of an electronic device rear panel with ports, switches, and a central fan (no readable text or symbols)SPECIFICATIONS CONT.
OUTPUT CONT.
| Rated Power Factor 1 | |
| Overload Protection | Internal Circuitry Limiting Circuit Breaker |
| Transfer Time 4ms typical |
BATTERY
| Extended Battery Module BP48VP2U01 | |
| Runtime at Half Load (min) | 28.7 |
| Runtime at Full Load (min) | 11.2 |
| Battery Type Sealed Lead-Acid | |
| Battery Size 12 V/7 AH | |
| Hot-Swappable Yes | |
| Replacement Battery RB1270X4H | |
| Battery Quantity 4 | |
| User Replaceable Yes | |
| Typical Recharge Time 3 hrs | |
| External Battery Pack Option | Yes |
SURGE PROTECTION & FILTERING
| RJ11/RJ45 | 1-in, 1-out |
| Surge Suppression | 2430 |
| EMI/RFI Filtration | Yes |
MANAGEMENT & COMMUNICATIONS
| Multifunction LCD Panel | 47 Settings (27 setup and control items + 20 status updates and log menus) |
| HID Compliant USB Port | Yes |
| Serial Port | Yes |
| EPO Port | Yes |
| Contact Closure | Yes |
| Management Cable | USB Cable, Serial Cable,EPO Cable |
MANAGEMENT & COMMUNICATIONS CONT.
| LED Indicators | Power On, Line Mode, Battery Mode, Fault, Night Mode, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Overheat |
| Software | PowerPanel® Business Edition |
| SNMP/HTTP Remote Monitoring | Yes - with Optional RMCARD205 |
PHYSICAL
| Rack Size | 2U |
| Form Factor | Rack/Tower |
| Dimensions (WxHxD) (in.) | 17.1 x 3.4 x 16.2 |
| Weight (lbs.) | 53.1 |
| Shipping Dimensions (WxHxD) (in.) | 22.1 x 10.8 x 20.9 |
| Shipping Weight (lbs.) | 61.1 |
ENVIRONMENTAL
| Operating Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Relative Humidity | 0 - 95% (non-condensing) |
| Storage Temperature | 5°F to 113°F (-15°C to 45°C) |
| Maximum Operating Elevation | 10,000 ft (3,000 m) |
| Maximum Storage Elevation | 50,000 ft (15,000 m) |
| AC Mode Thermal Dissipation | 41.3 |
CERTIFICATIONS
| Safety | RoHS Compliant |
| Environmental | UL1778, cUL107.1, FCC Class B |
WARRANTY
| Product Warranty | Three-Years Limited |
| Connected Equipment Guarantee | Lifetime |
| CEG Amount | $400,000 |
