BRUKSANVISNING K2100 Carlton

safety first specifications

Always place the kettle on a firm and level surface.

Mains supply: 230-240V \~ 50Hz

Power consumption: 2000 - 2200W

Never immerse the kettle in water and always keep the electrical contacts dry.

Never place the kettle on or near a source of heat such as a cooker ring or gas flame.

Avoid contact with hot steam from the kettle's spout. Take care when pouring or refilling after boiling.

Always keep the kettle out of the reach of small children and never allow the mains lead to hang over the edge of a work surface. Children should be taught the dangers of boiling water and should only ever use kitchen appliances while under close supervision.

Do not use the kettle to heat anything other than water.

Do not interfere with the normal working of the switch.

Do not operate the kettle with a damaged cord or plug or if the kettle has malfunctions, has been dropped or damaged in any way.

Because we continually strive to improve our products we may change specifications and designs without prior notice.

plug wiring

Warning. This kettle must be earthed.

The wires in your kettle mains lead are coloured in accordance with the following:

Green & Yellow (Cath) Brown (Line) Blue (W/ma) N E L 13 amp fuse Cord grip Gre connec plug which

The wire which is coloured Blue must be connected to the terminal in the plug which is marked with the letter N or coloured Black.

The wire which is coloured Brown must be connected to the terminal in the plug which is marked with the letter L or coloured Red.

The wire which is coloured Green and Yellow must be connected to the terminal in the plug which is marked with the letter E or by the Earth symbol or coloured Green or Green and Yellow.

You must use a 13 amp plug (BS 1363), and fit a 13 amp fuse (BS 1362). If any other type of plug is used a 13 amp fuse must be fitted, either in the plug, adaptor or at the distribution board.

If the power cord becomes damaged, it must be replaced by your service agent or a qualified person to prevent a hazard. Please contact the store where you bought your kettle.

Carlton

K2100

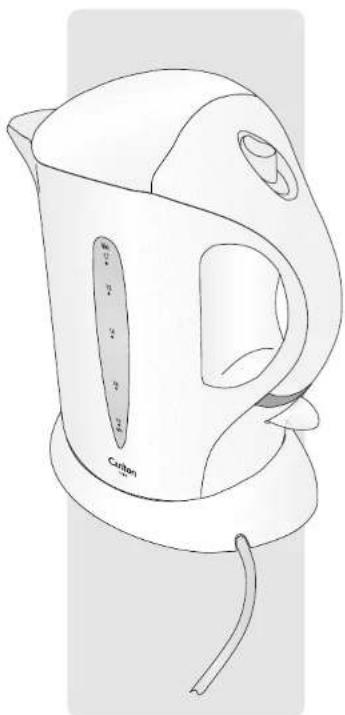

Line drawing of a white coffee maker with handle and spout, no text or symbols present

cordless kettle

keeping the cord tidy

Extend the mains lead in the kettle stand to the

required length.

Locate the lead in one of the slots in the stand.

For safety it is

recommended that the length of exposed lead is kept as short as possible. Place the kettle stand on a firm level surface and plug in the mains lead at a standard electrical socket (230-240 Volt 13 Amp rated).

stand. that the length of exposed short or possible. Place the kettle.

Caution. This kettle must only be used with the stand provided.

filling the kettle

Press and rel button to o kettle with th of water maxir as indie the kett

Press and release the lid release button to open the lid. Fill the kettle with the required amount of water. Do not exceed the maximum (MAX) fill level as indicated on the side of the kettle. Push the lid until it clicks shut.

Caution. If the kettle is overfilled, boiling water may overflow from the kettle.

switching on

Place the kettle on the stand and press the switch to the ON position. The light above the switch will light to indicate that the kettle on and the water is

Cotton e is heating.

Caution. If there is insufficient water in the kettle the automatic safety cut-out will operate. If this happens allow the kettle to cool for ten minutes then fill to the correct level and try again.

Caution. Never release the lid while the water is boiling.

when the kettle boils

When the water has boiled the kettle will automatically switch off.

Note: You will not be able to reboil the water immediately after boiling, the kettle will need to cool down first.

Carbon after ll first.

Caution. If you are using the kettle for the very first time, pour away the boiled water and refill with fresh water.

troubleshootingusing

If the kettle doesn't work please check that:

• The power is switched on and the kettle switch is in the ON position (the light above the switch should be on).
• The kettle is sitting on the kettle stand properly, and that the stand is plugged into the mains supply properly.

Caution. If there is insufficient water in the kettle the automatic safety cut-out will operate. If this happens allow the kettle to cool for ten minutes then fill to the correct level and try again.

Try replacing the fuse in the plug.

If the kettle still doesn't work, please contact the store where you bought your kettle.

cleaning

Cleaning the kettle

The kettle exterior should be cleaned with a soft damp cloth. Do not use abrasive cleaners or scouring pads which may damage the finish of the kettle. Never immerse the kettle or kettle stand in water and always keep the electrical contacts dry. Disconnect from the mains before cleaning the kettle stand.

De-scaling the kettle

After some time, limescale (calcium carbonate) may be deposited on the inside of the kettle. This normal build-up is not harmful to health but an excessive amount of scale may affect the operation of the kettle. If this happens, use a descaling solution following the manufacturers instructions. Never attempt to descale the kettle by chipping or scraping with a sharp implement.

If you live in a hard water area you may need to de-scale the kettle more often.
