BRUKSANVISNING Z212PB PHOENIX GOLD


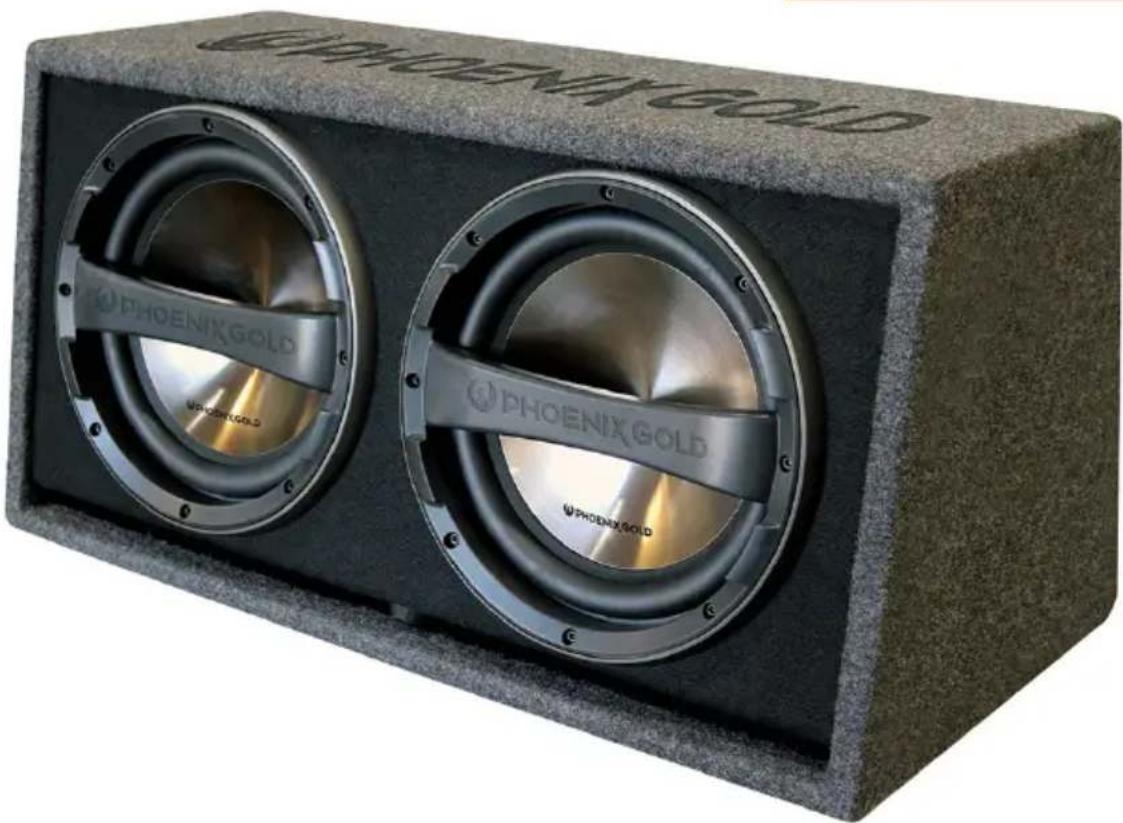

Exterior view of a Phoenix Gold audio amplifier box with two speakers (no text or symbols visible on body)12"/300MM DUAL PASSIVE SUBWOOFER ENCLOSURE
2000W MAX POWER
Model: Z212PB
SPECIFICATIONS
- 500W RMS Power
- Top stitched logo
• MDF Cabinet 18mm + 25mm port
- Slot port design for maximum performance
- Internal bracing
• 2 Ohm @ terminal
- Dimensions (LxWxH):
800mm × 400mm × 436mm
Z212PB - 12"/300mm Dual Passive Subwoofer Enclosure
| SPECIFICATION Z212PB | |
| Max Power (Watts) 2000 Watts | |
| RMS Power (Watts) 500 Watts | |
| Frequency Response 10Hz-200Hz | |
| Low Pass Filter (Variable) 50Hz-200Hz | |
| Woofer Size Dual 12"/300mm | |
| Dimensions (mm) (LxWxH) 800mm x 400mm x 436mm |
Disclaimer
Always ensure the enclosure is securely attached, to avoid movement. PHOENIX GOLD accepts no responsibility for damage or injury in relation to inappropriate securing of this product.
Installation
Make sure the enclosure is firmly fixed in your vehicle. Check before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring.
DO NOT mount the enclosure in such a way as to pinch or damage the wires.
Make sure everything is firmly connected before attaching a +12V wire. Ensure the +12V wire is fused as close as possible to the battery. Always use a fuse with the recommended rating.
Phoenix Gold Product Warranty
LIMITED WARRANTY ON AMPLIFIERS
Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer in the United States of America only. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
INTERNATIONAL WARRANTIES:
Products purchased outside the United States of America are covered only by that country's Authorized Phoenix Gold reseller and not by Phoenix Gold. Consumers needing service or warranty information for these products must contact that country's reseller for information.
