BRUKSANVISNING ZPR654 PHOENIX GOLD


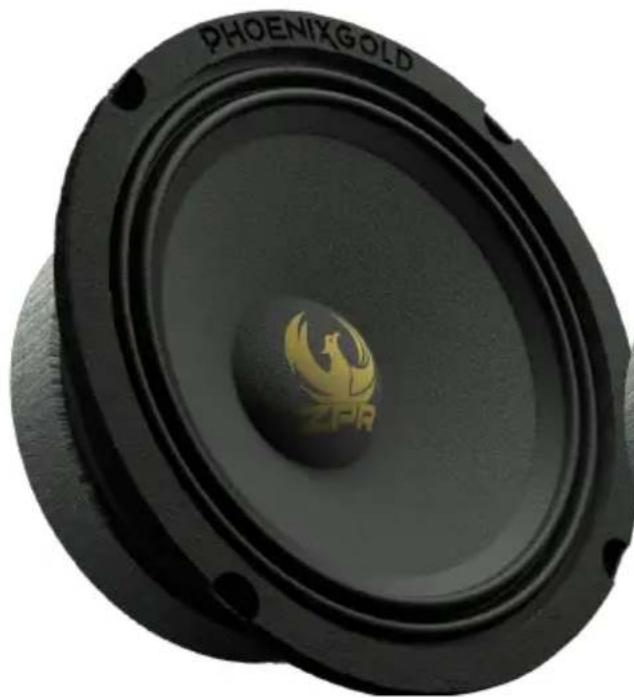

Close-up of a black speaker cone with a gold logo and 'PHOENIXGOLD' text on the top (no other readable text or symbols)ZPR84 - 8" / 200MM EXTREME SPL PRO AUDIO MIDRANGE


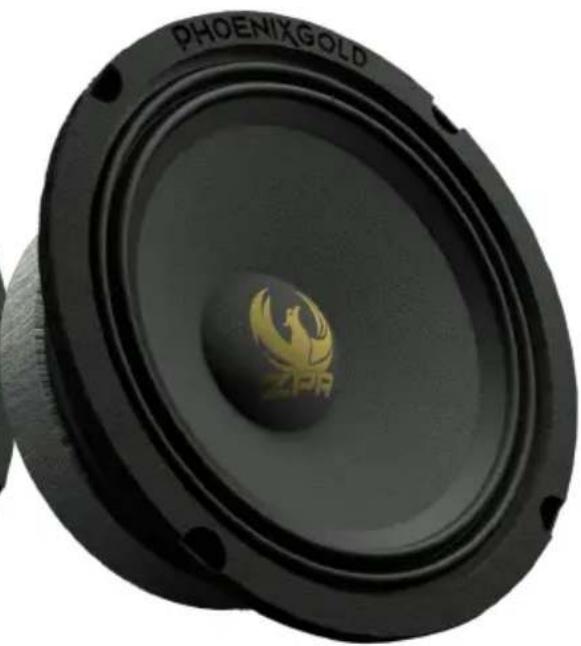

Close-up of a black speaker cone with a gold logo on its front face (no text or symbols visible)ZPR654 - 6.5" / 165MM EXTREME SPL PRO AUDIO MIDRANGE
ZPR Series
FEATURES
- 2" OFC High temp voice coil
• 32Oz Ferrite magnet
• Lightweight paper cone - Triple roll cloth surround
• Woven tinsel leads - Spade terminals
Installation
To ensure proper installation, check that the speakers fit into your desired location - this could require removal of existing vehicle speakers. Check the surrounding area before drilling or cutting holes. DO NOT work near fuel tanks, fuel lines hydraulic lines or electrical wiring. Once installed make sure the speaker is firmly fixed in your vehicle.
Always ensure that the speaker and cables are securely attached and installed in such a way that no cables can be pinched or damaged. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate installation of this product.

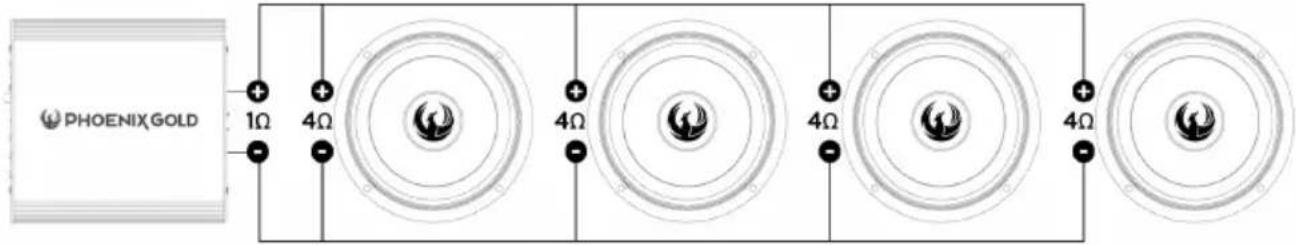

4 OHM SPEAKERS = 1 OHM LOAD

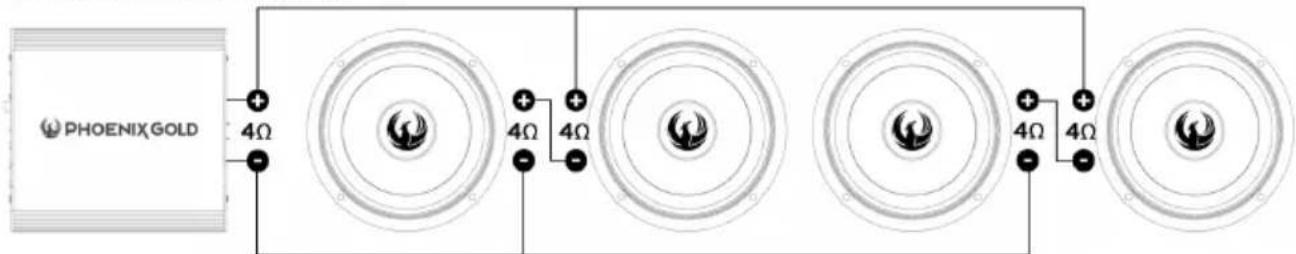

4 OHM SPEAKERS = 4 OHM LOAD
SPECIFICATION ZPR654 ZPR84
| Speaker Type: PRO Audio Midrange Speaker PRO Audio Midrange Speaker | ||
| Speaker Size: 6.5" (165mm) 8" (200mm) | ||
| Impedance: 4 Ω 4 Ω | ||
| Frequency Response: 80Hz - 20kHz 60Hz - | 9000Hz | |
| Power Handling (RMS): 300W 325W | ||
| Power Handling (MAX): 600W 650W | ||
| Sensitivity: 90.6dB (1W/1m) 92dB (1W/1m) | ||
| Re: | 3.0 Ohm | 3.0 Ohm |
| Fs: | 102.1 Hz 70.4 Hz | |
| Qms: | 5.16 | 4.40 |
| Qes: | 0.68 | 0.70 |
| Qts: 0.60 | 0.60 | |
| Cms: | 0.19 mm/N | 0.30 mm/N |
| Vas: | 4.9 L | 20.6 L |
| BL: | 6.1 N/A | 5.7 N/A |
| Sd: | 136.8 cm2 | 221.7 cm2 |
| Mms: | 13.1 gr | 17.1 gr |
| Voice Coil Diameter: | 2" (50mm) 2" (50mm) | |
| Outer Diameter: | 167mm | 209mm |
| Mounting Diameter: | 142mm | 180mm |
| Mounting Depth: | 76mm | 88mm |
| Speaker Grills | No | No |
Disclaimer
Ensure your safety and the well-being of those around you by following these essential guidelines:
- Keep all product materials and packaging away from children, pets, or anyone at risk of suffocation.
- Exposure to noise levels above 85 dB can cause permanent hearing damage.
- Extreme sound frequencies reduce perception abilities that are essential in road traffic conditions; do not let loud volumes distract from being mindful behind the wheel.
• Phoenix Gold takes no responsibility for any physical harm or damage caused by improper use of their products. - Ensure that all metals and raw materials are disposed of in accordance with local regulations and environmental standards to minimise any negative impact on the environment.
Warranty
Phoenix Gold products come with a limited warranty and are covered by our regional distribution partners and their terms and conditions.
You can find out more information by contacting your local retailer or distributor.
