INSTALLATION MANUAL

WMM630 WOODEN IN-CEILING/WALL SPEAKER BACK BOX

Technical line drawing of a rectangular industrial or electrical enclosure with a central circular component and mounting brackets (no text or symbols)

STEP 1 STEP 2

Technical drawing of a mechanical component with mounting holes and central bore (no text or symbols)

Pure technical diagram of a rectangular component with internal circular feature and mounting holes (no text or symbols)

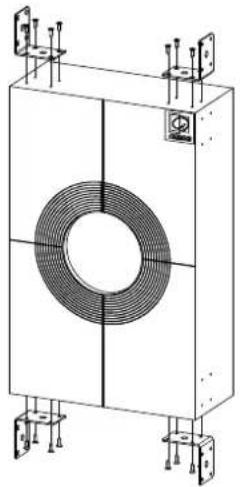

Install the included L-shaped mounting brackets onto the back-box. Depending on the installation direction (horizontal or vertical) and the width between the supporting beams, the L-shaped brackets can be mounted in two different directions. The mounting holes for the L-brackets are partially pre-drilled. Use the included fasteners for assembling the L-brackets.

Pure electrical circuit lines without any symbols

Technical drawing of a mechanical component with concentric rings and mounting holes (no text or symbols)

Install the back box on the provided wall or ceiling location in between the supporting beams. Make sure the structure can support the weight of the back box and the speaker to be installed into it. Depending on the structural material the appropriate fasteners shall be used.

STEP 3

Pure technical diagram showing a rectangular panel with a circular hole and vertical supports, no text or symbols present.

Adjust the cut-out for the installed speaker according to the required diameter (if necessary). Various cut-outs for different diameters are marked on the back-box for easy cutting. Provide the connection cable into the back-box by drilling a hole and pulling the cable through it. Make sure the hole is properly sealed afterwards.

STEP 4

Simple line drawing of a rectangular panel with two corner brackets and a small circular mark on the side (no text or symbols)

Finish the structure by placing finishing board (plasterboard, wood, ...) in front of it. Afterwards, connect, insert and install the speaker into the provided location.

PRECAUTIONS

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
- CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.
• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPARATUS THAT PRODUCE HEAT
• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
- THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.
• ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.
• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN
- ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND METHODS
- CAREFULLY CHECK THE UNIT'S CONDITION AFTER UNPACKING.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.)
