The MBK1xxV mounting bracket is specially designed for mounting the VEXO series speakers. These optional clever U-brackets allow the easy installation of the VFXO series both horizontally and vertically. Thanks to a provide s ot, the VEXO series speaker will glide easily and safely into the bracket making installation on a piece of cake.

Included hardware:

U-bracket

M10 flange for bottom

Drop safety wire

V 0 screws with washers

M6 screws with washers

Rubber washer

Installation:

Technical line drawing of a mechanical enclosure or housing unit with mounting holes and a central panel (no text or symbols)

Technical line drawing of a mechanical housing or enclosure with mounting holes and a central door (no text or symbols)

Step 3:

Technical line drawing of a mechanical mounting bracket with mounting holes and a central circular component (no text or symbols)

Step 1:

The pole flange adapter in the bottom of the speaker has to be replaced with a screw flange adapter. This is included with the optional crackets. Attach with the M6 screws.

Pure mechanical diagram showing a lever mechanism with no text or symbols

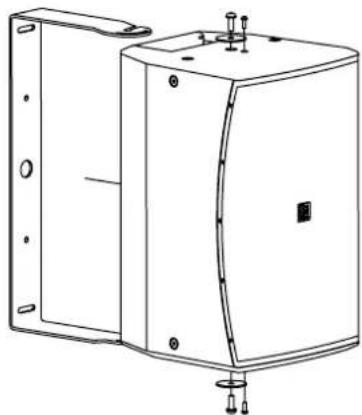

Insert the large (M10) bolts through the rubber washer and into the center threaded holes (top and bottom). This washer comes between the speaker and the bracket.

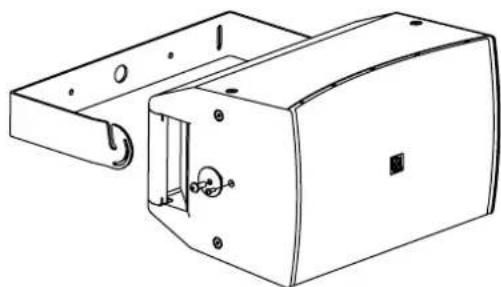

The box should stay up just high enough so that the intended slot in the bracket can be looked in.

Put the speaker in the correct position and tighter both MTO bolts.

Attach the drop safely wire to one of the MI0 flying points. The other end of the wire is attached to a separate mounting point on the wall.

Technical line drawing of a vertical metal bracket with multiple bolt holes (no text or symbols)

Step 2:

Mount the U-bracket at a designated location on the wall or ceiling. The screws are inserted into the hoes provided on the bracket. Use the correct 'asloners' for the surface on which the bracket is to be mounted.

Caution choose fasteners that are consistent with all local build codes and requirements to support the weight of the oudspeaker

Technical line drawing of a mechanical clamp or bracket component (no text or symbols)

Step 4:

Add the additional (small) safety/ positioning bolts. This is placed in the rotation slot of the bracket.

Place the VFXO1xx in your desired pitch change (90° - 35°) and tighten the bolts.

Dimensions:

Technical line drawing of a rectangular frame with rounded corners and mounting holes (no text or symbols)

	MBK108V MBK110V MBK112V MBK115V
A	425 mm 566	mm 636 mm 718 mm
B	57 mm 835	mm 81mm 75 mm
C	256 mm 345	mm 390 mm	450 mm
D	245 mm	330 mm 370	mm 478 mm
E	450 mm	566 mm	636 mm 716 mm
F	97,5 mm 125	mm 140	mm 160 mm
G	30 mm	30 mm	35 mm	35 mm
H	90 mm	90 mm	90 mm	100 mm

PRECAUTIONS

- KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY

- ALWAYS HANDI - THE SUN WITH CARE

• CLEAN ONLY WITH DRY CLOTH

- HFFDATT WARNINGS AND FOLLOWAT INSTRUCTIONS

- NEVER EXPOSE™ IS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPASHING LIQUID.

DO NOT PLACE THIS UNIT IN ENV RONMENTS WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION

DO NOT USE HYDROCARBON BASED SOLVEN S, LUBRICANTS OR CLEANING AGENTS OF ANY TYPE ON OR AROUND THE D-VICE AND VOUNTING HARDWARE DURING THE INSTALLATION. THE USE OF THESE PRODUCTS ON OR AROUND THE MOUNTING ANCHORS AND SCREWS CAN THE TO DEGRADATION OF THE PLASTIC MATERIAL, POSSIBLY RESULTING IN CRACKING AND PR-MATURE FAILURE OF THE PRODUCT.

THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS

• ONLY US-ATTACHMENTS & ACCESSORIES SPECIFIED BY THE VANUTACURER

ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTurally SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.

• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE SAPPLIED TO THE SPEAKER, IT COULD FALL DOWN

ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOOUNTED HICHT UP, ONLY USE INDUSTRY ACCEPTED RIGGING TOOLS AND METHODS

CAREFULLY CHECK THE UNITS CONDITION AFTER UNPACKING.

- E THE = \$ ANY DAMAGE TO THE CAR ON BOX OR THE UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personne. Do not perform any servicing (unless you are qualified to do so).

• ALWAYS FOLLOW THE LOCAL REGULATIONS AND REQUIREMENTS REGARDING INSTALLATION, SUSPENSION AND CONNECTION-O-THIS QUIDS PAKHER, EVEN WHEN OT OTHERWISE SPECIFIED INTL IS DOCUMENT.
  I'S THE INS A THIS RESPONSIBILITY TO ENSURE INSTALLATION OF IT IE LOUDSPEAKERS AND VOUNTING SYSTEMS IS PERFORMED IN ACCORDANCE WITH ALL APPLICABLE CODES
  UNSAFE MOUNTING OR OVERHEAD SUSPENSION ON ANY HEAVY LOAD CAN RESUIT IN SERIOUS INJURY OR DEATH, AND PROPERTY DAMAGE. IT'S THE INSTALLERS RESPONSIBILITY TO EVALUATE THE RELIABILITY OF ANY MOUNTING METHOD USED FOR THEIR APPLICATIONS
  THE INSTALLATION OF - S _OUDSPEAKER SHALL BE DONE BY QUALIFIED PERSONNEL ONLY.

• DO NOT MAKE UNAUTHORIZED ALTERATIONS TO THE PRODUCT.
The MBK108V mounting bracket is for the use with VFXO108(A) only.
The MBK110V mounting bracket is for the use with VEXO110(A) only.
The MBKT2V mounting bracket is for the use with VEXO12(A) only.
The MBKT5V mounting bracket is for the use with VEXOT 5(A) only.

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications described in following directives: 201/65/EU (RoHS2) and 1907/2008 (REACH).
