BRUKSANVISNING KSA1005B Chief
INSTALLATION INSTRUCTIONS
FSA-1005 and KSA-1005
FLAT PANEL DISPLAY SECURITY KIT
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
Figure 1
(4) Security Pivot Bolt, 4" (4) M4 x 12mm Security Screw
(1) ¼-20 x .25" Security Screw (4) M4 x 20mm Security Screw
(1) ¼-20 x .625" Set Screw (1) 1/8" Hex Key
(1) 5/16-18 x .75" Security Set Screw (1) 5/32" Security Hex Key
(1) 3/16" Security Hex Key
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION! FLAT PANEL DISPLAYS ARE EXTREMELY FRAGILE.
Note: In some installations (i.e. single arm mount) not all fasteners included in this kit will be required.
- Remove and replace existing fasteners on small flat panel mount (dual arm assembly shown for reference) with tamper-resistant fasteners (see Figure 2).
Note: There are two possible wall plates with different security requirements.
Option I: If your wall plate uses a 14 -20 setscrew, replace it using the 14 -20 x .625" setscrew. The existing setscrew in the wall plate is too long to be used in conjunction with the 14 -20 x .25" security screw.
Option II: If your wall plate uses a 5/16-18 set screw, replace the setscrew with the security version included in this kit.
Note: In some installations (i.e. single arm mount) not all fasteners included in this kit will be required.

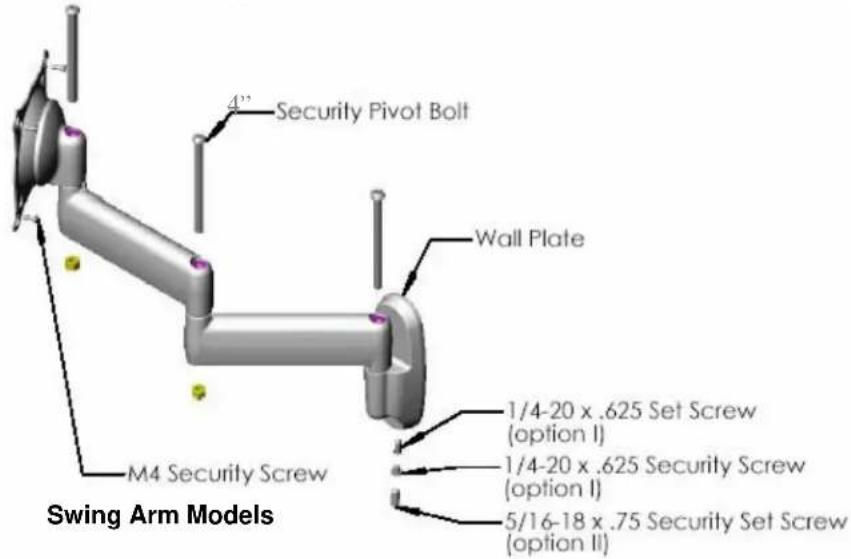

Figure 2
