BRUKSANVISNING NS1S2023 Chief

INSTALLATION INSTRUCTIONS

NS1S12/20/28/36/41 Side Panels

The NS1S side panels are designed for use with Chief® S1 Series racks. See the specific installation instructions provided with the rack for additional installation information.

TOOLS REQUIRED / PARTS INCLUDED

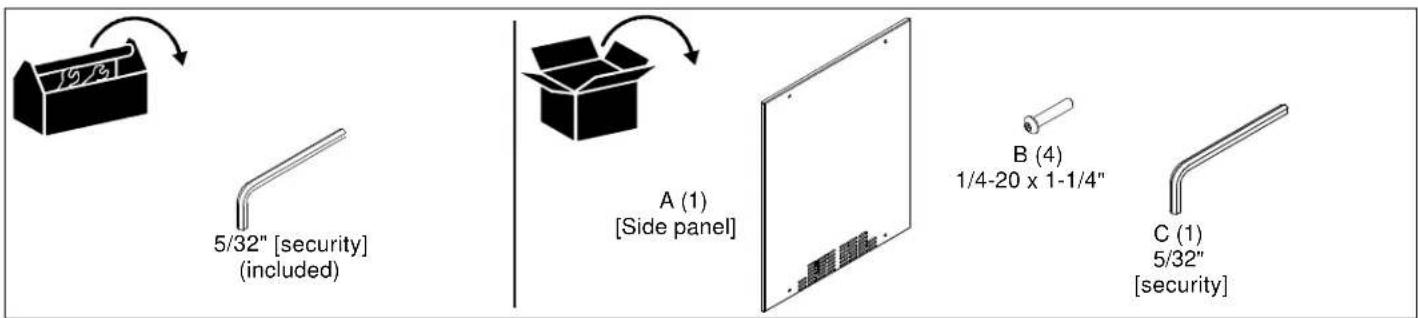

76/31 5/32" [security] (included) A (1) [Side panel] B (4) 1/4-20 x 1-1/4" C (1) 5/32" [security]

Chief NS1S2023 - NS1S12/20/28/36/41 Side Panels - 2

WARNING: FAILURE TO READ, THOROUGHLY UNDERSTAND, AND FOLLOW ALL INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL INJURY, DAMAGE TO EQUIPMENT, OR VOIDING OF FACTORY WARRANTY! It is the installer's responsibility to make sure all components are properly assembled and installed using the instructions provided.

IMPORTANT ! : If installing doors (not included) and side panels on an S1 rack, the doors must be installed before installing the side panels.

NS1S Side Panels Installation

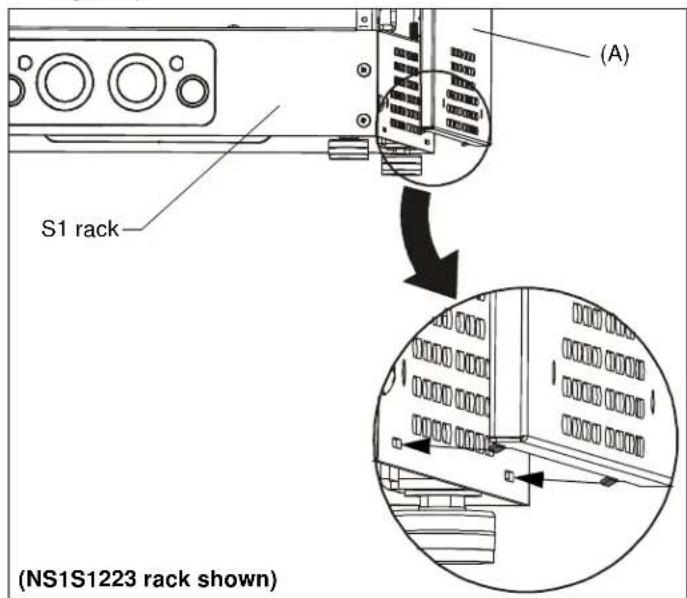

  1. Align two bottom tabs in side panel (A) with slots in S1 rack. (See Figure 1)

S1 rack (A) (NS1S1223 rack shown)

Figure 1

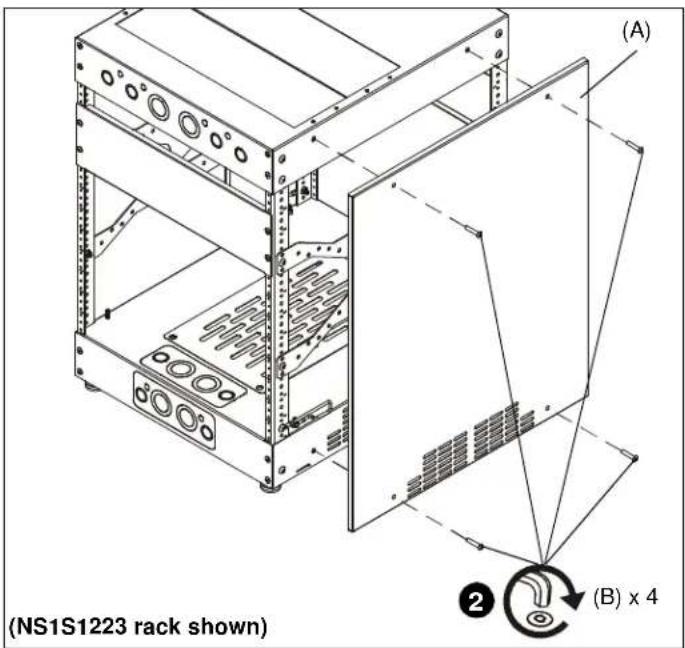

  1. Attach side panel (A) to S1 rack with four 1/4-20 x 1-1/4" security buttonhead cap screws (B). (See Figure 2)

(NS1S1223 rack shown) (A) ② (B) x 4

Figure 2

  1. Tighten four screws (B) using the 5/32" security hex wrench (C).
  2. Attach additional side panels as required.

®Chief is a registered trademark of Milestone AV Technologies. All rights reserved.

Milestone AV Technologies, and its affiliated corporations and subsidiaries (collectively, "Milestone"), intend to make this manual accurate and complete. However, Milestone makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation or use of this product. The information contained in this document is subject to change without notice or obligation of any kind. Milestone makes no representation of warranty, expressed or implied, regarding the information contained herein. Milestone assumes no responsibility for accuracy, completeness or sufficiency of the information contained in this document.

Chief NS1S2023 - NS1S Side Panels Installation - 3

CHIEF®

Our Mounts. Your Vision.

Chief, a products division of Milestone AV Technologies

6436 City West Parkway, Eden Prairie, MN 55344

• P: 800.582.6480 / 952.225.6000 • F:877.894.6918 / 952.894.6918

8800-002919 Rev00

©2016 Milestone AV Technologies

www.milestone.com

12/16
