FP-CUP2 - Accessoire RAM Mount - Gratis gebruiksaanwijzing en handleiding

Merk	RAM Mount
Model	FP-CUP2
Type product	Bekerhouder accessoire
Categorie	Accessoire voor montage in voertuigen
Afmetingen	Past in RAM Console met 8 inch totale lengte
Gewicht	Ongeveer 0,2 kg
Materiaal	Composiet en metaal
Kleur	Zwart
Montagewijze	Inbouw in RAM Console Box met vergrendelingsnokken
Compatibiliteit	Geschikt voor RAM Console Boxen
Inhoud verpakking	Montageplaat, zijpoten (2), schroeven, vergrendelingsnokken (2), moeren
Functies	Houdt bekers of andere accessoires veilig op hun plaats
Onderhoud	Reinigen met een vochtige doek; geen agressieve schoonmaakmiddelen
Veiligheid	Zorg voor veilige installatie; vermijd obstructie van airbags en bedieningselementen
Garantie	Standaard garantie van 1 jaar
Reparatie	Neem contact op met RAM Mount support via www.rammount.com
Contact	RAM Mounting Systems, Seattle, WA, VS

Veelgestelde vragen - FP-CUP2 RAM Mount

Hoe installeer ik de FP-CUP2 in mijn RAM Console?

Volg de stappen in de handleiding: bevestig de vergrendelingsnokken, plaats de zijpoten, lijn alles uit en draai de schroeven vast met een inbussleutel. Zorg dat de totale lengte 8 inch is.

Welke gereedschappen zijn nodig voor de installatie?

U heeft een inbussleutel nodig (allen key) voor het vastdraaien van de schroeven en eventueel een zaag voor het op maat knippen van de zijpoten.

Kan ik de FP-CUP2 met elk apparaat gebruiken?

De FP-CUP2 is ontworpen voor gebruik met RAM Face Plate accessoires zoals bekerhouders, vulplaten en andere niet-op-maat gemaakte accessoires.

Wat zijn de afmetingen van de bekerhouder?

De totale lengte van de montageplaat inclusief zijpoten moet 8 inch zijn om in de RAM Console te passen. De bekerhouder zelf is verkrijgbaar in verschillende maten.

Hoe stel ik de hoogte van de FP-CUP2 in?

Knip de zijpoten op de juiste lengte volgens de markeringen. Zorg dat de totale lengte van apparaat plus zijpoten niet langer is dan de onderrand van de montageplaat.

Is de FP-CUP2 compatibel met alle RAM Console modellen?

Ja, de FP-CUP2 is ontworpen voor standaard RAM Console Boxen. Zorg dat de totale lengte 8 inch is voor een goede pasvorm.

Hoe maak ik de bekerhouder schoon?

Reinig de FP-CUP2 met een zachte, vochtige doek. Gebruik geen agressieve schoonmaakmiddelen of schurende materialen.

Waar kan ik reserveonderdelen bestellen?

Reserveonderdelen zoals schroeven, nokken en zijpoten kunt u bestellen via de RAM Mount website www.rammount.com of contact opnemen met de klantenservice.

Wat is de garantie op dit product?

RAM Mount biedt een retour- en omruilbeleid van 30 dagen. Voor garantie na aankoop kunt u contact opnemen met de klantenservice.

Waar vind ik de volledige handleiding?

De volledige handleiding is beschikbaar op notice-facile.com in PDF-formaat.

GEBRUIKSAANWIJZING FP-CUP2 RAM Mount

RAM Face Plate Assembly Instruction for

1", 2", 3" and 4" Custom Face Plates, Filler Plates and Other Faceplate Accessories

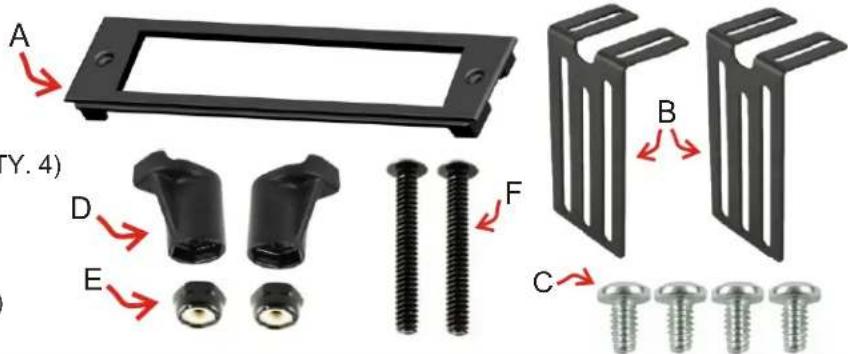

PARTS INDEX:

A. RAM FACEPLATE (QTY. 1)
B. SIDE LEG FOR FACEPLATE (QTY. 2) (FOR CUSTOM FACEPLATES ONLY)
C. #10-24 X 3/8" SELF-TAPPING SCREW (QTY. 4) (FOR CUSTOM FACEPLATES ONLY)
D. COMPOSITE LOCKING LUG (QTY. 2)
E. #6-32 NYLOCK NUT (QTY. 2)
F. #6-32 X 1" HEX SOCKET SCREW (QTY. 2)

If mounting Filler Faceplate, Internal Drink Cup Holder, Cigarette Adapter Plate, or other Non-Custom Faceplate Accessory, follow Step 1 and then skip to Step 5.

1. Attach (D) Locking Lugs to the bottom of each side of each side of (A) Faceplate using (F) Screws and (E) Nuts. Thread (E) Nuts by hand only. Do not tighten until Step 6.
2. Position (B) Side Legs against your device (top portions facing outward). Before attaching, measure total length of your device with the additional (B) Side Legs. To fit in RAM Console, total length must be 8" long. Mark the appropriate ridges under the (B) Side Legs, and cut Side Legs to appropriate length. (Before cutting, please read the NPI Returns & Exchanges Policy at the bottom of this guide). To verify correct measurements, align device and side legs to bottom edges of (A) Faceplate. The length of your device plus both side legs must not pass bottom edges of Faceplate. Once both (B) Side Legs have been cut and measurements have been verified, attach Side Legs to device using the factory hardware included with your device.
3. With (B) Side Legs attached to your device, align top slotted holes of (B) Side Legs with 4 inside holes of (A) Faceplate. Match your device to inside of (A) Faceplate (be sure device is at proper elevation, not below faceplate surface). When properly aligned, attach (B) side legs to inside holes of (A) Faceplate using (C) Self-Tapping Screws.
4. Make any electrical connections at this point.
5. Holding your assembly upright, make sure (D) Locking Lugs are secured over (E) Nuts. Lower the assembly into your RAM Console Box, allowing (D) Locking Lugs to pass through the opening. Under each side of (A) Faceplate is a small pin. When positioning faceplate, these pins must secure inside one of the side holes of the console box.
6. Once faceplate assembly is in place, use an allen key to tighten (F) Screws. By tightening these screws, (D) Locking Lugs will rotate to lock under side edges of your console box. Tighten (F) Screws all the way down to keep Locking Lugs secure.
7. Repeat these steps for each device to be mounted in your RAM Console Box.
