MANUALE UTENTE Regal S 490 Pro IR Broil King

Broîl King®

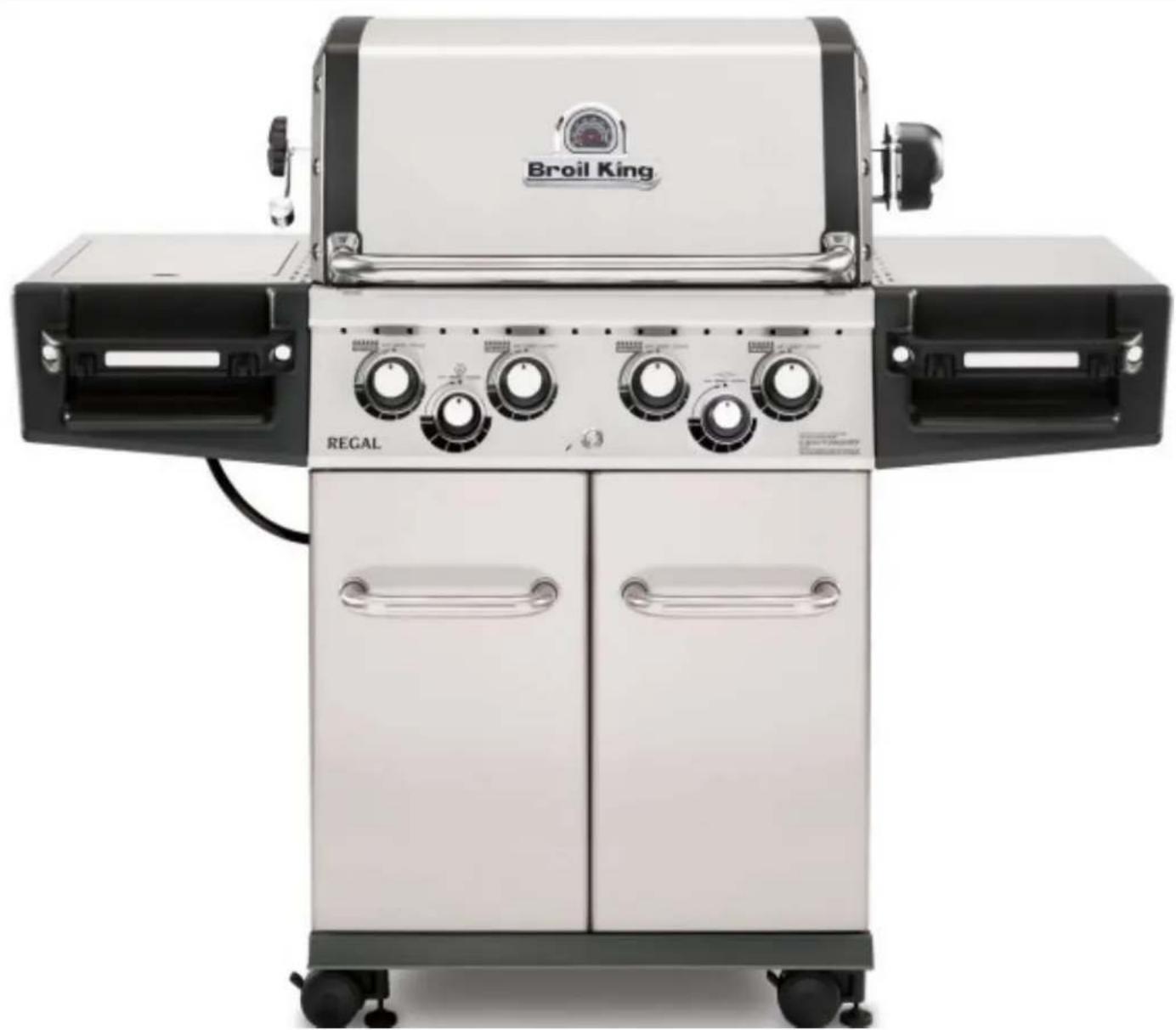

Exterior view of a Roil King regular gas stove (no signage or text overlays)

Broil King

REGAL S490 IR

9969-42

9969-43

9969-46

HARDWARE INCLUDED

Y-12865		(24)	S21124		(8)
S21125		(4)	Y-12222		(2)
S21235		(2)	Y-12223		(2)
Y-29304		(2)	Y-11560		(4)
S21233		(2)	Y-11793		(8)

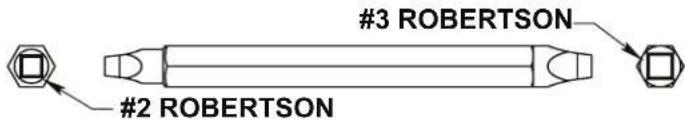

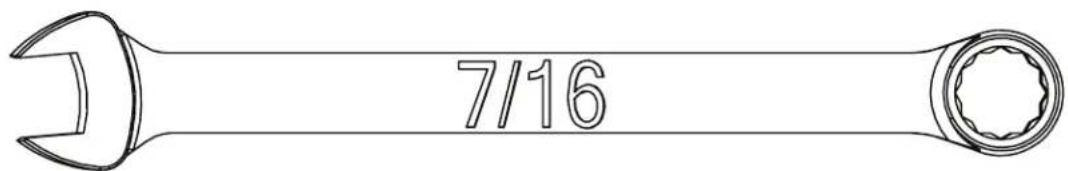

TOOLS REQUIRED

7/16

1

(8)

Technical line drawing of a mechanical assembly with two views of a motor housing (no text or symbols)

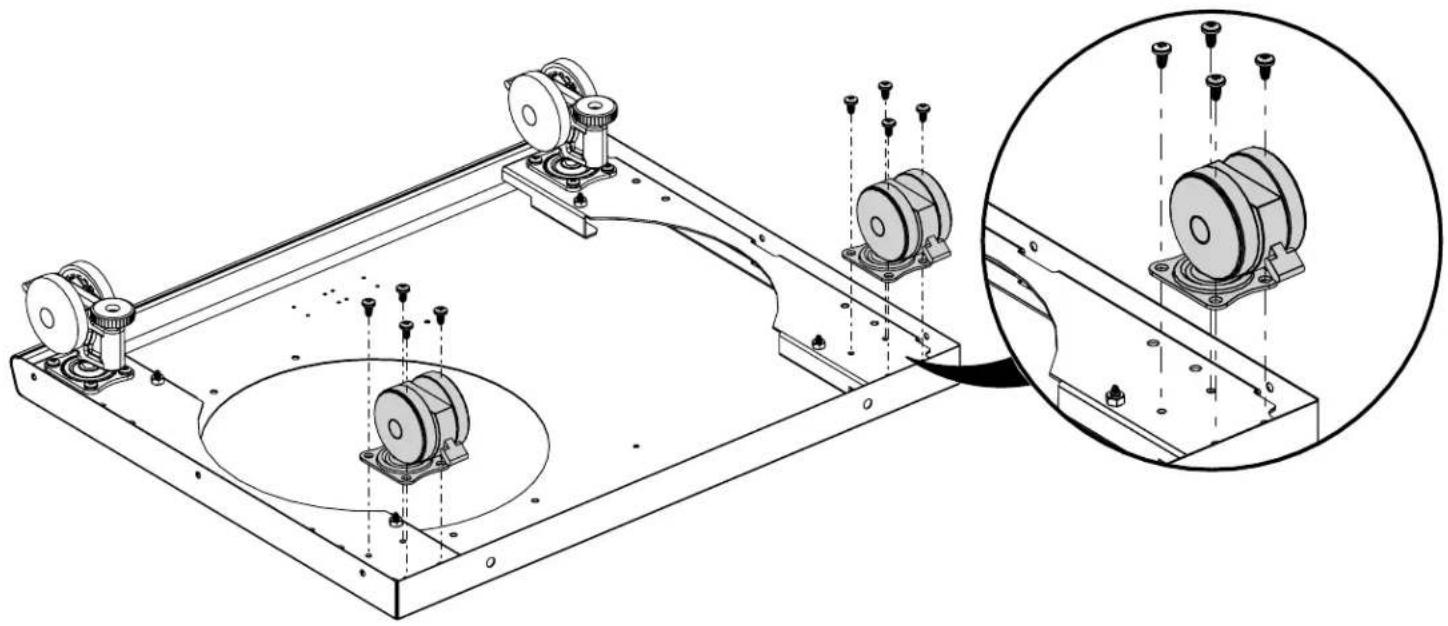

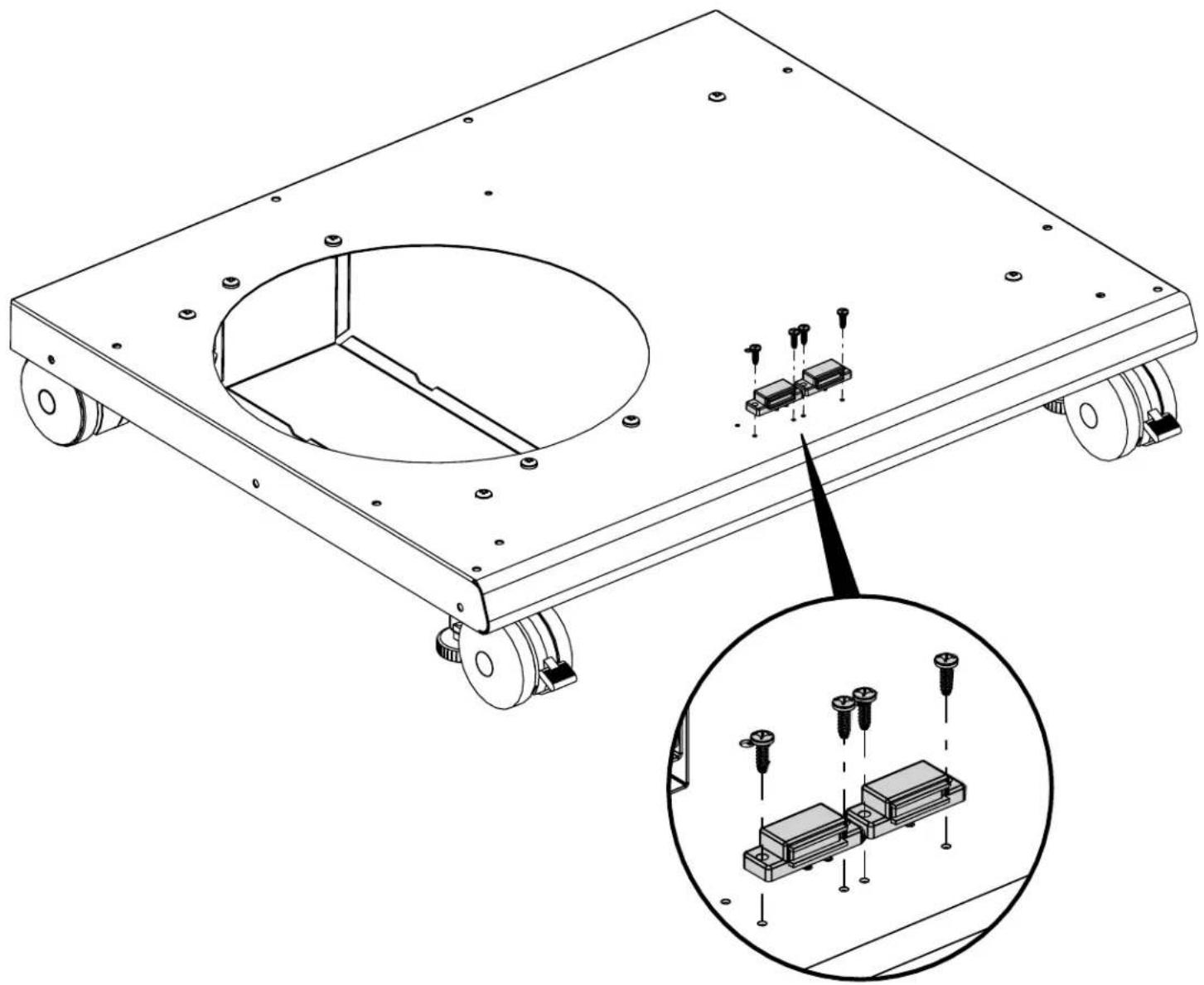

2

(4)

(4)

Technical line drawing of a mechanical assembly with a magnified inset showing a bolted component (no text or symbols present)

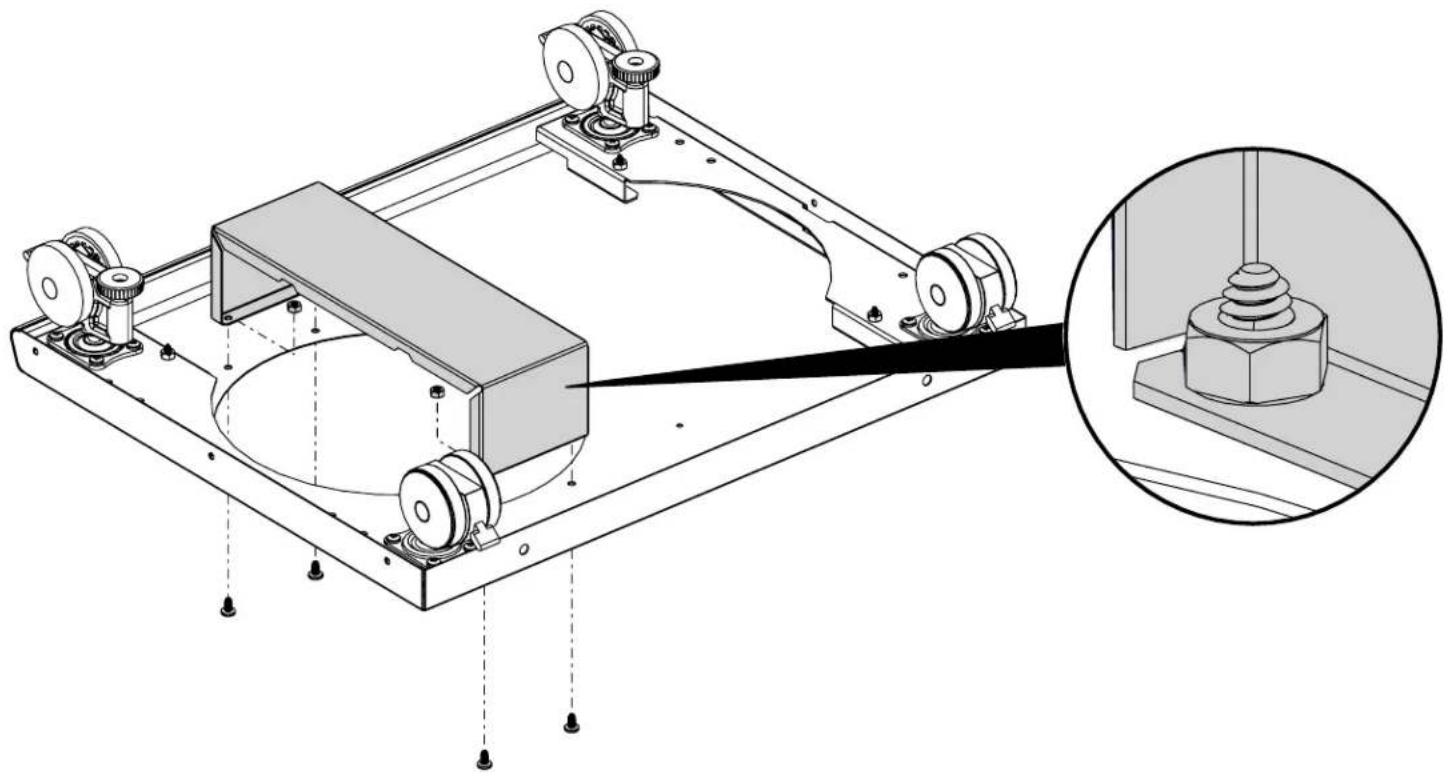

3

(2)

Technical line drawing of a rectangular electronic component with mounting holes (no text or symbols)

Technical line drawing of a mechanical assembly with circular cutouts and internal components, plus an inset close-up of a component (no text or symbols)

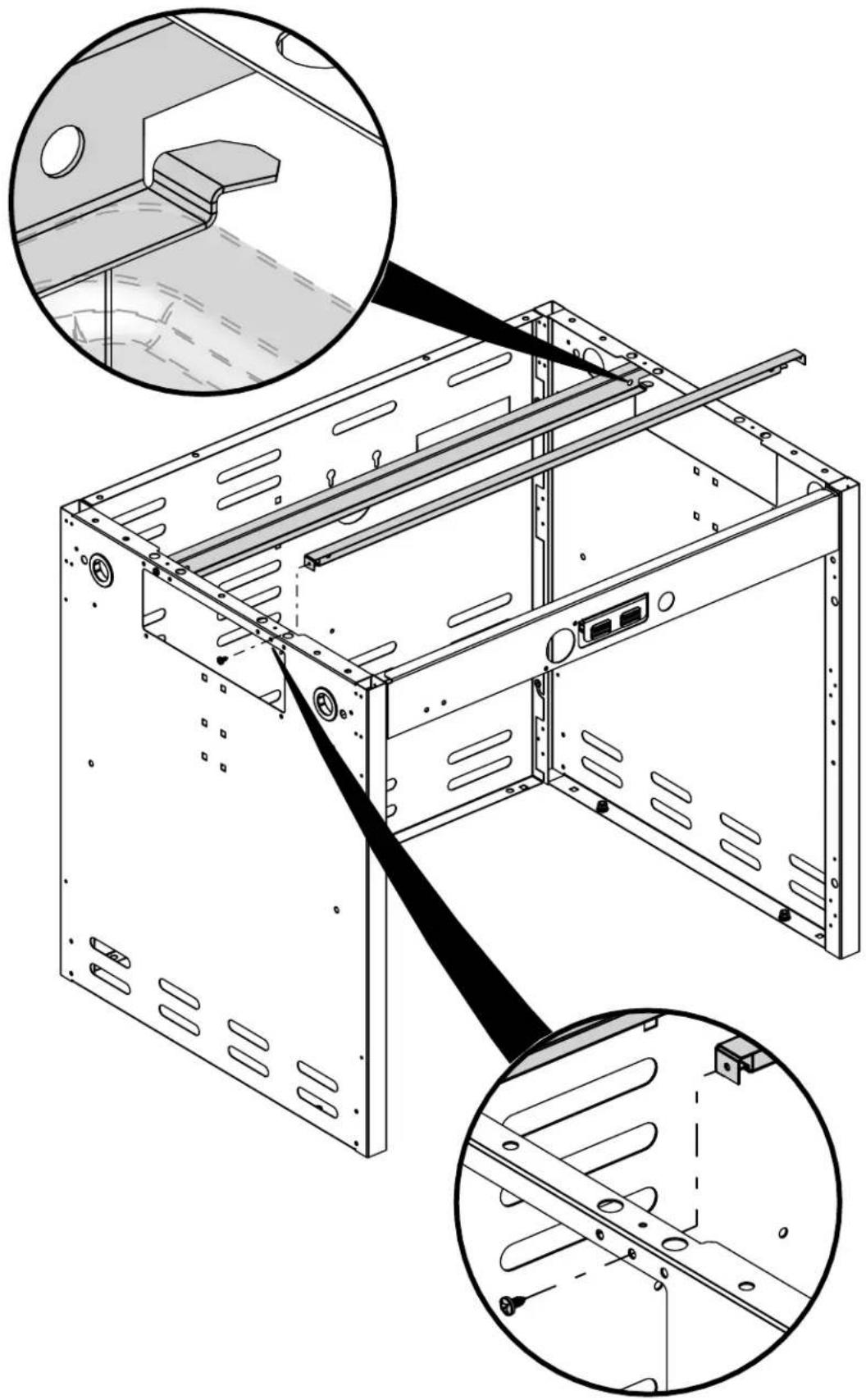

4

(2)

(2)

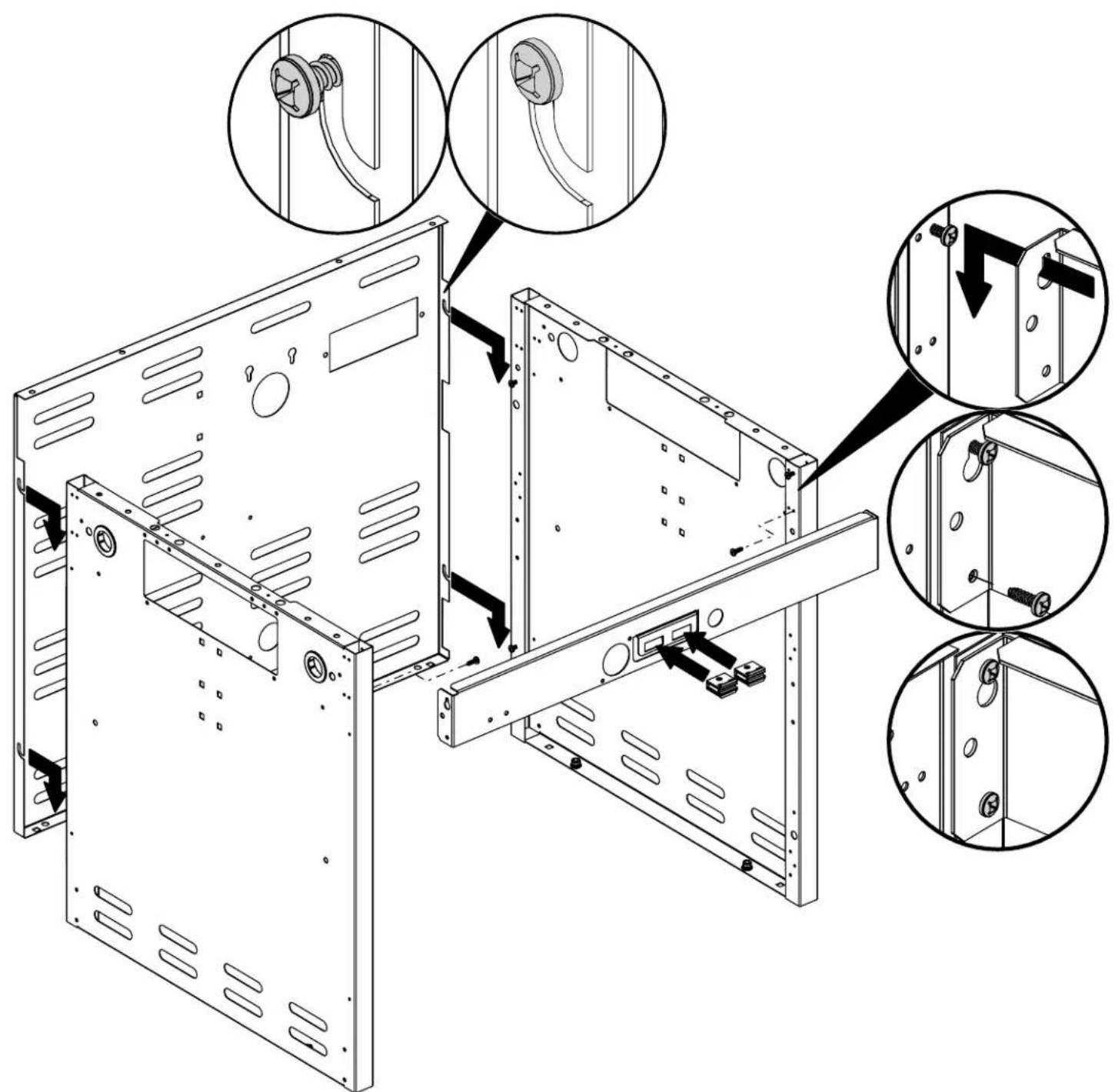

Technical diagram of a server rack with labeled components and close-up insets showing mechanical assembly details.

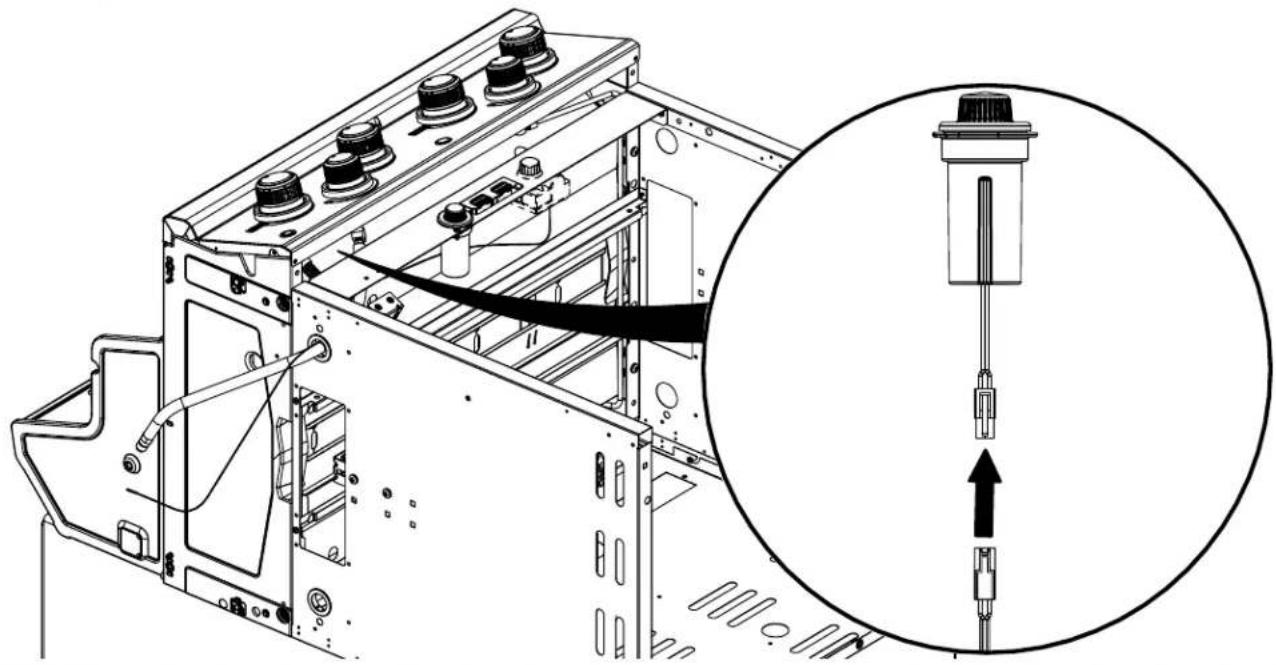

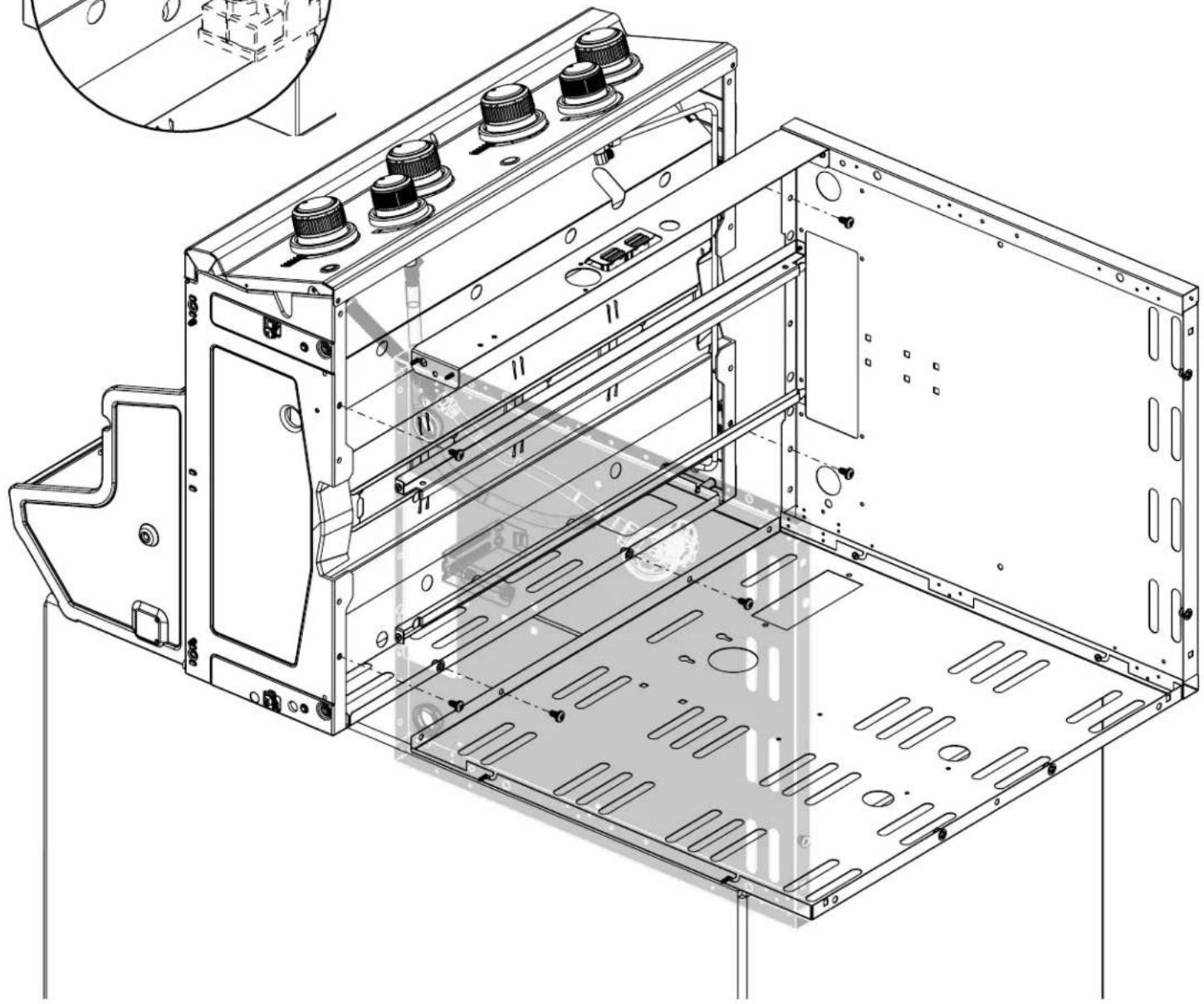

5

Technical line drawing of a server rack with internal components and mounting holes, showing structural details (no text or symbols)

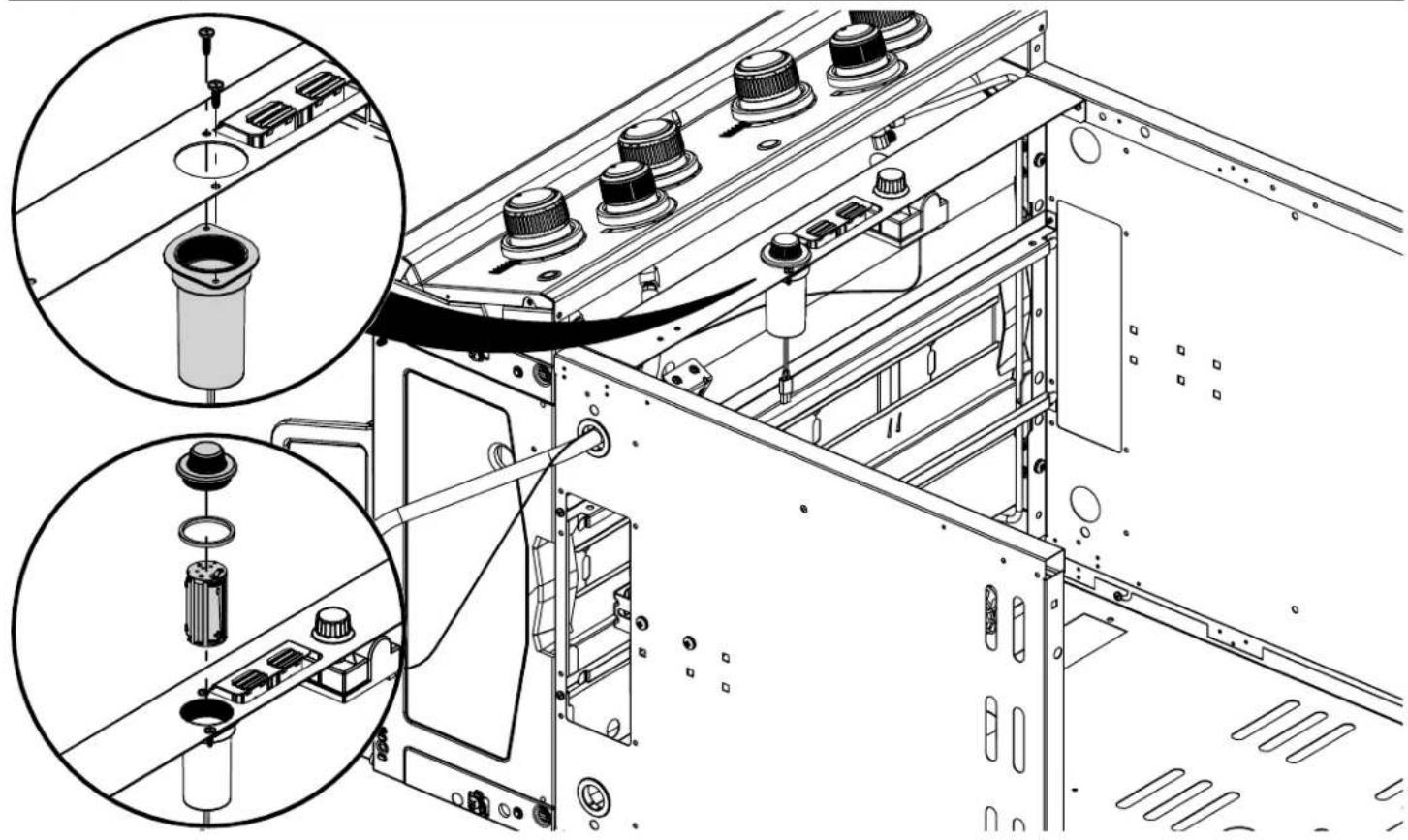

6

(6)

Technical diagram of a mechanical assembly with a close-up inset showing a component being inserted into a housing (no text or labels present)

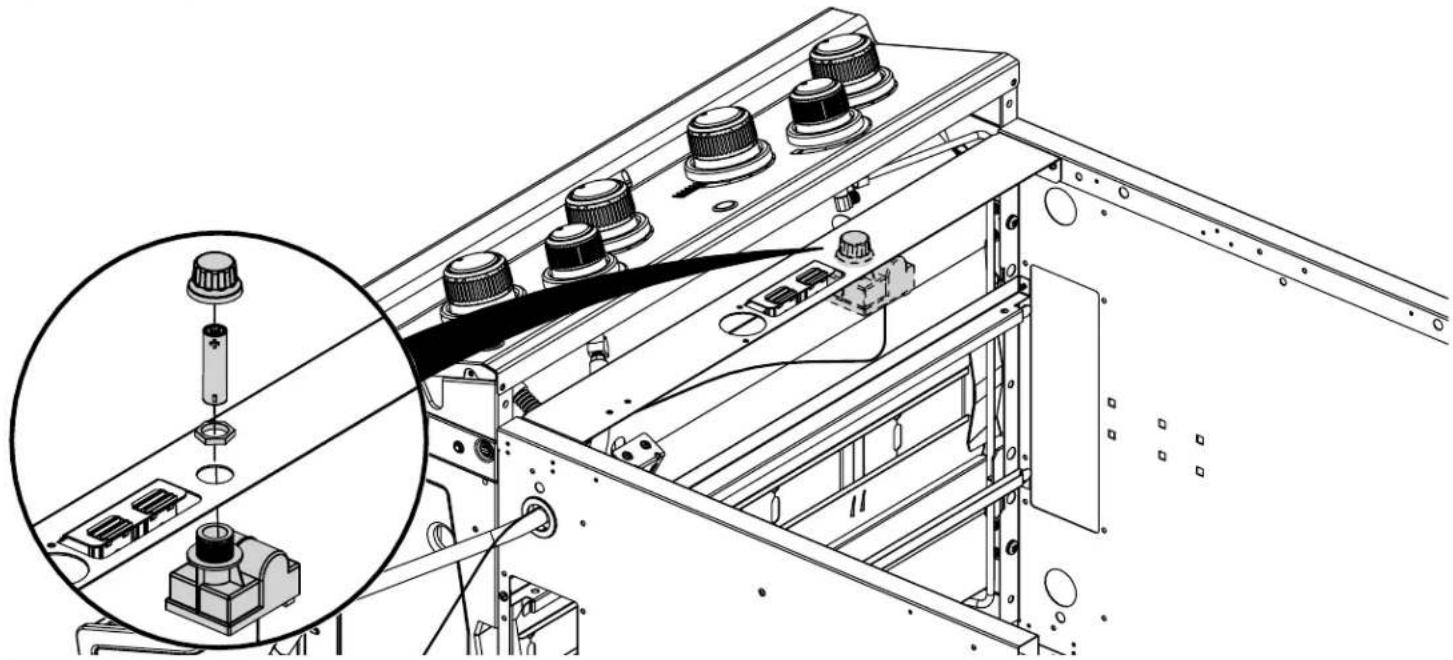

Technical line drawing of an open industrial machine casing with multiple rotary knobs and mounting brackets (no text or symbols)

7

Technical line drawing of a mechanical assembly with labeled components and an inset magnified view (no text or symbols)

8

Technical line drawing of a server rack with multiple switches and components, showing internal assembly and mounting details (no text or symbols present)

9

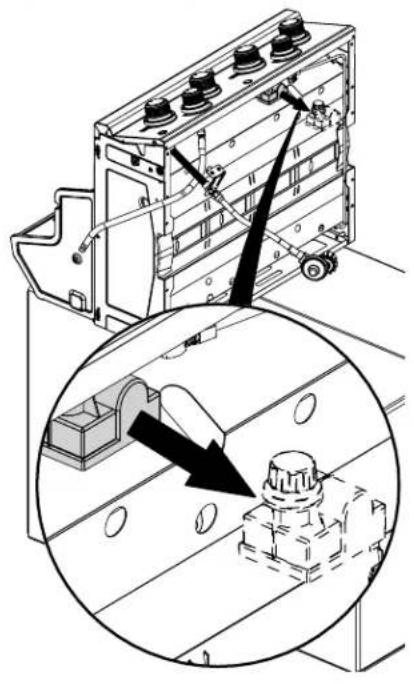

Technical line drawing of a computer chassis with an inset showing a mechanical component inserted into a socket (no text or symbols present)

10

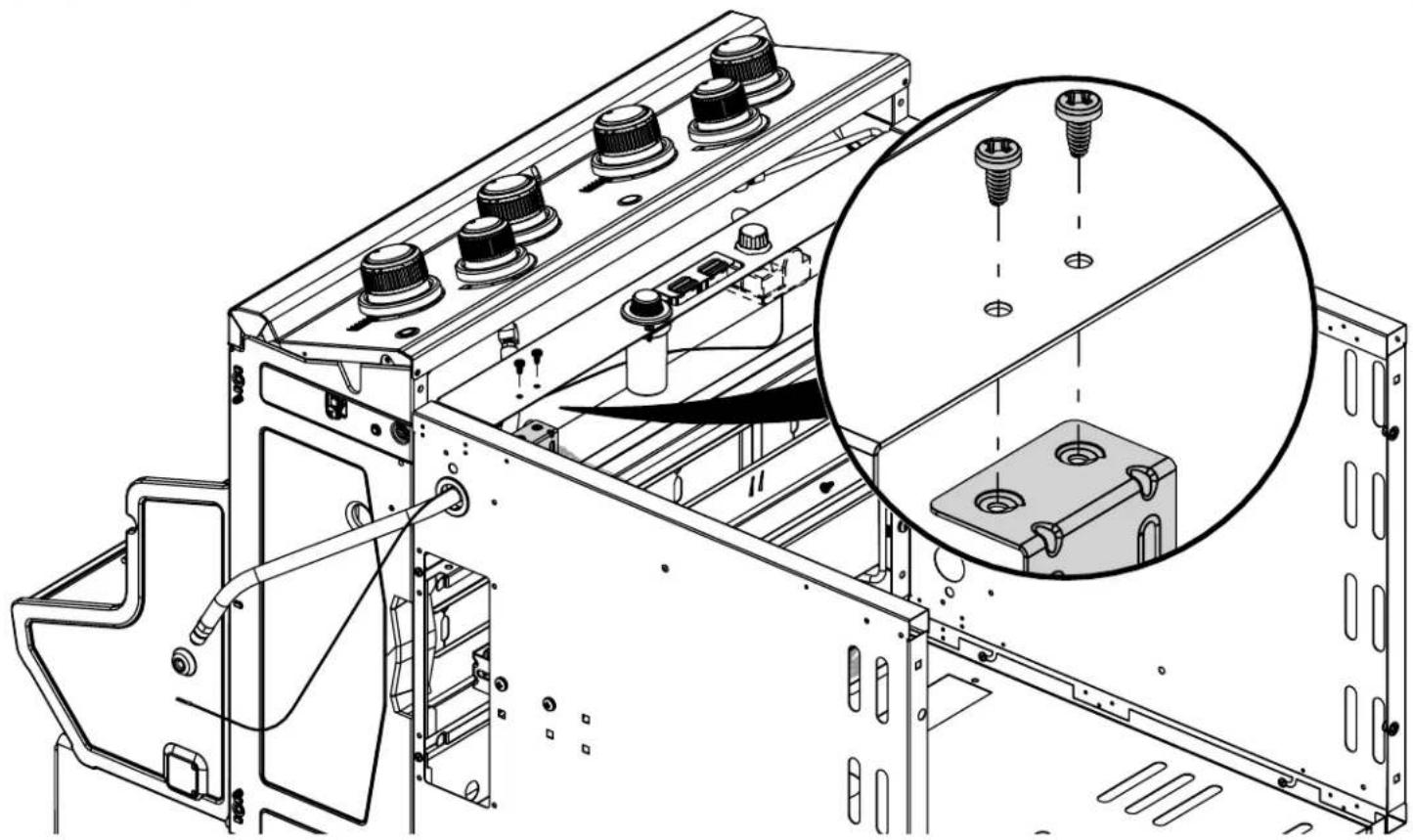

Technical line drawing of a server rack with multiple switches and a magnified inset showing screw installation (no text or symbols)

11

(2)

A

(4)

B

Technical diagram of an industrial machine with labeled components A, B, and C, showing internal structure and assembly.

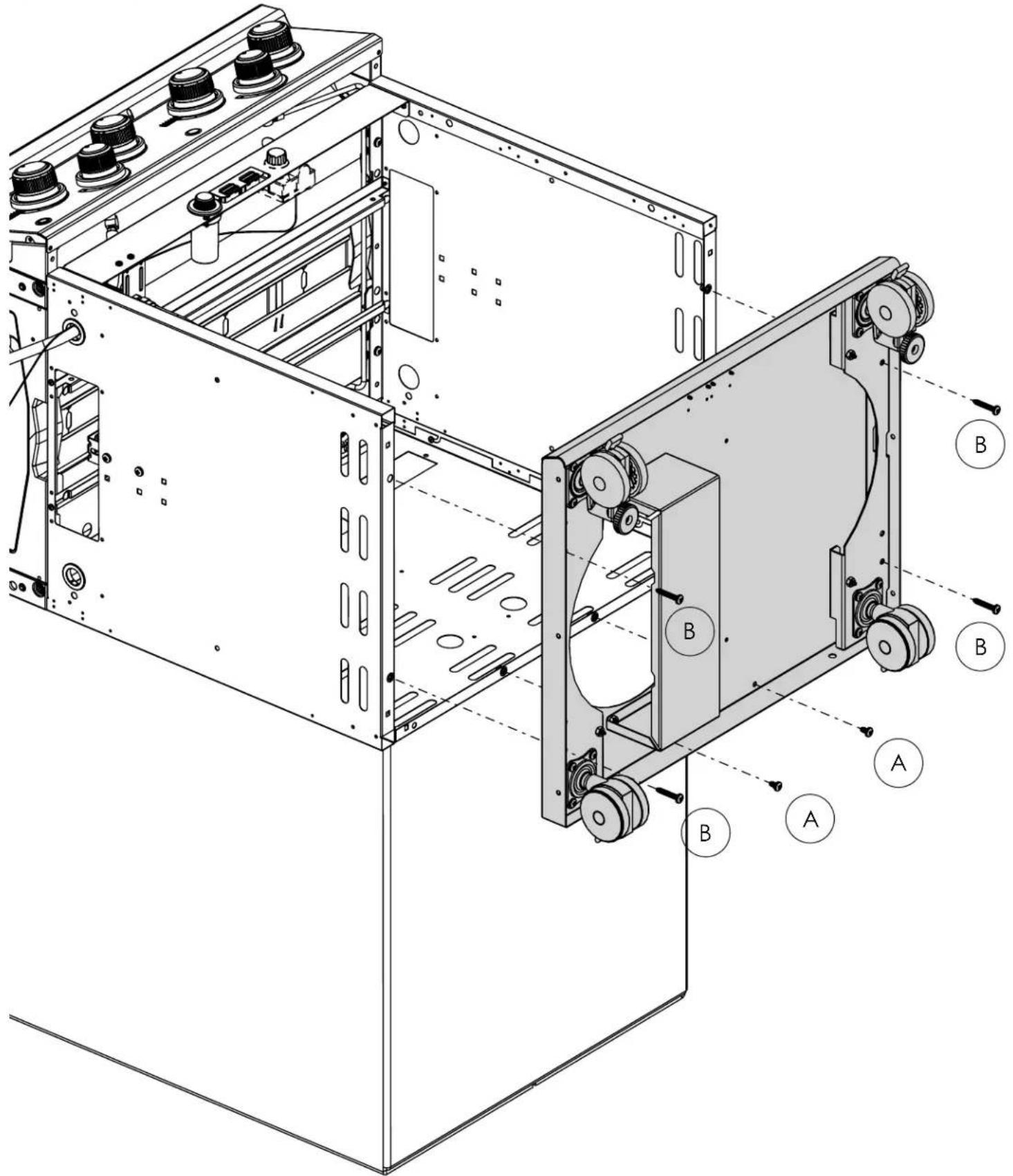

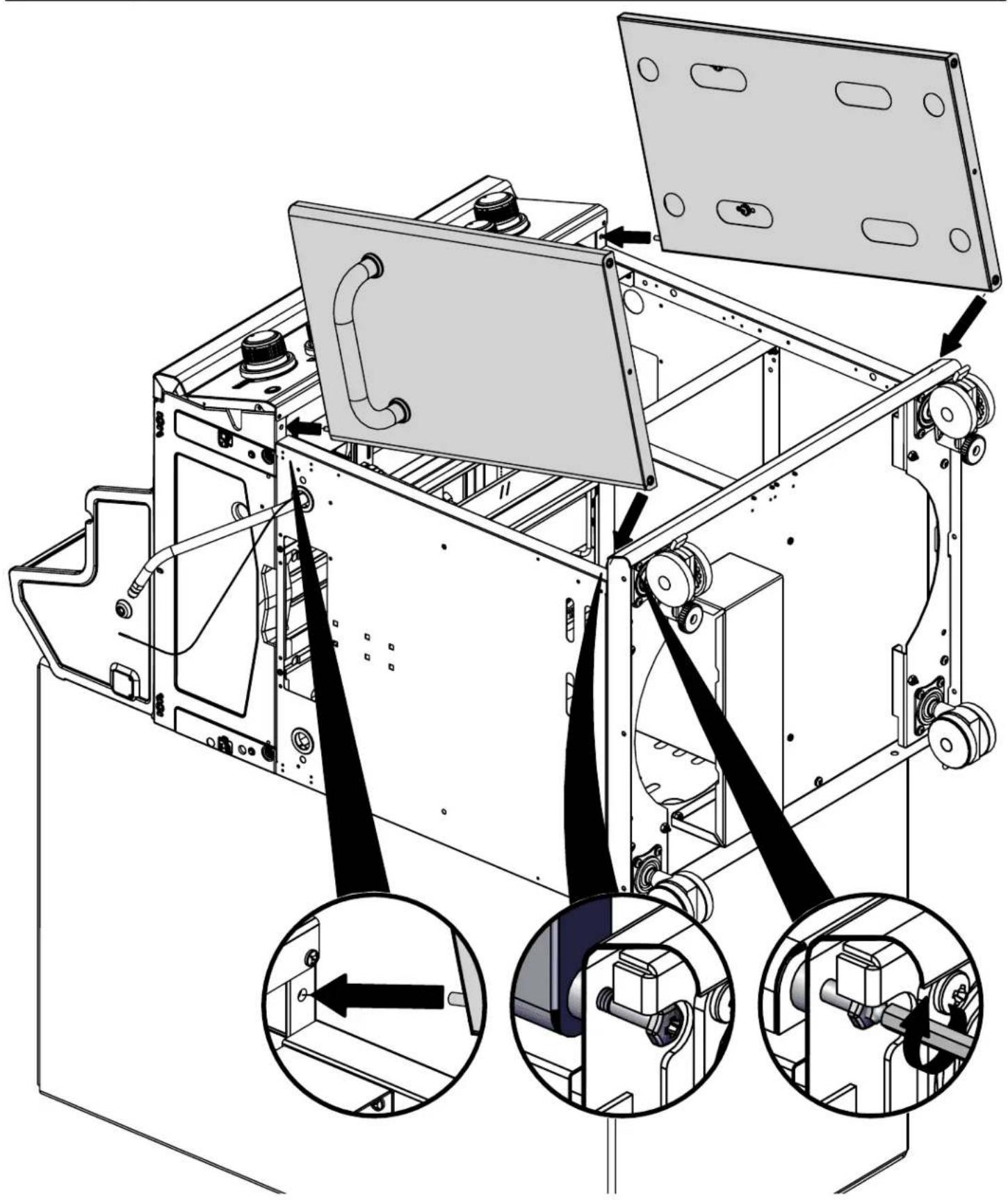

12

(4)

(4)

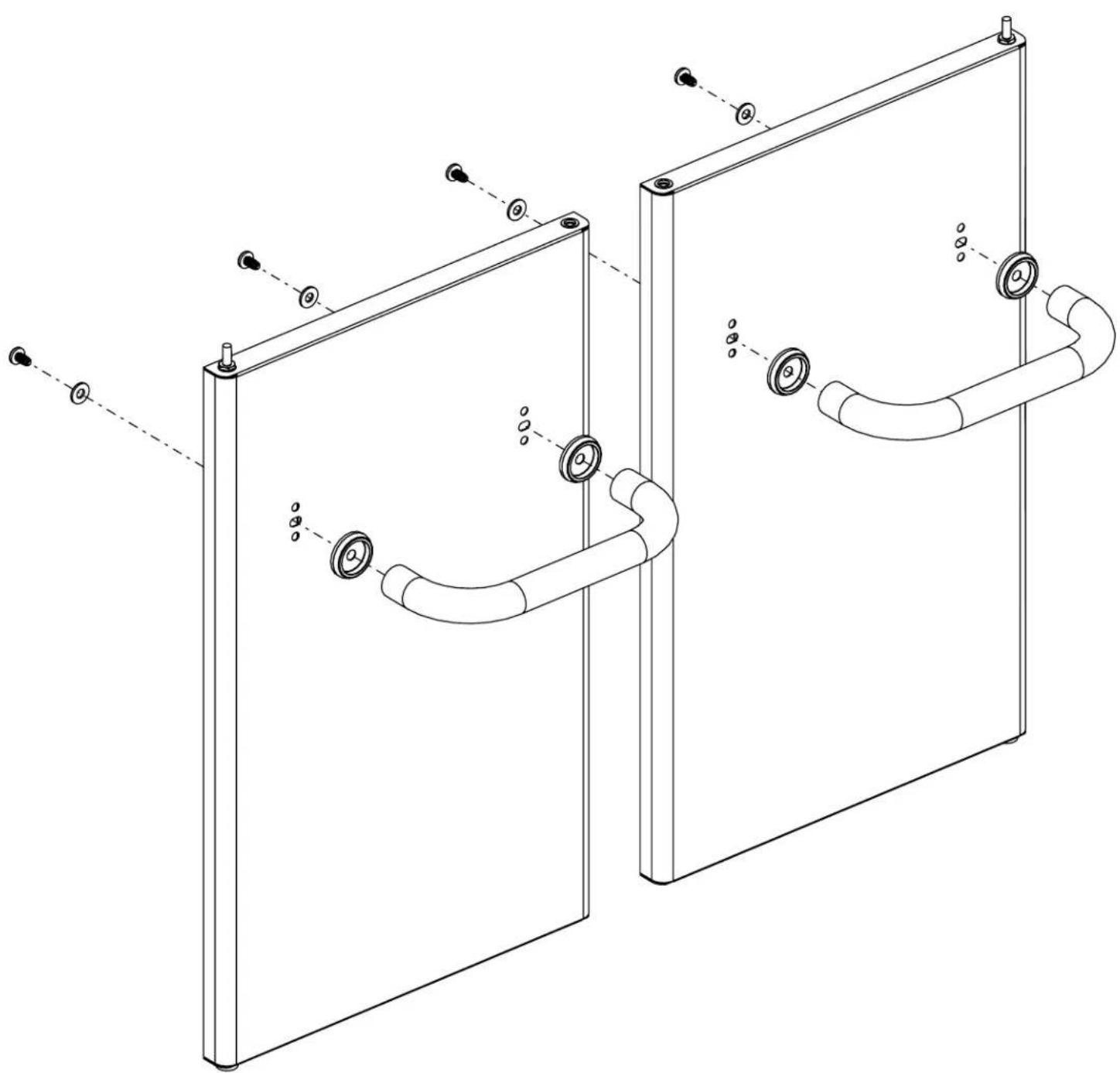

Technical line drawing of two door frame structures with pipe fittings and mounting holes (no text or symbols)

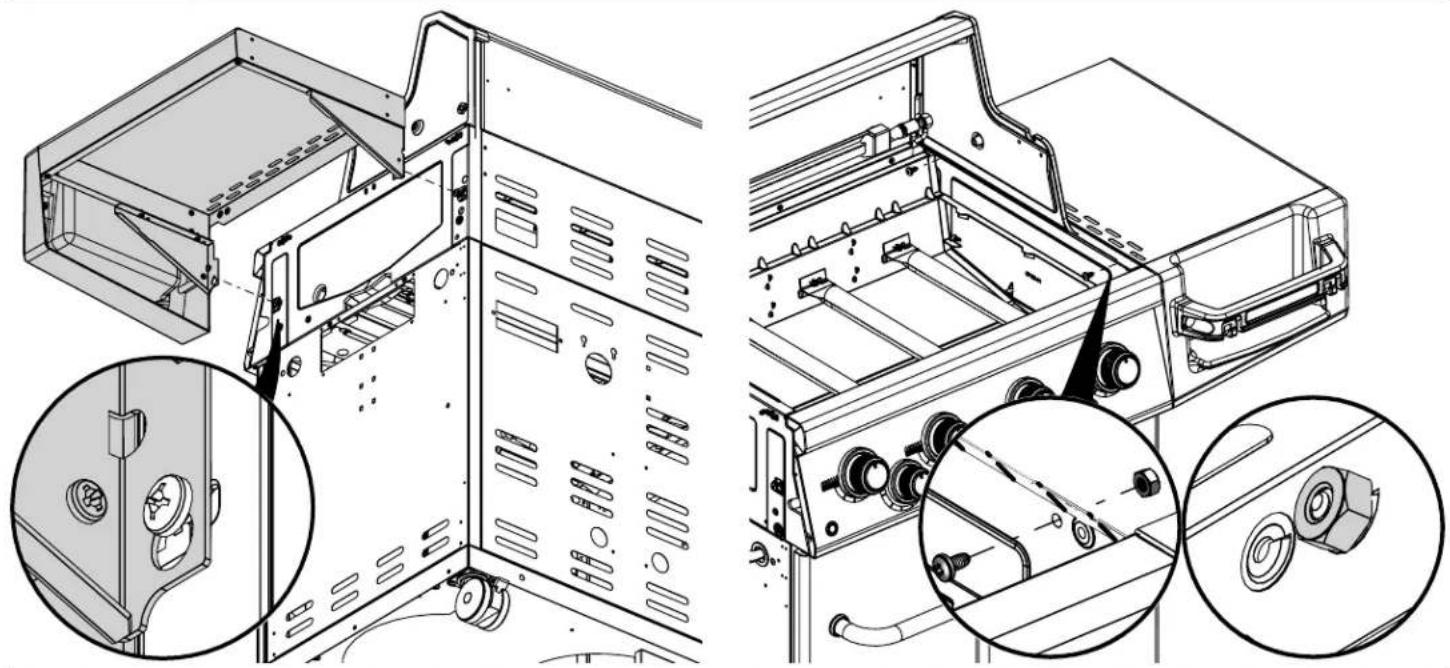

13

Technical line drawing of a mechanical assembly with labeled components and three circular insets showing internal mechanisms (no text or symbols present)

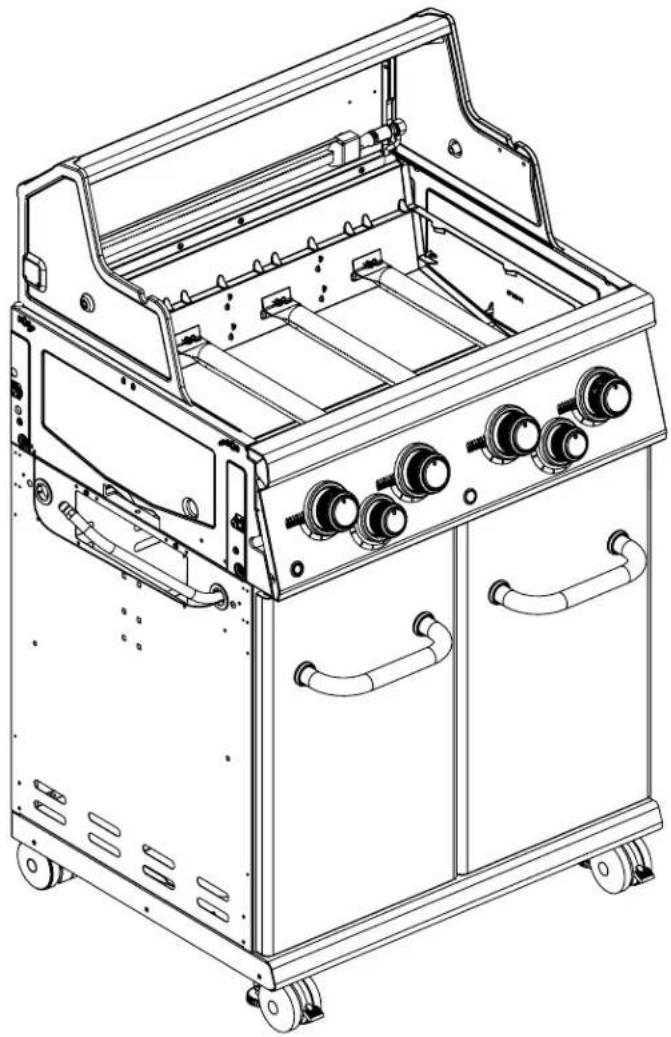

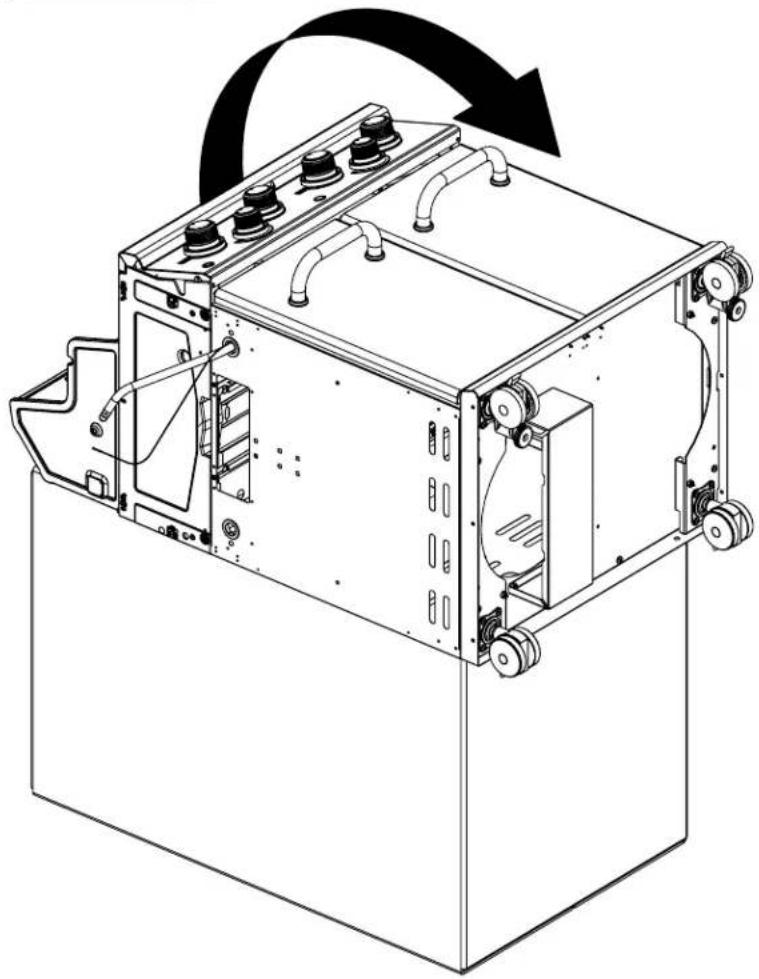

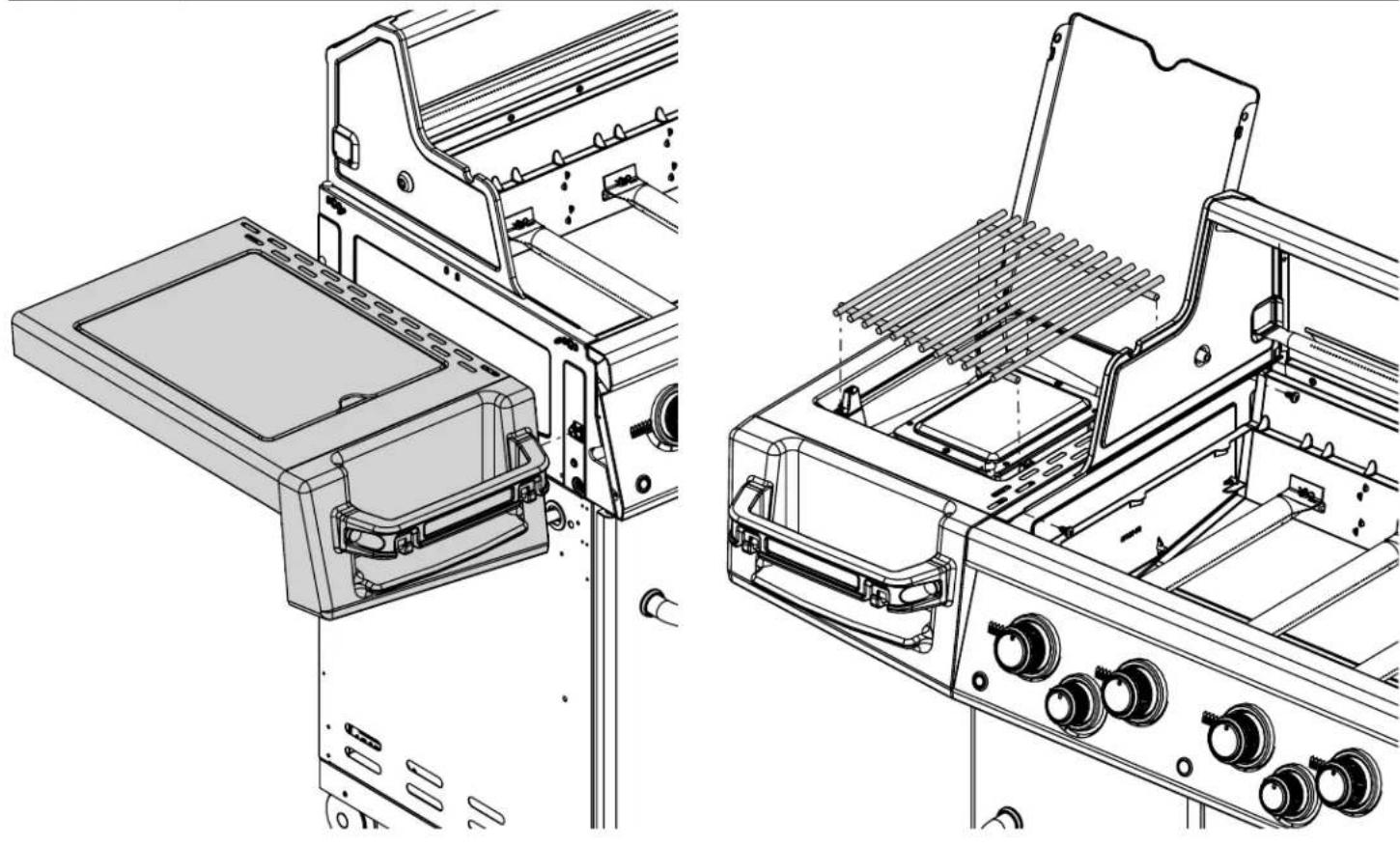

14

Technical line drawing of a mechanical device with internal components and a curved arrow indicating rotation (no text or symbols)

Technical line drawing of a portable electric stove or gas stove unit with handlebars and wheels (no text or symbols)

15

(2)

(2)

Technical line drawing of a computer rack with internal components and close-up insets showing mechanical parts (no text or symbols)

16

(2)

(2)

Technical line drawing of a device chassis showing front and side views (no text or symbols)

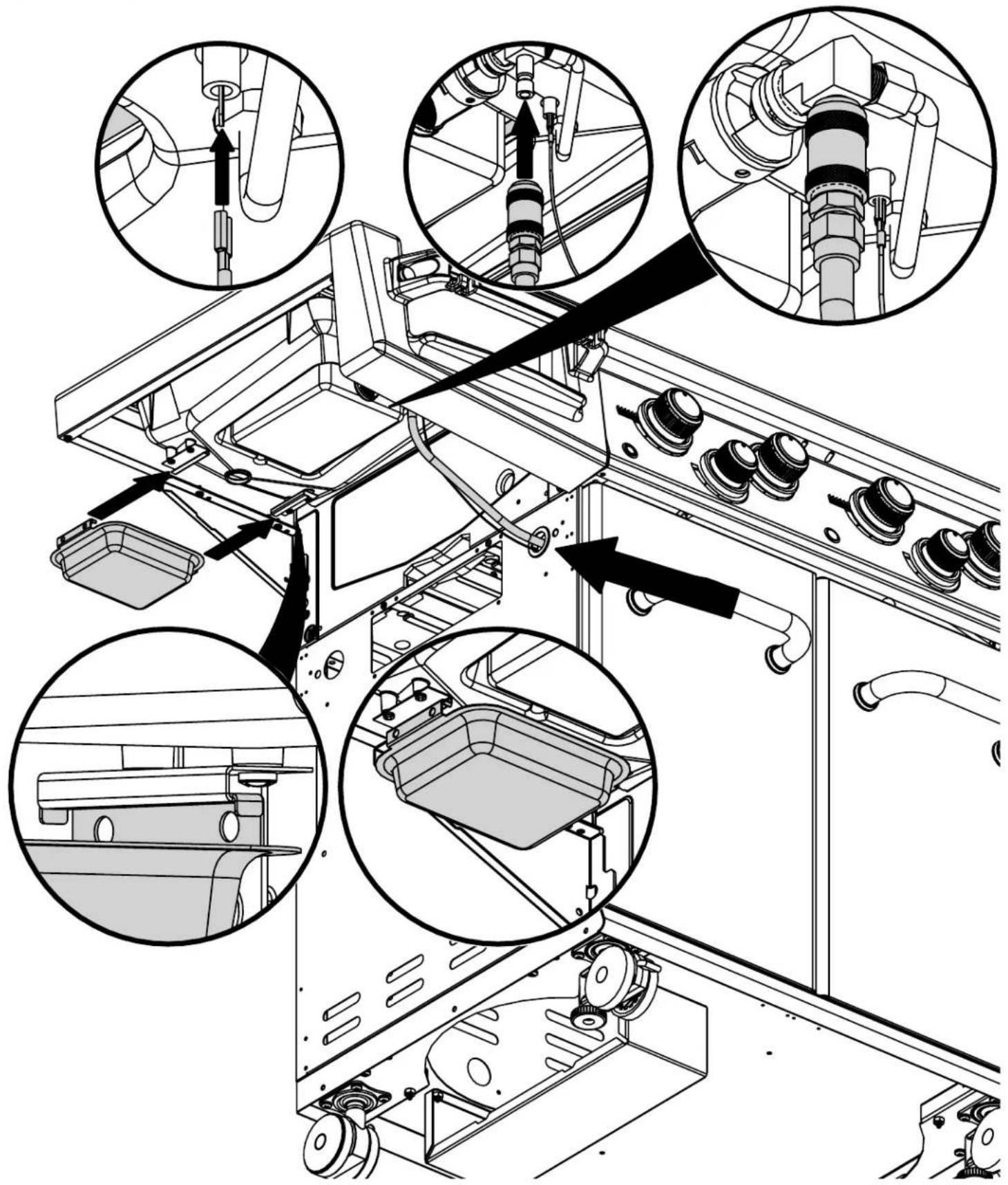

17

Simple line drawing of a funnel-shaped container with three circular objects on a base (no text or symbols)

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating assembly steps.

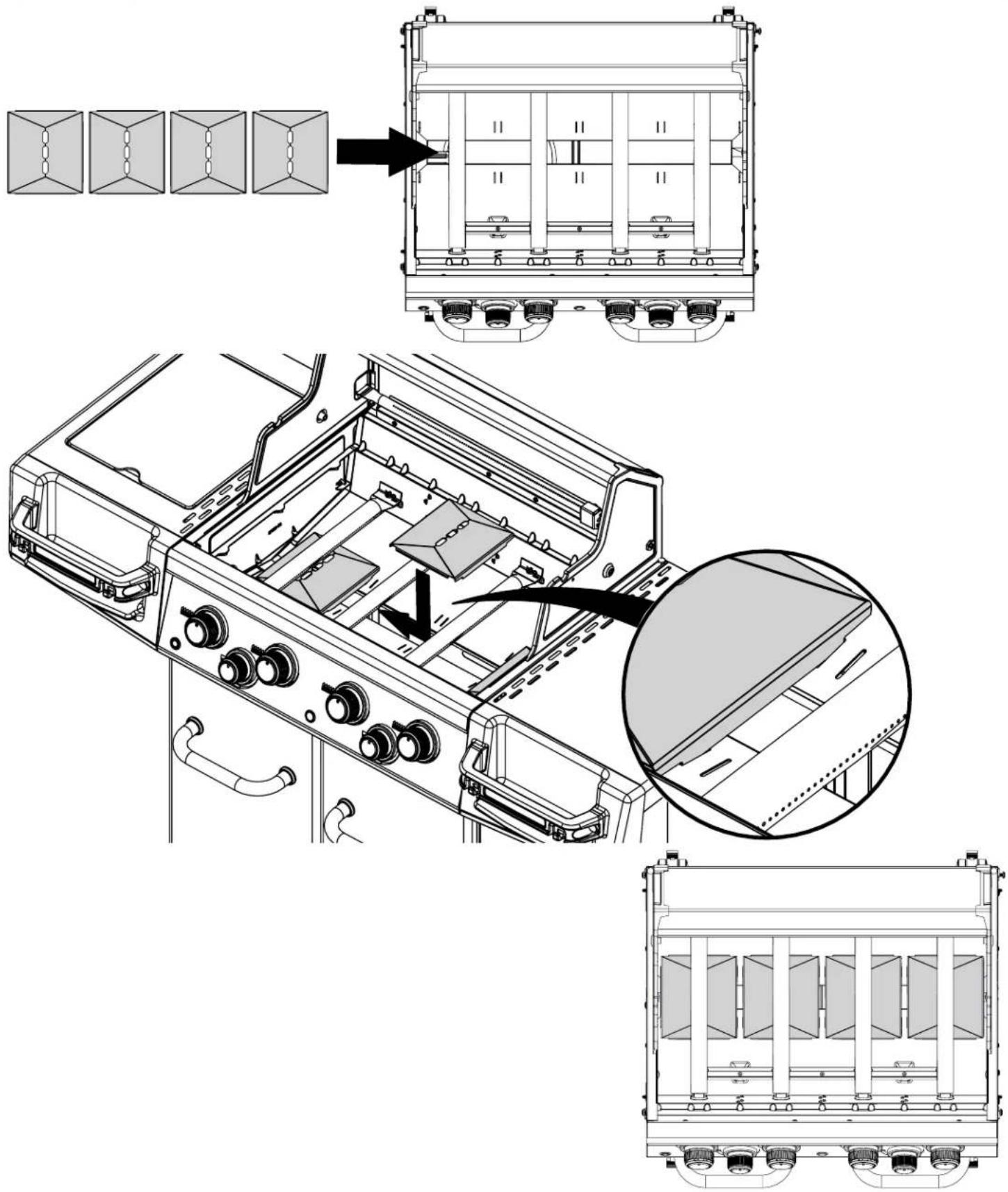

18

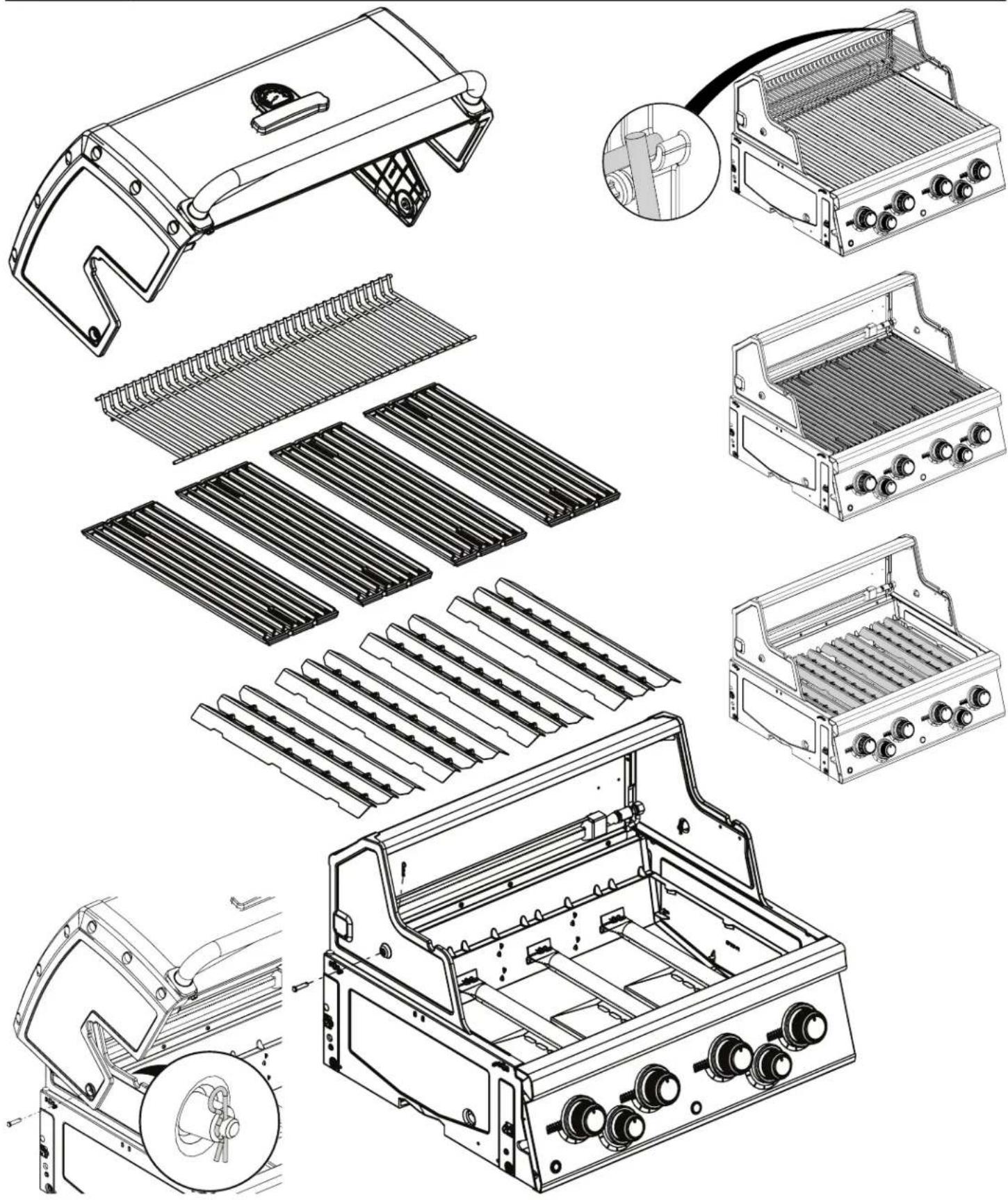

19

Exploded line drawings of a portable electric stove with internal components and fan assembly (no text or labels)

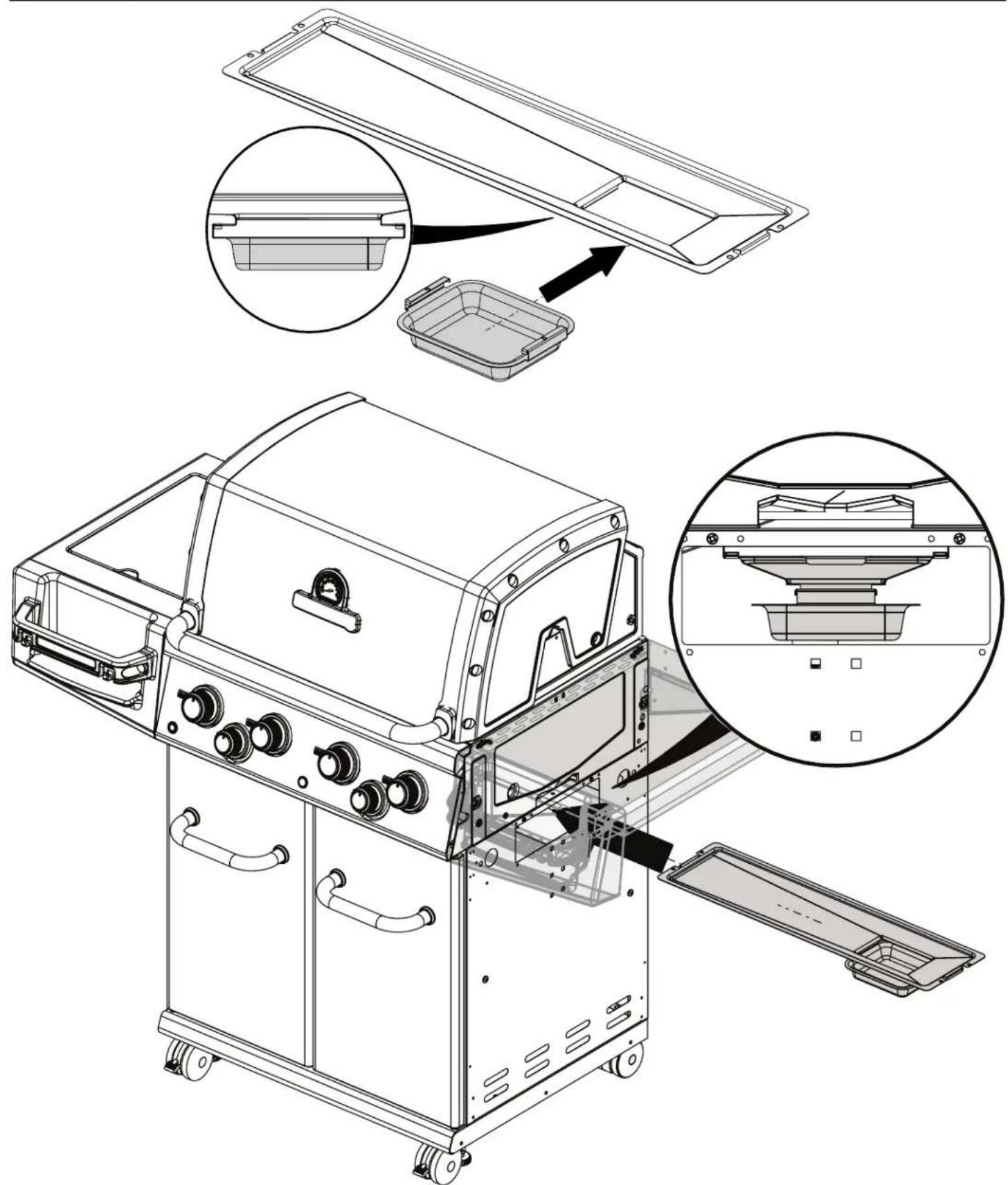

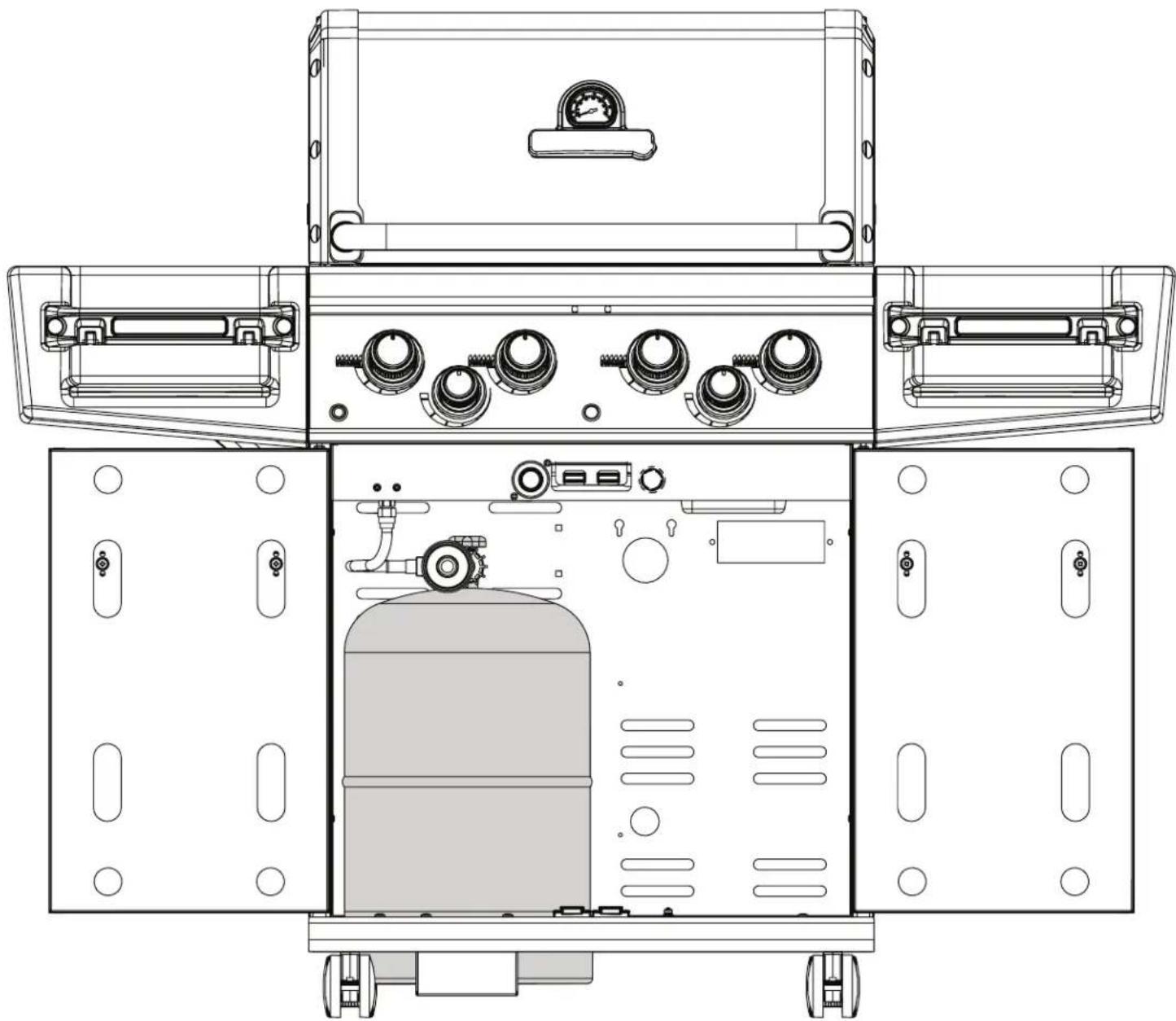

20

Technical line drawing of a portable electric grill with internal components and external housing (no text or symbols)

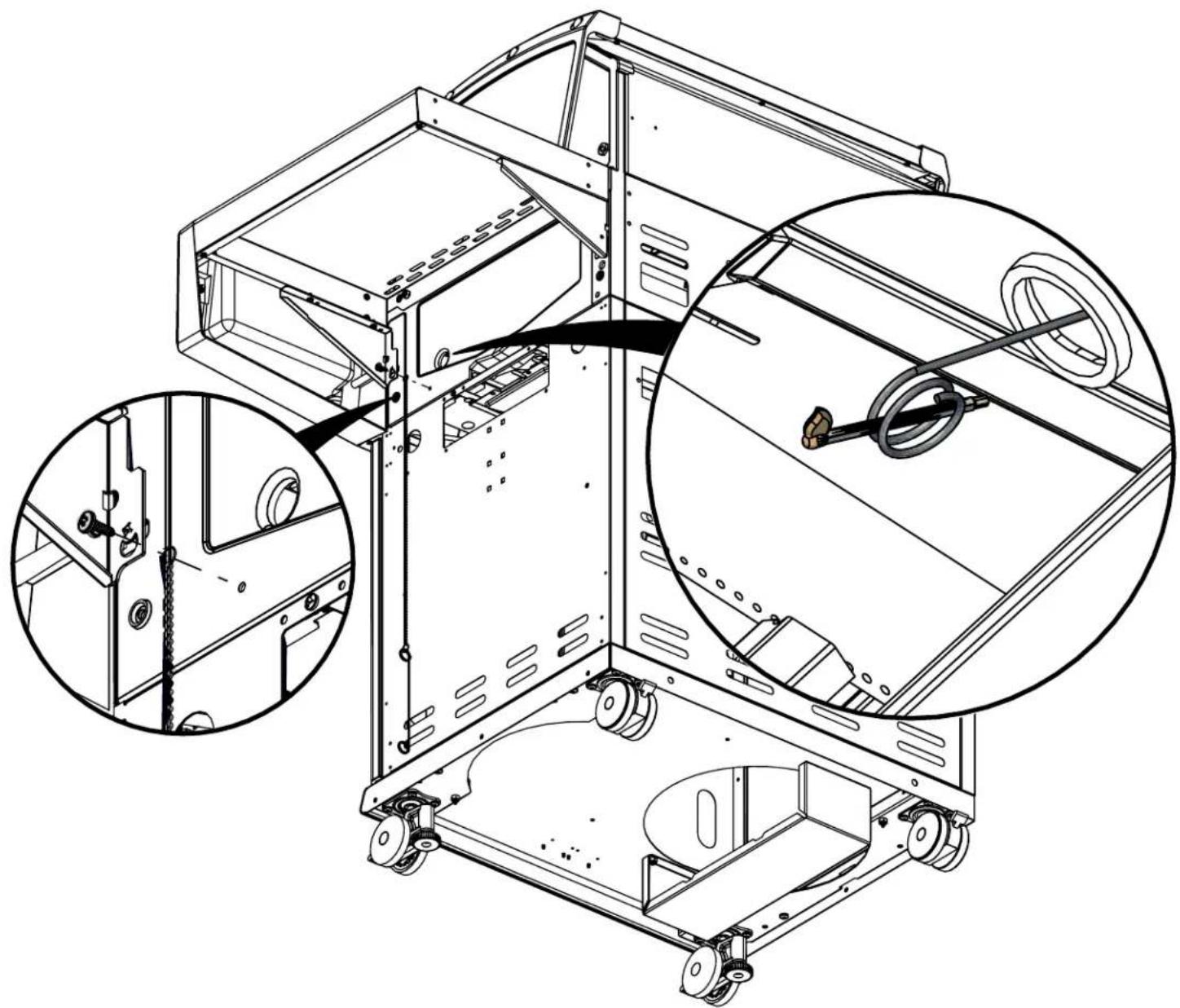

21

(1)

(1)

Technical line drawing of a mechanical device with internal components and external assembly (no text or symbols)

22

Technical line drawing of a gas stove or gasifier unit with control panel and vented gauges (no text or labels)

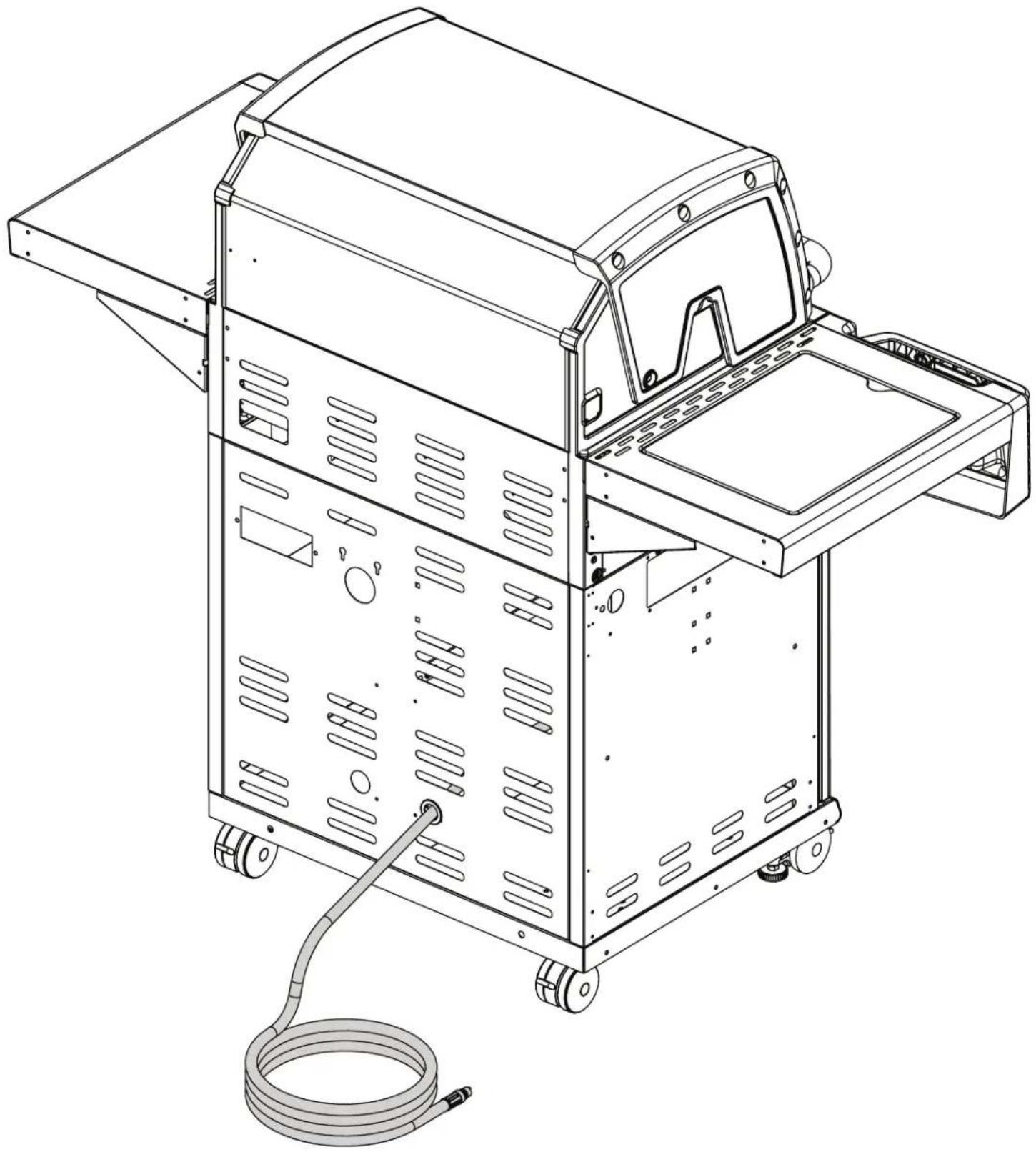

23

Line drawing of a portable electric vehicle chassis with attached cable and fan (no text or symbols)

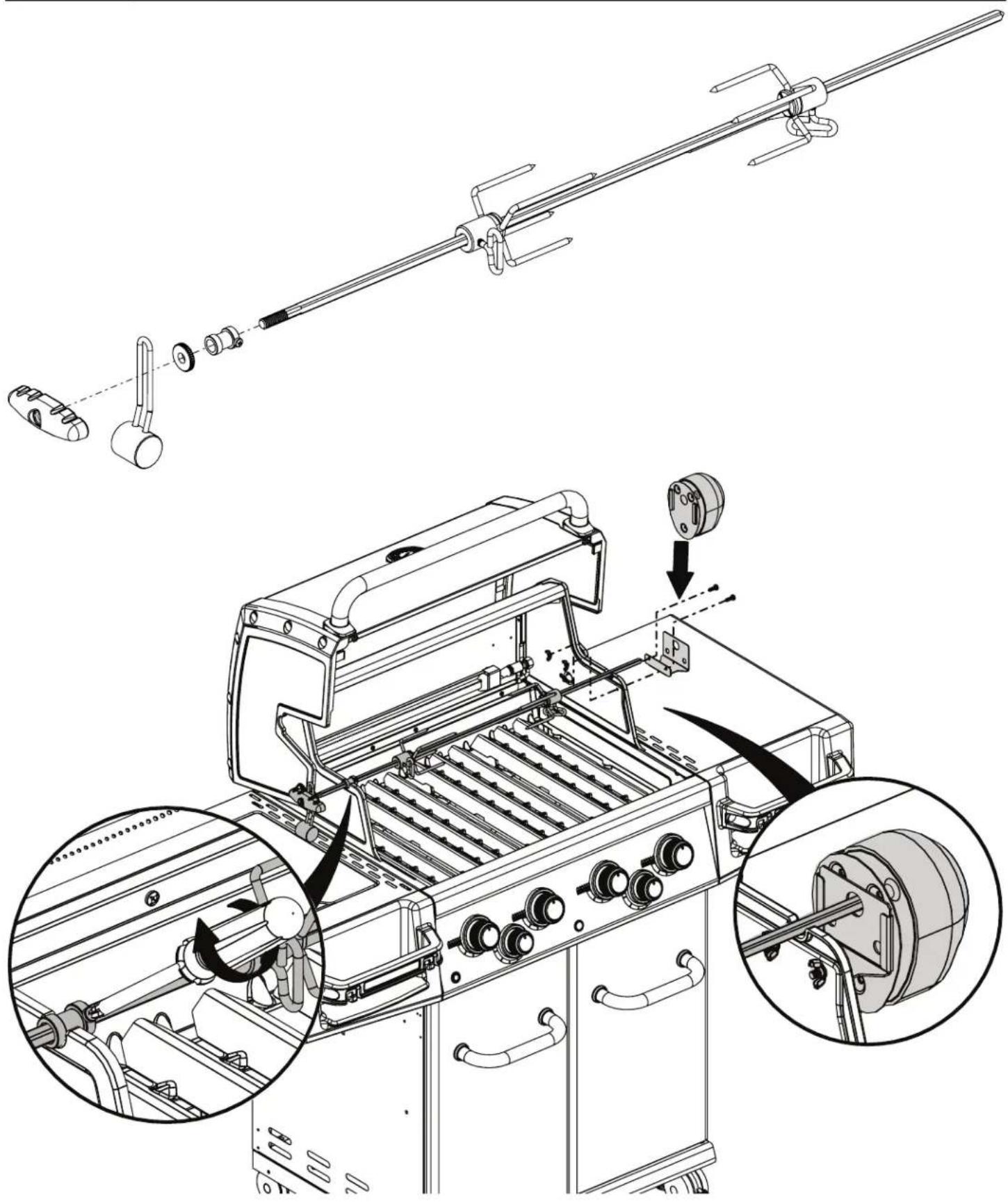

24

Simple line drawing of a chicken on a surface with steam rising (no text or symbols)

(2)

Technical diagram of a turbocharger assembly with labeled components and close-up insets showing internal components.

KEY # ITEM # DESCRIPTION
9969-42 9969-43 9969-46

1 27005-003 FIRE BOX ASSEMBLY 1 1 1
2 86005-303 LID ASSEMBLY 1 1 1
5 27249-904 GREASE SHIELD 4 4 4
7 Y-11544S SCREW - BURNER 4 4 4
8 S21242 BURNER CLIP 4 4 4
18 22005-281 GRID			4 4 4
20	22005-991	GRID - WARMING RACK	1	1	1
22	22225-014A	COLLECTOR BOX	1	1	1
25 22909-104D	BURNER		1	.	.
	22909-104E	BURNER	.	1	.
	22909-NGE	BURNER	.	.	1
26 22001-769 CONTROL KNOB 4 4 4
26A	22001-669 CONTROL KNOB 2 2 2
27 22002-264 CONTROL BEZEL			4 4 4
27A	22001-164	CONTROL BEZEL	2	2	2
28 22005-883 CONTROL COVER			1 1 1
29	Y-12678	BEZEL STOP	1	1	1
30	Y-12674	KNOB ADAPTER	1	1	1
32	10111-15A	HOSE	1	1	1
33 10153-93	QUICK DISCONNECT FITTING		1	1	1
34 S13473-IR HOSE-SIDE BURNER			1 1 1
34A	Y-11230	COTTER PIN	1	1	1
35 29005-072IR	CONTROL ASSEMBLY		1	.	.
	29005-075IR	CONTROL ASSEMBLY	.	1	.
	29005-076IR	CONTROL ASSEMBLY	.	.	1
36	10342-T21	ELECTRODE - SIDE BURNER	1	1	1
37	20809-957	TUBE-REAR BURNER ASSY	1	1	1
38	Y-11990	HEX NUT	1	1	1
39	10110-74	TUBE - COMPRESSION FITTING	1	1	1
41	20153-64	ORIFICE ADAPTER	1	1	1
42	10153-79	FITTING	1	1	1
43	10342-E13	ELECTRODE	2	2	2
44	10342-44	ELECTRONIC IGNITOR	1	1	1
44A	25070-92	WIRE - IGNITOR	1	1	1
44B	25070-93	BUTTON - IGNITOR	1	1	1
45 10693-073 ORIFICE			1	.	.
	10693-079 ORIFICE		.	1	.
	10693-109 ORIFICE		.	.	1
46 23039-274 GREASE RAIL			2 2 2
47 21035-991 GREASE RAIL			2 2 2
48 22009-901 GREASE PAN			2 2 2
49 27055-901 GREASE TRAY			1 1 1
51 22209-903 FLAV-R-WAVE®			4	4	4
56	24005-12A	HANDLE	1	1	1
58 54009-936 BEZEL			2 2 2
59 10081-BK630 NAMEPLATE			1 1 1
60	10571-6	HEAT INDICATOR	1	1	1
65	20005-000	MATCH LIGHT - STICK	1	1	1
68	23275-113A	DOOR	1	1	1
69	23275-133A	DOOR	1	1	1
70	21071-13	HANDLE	2	2	2
71	21070-13	BEZEL	4	4	4
78	21335-111	BRACKET - DOOR CATCH	1	1	1
80	21109-905R	SIDE PANEL	2	2	2
84 21039-301 TANK BRACKET			1	1	.
88	21305-925R	REAR PANEL	1	1	1

KEY # ITEM # DESCRIPTION
9969-42 9969-43 9969-46

90 21795-935 BASE 1 1 1
100 21039-915 CASTOR BRACKET 2 2 2
102 10892-23 CASTOR 2 2 2
102A 10892-285 CASTOR 2 2 2
114 23001-613 SHELF 1 1 1
115 23001-653 SHELF 1 1 1
124 23090-27 SIDE BURNER BODY 1 1 1
125	23000-253	SIDE BURNER COVER	1	1	1
126 20390-74 SIDE BURNER			1 1 1
128 23001-79 GRID			1 1 1
130	27905-354	BURNER ROTISSERIE	1	1	1
131 10693-099 REAR BURNER-ORIFICE			1	1	.
	10693-161	REAR BURNER-ORIFICE	.	.	1
133	S15271	HANDLE	1	1	1
134	S15270	BALANCER	1	1	1
135	S15299	WASHER	1	1	1
136	S15263	BUSHING	1	1	1
137	S15256	SPIT ROD	1	1	1
138	S15287	4 PRONG FORKS	2	2	2
139	57039-901	ROTISSERIE BRACKET	1	1	1
140 S21125		SCREW #8 X 1/2	4	4	4
141	Y-12860	BOLT 1/4-20 X 1	2	2	2
142	S21127S	SCREW #8-32 X 7/16	19	19	19
144	Y-12220	BUSHING	1	1	2
145	S21235	HINGE PIN	2	2	2
146	S21233	HITCH PIN CLIP	2	2	2
147	Y-11231	LID BUMPER	2	2	2
148 10240-20 DOOR PIN			2 2 2
149	Y-11551	DOOR PIN	2	2	2
150	Y-12124	DOOR PIN CAP	2	2	2
151	Y-12857	WASHER	4	4	4
152	Y-12222	MAGNET	2	2	2
153	Y-12223	SNAP IN MAGNET	2	2	2
154	Y-11560	SCREW 1/4-20 X 1-1/2	8	8	8
155	S21124	SCREW #8 X 1/2	14	14	14
156	Y-11793	NUT 1/4-20	12	12	8
157	Y-12835	SCREW #6-32 X 1/4	2	2	2
158	Y-12641	SCREW SHOULDER #8 X 1/2	2	2	2
160	Y-29304	BOLT #10-24 X 3/8	2	2	2
161	Y-12310	SCREW 1/4-20 X 3/4	4	4	4
163	S35094	SCREW #10-24 X 5/8	1	1	1
169	S21061	WING NUT	2	2	2
170	S15517-011	ELECTRODE ASSEMBLY	1	1	.
	S15517-018	ELECTRODE ASSEMBLY	.	.	1
171	S15246	MOTOR	1	1	1
172	S15508	ELECTRODE	1	1	1
173	S21362	SPRING	1	1	1
180	S35095	SCREW #10-24 X 5/8	2	2	2
181	25030-73	WIRE - TRANSFORMER	1	1	1
181A	25070-95	LIGHT SWITCH	1	1	1
184 25080-80 BATTERY PACK			1 1 1
186	Y-12865	SCREW 1/4-20 X 3/4	32	32	28
190 25020-82 WIRE - LED LIGHT			1 1 1
191 25020-84 WIRE - LED LIGHT			1 1 1
193	SP11-25	LID BUMPER	2	2	2

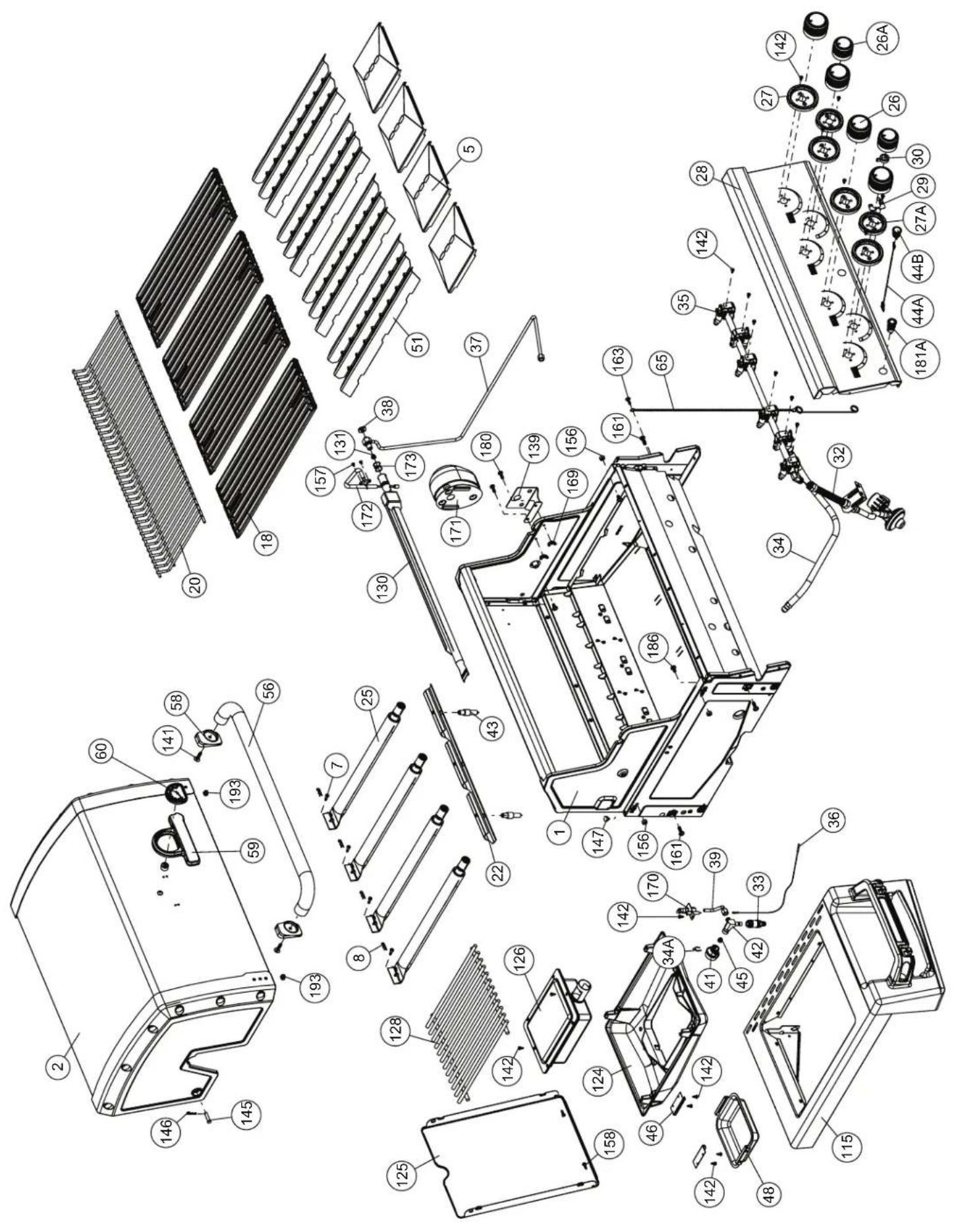

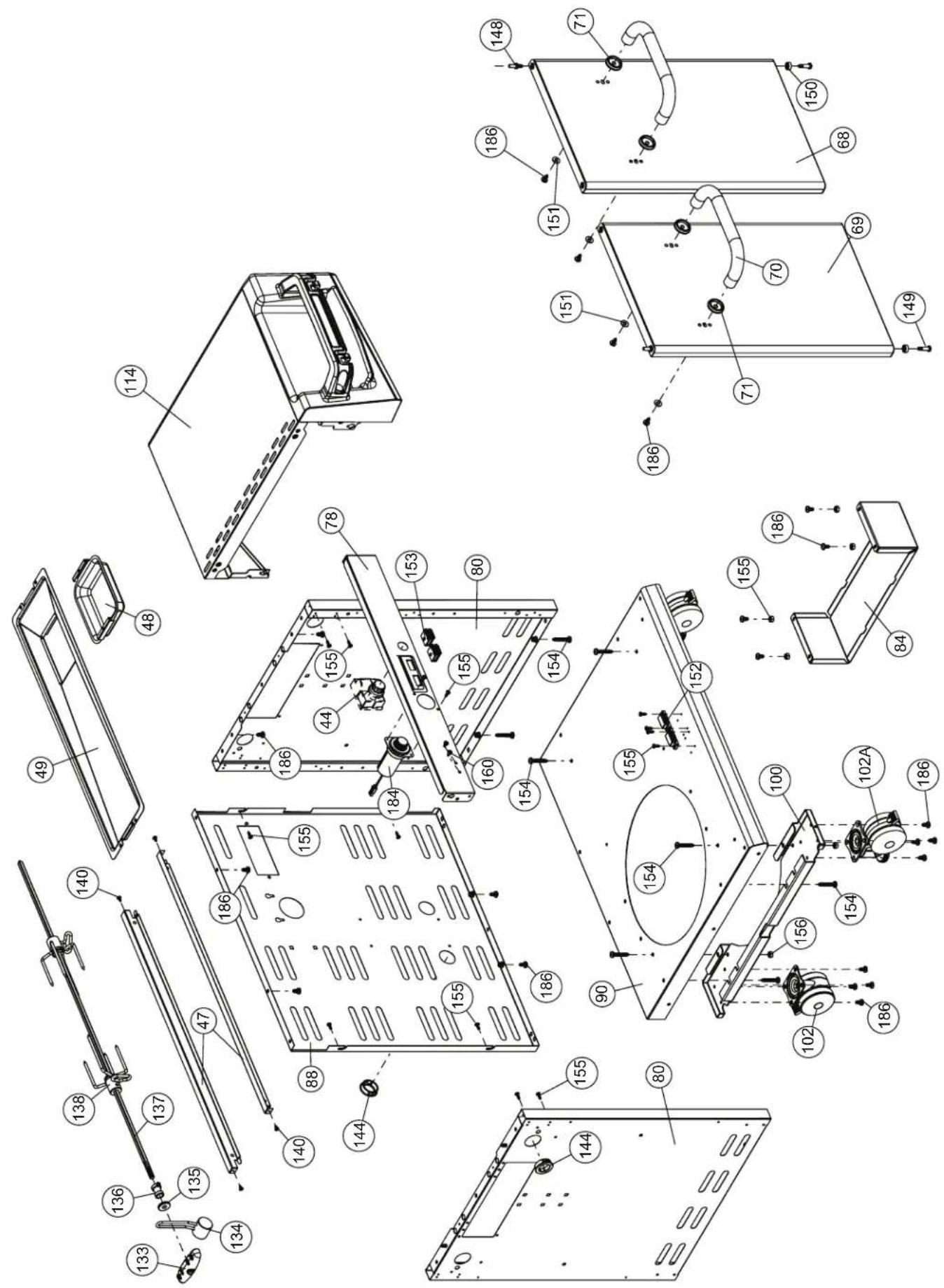

Exploded view diagram of a device with numbered components for identification and assembly reference.

Technical schematic diagram of a device with numbered components, likely an electrical or mechanical assembly.

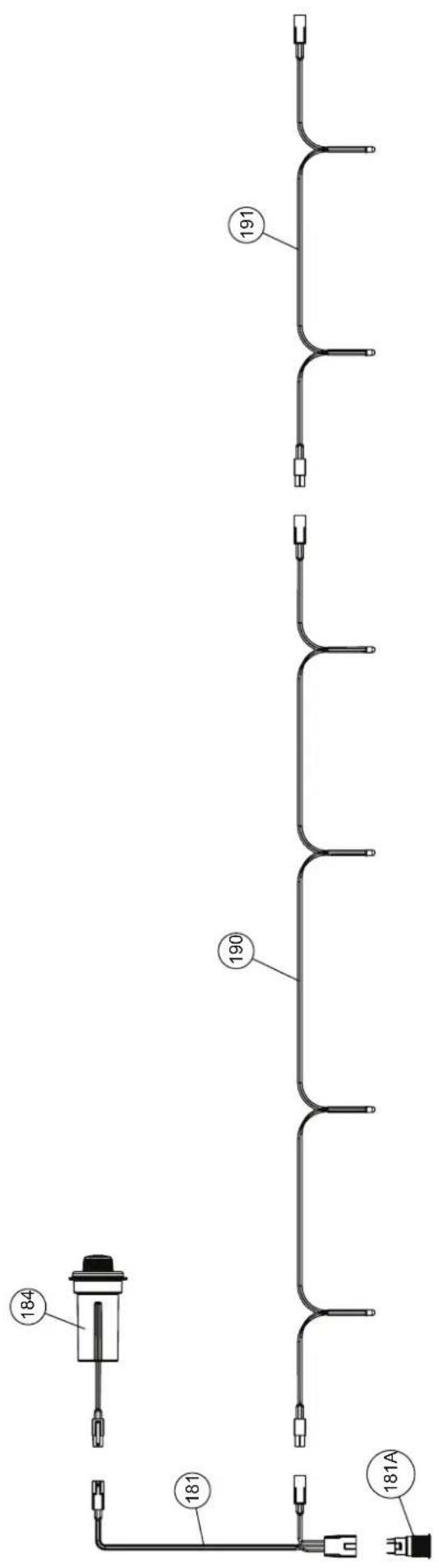

191 190 184 181 181A
