HASZNÁLATI ÚTMUTATÓ PIF651E01E BOSCH

A hand holding a white plate with a cooked chicken, surrounded by vegetables including broccoli, carrots, and herbs (no text or symbols visible)

Abstract grayscale gradient shape with diagonal light streaks (no text or symbols)

ENInstructionmanual3

Household Appliances

Simple diagram with five circles of varying sizes and shading, no text or symbols present

Simple diagram with four circles of varying sizes inside a rectangle (no text or symbols)

Four circles arranged in a 2x2 grid, two filled and two empty, with no text or symbols present.

Four circles arranged in a 2x2 grid: two gray with concentric rings and one white, no text or symbols present.

Tableofcontents

Importantinformation5......

Beforeswitchingonyourappliance5......

Safetyprecautions5......

Reasonsfordamage8......

Familiarisingyourselfwiththeappliance10

The control panel 10

The Hotplates 11

Safety instructions. Residual heat 12

The cooking with Induction 12

What is induction cooking? 12

Suitable pans 13

Main switch with childproof lock 14

Main switch 14

Childproof lock 14

Cooking 15

Settings 16

Table 17

Tips on saving energy 18

Keep warm function 19

Method of operation 19

Powerboost function 20

Powerboost function limitations 20

This is how to activate it 20

This is how to deactivate it 20

Automatic time limiter 21

Switching off input confirmation 21

Tableofcontents

Careandcleaning22......

Care 22

Cleaningglassceramic22......

Cleaningthehobsurround23......

Procedureintheeventofamalfunction23......

Normal operating noises for the appliance ..... 26

Packaging and old appliances 27

After-sales service 27

Acrylamide in foodstuffs 28

Importantinformation

Readtheseinstructionscarefully.Onlyafterreadingthesewillyoubeabletooperatetheappliance correctly.

Please keep the use and installation instructions in safe place. If the appliance is passed to another person, please enclosethe instructions.

Beforeswitchingon yourappliance

Transportdamage

Check your appliance after removing the packaging. If it was suffered by damaged during transport, donot connect the appliance but contact the Technical Services department.

Electrical connectionor installation

Before using the appliance for the first time, you must ensure that the domestic electrical system is earthed and meets all the current safety regulations. An authorized electricians should install and connect your appliance.

Useofthisappliancewithoutanearthconnectionor incorrectlyinstalledcancauseseriousinjuries(injuries orelectrocution),althoughthisisveryrare Themanufacturerdoesnotacceptanyresponsibility foranyinappropriateuseorforanyinjurycausedby incorrectelectricalinstallation.

Safetyprecautions

This appliance is intended only for domestic use. Only use the hobfor food preparation.

Thisproduktisnotintendedforusebyyoungchildren orinfirmpersonswithoutsupervision.

Cookingandheatingfood

During their cooking, foods such as stews, soups, sauces or drinksmay heat up too quickly without any indication, spilling out of the cookware.

	Itisthereforeadvisabletohealthistypeoffoodgently,selectingasuitablepowerlevelandstirringthecontentsbeforeandduringcooking.
Overheatedoilandfat	Overheatedoilorfatcanigniteveryquickly.Riskoffire!Neverleaveheatingoilorfatunsupervised.Shouldtheoilignite,donottrytoputitoutbypouringwateronit.Coverthepanwithalidorplateimmediately.Switchoffthehotplate.Leavetheovenwareonthehotplatetocooldown.
Hothotplates	Donottouchhohotplates.Thereisariskofburning.Childrenmustbekeptatasafedistancefromtheappliance.Theresidualheatindicatorwarnsyouthatthehotplatesarehot.Neverplacecombustibleitemsonthehob.Riskoffire!Youmustnotkeepanycombustibleitemsoraerosolcansinadrawerlocatedunderthehob.Riskoffire!Theservicecablesfromelectricalappliancesmustnottouchthehohotplates.Thiscouldcausedamagetothehobandthecableinsulation.
Wetsaucepanbasesandhotplates	Steampressurecanbegeneratedfromtheliquidbetweenthebaseofthesaucepanandthehotplate.Thesteampressurecouldcausethepantojumpsuddenly.Thereisariskofinjury.Alwayskeepthehotplateandthebasesofsaucepansdry.
Cracksintheglassceramic	Iftherearefractures,flawsorcracksintheglassceramic,thereisariskofelectricshock.Switchofftheapplianceimmediately.Isolatetheappliancefromthepowersupplyatthefusebox.Callafter-salesservice.
Thehotplateheatsup,the indicatordoesnotwork	Switchoffthehotplateifthehotplateheatsupbuttheindicatorisnotworking.Thereisariskofburning.Callafter-salesservice.

Donotplacemetalobjects ontheinductionhob

Donotleavefoodwrappedinsilverfoil, cutlery, lidsor othermetalutensilsonthehob. If the appliance is switchedonbymistake, these objects will heat up very quickly and could cause burns.

Takingcareofthecooling fan

Thisobcomeswithacoolingfanmounted underneath.Becareful!lfadrawerisfittedbeneath thehobyoumustnotkeepsmallobjectsorpaperinit as,iftheyarepickedup,theycoulddamagethe coolingfanoraffectthecoolingsystem.Silverfoiland flammablematerialsorliquids(forexamplesprays) mustnotbekeptinthedrawerornearthehob.There isariskofexplosion! Thereshouldbeamimumdistanceof2cm betweenthedrawercontentsandthecoolingfan.

Incorrectrepairs

Incorrectrepairsaredangerous.Thereisariskof electrocution. Repairsmayonlybecarriedoutbyoneofour experiencedafter-salesengineers.

Powercable

Anyadjustmenttotheappliance,includingchanging orinstallingthesupplycable,shouldbecarriedoutby theAfter-SalesService.

This appliance complies with current safety regulations and electromagnetic compatibility regulations.

Nevertheless, peoplewithapacemakers should not use this appliance. It is impossible to guarantee that all such devices found on the market comply with current safety regulations and electromagnetic compatibility regulations, and that dangerous interference will not occur. It is also possible that people with other types of device, such as hearing aid, could experience some discomfort.

Reasonsfor damage

Neverusethehobinsteadofthekitchenunitworktop asasupportorworksurface.

Saucepanandpanbases

Roughpanbasesscratchtheglassceramic. Check yourovenware.

It is very important that cookware placed on an activated hob has liquid food inside of it. Although your hob is equipped with an internal safety system, empty cookware can heat up so quickly that the "automatic OFF" function does not have yet to react and may reach a very high temperature. The cookware base could also melt and damage the hob's glass surface. If this happens, don't touch the cookware and turn off the hob. If, after cooling, it does not work, please contact customers service".

Hotpansandsaucepans

Neverplacehotpansorsaucepansonthecontrol panel, displayareaortheframe. Thiscouldcausedamage.

Salt, sugarandsand

Salt, sugarandsandcausescratchesontheglass ceramic. Donotusethehobasaworksurfaceor storagespace.

Hardandpointedobjects

Damagecanoccurifhardorpointedobjectsfallon thehob. Donotstoresuchobjectsabovethehob.

Foodspills

Sugarandfoodwithahighsugarcontentdamagethe hob.Removefoodspillsimmediatelywithaglass scraper. CautionTheglassscraperhasasharpblade.

Foilandplastic

Aluminiumfoilorplasticcontainersmeltonhothobs. Ovenprotectivefoilisnotsuitableforyourhob.

Examplesofpossible damage

The followingdamagedoesnotaffectthe performanceorstrengthofyourhob.

Abstract curved black lines on a gray background with no text or symbols

Presenceofstains

Formedbyspilledormeltedsugarorfoodwithahigh sugarcontent.

Abstract curved line pattern on gray background (no text or symbols)

Scratches

Duetosalt, sugar, grainsofsandorirregularities in the baseofthesaucepans.

Close-up of two curved black lines on a gray background, no text or symbols visible

Colourloss

Acolourchangetoametallicshadeduetowearby hobsorfromtheuseofinappropriatecleaningproducts.

Close-up of two curved black lines on a gray background, no text or symbols visible

Decorativecolourloss

Grinding decoration dueto the use of inappropriate cleaning products.

The various types of damage mentioned above are caused by the incorrect use of the appliance, and therefore they are not covered by the warranty, as they are not technical problems relating to the appliance.

Familiarisingyourselfwiththeappliance

Thissectiondescribesthecontrolpanels,hotplates anddisplays.Theyareshownbyappliancemodel.

Theinstructionmanualappliestovarioushobs.On page2youwillfindanoverviewofmodelswith dimensions.

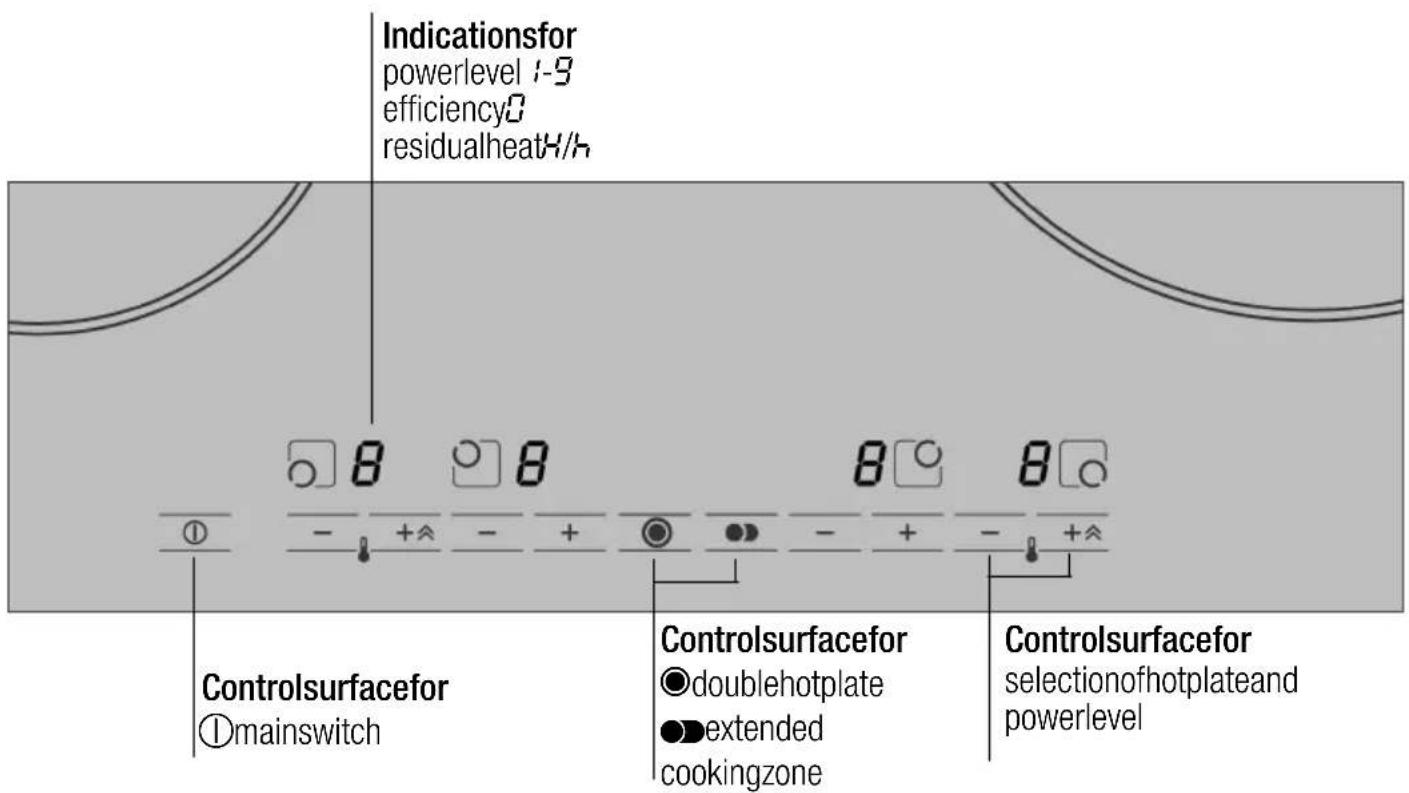

Thecontrolpanel

Controlpanels

Whenyoutouchasymbol,therespectivefunctionis activated.

Example: Touchthe①symbol. Thehobisswitchedon.

Note

Thesettingsremainunchangedifseveralsymbolsare touchedbriefly. Youcanthereforeeasilymopupspills onthecontrolpanel.

Alwayskeepthecontrolpanelscleananddry. Moistureanddirtmayimpairfunction.

TheHotplates

Singlecookingzone

Simple circular diagram with a labeled point 'N' on the circumference (no other text or symbols)

Selecttheappropriatehotplate.

Thesizeofthepanshouldbethesameasthatofthe hotplate.

Inthe "Suitablepans" section were recommend two types of pans for induction cooking.

Single-circuithotplate

Simple geometric shape: a circle with two curved lines inside, no text or symbols present.

The cookingsurfacesizeofthesehotplatescannotbe altered.

Selectthecorrecthotplate.

Thesaucepanandhotplatesizesshouldmatch.

Doubleradiationcooking zone

Simple concentric circle diagram with no text or symbols

Thesizeofthesehotplatesmaybealtered. The hotplatemustbeconnected.

Activatetheexteriorzone:

Press the symbol Ⓞ . The indicator light over the symbol Ⓞwilllightup.

Deactivatetheexteriorzone:

Pressthesymbol●.Theindicatorlightoverthe symbol● willgoout.

Radiationextended cookingzone

Simple geometric diagram showing a circle intersected by a larger circle, no text or symbols present.

The extended cooking zone can be switched on when using these hot plates. The hot plate must be switched on.

Switchingontheextendedcookingzone:

Touchthe ● symbol. The indicator lightlightsup.

Switchingoff:

Touchthe ● symbolagain. The indicator light goes out.

Safetyinstructions. Residualheat

Thehobhasaresidualheatindicatorforeach hotplate.Itshowswhichhotplatesarestillhot. Youshould, therefore, avoidtouchingthehotplate whenthisindicatorisshown.

Although the hobisswitchedoff, the indicator h/H will stay lit while the hot plate is shot.

If thepan has been removed but the hot plate has not been switched off, the indicator h/h will flash, showing the power level selected

ThecookingwithInduction

Whatisinduction cooking?

Induction cooking constitutes radical change in the traditional form of heating, given that the heatis generated directly in the pan, keeping the cooking surface cold. Therefore, it has a number of advantages over other cooking methods:

GREATerspeedincooking andfrying

Asthepanisheateddirectlyandnottheglass,the efficiencyisgreaterthaninothersystemsbecauseno heatislost.

Economical

Ithasbeenproventhatcookingwithaninductionis moreeconomicalthantheothercookingmethods.

Cookingcontrolandsafety

Thehobsuppliesorcutsofftheheatimmediately the controlsareoperated.Itstopssupplyingheatifthe panisremovedwithoutfirstswitchingoffthepower.If aclothorotherflammableobjectisleftonthehobbymistakethiswillnotcatchfire,evenwiththehotplate switchedon,becauseafterthehobhasbeenused,onlytheresidualheatproducedbythepanremainsin theglass.

Cleaning

Theglassisnotheated,sofoodspiltonthehob surfacewillnotburn.Furthermore,itisnotnecessary forthehobtocooldowntoallowcleaning.This providesmaximumconvenienceandcleanliness.

Suitablepans

Alwayschooseadequatesizedpressurecookersand pansforthequantitiesoffoodthatyouaregoingto prepare.Alargesizedpressurecookerorpanthatis onlyhalffullwillusealotofenergy.

Onlyferromagneticpansaresuitablefor inductioncooking.Thesecanbeofenamelled steel,castironorspecialstainlesssteelutensils forinductioncooking.Youmustneverusenormal stainlesssteel,glass,ceramic,copperor aluminiumpans.Checkthatyourpansare attractedbyamagnettofindoutiftheyare suitable.

Nopan.

Ifnopanisplacedonthehotplate,orthepanisnot madeofasuitablematerialoritisnotasuitablesize, thenumberonthehotplateindicator,showingthe powerlevel,willflash.Itwillstopflashingoncea suitablepanisplacedonthehotplate. Ifyoutakelongerthanninetysecondstoplacea suitablepanonthehotplate,itwillautomaticallyturn itselfoff.

Mainswitchwithchildprooflock

Mainswitch

Switchontheelectronicsinthecontrolpanelusing themainswitch.Nowthehobisreadyforuse.

Switchingon

Touchthe ①symboluntilthe -hotplateindicators lightup.

Switchingoff

Touchthe①symboluntilthe -hotplateindicatorsgo out. All hotplates areswitchedoff Theresidualheat indicator remains lit until the hot plates have cooled sufficiently.

Notes

Thehobswitchesoffautomaticallyifallthehotplates havebeenswitchedoffformorethan10seconds.

If thereisstillresidualheatavailablewhenthehobis switched back on, H/h and – flash alternately in the hotplateindicator.

Childprooflock

Topreventchildrenfromswitchingonthehotplates, youcansecurethehobagainstbeingswitchedon inadvertently. Thechildprooflockremains permanentlyactivated.

Activating the childproof lock

Switchonthehobusingthe①mainswitch.

1. Setallhotplatestoheatsetting2.
2. Switchoff the hot plates one by one from right to left.
3. Touchthemain①switchforatleast5seconds, afterwhichtimeasignalwillsound. Thechildprooflockisactivated.

Operatingthehob	Toswitchon,touchthe1mainswitchformorethan 4 seconds.Duringthistimethe displayflashes.As soonasthedisplaygoesout,thehobisswitchedon.
Deactivatingthechildproof lock	Youcandeactivatethechildprooflockagain.Proceed inthesamemannerasforactivatingthechildproof lock.
Lockingthehobonce-off	Youcanlockthehobonasingleoccasion,iffor example,smallchildrenarevisiting:Thehobmustbeswitchedoff.Touchthe1mainswitchformorethan4 seconds.Thehotplateindicatorsgoout.The indicatorlights upfor10secondsandgoesout.Thehobislocked.
Unlockingonce-offlocking	Touchthe1mainswitchformorethan4 seconds.Thehobisswitchedon.Thehobisunlocked.
Important	Thechild-prooflockscouldbeactivatedor deactivatedunintentionallywhentheapplianceis cleanedusingwaterorasaresultofspillagesor objectscoveringthemainswitch1.

Cooking

	Thissectiondescribeshowtoadjustthehotplates. Thetableshowstheheatsettingsandcookingtimes forvariousdishes.Thefollowingtipshelptosave energy.
The+and-controlpanels	Youcansettherequiredheatsettingusingthe+and -symbols.Heatsetting1=lowestsettingHeatsetting9=highestsetting.Eachheatsettinghasanintermediatestep.Thisis markedbyadot.

Settings

Thehobmustbeswitchedon.

1. Touchthe+or-symbol.

flashesintheindicator.

1. Touch the + or - symbol in the next 5 seconds. Thebasicsettingwillappear: +symbol=heatsetting9 -symbol=heatsetting4

1. Tochangetheheatsetting: Touchthe+or-symboluntilthedesiredheat settingappears.

Changingtheheatsetting: Switchingoffthehotplate.

Youcanchangetheheatsettingatanytime. Touchthe-symboluntilappears.

From power level 9 you can easily reach level 0 by touchingthe+symboltwice.

The hot plates switches off and the residual heat indicator appears after approximately 5 seconds.

Table
The following table provides safew examples.
The cooking timemay vary depending on the type of food, its weight, and quality. Deviations are therefore possible.

	QuantityHeat	setting 9	Ongoing cooking	Ongoingcooking time
Melting
chocolate,chocolatecoating, butter,honey gelatine	100 g	-	1-2	-
	1 pck.	-	1-2	-
Heating
cannedvegetables	400 g-800 g	1-4 mins.	1.-2.	3-6 mins.
clearsoup	500 ml-1 ltr	2-4 mins.	7-8	2-4 mins.
thicksoup	500 ml-1 ltr	1-4 mins.	2-3	2-4 mins.
milk	200 ml-400 ml	1-4 mins.	1-2	2-4 mins.
Heatingandkeepingwarm
stew(e.g.lentilstew)	400 g-800 g	1-3 mins.	1-2
milk	500 ml-1 ltr.	2-4 mins.	1-2.
Defrostingandheating
frozenspinach	300 g-600 g	3-5 mins.	2-3.	5-15 mins.
frozengoulash	500 g-1 kg	3-5 mins.	2-3.	20-30 mins.
Simmering
dumplings,meatballs (1 - 2 ltr. water)	4-8 pieces	6-12 mins.	4-5.*	20-30 mins.
fish	300 g-600 g	3-8 mins.	4-5*	10-15 mins.
	Quantity	Heat setting 9	Ongoing cooking	Ongoing cooking time
Cooking
rice(withdoubletheamountof water)	125 g-250 g	2-4 mins.	2-3	15-30 mins.
ricepudding(500 ml - 1 ltr. milk)	125 g-250 g	3-6 mins.	2-3	25-35 mins.
potatoesboiledintheirskinswith 1-3cupsofwater	750 g-1.5 kg	3-7 mins.	4-5	25-35 mins.
boiledpotatoeswith1 - 3 cupsof water	750 g-1.5 kg	3-7 mins.	4-5	15-25 mins.
freshvegetableswith1 - 3 cupsof water	500 g-1 kg	3-5 mins.	2-3.	10-20 mins.
pasta(1-2 ltr.water)	200 g-500 g	6-12 mins.	6-7*	6-10 mins.
Roasting
roulade	4servings	4-8 mins.	4-5	50-60 mins.
potroast	1 kg	4-8 mins.	4-5	60-100 mins.
goulash	500 g	4-11 mins.	4-5	50-60 mins.
Roasting
pancakes (Fladle,Swabian pancakes)		1-4 mins.	6-7	constantroasting
cutlet,breaded	1-2pieces	1-4 mins.	6-7	6-10 mins.
steak	2-3 pieces	1-4 mins.	7-8	8-12 mins.
fishfingers	10pieces	1-4 mins.	6-7	8-12 mins.
Deep-fatfrying(in1-2 ltr.ofoil)
deep-frozenfoods	200 gperserving	8-15 mins.	8-9	constantdeep-fat frying
others	400 gperserving	8-15 mins.	4-5	constantdeep-fat frying

*Ongoingcookingwithoutlid

Tipsonsaving energy

Thecorrectsaucepansize

Usesaucepansandpotswiththick,evenbases.

Unevenbasesincreasethecookingtime.

Selectthecorrectsaucepansizeforeachhotplate.

Thediameterofthebasesofthesaucepansandpots shouldmatchthesizeofthehotplate.

Note: Ovenwaremanufacturersoftengivethe diameterofthetopofthesaucepan. It is usually larger than the diameter of the base of the saucepan.

	Useasmallsaucepanforsmallquantities.Alarger, lessfullsaucepanrequiresmoreenergy.
Usingalid	Saucepansandpotsshouldalwaysbecoveredwitha suitablelid.Cookingwithoutalidrequiresmuchmore energy.
Cookingwithsmall quantitiesofwater	CookwithsmallquantitiesofwaterThissavesenergy andhelpsvegetablestoretainvitaminsandminerals.
Loweringtheheatsetting	Switchdowntoalowerheatsettinggoodtime.

Keepwarmfunction

Alltheinductionhotplates(1 and 4)havea temperaturecontrol.(Seeillustration)

Method of operation

Thekeepwarmfunctionissuitableformelting chocolateorbutterorkeepingfoodwarm. Thisonly workswithpotsandpanssuitableforusewith inductionhobs. Ifthe"keepwarm"functionisactivated, thehotplate automaticallychangestoitsminimumpowersetting tokeepcookwarewarm.

Thefunctionisactivatedas follows

Touch symbol - and + simultaneously. The letter C appears in the visual display.

Howtodeactivateit

Touch symbol - or +. The C disappears in the visual display and the function will have been deactivated.

Powerboostfunction

Usethisfunctiontoheatupthecontentsofthepan fasterthanifyouusethemaximumpowerlevel(9). Thisfunctionallowsyoutoincreasethemaximum powerlevelofthehotplateinuse.

Powerboost functionlimitations

Alltheinductionhotplates(1 and 4) have a temperature control. (See illustration) The Powerboost function will always be available when the other induction hot plate is not switched on. Forexample, if you want to activate this function in hot plate 1, numbers should be switched off, and vice versa. If the zone referred to is not switched off, the letter P and the power level 9 in the hot plate indicator will flash; it will return to the maximum power level setting(9).

Thisishowto activateit

Carryoutthefollowingsteps:

1. Selectpowerlevel9.
2. When it is in this position press the + symbol for thezoneconcerned. The letter P will appear in the indicator. You have activated the function.

Thisishowto deactivateit

Carryoutthefollowingsteps:

1. Press the - symbol for the zone concerned. The P willnolongerbevisible.ThePowerboostfunction hasbeendeactivated.

Automatictimelimiter

Ifahotplateisinconstantuseforalongtimewithout thesettingbeingchanged, theautomatictimelimiter willbeactivated.

The hot plate heating is interrupted.

AnFandan8flashalternatelyinthehotplate indicator.

The indicator goes out when you touch any control panel. Now you can reset the hot plate.

The time at which the timer restriction is activated depends on the heat setting (1 to 10 hours).

Switchingoffinputconfirmation

Ashortbuzzconfirmsthatabuttonhasbeen touched.Thisbuzzercanbeturnedoff:

Switchonthehobusingthemainswitch.

1. Setallhotplatestoheatsetting3.
2. Switchoffallthehotplatesonebyonefromrightto left.
3. Touchthemainswitchforatleast5seconds, after whichaconfirmationsignalsounds.

Youmayalsoswitchtheinputconfirmationonagain. Proceedinthesamemannerasforswitchingoff.

Careandcleaning

Donotusehighpressurecleanersorsteamjets.

Care

Cleanyourhobusingaprotective/careproductfor glassceramic.Itcoatsthecookingsurfacewitha glossy,dirt-repellentfilm.Yourhobwillcontinueto lookgoodforalongtime.Itmakescleaningeasier.

Cleaningglass ceramic

Cleanthehobaftereachuse. This prevents food from being burnt into the hobsurface.

Cleaningagents

Only use cleaning agents which are suitable for glass ceramic, e.g. CERACLEAN, cera-fix, Sidolfor ceran + steel.

Watermarkscanalsoberemovedusinglemonjuice orvinegar.

Unsuitablecleaningagents

Donotuse:

Abrasivesponges, scouringpadsoraggressive cleaningagents, suchasovensprayorstainremover.

Glassscraper

Illustration of stacked documents or documents with a pile of papers (no visible text or symbols)

Youcanremovethickdirtbestwithaglassscraper.

Removetheprotectivecoverfromtheglassscraper. Onlyusethebladetocleantheglassceramicsurface. Thecasingmayscratchtheceramicsurface.

Thebladeisverysharp. Thereisariskofinjury. Cover thebladeaftercleaning.

Replacedamagedbladesimmediately.

Howtocleantheglass ceramiccookingsurface

Usetheglassscrapertoremovefoodresiduesand greasesplashes.

Useacleaningproductandkitchentoweltocleanthe surfacewhenitislukewarm.Ifthesurfaceisstilltoo hotitcanbecomestained.

Wipethesurfaceandrubdrywithasoftcloth.

Shimmeringmetallic discoloration

Discolorationiscausedbypanabrasionortheuseof unsuitablecleaningagents. This is very difficult to remove. Use HobCleanor Sidolforceran+steel. Our after-salesservice can removed discoloration, but will charge forth this service.

Controlpanels

Alwayskeepthecontrolpanelscleananddry.Food residuesandspillscanimpairthefunctionofthe controlpanels.

Cleaningthehob surround

Onlyusewarmsoapywater.

Donotuseanythingwhichissharporabrasive.The glassscraperisunsuitable.Thehobsurroundcould bedamaged.

Neither lemonjuicenorvinegarshouldbeused for cleaning the hobsurround.

Thiscouldresultinmattpatches.

Procedureintheeventofamalfunction

The circuit breaker in your householdelectrical circuit trips when you switch on the hob

Malfunctionsoftenhavesimpleexplanationsandmay beeasilyrectified.Pleasereadthefollowing instructionsbeforecallingtheafter-salesservice.

Makesurethatthepowerdrawofalltheappliances switchedondoesnotexceedyourmaximum householdelectricitysupply.Checkwhetherthe circuitbreakertriggerswhenyouswitchonanother hotplate.

Eisflashinginallthe hotplatedisplaysanda signalissounding

The control panel is very dirty, food has been spiltor an object has been placed on the works surface. Clean the control panel thoroughly or remove the object from the works surface. Pressthe control panel concerned. The flashing stops.

Thehobhasswitcheditself off

Themainswitchwastouchedinadvertently.Switch thehobbackon.Adjustthesettingsagain.

Thedisplayflashes(there isnopower)whenyou placeasaucepanonan inductionhotplate

Checkwhetherthesaucepaniselectromagnetic (attractsamagnet). Checkwhetherthediameterof thesaucepanislargeenough.

Allowthesaucepantocooldownintheeventthatit hasbecometoohotwhenused.

Ifthedisplaystilldoesnotlightupwhenyouswitch thehotplateoffandonagain, disconnectthe appliancefromthemains.Wait20secondsandthen reconnectit.

Thepowerboostfunction displayflashesandthen switchesoff

The power boost function operates the hot plate with themost possible power. During long cooking times, it is possible that the function will switch the hot plate off to protect the hob from overheating. You can continuet ou set the hob if the display is not flashing.

Repairs

Repairsmayonlybecarriedoutbytrainedcustomer servicepersonnel.

Incorrectrepairstotheappliancemayexposethe usertoincreasedrisks.

Er displayandnumbers

If E_r and numbers appear in the display panels, there is a fault in the electronics. Disconnect the appliance from them ains and reconnect it. Consult the after-saless service if the display appears again.

Fdisplayandnumbers

IfF and anumberflashalternatelyinthedisplay, your appliance is indicating a fault. The following table contains measures for rectifying faults.

Visual indication	Fault Measure
F0Aninternalerrorwas producedwhilethehob wasworking.		Disconnectthecookinghobfromthemains.Waitafew secondsbeforeconnectingitagain.Ifthesymbolcontinuestoappearcontactthetechnical assistanceservice.
F2Thecookinghobistoohot andhasturnedoff.		Removethecookwarefromthefrontcookingzones.F2it isturnedoffbytouchingthecontrolsurfaceifthehobhas cooleddownsufficiently.
F4Thecookinghobistoohot andhasturnedoff.		Checkwhetherthereisanyhotcookwareonthecontrol panel.Removethecookwarefromthecontrolpanel.Wait afewminutesuntilthecontrolpanelhascooledalittle.If afterconnectionF4appearsagain,callthetechnical assistanceservice.
F8Thecookingzonehas beenworkingatahigh powerandcontinuously fortoolong.		Automatictimelimitationhasbeenactivated.Tocontinuecookingtouchanysensor.
c1Thepowervoltageistoo low.		Deactivatethehob.Waitafewsecondsbeforeconnecting itagain.Iftheindicationcontinues,contactyourelectricity supplier.
c2/c3	The cooking zone has overheated.	Ithasbeenautomaticallydeactivatedtoprotectyourhob.Waitafewminutesforittocooldownandswitchitback onagain.
U400Thecookinghobisnot wellconnected.		Disconnectthecookinghobfromthemains.Checkthe connectionandconnectitagaincorrectly.Iftheindicationcontinues,notifythetechnicalassistance service.

Normaloperating noisesforthe appliance

Inductionheatingtechnologyisbasedonthevibration resistanceofcertainmetalswhensubjectedto high-frequencywaves.Insomecircumstances,these vibrationscancauseacertaindegreeofnoise,such asthefollowing:

Lowhumminglikea transformer

Thisoccurswhencookingatahighpower. Thecause ofthisistheamountofenergywhichistransmitted fromthehobtothecookware. Thisnoisedisappears orbecomesquieterwhenthepoweristurneddown.

Quietwhistling

This occurs when the cookware is empty. This noise disappears when water or food is added to the cookware.

Crackling

Thisnoiseoccurswhencookwareisusedwhich consistsoflayersofdifferentmaterials. Thenoiseis causedbyvibrationsinthejointfacesbetween the differentlayers. Thisnoiseismadebythecookware.It maychangedependingontheamountandtypeof foodbeingcooked.

High-pitchedwhistle

Thisnoiseoccursprincipallyincookwarewhich consistsoflayersofdifferentmaterialswhenitisused atthehighestheatsettingandontwohotplatesnext toeachother.Thiswhistlingdisappearsorbecomes quieterwhenthepoweristurneddown.

Fannoise

The electronics require a controlled temperature in ordertofunction reliably. The hobist therefore fitted with a fan which runs at various speeds according to the temperature detected. The fan may also run on once the hob has been switched off the temperature it detects is still too high.

Thenoisesdescribedarenormalandpartofthe inductiontechnologyanddonotindicateafault.

Packagingandoldappliances

Disposinginan environmentally-responsible manner

Unpacktheapplianceanddisposeofthepackaging inanenvironmentally-responsiblemanner.

This appliance is marked according to the European directive 2002/96/EConWasteElectrical and Electronic Equipment (WEEE).

This guideline is the timeframe of European-wide validity of return and recycling on Waste Electrical and Electronic Equipment.

After-salesservice

EnumerandFDnumber

Ourafter-salesserviceisthereforyouifyourhob shouldneedtoberepaired.Youwillfindtheaddress andtelephonenumberofyournearestafter-sales servicecentreinthephonebook.Theafter-sales servicecentreslistedwillalsobehappytoadviseyou ofaservicepointinyourlocalarea.

PleasequotetheNumber(productnumber)andthe FDnumber(productionnumber)ofyourappliance whencontactingtheafter-salesservice. Theratingplatebearingthesenumberscanbefound intheappliancebooklet.

Acrylamideinfoodstuffs

	Expertsarecurrentlydiscussinghowharmful acrylamideisinfood.Wehavecompiledthis informationforyou,basedontheresultsofcurrent research.
Whichfoodsareaaffected?	Acrylamideismainlyproducedingrainandpotato productsheatedathightemperatures,suchaspotato crisps,chips,toast,rolls,bread,bakedgoodsmadefromshortcrustpastry(biscuits, gingerbread,cookies).

Tipsforreducing acrylamideinfood production

General	Whenroastinganddeepfrying,usepotatoesthatareasfreshas possible. Theymustnothavesproutedorhaveanygreenparts. Donotstorepotatoesattemperaturesbelow8°C.Cookmealsuntiltheyaregoldenbrown,nottoodark.Keeproastinganddeep-fryingtimestoaminimum.Large,thickpiecesoffoodcontainlessacrylamide.
FryingFatshouldnotbehotterthan175°C.	Checkthetemperature withanexternalfatthermometer.Theratioofdeep-friedfood/fatshouldbebetween1:10and 1:15,e.g.100gchipsin1.5loil.Soakpotatoesforonehourbeforedeepfrying.
RoastinginthepanBoilpotatoesbeforeroastingthem.Forrawpotatoes,use margarineinsteadofoil.Asurfacethermometerisusefulforcheckingthesurface temperatureinthepan,(ordernumber0900.0519fromtesto). Werecommend:Heatheroastingpanatheatsetting9.Once thepanreaches150°C,turntheheatbackdowntothesetting desiredfortheremainingcookingtime.

DE http://www.bosch-hausgeraete.de

GB http://www.boschappliances.co.uk

FR http://www.bosch-electromenager.com

NL http://www.bosch-huishoudelijke-apparaten.nl

FI http://www.bosch-kodinkoneet.com

DK http://www.bosch-hvidevarer.com

ES http://www.bosch-ed.com

PT http://www.bosch.pt

BE http://www.electro.bosch.be

AU http://www.bosch.com.au

AT http://www.bosch-hausgeraete.at

BR http://www.boschelectrodomesticos.com.br

GR http://www.bosch-home.gr

US http://www.boschappliances.com
