KORISNIČKI PRIRUČNIK TETRUSB3CPD100INT SBS
□ sbs
pulse power


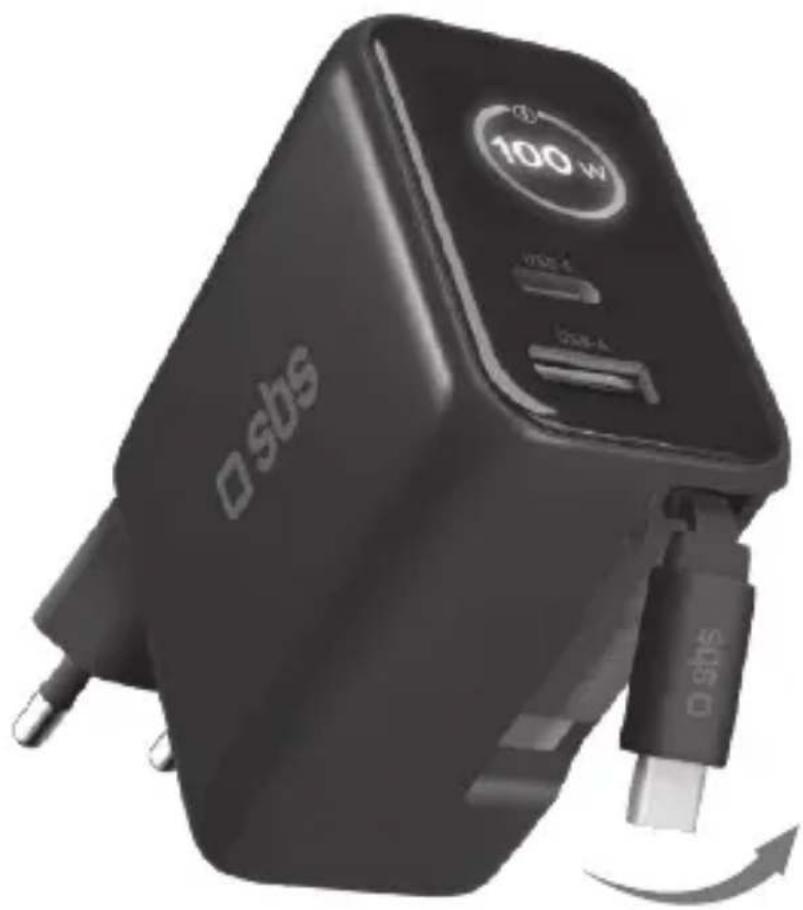

Black square electronic device with '100W' indicator and 'D sbs' branding, showing internal components and a USB cable (no readable text beyond branding)100 WATT
PD
3.0
Roll-up Cable Charger
For iPhone, Samsung, Google Pixel & Others*
Specifications:
Input: 100-240 V A.C. 50/60Hz 2,0 A
USB-C1 Cable Output:
5,0 V D.C. 3,0 A / 9,0 V D.C. 3,0 A / 12,0 V D.C. 3,0 A /
15,0 V D.C. 3,0 A / 20,0 V D.C. 5,0 A (PD 100,0 W)
USB-C2 Output:
5,0 V D.C. 3,0 A / 9,0 V D.C. 3,0 A / 12,0 V D.C. 3,0 A /
15,0 V D.C. 3,0 A / 20,0 V D.C. 5,0 A (PD 100,0 W)
USB-A Output: 5,0 V D.C. 3,0 A / 9,0 V D.C. 3,0 A /
12,0 V D.C. 2,5 A / 20,0 V D.C. 1,5 A (AFC 30,0 W)
USB-C1 Cable + USB-C2 Output: PD 65,0 W + PD 35,0 W
USB-C1 Cable + USB-A Output: PD 65,0 W + 30,0 W
USB-C2 + USB-A Output: 5,0 V D.C. 3,0 A (15,0 W)
USB-C1 Cable + USB-C2 + USB-A Output:
PD 65,0 W + 5,0 V D.C. 3,0 A PPS 3,3 V - 21,0 V 5,0 A

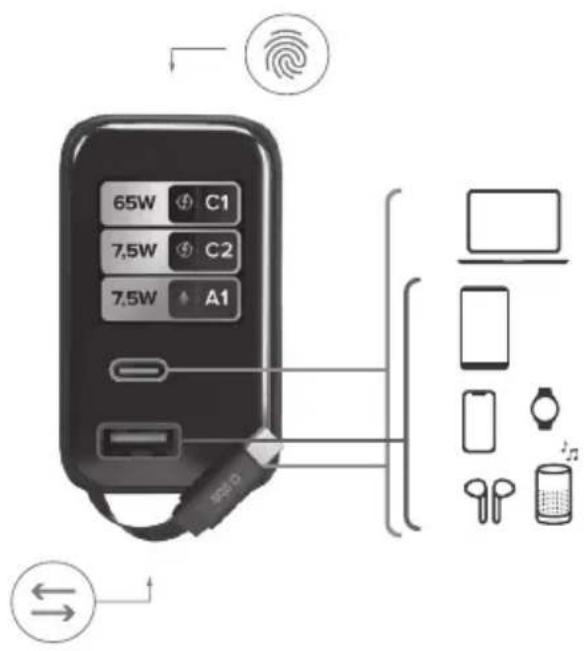

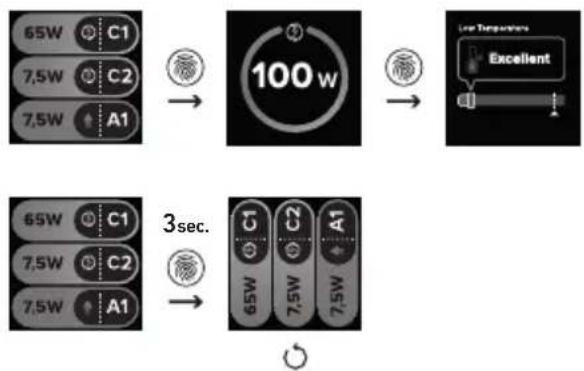

SBS spa - Via Circonvallazione s/n
28010 Miasino (No) - Italy
sbsmobile.com
customercare@sbsmobile.com
REVO.12-25
TETRGANRETTFT100WK
Follow us on:
UK CA CE
Made in China
Printed in China
©2025 SBS SpA
