KORISNIČKI PRIRUČNIK ZDSKO1 PHOENIX GOLD

Two black automotive speaker units with mesh earbuds and ventilation grilles, no visible text or symbols

ZDSKO1

Plug & Play 2-Way Speaker Upgrade Kit

160W MAX POWER

80W RMS

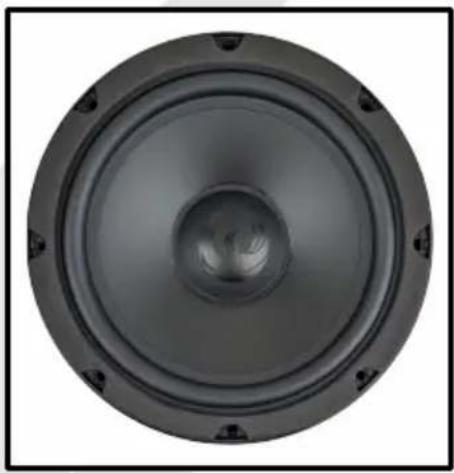

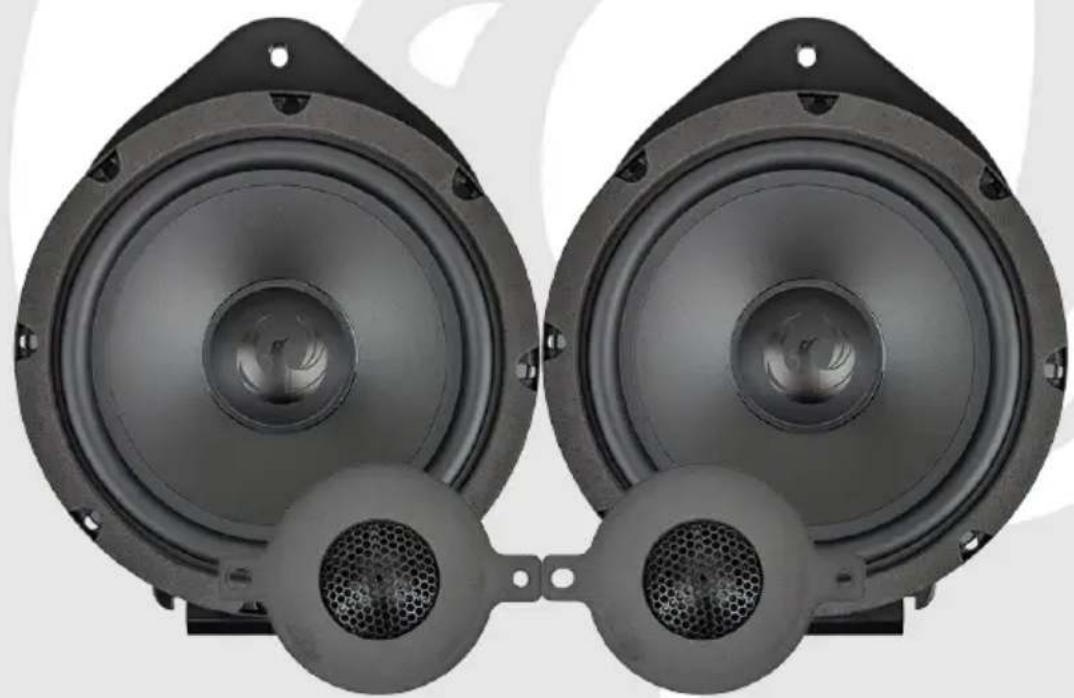

2x Speakers 2x Adapter Rings 2x Tweeters

Close-up of a black speaker cone with concentric rings and mounting holes (no text or symbols visible)

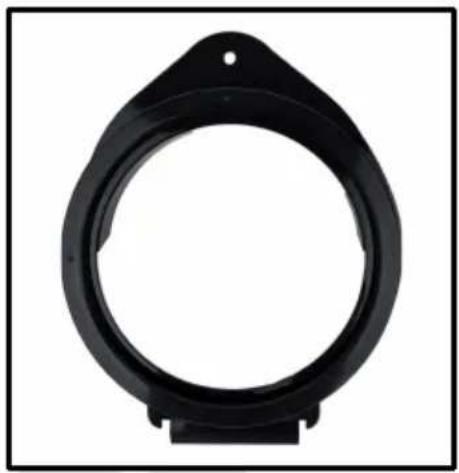

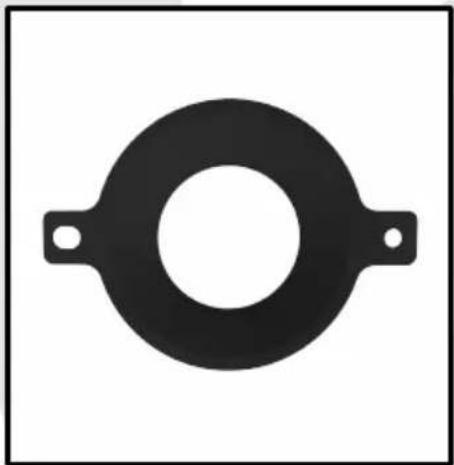

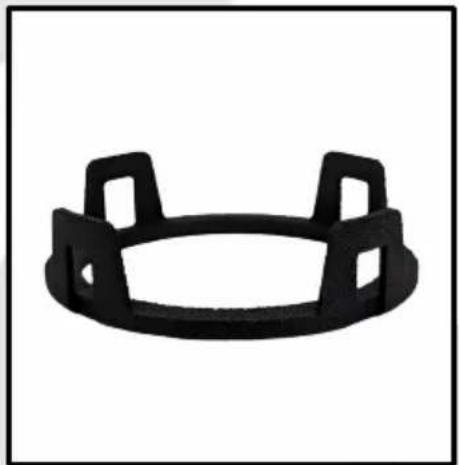

2x Tweeter Adapters

Black plastic mechanical ring component with mounting holes (no text or symbols)

Circular black plastic mechanical component with mounting holes (no text or symbols visible)

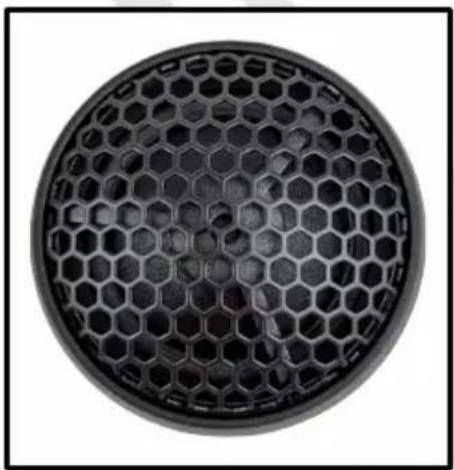

Circular black hexagonal mesh pattern with no text or symbols

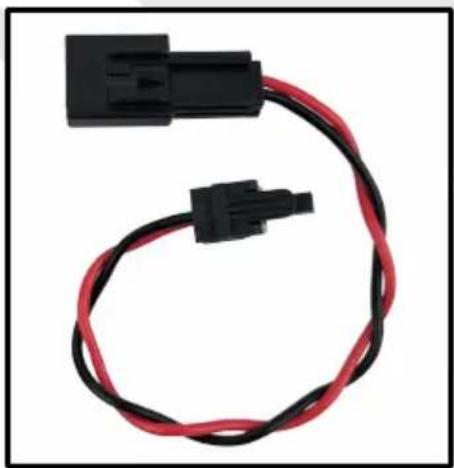

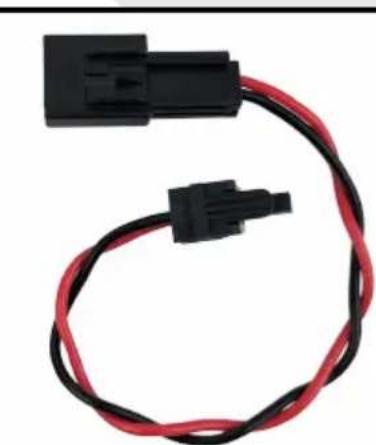

2x Speaker Harness 2x

Simple black circular mechanical part with two side holes, no text or symbols present.

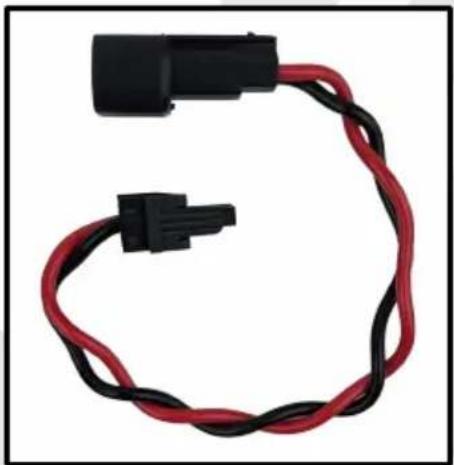

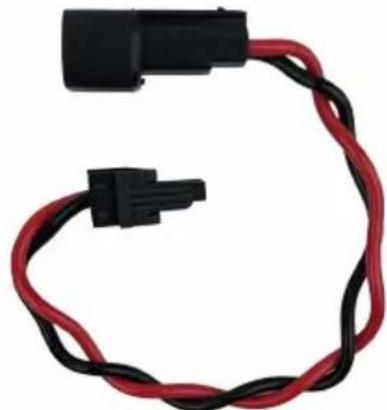

2x Tweeter Harness

Black plastic mechanical bracket component (no text or symbols)

Black plastic mechanical bracket component (no text or symbols visible)

Black and red flexible band with a logo, no visible text or symbols on the band itself

Coiled black and red electrical connector (no text or symbols visible)

Coiled black and red electrical plug connectors (no text or symbols visible)

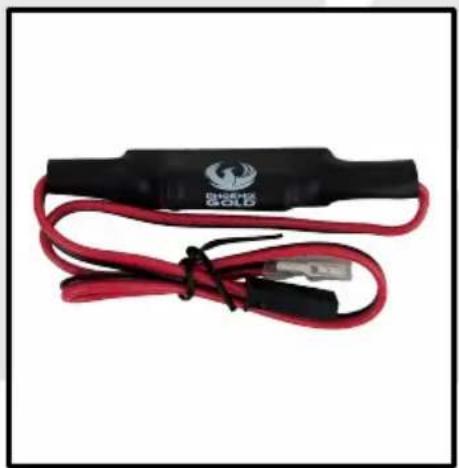

2x ZZF-LP4000 2x ZZF-HP4000-6

Two black electrical connectors with red and black wires, coiled together (no text or symbols visible)

Two black electrical connectors with red and black wires, no visible text or symbols

Close-up of a black and red electrical clamp with a small connector (no visible text or symbols)

Coiled black and red cable with a logo, no visible text or symbols on the main subject

Close-up of a black electrical clamp with red wires and a metallic connector (no visible text or symbols)

Close-up of a black electrical clamp with red wires and a metallic connector (no visible text or symbols)

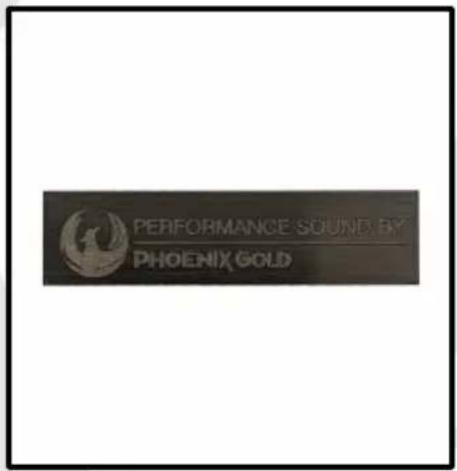

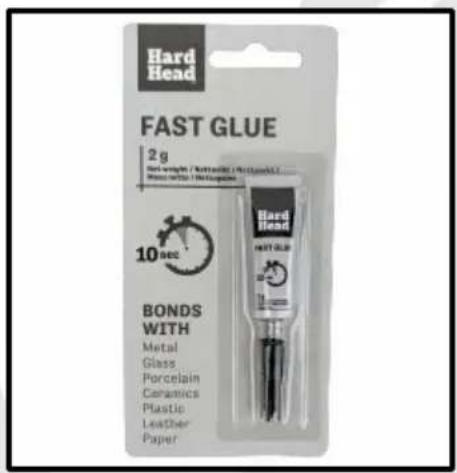

1x Fast Glue 2x PG Badges

Quick Start Guide

1

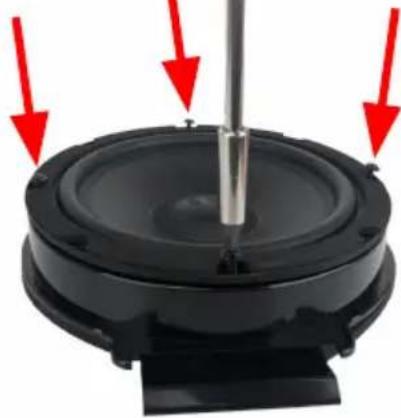

Screw the speaker into the speaker adapter.

Close-up of a black speaker component with red arrows pointing to the speaker and a metallic rod inserted (no text or symbols visible)

2

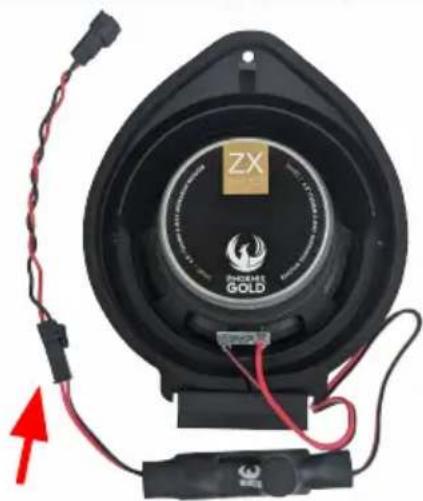

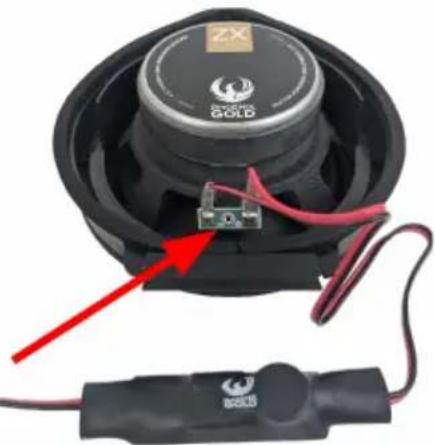

Connect the ZZF-LP4000 filter to the speaker.

Close-up of a speaker with exposed audio components and a black connector, no visible text or symbols

3

Connect the speaker connector to the ZZF-LP4000 filter.

Close-up of a black audio speaker with attached power cord and cable, no visible text or symbols

Quick Start Guide

4

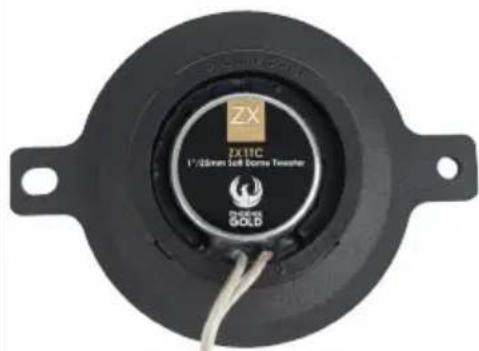

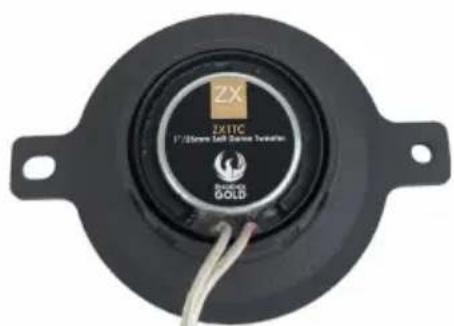

Put the tweeter into the tweeter adapter.

*If the vehicle does not use the tweeter adapter, then use the fast glue to mount the tweeter in place instead.

5

Attach the bottom plate to the back of the tweeter adapter.

6

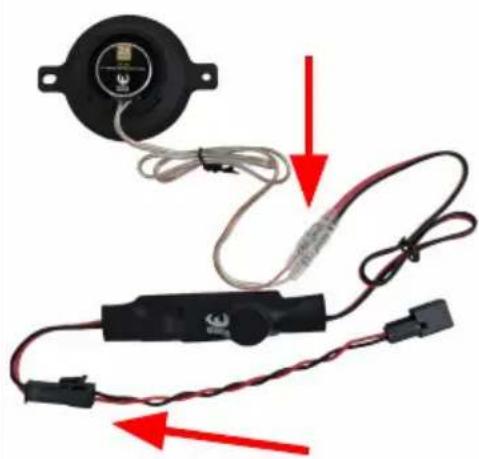

Connect the ZZF-HP4000-6 filter to the tweeter.

Connect the tweeter harness to ZZF-HP4000-6 filter.

Close-up of a black electronic device with wires and connectors, showing red directional arrows indicating motion or connection (no text or symbols visible)

Specifications

Speaker Type: 2-Way Speaker Kit
Speaker Size: 6.5” (165mm) / 1” (25mm)
Frequency Response: 60Hz - 20kHz
Power Handling (RMS): 80W
Power Handling (MAX): 160W
Impedance: 4Ω
Sensitivity: 89dB (1W/1m)
Fs: 62Hz
Qts: 0.593
Crossover: Inline Crossovers
1” (25mm) Voice Coil
Polypropylene cone with rubber surround

Fitment List

Make Model Year Fitment Sound System:
Buick Envision	2014 - 2019 (I) Front Doors		6.5" OEM Speaker, None BOSE Sound System
Buick Envision	2019 - 2021 (I) (Facelift) Front Doors		6.5" OEM Speaker, None BOSE Sound System
Chevrolet Camaro	2010 - 2015 (V) Front Doors All Sound Systems
Chevrolet Cruze	2012 - 2014 (J300) (Facelift) Front Doors All Sound Systems
Chevrolet Cruze		2014 - 2016 (J300) (2nd Facelift)	Front Doors All Sound Systems
Chevrolet Cruze	2016 - 2018 (J400) Front Doors		6.5" OEM Speaker, None BOSE Sound System
Chevrolet Cruze	2018 - 2019 (J400) (Facelift) Front Doors		6.5" OEM Speaker, None BOSE Sound System
Chevrolet Malibu	2013 - 2015 (VIII) Front Doors All Sound Systems
Chevrolet Volt	2016 - 2019 (II) Front Doors All Sound Systems
GMC	Terrain	2018 - 2021 (II)	Front Doors	All Sound Systems
Opel	Adam	2013 - 2019	Front Doors	All Sound Systems
Opel	Astra J	2009 - 2015 (P10)	Front Doors	All Sound Systems
Opel	Astra K 2015 - 2022 (B16) Front Doors All Sound Systems
Opel	Crossland	2017 - 2021 (I) Front Doors All Sound Systems
Opel	Crossland X	2017 - 2021 (I) Front Doors All Sound Systems
Opel	Insignia A	2008 - 2013 (I) Front Doors All Sound Systems
Opel	Insignia A	2013 - 2017 (G09) (Facelift)	Front Doors	All Sound Systems
See the latest updated compatibility list in the PG ZD Fitment List

Fitment List

Make Model Year Fitment Sound System:
Opel Insignia B 2017 - 2020 (Z18) Front Doors All Sound Systems
Opel Insignia B 2020 - 2022 (Z18) (Facelift) Front Doors All Sound Systems
Opel Karl 2015 - 2019 Front Doors All Sound Systems
Opel Meriva B 2010 - 2017 (II) Front Doors All Sound Systems
Opel Mokka A 2012 - 2016 (J13) Front Doors All Sound Systems
Opel Mokka A 2016 - 2019 (J13) (Facelift) Front Doors All Sound Systems
Opel Zafira Tourer C 2011 - 2016 (III) Front Doors All Sound Systems
Opel	Zafira Tourer C	2017 - 2019 (III) (Facelift)	Front Doors	All Sound Systems
See the latest updated compatibility list in the PG ZD Fitment List

Disclaimer

Always ensure the speaker is securely attached. Phoenix Gold accepts no responsibility for damage or injury in relation to inappropriate securing of this product.

Phoenix Gold Product Warranty

LIMITED WARRANTY ON SPEAKERS

Phoenix Gold warrants this product to be free of defects in materials and workmanship for a period of one (1) years from the original date of purchase. This warranty is not transferable and applies only to the original purchaser from an authorized Phoenix Gold dealer. Should service be necessary under this warranty for any reason due to manufacturing defect or malfunction, Phoenix Gold or it's Country distributor / reseller will (at its discretion) repair or replace the defective product with new or re-manufactured product at no charge. Damage caused by the following is not covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions, unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not covered under warranty.
