KORISNIČKI PRIRUČNIK FS3-0026PC PolyJohn

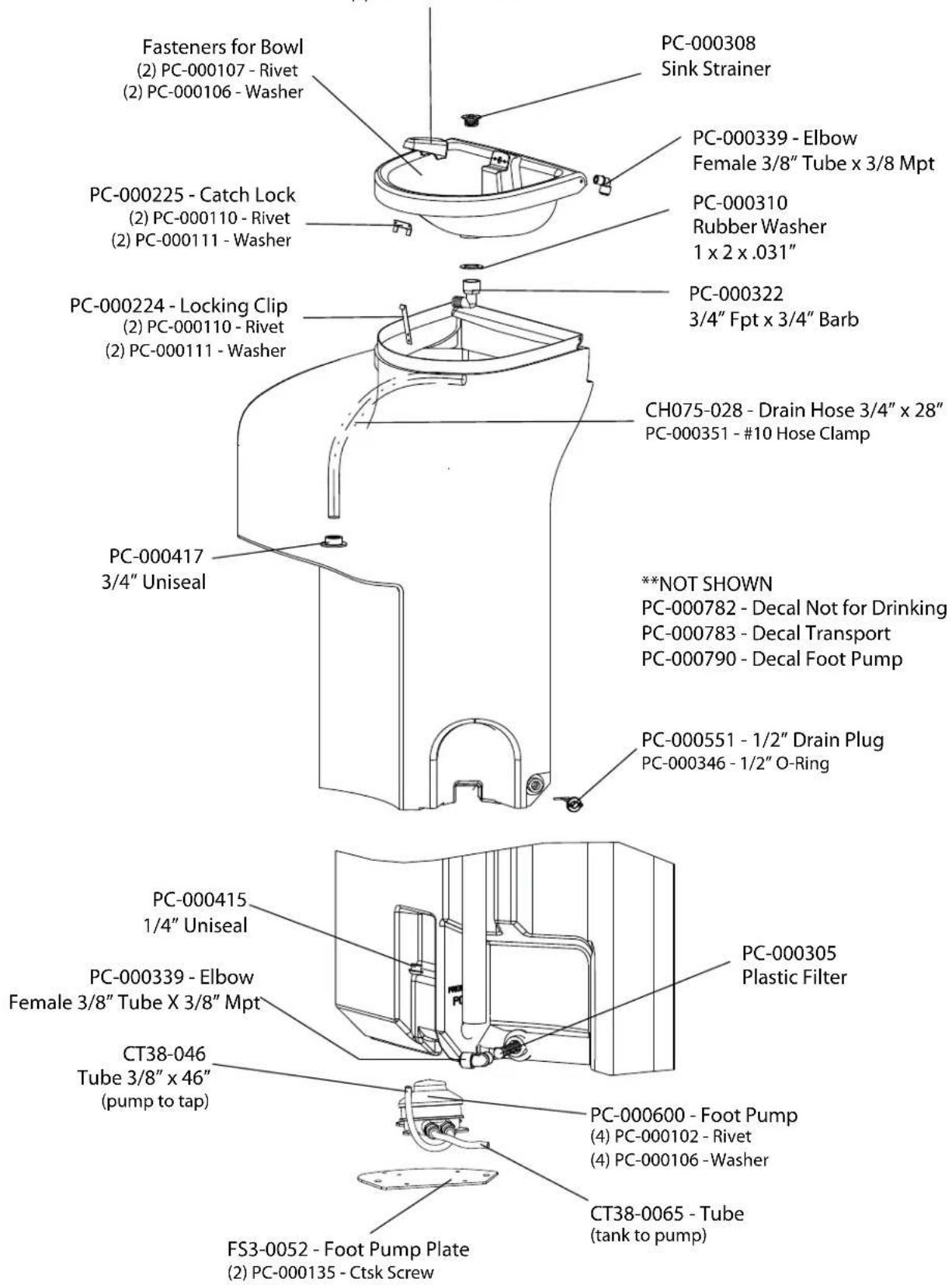

FS3-0026_- Fleet Sink Non-Flushing Model
(Specify Color: Granite - G, Pewter - P)
PC-000581G - Sink Tap
(2) PC-000104 - Rivet
(2) PC-000106 - Washer
PolyJohn FS3-0026PC - 1

text_image Fasteners for Bowl (2) PC-000107 - Rivet (2) PC-000106 - Washer PC-000308 Sink Strainer PC-000339 - Elbow Female 3/8" Tube x 3/8 Mpt PC-000310 Rubber Washer 1 x 2 x .031" PC-000322 3/4" Fpt x 3/4" Barb PC-000225 - Catch Lock (2) PC-000110 - Rivet (2) PC-000111 - Washer PC-000224 - Locking Clip (2) PC-000110 - Rivet (2) PC-000111 - Washer CH075-028 - Drain Hose 3/4" x 28" PC-000351 - #10 Hose Clamp PC-000417 3/4" Uniseal **NOT SHOWN PC-000782 - Decal Not for Drinking PC-000783 - Decal Transport PC-000790 - Decal Foot Pump PC-000551 - 1/2" Drain Plug PC-000346 - 1/2" O-Ring PC-000415 1/4" Uniseal PC-000305 Plastic Filter PC-000339 - Elbow Female 3/8" Tube X 3/8" Mpt CT38-046 Tube 3/8" x 46" (pump to tap) PC-000600 - Foot Pump (4) PC-000102 - Rivet (4) PC-000106 - Washer CT38-065 - Tube (tank to pump) FS3-0052 - Foot Pump Plate (2) PC-000135 - Ctsk Screw

Updated 10-31-12

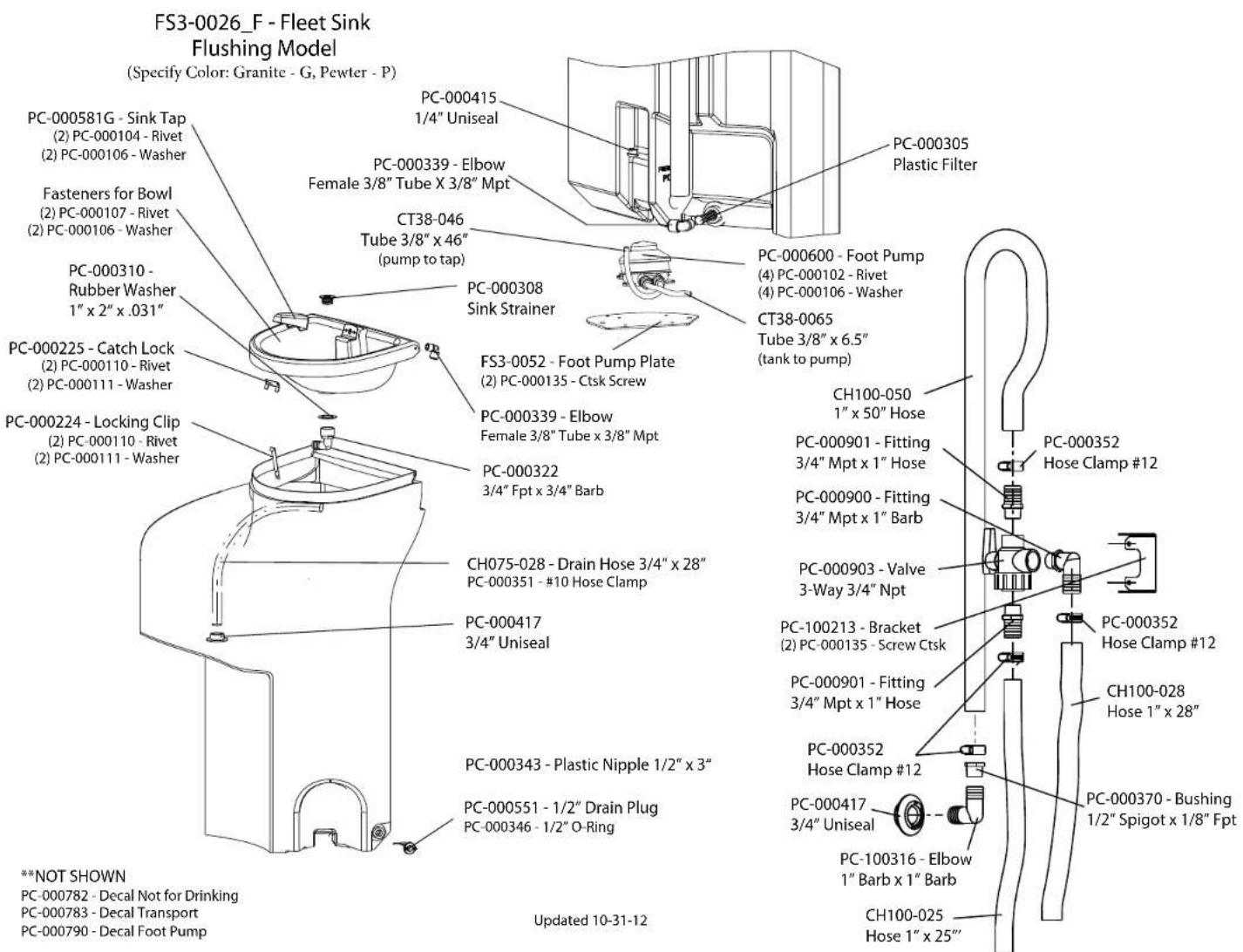

PolyJohn FS3-0026PC - 2

text_image FS3-0026_F - Fleet Sink Flushing Model (Specify Color: Granite - G, Pewter - P) PC-000581G - Sink Tap (2) PC-000104 - Rivet (2) PC-000106 - Washer Fasteners for Bowl (2) PC-000107 - Rivet (2) PC-000106 - Washer PC-000310 - Rubber Washer 1" x 2" x .031" PC-000225 - Catch Lock (2) PC-000110 - Rivet (2) PC-000111 - Washer PC-000224 - Locking Clip (2) PC-000110 - Rivet (2) PC-000111 - Washer PC-000415 1/4" Uniseal PC-000339 - Elbow Female 3/8" Tube X 3/8" Mpt CT38-046 Tube 3/8" x 46" (pump to tap) PC-000308 Sink Strainer FS3-0052 - Foot Pump Plate (2) PC-000135 - Ctsk Screw PC-000339 - Elbow Female 3/8" Tube x 3/8" Mpt PC-000322 3/4" Fpt x 3/4" Barb CH075-028 - Drain Hose 3/4" x 28" PC-000351 - #10 Hose Clamp PC-000417 3/4" Uniseal PC-000343 - Plastic Nipple 1/2" x 3" PC-000551 - 1/2" Drain Plug PC-000346 - 1/2" O-Ring PC-000600 - Foot Pump (4) PC-000102 - Rivet (4) PC-000106 - Washer CT38-065 Tube 3/8" x 6.5" (tank to pump) CH100-050 1" x 50" Hose PC-000901 - Fitting 3/4" Mpt x 1" Hose PC-000900 - Fitting 3/4" Mpt x 1" Barb PC-000903 - Valve 3-Way 3/4" Npt PC-100213 - Bracket (2) PC-000135 - Screw Ctsk PC-000901 - Fitting 3/4" Mpt x 1" Hose PC-000352 Hose Clamp #12 PC-100316 - Elbow 1" Barb x 1" Barb CH100-025 Hose 1" x 25" **NOT SHOWN PC-000782 - Decal Not for Drinking PC-000783 - Decal Transport PC-000790 - Decal Foot Pump Updated 10-31-12

**NOT SHOWN
PC-000782 - Decal Not for Drinking
PC-000783 - Decal Transport
PC-000790 - Decal Foot Pump
Updated 10-31-12
