KORISNIČKI PRIRUČNIK VR002 ARCTIC COOLING
Accessories Set VR002
Installation Manual
For further information, please consult www.arctic.ac
Compatibility
nVIDIA GeForce GTX 285, 280, 275, 260+, 260
| Accessories | ||||||||
 |  |  |  |  | Heatsinks x 1Heatsinks x 2HOutsinking Plateatsinks x 2H  | |||
| Spacers x 4Screws (M2.5) | Wattsrews4(M3) x 2 Screwed/ExTape x 1 | Thermal pad for NVIO heatsink (10x 10 x 1mm) x 1 | ||||||
| *Thermal adhesive (3g) x 1 | ||||||||
^a Be aware that the thermal adhesive comes with a very short shelf life and shall be used within 1 week. We recommend storing the thermal adhesive in a cool area to avoid solidification. Refrigerate after opening. Additional heatsinks and thermal adhesive are available for purchase at vga.arctic.ac

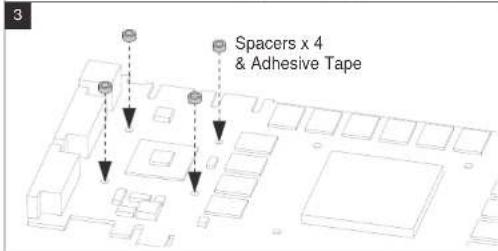

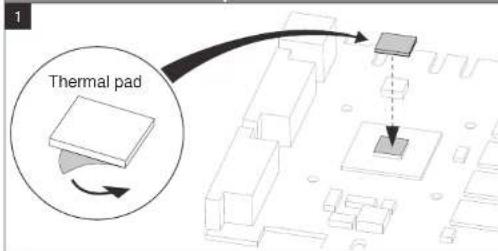

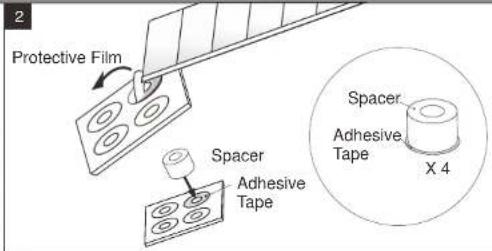

Installation of NVIO chipset heatsink


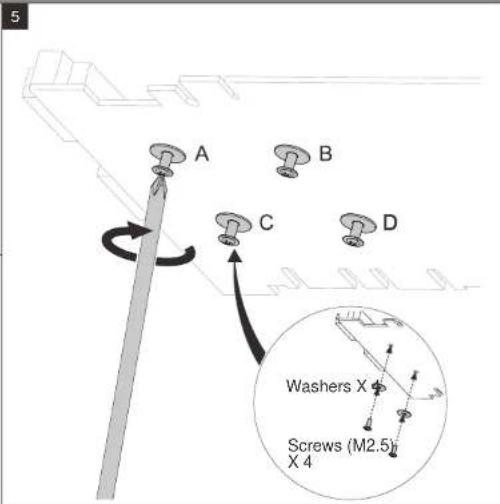

3D diagram of a heat sink with cooling elements and directional arrows, placed on a grid floor (no text or symbols)Do not fasten the screws completely in one step. Fasten each screw alternately (screw A->D->B->C) with 2 to 3 clockwise rotations. Repeat until all 4 screws are tightened.

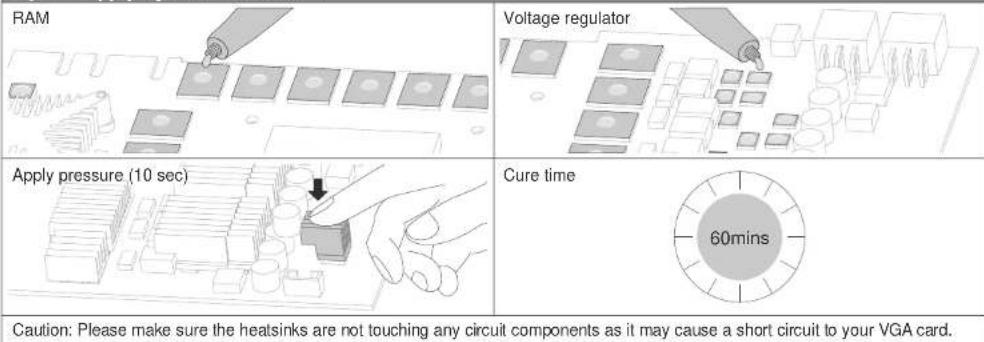

Tips for applying thermal adhesive

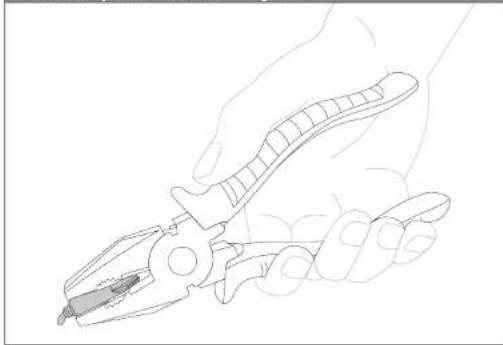

How to squeeze out all the glue?


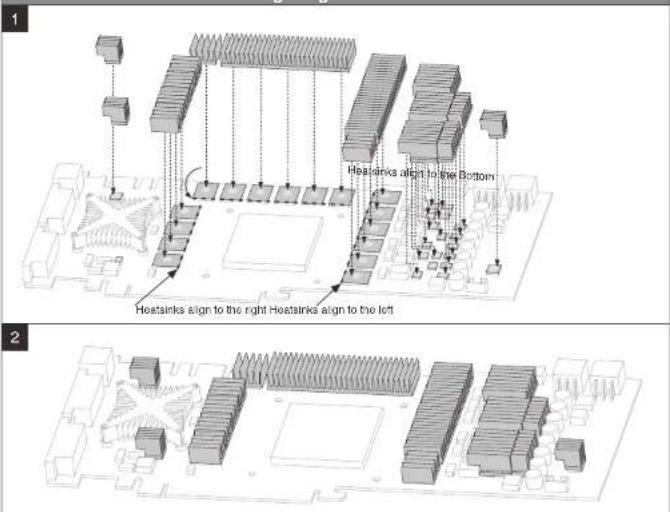

Line drawing of a hand holding a pair of pliers (no text or symbols)Installation of RAM and voltage regulator heatsinks

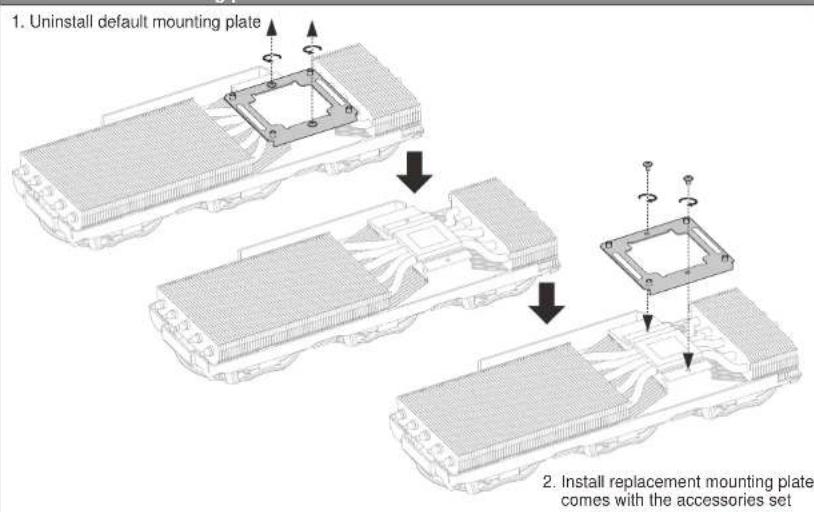

Installation of mounting plate
Installation of main cooler
Please follow the installation instructions provided with the main cooler.
ARCTIC Switzerland
Husbetrasse 4 6000. D'4512en, Switzerland
www.arctic.ac
Copyright
2010 ARCTIC Switzerland. All Rights Reserved.
No part of this manual including the products described in it, may be reproduced, transmitted, stored in a retrieval system, or translated into any language in any form or by any means, except documentation test by the purchaser for backup purposes, without the express written permission of ARCTIC Switzerland. In no event shall ARCTIC its directors or employees be liable for any indirect damages, incidental or consequential damages arising from any defect or error in this manual or product.
