KORISNIČKI PRIRUČNIK W0 Barkan

Assembly instructions

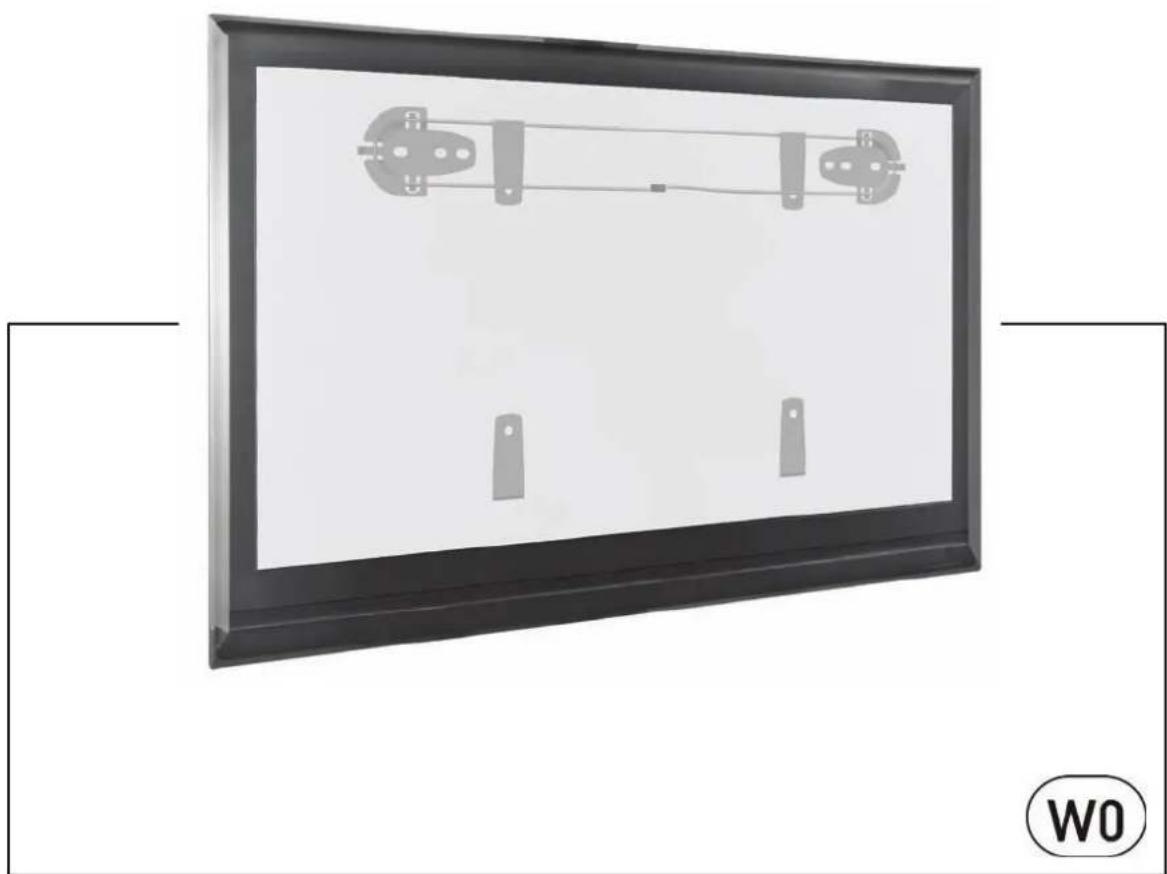

Barkan W0 - Fixed LCD/ PLASMA "Gallery" Cable Wall Mount - 1

natural_image Exterior view of a modern office building (no signage)

Model VESA 800 Cable W0 W0-800 Model

CAUTION - This Mount is intended for use only with the maximum weight as indicated. Using heavier products, might cause injury.

Fits Up to56" 142cmLCD/PlasmaBarkan W0 - Fixed LCD/ PLASMA "Gallery" Cable Wall Mount - 3
USEU
132lbs60kg

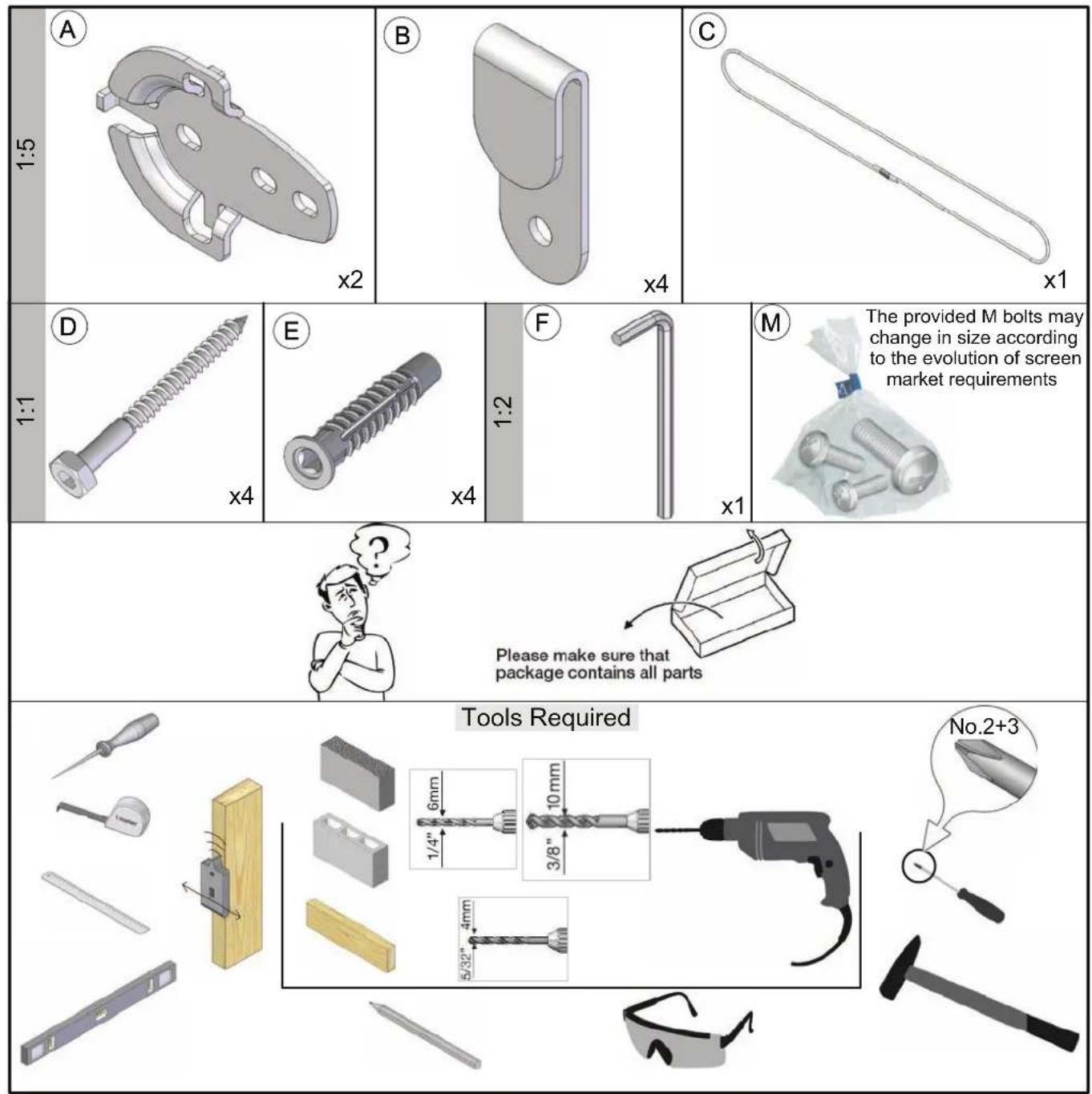

A 1:5 x2 B x4 C x1 D 1:1 x4 E x4 F 1:2 x1 M The provided M bolts may change in size according to the evolution of screen market requirements Please make sure that package contains all parts Tools Required No.2+3

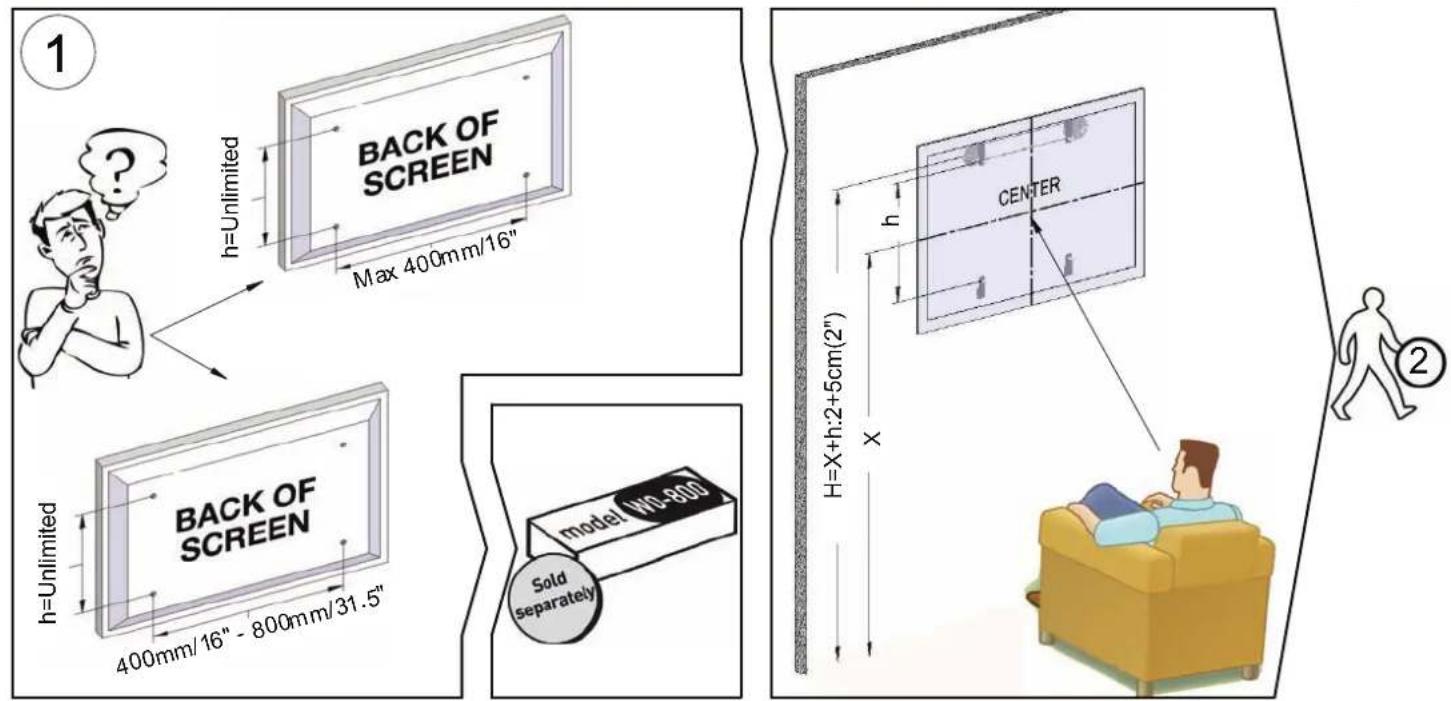

1 h=Unlimited BACK OF SCREEN Max 400mm/16" h=Unlimited BACK OF SCREEN 400mm/16" - 800mm/31.5" model Wc-800 Sold separately CENTER H=X+h:2+5cm(2") X H=X+H:2+5cm(2")

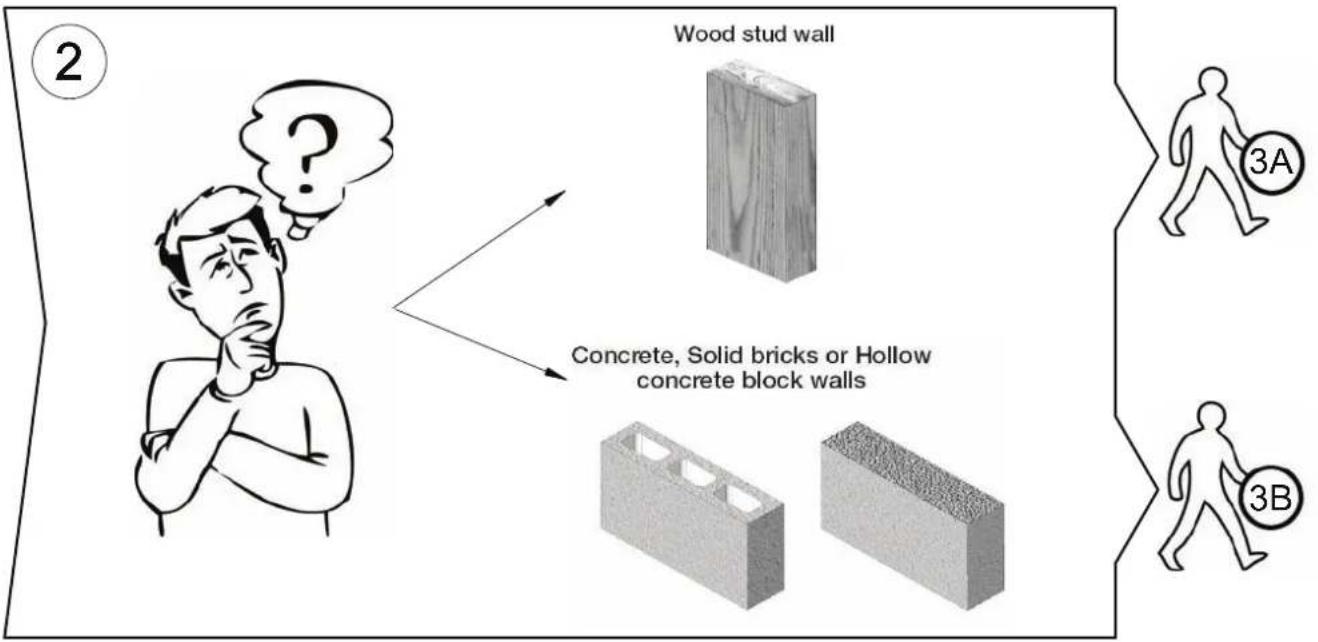

Barkan W0 - Fixed LCD/ PLASMA "Gallery" Cable Wall Mount - 6


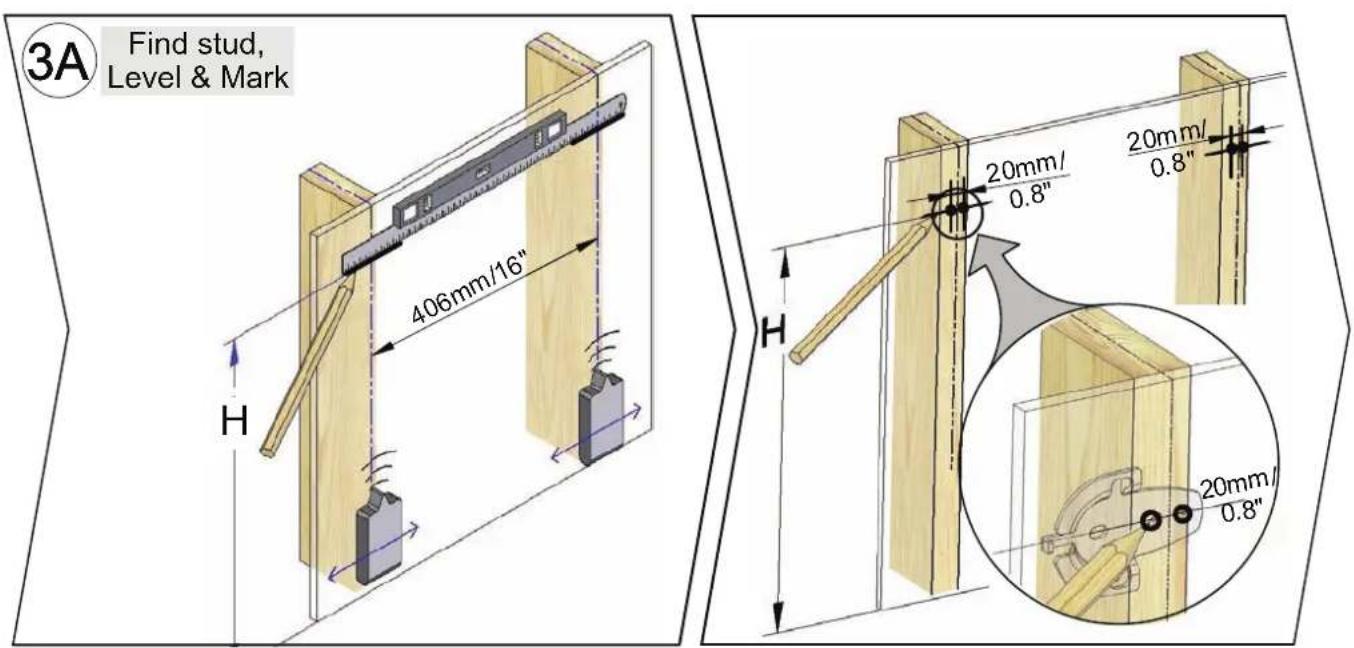

3A Find stud, Level & Mark 406mm/16" H 20mm/ 0.8" 20mm/ 0.8" H 20mm/ 0.8"

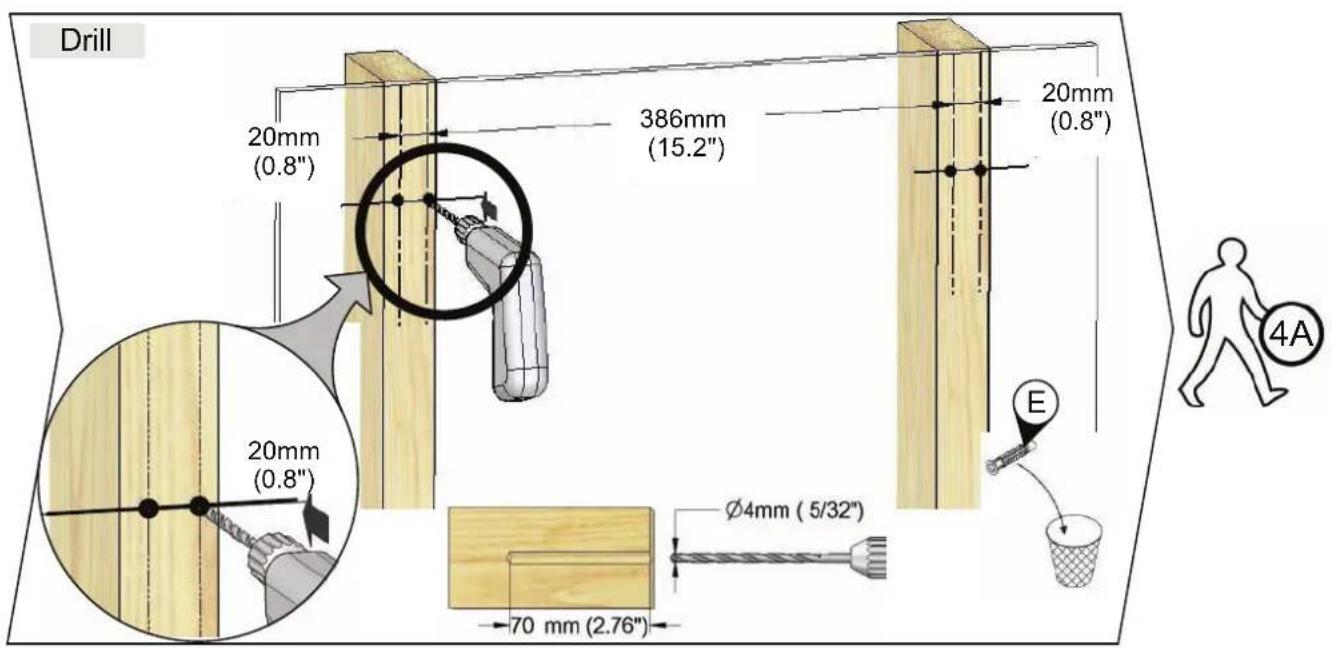

Drill 20mm (0.8") 386mm (15.2") 20mm (0.8") 20mm (0.8") Ø4mm (5/32") 70 mm (2.76") E 4A

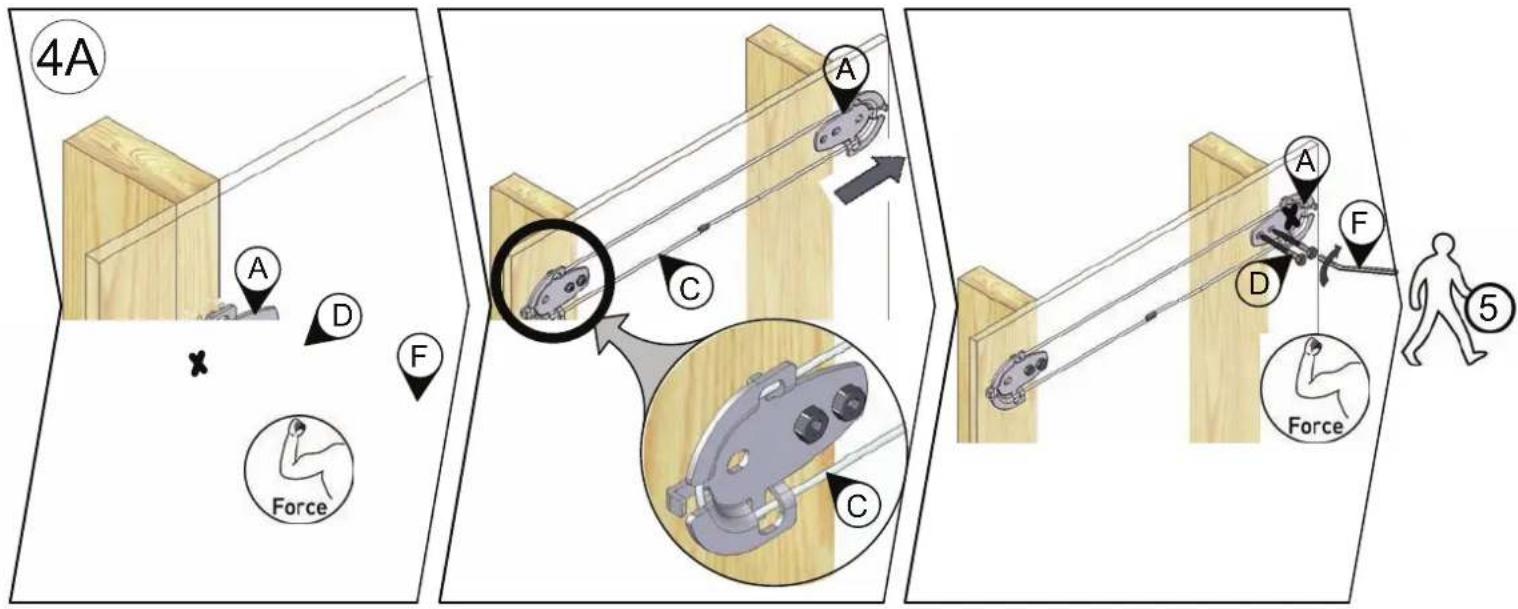

4A A D F Force C A D F Force 5

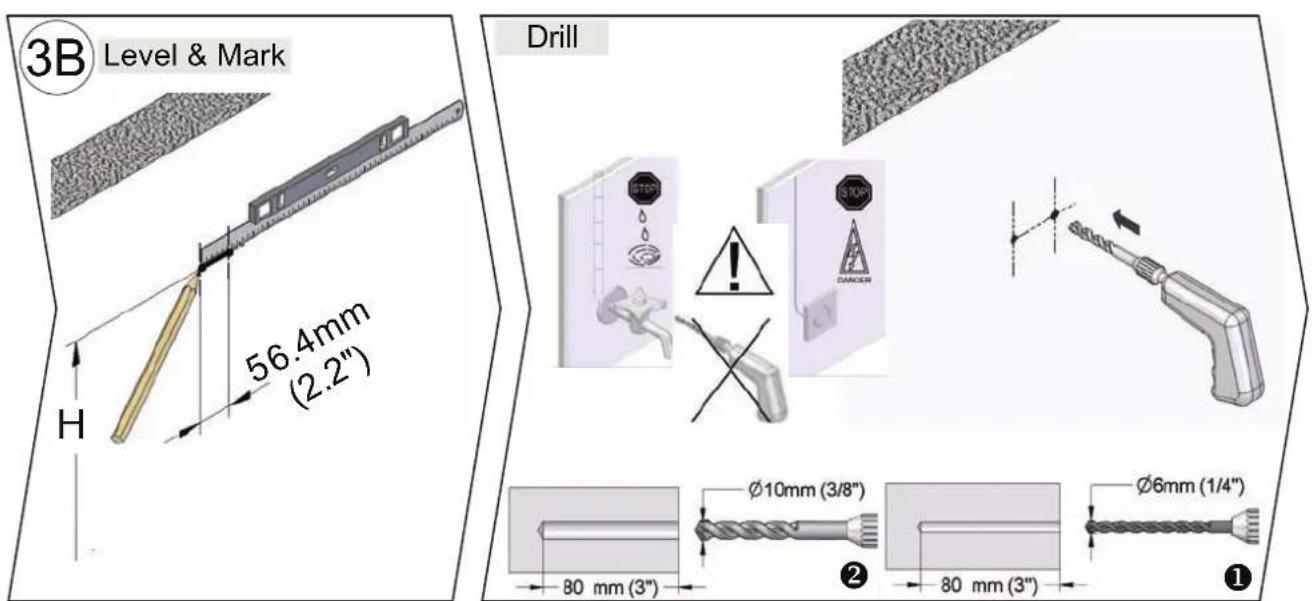

3B Level & Mark 56.4mm (2.2") H Drill Ø10mm (3/8") Ø6mm (1/4") 80 mm (3") 80 mm (3") ② ①

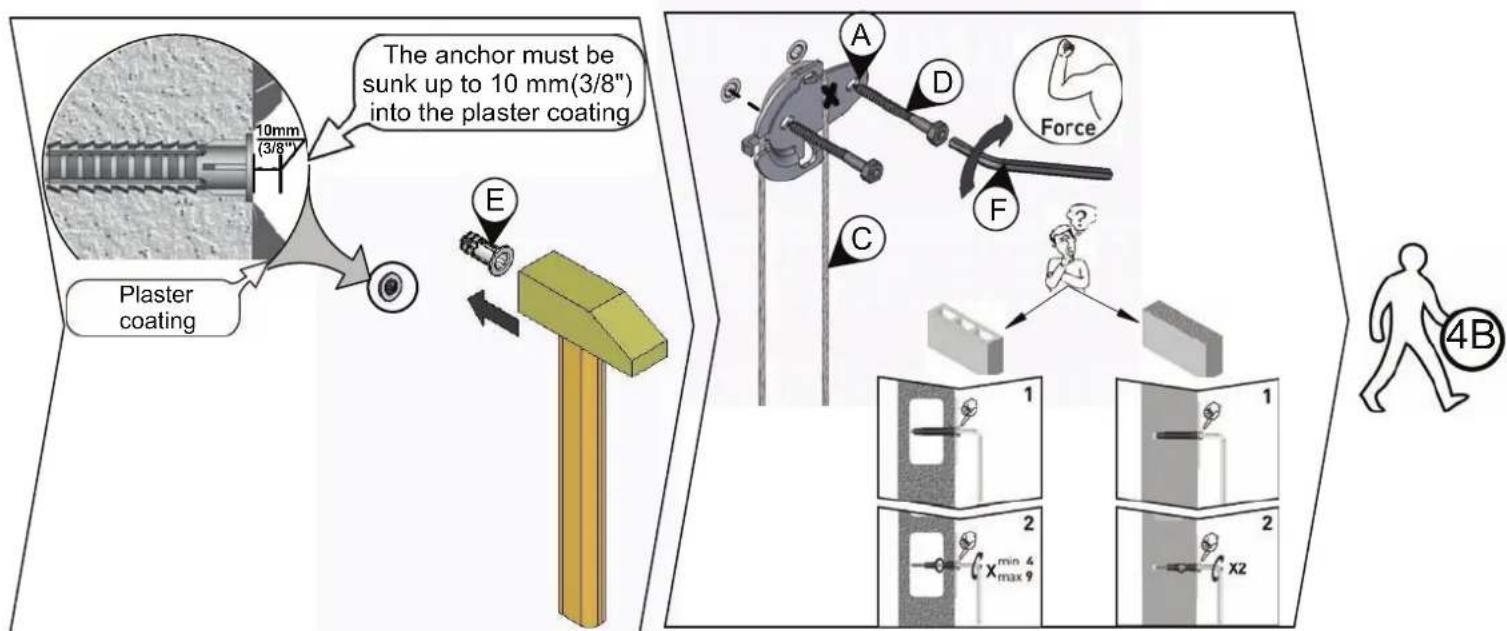

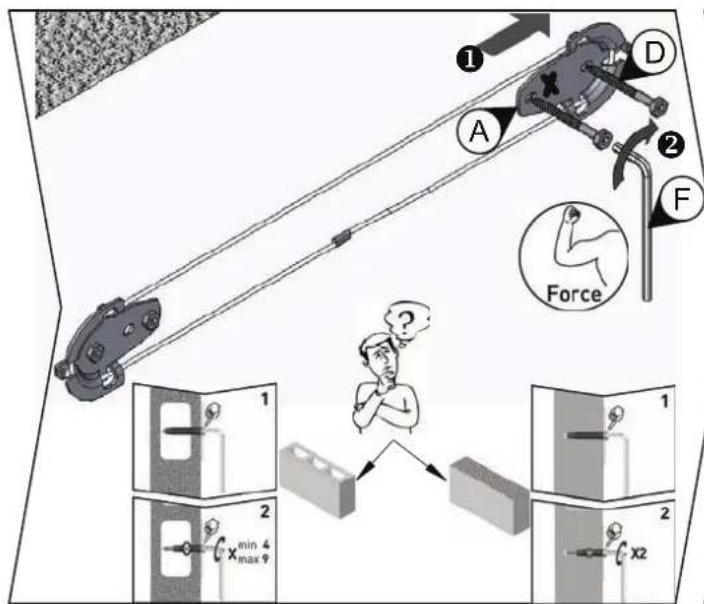

The anchor must be sunk up to 10 mm(3/8") into the plaster coating Plaster coating A D Force C E F 2 x min 4 max 9 2 x2 4B

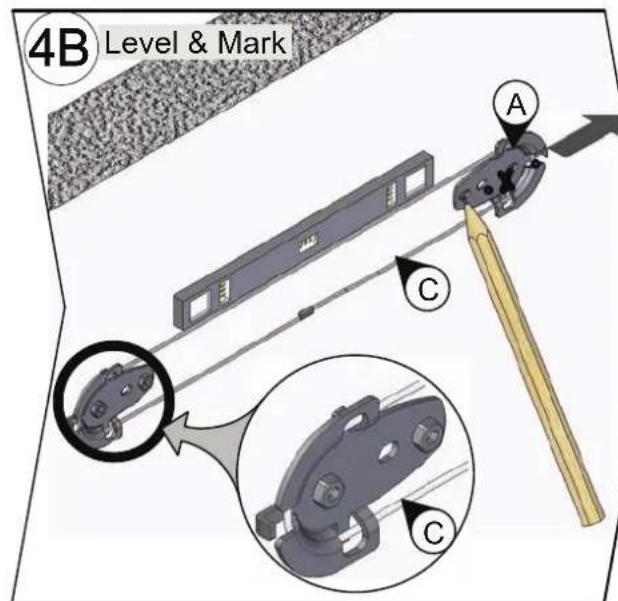

4B Level & Mark A C C

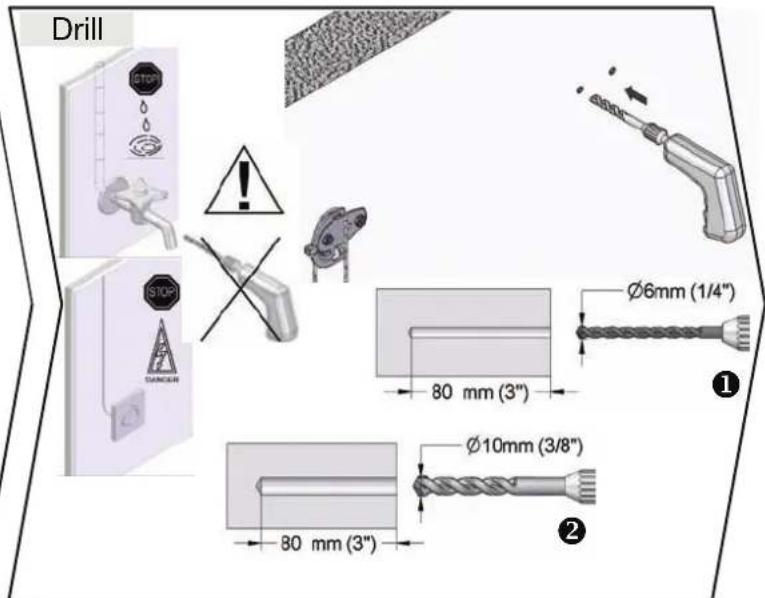

Drill STOP STOP TANGEN Ø6mm (1/4") 80 mm (3") Ø10mm (3/8") 80 mm (3") ① ②

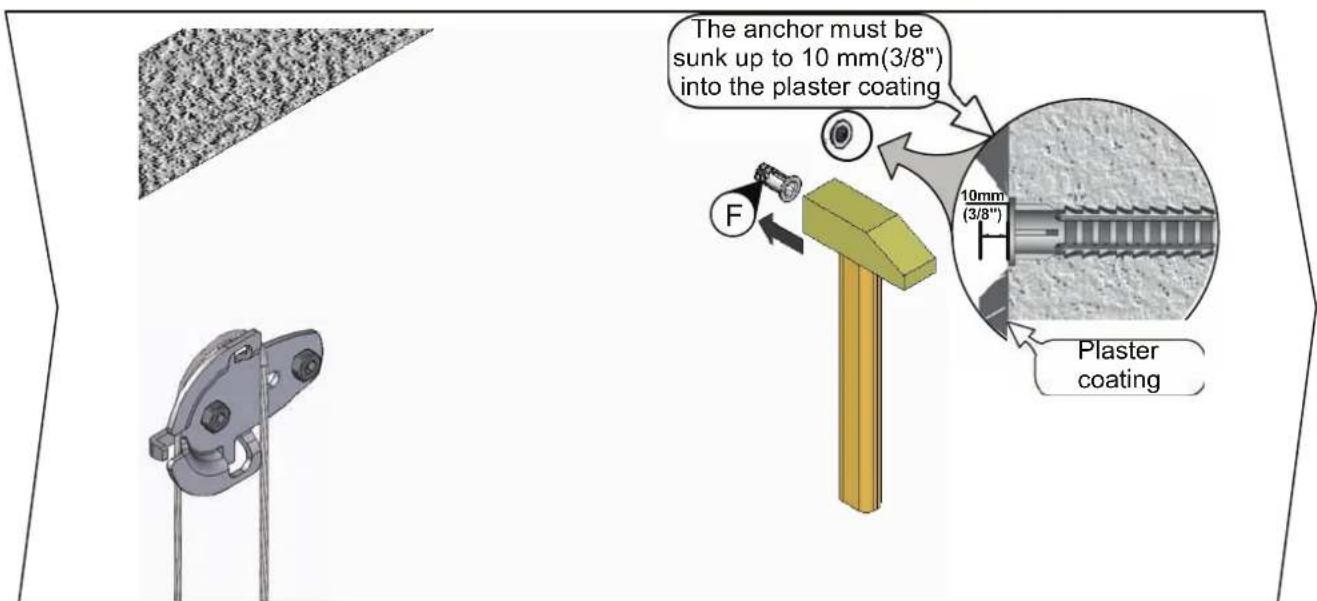

The anchor must be sunk up to 10 mm(3/8") into the plaster coating 10mm (3/8") F Plaster coating

Diagram illustrating a mechanical linkage system with force application and dimensional annotations, including a personified view of the device.

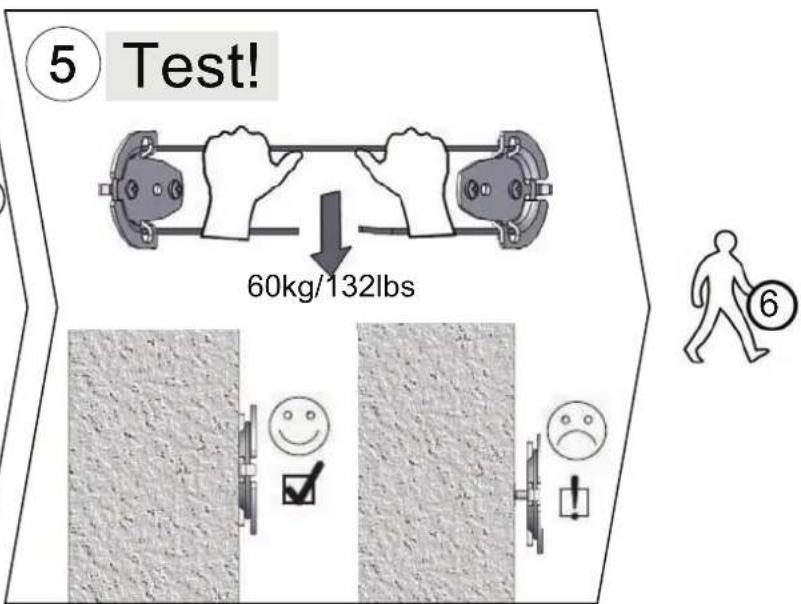

⑤ Test! 60kg/132lbs ⑥

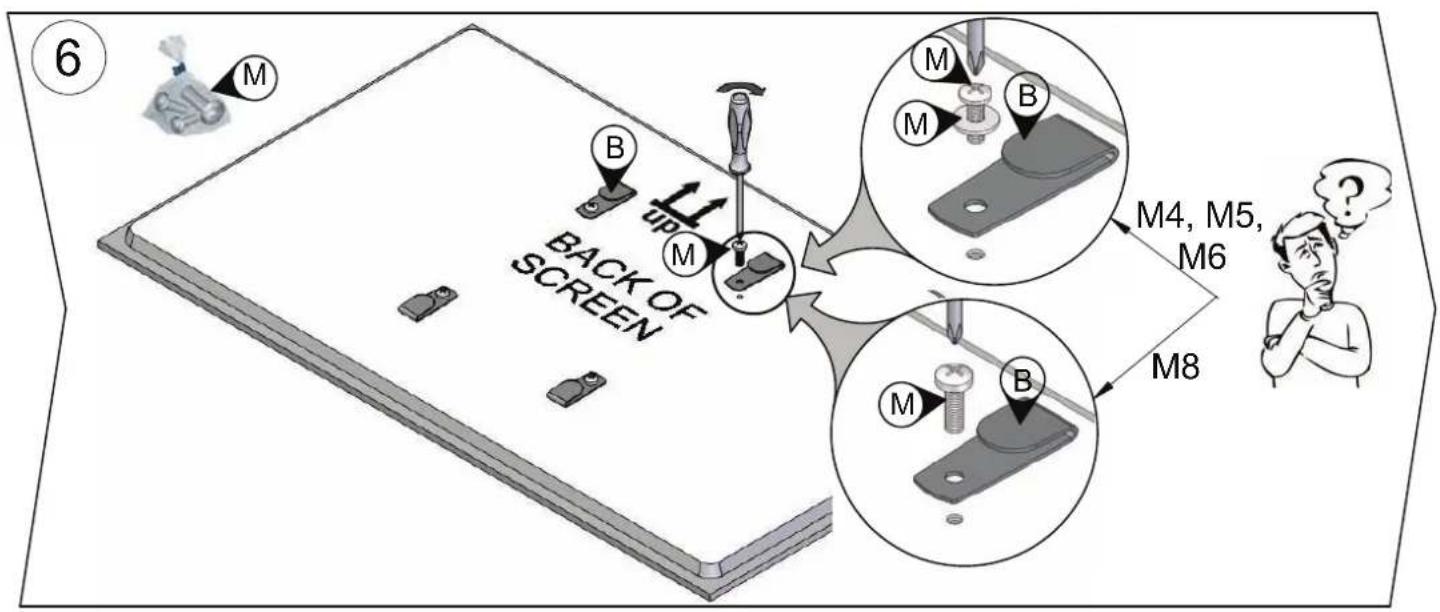

BACK OF SCREEN M B M M B M4, M5, M6 M8 M

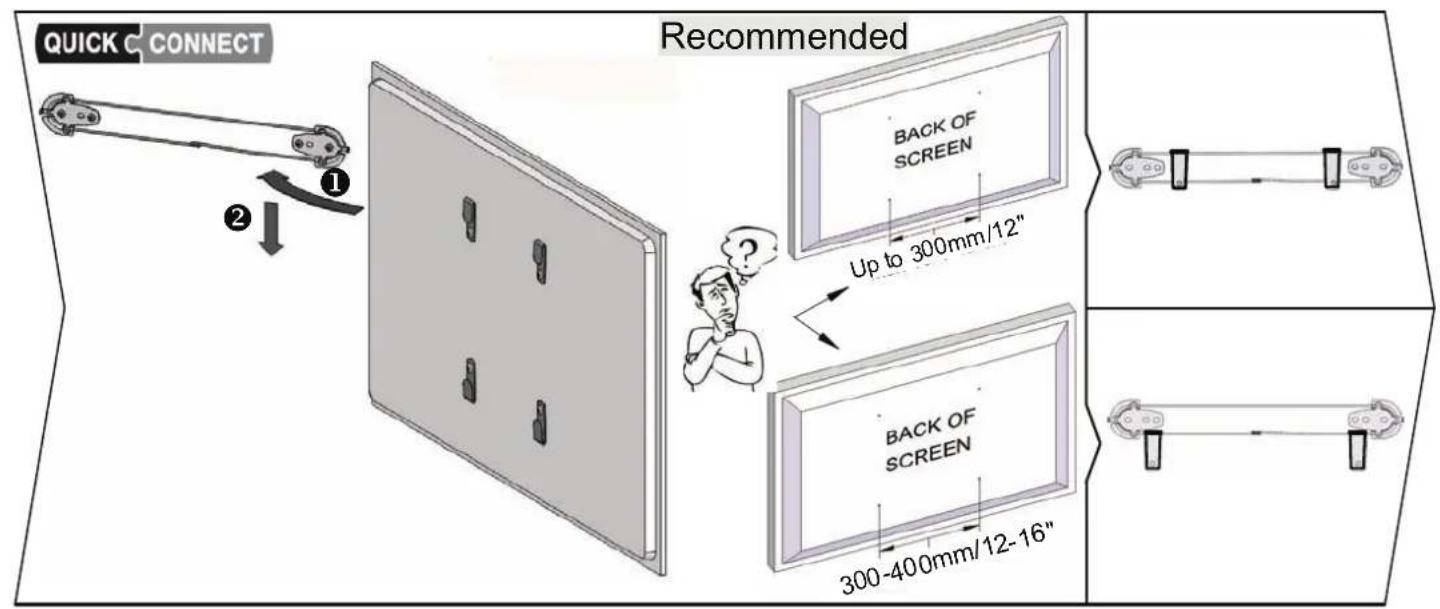

QUICK CONNECT Recommended BACK OF SCREEN Up to 300mm/12" BACK OF SCREEN 300-400mm/12-16"

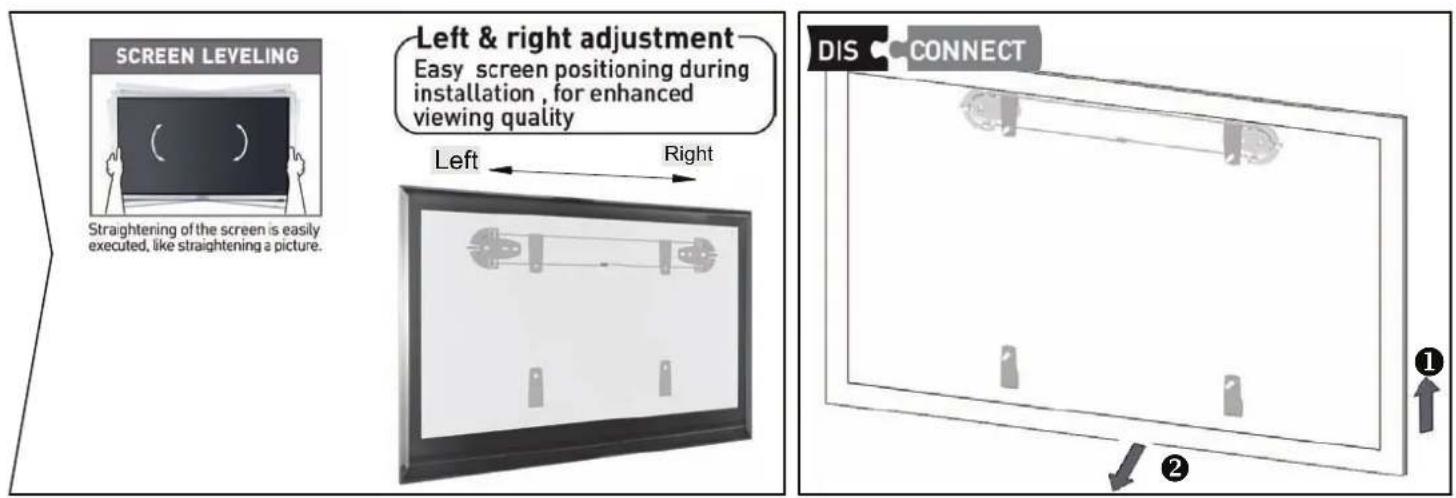

SCREEN LEVELING Straightening of the screen is easily executed, like straightening a picture. Left & right adjustment Easy screen positioning during installation, for enhanced viewing quality Left Right DIS CONNECT ① ②

Dear customer, we welcome your comments and suggestions to improve our products, ease of assembly and instructions. Please contact us via our website: www.barkanmounts.com
