KORISNIČKI PRIRUČNIK 31B Barkan

Tilt LED/LCD/Plasma Wall Mount

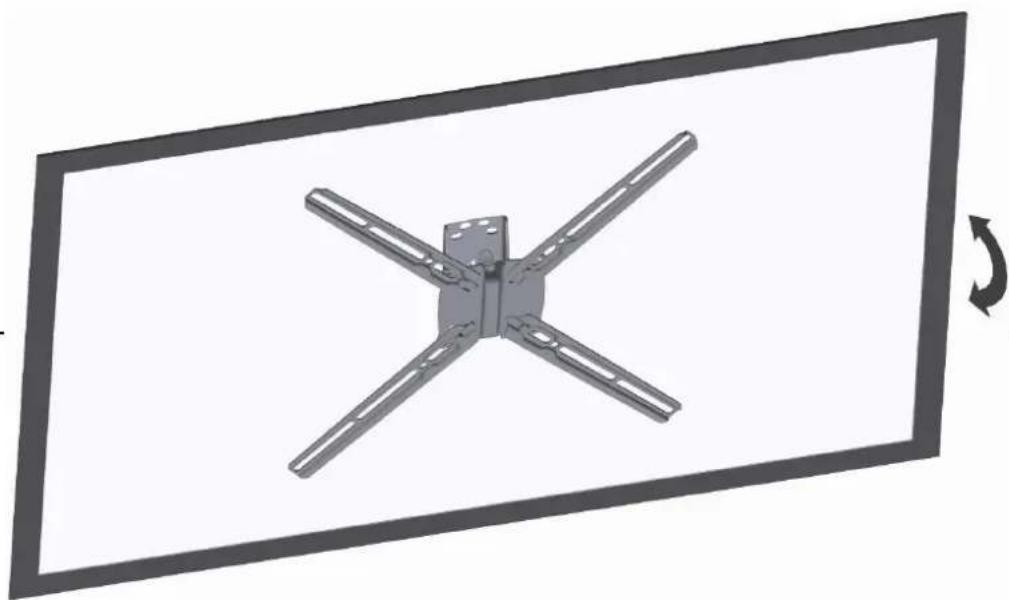

Barkan 31B - Tilt LED/LCD/Plasma Wall Mount - 1

natural_image Mechanical component with four arms and central hub, shown in a 3D rendering (no text or symbols)

model

31

Fits up to56""/ 142 cmLED / LCD / PlasmaBarkan 31B - Tilt LED/LCD/Plasma Wall Mount - 2
USEU
66 lbs30 kg

CAUTION - This Mount is intended for use only with the maximum weight as indicated. Using heavier products, might cause injury.

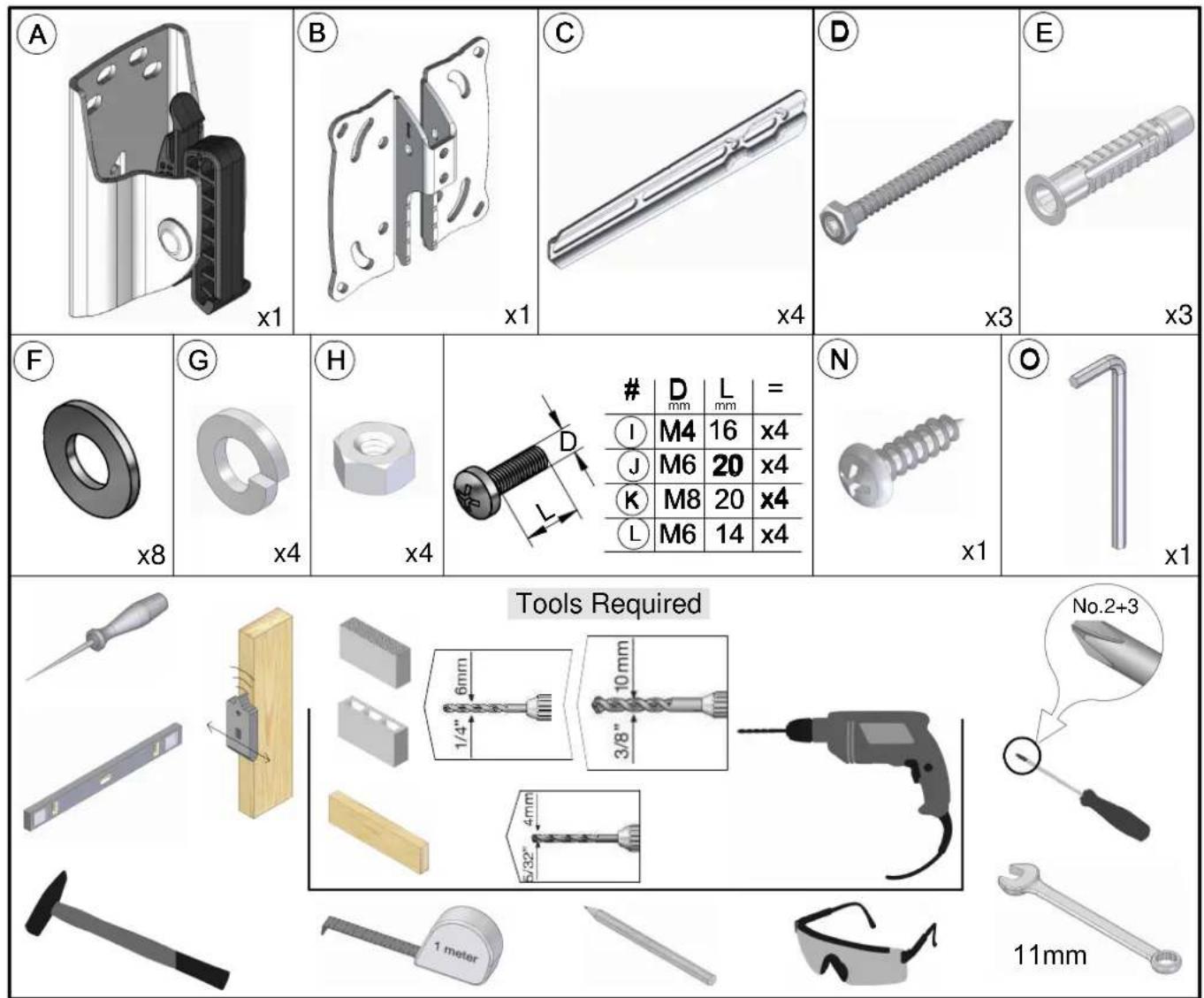

Barkan 31B - Tilt LED/LCD/Plasma Wall Mount - 3

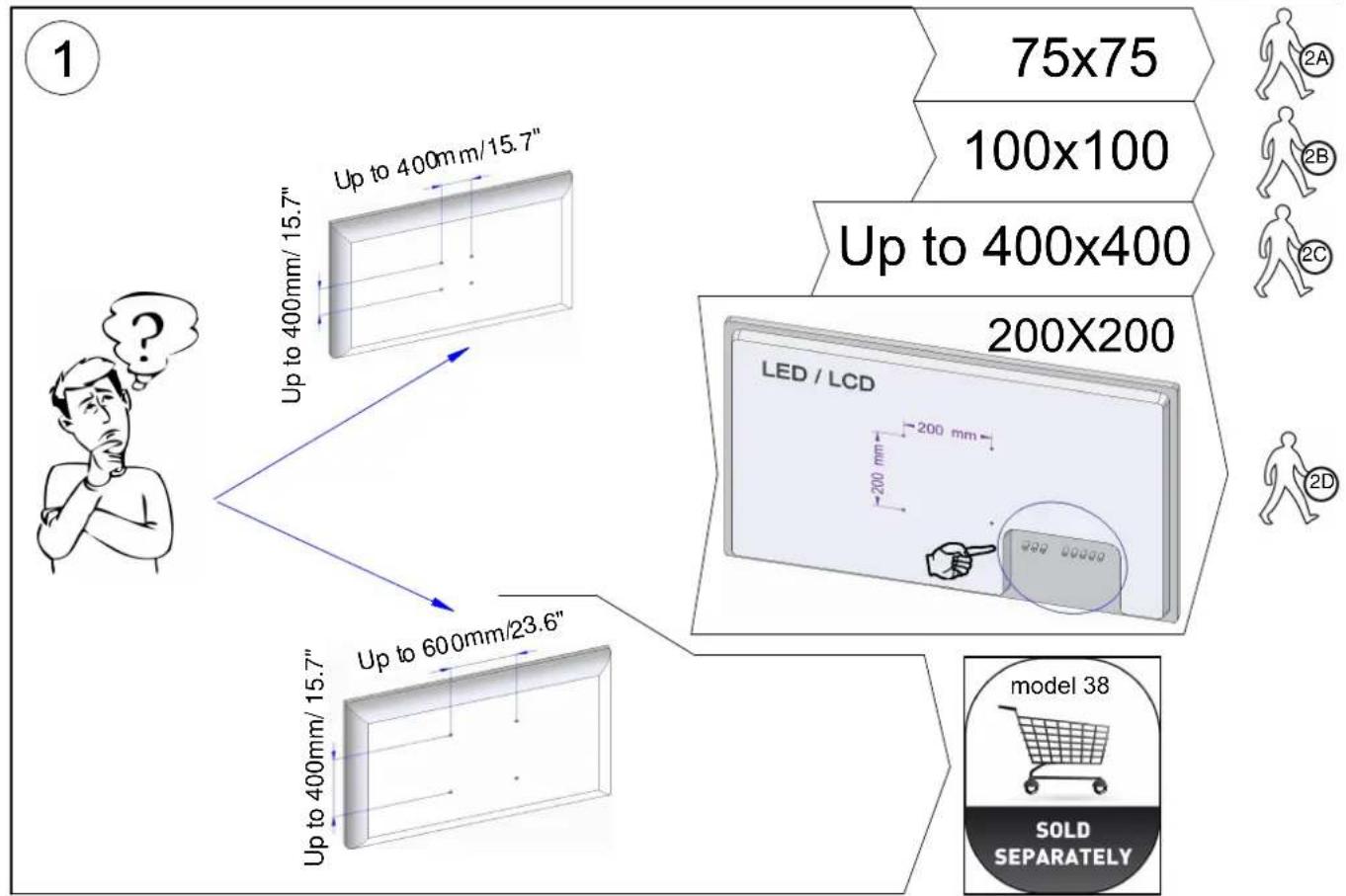

1 75x75 100x100 Up to 400x400 200X200 LED / LCD 200 mm 200 mm Up to 600mm/23.6" Up to 400mm/15.7" Up to 400mm/15.7" model 38 SOLD SEPARATELY

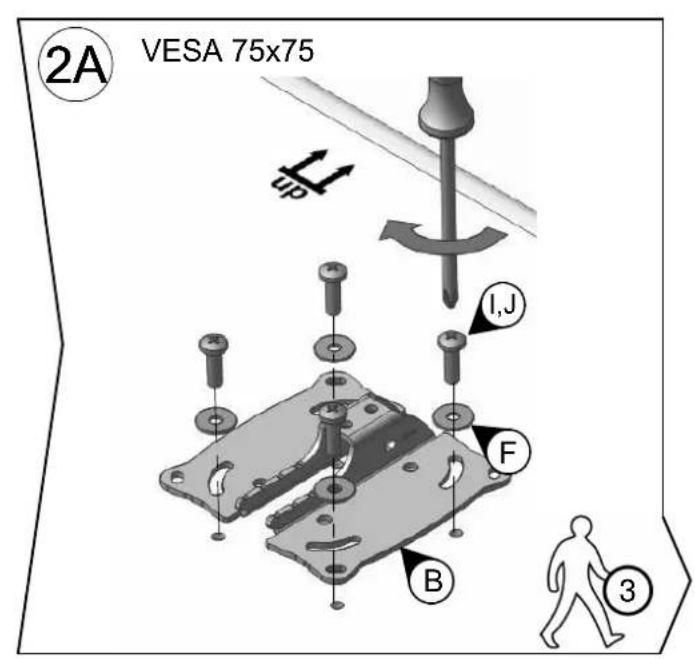

2A VESA 75x75 I,J F B 3

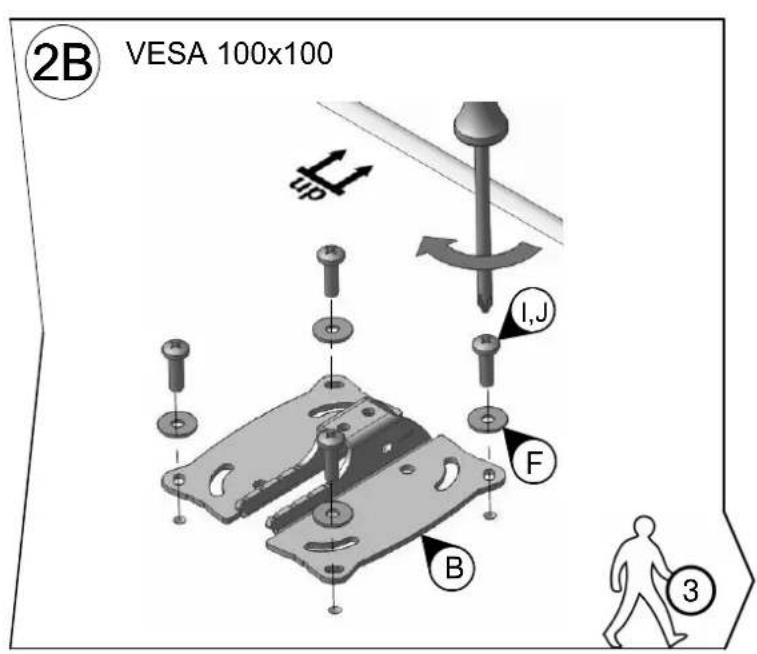

2B VESA 100x100 I,J F B 3

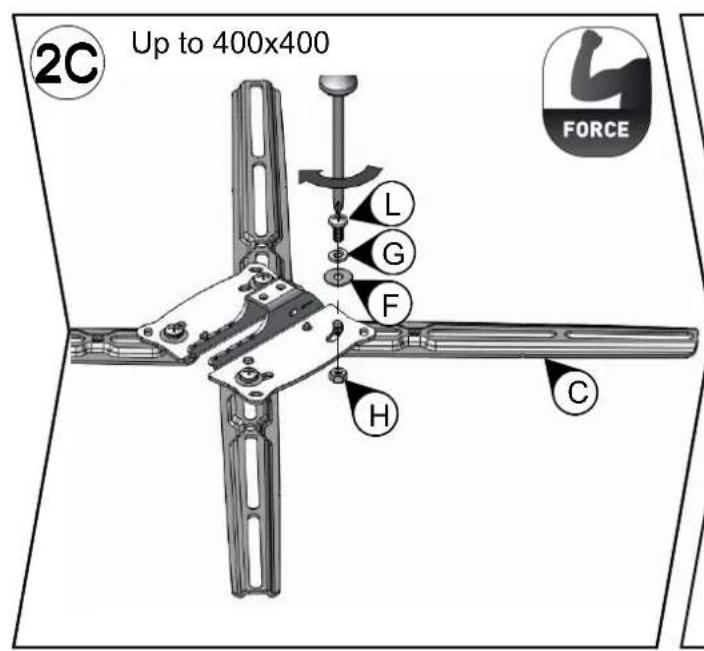

2C Up to 400x400 L G F H C FORCE

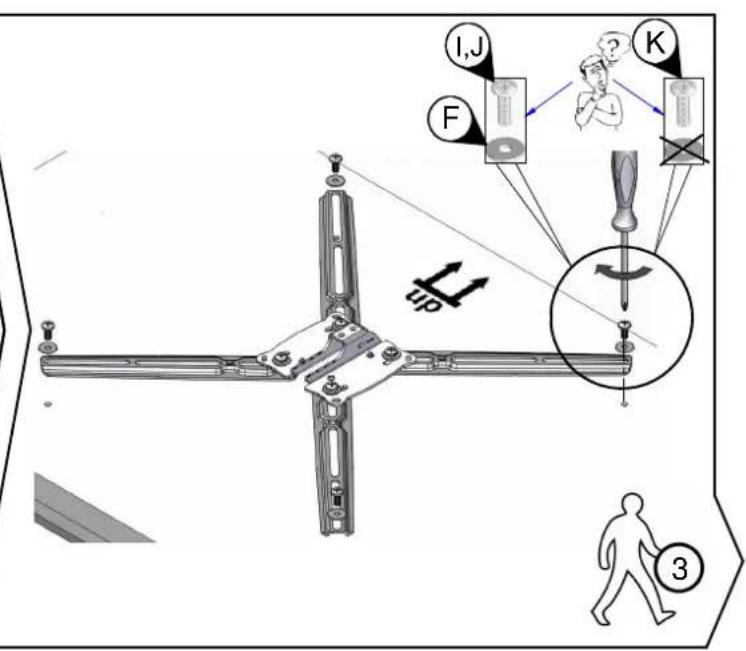

I,J F K 3

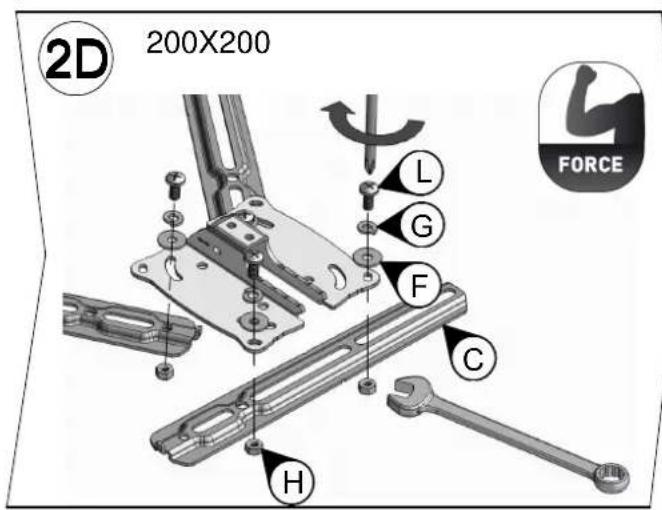

2D 200X200 L G F C H FORCE

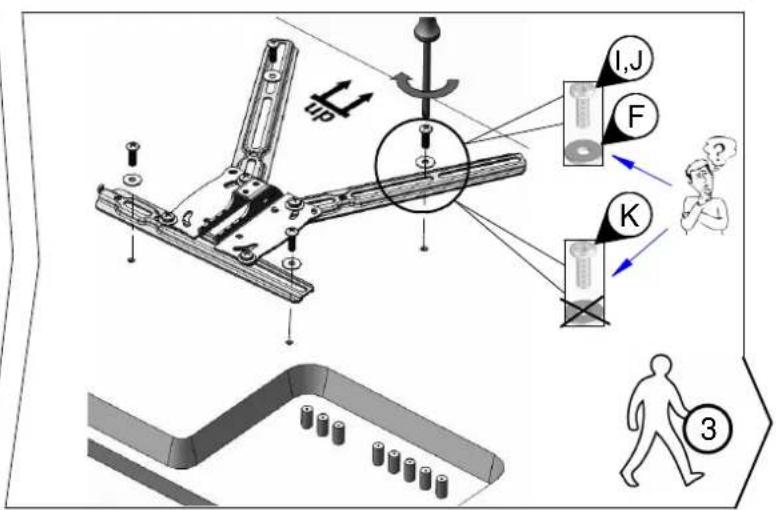

Technical diagram illustrating mechanical assembly with labeled components and a person walking on a path marked '3'

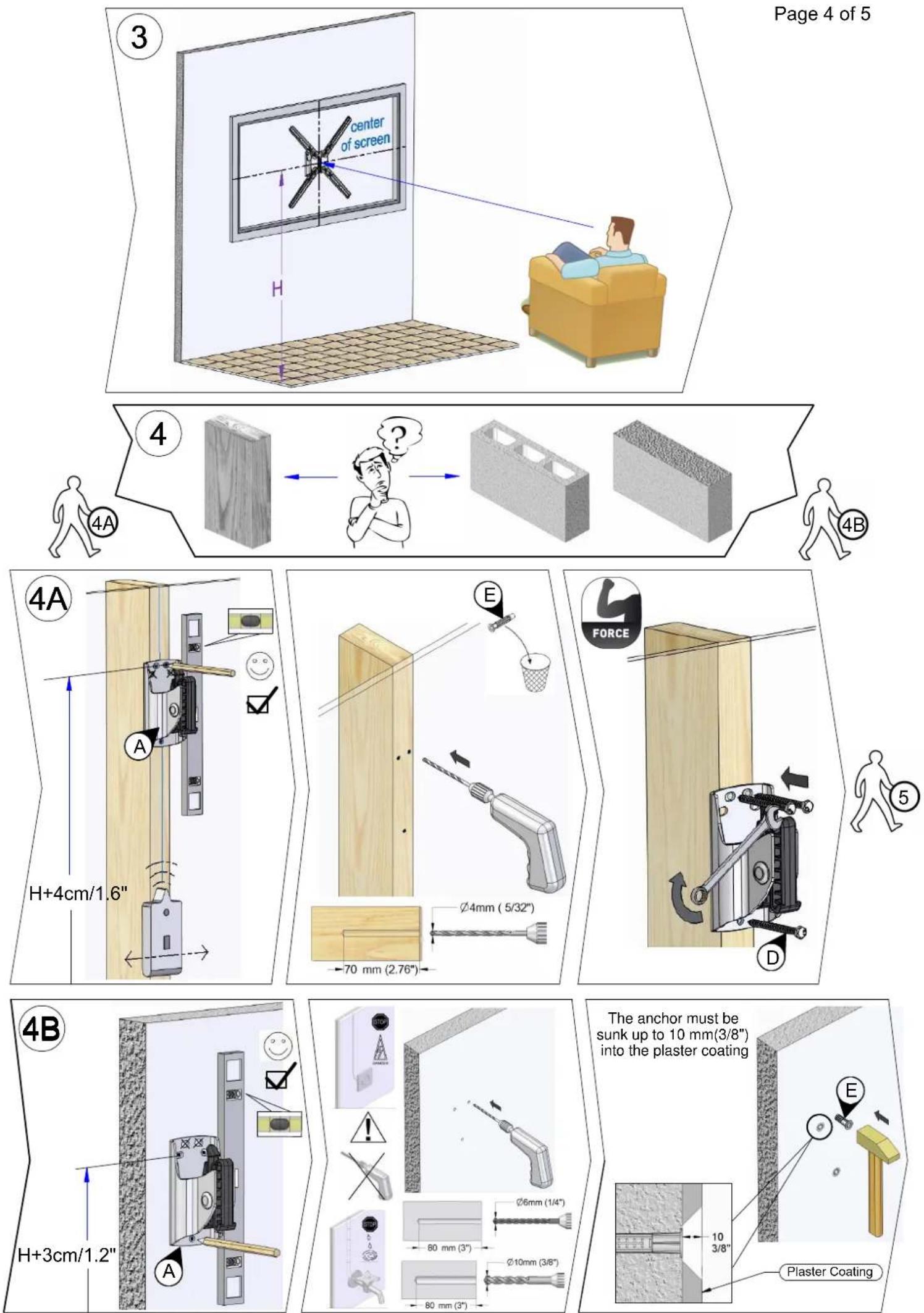

Barkan 31B - Tilt LED/LCD/Plasma Wall Mount - 11

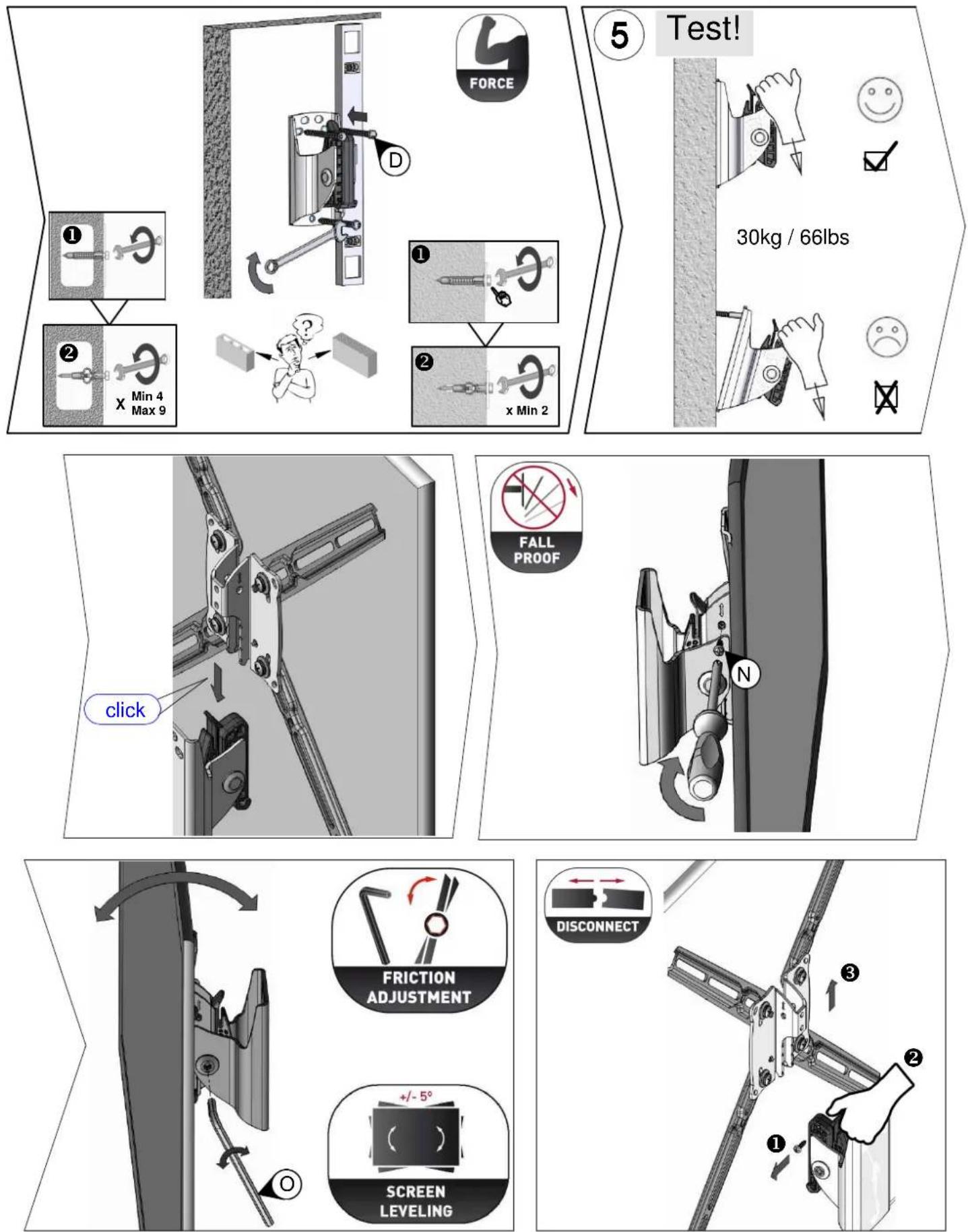

Barkan 31B - Tilt LED/LCD/Plasma Wall Mount - 12
