KASUTUSJUHEND CA-R-DAC.002AE PIONEER
Steering wheel control interface installation kit for:
DACIA/RENAULT
Model: Dacia: Duster 2015>; Sandero 2015>; Logan 2015>; Renault: Captur 2016>;

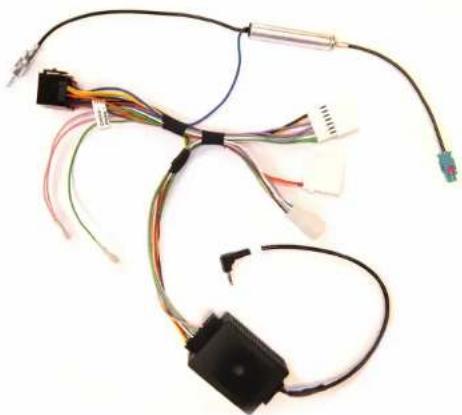

Kit content: SWC interface Wiring harness Antenna adapter Radio adapter
Customer code: CA-R-DAC.002AE
All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 12/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.R2
All installation work must be performed by a qualified professional installer only. The manufacturer / dealer is not liable for any kind of incidental or indirect damages. 12/2016 ALL RIGHTS RESERVED. Technical changes possible. No liability for misprints.
ATTENTION!
In order to prevent ESD damage, the WHEEL REMOTE JACK must be connected before plugging in the connectors on car side.

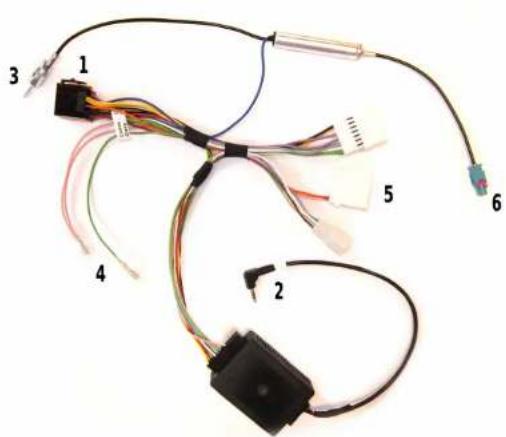

Connect cables to the radio side as follow:
1- to ISO CONNECTORS (black and red housings)
2- to WIRED REMOTE SOCKET (NOTE: do not connect to microphone socket)
3- to RADIO ANTENNA-CONNECTOR
4- to SERVICES (if required); functions are marked on the wires:
Pink - Speed
Green - Parking
Connect cables to the car side as follow:
5- to CAR CONNECTOR
6- to CAR ANTENNA-CONNECTOR


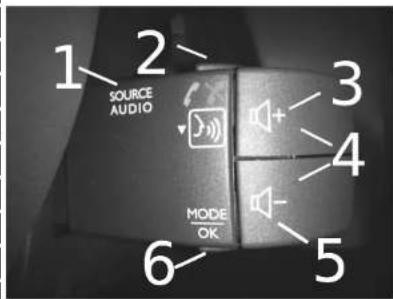

Close-up of a metallic mechanical component with numbered callouts (7, 8) indicating parts numbered 7 and 8 respectively, no readable text or symbols beyond numbers.The steering wheel buttons perform the following functions (if supported by the radio and vehicle):
1- Source
2- Short Press (<0,5 Secs) = Accept incoming call
Long Press (>0,5 Secs) = Reject incoming call *
3- Volume +
4- Press the buttons n°3 and n°5 simultaneously :
Short Press (<0,5 Secs) = Mute
Long Press (>0,5 Secs) = Voice *
5- Volume -
6- Mode

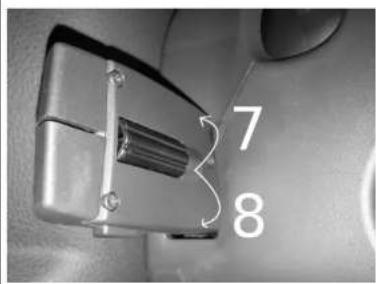

7- Seek down = scroll up
8- Seek up = scroll down
* NOTE: depending on the radio model, the activation time of this function could take up to 3 seconds.
