RDR-VX525 - DVD player SONY - Free user manual and instructions

Product Type	Combination DVD Recorder and VHS Video Cassette Recorder
Model	Sony RDR-VX525
Power Requirements	120 V AC, 60 Hz
Power Consumption	Approximately 35 W
Dimensions (Approx.)	430 x 89 x 340 mm (17 x 3.5 x 13.4 in)
Weight (Approx.)	5.2 kg (11.5 lb)
Disc Types Supported	DVD+RW, DVD-RW (VR/Video), DVD+R, DVD-R (VR/Video), DVD+R DL, DVD-RAM, DVD VIDEO, VIDEO CD, CD, DATA CD, DATA DVD
Recording Media	DVD+RW, DVD-RW, DVD+R, DVD-R, DVD+R DL (recordable discs)
Recording Modes	HQ (1h), HSP (1.5h), SP (2h), LSP (2.5h), ESP (3h), LP (4h), EP (6h), SLP (8h) on 4.7 GB disc
Video Inputs	LINE 1 IN (RCA), LINE 2 IN (front RCA + S-Video), DV IN (i.LINK)
Video Outputs	LINE OUT (RCA), S-VIDEO OUT, COMPONENT VIDEO OUT (Y/Pb/Pr), HDMI OUT
Audio Outputs	LINE OUT (RCA L/R), DIGITAL AUDIO OUT (Coaxial/Optical), HDMI Audio
Built-in Tuner	None (requires external cable box/satellite receiver)
Control Features	One Touch Dubbing (DVD↔VHS, DV→DVD), Synchro Rec, Timer Recording, Set Top Box Controller
Playback Formats	DVD Video, VHS, MP3 audio, JPEG images, Video CD, Audio CD
Editing Capabilities	Title/Chapter erase, A-B erase, Divide, Combine, Create/Edit Playlist (VR mode)
Safety Features	Child Lock, Parental Control, Automatic Shut-off
Cleaning Instructions	Clean with dry cloth. Do not use liquid cleaners.
Service Information	Refer servicing to qualified personnel only. Model and serial on rear panel.

Frequently Asked Questions - RDR-VX525 SONY

How do I record a TV program on the Sony RDR-VX525?

Connect a cable box or satellite receiver to the LINE 1 IN jacks. Press DVD, insert a recordable disc, select the input source (LINE1) or use the set top box control to change channels, then press REC. You can also use the Timer function to record at a scheduled time.

Can I dub from VHS tape to DVD?

Yes. Insert the VHS tape and a recordable DVD. Press ONE TOUCH DUBBING and the recorder will copy the entire tape to DVD. For more control, use the Dubbing menu to select specific titles or create a dubbing list.

What types of discs can I use for recording?

The RDR-VX525 supports recordable discs: DVD+RW, DVD-RW (VR or Video mode), DVD+R, DVD-R (VR or Video mode), and DVD+R DL. New discs are automatically formatted when first inserted.

How do I set a timer recording?

Press TIMER, then use the on-screen menu to set the date, start/end time, channel/input, and recording mode. You can set up to 12 programs. When the timer is set, the standby indicator lights up.

Why can't I play a DVD on this recorder?

Check the disc region code – the RDR-VX525 plays region code 1 (USA) or ALL discs. Also ensure the disc is not damaged, is properly inserted label-side up, and that you have selected the DVD mode.

How can I finalize a disc so it plays on other players?

Insert the disc, press SYSTEM MENU, go to Disc Setting and select Disc Finalize. For DVD-RW Video mode, DVD+R, and DVD-R, finalization is required; for DVD+RW it is automatic.

What does 'Child Lock' do and how do I enable it?

Child Lock prevents accidental button presses. With the recorder stopped and turned on, hold down STOP for 10 seconds until 'CHILD LOCK' appears. To unlock, repeat the same action.

Can I connect the recorder to an HD TV or amplifier?

Yes. Use the HDMI OUT jack for best video/audio quality to an HD TV. For an AV amplifier, connect via DIGITAL AUDIO OUT (coaxial or optical) or HDMI. Ensure appropriate audio settings in the Setup menu.

How do I clean the recorder or discs?

Clean the exterior with a soft dry cloth. Do not use solvents. For discs, wipe gently from center to edge with a soft cloth. Avoid circular motions.

The remote doesn't work – what should I do?

Check batteries (install two AA correctly). Point the remote at the sensor on the front panel. If you have another Sony DVD unit, the command mode may conflict – change the command mode via Setup > Options > Command Mode.

USER MANUAL RDR-VX525 SONY

Video Cassette Recorder/ DVD Recorder

Operating Instructions US

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To avoid electrical shock, do not open the cabinet. Refer servicing to qualified personnel only. The AC power cord must be changed only at a qualified service shop.

CAUTION

The use of optical instruments with this product will increase eye hazard. As the laser beam used in this DVD recorder is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

This label is located on the laser protective housing inside the enclosure.

This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s

enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

This symbol is intended to alert the user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

For customers in the U.S.A Owner's Record

The model and serial numbers are located at the rear of the unit. Record the serial number in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. RDR-VX525 Serial No._

CAUTION

You are cautioned that any change or modifications not expressly approved in this manual could void your authority to operate this equipment.

Note

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

– Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help.

Precautions

On safety

Should any solid object or liquid fall into the cabinet, unplug the recorder and have it checked by qualified personnel before operating it any further.

On power sources

• Operate the recorder only on 120 V AC, 60 Hz.
• The recorder is not disconnected from the AC power source as long as it is connected to the wall outlet, even if the recorder itself has been turned off. Install this system so that the power cord can be unplugged from the wall socket immediately in the event of trouble.
• If you are not going to use the recorder for a long time, be sure to disconnect the recorder from the wall outlet. To disconnect the AC power cord, grasp the plug itself; never pull the cord.

On placement

• Place the recorder in a location with adequate ventilation to prevent heat build-up in the recorder.
• If the recorder is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lenses inside the recorder and cause damage to the video head, tape, and the optical block. Should this occur, the recorder may not operate properly. When you first install the recorder, or when you move it from a cold to a warm location, remove the disc and tape and leave the recorder turned on for about three hours before operating the recorder.
• Do not place the recorder on a soft surface such as a rug that might block the ventilation holes.
• Do not place the recorder in a confined space such as a bookshelf or similar unit.
• Do not place the recorder in a location near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place the recorder in an inclined position. It is designed to be operated in a horizontal position only.
• Keep the recorder, discs, and cassettes away from equipment with strong magnets, such as microwave ovens, or large loudspeakers.
• Do not place heavy objects on the recorder.
• To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus.
• When you move the recorder, take out any discs. If you do not, the disc may be damaged.

On recording

• Contents of the recording cannot be compensated for if the recording or playback is not made due to a malfunction of the recorder, disc, etc.
• Make trial recordings before making the actual recording.

Copyrights

• Television programs, films, video tapes, discs, and other materials may be copyrighted. Unauthorized recording of such material may be contrary to the provisions of the copyright laws. Also, use of this recorder with cable television transmission may require authorization from the cable television transmitter and/or program owner.
• This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Copy guard function

Since the recorder has a copy guard function, programs received through an external tuner (not supplied) may contain copy protection signals (copy guard function) and as such may not be recordable, depending on the type of signal.

IMPORTANT NOTICE

Caution: This recorder is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Plasma display panels and projection televisions are especially susceptible to this.

If you have any questions or problems concerning your recorder, please consult your nearest Sony dealer.

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. 6) Clean only with dry cloth. 7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions. 8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11) Only use attachments/accessories specified by the manufacturer. 12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time. 14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

About this manual

• Instructions in this manual describe the controls on the remote. You can also use the controls on the recorder if they have the same or similar names as those on the remote.
• The on-screen display illustrations used in this manual may not match the graphics displayed on your TV screen.
• The explanations regarding discs in this manual refer to discs created on this recorder. The explanations do not apply to discs that are created on other recorders and played back on this recorder.

Icon Meaning
+RW	Functions available for DVD+RWs
-RWVR	Functions available for DVD-RWs in VR (Video Recording) mode
-RWVideo	Functions available for DVD-RWs in video mode
+R	Functions available for DVD+Rs
-RVR	Functions available for DVD-Rs in VR (Video Recording) mode
-RVideo	Functions available for DVD-Rs in video mode
DVD	Functions available for DVD VIDEOs
RAM	Functions available for DVD-RAMs
VCD	Functions available for VIDEO CDs or CD-Rs/CD-RWs in video CD format
CD	Functions available for music CDs or CD-Rs/CD-RWs in music CD format
DATA CD	Functions available for DATA CDs (CD-ROMs/CD-Rs/CD-RWs containing MP3* audio tracks or JPEG image files)
DATA DVD	Functions available for DATA DVDs (DVD-ROMs/DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs containing MP3* audio tracks or JPEG image files)
VHS	Functions available for VHS VIDEOs

* MP3 (MPEG1 Audio Layer 3) is a standard format defined by ISO/MPEG which compresses audio data.

Table of Contents

WARNING 2

Precautions 2

What is a Video Cassette Recorder/DVD Recorder? 8

How to Use the On-Screen Menus 10

Hookups and Settings 12

Hooking Up the Recorder 12

Step 1: Unpacking ..... 12

Step 2: Connecting the Cable Box/Satellite Receiver (Tuner)....12

Step 3: Connecting to Your TV .....15

Step 4: Connecting to Your AV Amplifier (Receiver) .....18

Step 5: Connecting the Power Cord .....20

Step 6: Preparing the Remote .....21

Step 7: Easy Setup ....23

Connecting Another VCR or Similar Device 27

Quick Guide to Disc Types 30

Recordable and Playable Discs 30

Playable Discs 33

DVD Operation

DVD Playback 35

Playing Discs 35

Playback Options 36

Playing a Title From the Title List 39

Searching for a Title/Chapter/Track, etc. 40

Playing MP3 Audio Tracks and JPEG Image Files 41

Displaying the Playing Time and Play Information 44

DVD Recording 46

Before Recording 46

DVD Recording From Connected Equipment Without the Timer 47

DVD Timer Recording From Connected Equipment 49

Recording From Connected Equipment With a Timer (Synchro Rec) ..... 51

Changing or Canceling DVD Timer Settings (Timer List) .....53

Recording From Another VCR or Similar Device ....54

DVD Editing 56

Before Editing 56

Editing a Title 57

Changing the Name of a Title 60

Creating a Playlist 61

Editing a Playlist 63

Formatting/Renaming/Protecting a Disc 67

VCR Playback 69

Playing a VHS Tape 69

Playback Options 71

Searching Using Various Functions 72

Displaying the Playing Time and Play Information 73

Selecting the Sound During Playback 74

VCR Recording 75

Before Recording 75

VCR Recording From Connected Equipment Without the Timer 76

VCR Timer Recording From Connected Equipment 78

Recording From Connected Equipment With a Timer (Synchro Rec) 80

Changing or Canceling VCR Timer Settings (Timer List) 81

Recording From Another VCR or Similar Device 83

Dubbing (TAPE ↔ DVD) 84

Dubbing From a VHS Tape to a DVD 84

Dubbing From a DVD to a VHS Tape 85

Finalizing a Disc (Preparing a Disc for Playback on Other Equipment) 88

DV/D8 Dubbing (DV/D8 → DVD) 90

Before DV/D8 Dubbing 90

Connecting a Digital Video Camera to the DV IN Jack 90

Dubbing From a DV/D8 Format Tape to a DVD 91

Settings and Adjustments 94

Using the Setup Displays 94

Clock Setting (Clock Set) 95

Video Settings (Video) 96

Audio Settings (Audio) 98

Recording, Set Top Box Control, and VCR Settings (Features) ..... 100

Language, Parental Control Settings/Factory Settings (Options) 102

Easy Setup (Resetting the Recorder) 104

Additional Information 105

Troubleshooting 105

Notes About This Recorder 110

Specifications 111

About i.LINK 113

Guide to Parts and Controls 114

Glossary 118

DVD Audio/Subtitle Language 120

Cable Box/Satellite Receiver Brand Code 121

What is a Video Cassette Recorder/DVD Recorder?

This is a DVD recorder with built-in VHS video deck, and allows recording/playback of DVD discs and VHS tapes. DVD editing is also possible.

Recording and timer recording

Record TV programs on a DVD or VHS tape, either manually or using the timer. You need to connect a tuner such as a cable box to this recorder.

Easy selection between DVD and VCR

Simply press the DVD or VIDEO button to select the media format you want to use.

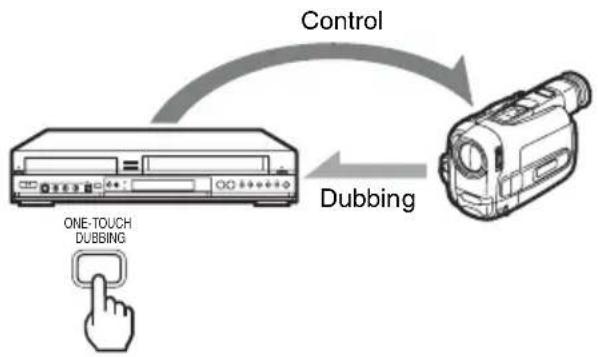

One Touch Dubbing - DVD ↔ VHS

Dub in either direction between a DVD disc and VHS tape with the simple press of a button. Note that copy-protected signals will not be recorded.

Control your cable box or satellite receiver - Set top box control

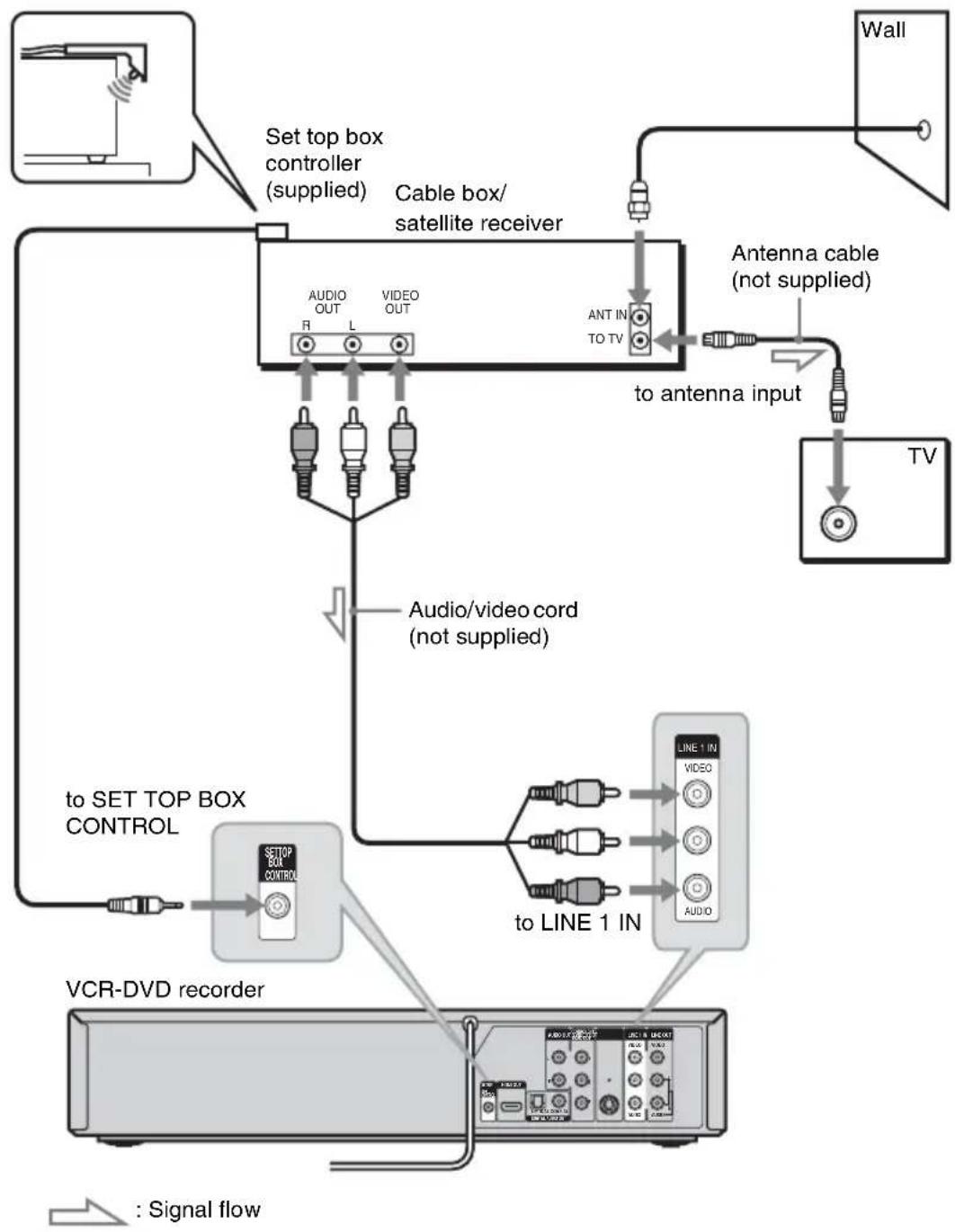

Connect the supplied set top box controller to have the recorder change the channel of your cable box or satellite receiver (page 12).

Quick access to recorded titles - Title List

Display the Title List to view all titles on a disc and select a title for playback or editing.

Creating your own program - Playlist

Record a program on a DVD-RW (VR mode) or DVD-R (VR mode), then erase, move or add scenes as you like without changing the original contents.

Original

Playlist

One Touch Dubbing - DV/D8 Dubbing

Connect your digital video camera to the DV IN jack and press the ONE-TOUCH DUBBING button to dub a DV/D8 format tape over to a disc.

Operation restrictions

Current Operation	Possible Simultaneous Operations
	VCRPlayback	VCR Recording	DVD Playback	DVD Recording
Playing a VHS tape*1	—	No	No	Yes
Recording on a VHS tape	No	—	Yes	Yes*3
Playing a DVD*2	No	Yes	—	No
Recording on a DVD	Yes	Yes*3	No	—

*1 When pressing DVD, VCR playback stops. *2 When pressing VIDEO, DVD playback stops. *3 Only for timer recording. You can also record from LINE1 and LINE2 at the same time.

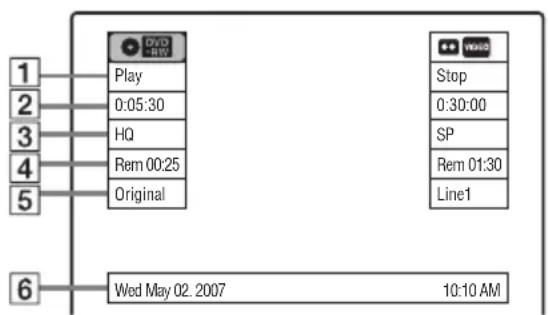

How to Use the On-Screen Menus

The following three displays are mainly used to operate this recorder. Once you become familiar with the basic operations, you will find the recorder easy to use.

System Menu

The System Menu appears when you press SYSTEM MENU, and provides entries to all of the recorder's main functions, such as timer recording and setup.

Select an option by pressing ↑/↓ and ENTER.

1 "Title List"

Displays the list of the disc contents, including the recording information and movie thumbnail image, which allows you to select a title to play or edit.

2 "Timer"

Used to set a new timer recording for a disc or VHS tape, as well as change or cancel the timer recordings you set.

3 "Edit"

Used to create or edit a playlist (unfinalized DVD-RWs (VR mode)/DVD-Rs (VR mode) only).

4 "Dubbing"

Used to dub from a disc to a VHS tape and vice versa, and also dub from a DV/D8 format tape to a disc.

5 "Disc Setting"

Used to rename, protect, format, or finalize a disc, or erase all titles on the disc. Also, displays the disc information.

6 "Setup"

Displays the "Setup" display for setting up the recorder to suit your preferences.

Sub-menu

The sub-menu appears when you select an item from a list menu (e.g., a title from the Title List menu), and press ENTER. The sub-menu displays options applicable only to the selected item. The displayed options differ depending on the situation and disc type.

Select an option by pressing ↑/↓ and ENTER.

Example: The Title List menu

Options for the selected item

OPTIONS

The OPTIONS menu appears when you press OPTIONS. You can search for a title/chapter/track, check the playing and remaining time, or change settings for audio/angle/subtitle. The displayed options differ depending on the media type.

Press ↑/↓ to select an option, press ←/→ to select the desired item, and press ENTER.

Example: When you press OPTIONS while a DVD VIDEO is playing.

Selectable options

Selectable options on the System Menu differ depending on the media type, disc condition, and operating status.

Example: When a disc or a VHS tape is stopped.

Type	Selectable option
+RW
-RWVR			*1
-RW Video		*1
+R		*1
-RVR			*1	*1
-RVideo		*1
DVD
RAM
VCD
CD
DATA CD
DATA DVD
VHS				*2

*1 Unfinalized disc only

*2 With a disc inserted

To return to the previous display

Press RETURN.

Notes

• The OPTIONS menu may not appear during DVD recording.
• The System Menu does not appear when recording on a DVD, or dubbing from VHS tape to a DVD.
• You cannot use the DVD or VIDEO buttons with the System Menu turned on.

Hookups and Settings

Hooking Up the Recorder

Follow steps 1 to 7 to hook up and adjust the settings of the recorder.

Notes

• Plug cords securely to prevent unwanted noise.
• See the instructions supplied with the components to be connected.
• You cannot connect this recorder to a TV that does not have a video input jack.
• Be sure to disconnect the power cord of each component before connecting. Do not connect the power cord until you reach “Connecting the Power Cord” on page 20.

Step 1: Unpacking

Check that you have the following items:

• Audio/video cord
• Remote commander (remote) (1)
• Set top box controller (1) • Size AA (R6) batteries (2)
• HDMI cord (1)

Audio/video cord (phono plug x 3 to phono plug x 3) (1)

Step 2: Connecting the Cable Box/Satellite Receiver (Tuner)

This recorder does not include a TV tuner.

To record TV programs on this recorder, you need to connect the recorder to a tuner that has audio/video output jacks.

If you have been using your VCR connected to an antenna, connect this recorder to your VCR using an audio/video cord. In this way, you will be able to record TV programs.

You cannot record on this recorder if you have:

- a cable box or satellite receiver without audio/video outputs.

– cable with no cable box.

- antenna only (no cable TV).

In the cases above, contact your cable service or satellite service company to see if they can provide you with a compatible cable box or satellite receiver.

Using the cable box/satellite receiver control function

This function allows the recorder to control a cable box or satellite receiver via the supplied set top box controller. You can also use the recorder's remote control to change channels on the cable box/satellite receiver whenever the cable box/satellite receiver and the recorder are turned on. To use the cable box/satellite receiver control function, you need to:

• Check the brand code of your cable box/satellite receiver. See “Cable Box/Satellite Receiver Brand Code” (page 121).
• Connect the set top box controller (page 13).
• Set the brand code number and the recorder's input that is connected to the cable box/satellite receiver (page 23).

After setting up the cable box/satellite receiver control, check that the recorder can correctly control the cable box or satellite receiver (page 26).

Connecting a cable box/satellite receiver and set top box controller

Connect the LINE IN jacks using an audio/video cord.

With this hookup, you can record any channel on the cable box or satellite receiver. Be sure that the cable box or satellite receiver is turned on. This connection is necessary to use the Synchro-Rec function (pages 51 and 80).

To watch cable or satellite programs, you need to match the input source on the recorder (L1) to the input jack connected to the cable box or satellite receiver (LINE 1 IN).

Place the set top box controller near the remote sensor on the cable box/satellite receiver.

About AV path through

This recorder automatically sends the input signal from the LINE 1 IN jacks to the LINE OUT VIDEO/AUDIO jacks without turning itself on.

When you connect a cable box or satellite receiver to the LINE 1 IN jacks and your TV to the LINE OUT (VIDEO/AUDIO L/R) jacks (page 15), you can watch programs from a cable box or satellite receiver on the TV even when the recorder is turned off.

Notes

• Synchro-Recording does not work with some tuners. For details, see the tuner's operating instructions.
• AV path through function does not work for:

- Input signals from the LINE 2 IN jacks.

- Output signals to S VIDEO OUT, COMPONENT VIDEO OUT, or HDMI OUT jacks.

Step 3: Connecting to Your TV

Connect the supplied audio/video cord to the LINE OUT (VIDEO/AUDIO L/R) jacks of the recorder. To enjoy higher quality images, connect an S video cord (not supplied) instead of the yellow (video) plug. When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.

When playing "wide screen" images

Some recorded images may not fit your TV screen. To change the picture size, see page 96.

Notes

• Do not connect to the S VIDEO OUT and yellow LINE OUT (VIDEO) jacks at the same time.
• During DVD recording, you cannot watch VHS pictures by pressing VIDEO, as the S VIDEO OUT jack will output DVD video signals only.
• Do not connect your TV's audio output jacks to the LINE IN (AUDIO L/R) jacks at the same time. This will cause unwanted noise to come from your TV's speakers.

If your TV has an HDMI input jack

Connect the HDMI* OUT jack using a certified HDMI cord (supplied). You will enjoy high quality picture and sound. The HDMI indicator lights up on the front panel when the recorder outputs signals through the HDMI OUT jack.

Be sure to turn off the recorder before connecting an HDMI cord.

* This DVD recorder incorporates High-Definition Multimedia Interface (HDMI™) technology.

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Notes

• You cannot connect the HDMI OUT jack to DVI jacks that are not HDCP compliant (e.g., DVI jacks on PC displays).
• During DVD recording, you cannot watch VHS pictures by pressing VIDEO, as the HDMI OUT jack will output DVD video signals only.

If your TV has component video input jacks

Connect the COMPONENT VIDEO OUT jacks using a component video cord (not supplied) or three video cords (not supplied) of the same kind and length. You will enjoy accurate color reproduction and high quality images.

If your TV accepts progressive 480p format signals, you must use this connection and then set “Progressive” of “Video” to “On” in the “Setup” display (page 97).

When using this connection, be sure to connect the audio cord to the LINE OUT (AUDIO L/R) jacks.

: Signal flow

Note

During DVD recording, you cannot watch VHS pictures by pressing VIDEO, as the COMPONENT VIDEO OUT jacks will output DVD video signals only.

Step 4: Connecting to Your AV Amplifier (Receiver)

Select one of the following patterns A or B, according to the input jack on your AV amplifier (receiver). This will enable you to listen to DVD audio tracks through your AV amplifier (receiver).

: Signal flow

A Connecting to audio L/R jacks

This connection uses a stereo amplifier's (receiver's) two front speakers for sound.

You can enjoy the surround function that creates virtual speakers from two stereo speakers. Select “Surround1,” “Surround2,” or “Surround3” in “Surround” of “Audio” setup (page 99).

Surround 1

Surround 2

Surround 3

Virtual speaker

Note

Make sure that your listening position is between and at an equal distance from your speakers, and that the speakers are located in similar surroundings.

B Connecting to a digital audio input jack

Use this connection if your AV amplifier (receiver) has a Dolby Digital or DTS decoder and a digital input jack. You can enjoy the surround effect of Dolby Digital (5.1ch) or DTS (5.1ch).

*1 Manufactured under license from Dolby Laboratories. "Dolby" and the double-D symbol are trademarks of Dolby Laboratories. *2 "DTS" and "DTS Digital Out" are trademarks of DTS, Inc.

Hints

• For correct speaker location, see the operating instructions supplied with the connected components.
• During VHS playback, the DIGITAL AUDIO OUT jacks can also output digital audio signals.

Notes

• During DVD recording, the DIGITAL AUDIO OUT jacks or HDMI OUT jack output DVD audio signals only. You cannot hear VHS sound by pressing VIDEO.
• After you have completed the connection, make the appropriate settings under “Audio Connection Setup” in Easy Setup (page 23). Otherwise, no sound or a loud noise will come from your speakers.
• With a coaxial or optical digital connection, you cannot use the virtual surround effects of this recorder.
• When outputting from the DIGITAL AUDIO OUT jacks, you cannot switch the bilingual sounds on a DVD-RW (VR mode) or DVD-R (VR mode) by pressing AUDIO.
• When you connect the recorder to an AV amplifier (receiver) using an HDMI cord, you will need to do one of the following:
• Connect the AV amplifier (receiver) to the TV with an HDMI cord.
• Connect the recorder to the TV with a video cord other than HDMI cord (component video cord, S VIDEO cord, or audio/video cord).

Step 5: Connecting the Power Cord

Plug the recorder and TV power cords into an AC outlet. After you connect the power cord, you must wait for a short while before operating the recorder. You can operate the recorder only after the front panel display lights up and the recorder enters standby mode. If you connect additional equipment to this recorder (page 27), be sure to connect the power cord only after all connections are complete.

Step 6: Preparing the Remote

You can control the recorder using the supplied remote.

Insert two size AA (R6) batteries by matching the + and - ends on the batteries to the markings inside the battery compartment. Be sure to close the battery cover properly. When using the remote, point it at the remote sensor F on the recorder.

Notes

• If the supplied remote interferes with your other Sony DVD recorder or player, change the command mode number for this recorder (page 22).
• Use the batteries correctly to avoid possible leakage and corrosion. Do not touch the liquid with bare hands should leakage occur. Observe the following:

- Do not use a new battery with an old battery, or batteries of different manufacturers.

- Do not attempt to recharge the batteries.

- If you do not intend to use the remote for an extended period of time, remove the batteries.

- If battery leakage occurs, wipe out any liquid inside the battery compartment, and insert new batteries.

• Do not expose the remote sensor (marked R on the front panel) to strong light, such as direct sunlight or lighting apparatus. The recorder may not respond to the remote.
• With normal use, the batteries should last about three to six months.
• Do not leave the remote in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.

Controlling a Sony TV with the remote

You can use this remote to operate your Sony TV.

Note

Depending on the TV, some or all of the buttons below may not work for the TV.

The remote performs the following:

Press To
TV I/⏻ Turn your TV on or off
TV VOL +/- Adjust the volume of your TV
TV CH +/- Select the channel on your TV
TV INPUT Switch your TV's input source
TV DIGITAL/ANALOG	Select the broadcast on your TV that can switch between digital and analog

If you have a Sony DVD player or more than one Sony DVD recorder

If the supplied remote interferes with your other Sony DVD recorder or player, set the command mode number for this recorder and the supplied remote to one that differs from the other Sony DVD recorder or player, after you have completed "Step 7: Easy Setup."

The default command mode setting for this recorder and the supplied remote is DVD 3.

1 Check that Easy Setup (page 23) has been finished. If Easy Setup has not been finished, first perform Easy Setup.

2 Press SYSTEM MENU.

The System Menu appears.

3 Select "Setup," and press ENTER.

4 Select "Options," and press ENTER.

5 Select "Command Mode," and press ENTER.

6 Select a command mode ("DVD 1," "DVD 2," or "DVD 3"), and press ENTER.

7 Set the command mode for the remote so it matches the command mode for the recorder you set above.

Follow the steps below to set the command mode on the remote.

①Hold down ENTER. ②While holding down ENTER, enter the command mode code number using the number buttons.

Command Mode	Code number
DVD1	number button 1
DVD2	number button 2
DVD3	number button 3

③Hold down both the number buttons and ENTER at the same time for more than three seconds.

To return to the previous display

Press 📌 RETURN.

To check the command mode for the recorder

Press ■ (stop) on the recorder when the recorder is turned off. The command mode for the recorder appears in the front panel display.

If the command mode for the recorder has not been changed, set the command mode for the remote to the default setting of DVD3. If the command mode for the remote is changed to DVD1 or DVD2, you will be unable to operate this recorder.

Step 7: Easy Setup

Follow the steps below to make the minimum number of basic adjustments for using the recorder. If you do not complete Easy Setup, it will appear each time you turn on your recorder. Settings are made in the following order.

Finished!

1 Turn on the TV. 2 Press I/⏻.

The recorder turns on.

3 Switch the input selector on your TV so that the signal from the recorder appears on your TV screen.

“Initial setting necessary to operate the DVD recorder will be made. You can change them later using setup.” appears.

- If this message does not appear, select "Easy Setup" in the "Setup" display to run Easy Setup (page 104).

4 Press ENTER.

The setup display for selecting the language used in the on-screen display appears.

5 Select a language, and press ENTER.

The setup display for cable box/satellite receiver control appears.

6 Select whether or not you use the cable box/satellite receiver control, and press ENTER.

If you want to use the cable box/satellite receiver control (page 12), select "Yes." If not, select "No," then go to step 10.

7 Press the number buttons to enter the brand code of your cable box/satellite receiver.

See "Cable Box/Satellite Receiver Brand Code" (page 121).

- To re-enter the code number, select "Cancel" and return to step 6.

8 Select "OK," and press ENTER.

9 Select the recorder's audio/video input ("Line1" or "Line2") that is connected to the cable box/satellite receiver, and press ENTER.

The setup display for clock setting appears.

10 Press ↑/↓ to set the month and press →.

Set the day, year, hour, minutes, and AM/PM in the same way, then press ENTER. The day of the week is set automatically.

The setup display for selecting the picture size of the connected TV appears.

11 Select the setting that matches your TV type.

“16:9”: For wide-screen TVs or standard TVs with a wide screen mode.

"4:3 Letter Box": For standard TVs.

Displays “wide screen” pictures with bands on the upper and lower sections of the screen.

"4:3 Pan Scan": For standard TVs.

Automatically displays "wide screen"

pictures on the entire screen and cuts off the sections that do not fit.

For details, see “Video Settings (Video)” on page 96.

12 Press ENTER.

The setup display for selecting the type of Dolby Digital signal appears.

13 Select the type of Dolby Digital signal you want to send to your amplifier (receiver).

If your AV amplifier (receiver) has a Dolby Digital decoder, select “Dolby Digital.”

Otherwise, select "D-PCM."

14 Press ENTER.

The setup display for selecting the type of DTS signal appears.

15 Select whether or not you want to send a DTS signal to your amplifier (receiver), and press ENTER.

If your AV amplifier (receiver) has a DTS decoder, select "On." Otherwise, select "Off."

16 Press ENTER when "Finish" appears.

Easy Setup is finished. All connections and setup operations are complete.

If you use the cable box/satellite receiver control, check that the control works correctly (page 26).

To return to the previous display

Press RETURN.

Hint

If you want to run Easy Setup again, select "Easy Setup" in the "Setup" display (page 104).

Note

To record TV programs using the timer, you must set the clock accurately.

Checking the cable box/satellite receiver control setting

1 Turn on the recorder and the cable box/satellite receiver. 2 Point the recorder's remote at the recorder (not at the cable box/satellite receiver). 3 Press CH +/- and check that the channel changes on the cable box/satellite receiver window. 4 Press the number buttons and check that the channel changes on the cable box/satellite receiver window.

If you cannot get the recorder to control your cable box/satellite receiver

Check the settings at “Set Top Box Control” in “Features” setup (page 101).

Check the connection and place the set top box controller near the cable box/satellite receiver (page 12).

If your cable box or satellite receiver still does not operate with this recorder, contact your cable or satellite company to see if they can provide you with a compatible cable box or satellite receiver.

To fix the set top box controller to your cable box/satellite receiver

Once you have confirmed that the set top box controller controls your cable box or satellite receiver, affix it in place.

1 Attach the supplied double-sided tape to the set top box controller.

Remove the backings on the double-sided tape.

2 Affix it so that the set top box controller is near the remote control sensor on your cable box/satellite receiver.

Connecting Another VCR or Similar Device

After disconnecting the recorder's power cord from an AC outlet, connect the other VCR or similar recording device to the LINE IN jacks of this recorder. See also the instruction manual supplied with the connected equipment.

If you connect equipment that has a timer function, you can use the Synchro Rec function (pages 51 and 80). In this case, connect the equipment to the LINE 1 IN jacks (page 13).

Connecting to the LINE 2 IN jacks on the front panel

Connect other VCR or similar device to the LINE 2 IN jacks of this recorder. If the equipment has an S video jack, you can use an S video cord (not supplied) instead of the yellow (video) plug of the audio/video cord. Do not connect to the S VIDEO and yellow VIDEO jacks at the same time.

You can connect a second DVD player and record DVDs.

Signal flow

Hints

• When the connected equipment outputs only monaural sound, connect an audio cord to the white LINE IN AUDIO L (mono) jack.
• To record from connected equipment, select an input source (LINE1 or LINE2) to match the jack you connected to (pages 54 and 83).

Notes

• Do not connect more than one type of video cord between the recorder and your TV at the same time.
• Pictures containing copy protection signals that prohibit any copying cannot be recorded. You cannot dub from DVD VIDEOS to this recorder.
• Do not connect the output jack of this recorder to another equipment's input jack with the other equipment's output jack connected to the input jack of this recorder. Noise (feedback) may result.
• If you pass the recorder signals via the VCR, you may not receive a clear image on your TV screen.

Be sure to connect your VCR to the VCR-DVD recorder and your TV in the order shown below. To watch video tapes, watch the tapes through a second line input on your TV.

Recordable and Playable Discs

Disc Type		Disc Logo	Icon used in this manual	Formatting (new discs)	Compatibility with other DVD players (finalizing)
DVD+RW		DVD+ReWritable	+RW	Automatically formatted	Playable on DVD+RW compatible players (automatically finalized)
DVD-RW	VR mode	RW	-RWVR	Format in VR mode*2(page 47)	Playable only on VR mode compatible players (finalization unnecessary) (page 88)
	Video mode	RW	-RWVideo	Format in Video mode*2(page 47)	Playable on most DVD players (finalization necessary) (page 88)
DVD+R DVD+R DL		DVD+R DVD+R DL	+R	Automatically formatted	Playable on DVD+R compatible players (finalization necessary) (page 88)
DVD-R	VR mode	R4.7		Format in VR mode using the “Disc Setting” display (page 67)	Playable only on DVD-R VR mode compatible players (finalization necessary) (page 88)
	Video mode			Automatically formatted in Video mode	Playable on most DVD players (finalization necessary) (page 88)

Usable disc versions (as of December 2006)

• 8×-speed or slower DVD+RWs
• 6×-speed or slower DVD-RWs (Ver.1.1, Ver.1.2 with CPRM ^*1 )
• 16×-speed or slower DVD+Rs
• 16×-speed or slower DVD-Rs (Ver.2.0, Ver.2.1 with CPRM)
• 8×-speed or slower DVD+R DL (Double Layer) discs *6

“DVD+RW,” “DVD-RW,” “DVD+R,” “DVD+R DL,” and “DVD-R” logos are trademarks.

	Recording Features Editing Features
	Rewrite (page 67)	Auto Chapter (page 49)	Change Title Name (page 60)	Erase Title/ Chapter (page 57)	A-B Erase (page 58)	Divide Title (page 59)	Playlist (page 61)
	Yes Yes	Yes Yes/No		*3	Yes Yes	No
	Yes Yes	Yes Yes/Yes		*4	Yes Yes	Yes
	Yes Yes	Yes Yes/No		*3	No No No
	No Yes	Yes Yes/No		*5	No No No
	No Yes	Yes Yes/Yes		*5	Yes Yes	Yes
	No Yes	Yes Yes/No		*5	No No No

*1 CPRM (Content Protection for Recordable Media) is a coding technology that protects copyrights for images. *2 Unused DVD-RWs are automatically formatted according to the setting of “Format DVD-RW” in “Features” setup (page 101). *3 Erasing titles only frees up disc space if you erase the last title. *4 Erasing titles or chapters frees up disc space. *5 Erasing titles or chapters does not free up disc space. *6 When using DVD+R DL (Double Layer) discs, see the instructions supplied with the discs.

12 cm/8 cm discs

Disc Type		12 cm 8 cm
		Playback Recording Playback Recording
DVD+RW Yes Yes Yes No
DVD-RW	VR mode Yes Yes Yes No
	Video mode Yes Yes Yes No
DVD-R	VR mode Yes Yes — —
	Video mode Yes Yes Yes No
DVD+R Yes Yes — —

Discs that cannot be recorded on

• 8 cm discs
• DVD-RAMs

playable Discs

Disc Type Disc Logo		Icon Used in This Manual	Characteristics
DVD VIDEO		DVD	Discs such as movies that can be purchased or rented
DVD-RAM —		RAM	DVD-RAMs recorded by another recording device. 12 cm discs without cartridges, or removable from their cartridges can be played.
VIDEO CD		VCD	VIDEO CDs or CD-Rs/CD-RWs in VIDEO CD format (with PBC function)
CD		CD	Music CDs or CD-Rs/CD-RWs in music CD format that can be purchased
DATA CD		DATA CD	CD-ROMs/CD-Rs/CD-RWs created on a PC or similar device in music format, or MP3 or JPEG format that conforms to ISO9660* Level 1/Level 2
DATA DVD —		DATA DVD	DVD-ROMs/DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs in MP3 or JPEG format conforming to Universal Disk Format (UDF)
8 cm DVD+RW/DVD-RW/DVD-R	—	—	8 cm DVD+RWs, DVD-RWs, and DVD-Rs recorded with a DVD video camera (Still images recorded with a DVD video camera cannot be played.)

“DVD VIDEO” and “CD” logos are trademarks.

* A logical format of files and folders on DATA-CDs, defined by ISO (International Organization for Standardization).

Discs that cannot be played

• CD-ROMs/CD-Rs/CD-RWs that are not recorded in music CD or Video CD format, or do not contain MP3 audio tracks or JPEG image files. • Data part of CD-Extras
• DVD-ROMs that are not recorded in DVD Video format, or do not contain MP3 audio tracks or JPEG image files. • DVD Audio discs • HD layer on Super Audio CDs • DVD VIDEOs with a different region code (see page 34)
• A disc recorded in a color system other than NTSC, such as PAL or SECAM

Note on playback operations of DVD VIDEOs/VIDEO CDs

Some playback operations of DVD VIDEOs/VIDEO CDs may be intentionally set by software producers. Since this recorder plays DVD VIDEOs/VIDEO CDs according to the disc contents the software producers designed, some playback features may not be available. Also, see the instructions supplied with the DVD VIDEOs/VIDEO CDs.

Note on DualDiscs

A DualDisc is a two-sided disc product which mates DVD recorded material on one side with digital audio material on the other side.

However, since the audio material side does not conform to the Compact Disc (CD) standard, playback on this product is not guaranteed.

Region code (DVD VIDEO only)

Your recorder has a region code printed on the rear of the unit and will only play DVD VIDEOs (playback only) labeled with identical region codes. This system is used to protect copyrights. DVD VIDEOs labeled with a compatible region code will also play on this recorder.

If you try to play any other DVD VIDEO, a message will appear on the TV screen to indicate that the disc is not playable. Depending on the DVD VIDEO, no region code indication may be labeled even though playing the DVD VIDEO is prohibited by area restrictions.

Region code

Music discs encoded with copyright protection technologies

This product is designed to playback discs that conform to the Compact Disc (CD) standard. Recently, various music discs encoded with copyright protection technologies are being marketed by some record companies. Please be aware that among those discs, there are some that do not conform to the CD standard and may not be playable by this product.

Note on DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs, or CD-RWs/CD-Rs recorded on other equipment

Some DVD+RWs/DVD+Rs, DVD-RWs/DVD-Rs, or CD-RWs/CD-Rs cannot be played on this recorder due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device.

Notes

• You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R. To change the DVD-RW's format, reformat the disc (page 67). Note that a disc's contents will be erased after reformatting.
• You cannot shorten the time required for recording even with high-speed discs. Also, you cannot record on the disc if the disc is not 1x speed compatible.
• It is recommended that you use discs with “For Video” printed on their packaging.
• You cannot add new recordings to DVD-RWs (Video mode), DVD+Rs, or DVD-Rs (Video mode) recorded on other equipment.
• You may not be able to further record on a DVD+RW recorded on other equipment. Note that recording on such discs may cause the recorder to rewrite the DVD menu.
• If the disc contains PC data unrecognizable by this recorder, the data may be erased.

DVD Playback

Playing Discs

1 Press DVD to operate the DVD recorder. 2 Press ▲ OPEN/CLOSE, and place a disc on the disc tray.

3 Press ▲ OPEN/CLOSE to close the disc tray. Wait until "LOAD" disappears from the front panel display.

4 Press ▷ PLAY.

Playback starts.

To stop playback

Press ■ STOP.

Hints

• You can play DATA CDs or DATA DVDs with MP3 audio tracks or JPEG image files (pages 41 or 42).
• If you insert a DVD VIDEO, VIDEO CD, or CD, playback starts automatically depending on the disc.
• When playing a DVD+RW, DVD-RW, DVD+R, DVD-R, and DVD-RAM, you can select the title from the Title List menu (page 39).
• When using a DVD-RAM with a cartridge, remove the disc from the cartridge.

Notes

• To play a disc recorded with other equipment on this recorder, finalize the disc on the recording equipment first. - For simultaneous VHS and DVD operation, see page 9.

Using the DVD's Menu

+RW -RWVideo +R -RVideo DVD

When you play a DVD VIDEO, or a finalized DVD+RW, DVD-RW (Video mode), DVD+R, or DVD-R (Video mode), you can display the disc's menu by pressing TOP MENU or MENU.

Playback Options

Button Operation Disc
▲ OPEN/CLOSE	Stops playing and opens the disc tray.	All discs
AUDIO Selects one of the audio tracks recorded on the disc when pressed repeatedly.-RWVR :-RVRcts the main or sub sound.DVD : Selects the audio source.VCD : Selects stereo or monaural audio tracks.		-RWVR -RVR DVDVCD
SUBTITLE Selects a subtitle language when pressed repeatedly.		DVD
ANGLE Selects an angle when pressed repeatedly.If various angles (multi-angles) for a scene are recorded on the disc, “” appears in the front panel display.		DVD
←REPLAY/→ADVANCE	Replays or briefly fast forwards a scene when pressed during playback.Goes to the previous or next frame when pressed during pause mode.	+RW -RWVR -RWVideo+R -RVR -RVideoDVD RAM
|◄◄ PREV/NEXT ►►	Goes to the beginning of the current or next title/chapter/scene/track and starts playback when pressed during playback.Goes to the beginning of the previous title/chapter/scene/track when |◄◄ PREV is pressed within three seconds after starting a title/chapter/scene/track.	All discs
(fast reverse/fast forward)	Fast reverses or fast forwards the disc when pressed during playback.Search speed changes with each press:fast reverse fast forwardFR1 ← → FF1 *1FR2*2 ← ← → FF2*2FR3*3 ← ← ← → → → FF3*3	All discs*1FF1 with sound (Scan Audio) is available for DVDs with Dolby Digital soundtracks.*2FR2 and FF2 are not available for MP3.*3FR3 and FF3 are only available for DVDs and VIDEO CDs.
(slow)	Plays in slow motion when pressed in pause mode.Playback speed changes with each press:reverse slow motion forward slow motion←13 ← → 3↓←12 ← ← → → 2↓←1 ← ← ← → → → 1↓	+RW -RWVR -RWVideo+R -RVR -RVideoDVD RAM VCD*Playback direction only
■ PAUSE Pauses playback.If you pause playback for more than five minutes, playback starts automatically.		All discs

To resume normal playback after playing at various speeds, press ▷ PLAY.

Hints

• You can change playback options, such as subtitle, audio track, angle, etc., using the OPTIONS menu (page 11).
• During playback or pause mode, the recorder's ◀◀/▶▶ buttons and the remote's ◀◀PREV/▶▶NEXT buttons work the same way (page 36). Hold the buttons down during playback to fast forward or fast reverse. In pause mode, you can play in slow motion. Three speeds are available, depending on the duration of the press.
• See “DVD Audio/Subtitle Language” on page 120 for the meaning of the language abbreviation.

Notes

• If you pause playback of a CD, or DATA CD/DATA DVD containing MP3 audio tracks, playback will not start until you press ▶ PLAY or || PAUSE.
• Sound will be interrupted during Scan Audio (page 38).

Notes on playing DTS soundtracks on a CD

When playing DTS-encoded CDs, excessive noise will be heard from the analog stereo jacks. To avoid possible damage to the audio system, the consumer should take proper precautions when the analog stereo jacks of the recorder are connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1-channel decoder system must be connected to the digital jack of the recorder.

Notes on playing DVDs with a DTS soundtrack

DTS audio signals are output only through the DIGITAL AUDIO OUT (COAXIAL or OPTICAL)/HDMI OUT jack.

When you play a DVD with DTS soundtracks, set "Digital Out" – "DTS" to "On" of "Audio" in the "Setup" display (page 98).

If you connect the recorder to audio equipment without a DTS decoder, do not set "DTS" to "On" in "Audio" setup. A loud noise (or no sound) may come out from the speakers, which might disturb your ears or cause damage to the speakers.

Playing quickly with sound (Scan Audio) (DVDs with Dolby Digital soundtracks only)

You can play quickly with dialog or sound during FF1 fast-forward of a DVD with Dolby Digital soundtracks. Simply press ▶▶ during playback.

Hint

To turn off the Scan Audio function, set "Scan Audio" of "Audio" to "Off" in the "Setup" display (page 99).

Note

Sound will be interrupted during Scan Audio.

Playing VIDEO CDs with PBC functions

VCD

PBC (Playback Control) allows you to play VIDEO CDs interactively using a menu on your TV screen.

When you start playing a VIDEO CD with PBC functions, a menu appears.

Select an item using the number buttons and press ENTER. Then follow the instructions in the menu (press ▷ PLAY when “Press SELECT” appears).

Operations differ depending on the disc. See the instructions supplied with the disc.

To cancel PBC Playback

Press MENU to display “Menu: Off.” To use the PBC functions, press MENU again to display “Menu: On.”

Resuming playback from the point where you stopped the disc (Resume Play)

Press ▷ PLAY again after stopping a disc to resume playback from the same point.

To start from the beginning, press ■ STOP twice, and press ▷ PLAY.

The point where you stopped playing is cleared when:

• you open the disc tray. – you play another title.
• you switch the Title List menu to original or Playlist (DVD-RW (VR mode)/DVD-R (VR mode)/DVD-RAM only).

– you edit the title after stopping playback. – you make a recording.

Playing restricted DVDs (Parental Control)

DVD

If you play a restricted DVD, a message appears asking whether you want to override the restriction.

1 Select "OK" and press ENTER. The display for entering your password appears.

2 Enter your four digit password using the number buttons.

The recorder starts playback.

To register or change the password, see “Parental (DVD VIDEOS only)” on page 103.

Locking the recorder (Child Lock)

You can lock all of the buttons on the recorder so that the settings are not canceled by mistake.

With the recorder turned on and stopped, hold down ■ (stop) on the recorder for more than ten seconds. The recorder turns off and “CHILD LOCK” appears in the front panel display. The indicator remains lit if there is a timer setting. The recorder will not work except for timer recordings.

To unlock the recorder, hold down ■ on the recorder until “CHILD LOCK” disappears from the front panel display. The recorder is unlocked and turns on.

To stop timer recording while the recorder is locked, press ■ twice. The recording stops and the recorder is unlocked.

Note

The recorder will be unlocked when:

- you stop timer recording by pressing ■.

- you insert a tape.

Playing a Title From the Title List

The Title List menu displays the program titles on the disc.

1 Press DVD to operate the DVD recorder. 2 Place a disc on the disc tray. 3 Press TITLE LIST.

Example: DVD-RW (VR mode)

1 Disc type:

Displays a disc type.

Also displays the title type (original or

Playlist) for DVD-RWs (VR mode),

DVD-Rs (VR mode), and DVD-RAMs.

2 Movie thumbnail image 3 Title information:

Displays the title number, title name, recording date, and recording mode.

“ 📋 indicates a protected title, while “”indicates unprotected.

4Clock

4 Select the title, and press ENTER.

The sub-menu appears.

5 Select "Play," and press ENTER.

Playback starts from the selected title on the disc.

About the Title List for DVD-RWs (VR mode) and DVD-Rs (VR mode)

You can switch the Title List to show an original or Playlist.

While the Title List menu is turned on, press ORIGINAL/PLAYLIST repeatedly to select either "Title List (Original)" or "Playlist."

For details, see "Edit options for DVD-RWs (VR mode)/DVD-Rs (VR mode)" on page 56.

To turn off the Title List

Press TITLE LIST.

Hint

You can also switch the Title List of DVD-RAMs to show an original or Playlist.

Notes

• The Title List does not appear for DVD-RWs (Video mode), DVD+Rs, or DVD-Rs (Video mode) that have been finalized. To view a title, press TOP MENU or MENU (page 35).
• The Title List may not appear for discs created on other DVD recorders.
• Letters that cannot be displayed are replaced with "*."

Searching for a Title/Chapter/Track, etc.

You can search a DVD by title or chapter, and VIDEO CD by track or scene. As titles and tracks are assigned individual numbers on the disc, select the title or track by entering its number. You can also search for a scene using the time code.

1 Press OPTIONS during playback.

The OPTIONS menu appears.

2 Select a search method.

"Title" (for DVDs)

"Chapter" (for DVDs)

"Track" (for VIDEO CDs with PBC function off)

"Time" (for DVDs/VIDEO CDs with PBC function off): Searches for a starting point using the time code.

3 Press ↑/↓/←/→ to select the number of the title, chapter, track, etc., you want, or press the number buttons to enter the time code.

For example: "Time"

To find a scene at 2 hours, 5 minutes, and 20 seconds, enter "20520."

If you make a mistake, wait a moment until the display returns to the elapsed playing time display, then select another number.

4 Press ENTER.

The recorder starts playback from the selected point.

To turn off the display, press OPTIONS.

Notes

• Depending on the disc, you may not be able to use the OPTIONS menu to search for a title/chapter/track, or enter the time code for a playback point.
• When playing a Playlist title, you may not be able to search for a scene using the time code.

Playing MP3 Audio Tracks and JPEG Image Files

DATA CD DATA DVD

You can play DATA CDs (CD-ROMs/CD-Rs/CD-RWs)/DATA DVDs (DVD-ROMs/DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs) that contain MP3 audio tracks or JPEG image files.

Playing MP3 audio tracks

You can play MP3 audio tracks on DATA CDs or DATA DVDs.

1 Press DVD to operate the DVD recorder. 2 Place a DATA CD/DATA DVD on the disc tray.

When you insert a DATA CD/DATA DVD containing MP3 audio tracks and JPEG image files, the display for selecting a media type appears. When you select “Mix,” you can enjoy a slide show with sound (page 43).

If you insert a DATA CD/DATA DVD containing only MP3 audio tracks, the "Music" display appears. Go to step 4.

3 Select "Music," and press ENTER.

The “Music” display appears.

4 Select an album, and press ENTER.

5 Select a track, and press ENTER.

Playback starts from the selected track. When a track or album is being played, the title is shown in a box.

To stop playback

Press ■ STOP.

To pause playback

Press || PAUSE.

To restart playback, press ▷ PLAY or ■ PAUSE.

To return to the previous display

Press 📌 RETURN.

To switch between MP3 audio tracks and JPEG image files

Press ■ STOP, and press TOP MENU.

Hint

When playback of all the MP3 audio tracks within the album finishes, the recorder stops.

Playing JPEG image files

You can play JPEG image files on DATA CDs or DATA DVDs.

1 Press DVD to operate the DVD recorder. 2 Place a DATA CD/DATA DVD on the disc tray.

When you insert a DATA CD/DATA DVD containing MP3 audio tracks and JPEG image files, the display for selecting a media type appears. When you select “Mix,” you can enjoy a slide show with sound (page 43).

If you insert a DATA CD/DATA DVD containing only JPEG image files, the "Photo" display appears. Go to step 4.

3 Select "Photo," and press ENTER.

The “Photo” display appears.

4 Select a folder, and press ENTER.

Directory information

To display the previous or next page, press ◀◀◀/▶▶.

5 Select an image file, and press ENTER.

The selected image is displayed over the entire screen.

To display the previous or next image, press ◀◀◀/▶▶▶.

The following menu icons appear in the upper part of the screen.

: Returns to the "Photo" display. : Starts the slide show (page 42).

↓: Rotates the image (page 42). ⊕ : Zooms the image (page 42).

Press OPTIONS to turn on/off the menu icons.

To play the slide show

1 Press ←/→ to select “☐,” and press ENTER.

The "Slideshow Speed" menu appears.

2 Press ←/→ to select the desired play speed, and press ENTER.

The slide show starts from the selected image. To stop playing, press ■ STOP.

To rotate the selected image

Press ←/→ to select “↓”,” and press ENTER. Each time you press ENTER, the image turns clockwise by 90°.

To zoom in an image

Press ←/→ to select “⊕,” and press ENTER. Each time you press ENTER, the magnification changes as follows:

2 × → 4 × → 2 × → normal

To return to the previous display

Press 📌 RETURN.

To switch between MP3 audio tracks and JPEG image files

Press ■ STOP, and press TOP MENU.

You can also start the slide show by pressing ▷ PLAY in step 5 above.

Notes

• You cannot use the arrow keys to move the image within the screen while zooming.
• Slide show can play in only one direction.
• You cannot rotate or zoom during slide show.
• If you select “☐” in the rotated image display, the images in the “Photo” display will not be rotated.

Enjoying a slide show with sound

When a disc contains both MP3 audio tracks and JPEG image files, you can enjoy a slide show with sound.

1 Press DVD to operate the DVD recorder. 2 Insert a DATA CD/DATA DVD containing both the MP3 audio tracks and JPEG image files.

The display for selecting a media type appears.

3 Select "Mix," and press ENTER.

The "Music" display appears.

4 Select an album, and press ENTER. 5 Select a track, and press ENTER.

Playback starts from the selected track, and the display asks for confirmation.

6 Select "Yes," and press ENTER. The “Photo” display appears. 7 Select the folder you want to view, and press ENTER. 8 Press ▷ PLAY to start the slide show.

The “Slideshow Speed” menu appears.

9 Press ←/→ to select the slide show speed, and press ENTER.

The slide show starts with sound.

To stop the slide show

Press ■ STOP.

Hints

• When playing JPEG images, you can also use the on-screen menu. For details, see “Playing JPEG image files” (page 42).
• The slide show is played repeatedly until MP3 playback stops.

About MP3 audio tracks and JPEG image files

MP3 is audio compression technology that satisfies the ISO/IEC MPEG regulations.

JPEG is image compression technology.

You can play back DATA CDs (CD-ROMs/CD-Rs/CD-RWs) or DATA DVDs (DVD-ROMs/DVD+RWs/DVD-RWs/DVD+Rs/DVD-Rs) recorded in MP3 (MPEG1 Audio Layer 3) and JPEG format.

However, this recorder only plays DATA CDs whose logical format is ISO9660 Level 1/Level 2 or Joliet, and DATA DVDs of Universal Disk Format (UDF).

See the instructions supplied with the disc drives and the recording software (not supplied) for details on the recording format.

Note

The recorder may not be able to play some DATA CDs or DATA DVDs created in the Packet Write format.

MP3 audio tracks or JPEG image files that the recorder can play

The recorder can play the following tracks and files:

• MP3 (MPEG1 Audio Layer 3) audio tracks.
• MP3 audio tracks with the extension ".MP3."
• JPEG image files with the extension ".JPEG" or ".JPG."

Hints

• If you add numbers (01, 02, 03, etc.) to the front of the file names, the files will be played in that order.
• Since a disc with many trees takes longer to start playback, it is recommended that you create albums with no more than two trees.

Notes

• Some DATA CDs or DATA DVDs cannot be played on this recorder depending on file format.
• Only one session of a multi-session DATA DVD can be played back.
• Only alphabet and numbers can be used for album or track names. Anything else is displayed as an asterisk.
• The recorder will play any data with the extension ".MP3," even if they are not in MP3 format. Playing such data may generate a loud noise which could damage your speaker system.
• The recorder does not conform to audio tracks in MP3PRO format.
• The recorder can recognize up to 499 MP3 audio tracks within a single album. The recorder may not recognize some discs depending on the recording device used for recording or the disc condition.
• The recorder can play MP3 audio tracks recorded in the following sampling frequencies: 32 kHz, 44.1 kHz, 48 kHz. • ID3 tags cannot be displayed.
• If you add the extension “.JPG” or “.JPEG” to data not in JPEG format, a message appears indicating that the format is not supported.
• Depending on the disc or the size of image files, playback may take some time to start.
• The recorder can recognize up to 999 JPEG image files within a single folder. The recorder may not recognize some discs depending on the recording device used for recording or the disc condition.
• Progressive and lossless compression JPEG image files are not supported.
• The image size that the recorder can display is limited to width 32 - 7680 pixels by height 32 - 8192 pixels.
• JPEG image files that conform to the DCF* image file format are not supported. * “Design rule for Camera File system”: Image standards for digital cameras regulated by JEITA (Japan Electronics and Information Technology Industries Association).

Displaying the Playing Time and Play Information

You can check disc information, such as playing time, recording mode, and remaining disc space.

Press DISPLAY.

The information display appears.

Each time you press the button, the display changes as follows:

Disc and tape information/date and time

◆DVD

1 Playing status 2 Playing time 3 Recording mode 4 Remaining disc space (in stop mode) Remaining time of the current title (during playback *1) ⑤Input source *2 6Date and time

*1 Also appears in stop mode with Resume Play activated (page 38).

*2 Title type (original or Playlist) for DVD-RWs (VR mode)/DVD-Rs (VR mode)/DVD-RAMs.

Viewing information on the front panel display

You can view the information on the front panel display.

Press TIME/TEXT repeatedly.

The displays differ depending on the disc type or playing status.

Example: When playing a DVD

Playing time of the current title

Example: When a DVD is stopped

Example: When playing a CD

DVD Recording

Before Recording

Before you start recording...

• This recorder can record on various disc types. Select the disc type according to your needs (page 30).
• Check that the disc has enough available space for the recording (page 44). For DVD+RWs or DVD-RWs, you can free up disc space by erasing titles (page 57).
• Check that the recorder is connected to a tuner such as a cable box or satellite receiver (page 12). See also the tuner's instruction manual.

Hint

To play a disc recorded with this recorder on other equipment, finalize the disc (page 88).

Notes

• Timer recordings will start with or without the recorder turned on. The recorder automatically turns off after a recording has finished.
• This recorder records at ×1 speed.

Recording mode

Like the SP or EP recording mode of VCRs, this recorder has eight different recording modes. Select a recording mode according to the time and picture quality you need. For example, if picture quality is your top priority, select “HQ” (high quality). If recording time is your priority, “SLP” can be a possible choice.

Press REC MODE repeatedly to switch the recording modes.

I want to record with the best possible picture quality, so I'll select HQ.

Recording mode and recording time

The following table is an approximate guide for the recording time on a single DVD (4.7 GB).

Recording mode Approximate recording time (minute)

HQ (High quality) 60

HSP ↑ 90

SP (Standard mode) 120

LSP ↓ 150

ESP ↓ 180

LP ↓ 240

EP ↓ 360

SLP (Long duration) 480

Hint

The approximate recording time for DVD+R DL (Double Layer) discs is as follows:

HQ: 1 hour 48 minutes

HSP: 2 hours 42 minutes

SP: 3 hours 37 minutes

LSP: 4 hours 31 minutes

ESP: 5 hours 25 minutes

LP: 7 hours 14 minutes

EP: 10 hours 51 minutes

SLP: 14 hours 28 minutes

Notes

• When in a recording mode other than HQ, the recorder compresses the audio/video data before recording. Since the compression rate needs to decrease for fast-moving images or if picture noise is present, recorded data size increases, and available recording time becomes shorter. When recording such pictures, a recording mode offering longer recording time is recommended.
• Situations below may cause inaccuracies with the recording time.
• Recording fast-moving or images containing picture noise. – Recording a program with poor reception, or a program or video source of low picture quality – Recording on a disc that has already been edited – Recording only a still picture or just sound
• Since the recording mode for recorded titles is calculated after sampling the recorded data during playback, it may be displayed differently from the mode you selected when recording. However, the actual recording itself is correctly made in the selected mode.

Recording main and sub sounds

You can record the different soundtracks on a DVD-RW (VR mode) or DVD-R (VR mode) from equipment connected to the LINE 1 IN or LINE 2 IN jacks. When playing the disc, you can select main or sub sound by pressing the AUDIO button. Set “Line Audio Input” in “Audio” setup to “Main/Sub” in the Setup Display (page 100). When recording on other discs, select either sound track with the connected equipment before recording.

Unrecordable pictures

Pictures with copy protection cannot be recorded on this recorder. Recording stops when a copy guard signal is detected.

Copy control signals	Recordable discs
Copy-Free	+RW	-RWVR	-RWVideo
	+R	-RVR	-RVideo
Copy-Once	-RWVRVer.1.1, Ver.1.2 with CPRM*-RVRVer.2.0, Ver.2.1 with CPRM*

Copy-Never None * The recorded disc can be played only on CPRM compatible equipment (page 30).

Formatting a new disc

New, unformatted discs are automatically formatted when first inserted in the recorder. For DVD-RWs/DVD-Rs, you can select a recording format (VR mode or Video mode) according to your needs (page 30).

• Unused DVD-RWs are automatically formatted according to the setting of “Format DVD-RW” in “Features” setup (page 101).
• Unused DVD-Rs are automatically formatted in Video mode. To format in VR mode, change the recording format using the “Disc Setting” display (page 67).

Notes

• You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R.
• You can change the recording format on DVD-RWs by reformatting (page 67).
• You cannot change the recording format on used DVD-Rs.
• The recorder records on new DVD-Rs in Video mode unless you first format the discs in VR mode.

DVD Recording From Connected Equipment Without the Timer

You can record TV programs on the recorder through the connected cable box/satellite receiver.

1 Turn on the recorder and the connected cable box/satellite receiver. 2 Press DVD to operate the DVD recorder. 3 Press ▲ OPEN/CLOSE, and place a recordable disc on the disc tray.

4 Press ▲ OPEN/CLOSE to close the disc tray.

Wait until “LOAD” disappears from the front panel display. Unused discs are automatically formatted. For the DVD-RW/DVD-R’s recording format (VR mode or Video mode), see “Formatting a new disc” on page 47.

5 Press CH +/- or INPUT repeatedly to select the channel or input source you want to record.

• When using the cable box/satellite receiver control, select the channel by pressing CH +/- on this recorder's remote. The recorder's input is switched to the connected input (LINE1 or LINE2). You can also use the number buttons.
• When not using the cable box/satellite receiver control, select the connected input (LINE1 or LINE2) by pressing INPUT, and then select the channel on the cable box/satellite receiver's side.

6 Press REC MODE repeatedly to select the recording mode.

The display changes on the TV screen as follows:

For details about the recording mode, see page 46.

7 Press ● REC.

Recording starts.

Recording continues until you stop the recording or the disc is full.

Leave the cable box/satellite receiver turned on and do not change the channel you are recording.

To stop recording

Press ■ STOP.

Note that it may take a few seconds for the recorder to stop recording.

To pause recording

Press || PAUSE.

To restart recording, press || PAUSE again.

To watch a VHS tape while recording

Press VIDEO to operate the VCR, insert a tape, then press ▷ PLAY.

Hints

• To play a disc recorded with this recorder on other equipment, finalize the disc (page 88).
• You can turn off the TV during recording.

Notes

• Recording may not start immediately after ● REC is pressed.
• You cannot change the recording mode during recording or recording pause.
• If there is a power failure, the program you are recording may be erased.
• You cannot change the input source during recording.

Recording using the Quick Timer (One-touch Timer Recording)

You can set the recorder to record in 30-minute increments.

1 Press DVD to operate the DVD recorder.

2 Press ● REC repeatedly to set the duration.

Each press increases the time by 30 minutes, up to eight hours*.

“☐” and “OTR” light up, and the remaining recording time appears in the front panel display.

When the time counter reaches “0:00,” the recorder stops recording and turns off.

* 14 hours 30 minutes for DVD+R DL (Double Layer) discs.

To cancel the Quick Timer

Press ● REC repeatedly until the counter appears in the front panel display. The recorder returns to normal recording mode.

To stop recording

Press ■ STOP twice.

Note that it may take a few seconds for the recorder to stop recording.

Checking the disc status while recording

You can check the recording information such as recording time or disc type.

Press DISPLAY during recording.

The information display appears.

Press the button repeatedly to change the display (page 44).

1 Disc type 2 Recording status 3 Recording time 4 Recording mode 5 Remaining disc space 6 Input source

Hint

You can view the information also in the front panel display. Press TIME/TEXT repeatedly to change the display. Note that TIME/TEXT does not work during One-touch Timer Recording.

Creating chapters in a title

The recorder will automatically divide a recording (a title) into chapters by inserting chapter marks at 5 or 15-minute intervals during recording. Select the interval, “5 Min” (default) or “15 Min” in “DVD Auto Chapter” of “Features” in the “Setup” display (page 100).

If you do not want to divide titles, select "Off."

DVD Timer Recording From Connected Equipment

+RW -RWVR -RWVideo +R -RVR -RVideo

You can set the timer for a total of 12 programs together with DVD and VCR timer recording, up to one month in advance.

Note that the maximum continuous recording time for a single title is 12 hours. Contents beyond this time will not be recorded.

If you record from connected equipment that has a timer function, you can use the Synchro Rec function (page 51).

Note

Do not operate your cable box or satellite receiver just before or during a timer recording. This may prevent the accurate recording of a program.

1 Press DVD to operate the DVD recorder. 2 Press ▲ OPEN/CLOSE, and place a recordable disc on the disc tray.

Recording side facing down

3 Press ▲ OPEN/CLOSE to close the disc tray.

Wait until “LOAD” disappears from the front panel display.

Unused discs are automatically formatted. For the DVD-RW/DVD-R's recording format (VR mode or Video mode), see “Formatting a new disc” on page 47.

4 Press TIMER.

5 Select an item using ←/→ and adjust using ↑/↓.

1 "Media": Select "DVD." ② “Date”: Sets the date using ↑. To record the same program every day or the same day every week, press ↓. The item changes as follows:

Today ↔ Sun-Sat (Sunday to Saturday)

↔ Mon-Sat (Monday to Saturday) ↔

Mon-Fri (Monday to Friday) ↔ Sun (every Sunday) ↔ Mon (every Monday)

↔…↔ Sat (every Saturday) ↔

1 month later ↔…↔ Today

3 "Start": Sets the start time. 4 "End": Sets the stop time. 5 “Ch”: Selects the channel or input source.

• When using the cable box/satellite receiver control, select the channel.
• When not using the cable box/satellite receiver control, select the input, LINE1 or LINE2. Select the channel on the connected cable box/satellite receiver's side before the timer recording starts.

6 "Mode": Selects the recording mode (page 46).

To use the Rec Mode Adjust function (page 51), select "AUTO."

If you make a mistake, select the item and change the setting.

6 Press ENTER.

The Timer List menu (page 53) appears.

The ⏻ indicator lights up in the front panel display, and the recorder is ready to start recording.

• If the ① indicator flashes in the front panel display, check that a recordable disc is inserted and that there is enough disc space for the recording.
• If timer settings overlap, a message appears. To change or cancel a timer recording, select "Edit" from the Timer List (page 53).

7 Press SYSTEM MENU to turn off the menu.

There is no need to turn off the recorder before the timer recording starts.

Leave the cable box/satellite receiver turned on and do not change the channel selected on the cable box/satellite receiver until the recorder finishes the timer recording.

To stop recording

Press ■ STOP twice.

Note that it may take a few seconds for the recorder to stop recording.

If timer settings overlap

The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

To change or cancel timer recording

See “Changing or Canceling DVD Timer Settings (Timer List)” on page 53.

To use the Rec Mode Adjust function

If the remaining disc space is not enough for the current recording, the recorder automatically adjusts the recording mode. Select “AUTO” for “Mode” when setting the timer.

Hints

• You can play the recorded program by selecting the program title in the Title List menu.
• When the start time and the channel or input source to be recorded are the same but the “Media” setting differs, the program is recorded to both the DVD disc and the VHS tape.
• You can also turn on the timer programming menu from the System Menu. Press SYSTEM MENU to select “Timer,” and select “Timer-Standard.”

Notes

• Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps.
• Before the timer recording starts, "TIMER REC" flashes in the front panel display.
• The recorder automatically turns off when a timer recording finishes, even if the recording started with the recorder turned on.
• The recorder does not record programs with Copy-Never signals. Such recordings stop after a few seconds.

Recording From Connected Equipment With a Timer (Synchro Rec)

+RW -RWVR -RWVideo +R -RVR -RVideo

You can set the recorder to automatically record programs from connected equipment that has a timer function (such as a satellite tuner). Connect the equipment to the LINE 1 IN jacks on the rear of the recorder (page 13).

When the connected equipment turns on, the recorder starts recording a program from the LINE 1 IN jacks.

1 Press DVD to operate the DVD recorder. 2 Insert a recordable disc. 3 Select the line input audio.

Set “Line Audio Input” of “Audio” setup to “Stereo” or “Main/Sub” in the “Setup” display (page 100).

4 Press REC MODE repeatedly to select the recording mode.

The display changes on the TV screen as follows:

For details about the recording mode, see page 46.

5 Press SYSTEM MENU while the recorder is in stop mode.

6 Select "Setup," and press ENTER.

7 Select "Features," and press ENTER. The "Features" setup appears.

8 Select "Synchro Recording," and press ENTER.

9 Select "to DVD," and press ENTER.

10 Press SYSTEM MENU to turn off the menu.

11 Set the timer on the connected equipment to the time you want to record, and turn it off.

12 Press SYNCHRO REC.

The SYNCHRO REC indicator lights up on the front panel and the recorder stands by for Synchro-Rec.

The recorder starts recording when a signal is received from the connected equipment.

When the connected equipment turns off, the recording stops and the recorder turns off.

To stop recording

Press ■ STOP twice.

To cancel a Synchro-Rec function

Press SYNCHRO REC before recording starts. The SYNCHRO REC indicator on the recorder turns off.

If you press SYNCHRO REC during SynchroRec, the recording stops, the SYNCHRO REC indicator turns off, and the recorder turns off.

If the timer settings of a Synchro-Recording and another timer recording overlap

Regardless of whether or not the program is a Synchro-Rec program, the program that starts first has priority. The recorder starts recording the second program about ten seconds after the first program has finished. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

Notes

• The recorder starts recording only after detecting the video signal from the connected equipment. The beginning of the program may not be recorded regardless of whether or not the recorder's power is on or off.
• To use the connected equipment during Synchro-Rec standby, cancel the standby mode by pressing SYNCHRO REC. To return to standby mode again, be sure to turn off the equipment and press SYNCHRO REC, before Synchro-Rec starts.
• The Synchro-Rec function does not work with some tuners. For details, see the tuner's operating instructions.
• After a recording has finished, the recorder enters the Synchro-Rec standby mode until the SYNCHRO REC indicator turns off.
• If Synchro-Rec starts with the recorder turned on, the recorder will turn off when the recording ends.
• The recorder does not record programs with Copy-Never signals. Such recordings stop after a few seconds.

Changing or Canceling DVD Timer Settings (Timer List)

+RW -RWVR -RWVideo +R -RVR -RVideo

You can change or cancel timer settings using the Timer List menu.

1 Press SYSTEM MENU.

The System Menu appears.

2 Select "Timer," and press ENTER. 3 Select "Timer List," and press ENTER.

Timer information displays the recording date, time, recording mode, etc.

If there are more than six timer settings, press

↓ to display the next page.

4 Select the timer setting you want to change or cancel, and press ENTER.

The sub-menu appears.

5 Select one of the options, and press ENTER.

"Edit": Changes the timer setting. Select an item using ←/→ and adjust using ↑/↓. Press ENTER.

"Erase": Erases the timer setting. Select "OK" and press ENTER when asked for confirmation.

6 Press SYSTEM MENU to turn off the Timer List.

To return to the previous display, press RETURN.

Notes

- Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps. For priority, see page 50.

• You cannot change the timer settings for a recording currently underway.
• The Timer List displays both the DVD recorder and VCR timer settings.

Recording From Another VCR or Similar Device

+RW -RWVR -RWVideo +R -RVR -RVideo

You can record from a connected VCR or similar device. For connection details, see "Connecting Another VCR or Similar Device" on page 27. Use the DV IN jack on the front panel if the equipment has a DV/D8 output jack (i.LINK jack). To record from a digital video camera connected to the DV IN jack, see page 90.

1 Press DVD to operate the DVD recorder. 2 Insert a recordable disc. 3 Press INPUT repeatedly to select an input source according to the connection you made.

The front panel display changes as follows:

4 Press REC MODE repeatedly to select the recording mode.

The display changes on the TV screen as follows:

For details about the recording mode, see page 46.

5 Select the line input audio.

Set "Line Audio Input" of "Audio" setup to "Stereo" or "Main/Sub" in the "Setup" display (page 100).

6 Insert the source tape into the connected equipment and set to playback pause.

7 Press ● REC on this recorder and the pause or play button on the connected equipment at the same time.

Recording starts.

To stop recording, press ■ STOP on this recorder.

Notes

• A video game image may not be recorded clearly.
• The recorder does not record programs with Copy-Never signals. Such recordings stop after a few seconds.
• During recording or recording pause, you cannot change the recording mode.
• You cannot change the input source during recording.

DVD Editing

Before Editing

This recorder offers various edit options for various disc types. Before you edit, check the disc type in the front panel display, and select the option available for your disc (page 30).

Notes

• You may lose the edited contents if you remove the disc or a timer recording starts while editing.
• You cannot edit recordings on DVD-RWs (Video mode), DVD+Rs, or DVD-Rs (Video mode) recorded on other DVD equipment.

Edit options for DVD+RWs/DVD-RWs (Video mode)/DVD+Rs/DVD-Rs (Video mode)

+RW

-RWvideo

+R

-R Video

You can perform simple edits. Since Video mode titles are actual recordings on the disc, you cannot undo any edits you make. The edit functions available for Video mode titles are:

– Renaming a title (page 60). – Erasing a title (page 57). - Setting protection against erasure (DVD+RWs only) (page 57). - Erasing a section of a title (A-B Erase) (DVD+RWs only) (page 58). - Dividing a title (DVD+RWs only) (page 59).

Notes

• Once the disc is finalized, you cannot edit or record on the disc (except for DVD+RWs).
• If a message appears and indicates that the disc's control information is full, erase unnecessary titles.

Edit options for DVD-RWs (VR mode)/DVD-Rs (VR mode)

-RWVR

-RVR

You can enjoy advanced edit functions. First you have two options for a DVD-RW (VR mode) and DVD-R (VR mode): editing either the original recording (called the “original”), or the playback information created from the original (called a “Playlist”). Since each is different in nature and offers different merits, read the following and select the one that better suits your needs.

To edit original titles

Edits made to the original titles are final. If you plan to retain an unaltered original recording, create and edit a Playlist (see below). The edit functions available for original titles are:

– Renaming a title (page 60). – Erasing a title (page 57). – Erasing a chapter (page 58). – Setting protection against erasure (page 57). – Erasing a section of a title (A-B Erase) (page 58). – Dividing a title (page 59).

To create and edit Playlist titles

A Playlist is a group of Playlist titles created from the original title for editing purposes. When you create a Playlist, only the control information necessary for playback, such as the playback order, is stored on the disc. Since the original titles are left unaltered, Playlist titles can be re-edited. If you erase an original title used in a Playlist, that Playlist is also erased.

Example: You have recorded the final few matches of a soccer tournament on a DVD-RW (VR mode). You want to create a digest with the goal scenes and other highlights, but you also want to keep the original recording.

In this case, you can compile highlight scenes as a Playlist title. You can even rearrange the scene order within the Playlist title. See “Editing a Playlist” on page 63.

The advanced edit functions available for Playlist titles are:

– Renaming a title (page 60). – Erasing a title (page 57). – Erasing a chapter (page 58). – Erasing a section of a title (A-B Erase) (page 58). – Editing a Playlist scene (page 63). – Dividing a title (page 59). – Combining titles (page 64).

Hint

You can switch the Title List to show original or Playlist. While the Title List menu is turned on, press ORIGINAL/PLAYLIST repeatedly.

Notes

• You cannot protect Playlist titles.
• If a message appears and indicates that the disc's control information is full, erase unnecessary titles.
• You cannot create or edit Playlist titles on a finalized disc. When you want to edit or record on the DVD-RW (VR mode) again, unfinalize the disc (page 88).

Editing a Title

+RW -RWVR -RW Video +R -RVR -RVideo

This section explains the basic edit functions. Note that editing is irreversible. To edit a DVD-RW (VR mode) or DVD-R (VR mode) without changing the original recordings, create a Playlist title (page 61).

1 Press DVD to operate the DVD recorder.

2 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/PLAYLIST to switch to the "Title List (Original)," if necessary.

3 Select a title, and press ENTER.

The sub-menu appears.

4 Select an option, and press ENTER.

You can select from the following:

"Title Erase": Erases the selected title. Select "OK" when asked for confirmation.

"Chapter Erase" *1: Allows you to select a chapter in the title and erase it (see below).

"Protect"*2: Protects the title. Select "On" when the Protection display appears. "☑" appears for the protected title. To cancel the protection, select "Off." "☑" changes to "☐".

"Title Name": Allows you to rename the title (page 60).

“A-B Erase” *2: Erases a section of the title (see below).

“Divide Title” *2: Divides a title into two (page 59).

*1 DVD-RWs (VR mode) and DVD-Rs (VR mode) only *2 DVD+RWs, DVD-RWs (VR mode), and DVD-R (VR mode) only

About freeing up disc space

Erasing titles, chapters, or scenes:

• frees up disc space on a DVD-RW (VR mode).
• frees up disc space on a DVD+RW/DVD-RW (Video mode) only when you erase the last title or chapter. – cannot free up disc space on a DVD+R/DVD+R DL/DVD-R.

Hint

You can also rename a disc (page 67).

Notes

• When editing a DVD-RW (Video mode), DVD+R, or DVD-R, finish all editing before finalizing the disc. You cannot edit a finalized disc.
• You cannot erase protected titles or erase chapters from a protected title.
• If you erase an original title used in a Playlist, that Playlist is also erased.

Erasing a chapter (Chapter Erase)

-RWVR

-RVR

You can select a chapter within a title and erase it. Note that erasing chapters from original titles cannot be undone.

1 Press TITLE LIST.

Press ORIGINAL/PLAYLIST to switch to the "Title List (Original)," if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select "Chapter Erase," and press ENTER.

The display for erasing chapters appears.

4 Select the chapter you want to erase, and press ENTER.

“Check” is selected. To preview the chapter, press ENTER. When playback finishes or when you press ⏻ RETURN, the display returns to “Chapter Erase (Original).”

5 Select "Erase," and press ENTER.

The display asks for confirmation.

6 Select "OK," and press ENTER.

The selected chapter is erased from the title. To erase other chapters, repeat from step 4.

Hint

You can also erase chapters from a Playlist title (page 63).

Note

If you erase an original title used in a Playlist, that Playlist is also erased.

Erasing a section of a title (A-B Erase)

+ RW

-RWVR

-RVR

You can select a section (scene) within a title and erase it. Note that erasing scenes from original titles cannot be undone.

1 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/PLAYLIST to switch to the “Title List (Original),” if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select "A-B Erase," and press ENTER.

The display for setting point A and B appears. "Start" is selected.

4 Press ENTER at the start point of the section to be erased (point A).

You can use ▷ PLAY, ◀◀◀/▶▶▶, ◀◀◀/▶▶▶, ■ STOP, and || PAUSE to find the point. "End" is selected.

5 Press ENTER at the end point of the section (point B).

"Erase" is selected.

To reset the start or end point, select "Start" or "End" and repeat from step 4 or 5.

6 Press ENTER.

The display asks for confirmation.

7 Select "OK," and press ENTER.

The scene is erased.

To continue, repeat from step 4.

To finish, select "Finish," and press ENTER.

Hints

• A chapter mark is inserted after the scene was erased. The chapter mark divides the title into separate chapters on either side of the mark.
• You can also erase a section of a Playlist title (page 63).

Notes

• Images or sound may be momentarily interrupted at the point where you erase a section of a title.
• Sections shorter than five seconds may not be erased.
• The start and end points of a title may be different from what you have set.
• The total playing time of the title does not change even if a scene was erased.
• If you erase an original title used in a Playlist, that Playlist is also erased.

Dividing a title into two (Divide Title)

+RW -RWVR -RVR

You can divide a title into two. Note that dividing original titles cannot be undone.

1 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/PLAYLIST to switch to the “Title List (Original),” if necessary.

2 Select a title, and press ENTER.

The sub-menu appears.

3 Select "Divide Title," and press ENTER.

The display for setting the dividing point appears.

“Point” is selected.

4 Press ENTER at the point where you want to divide the title.

You can use ▷ PLAY, ◀◀◀/▶▶▶, ■ STOP, and || PAUSE to find the point.

“Divide” is selected.

5 Press ENTER.

The display asks for confirmation.

To reset the dividing point, select "No" and press ENTER, then repeat from step 4.

6 Select "Yes," and press ENTER.

The display asks whether to rename the title. To use the same name as before, select “No” and press ENTER to finish.

7 Select "Yes," and press ENTER.

The “Title Name” display appears.

8 Follow steps 5 to 7 of “Changing the Name of a Title” (page 60) to complete renaming.

The divided title appears in the Title List with the new name.

Hints

• You can also divide a Playlist title (page 63).
• If the dividing point is set too close to the beginning of the title, the title cannot be divided.

Changing the Name of a Title

You can enter a title name of up to 32 characters. Since the displayed number of characters is limited, their appearance in menus such as Title List may be different. When the display for entering characters appears, follow the steps below.

1 Press DVD to operate the DVD recorder.

2 Press TITLE LIST.

When editing a DVD-RW (VR mode) or DVD-R (VR mode), press ORIGINAL/PLAYLIST to switch to the “Title List (Original),” if necessary.

3 Select a title, and press ENTER.

The sub-menu appears.

4 Select "Title Name," and press ENTER.

The “Title Name” display appears.

5 Select the character you want to enter using ↑/↓/←/→, and press ENTER.

The selected character appears in the input row.

You can only enter characters and symbols that are displayed.

• To change the cursor position, select the input row using ↑, and press ←/→.
• To erase a character, select either of the following setting buttons and press ENTER. "Backspace": Erases the character to the left of the cursor. "Delete": Erases the character at the cursor position. “Clear”: Erases all the characters in the input row.
• To insert a space, move the cursor to the desired position, select "Space," and press ENTER. • To insert a character, move the cursor to the desired position, select the character, and press ENTER.

6 Repeat step 5 to enter the remaining characters.

To return to the Title List without renaming the title, press RETURN.

7 Select "Finish," and press ENTER.

Hint

You can also rename a disc (page 67). Follow steps 5 to 7 above when the "Disc Name" display appears.

Creating a Playlist

-RWVR -RVR

Playlist titles allow you to edit without changing the original recordings (see "Edit options for DVD-RWs (VR mode)/DVD-Rs (VR mode)" on page 56). You can create a Playlist title by combining up to 99 sections (scenes) from original titles.

Notes

• If you erase an original title used in a Playlist, that Playlist is also erased.
• You cannot create or edit Playlist titles on a finalized disc. When you want to edit or record on the DVD-RW (VR mode) again, unfinalize the disc (page 88).

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is in stop mode.

3 Select "Edit," and press ENTER.

4 Select "Create Playlist," and press ENTER. The display for creating a Playlist appears. "Start" is selected.

5 Press ENTER at the start point.

You can use PLAY, PREV/PREV, NEXT/NEXT, STOP, and PAUSE to find the point. "End" is selected.

6 Press ENTER at the end point.

"Make" is selected. To reset the start or end point, select "Start" or "End" and repeat step 5 or 6.

7 Press ENTER.

The selected section is captured as a scene. To continue, repeat from step 5.

8 When you finish capturing scenes, select "Finish" and press ENTER.

Playing a Playlist title

1 Press TITLE LIST. 2 Press ORIGINAL/PLAYLIST to switch to the "Playlist" Title List. 3 Select a Playlist title, and press ENTER. The sub-menu appears. 4 Select "Play," and press ENTER.

Hint

When a Playlist title is created, the start and end points will become chapter marks, and each scene will become a chapter.

Notes

• The picture may pause when an edited scene is played.
• The start and end points in a title may be different from what you have set.

Editing a Playlist

-RWVR -RVR

You can edit Playlist titles or scenes within them, without changing the actual recordings.

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is in stop mode.

3 Select "Edit," and press ENTER.

4 Select "Edit Playlist," and press ENTER.

The "Playlist" Title List appears.

5 Select a Playlist title, and press ENTER.

The sub-menu appears.

6 Select an option, and press ENTER.

Select from the following options. For details, see the pages in parentheses.

"Title Erase": Erases the title. Select "OK" when asked for confirmation.

"Chapter Erase": Allows you to select chapters in the Playlist title to erase (page 58).

"Title Name": Allows you to rename the title (page 60).

"A-B Erase": Allows you to select sections in the title to erase (page 58).

"Edit Scene": Allows you to re-edit scenes in the Playlist title. Go to step 7.

"Divide Title": Divides the title in two at a desired point (page 59).

"Combine Titles": Allows you to combine two titles into one (page 64).

7 Select "Edit Scene," and press ENTER.

The display for editing scenes appears.

"Check": Allows you to preview a scene. Starts playback of the selected scene when you press ENTER. The display returns to the "Edit Scene" display when the playback finishes or when you press ⏻ RETURN.

"Erase": Erases a scene (page 64).

"Modify": Allows you to change the start and end point of a scene (page 64).

"Move": Allows you to change scene order (page 65).

"Add": Allows you to add other scenes before a selected scene (page 65).

"Copy": Allows you to copy a scene (page 66).

To return to the previous display

Press o RETURN.

To turn off the display

Press SYSTEM MENU.

Hint

The Resume Play function will work for scene playback.

Note

You cannot create or edit Playlist titles on a finalized disc. When you want to edit or record on the DVD-RW (VR mode) again, unfinalize the disc (page 88).

Combining two titles into one (Combine Titles)

-RWVR

-RVR

You can select a Playlist title and combine it with another Playlist title.

1 Follow steps 1 to 5 of "Editing a Playlist" (page 63) to select a Playlist title.

The sub-menu appears.

2 Select "Combine Titles," and press ENTER.

The next title below is also selected.

3 Select a Playlist title to be combined.

4 Press ENTER.

The display asks for confirmation.

5 Select "Yes," and press ENTER.

The display asks whether to rename the title. To use the same name as before, select "No" and press ENTER to finish.

6 Select "Yes," and press ENTER.

The "Title Name" display appears.

7 Follow steps 5 to 7 of “Changing the Name of a Title” (page 60) to complete renaming.

The two Playlist titles become one Playlist title with the new name.

Erasing a scene (Erase)

-RWVR

-RVR

You can erase a selected scene.

1 Follow steps 1 to 7 of "Editing a Playlist" (page 63).

The "Edit Scene" display appears.

2 Select the scene you want to erase, and press ENTER.

3 Select "Erase," and press ENTER.

The display asks for confirmation.

4 Select "OK," and press ENTER.

The selected scene is erased.

To erase other scenes, repeat from step 2.

Modifying a scene (Modify)

-RWVR

-RVR

You can change the start and end point of the selected scene.

1 Follow steps 1 to 7 of "Editing a Playlist" (page 63).

The "Edit Scene" display appears.

2 Select the scene you want to modify, and press ENTER.

3 Select "Modify," and press ENTER.

"Start" is selected.

4 Press ENTER at the start point.

You can use ▷ PLAY, ◀◀◀/▶▶▶,

◀◀/▶▶, ■ STOP, and ▪ PAUSE to find the point.

"End" is selected.

5 Press ENTER at the end point.

"Change" is selected.

To reset the start or end point, select "Start" or "End" and repeat step 4 or 5.

6 Press ENTER.

The display returns to the “Edit Scene” display.

The re-selected section is captured as a scene. To modify other scenes, repeat from step 2.

To cancel modifying

Select "Cancel," and press ENTER.

Note

The start and end point of a scene may be different from what you have set.

Moving a scene (Move)

-RWVR -RVR

You can change the scene order within the Playlist title.

1 Follow steps 1 to 7 of "Editing a Playlist" (page 63).

The "Edit Scene" display appears.

2 Select the scene you want to move, and press ENTER.

3 Select "Move," and press ENTER.

4 Select a new location using ←/→, and press ENTER.

The selected scene moves to the new location. To move other scenes, repeat from step 2.

Adding a scene (Add)

-RWVR -RVR

You can add a scene before the selected scene.

1 Follow steps 1 to 7 of "Editing a Playlist" (page 63).

The "Edit Scene" display appears.

2 Select the location where you want to add, and press ENTER.

A new scene will be added before the selected scene.

3 Select "Add," and press ENTER.

"Start" is selected.

4 Press ENTER at the start point.

You can use ▷ PLAY, ◀◀◀/▶▶▶, ◀◀◀/▶▶▶, ■ STOP, and || PAUSE to find the point.

"End" is selected.

5 Press ENTER at the end point.

"Add" is selected.

To reset the start or end point, select "Start" or "End" and repeat step 4 or 5.

6 Press ENTER.

The display returns to the "Edit Scene" display.

The selected section is added before the scene selected in step 2.

To add other scenes, repeat from step 2.

To cancel adding

Select "Cancel," and press ENTER.

Note

The start and end point of a scene may be different from what you have set.

Copying a scene (Copy)

-RWVR -RVR

You can copy and add a selected scene.

1 Follow steps 1 to 7 of "Editing a Playlist" (page 63).

The "Edit Scene" display appears.

2 Select the scene you want to copy, and press ENTER.

3 Select "Copy," and press ENTER.

4 Select a location to copy to using ←/→ and press ENTER.

The scene is copied to the selected location. To copy other scenes, repeat from step 2.

Formatting/Renaming/Protecting a Disc

+RW

-RWVR

-RWVideo

+R

-RVR

-Rvideo

The “Disc Setting” display allows you to check the disc information or change the disc name.

Depending on the disc type, you can also format or set protection.

1 Press DVD to operate the DVD recorder. 2 Press SYSTEM MENU while the recorder is in stop mode. 3 Select "Disc Setting," and press ENTER.

The “Disc Setting” display appears.

4 Select an option, and press ENTER.

1 "Disc Name": Allows you to rename a disc.

For details on how to enter characters, see page 60.

2 "Disc Protect" (DVD+RWs/DVD-RWs (VR mode)/DVD-Rs (VR mode) only): Protects all titles on the disc when "Protected" is selected. To cancel the protection, select "Not Protected." 3 "Disc Format" (DVD+RWs/DVD-RWs/DVD-Rs only): Erases all contents of the disc, including protected titles, and makes a blank disc (except DVD-Rs). For DVD-RWs, select a recording format ("VR Mode" or "Video Mode") according to your needs.

To format unused DVD-Rs in VR mode, select "VR Mode" and then "OK."

4 "Disc Finalize": Finalizes a disc. See page 88 for details. 5 "Disc Information": Displays the following information.

• Disc name
• Disc type (and recording format for a DVD-RW (VR mode)/DVD-R (VR mode)) • Total number of titles
• Protect setting
• The oldest and most recent recording date
• The total available recording time in each recording mode

Disc Information 10:10 AM
Disc Name	Disc 1
Media	DVD-RW	Format	VR Mode
Title No.	Original 6 / Playlist 1
Protected	Not Protected
Date	4/05/2007 ~ 4/30/2007
Remainder	HQ : 0H 57M HSP : 1H 26M SP : 1H 55MLSP : 2H 23M ESP : 2H 52M LP : 3H 50MEP : 5H 46M SLP : 7H 40M 4.4/4.7GB

6 "Erase All Titles" (DVD+RWs/DVD-RWs/DVD-Rs (VR mode) only):

Erases all titles on the disc (except protected titles). Select "OK" when asked for confirmation.

For DVD-RWs (VR mode)/DVD-Rs (VR mode), Playlist titles created with protected titles are also erased.

To return to the previous display

Press 📌 RETURN.

Hints

• You can set protection for individual titles (page 57).
• By reformatting, you can change the recording format on DVD-RWs, or record again on DVD-RWs (Video mode) that have been finalized.

Notes

• You can label a disc using up to 32 characters; however, the name may not display on other DVD equipment.
• You cannot label an unused DVD-R (Video mode) disc. Label the disc after you first record on it.
• You cannot mix VR mode and Video mode on the same DVD-RW or DVD-R.
• You cannot change the recording format on used DVD-Rs.
• The recorder records on new DVD-Rs in Video mode unless you first format the discs in VR mode (page 47).

Playing a VHS Tape

VHS

1 Press VIDEO to operate the VCR.

2 Insert a tape.

Playback starts automatically if you insert a tape with its safety tab removed.

3 Press ▷ PLAY.

The front panel display shows the playing time.

When the tape reaches the end, it will rewind automatically.

To stop playback

Press ■ STOP.

To eject the tape

Press ▲ OPEN/CLOSE.

To turn off the power while rewinding (Rewind Shut Off)

Press I/While the tape is rewinding. The power will turn off but the tape will keep rewinding until it reaches the end.

To use the time counter

Press CLEAR at the point where you want to find later. The counter in the front panel display resets to "0:00:00."

To search for the 0:00:00 point automatically, see page 72.

To display the counter on the TV screen, press DISPLAY.

Notes

- During playback, the VCR automatically detects the recording system (S-VHS/VHS) and the recording mode (SP or EP) from the tape. LP mode recordings made on other equipment will play, but picture quality is not guaranteed.

- The counter resets to "0:00:00" whenever a tape is reinserted.

- The counter stops counting when it reaches a section with no recording.

- The counter resets to "0:00:00" after ten hours and starts counting again.

- If playback does not start even when you insert a tape with its safety tab removed, set "VCR Function" – "Auto Play" of "Features" to "On" in the "Setup" display (page 101).

- If you switch to the VCR while playing a disc, DVD playback stops.

- The VCR does not record in S-VHS format, but it will play S-VHS tapes by automatically detecting the format; however, picture quality will be lower than usual S-VHS. The image may be unclear if playback options such as slow-motion are used.

- Playback of S-VHS tapes recorded in EP (3x) mode is not guaranteed.

- The VCR is not compatible with the PAL or SECAM color systems. Only NTSC tapes can be played.

- For simultaneous VHS and DVD operation, see page 9.

Adjusting the picture (tracking)

You can manually adjust tracking if the recording quality is too poor to be remedied by the VCR's automatic tracking (a tracking meter appears during automatic tracking).

Press TRACKING +/-.

The tracking meter appears.

Press TRACKING +/- repeatedly until the distortion disappears.

To resume automatic tracking

Press TRACKING + and TRACKING - on the recorder at the same time for more than ten seconds. Or, eject the tape and reinsert it.

Playback Options

Button Operation
(fast reverse/fast forward)	Fast reverses or fast forwards when pressed during stop mode.When you hold down during fast reverse or fast forward, you can view the picture. Plays at high speed when briefly pressed during playback.When you hold down the button during playback, the high-speed play continues until you release the button.
(slow)	Plays in slow motion when pressed in pause mode.
ADVANCE	Advances one frame for each press in pause mode.Fast forwards the current scene for 30 seconds when pressed during playback.*1
REPLAY Replays the previous scene when pressed during playback.*2
PREV/NEXT	Press during playback. Playback speed changes with each press:-x7←→-x5←→-x3←→PAUSE←→SLOW←→PLAY←→x2←→x3←→x5←→x7
PAUSE Pauses	playback.If you pause playback for more than five minutes, playback starts automatically.

*1 Can be pressed up to four times to forward about two minutes. *2 For 10 seconds in SP or LP mode/for 15 seconds in EP mode.

To resume normal playback, press ▷ PLAY.

Notes

• The sound is muted during playback at various speeds. - The picture may show noise during high-speed reverse play.

Searching Using Various Functions

VHS

The VCR automatically marks the tape with an index signal at the point where each recording begins.

You can easily find a specific point using various search functions.

Note

During DVD recording, you cannot use VCR search functions.

1 Press VIDEO to operate the VCR. 2 Press OPTIONS. 3 Select a search method from the OPTIONS menu, and press ENTER.

"Go To Zero": Searches for the 0:00:00 point on the tape counter.

To reset the counter to 0:00:00, press CLEAR.

"End Search": Searches for the beginning of a blank space. If no blank space is found, the tape will reach the end.

"Forward Intro Scan"/"Reverse Intro Scan": Searches for an index mark and plays back for about five seconds at that point.

Press ▷ PLAY to view that program. If you do not press ▷ PLAY, the VCR automatically searches for the next index mark, or until it reaches the end of the tape.

Notes

• The VCR may not recognize the end of a blank space depending on its length.
• No index signal is marked if you pause a recording and then keep recording the same program. To mark an index, press ■ STOP or change the input source once during recording pause.

Displaying the Playing Time and Play Information

VHS

You can check playback information, such as elapsed or remaining time, recording mode, etc., on the TV screen.

Press DISPLAY during playback.

The information display appears. Each time you press the button, the display changes as follows:

1 Playing status 2 Time counter (elapsed time) 3 Recording mode 4 Remaining tape length 5 Input source 6 Date and time

Viewing information on the front panel display

You can view the information on the front panel display.

Press TIME/TEXT repeatedly.

The displays differ depending on the status.

Example: When playing a tape

Example: When a tape is in stop mode

Selecting the Sound During Playback

VHS

Press AUDIO repeatedly during playback.

To listen to On-screen display	Front panel display
Stereo Hi-Fi STEREO
Left channel Left STEREO
Right channel Right STEREO
Monaural sound on the normal audio track	Mono STEREO*

* No indicator appears in the front panel display when you play a tape without Hi-fi recording.

How sound is recorded on a video tape

The VCR records sound onto two separate tracks. Hi-fi audio is recorded onto the main track along with the picture. Monaural sound is recorded onto the normal audio track along the edge of the tape.

Notes

• To play a tape in stereo, you must use the A/V connections.
• When you play a tape recorded in monaural, the sound is heard in monaural regardless of the AUDIO setting.

VCR Recording

Before Recording

Before you start recording...

• This VCR records in VHS format, not S-VHS format.
• Check that the tape is longer than the recording time (page 73).
• Check that the recorder is connected to a tuner such as a cable box or satellite receiver (page 12). See also the tuner's instruction manual.

Notes

• Timer recordings will start with or without the recorder turned on. Once started, the recorder cannot be turned off. The recorder automatically turns off after a recording has finished.
• This recorder has the copy guard function. Programs that contain a Copy-Never copy guard signal cannot be correctly recorded on the VCR.

To save a recording

To prevent accidental erasure, break off the safety tab as illustrated. To record on the tape again, cover the tab hole with adhesive tape.

Recording mode

“EP” (Extended Play) and “SP” (Standard Play) are available for recording mode (tape speed). “EP” provides recording time three times as long as “SP.” However, “SP” produces better picture and audio quality.

Maximum recording time

Tape Length SP EP
T-120 2 hrs 6 hrs
T-160 2 hrs 40 mins 8 hrs
T-180 3 hrs 9 hrs

Notes

• Tapes recorded in EP (×3) mode by this VCR cannot be played back on VHS video decks with SP mode only.
• Noise may appear in the image when tapes recorded in EP (×3) mode by this VCR are played back on other VHS video decks with EP mode.

VCR Recording From Connected Equipment Without the Timer

VHS

You can record TV programs on the recorder through the connected cable box/satellite receiver.

1 Turn on the recorder and the connected cable box/satellite receiver. 2 Press VIDEO to operate the VCR. 3 Insert a tape with its safety tab in place.

4 Press CH +/- or INPUT repeatedly to select the channel or input source you want to record.

• When using the cable box/satellite receiver control, select the channel by pressing CH +/- on this recorder's remote. The recorder's input is switched to the connected input (LINE1 or LINE2). You can also use the number buttons.
• When not using the cable box/satellite receiver control, select the connected input

(LINE1 or LINE2) by pressing INPUT, and then select the channel on the cable box/satellite receiver's side.

5 Press REC MODE repeatedly to select the recording mode, "SP" or "EP."

For details about the recording mode, see page 75.

6 Press ● REC.

“REC” appears in the front panel display, and recording starts. Leave the cable box/satellite receiver turned on and do not change the channel you are recording.

To stop recording

Press ■ STOP.

To pause recording

Press || PAUSE.

To restart recording, press PAUSE again. If you pause recording for more than five minutes, recording stops automatically.

To watch a DVD while recording

Press DVD to operate the DVD recorder, insert a disc, and press PLAY.

Hints

• Tape information displayed on the TV screen will not be recorded on the tape.
• You can turn off the TV during recording.

Notes

• You cannot change the recording mode or input source while recording.
• If you insert a tape with its safety tab removed, the tape is ejected when you press REC.

Recording using the Quick Timer (One-touch Timer Recording)

You can set the recorder to record in 30-minute increments.

1 Press VIDEO to operate the VCR. 2 Press REC repeatedly to set the duration.

Each press increases the time by 30 minutes, up to six hours.

"" and "OTR" light up, and the remaining recording time appears in the front panel display.

When the time counter reaches "0:00," the recorder stops recording and turns off.

To cancel the Quick Timer

Press ● REC repeatedly until the counter appears in the front panel display. The recorder returns to normal recording mode.

To stop recording

Press ■ STOP twice.

Checking the remaining tape length

You can check recording information, such as remaining tape length or recording mode, etc.

Press DISPLAY while recording.

The information display appears.

Press the button repeatedly to change the display (page 73).

1 Recording status 2 Time counter 3 Recording mode 4 Remaining tape length 5 Input source

To check the remaining tape length, set “VCR Function” – “Tape Length” of “Features” in the “Setup” display correctly (page 101).

Hint

You can view the information also in the front panel display. Press TIME/TEXT repeatedly to change the display. Note that TIME/TEXT does not work during One-touch Timer Recording.

Notes

• The remaining tape length may not be indicated accurately for short tapes such as T-20 or T-30, or tapes recorded in LP mode.
• After DISPLAY is pressed, it may take one minute for the remaining tape length to appear.

VCR Timer Recording From Connected Equipment

VHS

You can set the timer for a total of 12 programs together with DVD and VCR timer recording, up to one month in advance.

If you record from connected equipment that has a timer function, you can use the Synchro Rec function (page 80).

Note

Do not operate your cable box or satellite receiver just before or during a timer recording. This may prevent the accurate recording of a program.

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place.

3 Press TIMER.

4 Select an item using ←/→ and adjust using ↑/↓.

1 "Media": Select "VCR." ②"Date": Sets the date using ↑. To record the same program every day or the same day every week, press ↓. The item changes as follows: Today ↔ Sun-Sat (Sunday to Saturday) ↔ Mon-Sat (Monday to Saturday) ↔ Mon-Fri (Monday to Friday) ↔ Sun (every Sunday) ↔ Mon (every Monday) ↔ ... ↔ Sat (every Saturday) ↔ 1 month later ↔ ... ↔ Today

3 "Start": Sets the start time.

4 "End": Sets the stop time.

5 "Ch": Selects the channel or input source.

• When using the cable box/satellite receiver control, select the channel.
• When not using the cable box/satellite receiver control, select the input, LINE1 or LINE2. Select the channel on the connected cable box/satellite receiver's side before the timer recording starts.

6 "Mode": Selects the recording mode; "SP" or "EP." To use the Rec Mode Adjust function (page 79), select "AUTO."

If you make a mistake, select the item and change the setting.

5 Press ENTER.

The Timer List menu (page 81) appears. The ⏻ indicator lights up in the front panel display, and the recorder is ready to start recording.

• If the ⏻ indicator flashes in the front panel display, check that a tape with its safety tab in place is inserted.
• If timer settings overlap, a message appears. To change or cancel a timer recording, select "Edit" from the Timer List (page 81).

6 Press SYSTEM MENU to turn off the menu.

There is no need to turn off the recorder before the timer recording starts.

Leave the cable box/satellite receiver turned on and do not change the channel selected on the cable box/satellite receiver until the recorder finishes the timer recording.

To stop recording

Press ■ STOP twice.

If timer settings overlap

The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

To change or cancel timer recording

See “Changing or Canceling VCR Timer Settings (Timer List)” on page 81.

To use the Rec Mode Adjust function

If the remaining tape length is too short for the current recording, the VCR automatically changes the recording mode from SP to EP.

When setting the timer, select “AUTO” in “Mode,” and check that the “Tape Length” setting is correct for the inserted tape (“VCR Function” -

“Tape Length” of “Features” in the “Setup” display (page 101)).

Hints

• When the start time and the channel or input source to be recorded are the same but the “Media” setting differs, the program is recorded to both the DVD disc and the VHS tape.
• You can also turn on the Timer programming menu from the System Menu. Press SYSTEM MENU to select “Timer,” and select “Timer-Standard.”

Notes

• Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps.
• You cannot record on a tape with its safety tab removed.
• Before the timer recording starts, "TIMER REC" flashes in the front panel display.
• The recorder automatically turns off when a timer recording finishes, even if the recording started with the recorder turned on.

Recording From Connected Equipment With a Timer (Synchro Rec)

VHS

You can set the recorder to automatically record programs from connected equipment that has a timer function (such as a satellite tuner). Connect the equipment to the LINE 1 IN jacks on the rear of the recorder (page 13).

When the connected equipment turns on, the recorder starts recording a program from the LINE 1 IN jacks.

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place. 3 Press REC MODE repeatedly to select the recording mode, "SP" or "EP." 4 Press SYSTEM MENU while the recorder is in stop mode. 5 Select "Setup," and press ENTER. 6 Select "Features," and press ENTER. The “Features” setup appears. 7 Select "Synchro Recording," and press ENTER.

8 Select "to VIDEO," and press ENTER. 9 Press SYSTEM MENU to turn off the menu. 10 Set the timer on the connected equipment to the time of the program you want to record, and turn it off.

11 Press SYNCHRO REC.

The SYNCHRO REC indicator lights up on the front panel and the recorder stands by for Synchro-Rec.

The recorder starts recording when a signal is received from the connected equipment.

When the connected equipment turns off, the recording stops and the recorder turns off.

To stop recording

Press ■ STOP twice.

To cancel Synchro-Rec function

Press SYNCHRO REC before recording starts. The SYNCHRO REC indicator on the recorder turns off.

If you press SYNCHRO REC during SynchroRec, the recording stops, the SYNCHRO REC indicator turns off, and the recorder turns off.

If the timer settings of a Synchro-Recording and another timer recording overlap

Regardless of whether or not the program is a Synchro-Rec program, the program that starts first has priority and the second program starts recording only after the first program has finished. If the end time of one setting and the start time of another timer setting is the same, the beginning of the program that starts later will be cut.

Notes

• The recorder starts recording only after detecting the video signal from the connected equipment. The beginning of the program may not be recorded regardless of whether or not the recorder's power is on or off.
• To use the connected equipment during Synchro-Rec standby, cancel the standby mode by pressing SYNCHRO REC. To return to standby mode again, be sure to turn off the equipment and press SYNCHRO REC, before Synchro-Rec starts.
• The Synchro-Rec function does not work with some tuners. For details, see the tuner's operating instructions.
• After a recording has finished, the recorder enters the Synchro-Rec standby mode until the SYNCHRO REC indicator turns off.
• You cannot record on a tape with its safety tab removed.
• If Synchro-Rec starts with the recorder turned on, the recorder will turn off when the recording ends.

Changing or Canceling VCR Timer Settings (Timer List)

VHS

You can change or cancel timer settings using the Timer List menu.

1 Press SYSTEM MENU.

The System Menu appears.

2 Select "Timer," and press ENTER.

3 Select "Timer List," and press ENTER.

Timer information displays the recording date, time, recording mode, etc.

If there are more than six timer settings, press

↓ to display the next page.

4 Select the timer setting you want to change or cancel, and press ENTER.

The sub-menu appears.

5 Select one of the options, and press ENTER.

"Edit": Changes the timer setting. Select an item using ←/→ and adjust using ↑/↓. Press ENTER.

"Erase": Erases the timer setting. Select "OK" and press ENTER when asked for confirmation.

6 Press SYSTEM MENU to turn off the Timer List.

To return to the previous display Press 🔍 RETURN.

Notes

- Even when correctly set, the program may not be recorded if another recording is underway, or other prioritized timer setting overlaps. For priority, see page 79.

• You cannot change the timer settings for a recording currently underway.
• The Timer List displays both the DVD recorder and VCR timer settings.

Recording From Another VCR or Similar Device

VHS

You can record from a connected VCR or similar device. For connection details, see “Connecting Another VCR or Similar Device” on page 27.

1 Press VIDEO to operate the VCR. 2 Insert a tape with its safety tab in place. 3 Press INPUT repeatedly to select the input source (LINE1 or LINE2) according to the connection you made. 4 Press REC MODE repeatedly to select the recording mode, "SP" or "EP." 5 Insert the source tape into the connected equipment and set to playback pause. 6 Press ● REC on this recorder and the pause or play button on the connected equipment at the same time.

Recording starts.

To stop recording, press ■ STOP on this recorder.

Notes

• A video game image may not be recorded clearly.
• You cannot record on a tape with its safety tab removed.
• During recording or recording pause, you cannot change the recording mode.
• You cannot change the input source during recording.

Dubbing (TAPE ↔ DVD)

Dubbing From a VHS Tape to a DVD

You can easily record (dub) a VHS tape to a disc. Before dubbing, make the necessary audio settings on the VCR.

◆How titles and chapters are created

The recorder takes each recording on the VHS tape and automatically divides them into titles as they are dubbed to a disc. These titles are then further divided into chapters at either 5 or 15-minute intervals, according to the “DVD Auto Chapter” setting of “Features” in the “Setup” display.

1 Press DVD and insert a recordable disc. To select the recording mode, press REC MODE repeatedly (see page 46). 2 Insert a source VHS tape. 3 Press VIDEO to operate the VCR. 4 Start playing the VHS tape, and then press ■ STOP or ■ PAUSE at the point where you want to start dubbing.

To select VCR sound, press AUDIO during playback (see page 74).

5 Press ← VIDEO on the recorder.

Dubbing starts.

To stop dubbing

Press ■ STOP.

Note that it may take a few seconds for the recorder to stop dubbing.

To play discs recorded with this recorder on other DVD equipment

Finalize the disc (see page 88).

To dub using the on-screen menu

1 After step 4 above, press SYSTEM MENU. 2 Select "Dubbing" from the System Menu, and press ENTER.

3 Select "Simple Dubbing," and press ENTER.

4 Select "VIDEO → DVD," and press ENTER. The display asks for confirmation.

5 Select "Yes," and press ENTER. Dubbing starts.

Hints

• A black (no signal) screen at the end of the dubbed disc is not a malfunction. This screen is recorded if a time discrepancy exists between the disc and tape when the recording is stopped.
• When dubbing a VHS tape to a DVD, the VHS tape counter value may differ slightly from the DVD recording time. • VCR playback sound is output during dubbing.

Notes

• Dubbing cannot be made when: - using a non-recordable DVD. - using VHS software with copy guard functions. - Dubbing stops when: – the VHS tape reaches the end and stops. – the VHS video deck or the DVD deck is stopped. – the disc remaining time runs out. - The System Menu, OPTIONS menu, and information display are not displayed during dubbing. • Copyrights – Recordings made from VHS tapes and other copyrighted material are solely for individual enjoyment, and other unauthorized use is prohibited under copyright law. – Unauthorized editing of copyrighted material is prohibited under copyright law.

Dubbing From a DVD to a VHS Tape

You can record (dub) a DVD title to a VHS tape. Note that when you record copy-protected software to a tape, picture may appear disrupted when you play back the tape.

You can also select titles or scenes and dub them all at once. See “Dubbing selected titles and scenes (Program Dubbing)” on page 86.

Before dubbing, make the necessary audio settings on the DVD recorder.

1 Press VIDEO and insert a VHS tape with its safety tab in place.

To select the recording mode, SP or EP, press REC MODE repeatedly (see page 75).

2 Insert a source disc. 3 Press DVD to operate the DVD recorder. 4 Press TOP MENU or TITLE LIST to select a title. 5 Start playing the DVD, and then press ■ STOP or ■ PAUSE at the point where you want to start dubbing.

To select DVD sound, language, or subtitle, press AUDIO or SUBTITLE during playback (see page 36).

6 Press DVD → on the recorder.

Dubbing starts.

To stop dubbing

Press ■ STOP.

Note that it may take a few seconds for the recorder to stop dubbing.

To dub using the on-screen menu

1 After step 5 above, press SYSTEM MENU. 2 Select "Dubbing" from the System Menu, and press ENTER.

3 Select "Simple Dubbing," and press ENTER.

4 Select "DVD → VIDEO," and press ENTER. The display asks for confirmation. 5 Select "Yes," and press ENTER. Dubbing starts. If the disc's menu appears when DVD playback finishes, press ■ STOP to stop

dubbing. Otherwise the disc's menu is recorded until the tape reaches its end.

Hints

• The brightness of the playback picture may differ from normal DVD playback picture.
• The DVD playback time may differ slightly from the VHS tape counter value.
• The sound being played back (main, sub, etc.) is the dubbed sound.

Notes

• Dubbing stops when: – the DVD is played back to the end and stops. – the DVD deck or the VHS video deck is stopped. – the tape remaining time runs out.
• The System Menu, OPTIONS menu, and information display are not displayed during dubbing.
• Copyrights
• Recordings made from discs and other copyrighted material are solely for individual enjoyment, and other unauthorized use is prohibited under copyright law. – Unauthorized editing of copyrighted material is prohibited under copyright law.

Dubbing selected titles and scenes (Program Dubbing)

You can select titles or scenes from a DVD, and dub the contents to a VHS tape all at once.

1 Press VIDEO and insert a VHS tape with its safety tab in place.

To select the recording mode, SP or EP, press REC MODE repeatedly (see page 75).

2 Press DVD and insert a source disc.

To select DVD sound, language, or subtitle, press AUDIO or SUBTITLE during playback (see page 36).

3 Press SYSTEM MENU.

The System Menu appears.

4 Select "Dubbing," and press ENTER.

5 Select "Program Dubbing," and press ENTER.

6 Select "Create Dubbing List," and press ENTER.

If you have performed Program Dubbing before, the display asks for confirmation. To continue, select "Yes" and press ENTER. The display for selecting titles appears.

7 Select the title you want to dub, and press ENTER.

The sub-menu appears.

To dub the entire title, select "Title Dubbing" and press ENTER. The Program Dubbing List appears with the selected title. Go to step 13. To select a scene to dub, go to step 8.

8 Select "Scene Dubbing," and press ENTER.

The display for setting a scene appears. "Start" is selected.

9 Press ENTER at the start point.

You can use ▷ PLAY, ◀◀◀◀/▶▶▶, ◀◀◀/▶▶▶, ■ STOP, and || PAUSE to find the point. "End" is selected.

10 Press ENTER at the end point.

"Make" is selected.

To reset the start or end point, select "Start" or "End" and repeat from step 9 or 10.

11 Press ENTER.

To continue, repeat from step 9.

12 Select "Finish," and press ENTER.

The Program Dubbing List appears with the selected scene.

13 Select an option and press ENTER, if necessary.

To add other titles or scenes, select "Addition" and press ENTER, and repeat from step 7. To cancel the selected title or scene, select "Erase" and press ENTER. When asked for confirmation, select "OK" and press ENTER. To view the selected title or scene, select "Check" and press ENTER. To cancel dubbing, press ⏻ RETURN.

14 Select "Dubbing," and press ENTER. Dubbing starts.

To stop dubbing

Press ■ STOP.

Note that it may take a few seconds for the recorder to stop dubbing.

Hints

• The brightness of the playback picture may differ from normal DVD playback picture.
• The DVD playback time may differ slightly from the VHS tape counter value.
• The sound being played back (main, sub, etc.) is the dubbed sound.

Notes

• Dubbing stops when: – the DVD is played back to the end and stops. – the DVD deck or the VHS video deck is stopped. – the tape remaining time runs out.
• The System Menu, OPTIONS menu, and information display are not displayed during dubbing. • Copyrights – Recordings made from discs and other copyrighted material are solely for individual enjoyment, and other unauthorized use is prohibited under copyright law. – Unauthorized editing of copyrighted material is prohibited under copyright law.
• Once you eject the disc, the Program Dubbing List is erased.

Finalizing a Disc (Preparing a Disc for Playback on Other Equipment)

+RW -RWvr -RWVideo +R -Rvr -RVideo

Finalizing is necessary in order to play discs recorded with this recorder on other DVD equipment.

When you finalize a DVD+RW/DVD-RW (Video mode)/DVD+R/DVD-R (Video mode), a DVD menu will be automatically created, which can be displayed on other DVD equipment.

Before finalizing, check the differences between the disc types in the table below.

Differences between the disc types

+RW	Discs are automatically finalized when removed from the recorder. If you want to record on it again, reformat the disc (page 67). Note however, that reformatting a disc erases all its contents.
-RWVR	Finalizing is unnecessary when playing a disc on VR format compatible equipment. Even if your other DVD equipment is VR format compatible, you may need to finalize the disc, especially if the recording time is short. After finalizing, you cannot edit or record on the disc. If you want to edit or record on it again, unfinalize or reformat the disc (page 67). Note however, that reformatting a disc erases all its contents.
-RWVideo	Finalizing is necessary in order to play on equipment other than this recorder. After finalizing, you cannot edit or record on the disc. If you want to edit or record on it again, unfinalize or reformat the disc (page 67). Note however, that reformatting a disc erases all its contents.
-RVR	Finalizing is necessary in order to play on equipment other than this recorder. The finalized discs can be played on other VR mode compatible players. After finalizing, you cannot further edit or record on the disc.
+R	Finalizing is necessary in order to play on equipment other than this recorder.
-RVideo	After finalizing, you cannot further edit or record on the disc.

1 Press DVD to operate the DVD recorder. 2 Insert a disc. 3 Press SYSTEM MENU while the recorder is in stop mode.

The System Menu appears.

4 Select "Disc Setting," and press ENTER.

The "Disc Setting" display appears.

5 Select "Disc Finalize," and press ENTER.

The display asks for confirmation.

6 Select "Finalize," and press ENTER.

The display asks for confirmation again.

7 Select "OK," and press ENTER.

The recorder starts finalizing the disc.

To turn off the display

Press SYSTEM MENU.

To unfinalize a DVD-RW (VR mode)

If you cannot record or edit on a DVD-RW (VR mode) that has been finalized, unfinalize the disc by selecting "Unfinalize" in step 6 above.

Hints

• You can check whether the disc has been finalized or not. If you cannot select "Finalize" in step 6 above, the disc has already been finalized.
• To check the disc information, select "Disc Information" in the "Disc Setting" display and press ENTER. See page 67 for details.

Notes

• Depending on the condition of the disc, the recording, or the DVD equipment, discs may not play even if the discs are finalized.
• The recorder may not be able to finalize a disc if it was recorded on another recorder.

Before DV/D8 Dubbing

This section explains dubbing with a digital video camera via the DV IN jack on the front panel. If you want to dub by way of the LINE IN jacks, see "Recording From Another VCR or Similar Device" on page 54.

To record from the DV IN jack

The DV IN jack on this recorder conforms to the i.LINK standard. You can connect any other equipment that has an i.LINK (DV) jack, and record digital signals.

Follow the instructions in "Connecting a Digital Video Camera to the DV IN Jack," and then move on to the section on dubbing. For more information about i.LINK, see "About i.LINK" on page 113.

Hint

If you plan to do additional editing on a disc after the initial dub, use the DV IN jack and record on a DVD-RW (VR mode) or DVD-R (VR mode). Note that erasing unwanted scenes does not free up disc space for DVD-Rs (VR mode).

Connecting a Digital Video Camera to the DV IN Jack

You can connect a digital video camera to the DV IN jack on the recorder to record or edit from a DV/D8 format tape. Operation is straightforward because the DVD recorder will fast forward and rewind the tape for you – you do not need to operate your digital video camera. Do the following to start using the "DV/D8 Edit" functions of this recorder.

See the instruction manual supplied with the digital video camera as well before connecting.

Notes

• The DV IN jack is for input only. It will not output signals.
• You cannot use the DV IN jack when:
• your digital video camera does not work with this recorder. Connect the camera to the LINE IN jack and follow the instructions of "Recording From Another VCR or Similar Device" on page 54.
• the input signal is not in DVC-SD format. Do not connect a MICROMV format digital video camera even if it has an i.LINK jack. – the images on the tape contain copy protection signals, which limit recording.

Hookups VCR-DVD recorder

Dubbing From a DV/D8 Format Tape to a DVD

+RW -RWVR -RWVideo +R -RVR -RVideo

You can record a DV/D8 format tape onto a disc. The recorder controls the digital video camera. You can fast forward, rewind, play in slow motion, and stop the tape to select the scenes using the on-screen menu.

To simply dub the entire contents of a DV/D8 format tape (One Touch Dubbing), see page 93.

◆How titles and chapters are created

The dubbed contents on the disc become one title, and the title is then divided into chapters at either 5 or 15-minute intervals, according to the “DVD Auto Chapter” setting of “Features” in the “Setup” display.

1 Press DVD to operate the DVD recorder. 2 Press ▲ OPEN/CLOSE, and place a recordable disc on the disc tray.

Recording side facing down

3 Press ▲ OPEN/CLOSE to close the disc tray.

Wait until "LOAD" disappears from the front panel display.

Unused discs are automatically formatted. For the DVD-RW/DVD-R's recording format (VR mode or Video mode), see "Formatting a new disc" on page 47.

4 Insert the source DV/D8 format tape into your digital video camera.

For the recorder to record or edit, your digital video camera must be set to video playback mode.

5 Press INPUT repeatedly to select "DV."

6 Press REC MODE repeatedly to select the recording mode.

For details about the recording mode, see page 46.

7 Press SYSTEM MENU while the recorder is in stop mode.

The System Menu appears.

8 Select "Setup," and press ENTER.

9 Select "Audio," and press ENTER.

10 Select "DV/D8 Audio Input," and press ENTER.

“Stereo 1”: Records original sound only. Normally select this when dubbing a DV format tape.

“Stereo 2”: Records additional audio only.

“Mix”: Records original and additional sounds.

Select “Stereo 2” or “Mix” if you have added a second audio channel when recording with your digital video camera. For details, see page 100.

11 Select an option, and press ENTER. 12 Press RETURN twice. 13 Select "Dubbing," and press ENTER.

14 Select "DV/D8 Dubbing," and press ENTER.

15 Select "DV/D8 Simple Dubbing," and press ENTER.

The following display appears.

If “DV” or “DV Camera Mode” is displayed instead of “DV Tape Mode,” check that the digital video camera is correctly connected and its power turned on, and that its mode is set for dubbing.

16 Find the dubbing start point on the tape, and stop or pause playback.

Press the left/right arrow keys to select the left arrow, stop, pause, play, fast forward, or play icon on the TV screen and press ENTER to find the point, and stop or pause with the stop or pause icon.

17 Press the right arrow to select the record icon on the TV screen, and press ENTER.

Dubbing starts.

To stop recording

Select the stop icon on the TV screen, and press ENTER. Note that it may take a few seconds for the recorder to stop recording.

To turn off the display for DV/D8 dubbing

Press INPUT.

Hint

If "DV Camera Mode" appears on the screen, you can use

● on the TV screen to record the camera image directly on the recorder.

Notes

• If you want to play the disc on other DVD equipment, finalize the disc (page 88).
• You cannot connect more than one piece of digital video equipment to the recorder.
• You cannot record the date, time, or contents of a DV/D8 format tape onto the disc.
• If you record from a DV/D8 format tape with a soundtrack that is recorded in multiple sampling frequencies (48 kHz, 44.1 kHz, or 32 kHz), no sound, or an unnatural sound will be output when playing back the sampling frequency switch point on the disc.
• The recorded picture may be momentarily affected if the picture size of the source image changes, or if there is nothing recorded on the tape.
• Noise may occur when you switch the audio sampling mode (48 kHz/16 bits → 32 kHz/12 bits).

Dubbing an entire DV/D8 format tape to a DVD (One Touch Dubbing)

You can record the entire contents of a DV/D8 format tape onto a disc with a single press of the ONE-TOUCH DUBBING button. The recorder controls the digital video camera for the whole process, and completes the recording.

1 Follow steps 1 to 11 of "Dubbing From a DV/D8 Format Tape to a DVD" (page 91), and press SYSTEM MENU to turn off the display. 2 Press ONE-TOUCH DUBBING on the recorder.

The recorder rewinds the tape in the digital video camera and then starts recording the tape contents from the beginning.

When playback of the tape stops, One Touch Dubbing ends automatically.

To stop recording

Press ■ (stop).

Note that it may take a few seconds for the recorder to stop recording.

Hint

You can also perform One Touch Dubbing when you select “DV/D8 One Touch Dubbing” and press ENTER in step 15 of “Dubbing From a DV/D8 Format Tape to a DVD” on page 91. Follow the instructions appearing on the TV screen.

Settings and Adjustments

Using the Setup Displays

By using the setup displays, you can make various adjustments to items such as picture and sound, as well as select a language for the subtitles.

The setup displays are used in the following way.

Note

Playback settings stored on the disc take priority over the setup display settings, and not all of the functions described may work.

1 Press SYSTEM MENU while the recorder is in stop mode.

The System Menu appears.

2 Select "Setup," and press ENTER.

The "Setup" display appears.

3 Select "Clock Set," "Video," "Audio," "Features," "Options," or "Easy Setup," and press ENTER.

The selected setup display appears.

Example: "Video" setup

4 Select the item you want to set up, and press ENTER.

Available options for the item appear.

Example: "TV Type"

Some items display a dialog box that requires additional settings.

Example: When "Parental" in "Options" setup is selected.

5 Select an option, and press ENTER.

The currently selected option is displayed next to the setup item.

Example: When "16:9" is set.

To return to the previous display

Press o RETURN.

To turn off the display

Press SYSTEM MENU.

Clock Setting (Clock Set)

The "Clock Set" setup allows you to make clock settings for the recorder.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Clock Set," and press ENTER.

The clock setting display appears.

4 Press ↑/↓ to set the month, and press →.

Set the day, year, hour, minutes, and AM/PM in sequence. Press ←/→ to select the item to be set, then press ↑/↓ to set the item. The day of the week is set automatically.

5 Press ENTER to start the clock.

Video Settings (Video)

The "Video" setup allows you to adjust items related to the image, such as size and color. Choose the settings according to the type of TV, tuner, or decoder connected to the recorder.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Video," and press ENTER.

The "Video" setup appears with the following options. The default settings are underlined.

TV Type

Selects the aspect ratio of the connected TV (4:3 standard or wide).

16:9 Select this when connecting to a wide-screen TV or TV with a wide mode function.
4:3 Letter Box	Select this when connecting to a 4:3 screen TV. Displays a wide picture with bands on the upper and lower portions of the screen.
4:3 Pan Scan	Select this when connecting to a 4:3 screen TV. Automatically displays a wide picture on the entire screen and cuts off the portions that do not fit.

16:9

4:3 Letter Box

4:3 Pan Scan

Note

Depending on the disc, "4:3 Letter Box" may be selected automatically instead of "4:3 Pan Scan" or vice versa.

HDMI Resolution

Selects the type of video signals output from the HDMI OUT jack. When you select "Auto" (default), the recorder outputs video signals of the highest resolution acceptable for your TV. If the picture is not clear, unnatural or not to your satisfaction, try another option that suits the disc and your TV/projector, etc. For details, refer also to the instruction manual supplied with the TV/projector, etc.

The setting is effective only when you connect a HDMI equipped TV to the HDMI OUT jack.

Auto Normally	select this.
1920×1080i Sends 1920×1080i video signals.
1280×720P Sends 1280×720p video signals.
720×480P Sends 720×480p video signals.

Video (HDMI)

Selects the type of output from the HDMI OUT jack.

The setting is effective only when you connect a HDMI equipped TV to the HDMI OUT jack.

Y Cb Cr	Normally, select this when connecting to an HDMI device.
RGB Gives brighter colors and deeper black. Select this if colors are weak.

Black Level

Selects the black level (setup level) for the video signals output from the LINE OUT jacks (page 15).

This setting is not effective when the recorder outputs progressive signals.

On Raises the	standard black level.Select this when the pictureappears too dark.
Off Sets the b	black level of the outputsignal to the standard level.

Picture Control

Selects the picture control for the video signals output from the LINE OUT jacks (page 15). You can adjust the video signal of DVD or VIDEO CD (with PBC function off) from the recorder to obtain the picture quality you want. Select the setting that best suits the program you are watching.

Dynamic 1	Produces a bold dynamic picture by increasing the picture contrast and the color.
Dynamic 2	Produces a more dynamic picture than “Dynamic 1” by further increasing the picture contrast and the color.
Standard	Displays a standard picture (function turned off).
Cinema 1	White colors become brighter and black colors become richer, and the color contrast is increased.
Cinema 2	Enhances details in dark areas by increasing the black level.
Personal Adjusts “Contrast,” “Brightness,” “Color,” and “Hue” using ↑/↓/←/→.

When you watch a movie, “Cinema 1” or “Cinema 2” is recommended.

Progressive

If your TV accepts progressive (480p) format signals, you will enjoy accurate color reproduction and high quality image.

Connect your TV to the COMPONENT VIDEO OUT jacks (page 17).

On Sets the recorder to output progressive signals.
Off	Outputs video signals in interlace format.

Notes

• If you select progressive signals when you connect the recorder to a TV that cannot accept the signal in progressive format, the image quality will deteriorate. In this case, set “Progressive” to “Off.” Or, press DVD in stop mode to operate the DVD recorder, and then hold down ⚪ PAUSE on the recorder for five seconds or more.
• When you connect your TV using an HDMI cable, the “Progressive” setting is set to “On.”

Audio Settings (Audio)

The “Audio” setup allows you to adjust the sound according to the playback and connection conditions.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Audio," and press ENTER.

The “Audio” setup appears with the following options. The default settings are underlined.

Digital Out

The following setup items switch the method of outputting audio signals when you connect a component such as an amplifier (receiver) to the DIGITAL AUDIO OUT (OPTICAL or COAXIAL)/HDMI OUT jack.

For connection details, see “Connecting to Your AV Amplifier (Receiver)” on page 18.

Press ENTER, and select “Dolby Digital” or “DTS.”

If you connect a component that does not accept the selected audio signal, a loud noise (or no sound) will come out from the speakers, and may affect your ears or cause speaker damage.

◆ Dolby Digital (DVDs only)

Selects the type of Dolby Digital signal.

D-PCM Select this when the recorder is connected to an audio component lacking a built-in Dolby Digital decoder. You can select whether the signals conform to Dolby Surround or not by making adjustments to the “Downmix” item in “Audio” setup (page 99).
Dolby Digital	Select this when the recorder is connected to an audio component with a built-in Dolby Digital decoder.

Note

If the HDMI OUT jack is connected to equipment not compatible with Dolby Digital signals, D-PCM signals will be automatically output, even when “Dolby Digital” is selected.

◆ DTS (DVD VIDEOs only)

Selects whether or not to output DTS signals.

On Select this when the recorder is connected to an audio component with a built-in DTS decoder.
Off	Select this when the recorder is connected to an audio component without a built-in DTS decoder.

Note

If the HDMI OUT jack is connected to equipment not compatible with DTS signals, no signal will be output, regardless of the “DTS” setting.

Downmix (DVDs only)

Switches the method for mixing down to two channels when you play a DVD which has rear sound elements (channels) or is recorded in Dolby Digital format. For details on the rear signal components, see “A Connecting to audio L/R jacks” on page 19. This function affects the output of the following jacks:

– LINE OUT (AUDIO L/R) jacks - AUDIO OUT L/R jacks - DIGITAL AUDIO OUT (OPTICAL or COAXIAL)/HDMI OUT jack when “Dolby Digital” is set to “D-PCM” (page 98).

Dolby Surround	Normally select this position.Multi-channel audio signals are output to two channels for enjoying surround sounds.
Normal Multi	-channel audio signals are downmixed to two channels for use with your stereo.

To enjoy the surround effect of Dolby Digital, turn off the surround settings of this recorder (page 99).

Audio DRC (Dynamic Range Control) (DVDs only)

Makes the sound clear when the volume is turned down when playing a DVD that conforms to “Audio DRC.” This affects the output from the following jacks:

– LINE OUT (AUDIO L/R) jacks - AUDIO OUT L/R jacks - DIGITAL AUDIO OUT (OPTICAL or COAXIAL)/HDMI OUT jack only when “Dolby Digital” is set to “D-PCM” (page 98).

Standard	Normally select this position.
TV Mode Makes low sounds clear even if you turn the volume down.
Wide Range	Gives you the feeling of being at a live performance.

Audio (HDMI) (DVD VIDEOs only)

Selects the output method from the HDMI OUT jack.

Auto Normally, select this.Outputs audio signals according to the “Dolby Digital” or “DTS” settings (page 98).

PCM Converts Dolby Digital or DTS to PCM.

Scan Audio (DVDs only)

On	Outputs audio signals during FF1 fast-forward of a DVD disc with Dolby Digital soundtracks.
Off No sound	is output during FF1 fast-forward.

Note

Sound will be interrupted during Scan Audio.

Surround

Turns on the surround function to create virtual rear speakers from a stereo TV or two separate front speakers (page 19).

Off	No surround effect
Surround1	Creates one set of virtual surround speakers
Surround2	Creates two sets of virtual surround speakers
Surround3	Creates three sets of virtual surround speakers

Notes

• When the playback signal does not contain a signal for the surround speakers, the surround effects will be difficult to hear.
• When you select one of the surround modes, turn off the surround settings of the connected TV or amplifier (receiver).

DV/D8 Audio Input

Stereo 1 Records original sound only. Normally select this when dubbing a DV format tape.

Stereo 2 Records additional audio only.

Mix Records both original and additional sounds.

Note

Select “Stereo 2” or “Mix” if you have added a second audio channel when recording with your digital video camera.

Line Audio Input

When recording from equipment connected to the LINE 1 IN or LINE 2 IN jacks to a DVD disc in this recorder, select line input audio.

Stereo	Records stereo sound only.
Main/Sub Records	records the two different soundtracks on DVD-RWs (VR mode)/DVD-Rs (VR mode). You can select either soundtrack when playing back the disc.

Hint

When recording on a disc other than DVD-RWs (VR mode)/DVD-Rs (VR mode), select either sound track with the connected equipment before recording.

Recording, Set Top Box Control, and VCR Settings (Features)

The “Features” setup allows you to make various settings for recording, playback, and the set top box control function.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Features," and press ENTER.

The “Features” setup appears with the following options. The default settings are underlined.

DVD Auto Chapter

Automatically divides a recording (a title) into chapters by inserting chapter markings at specified intervals. The markings are inserted while the recording is being made.

Off No chapter mark is inserted.
5 Min	Inserts chapter marks at approximately 5 minute intervals.
15 Min Inserts chapter marks at approximately 15 minute intervals.

Note

Actual intervals may differ depending on the size of the recording. The selected setting should be regarded as an approximate chapter interval.

Format DVD-RW (DVD-RWs only)

Selects the recording format for an unused DVD-RW, when first inserted.

VR Automatically formats the disc in VR mode.

Video Automatically formats the disc in Video mode.

VCR Function

Press ENTER and select “Tape Length,” “Auto Play,” or “Auto Repeat.”

Tape Length

T120	For T-120 or shorter length tapes.
T160 For T-1	60 length tapes.
T180 For T-1	80 or longer length tapes.

Auto Play

On	Starts playback automatically, when you insert a tape with its safety tab removed.
Off Turns off	the function. You need to press ▷ PLAY to start playback, even if you insert a tape with its safety tab removed.

Auto Repeat

On Plays back	a tape repeatedly. The VCR rewinds the tape to the beginning and restarts playback automatically.
Off	Turns off the function.

Synchro Recording

to DVD	Sets the recorder to record programs from connected equipment that has a timer function (such as a satellite tuner) to a DVD disc.
to VIDEO Sets	s the recorder to record programs from connected equipment that has a timer function (such as a satellite tuner) to a VHS tape.

Set Top Box Control

You can control your cable box/satellite receiver using the supplied set top box controller. See "Step 7: Easy Setup" for details. Press ENTER, and select "On" or "Off."

On Turns on	the cable box/satellite receiver control function. See “Using the cable box/satellite receiver control function” (page 12).
Off	Turns off the cable box/satellite receiver control function. Select this if you do not want to use the supplied set top box controller.

When “Set Top Box Control” is set to “On,” you can make the following settings. Note that when you change “Set Top Box Control” to “On” or “Off,” all timer recording settings will be canceled.

Brand Code

See “Cable Box/Satellite Receiver Brand Code” (page 121) for the brand code for your cable box or satellite receiver, and enter the code using the number buttons and ENTER.

Connections

Selects the connection you used for your cable box or satellite receiver. Select the connection from "Line1" or "Line2."

Ch. Digit lock

Allows you to select whether to fix the digits for your cable box or satellite receiver.

Off	Select this when your cable box or satellite receiver only accepts a three or more digit channel number. Normally select this.
Lock to 2 digits	Select this only when your cable box or satellite receiver only accepts a two digit channel number.

Mode for SET button

Select “Mode 1” or “Mode 2” if your cable box or satellite receiver requires pressing an ENTER button or a SET button etc., after entering the channel number. If “Mode 1” does not work, try “Mode 2.” If your cable box or satellite receiver does not respond to either setting, contact the manufacturer of the cable box or satellite receiver.

Off No code is sent when SET is pressed. Normally select this.

Mode 1 Sends the channel number you entered.

Mode 2 Sends the channel number you entered.

Language, Parental Control Settings/Factory Settings (Options)

The “Options” setup allows you to set up other operational settings.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Options," and press ENTER.

The “Options” setup appears with the following options. The default settings are underlined.

Language

◆ OSD (On-Screen Display) Switches the display language on the screen. ◆ Disc Menu (DVD VIDEOs only) Switches the language for the DVD menu. ◆ Audio (DVD VIDEOs only)

Switches the language of the soundtrack.

When you select “Original,” the language given priority in the disc is selected.

◆ Subtitle (DVD VIDEOs only)

Switches the language of the subtitles recorded on the disc.

When you select “Auto,” the subtitle language changes according to the language you selected for the soundtrack. See page 120 for an explanation of the language abbreviations.

Note

If you select a language in “Disc Menu,” “Subtitle,” or “Audio” that is not recorded on the DVD VIDEO, one of the recorded languages will be automatically selected.

Parental (DVD VIDEOs only)

Playback of some DVD VIDEOs can be limited according to a predetermined level, such as the age of the users. Scenes may be blocked or replaced with different scenes.

1 After step 3 above, select "Parental," and press ENTER.

- If you have not entered a password, the display for registering a new password appears.

Enter a 4-digit password using the number buttons.

The display for confirming the password appears.

Re-enter the password.

- When you have already registered a password, the display for entering the password appears.

Enter a 4-digit password using the number buttons.

2 Select "Rating Level," and press ENTER. The selection items for "Rating Level" are displayed.

The lower the value, the stricter the limitation.

3 Select the level, and press ENTER. The Parental setting is complete.

• To cancel the Parental setting for the disc, set "Rating Level" to "Off" in step 3.
• To change the password, select "Change Password" in step 2, and press ENTER. When the display for registering a password appears, enter a new four-digit password using the number buttons.

Hint

If you enter a wrong number, press ← or CLEAR and re-enter.

Notes

• If you forget your password, select "Factory Setting" of "Options" in the "Setup" display.
• Playback of discs without the Parental Control function cannot be limited on this recorder.
• Depending on the disc, you may be asked to change the Parental Control level while playing the disc. In this case, enter your password, then change the level.

Front Display

Adjusts the lighting of the front panel display.

Auto Adjusts	to low lighting when power is off.
Bright Maintains	bright lighting when power is off.
Dimmer Maintains	low lighting regardless of whether power is on or off.
Off Turns off	the lighting when power is off. Maintains the lighting when power is on.

Command Mode

Changes the command mode of this recorder if other DVD equipment is assigned the same command mode. Be sure to match the command mode of the supplied remote to the setting made here. For details, see “If you have a Sony DVD player or more than one Sony DVD recorder” on page 22.

DVD 1 Select	this if the default command mode conflicts with other DVD equipment.
DVD 2 Select	this if the default command mode conflicts with other DVD equipment.
DVD 3	The default command mode of the recorder.

Factory Setting

Allows you to return the setup settings to their default settings. Note that all of your previous settings will be lost.

1 After step 3 on page 102, select “Factory Setting,” and press ENTER. 2 Select "Start," and press ENTER. The setup settings return to their default settings. 3 Press ENTER when "Finish" appears. The power automatically turns off and then on again, and the recorder is reset to the factory settings. When the “Easy Setup” display appears, follow the instructions for Easy Setup (page 23) from step 4.

Easy Setup (Resetting the Recorder)

Select this to run the Easy Setup program.

1 Press SYSTEM MENU while the recorder is in stop mode. 2 Select "Setup," and press ENTER. 3 Select "Easy Setup," and press ENTER.

4 Select "Start," and press ENTER. 5 Follow the instructions for Easy Setup (page 23) from step 5.

Additional Information

Troubleshooting

If you experience any of the following difficulties while using the recorder, use this troubleshooting guide to help remedy the problem before requesting repairs. Should any problem persist, consult your nearest Sony dealer.

Power

The power does not turn on.

Check that the AC power cord is connected securely.


There is no picture.

Re-connect all connecting cords securely. The connecting cords are damaged. Check the connection to your TV (page 12). Switch the input selector on your TV (such as to "VIDEO") so that the signal from the recorder appears on the TV screen.

Picture noise appears.

Check the connection to your TV (page 12) and switch the input selector on your TV so that the signal from the recorder appears on the TV screen. If the picture output signal from your recorder passes through your VCR to get to your TV, or if you are connected to a combination TV/VIDEO player, the copy-protection signal applied to some DVD programs could affect picture quality. If you still experience this problem even when you connect your recorder directly to your TV, try connecting your recorder to your TV's S VIDEO input. You have set the recorder to progressive format even though your TV cannot accept the progressive signal. In this case, set "Progressive" to "Off" in "Video" setup (page 97), or press DVD in stop mode to operate the DVD recorder and then hold down || PAUSE on the recorder for five seconds or more. Even if your TV is compatible with progressive format (480p) signals, the image may be affected when you set the recorder to progressive format. In this case, set "Progressive" to "Off" in "Video" setup (page 97), or press DVD in stop

mode to operate the DVD recorder and then hold down ■■ PAUSE on the recorder for five seconds or more.

There is no picture or the picture noise appears when connected to the DV IN jack.

Try the following: ①Turn the recorder off and on again. ②Turn the connected equipment off and on again. ③Disconnect and then connect the i.LINK cable again.

There is no picture or the picture noise appears when connected to the HDMI OUT jack.

→ Try the following: ①Turn the recorder off and on again. ②Turn the connected equipment off and on again. ③Disconnect and then connect the HDMI cord again.

If the HDMI OUT jack is used for video output, changing the “HDMI Resolution” setting in the “Video” setup may solve the problem (page 96). Connect the TV and the recorder using a video jack other than the HDMI OUT, and switch the TV’s input to the connected video input so that you can see the on-screen displays. Change the “HDMI Resolution” setting in the “Video” setup, and switch the TV’s input back to HDMI. If the picture still does not appear, repeat the steps and try other options.

→ The recorder is connected to an input device that is not HDCP compliant (page 16).

The channel on the cable box/satellite receiver has been changed.

The set top box controller is connected and “Set Top Box Control” is set to “On.” Check the “Set Top Box Control” settings in “Features” setup (page 101).

The picture from equipment connected to the recorder's input jack does not appear on the screen.

→ If the equipment is connected to the LINE 1 IN jack, select “LINE1” in the front panel display by pressing INPUT. If the equipment is connected to the LINE 2 IN jacks, select “LINE2” in the front panel display by pressing INPUT.

The playback picture or TV program from the equipment connected through the recorder is distorted.

→ If the playback picture output from a DVD player, VCR, or tuner goes through your recorder before reaching your TV, the copy-protection signal applied to some programs could affect picture quality. Disconnect the playback equipment in question and connect it directly to your TV.

The picture does not fill the screen.

→ Set “TV Type” in “Video” setup to fit the aspect ratio of your TV (page 96).

The picture does not fill the screen, even though the aspect ratio is set in “TV Type” in “Video” setup.

→ The aspect ratio of the disc is fixed on your DVD.

Sound

There is no sound.

→ Re-connect all connections securely. → The connecting cord is damaged. → The input source setting on the amplifier or the connection to the amplifier is incorrect. → The recorder is in reverse play, fast-forward, slow motion, or pause mode. → If the audio signal does not come through the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack, check the “Audio” setup settings (page 98).

No sound is output from the HDMI OUT jack.

→ Try the following: ①Turn the recorder off and on again. ②Turn the connected equipment off and on again. ③Disconnect and then connect the HDMI cord again. → The HDMI OUT jack is connected to a DVI device (DVI jacks do not accept audio signals). → The equipment connected to the HDMI OUT jack does not conform to the audio signal format.

Sound is noisy.

→ When playing a CD with DTS soundtracks, noise will come from the LINE OUT (AUDIO L/R) or AUDIO OUT L/R jacks (page 37).

The sound volume is low.

The sound volume is low on some DVDs. The sound volume may improve if you set “Audio DRC” in “Audio” setup to “Wide Range” (page 99).

An alternate audio track cannot be recorded or played.

→ If you have connected an AV amplifier to the DIGITAL AUDIO OUT (OPTICAL or COAXIAL) jack and want to change the audio track for a DVD-RW (VR mode)/DVD-R (VR mode) during playback, set “Dolby Digital” in “Audio” setup to “D-PCM” (page 98). → When recording to a disc other than DVD-RWs (VR mode)/DVD-Rs (VR mode), set “Line Audio Input” in “Audio” setup to “Stereo.”

DVD Playback

The disc does not play.

→ The disc is upside down. Insert the disc with the labeled side facing up. → The disc is not correctly inserted. → Moisture has condensed inside the recorder. Remove the disc and leave the recorder turned on for about half an hour until the moisture evaporates. → If the disc was recorded on another recorder, the recorder cannot play the disc if it was not finalized (page 88).

The disc does not start playback from the beginning.

→ Resume play was activated (page 38). → You have inserted a disc whose Title menu or DVD menu automatically appears on the TV screen when it is first inserted. Use the menu to start playback.

The recorder starts playing the disc automatically.

→ The DVD VIDEO features an auto playback function.

Playback stops automatically.

→ If the disc has an auto pause signal, the recorder stops playback at the auto pause signal.

Some functions such as Stop, Search, or Slow-motion Play cannot be performed.

→ Depending on the disc, you may not be able to do some of the operations above. See the instruction manual supplied with the disc. → While the recorder is reading disc information, playback operations will not work.

The language for the soundtrack cannot be changed.

→ Multilingual tracks are not recorded on the disc being played. → The DVD VIDEO prohibits the changing of the language for the soundtrack. → Try changing the language using the DVD VIDEO's menu.

The subtitle language cannot be changed or turned off.

→ Multilingual subtitles are not recorded on the DVD VIDEO. → The DVD VIDEO prohibits changing of the subtitles. → Try changing the subtitle using the DVD VIDEO's menu. → The subtitles cannot be changed for the titles recorded on this recorder.

The angles cannot be changed.

→ Multi-angles are not recorded on the DVD VIDEO being played. → You are trying to change the angles when “” does not appear in the front panel display (page 36). → The DVD VIDEO prohibits changing angles. → Try changing the angle using the DVD VIDEO's menu. → The angles cannot be changed for the titles recorded on this recorder.

The MP3 audio track cannot be played.

→ The DATA CD is not recorded in the MP3 format that conforms to ISO9660 Level 1/Level 2. → The MP3 audio track does not have the extension “.MP3.” → The data is not formatted in MP3 even though it has the extension “.MP3.” → The data is not MPEG1 Audio Layer 3 data. → The recorder cannot play audio tracks in MP3PRO format.

→ When playing a disc containing JPEG image files, “Photo” is selected (page 41).

The JPEG image file cannot be played.

→ The DATA CD is not recorded in a JPEG format that conforms to ISO9660 Level 1/Level 2. → The JPEG image file does not have the extension ".JPG" or ".JPEG." → The data is not formatted in JPEG even though it has the extension ".JPG" or ".JPEG." → The length or width of the image is more than 4,720 dots. → When playing a disc containing MP3 audio tracks, "Music" is selected (page 42).

The title of the MP3 audio album/track or JPEG image folder/file is not correctly displayed.

→ The recorder can only display numbers and alphabet. Other characters are displayed as asterisks.

DVD Recording/Timer recording/Editing

The channel cannot be changed from the channel you are recording.

→ Set the TV's input source to "TV."

Recording does not start immediately after ● REC is pressed.

→ Operate the recorder only after "LOAD," "FORMAT," or "INF WRITE" disappears from the front panel display.

Nothing was recorded even though the timer setting is set correctly.

→ There was a power failure during recording. → Disconnect the AC power cord from the AC outlet, and connect it again. → The program contains copy protection signals that restrict copying. The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 50). → There is no DVD inserted in the recorder. → There is not enough disc space for the recording. → The connected cable box/satellite receiver was turned off. → The set top box controller was incorrectly connected (page 12).

→ The settings in "Set Top Box Control" in "Features" setup have been changed (page 101).

Recording does not stop immediately after ■ STOP is pressed.

→ It will take a few seconds for the recorder to input disc data before recording can stop.

Timer recording is not complete or did not start from the beginning.

→ There was a power failure during recording. → The recorder's internal clock stopped due to a power failure that lasted for more than 30 minutes. Reset the clock (page 95). → The channel or input changed from the one you are recording. → The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 50). → There is not enough disc space for the recording.

The ⏻ indicator flashes after timer recording is set.

→ Insert a recordable disc (page 30). → The disc does not have any space for recording. → The disc has 99 or more titles, which prevents further recording. → The disc is protected (page 67).

The SYNCHRO REC indicator flashes after Synchro-Recording is set.

→ Insert a recordable disc (page 30). → Insert a disc with enough space for the recording. → The disc has 99 or more titles, which prevents further recording. → The disc is protected (page 67).

Contents previously recorded were erased.

→ Data that has been recorded on a DVD with a PC will be erased from the disc when the disc is inserted.

VCR Playback

The playback picture does not appear on the TV screen.

→ Make sure the TV is set to the channel for the VCR. If a monitor is used, set it to video input.

The picture is not clear.

→ Adjust the tracking by the TRACKING +/- button. The video heads are dirty (see page 111). Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads. → The video heads may have to be replaced. Consult your local Sony dealer for more information. → The tape is defective.

The picture rolls vertically during picture search.

→ Adjust the vertical hold control on the TV or monitor.

The picture has no sound.

→ The tape is defective. → Check the audio cord connection.

A tape cannot be inserted.

→ Check that a tape is not already in the tape compartment.

VCR Recording

The channel cannot be changed from the one you are recording.

→ Set the TV's input source to "TV."

No TV program appears on the TV screen.

→ Make sure the TV is set to the channel for the VCR. If a monitor is used, set it to video input.

The tape starts playing as soon as it is inserted.

→ The safety tab has been removed. To record on this tape, cover the tab hole.

The tape is ejected when ● REC is pressed.

→ Check that the safety tab has not been removed.

Nothing happens when ● REC is pressed.

→ Make sure the tape is not at its end.

VCR Timer recording

The timer does not operate.

→ Check that the clock is correctly set. → Make sure a tape has been inserted. → Check that the safety tab has not been removed. → Make sure the tape is not at its end. → Make sure a program has been set for timer recording. → Make sure the timer settings are set for a future time. → Check that the cable box is turned on. → “- -:- -” appears in the front panel display if the recorder is disconnected from the wall outlet for more than 30 minutes. Reset the clock and timer. → Turn the power off and unplug the AC power cord. The program that starts first has priority and the second program starts recording only after the first program has finished. If the programs start at the same time, the program listed first in the menu has priority (page 79).

The ⏻ indicator flashes after timer recording is set.

→ Check that the safety tab has not been removed.

The SYNCHRO REC indicator flashes after Synchro-Recording is set.

→ Check that the safety tab has not been removed.

Display

Menus or displays do not appear on the screen.

→ While the recorder is reading disc information, the System Menu, OPTIONS menu, or information display will not appear.

“- -:- -” appears in the front panel display.

→ Set the clock again (page 95).

The ⏻ indicator is flashing.

→ The disc does not have any space for recording. → Insert a recordable disc or a tape with its safety tab in place inside the recorder.

The recording mode indication is incorrect.

→ Since the recording mode for recorded titles is calculated after sampling the recorded data during playback, it may be displayed differently from the mode you selected when recording. However, the actual recording itself is correctly made in the selected mode.

Remote control

The remote does not function.

→ Batteries are weak. → The remote is too far from the recorder. → Turn on the recorder. → The remote is not pointed at the remote sensor on the recorder. → Different command modes are set for the recorder and remote. Set the same command mode (page 22).

Other Sony equipment responds to the remote.

The same command mode is set for both the Sony DVD equipment. Set a different command mode for the recorder (page 22).

Others

The recorder does not operate properly.

→ Restart the recorder. Press down I/⏻ on the recorder for more than ten seconds until “SONY DVD” appears in the front panel display. → When static electricity, etc., causes the recorder to operate abnormally, turn off the recorder and wait until the clock appears in the front panel display. Then, unplug the recorder and after leaving it off for a while, plug it in again.

The disc tray does not open after you press ▲ OPEN/CLOSE.

→ It may take a few seconds for the disc tray to open after you have recorded or edited a disc. This is because the recorder is adding disc data to the disc.

“Cannot record because of high temperature.” appears on the TV screen.

→ Check that the vent on the rear of the recorder is not blocked. Then, turn off the recorder, wait until the clock appears in the front panel display, and disconnect the AC power cord. Leave the recorder off for a while, then re-connect the power cord, and press I/⏻ on the recorder.

"CHILD LOCK" appears in the front panel display.

→ The recorder is locked. Cancel the Child Lock (page 38).

Control by AV mouse is not possible.

→ Some satellite receivers may not support AV mouse.

The Set Top Box Control function does not work.

→ Turn on the recorder.

Notes About This Recorder

On adjusting volume

Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speakers may be damaged when a peak level section is played.

On cleaning

Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder or solvent such as alcohol or benzine.

On cleaning discs, disc/lens cleaners

Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction.

On replacement of parts

In the event that this unit is repaired, repaired parts may be collected for reuse or recycling purposes.

Notes about the discs

- To keep the disc clean, handle the disc by its edge. Do not touch the surface. Dust, fingerprints, or scratches on the disc may cause it to malfunction.

• Do not expose the disc to direct sunlight or heat sources such as hot air ducts, or leave it in a car parked in direct sunlight as the temperature may rise considerably inside the car. • After playing, store the disc in its case.
• Clean the disc with a cleaning cloth. Wipe the disc from the center out.

• Do not use solvents such as benzine, thinner, commercially available disc/lens cleaners, or anti-static spray intended for vinyl LPs.
• Do not use the following discs.
• A disc that has a non-standard shape (e.g., card, heart).
• A disc with a label or sticker on it.
• A disc that has cellophane tape or sticker adhesive on it.

Symptoms caused by contaminated video heads

When the video heads are dirty, the picture is distorted or the tape cannot be played. Clean the video heads using a Sony video head cleaning cassette. If a Sony cleaning cassette is not available in your area, have the heads cleaned at your nearest Sony dealer (a standard service fee will be charged). Do not use a commercially available liquid type cleaning cassette, as it may damage the video heads.

Specifications

System

[DVD recorder section]

Laser

Semiconductor laser

Audio recording format

Dolby Digital

Video recording format

MPEG Video

[VCR section]

Format

VHS NTSC standard

Video recording system

Rotary head helical scanning FM system

Video heads

Double azimuth four heads

Video signal

NTSC color, EIA standards

Tape speed

SP: 33.35 mm/s (1³/8 inches/s)

EP: 11.12 mm/s (7/16 inches/s)

LP: 16.67 mm/s (11/16 inches/s),

playback only

Maximum recording/playback time

8 hrs. in EP mode (with T-160 tape)

Rewind time

Approx. 2 min (with T-120 tape)

[Timer section]

Clock

Quartz locked

Timer indication

12-hour cycle

Timer setting

12 programs in total (max.)

Inputs and outputs

LINE 1 IN and LINE 2 IN

VIDEO IN, phono jack (1 each)

Input signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO IN, phono jacks (2 each)

Input level: 327 mVrms

Input impedance: more than 47 kilohms

LINE 2 IN

S VIDEO, 4-pin, mini-DIN jack

Y: 1.0 Vp-p, unbalanced, sync negative

C: 0.286 Vp-p, load impedance 75 ohms

DV IN, 4-pin jack, i.LINK S100

LINE OUT

VIDEO OUT, phono jack (1)

Output signal: 1 Vp-p, 75 ohms, unbalanced, sync negative

AUDIO OUT, phono jacks (2)

Standard output: 327 mVrms

Load impedance: 47 kilohms

Output impedance: less than 10 kilohms

DIGITAL AUDIO OUT

OPTICAL, Optical output jack

-18 dBm (wave length: 660 nm)

COAXIAL, phono jack

Output signal: 0.5 Vp-p, 75 ohms

COMPONENT VIDEO OUT (Y, PB, PR)

Phono jack

Y: 1.0 Vp-p/PB, PR: 0.7 Vp-p, 75 ohms

S VIDEO OUT

4-pin, mini-DIN jack

Y: 1.0 Vp-p, unbalanced, sync negative

C: 0.286 Vp-p, load impedance 75 ohms

SET TOP BOX CONTROL

Mini jack

HDMI

HDMI 19 pin - Standard Connector

General

Power requirements

120 V AC, 60 Hz

Power consumption

31 W

Power back-up

Back-up duration: 30 min

Operating temperature

5°C to 35°C (41°F to 95°F)

Storage temperature

-20°C to 60°C (-4°F to 140°F)

Operating humidity

25% to 80%

Dimensions including projecting parts and controls (w/h/d)

Approx. 430 × 82 × 332 mm

(Approx. 17 × 3 1/4 × 13 1/8 inches)

Mass

Approx. 4.7 kg (Approx. 10.4 lbs)

Supplied accessories

Remote commander (remote) (1)

Size AA (R6) batteries (2)

Audio/video cord (1)

Set top box controller (1)

HDMI cord (1)

Design and specifications are subject to change without notice.

About i.LINK

The DV IN jack on this recorder is an i.LINK-compliant DV IN jack. This section describes the i.LINK standard and its features.

What is i.LINK?

i.LINK is a digital serial interface for handling digital video, digital audio and other data in two directions between equipment having the i.LINK jack, and for controlling other equipment. i.LINK-compatible pieces of equipment can be connected by a single i.LINK cable. Possible applications are operations and data transactions with various digital AV equipment. When two or more i.LINK-compatible equipment are connected to this recorder in a daisy chain, operations and data transactions are possible with not only the equipment that this recorder is connected to but also with other devices via the directly connected equipment. Note, however, that the method of operation sometimes varies according to the characteristics and specifications of the equipment to be connected, and that operations and data transactions are sometimes not possible on some connected equipment.

Note

Normally, only one piece of equipment can be connected to this recorder by the i.LINK cable (DV connecting cable). When connecting this recorder to i.LINK-compatible equipment having two or more i.LINK jacks (DV jacks), see the instruction manual of the equipment to be connected.

About the name "i.LINK"

i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY, and is a trademark approved by many corporations. IEEE 1394 is an international standard standardized by the Institute of Electrical and Electronics Engineers.

i.LINK baud rate

i.LINK's maximum baud rate varies according to the equipment. Three maximum baud rates are defined:

S100 (approx. 100 Mbps*) S200 (approx. 200 Mbps) S400 (approx. 400 Mbps)

The baud rate is listed under “Specifications” in the instruction manual of each equipment. It is also indicated near the i.LINK jack on some equipment.

The maximum baud rate of equipment on which it is not indicated such as this unit is “S100.”

When units are connected to equipment having a different maximum baud rate, the baud rate sometimes differs from the indicated baud rate.

* What is Mbps?

Mbps stands for megabits per second, or the amount of data that can be sent or received in one second. For example, a baud rate of 100 Mbps means that 100 megabits of data can be sent in one second.

i.LINK functions on this recorder

For details on how to dub when this recorder is connected to other video equipment having DV jacks, see page 90.

The DV jack on this recorder can only input DVC-SD signals. It cannot output signals. The DV jack will not accept MICROMV signals from equipment such as a MICROMV digital video camera with an i.LINK jack.

For further precautions, see the notes on page 90. For details on precautions when connecting this recorder, also see the instruction manuals for the equipment to be connected.

Required i.LINK cable

Use the Sony i.LINK 4-pin-to-4-pin cable (during DV/D8 dubbing).

i.LINK and are trademarks.

Guide to Parts and Controls

For more information, see the pages in parentheses.

Front panel

Buttons on the recorder have the same function as the buttons on the remote if they have the same or similar names.

1 (open/close) button (35, 47, 91)

2 (on/standby) switch (23)

3 Disc tray (35, 47, 91)

4 DVD → button (85) ← VIDEO button (84)

5 Tape compartment (69, 76)

6 (eject) button (69)

7 REC (record) button (47, 76)

8 ◀◀/▶▶ (rewind/fast-forward) buttons (37)

9 ▶ (play) button (35, 69)

II (pause) button (36, 47, 71, 76)

■ (stop) button (35, 47, 69, 76)

10 SELECT DVD/VIDEO buttons (35, 47, 69, 76)

11 (remote sensor) (21)

12 Front panel display (45, 73)

13 HDMI indicator (16)

14 SYNCHRO REC indicator (51, 80)

15 CHANNEL/TRACKING +/- buttons*1*2 (47, 70, 76)

16 ONE-TOUCH DUBBING button (93)

17 DV IN jack (90)

18 LINE 2 IN (S VIDEO/VIDEO/AUDIO L (MONO)/R) jacks (27)

*1 The CHANNEL/TRACKING + button has a tactile dot. Use the tactile dot as a reference.

*2 The CHANNEL +/- buttons are used for channel selection when the set top box control is turned on (page 12).

Remote

For DVD functions

1 ▲ OPEN/CLOSE button (35, 47, 91) 2 DVD button (35, 47) 3 Number buttons*1 (36) SET button (102) 4 ANGLE button (36) 5 TOP MENU button (35) MENU button (35) 6 DISPLAY button (44) 7 ↑/↓/←/→/ENTER button (23) 8 RETURN button (23)

9 PREV (previous)/NEXT buttons (36) 10 REPLAY/ADVANCE buttons (36) 11 ◀◀ / ▶▶▶ (search) buttons (36) 12 CLEAR button (103) 13 II PAUSE button (47) 14 ● REC (record) button (47) 15 I/ (on/standby) switch (23) 16 CH (channel) +/- button*1*2 (12, 47) 17 INPUT button (47, 54, 91) 18 TIME/TEXT button (45) 19 AUDIO button*1 (36) SUBTITLE button (36) 20 SYSTEM MENU button (10) TITLE LIST button (39, 57) TIMER button (49) 21 ORIGINAL/PLAYLIST button (39, 57) 22 OPTIONS button (40) 23 ▷ PLAY button*1 (35) 24 ■ STOP button (35, 47) 25 REC MODE button (47, 91) 26 SYNCHRO REC button (51) 27 TV buttons

• I/⏻ (on/standby) switch (21) - INPUT button (21) - CH (channel) +/- button*1 (21) • VOL (volume) +/- button (21) • DIGITAL/ANALOG button (21)

For VCR functions

1 ▲ OPEN/CLOSE (eject) button (69)

2 Number buttons*1 (76) SET button (102)

3 SYSTEM MENU button (10)

4 DISPLAY button (73)

5 RETURN button (23)

6 PREV (previous)/▶ NEXT buttons (71)

7 (search) buttons (71)

8 CLEAR button (69)

9 II PAUSE button (71, 76)

10● REC (record) button (76)

11I/ ¹ (on/standby) switch (23)

12VIDEO button (69, 76)

13 CH (channel)/TRACKING +/- button* 1*2 (12, 70, 76)

14 INPUT button (76)

15TIME/TEXT button (73)

16 AUDIO button* 1 (74)

17 TIMER button (78)

18 ↑/↓/←/→/ENTER button (23)

19 OPTIONS button (72)

20 REPLAY/ ADVANCE buttons (71)

21▷ PLAY button* 1 (69)

22 ■ STOP button (69, 76)

23 REC MODE button (76)

24 SYNCHRO REC button (80)

25 TV buttons

• I/⏻ (on/standby) switch (21)

- INPUT button (21)

- CH (channel) +/- button*1 (21)

• VOL (volume) +/- button (21)

• DIGITAL/ANALOG button (21)

*1 Number 5, AUDIO, CH +, and ▷ PLAY buttons have a tactile dot. Use the tactile dot as a reference.

*2 The CH +/- button are used for channel selection when the set top box control is turned on (page 12).

Front panel display

1 DVD playing/recording status ②Disc type/recording format 3 Audio signal indicators 4 STEREO indicator (74) ⑤VIDEO playing/recording status 6 Tape indicator 7 Timer indicator

8 Displays the following (45, 73):

• Playing time/remaining time
• Current title/chapter/track/index number • Recording time/recording mode
• Clock
• Channel

9 (angle) indicator (36)

10 Disc indicator

Rear panel

1 AUDIO OUT L/R jacks (18) 2 SET TOP BOX CONTROL jack (13) 3 HDMI OUT jack (16) 4 DIGITAL AUDIO OUT (COAXIAL/OPTICAL) jacks (18) 5 COMPONENT VIDEO OUT (Y, PB, PR) jacks (17)

6 S VIDEO OUT jack (15) 7 LINE 1 IN (VIDEO/AUDIO L/R) jacks (13) 8 LINE OUT (VIDEO/AUDIO L/R) jacks (15, 17)

Glossary

Chapter (page 40)

Sections of a picture or a music feature that are smaller than titles. A title is composed of several chapters. Depending on the disc, no chapters may be recorded.

Copy protection signals (page 47)

Copy restriction set by copyright owners, etc. These signals are included in some software or TV programs and restrict recording on this recorder.

Dolby Digital (page 98)

Digital audio compression technology developed by Dolby Laboratories. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. Dolby Digital provides the same discrete channels of high quality digital audio found in “Dolby Digital” theater surround sound systems. Good channel separation is realized because all of the channel data is recorded discretely, and little deterioration occurs because all channel data processing is digital.

DTS (page 98)

Digital audio compression technology by DTS, Inc. This technology conforms to multi-channel surround sound. The rear channel is stereo and there is a discrete subwoofer channel in this format. DTS provides the same discrete channels of high quality digital audio.

Good channel separation is realized because all of the channel data is recorded discretely, and little deterioration occurs because all channel data processing is digital.

DVD+RW (page 30)

A DVD+RW (read “plus RW”) is a recordable and rewritable disc. DVD+RWs use a recording format that is comparable to the DVD VIDEO format.

DVD-RW (page 30)

A DVD-RW is a recordable and rewritable disc that is the same size as a DVD VIDEO. The DVD-RW has two different modes: VR mode and Video mode. DVDs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD+R (page 30)

A DVD+R (read “plus R”) is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD+R, and will have the same format as a DVD VIDEO.

DVD-R (page 30)

A DVD-R is a recordable disc that is the same size as a DVD VIDEO. Contents can be recorded only once to a DVD-R. The DVD-R has two different modes: VR mode and Video mode. DVDs created in Video mode have the same format as a DVD VIDEO, while discs created in VR (Video Recording) mode allow the contents to be programmed or edited.

DVD VIDEO (page 33)

A disc that contains up to eight hours of moving pictures on a disc the same diameter as a CD. The data capacity of a single-layer and single-sided DVD is 4.7 GB (Giga Byte), which is 7 times that of a CD. The data capacity of a double-layer and single-sided DVD is 8.5 GB, a single-layer and double-sided DVD is 9.4 GB, and double-layer and double-sided DVD is 17 GB. The picture data uses the MPEG 2 format, which is a worldwide standard of digital compression technology. The picture data is compressed to about 1/40 (average) of its original size. The DVD also uses a variable rate coding technology that changes the data to be allocated according to the status of the picture. Audio information is recorded in a multi-channel format, such as Dolby Digital, allowing you to enjoy a more real audio presence.

Furthermore, various advanced functions such as the multi-angle, multilingual, and Parental Control functions are provided on the DVD.

HDMI (High-Definition Multimedia Interface) (page 16)

HDMI is an interface that supports both video and audio on a single digital connection. The HDMI connection carries standard to high definition video signals and multi-channel audio signals to AV components such as HDMI equipped TVs, in digital form without degradation.

The HDMI specification supports HDCP (High-bandwidth Digital Content Protection), a copy protection technology that incorporates coding technology for digital video signals.

Interlace format

Interlace format shows every other line of an image as a single “field” and is the standard method for displaying images on television. The even number field shows the even numbered lines of an image, and the odd numbered field shows the odd numbered lines of an image.

Titles actually recorded on a DVD-RW (VR mode) or DVD-R (VR mode). Erasing original titles frees up disc space on DVD-RWs.

Playlist (page 56)

Playback information created from the actual recordings on a DVD-RW (VR mode) or DVD-R (VR mode). A Playlist leaves the original titles as they are, and contains only the information needed to control playback. A Playlist title takes up very little disc space.

Progressive format (page 97)

Compared to the Interlace format that alternately shows every other line of an image (field) to create one frame, the Progressive format shows the entire image at once as a single frame. This means that while the Interlace format can show 30 frames/60 fields in one second, the Progressive format can show 60 frames in one second. The overall picture quality increases and still images, text, and horizontal lines appear sharper.

Title (page 40)

The longest section of a picture or music feature on a DVD, movie, etc., in video software, or the entire album in audio software.

Track (page 40)

Sections of a music feature on a CD (the length of a song).

DVD Audio/Subtitle Language

When you play a DVD VIDEO, the language of the selected audio track or subtitle is abbreviated as follows. See page 102 to change the audio track or subtitle.

Abbreviation Language
ARA Arabic
BUL Bulgarian
CHI Chinese
CRO Croatian
CZE Czech
DAN Danish
DEU German
ENG English
ESP Spanish
FIN Finish
FRA French
GRE Greek
HUN Hungarian
IDN Indonesian
IND Hindi
ISL Icelandic
ITA Italian
IWR Hebrew
JPN Japanese
KOR Korean
MAL Malay
NLD Dutch
NOR Norwegian
POL Polish
POR Portuguese
RUS Russian
SVE Swedish
THA Thai

Abbreviation Language
TUR Turkish
VIE Vietnamese
ZAF Afrikaans

Cable Box/Satellite Receiver Brand Code

When you want to use the set top box control function, find the brand code number of your cable box/satellite receiver from the list and enter it in step 7 of Easy Setup (page 23).

If more than one code number is listed, try entering them one at a time until you find the one that works with your cable box/satellite receiver.

Cable box brand Code number
3M 0033
ABC 0003, 0007, 0011, 0017,0008, 0014, 0001, 0013,0206, 0047, 0237, 0033
Accuphase 0003, 0007, 0013, 0047,0001, 0011, 0017, 0014,0206
Acorn 1102, 0237
Action 0237
Active 0237, 1102
Aim 0015
Allegro 0315, 0153
Amark 0008, 0277, 0144, 0056
American 0060
Americast 0899
Antronix 0207, 0022
Anvision 0211, 0111
Apache	0770
Arbatron 0014, 0011, 0003, 0476
Archer 0153, 0022, 0207, 0039,0797, 0237, 0260
ASE	1080
Auna	1269
BBT	0267
BCC	0276
Belcor 0056, 0022
Bell & Howell	0014
Bell Atlantic	0641
Bell South	0899
Bestlink	0303

Cable box brand Code number
Betavue	0022
British Telecom	0003
BVS	0641
Cable Healthcare	0769, 0058
Cable Star	0056
Cabletenna	0022, 0039
Cableview	0022
Century	0153, 0618, 0008, 0315
Citation	0017
Citizen	0153, 0315, 0078, 0242
Clearmaster	0883
ClearMax	0883, 1247
Colour Voice	0031, 0025
Comband	0233, 0232
Comtec	0274
Comtronics	0060, 0040
Comtronics Eagle	0040, 0060
Contec	0019
Coolmax 0883
Curtis Mathes	0015, 0242
Dae Ryung Eagle	0008
Daeryung 0008, 0877, 0477, 0277, 1877
Diamond	0035
Digeo	1476
Digi 0637
Director	0476
Dumont	0637
Eagle Comtronics	0060, 0028
Eastern	0002, 0274, 0418
Electricord	0078
Emerson	0797, 0303, 0015, 0014
Everquest	0040, 0015
Focus	0400
Fosgate	0276
Fujitsu 0246
Funai	0248, 0019
FutureVision	0649
Cable box brand	Code number
Garrard 0153
Gateway 0764
GC Electronics 0207, 0056, 0330, 0016, 0040, 0077, 0030
GE 0232, 0233, 0144, 0021
Gemini 0015, 0070, 0057, 0242, 0014, 0797, 0013, 0400
General Instrument 0476, 0011, 0014, 0098, 0810, 0024, 0003, 0015, 0276
GHZ 0078
Gibraltar 0003
Global 1327
GMI 0069, 0057, 0015, 0797
GoldStar 0144, 0040
Goodmind 0770, 0797
Gradiente 1136
Hamlin 0020, 0009, 0034, 0259, 0015, 0273, 0206
Healthway Interactive 0058, 1020, 1015, 0769
Hitachi 0011, 0154, 0009, 0008, 0003, 0033, 0014, 0255
Houston Tracker	0011
Hwalin 0303
Hytek	0007
IBM	0670
IEEC	1018
Interbuy	0274
IPC Guest Services 0893
Jasco	0315, 0153, 0015
Jebsee	0014, 0400
Jerrold	0003, 0014, 0276, 0011, 0012, 0020, 0024, 0015, 0047, 0098, 0476, 0031, 0029, 0111, 0032, 0054, 0810, 0028
Kuang Yu	0024
Leon 0069, 0015
LG 0040, 0144
Linsay 0440
Macom	0033

Cable box brand	Code number
Maestro	0812
Magnavox 0797, 0027, 0032, 0334, 0069
Millennium	0618, 0153
Memorex	0000
Mitsubishi 0003
Motorola	0476, 0276, 1476, 0810, 1376, 1254, 0400, 1106
Movie Time	0156, 0078, 0063, 0203
MS	0069, 0015, 1018, 0303
MultiVision	0012
Myrio	1117
NET 0274
Next Level	0764, 1316, 1315, 1314
Nexus	0770
Northcoast	0671, 0314
Nova Vision	0277, 0008
Novabeam 0277
Novaplex 0618, 0277, 0017, 0008
NSC 0156, 0070, 0203, 0063, 0400, 0012, 0618, 0022, 0637, 0010, 0044
Oak	0007, 0019, 0303, 0248, 0017
Omega	0015
Omniview	0371
Optimus	0021
Pace	0237
Pacific Bell	0843
Panasonic	0107, 0021, 0144, 0008, 0124, 0307, 0000, 0040
Panther	0637
Paragon	0000, 0525, 0008
Penney 0637, 0000
Philips	0025, 0031, 0290, 0027, 0030, 0153, 0060, 0242, 0028, 0334, 0211, 0029, 0259, 0307, 0652, 0013, 0069, 0649, 0255, 0305, 0032, 0111, 0317
Pioneer	0144, 0023, 0533, 1877, 0877, 0260
Popular Mechanics 0400
Prelude 0770
Prism 0012, 0013, 0059
Protelcon 0786
Pulsar 0000, 0040
Quasar 0000
Quest 0144, 0020
R Line 0040
RadioShack 0883, 0015, 0315, 0303, 0797
Rampage 0255
Ranger 1247
RCA 0021, 0060, 0797, 0047, 1256, 0843
Realistic 0207, 0153
Recoton 0153, 0400
Regal 0259, 0020, 0273, 0279, 0276
Regency 0002, 0020, 0682
Rembrandt	0070, 0153, 0040, 0022, 0011
RK	0304, 0306, 0479
Runco	0000
Samsung	0040, 0144, 0023, 0003, 0070, 0000
Sasktel 1737
Scientific Atlanta	0008, 0277, 0017, 0006, 0237, 0025, 0477, 0207, 0877, 0003, 0012, 0000, 0021, 1877
Seam	0510
Sears	0510
Sejin 1265
Siemens	0246
Sigma	0019
Signal	0040, 0015, 0011, 0035
Signature	0011
SkyCable	0112
Skygiant 1091
SL Marx	0040

Cable box brand	Code number
Sony 1006
Spectradyne	0769, 0058
Spectravision	0058
Sprucer	0021, 0307, 0010, 0144
Standard Components	0203, 0096, 0155
Starcom	0003, 0015, 0047, 0014, 0098, 0305
Stargate	0015, 0040, 0770, 0865, 0797, 0305, 0014
Starquest	0015
StarSight	0542, 0422
Stealth 0274
Stellar One	0807
Storm	1018, 0637
Suena Madritel	1230
Supercable	0276
Supermax	0883
Sylvania 0001
Tandy	0258
Tatung 0097
Teac	1018
Technics	0029
Teknika	0146
Teleavia	0040
TeleCaption	0221
Teleview 0063, 0040
Texscan	0001, 0096, 0010
TFC	0310
Thomson	1256
Timeless	0418, 0274, 0040
Tocom 0012, 0013, 0029, 0019, 0059, 0017
Torx	0003
Toshiba	0000
Trans PX	0303, 0276, 0153, 0315
Trinity 1248
Tristar	0883
TS	0255, 0024, 1018, 0003, 0303
Tusa 0015
TV COMM 0035, 0019
TV Guide 1476
TV86 0063, 0040
Uniden 0022, 0225
Unika 0207, 0153, 0022
United Artists 0007
United Cable 0003, 0014, 0011, 0276
Universal 0191, 0078, 0207, 0056,0022, 0039, 0153, 0077,0322, 0315
US Electronics 0276, 0008, 0003, 0017
V2 0883
Verizon 0246
Videoway 0250, 0000
VideoWorks 0124
Vidtech 0244
Viewmaster	0883, 0770
Viewstar	0258, 0289, 0060, 0063,0211, 0027, 0111, 0030,0121
Vision	0883
Visionetics	1264
Vortex View	0883
WaveMaster 0565
Wiso	0078
Zenith	0000, 0525, 0054, 0017,0039, 0153, 0060, 0315,0191, 0899
Zentek	0400

Satellite receiver brand	Code number
AlphaStar 0772
Atlantic Telephone	1333
Bell ExpressVu	0775
Century 0856
Chaparral	0216
Crossdigital	1109
DirecTV	0749, 0566, 0392, 1749, 0099, 1109, 1076, 1442, 1856, 0247, 1142, 1639, 0724, 0639, 0819
Dish Network System	0775, 1005, 1170
Dishpro 0775, 1005
Echostar	0775, 1170, 1005
Expressvu	0775
Galaxis	0863
GE	0566
General Instrument	0361, 0869, 0627
GOI	0775
Gradiente	0856
Hitachi 0819, 0749
Houston Tracker	0775
HTS	0775
Hughes Network Systems	0749, 1749, 1442, 1142
Humax 1176, 1359, 1048, 0863, 0283
Innova	0099
Jerrold	0361, 0036, 0627
JVC	0775, 1170
Magnavox	0722, 0724
McIntosh	0869
Memorex 0724
Mitsubishi	0749
Motorola	0869
NEC 1270, 0496, 0499, 0507, 0508
Netsat	0099
Next Level	0869
Optimus	0724
Panasonic	0247, 0701
Paysat 0724
Philips 1076, 0099, 1142, 0724,0722, 0749, 1442, 1749,0856, 0775
Primestar 0361, 0627, 0869
Proscan 0392, 0566
QNS 1367
RadioShack 0869
RCA 0566, 0392, 0143, 0855
Samsung 1109, 1276
Sky 0856, 0099, 1856
Sony 0639, 1639
Star Choice 0869
Star Trak 0869, 0772
Thomson 0566, 0392
Tivo 1142, 1442
Toshiba 0790, 0749, 1749, 1285
UEC 1333, 1358
Uniden	0724, 0722
Video Cipher II Plus	0361
Zenith 0856, 1856

Index

Words in quotations appear in the on-screen displays.

Numerics

16:9 25, 96

4:3 Letter Box 25, 96

4:3 Pan Scan 25, 96

A

"A-B Erase" 58

“Add” 64, 65

ADVANCE 36, 71

ANGLE 36

AUDIO 36, 74

"Audio" 102

"Audio (HDMI)" 99

Audio cords 18

"Audio DRC" 99

Audio settings 98

"Auto Play" 101

"Auto Repeat" 101

B

Batteries 21

"Black Level" 97

"Brand Code" 101

C

Cable box 13

Cable box brand 121

Cable box brand code 121

"Ch. Digit lock" 101

Changing or canceling timer settings (Timer List) 53, 81

Chapter 118

"Chapter Erase" 58

"Check" 63

Child Lock 38

Cleaning discs 110

Cleaning the video heads 111

CLEAR 69

Clock Set settings 95

"Combine Titles" 64

"Command Mode" 22, 104

COMPONENT VIDEO OUT 17

Connecting

the cable box/satellite receiver 12

to your AV/amplifier (receiver) 18

to your TV 15

"Connections" 101

Controlling a Sony TV with the remote 21

"Copy" 66

Copy protection 47, 118

Copy-Free 47

Copy-Never 47

Copy-Once 47

Counter 69

CPRM 30

"Create Dubbing List" 87

"Create Playlist" 62

Creating chapters 49

D

"Digital Out" 98

"Disc Finalize" 67, 89

"Disc Format" 67

"Disc Information" 67

"Disc Menu" 102

"Disc Name" 67

"Disc Protect" 67

"Disc Setting" 67, 89

Disc types 30

Display

front panel display 117

Setup Display 94

"Divide Title" 59, 63

Dolby Digital 25, 98, 118

"Downmix" 99

DTS 25, 37, 98, 118

“Dubbing” 84, 86

“DV/D8 Audio Input” 92, 100

“DV/D8 Dubbing” 92

“DV/D8 One Touch

Dubbing" 93

“DV/D8 Simple Dubbing” 92

“DVD Auto Chapter” 100

DVD Editing 56

DVD VIDEO 33, 118

DVD+R 30, 118

DVD+R DL 30

DVD+RW 30, 118

DVD-R 30, 118

DVD-RAM 33

DVD-RW 30, 118

E

Easy Setup 104

"Edit" 53, 82

"Edit Playlist" 63

"Edit Scene" 63

Enter characters 60

EP mode 76

"Erase" 53, 58, 82

"Erase All Titles" 67

F

"Factory Setting" 104

Fast forward 37, 71

Fast reverse 37, 71

Feature settings 100

Finalizing 88

"Format DVD-RW" 101

Formatting 47, 67

"Front Display" 103

Front panel 114

Front panel display 117

H

Handling discs 110

HDMI 16, 119

"HDMI Resolution" 96

|

i.LINK 90, 113

INPUT 48, 76, 91

Interlace format 119

J

JPEG image files 42

L

"Language" 102

Language abbreviation 120

LINE 1 IN 13

LINE 2 IN 27

"Line Audio Input" 51, 55, 100

M

MENU 35

Menu

Top menu 35

"Mode for SET button" 102

"Modify" 64

"Move" 65

MP3 audio tracks 41

N

NEXT 36, 71

Number buttons 40

0

One Touch Dubbing 93

On-screen display

OPTIONS menu 11

Setup Display 94

Sub-menu 11

System Menu 10

OPTIONS 11

Options settings 102

Original 39, 119

ORIGINAL/PLAYLIST 39, 57

"OSD" language 24, 102

P

"Parental" 103

Parental Control 38

Parts and controls 114

PAUSE 37, 48, 71, 76

PBC 38

"Picture Control" 97

PLAY 35, 69

Playable discs 33

Playback 35, 69

JPEG image files 42

MP3 audio tracks 41

Resume Play 38

Slow-motion play 37, 71

Playlist 39, 61, 119

Power cord 20

PREV 36, 71

Program Dubbing 86

"Progressive" 97

Progressive format 119

"Protect" 58

Q

Quick Timer 48, 76

R

Rear panel 117

REC 48, 76

REC MODE 48, 76

Recording 46, 75

recordable discs 30

recording format 30

recording mode 46 tape speed 75

Recording mode 46, 75

Recording time 46, 49

Region code 34

Remaining time 44, 77

Remote 21, 115

REPLAY 36, 71

Resetting 104

Resume Play 38

Rotate 42

S

Safety tab 75

Satellite receiver 13

Satellite receiver brand code 124

"Scan Audio" 38, 99

"Scene Dubbing" 87

Searching

for "Chapter" 40

for "Title" 40

for "Track" 40

Time Search 40

Set top box control 12, 24, 101

Set top box controller 12, 26

Settings 94

Setup Display 94

"Simple Dubbing" 86

Slide show 42, 43

SP mode 76

STOP 35, 48, 69, 76

Sub-menu 11

SUBTITLE 36

"Subtitle" 102

"Surround" 99

SYNCHRO REC 52, 80

"Synchro Recording" 52, 80, 101

System Menu 10

T

"Tape Length" 101

Tape speed 75

TIME/TEXT 45, 73

TIMER 50, 78

Timer List 53, 81

Timer recording 49, 78 change or cancel 53, 81

Title 119

"Title Dubbing" 87

"Title Erase" 58, 63

TITLE LIST 39, 57

Title List 39

"Title Name" 58, 63

TOP MENU 35

Track 119

TRACKING 70

Tracking adjustment 70

Troubleshooting 105

"TV Type" 96

U

"Unfinalize" 89

Unrecordable pictures 47

V

"VCR Function" 101

Video (HDMI) 96

VIDEO CD 33

Video mode 30

Video settings 96

VR mode 30

Z

Zoom 42

Index

Notes

DVD playback

1 Press VIDEO to use the video recorder.

3 Press ▷ PLAY.

3 Press TIMER.
