USER MANUAL BTV501 B-Tech

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights

indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference.

B-Tech International Limited, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped. If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment. When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built-in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts.

Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during setup. Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness.

It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

• Suitable for VESA and non-VESA screens up to 42"
• Mounts screen only 45mm from the wall

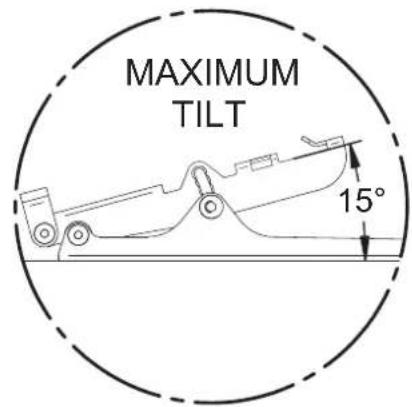

• 5 fixed tilt positions up to 15^
• Suitable for concrete, brick or stud walls up to 10"
• Includes locking bar for secure installation
  • Post-installation screen alignment
• Simple hook-on installation with all mounting hardware included

TOOLS REQUIRED

13mm (1/2") spanner or socket

Crosshead screwdriver

Drill

Pencil

10mm (7/16") masonry bit or 6mm (1/4") wood bit

Level (optional)

Stud finder (optional)

B-TECH AUDIO VIDEO MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK Email: [e-mail]

EUROPE

BELGIUM Bristenbaum 32, Zeeventem 1930, Brussels, Belgium Email: [e-mail]

GERMANY Dyrotzer Weg 284, 14612 Falkerssee, Berlin, Germany Email: Infogblochdeutschland.de

NORTH AMERIC 203 Eggerl Road, Buffalo, NY 14215, USA Email: [e-mail]

SINGAPORE Ruby Industrial Complex, Singapore 347740

ASIA PACIFIC Unit 1108 Prosperity Millennia Plaza, Querry Bay, Hong Kong Email: [e-mail]/jie

IP-BTV501-V2-VT1BX-180811-03 MADE IN CHINA

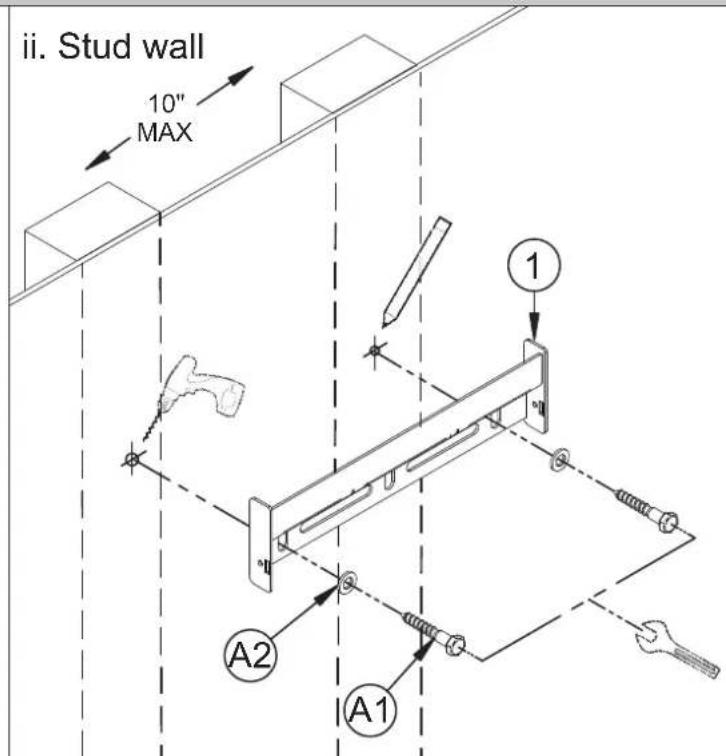

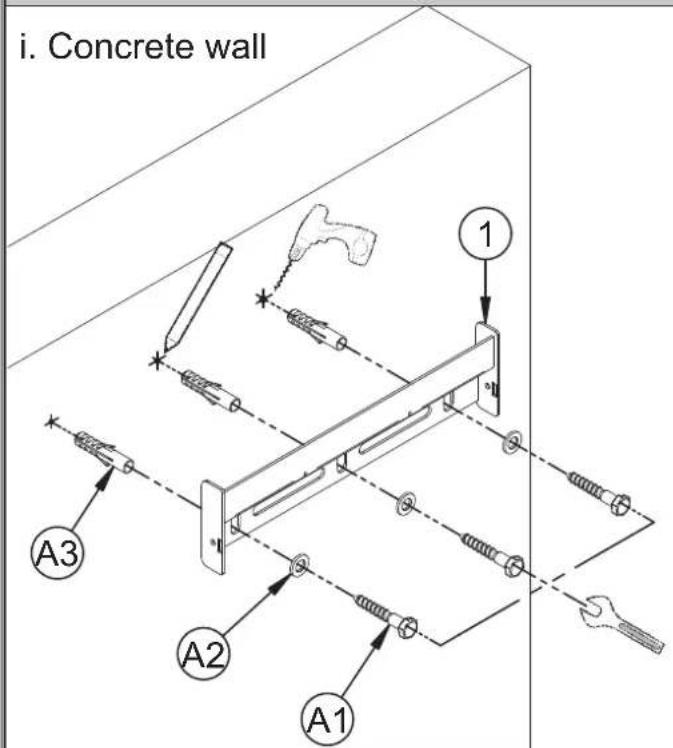

1. Attach wall plate to either a concrete or stud wall.

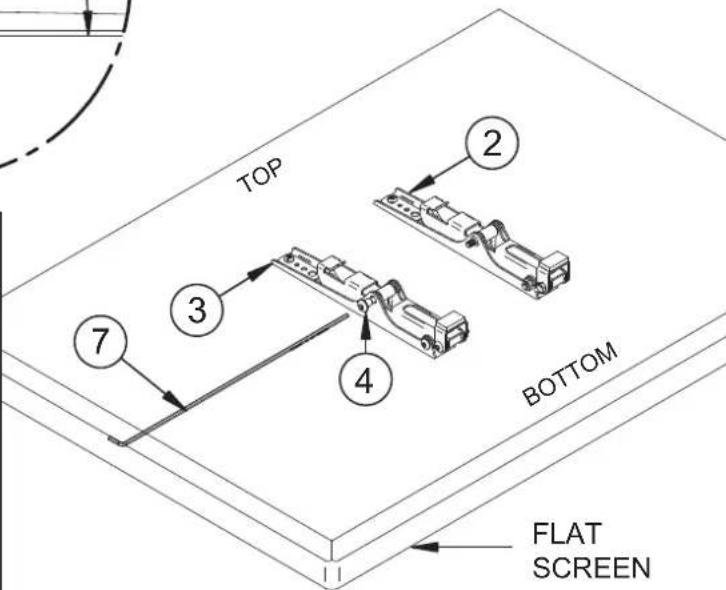

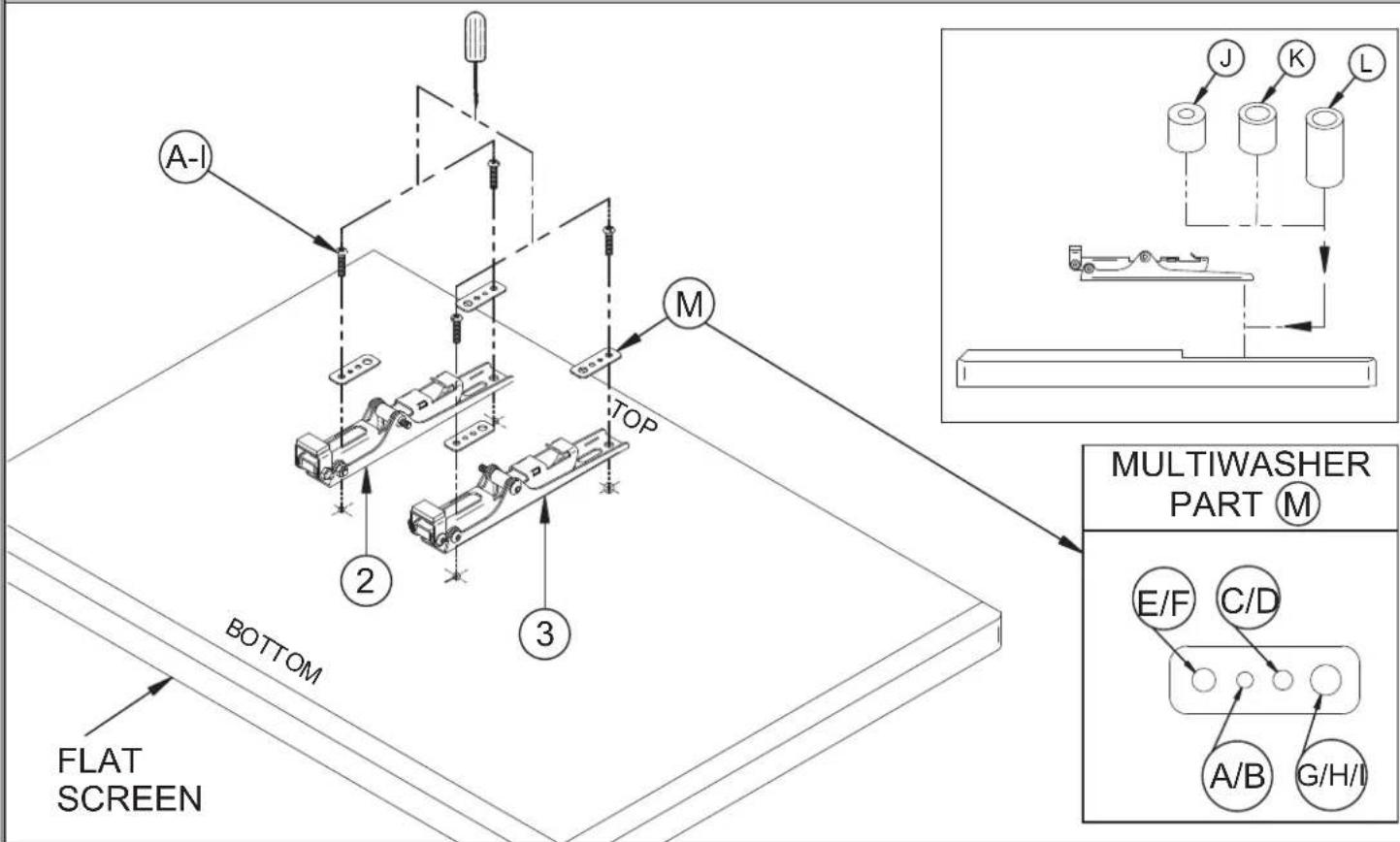

2. Attach interface arms to flat screen.

3. Adjust and lock tilt.

IMPORTANT

Must be tilted to attach the arms to the wall plate

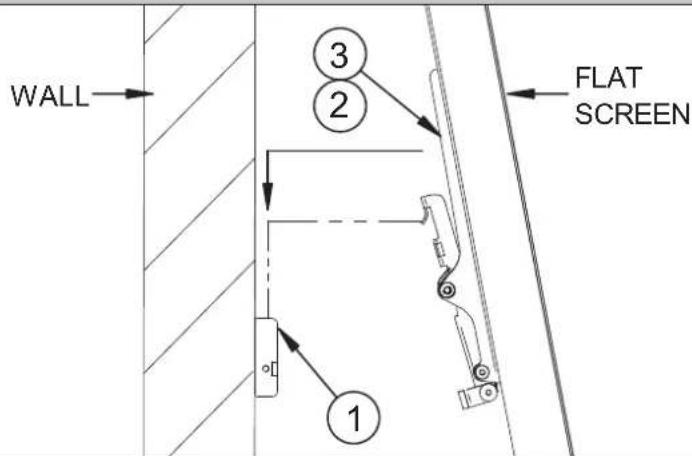

4. Hook mount onto wall plate.

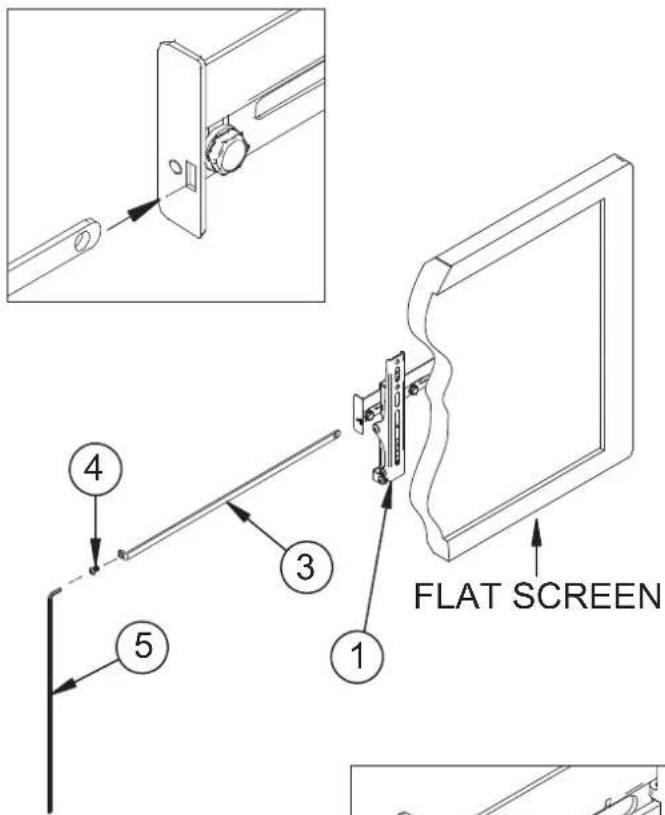

7. Insert locking bar.

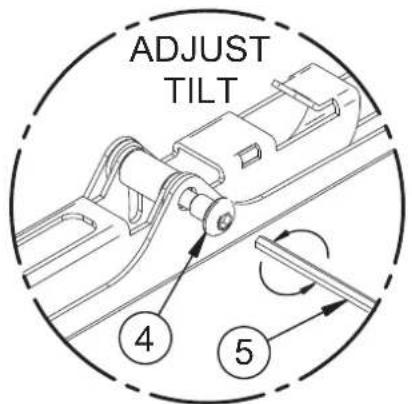

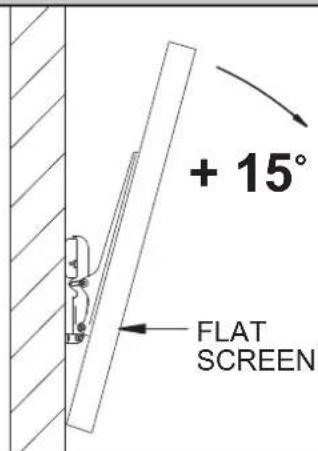

5. Tilt adjustment.

To adjust tilt, repeat steps 3 & 4.

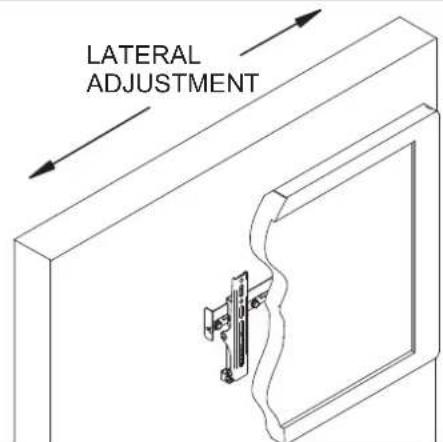

6. Lateral adjustment.

Optional

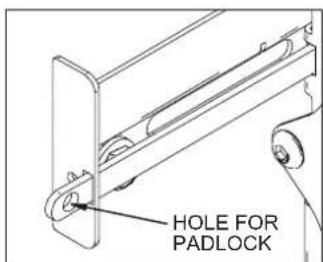

Secure with padlock (not supplied)


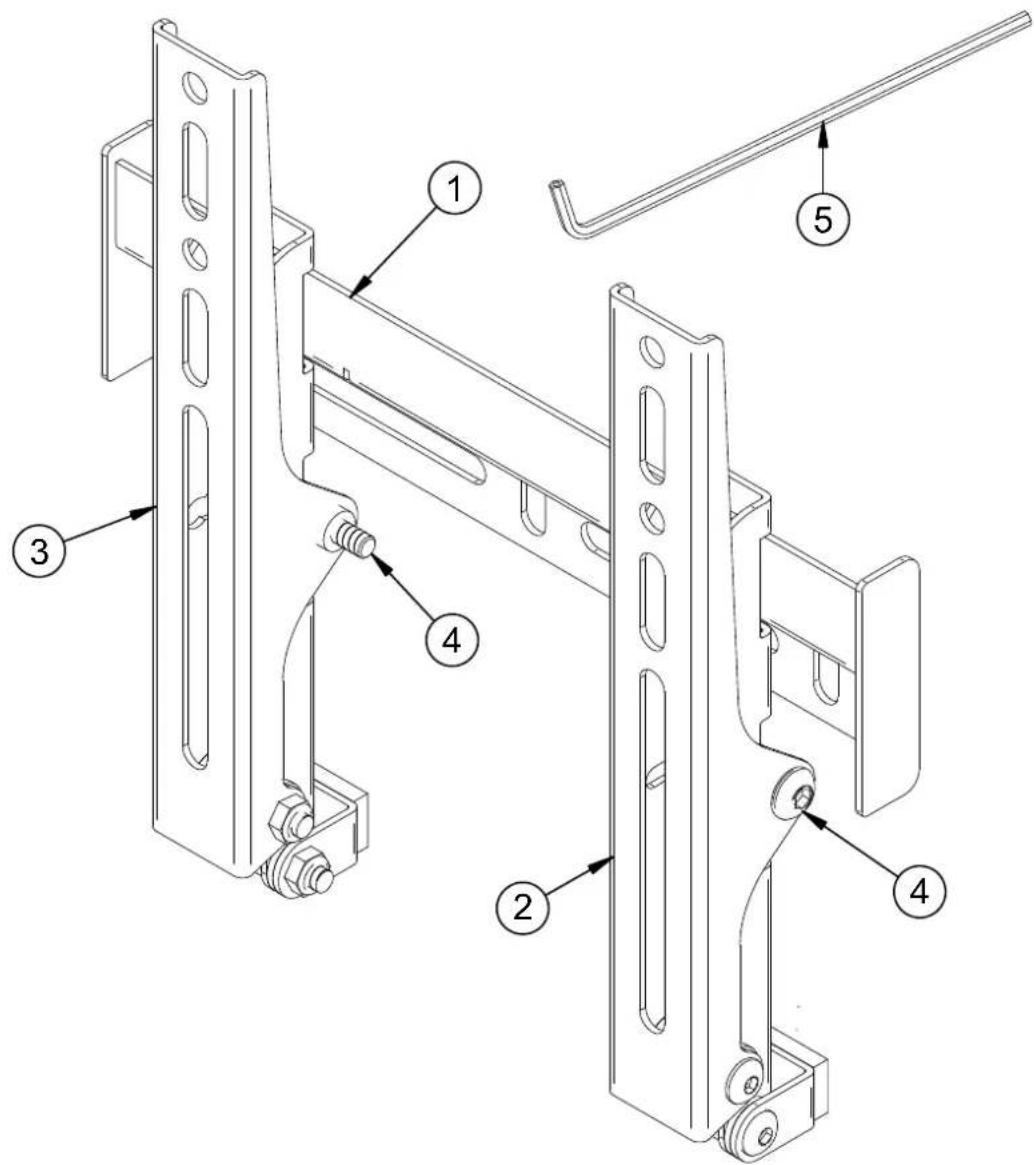

No.	PART NAME QTY
1	WALL PLATE 1
2	INTERFACE ARM A	1
3	INTERFACE ARM B	1
4 M6 L45 HEX SCREW 2
5 4mm ALLEN KEY (358MM LONG)		1
FIXING KIT
A1	M8 X 50mm COACH SCREW	3
A2	M8 METAL WASHER	3
A3	NO.10 WALL PLUG	3

Suitable for loads up to 40Kg (88lbs)

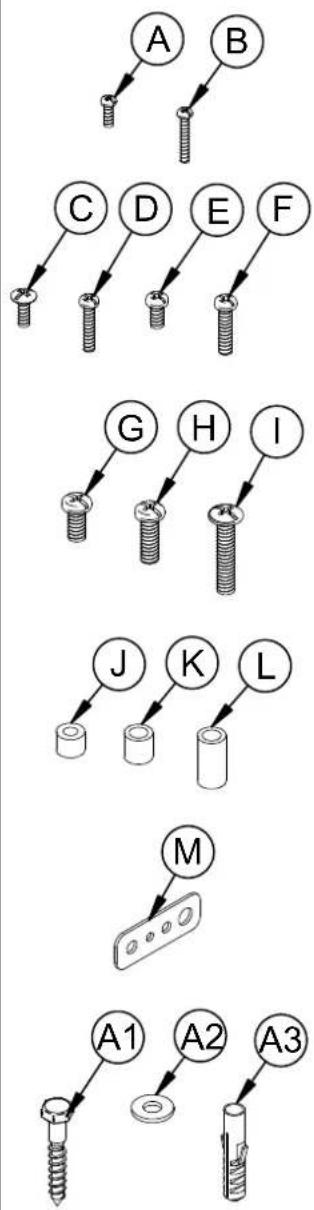

No.	INTERFACE KIT QTY
A	M4 X 12mm SCREW 4
B	M4 X 25mm SCREW 4
C	M5 X 16mm SCREW 4
D	M5 X 25mm SCREW 4
E	M6 X 16mm SCREW 4
F	M6 X 25mm SCREW 4
G	M8 X 16mm SCREW 4
H	M8 X 25mm SCREW 4
I	M8 X 40mm SCREW 4
J	M6 X 12mm SPACER (FOR PARTS B, D & F) 4
K	M8 X 13mm SPACER (FOR PART H) 4
L	M8 X 24mm SPACER (FOR PART I) 4
M	MULTIWASHER (FOR PARTS A - I) 4
