Product Type	Fixed Flat Panel Wall Mount
Brand	B-Tech
Model	BTV502
Compatible Screen Sizes	32" - 65"
Maximum Load Capacity	50 kg (110 lbs)
VESA Compatibility	100x100 to 400x400 mm
Distance from Wall	25 mm (0.98 in)
Material	Cold-rolled steel, powder coated
Color	Black
Mounting Type	Wall plate with adjustable arms
Tilt	No (fixed)
Swivel	No (fixed)
Leveling	±3° after installation
Locking Mechanism	Security screws to prevent theft
Installation Kit Included	Wall anchors, screws, concrete bolts, spacers
Tools Required	Drill, level, screwdriver
Product Dimensions (WxHxD)	430 x 230 x 25 mm (16.9 x 9.1 x 1.0 in)
Net Weight	1.8 kg (4.0 lbs)
Gross Weight (with packaging)	2.3 kg (5.1 lbs)
Warranty	5 years
Certifications	CE, RoHS
Surface Compatibility	Solid brick, concrete, or wooden studs
Vibration Dampening	Rubber pads on mounting brackets
Cleaning Instructions	Wipe with dry cloth; no solvents
Parts Replacement	Contact B-Tech support for spare parts

Frequently Asked Questions - BTV502 B-Tech

What is the maximum TV size and weight this mount can support?

The B-Tech BTV502 supports flat panels from 32 to 65 inches with a maximum load of 50 kg (110 lbs). Always check your TV's weight and VESA pattern before installation.

Does this mount allow tilting or swiveling?

No, the BTV502 is a fixed mount, meaning the screen stays flush against the wall with no tilt or swivel. For adjustable mounts, consider the B-Tech BT862 or similar.

What VESA patterns are compatible?

The mount is compatible with VESA patterns from 100x100 mm up to 400x400 mm. Most TVs within the 32-65 inch range use these patterns.

Can I install this on a plasterboard wall?

It is recommended to mount on solid walls such as brick, concrete, or wooden studs. For plasterboard, you must use appropriate toggle bolts (not included) and ensure the wall can support the weight.

What tools are needed for installation?

You will need a drill, a level, a screwdriver (Phillips), and a stud finder (for wooden walls). All mounting hardware is included in the box.

How far from the wall will the TV sit?

The profile is only 25 mm (1 inch) from the wall, giving a very low-profile look. Ensure enough space for cable connections behind the TV.

Is the mount secure against theft?

Yes, the mount includes a locking mechanism with security screws that help prevent unauthorized removal of the TV once installed.

How do I clean the mount?

Use a dry or slightly damp cloth to wipe the surface. Do not use abrasive cleaners or solvents that may damage the powder coating.

What is the warranty period?

B-Tech offers a 5-year warranty on this mount. Register your product on their website for full coverage.

Can I get spare parts if something is missing?

Yes, contact B-Tech customer support with your model number (BTV502) and the missing part details. They can provide replacements.

USER MANUAL BTV502 B-Tech

Mechanical component with black frame and mounting bracket (no visible text or symbols)

• Wall mount designed for screens up to 47" (120cm) / 25kg
• Features 180° swivel, +/-15° tilt and 360° screen rotation
• Mounts screen 95mm from the wall
• Quick and simple installation
• Integrated cable management
- Suitable for screens with VESA mounting patterns: 200 x 200mm, 200 x 100mm, 100 x 100mm and 75 x 75mm

TOOLS REQUIRED

Crosshead screwdriver

Spanner

Drill

Pencil

8mm masonry bit or 3mm wood bit

Stud finder (optional)

B-TECH AV MOUNTS

HEAD OFFICE

Bennett House, Long March, Daventry, Northants., NN11 4NR, UK

[e-mail]

www.btechavmounts.com

INSTALLATION SAFETY INSTRUCTIONS

CAUTION: This wall mount is intended for use only with the maximum weights

indicated. Use with flat screens heavier than the maximum indicated may result in instability causing possible injury.

Do not attempt to install this product until all instructions and warnings have been read and properly understood. Please keep these instructions for future reference. B-Tech International Design & Manufacturing Ltd, its distributors and dealers are not liable or responsible for damage or injury caused by improper installation, improper use or failure to observe these safety instructions. In such cases, all guarantees will expire.

General

B-Tech International Design & Manufacturing Ltd recommends that a professional AV installer or other suitably qualified person install this product. Great care must always be taken during installation as most AV equipment is of a fragile nature, possibly heavy and easily damaged if dropped. If you do not fully understand the instructions or are not sure how to install this product safely, then please consult a professional for advice and/or to install this product for you. Failure to mount this product correctly may cause serious injury or death both during installation and at any time thereafter. Do not mount any AV equipment that exceeds the specific weight limit of the product you are installing. This weight limit will be clearly stated on each product and its packaging and will vary from product to product.

Product location

Please pay careful attention to where this product is located. Some walls are not suitable for installation. If located in a public or frequently populated area ensure that the product is out of the immediate reach of people. If any AV equipment is to be suspended over the likely path or location of people then great care should be taken to secure all parts of the installation from falling. If you install this product on drywall it must be securely fixed to a wooden stud, concrete block or other permanent structure behind the drywall board. Installing on drywall boards alone will not support the weight of most AV equipment. When drilling holes in walls it is essential to avoid contact with electrical cables and water or gas pipes contained within. Use of a good quality live wire detector and hidden object locator is therefore recommended. Only drill into structures when you are sure it is safe to do so.

Fixing hardware

It is highly recommended that all wall fixing screws be used where supplied and that the purpose of all other fixing hardware is fully understood. In some cases more AV equipment fixing hardware will be supplied to accommodate different models of equipment and set up configurations. The installer must be satisfied that any supplied fixing hardware is suitable for each specific installation. If any fixing screws or included hardware are deemed not sufficient for a safe installation then please consult a professional or your local hardware store.

Hazard limitation

When routing cables take advantage of any built in cable management features that the product might provide and ensure that all cables are tidy and secure. Check to see that any moving aspect of the product can do so unhindered by any cabling. Some products have moving parts and the potential to cause injury through the crushing or trapping of fingers or other body parts. Particular attention to the nature of moving parts is required especially when assembling installing and adjusting during set up. Immediately after installations double-check that the work done is safe and secure. Double-check all necessary fixings are present and are of ample tightness. It is recommended that periodic inspections of the product and its fixing points are made as frequently as possible to ensure that safety is maintained. If in doubt consult a professional AV installer or other suitably qualified person.

CS

Parts list and dimensions are on the back page

1. Attach wall plate to either a concrete / brick wall or wood / stud wall

i. Concrete / brick wall.

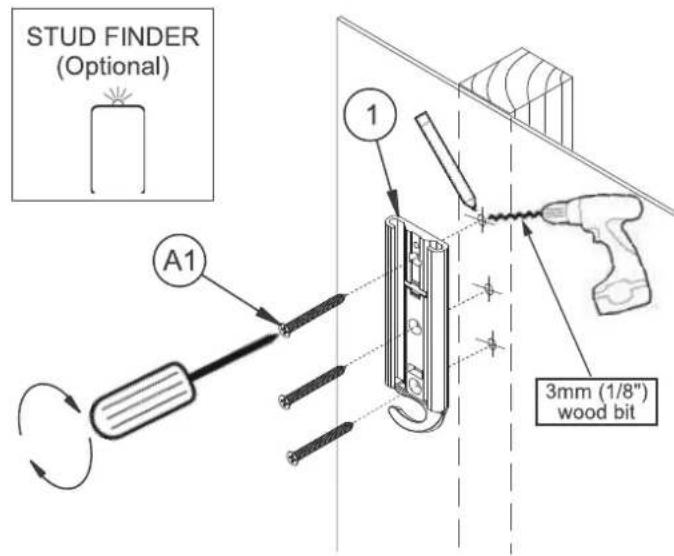

ii. Wood / stud wall.

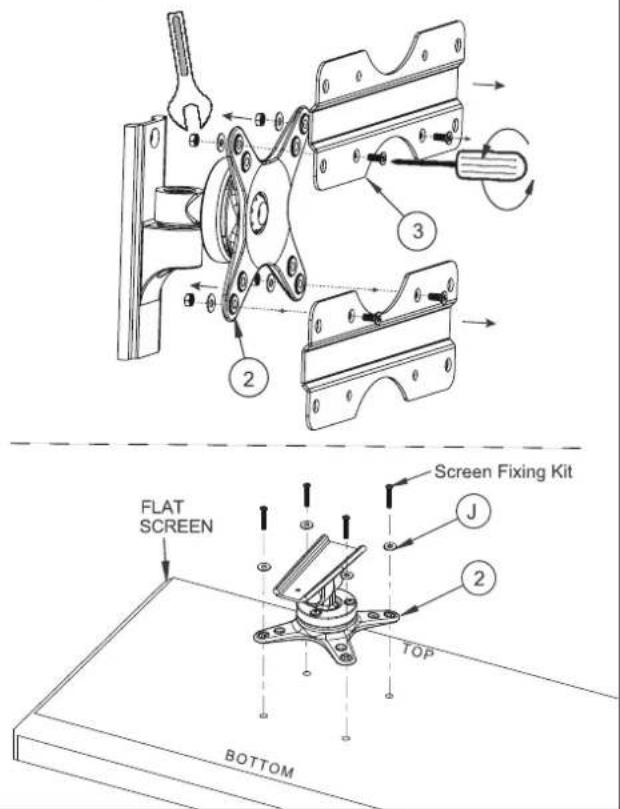

2. Attach interface plate to screen

For screens with VESA 100 x 100mm or 75 x 75mm fixing patterns remove adaptor plates from interface arm before attaching arm to screen.

1. Hook screen onto wall plate


1. Secure mount

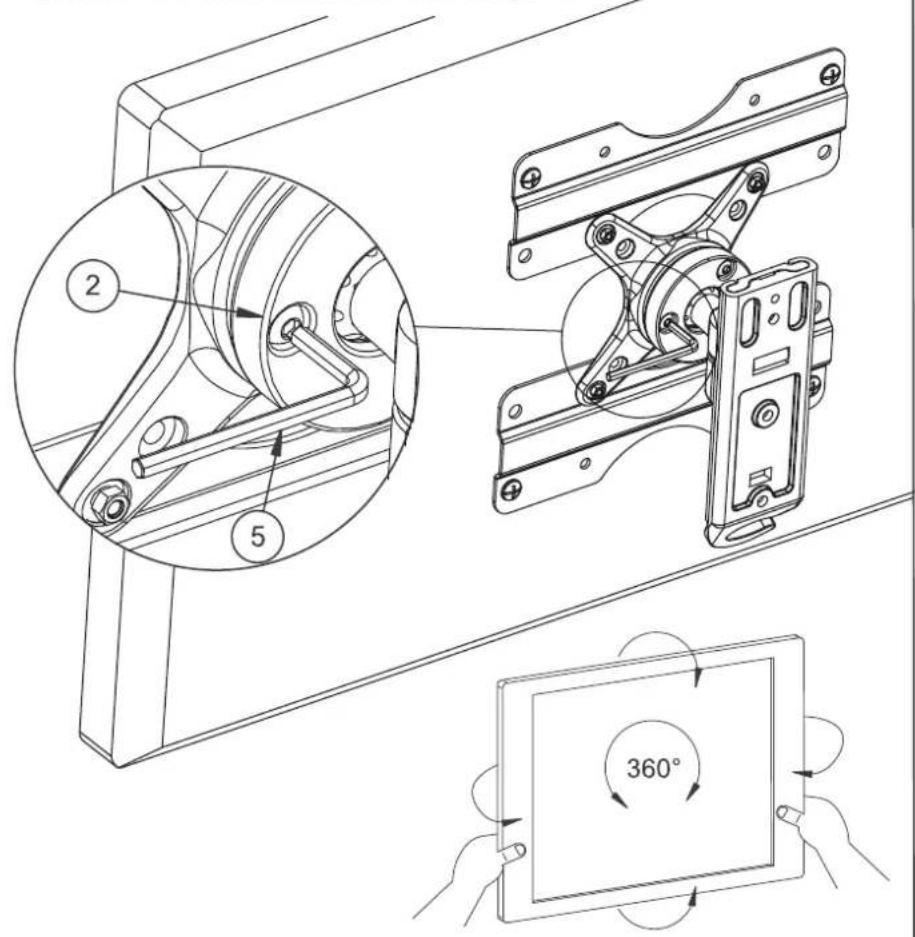

Adjust tilt angle / rotate screen
Optional: Tilt / rotation stiffness can be adjusted

Cable management

REF	PART NAME	QTY
1	WALL PLATE	1
2	INTERFACE PLATE	1
3	APAPTOR PLATE	2
4	M6 x 12mm ALLEN SCREW	1
8	4AF ALLEN KEY	1
INTERFACE KIT
A	M4 x 12mm SCREW	4
B	M4 x 25mm SCREW	4
C	M4 x 40mm SCREW	4
D	M6 x 16mm SCREW	4
E	M6 x 25mm SCREW	4
F	M6 x 40mm SCREW	4
G	M8 x 16mm SCREW	4
H	M8 x 25mm SCREW	4
I	M8 x 40mm SCREW	4
J	M4 WASHER	4
K	M6 WASHER	4
L	5mm SPACER	4
M	13mm SPACER	4
N	24mm SPACER	4
FIXING KIT
A1	WOOD SCREW	3
A2	WALL PLUG	3

Technical line drawing of a mechanical clamp or hook assembly with labeled component (no text or symbols present)

SCREEN INTERFACE KIT


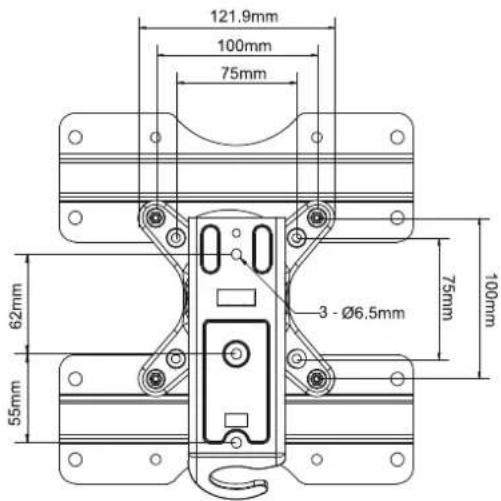

BTV502 PRODUCT DIMENSIONS
