DD-787 - Dishwasher Imarflex - Free user manual and instructions

Product Type	Freestanding Dishwasher
Brand	Imarflex
Model	DD-787
Dimensions (W x D x H)	45 x 60 x 85 cm
Weight	30 kg
Power Supply	220-240 V ~ 50 Hz
Power Consumption	1200 W
Water Consumption	10 L per cycle
Number of Place Settings	12
Energy Efficiency Class	A+
Noise Level	49 dB
Number of Programs	6
Programs	Eco, Normal, Intensive, Rapid, Glass, Pre-Rinse
Drying System	Condensation Drying
Water Inlet	Cold Water Only
Cutlery Basket	Yes
Delay Start	1-24 Hours
Safety Features	Child Lock, Leak Protection, Anti-Flood Device
Filter Type	Self-Cleaning Microfilter
Detergent and Rinse Aid	Recommended: Powder, Gel, or Tablets
Spare Parts Availability	Authorized Service Centers
Warranty	2 Years

Frequently Asked Questions - DD-787 Imarflex

How do I install the dishwasher?

Ensure the appliance is placed on a level surface. Connect the water inlet hose to a cold water supply (3/4 inch threaded faucet). Plug the power cord into a grounded outlet. The drain hose can be connected to the sink drain pipe. Refer to the installation section in the manual for detailed steps.

What detergent should I use?

Use a dishwasher detergent in powder, gel, or tablet form. For best results, use a high-quality detergent with rinse aid. Avoid using hand dishwashing liquid as it causes excessive suds.

Why are the dishes not clean after a cycle?

Possible causes: overloading, improper loading (blocking spray arms), clogged filters, insufficient detergent, or water temperature too low. Check and clean the filters, rearrange dishes, and select a more intensive program if needed.

How do I clean the filter?

Turn off the dishwasher and remove the lower rack. Turn the coarse filter counterclockwise and lift out. Rinse under running water. The microfilter can be removed by pulling upward. Clean with a soft brush. Reassemble in reverse order.

What do the error codes mean?

Common codes: E1 (water inlet failure), E2 (drainage problem), E3 (heating issue), E4 (overflow). If an error appears, reset the appliance by unplugging for 30 seconds. If persists, contact service center.

Can I use the dishwasher without rinse aid?

Yes, but it may cause water spots on glasses and dishes. Rinse aid improves drying and reduces spotting. Fill the rinse aid dispenser when the indicator appears.

How do I select the correct program?

For heavily soiled pots and pans, use Intensive. For everyday loads, Normal. For lightly soiled or delicate items, use Glass or Rapid. Eco cycle saves energy for normally soiled dishes.

Why is the dishwasher noisy?

Normal noise includes water splashing and motor hum. Excessive noise may be due to items clanking, spray arm hitting dishes, or loose parts. Ensure dishes are properly secured and not blocking spray arms.

How do I activate the child lock?

Press and hold the Child Lock button (usually with a key icon) for 3-5 seconds until the indicator lights. Repeat to deactivate. This prevents unintended button presses during operation.

What is the warranty period and how to claim?

The Imarflex DD-787 comes with a 2-year warranty covering manufacturing defects. Keep the purchase receipt. Contact the authorized service center listed in the manual for repair or replacement.

USER MANUAL DD-787 Imarflex

Exterior view of a modern portable air fryer with transparent glass doors and a cartoon bear logo on the side (no visible text or symbols)

SPECIFICATION

MODEL NO. : DD-787

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 210 Watts

IMPORTANT SAFEGUARDS

1. Read all instruction carefully.

2. Before using the unit checks if the voltage indicated in this unit corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it must be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

4. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet.

5. Children should be supervised to ensure that they do not play with the appliance.

6. This appliance is not intended to use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

7. Do not block the steam vent.

8. Do not put anything on top of the Dish Dryer.

9. Do not use the Dish Dryer other than its intended use.

10. To protect against electric shock or short circuit, do not immerse power cord, plug or the unit in water.

11. Maintenance other than cleaning should be performed by a qualified technician from an Authorized lmarflex Service Center.

12. For household use only; not intended for any business purposes.

13. Save this instruction manual for future reference.

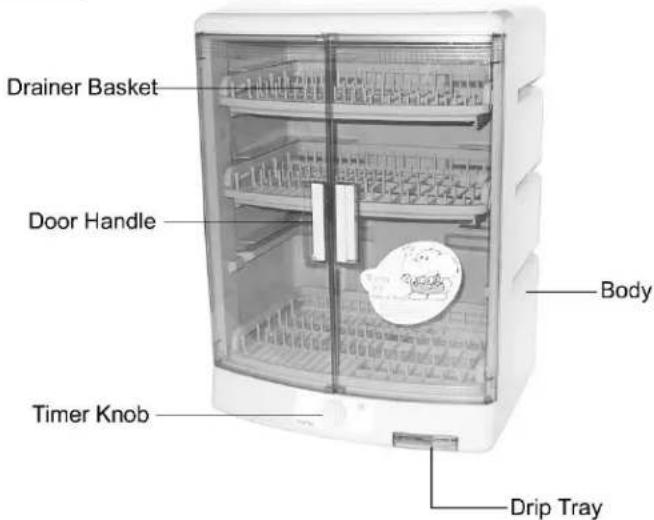

DESCRIPTION OF PARTS

HOW TO USE

1. Plug the unit into the convenience outlet.

2. Inset the Dripping Tray on the lower right of the unit.

3. Put the clean dinnerware, silverware, etc. inside the Dish Dryer. (Do not place any plastic ware that is easily burn)

4. Close the cover.

5. Set the timer to desired time.

6. When the timer is up, unplug the unit from the convenience outlet.

CLEANING AND MAINTENANCE

1. Be sure to unplug the unit before cleaning.
2. Wash water drip tray and drainer basket with soap and water.
3. Wipe the Base with damp cloth.
4. Never leave the water on the Dripping Tray for a long time.
5. Clean the unit regularly.

Trouble Shooting Guide

The unit is not working.No warm air feels inside.

Check if the outlet where the unit is plugged in is operational.Bring the unit to the nearest lmarflex Authorized Service Center.Check if the air inlet is block.

REMINDER: Please do not forget to fill up and send the warranty card
