DD-909 - Dishwasher Imarflex - Free user manual and instructions

Product Type	Dish Dryer
Brand	Imarflex
Model	DD-909
Rated Voltage	230V AC
Frequency	60Hz
Power Consumption	270 Watts
Timer Type	Mechanical timer
Timer Setting	User-selectable desired time
Cutlery Tray	Included, removable
Dripping Tray	Included, removable
Cover	Pull-down cover
Steam Vent	Yes, do not block
Safety Features	Do not use with damaged cord; do not immerse in water; keep away from flammable materials
Cleaning Method	Wash trays with soap and water; wipe base with damp cloth
Intended Use	Household use only
Maintenance	Only by authorized service center
Included Accessories	Cutlery tray, dripping tray, drainer basket, cutlery holder
Material	Plastic body with metal components
Manufacturer Website	www.imarflex.com
Warranty	Warranty card included, must be filled and sent

Frequently Asked Questions - DD-909 Imarflex

How do I use the Imarflex DD-909 dish dryer?

Plug into a 230V outlet. Insert the cutlery tray on the lower left and dripping tray on the lower right. Place clean dinnerware and silverware inside (do not place plastic ware that is easily burned). Pull down the cover. Set the timer to the desired time. When the timer finishes, unplug the unit.

What is the power consumption of the DD-909?

The rated power consumption is 270 Watts at 230V AC, 60Hz.

Can I use plastic dishes in the dish dryer?

No, do not place any plastic ware that is easily burned. Only use dishes that can withstand heat.

How do I clean the dish dryer?

Unplug the unit before cleaning. Wash the cutlery holder, water drip tray, cutlery tray, and drainer basket with soap and water. Wipe the base with a damp cloth. Do not leave water in the dripping tray for a long time.

What safety precautions should I take?

Check that the voltage matches your outlet. Do not use if the cord or plug is damaged. Keep curtains and flammable materials away. Do not block the steam vent. Do not immerse the unit, cord, or plug in water. Supervise children. For household use only.

The unit is not working, what should I do?

First, check if the outlet is operational. Ensure the air inlet is not blocked. If the problem persists, bring the unit to the nearest Imarflex Authorized Service Center.

Can I leave water in the dripping tray?

No, never leave water in the dripping tray for a long time. Empty and dry it after each use to prevent damage and mold.

Is the dish dryer suitable for commercial use?

No, it is intended for household use only. Not for any business purposes.

Where can I get repairs done?

Maintenance other than cleaning should be performed by a qualified technician from an Imarflex Authorized Service Center.

What accessories are included with the DD-909?

The package includes a cutlery tray, dripping tray, drainer basket, and cutlery holder. Also, a warranty card is included.

USER MANUAL DD-909 Imarflex

Line drawing of a portable kitchen appliance with a rack and control panel (no text or symbols)

imarflex®

In Every Home.

www.imarflex.com

DD-909

SPECIFICATION

MODEL NO. : DD-909

RATED VOLTAGE : 230Va.c. \~ 60Hz

POWER CONSUMPTION : 270 Watts

IMPORTANT SAFEGUARDS

1. Read all instruction carefully.

2. Before using the unit checks if the voltage indicated in this unit corresponds with the convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest Imarflex Authorized Service Center.

4. Keep curtains, furniture, flammable materials, etc. away from the unit and from the convenience outlet.

5. Children should be supervised to ensure that they do not play with the appliance.

6. This appliance is not intended to use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

7. Do not block the steam vent.

8. Do not put anything on top of the Dish Dryer.

9. Do not use the Dish Dryer other than its intended use.

10. To protect against electric shock or short circuit, do not immerse power cord, plug or the unit in water.

11. Maintenance other than cleaning should be performed by a qualified technician from an Authorized lmarflex Service Center.

12. For household use only, not intended for any business purposes.

13. Save this instruction manual for future reference.

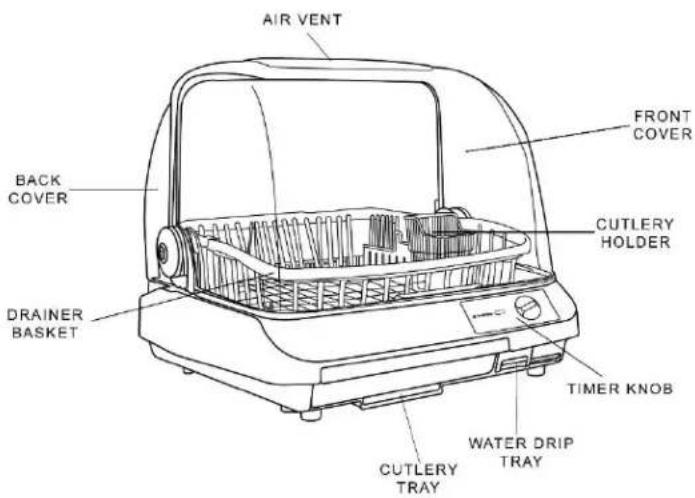

DESCRIPTION OF PARTS

HOW TO USE

1. Plug the into the convenience outlet.

2. Insert the Cutlery Tray on the lower left of the unit.

3. Inset the Dripping Tray on the lower right of the unit.

4. Put the clean dinnerware, silverware, etc. inside the Dish Dryer. ( Do not place any plastic ware that is easily burn )

5. Pull down the cover.

6. Set the timer to desired time.

7. When the timer is up, unplug the unit from the convenience outlet.

CLEANING AND MAINTENANCE

1. Be sure to unplug the unit before cleaning.
2. Wash cutlery holder, water drip tray, cutlery tray and drainer basket with soap and water.
3. Wipe the Base with damp cloth.
4. Never leave the water on the Dripping Tray for a long time.
5. Clean the unit regularly.

Trouble Shooting Guide

The unit is not working.No warm air feels inside.

Check if the outlet where the unit is plugged in is operational.Bring the unit to the nearest lmarflex Authorized Service Center.Check if the air inlet is block.

REMINDER: Please do not forget to fill up and send the warranty card
