IR-260G - Iron Imarflex - Free user manual and instructions

Product Type	Steam Iron
Brand	Imarflex
Model	IR-260G
Power	1500 W
Voltage	220-240 V
Frequency	50/60 Hz
Water Tank Capacity	250 ml
Soleplate Material	Stainless Steel
Cord Length	1.8 m
Weight	1.2 kg
Dimensions (L x W x H)	280 x 120 x 150 mm
Steam Output	Up to 30 g/min
Vertical Steam	Yes
Spray Function	Yes
Anti-Drip System	Yes
Self-Clean Function	Yes
Auto Shut-Off	Yes (8 min vertical, 30 sec horizontal)
Overheat Protection	Yes
Indicator Light	Yes

Frequently Asked Questions - IR-260G Imarflex

How do I fill the water tank?

Open the water inlet cap. Hold the iron with the soleplate horizontal and pour water slowly using the measuring cup. Do not exceed the MAX level. Use tap water or distilled water.

What type of water should I use?

For best performance, use distilled or demineralized water to prevent scale buildup. Never use water containing additives like perfume or starch.

How do I adjust the temperature?

Rotate the temperature dial to the desired setting based on fabric type. Wait for the indicator light to turn off before ironing. Start with low heat for synthetics and increase for cotton and linen.

How can I use the steam burst feature?

Press the steam burst button firmly for a powerful steam surge. This is ideal for removing tough wrinkles on vertical surfaces like curtains.

How do I clean the soleplate?

Unplug and let cool. Wipe with a damp cloth. For stubborn residue, use a mixture of baking soda and water. Do not use abrasive cleaners.

How do I descale the iron?

Fill the tank with a mixture of equal parts white vinegar and water. Heat the iron to high setting, then press the self-clean button to flush out scale. Rinse with fresh water.

How should I store the iron after use?

Empty the water tank and let the iron cool completely. Wrap the cord loosely around the cord wrap and store upright on a flat, stable surface.

What does the auto shut-off feature do?

If the iron is left unattended for 8 minutes in an upright position or 30 seconds on its side, it automatically switches off to prevent accidents.

Can I use the iron vertically?

Yes, use the vertical steam function by pressing the steam burst button while holding the iron upright. Ideal for steaming hanging garments.

What should I do if the iron produces no steam?

Ensure the water tank is filled and the temperature is set to steam range. If still no steam, descale the iron. Check the anti-drip function may prevent steam at low temperatures.

USER MANUAL IR-260G Imarflex

Symbol	Fabric	Temp.
	Nylon
	Silk Wool
	Cotton Linen

CLEANING AND MAINTENANCE:

1. Unplug the unit after every use.
2. Allow the iron to cool down before cleaning.
3. Wipe the sole plate with soft damp cloth.

Note: To protect the sole plate, always store iron in heel rest position.

REMINDER: Please do not forget to fill up and send the warranty card with receipt to our email address

[e-mail]

Distributed By: Evergood Unlimited Corp.

901 G.Masangkay St., Manila

Made in China

SPECIFICATION:

MODEL NO. : IR-260G

RATED VOLTAGE : 230Va.c. 60Hz

POWER CONSUMPTION : 1000 Watts

BOX DIMENSION

UNIT DIMENSION

GROSS WEIGHT

UNIT WEIGHT

。

:

m = 311

m = 311

m = 311

IMPORTANT SAFEGUARDS:

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instruction carefully.

2. Before using the unit, check if the voltage indicated corresponds with convenience outlet (230Va.c.).

3. Do not use any appliance with a damaged cord or plug. If the cord is damaged it should be replaced with the same type and size or bring the unit to the nearest authorized service center.

4. Do not leave the iron unattended while it is connected to the convenience outlet.

5. Children should be supervised to ensure that they do not play with the appliance.

6. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

7. Do not use a two-way socket with another appliance.

8. To protect against electric shock, do not immerse the iron in water.

9. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

10. Do not use the appliance for other than intended use.

11. The iron should always be turned OFF before plugging or unplugging from the outlet.

12. Do not allow cord to touch hot surface of the iron. Loop cord loosely around the iron before storing.

13. For household use only; not intended for any business purposes

14. Save this instruction for future reference.

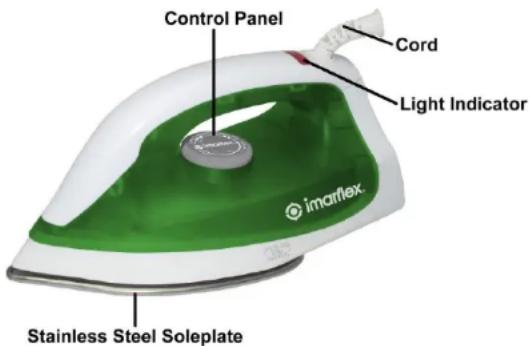

DESCRIPTION OF PARTS:

HOW TO USE:

1. Plug the unit into the convenience outlet.
2. Set thermostat control knob at the desired temperature setting (see table guide).
3. Allow the unit to heat up for two minutes on heel rest position before ironing.
4. The power light indicator will light up when the iron is switch ON, the power light indicator will be OFF once the unit reached the temperature. The power light indicator will remain OFF as long as the iron keeps the selected temperature, as the temperature decreases, the thermostat will start working up; the power light indicator will light up again.
5. First, iron synthetic fabric at low temperature, and then as the temperature rises, iron wool, cotton, and linen accordingly. The iron heats more quickly than it cool down.
6. Allow time for the iron to heat when changing from a low temperature to high.

Note: Do not touch or hold the soleplate while in use.

1. Turn off the unit every after use.
