Type	Fridge-freezer
Brand	Euro Appliances
Model	EA60WFBL
Dimensions (H x W x D)	1850 x 600 x 650 mm
Weight	65 kg
Power supply	220-240 V, 50 Hz
Energy efficiency class	E
Annual energy consumption	250 kWh
Total net capacity	250 L
Refrigerator net capacity	180 L
Freezer net capacity	70 L
Freezing capacity	4 kg/24h
Climate class	N-ST
Noise level	42 dB
Defrosting	Automatic (refrigerator), manual (freezer)
Temperature control	Thermostat dial
Interior light	LED
Shelves	4 tempered glass shelves
Door storage	3 door balconies
Freezer drawers	3 drawers
Reversible door	Yes
Refrigerant	R600a
Child lock	No
Maintenance	Clean interior with mild detergent; defrost freezer annually
Spare parts availability	Contact Euro Appliances authorized service centers

Frequently Asked Questions - EA60WFBL Euro Appliances

How do I install the EA60WFBL refrigerator?

Place the appliance on a level surface away from heat sources. Allow at least 5 cm clearance on sides and rear for ventilation. Let it stand for 2 hours before connecting to power.

What is the optimal temperature setting for the refrigerator and freezer?

Recommend refrigerator temperature at 4°C and freezer at -18°C. Adjust the thermostat dial accordingly.

How do I defrost the freezer?

Unplug the appliance, remove food, and leave the freezer door open. Do not use sharp tools. Clean and dry before restarting.

Why is my refrigerator making noise?

Normal sounds include compressor humming, refrigerant flow, and fan noise. Excessive noise may mean it is not level. Adjust the feet.

How do I clean the refrigerator?

Wipe interior surfaces with a mixture of warm water and mild detergent. Avoid abrasive cleaners. Clean the door gasket regularly.

Can I reverse the door opening direction?

Yes, the door is reversible. Refer to the manual for step-by-step instructions or contact a qualified technician.

How much food can I store in the freezer?

The freezer has a net capacity of 70 L and a freezing capacity of 4 kg/24h. Do not overload.

What should I do if the refrigerator stops cooling?

Check if it is plugged in, the thermostat is set correctly, and the condenser coils are clean. If problem persists, contact service.

Does the EA60WFBL have a built-in ice maker?

No, this model does not have an automatic ice maker. Use ice trays in the freezer.

Where can I find spare parts for this fridge?

Contact Euro Appliances authorized service centers or check online retailers. Specify model EA60WFBL.

USER MANUAL EA60WFBL Euro Appliances

Abstract black-and-white graphic with two curved white lines forming a stylized 'S' shape, enclosed in a partial rectangular border (no text or symbols)

eur∅

alfresco

USAGE AND

CARE GUIDE

Exterior view of three beverage refrigerators with glass doors showing various beverage cans (no visible text or labels)

INDEX

INSTALLATION

Safety Information

Recommendations before loading & plugging in the beverage cooler

Grounding Instructions

Assembly

Levelling Your Beverage Cooler

Defrosting/hygrometry/condensation/ventilation

Temperature setting

Beverage Cooler Control panel

Cooling Indicator light

Interior Light

Installing Stainless Steel Handle

Power Failures and Operation Anomalies

CARE AND MAINTENANCE

Clean the condenser

Care when going on Vacation

Moving your Beverage Cooler

Energy saving tips

Recommended Cleaning Product

TROUBLESHOOTING GUIDE

TECHNICAL SPECIFICATIONS

EA60 Series Stainless Steel Beverage Cooler

EA60 Series Black Beverage Cooler

EA90 Series Beverage Cooler

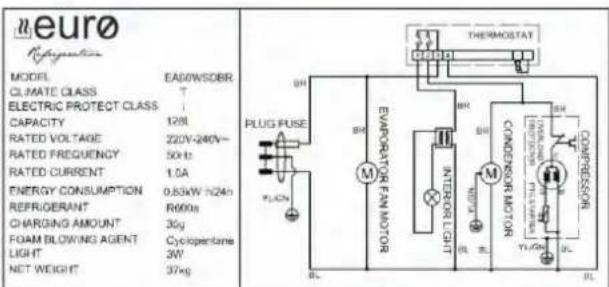

WIRING DIAGRAM

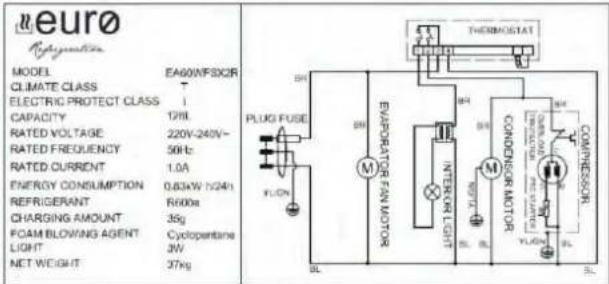

EA60 Series

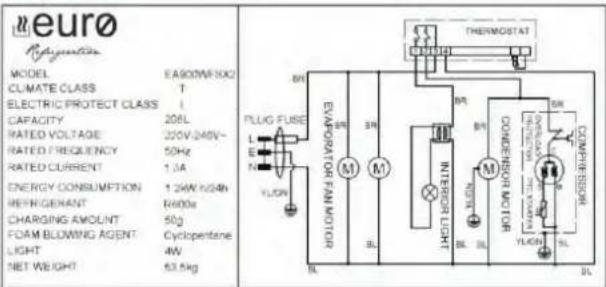

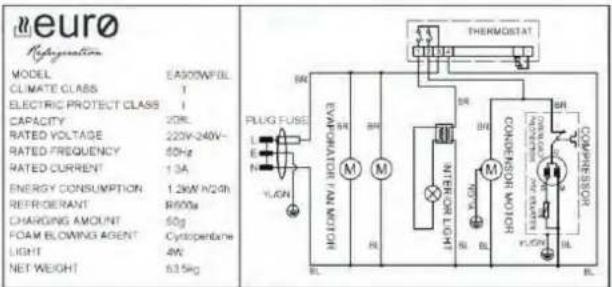

EA90/900 Series

DIMENSION DRAWINGS

EA90/900 Series

EA60 Series

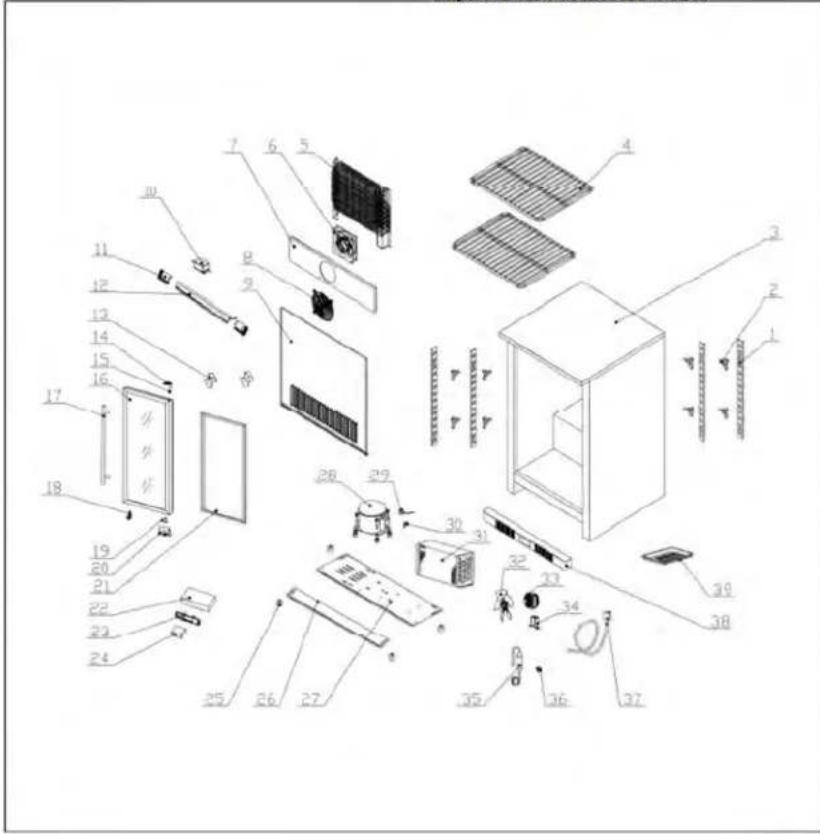

SPARE PARTS

INSTALLATION

Safety Information

Warning

All electrical work must be carried out by suitably qualified persons

This beverage cooler is an outdoor appliance. This appliance is intended for household use only. It is designed to be used in sheltered areas only and must not be exposed to the elements. It can be installed in an alfresco area in accordance with the following:

• Unit must not be exposed to direct sunlight, rain, moisture or dust.
• Do not install in a location where winds may blow water or dust on to the beverage cooler.
• The appliance must not be operated or left out in the weather.
• Do not expose the outdoor appliance to rain or wet conditions.

Warning

This beverage cooler should only be use for the storage of beverages. It must not be used to store food.

Euro Appliances offers no guarantee for our beverage cooler if it is being used for any purpose other than that for which it was specially designed. Euro Appliances is not responsible or liable for any spoilage or damage to beverages or any other contents incidental or consequential to possible defects of the beverage cooler. Warranty applies to the beverage cooler only and not to the contents of the beverage cooler.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure they do not play with the appliance.

Allow 24 hours before switching on the beverage cooler. During this time, we recommend that you leave the door open to clear any residual odours.

Recommendations before loading & plugging in the beverage cooler

• Be unencumbered and well ventilated;
• Be well away from any heat source and direct sunlight or rain;
• Not be too damp (laundry, pantry, bathroom, garage and basement, etc.);
• Have a flat, level and dry floor;
• Have a standard and reliable electricity supply (10A General purpose outlet properly earthed). It is not recommended to use a multi-socket or extension lead;
• Have a surge protector fitted to the electrical outlet.
• Away from microwave. Certain microwave ovens do not have wave interference shield. When placed within 1 meter of the beverage cooler, they may affect the operation of the beverage cooler. Always ensure the outdoor display fridge is kept at the correct settings for the required operation of the appliance.
• Do not store explosive substances, such as aerosol cans with flammable propellant, in this appliance.

The beverage cooler should be placed where the ambient temperature is between 2 °C to 40 °C. If the ambient temperature is above or below this range, the performance of the unit may be affected. Placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate and the ideal range of temperature may not be reached.

Warning

Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

Do not damage the refrigerant circuit.

This product should not be disposed by the customers, please contact your local authorities and ask for the correct method of disposal. Incorrect disposal may expose the user to injury from sharp objects, flammable gases or cause environmental damage.

Grounding Instructions

The beverage cooler must be grounded in case of an electrical short circuit. Grounding reduces the risk of electrical shock. The beverage cooler is equipped with a power cord having a grounding wire and plug. The beverage cooler plug must be plugged into properly installed and grounded electrical outlet. In locations

where there is frequent lightning, it is advisable to use surge protectors.

Improper use of the grounding plug can result in the risk of electric shock. Consult a qualified electrician or service person if the grounding instructions are not completely understood.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

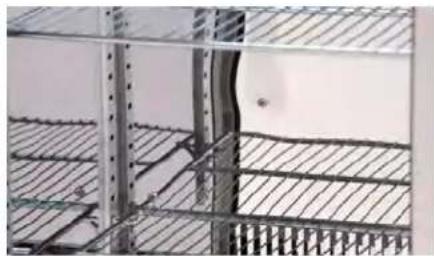

Assembly

• Remove the appliance from the packaging and peel off any protective film from all surfaces.
• Fit the shelf support clips onto the shelf support strips, making sure that the clips for each shelf are of the same height and that they are securely engaged on the support strip.
• Unwrap each shelf carefully, to prevent damaging their protective coating or surface finish.
• Position the shelves onto the clips.
• Please note the following maximum shelf loading weights : 20Kg.

Close-up of a metal shelving rack with grid lines and vertical supports (no visible text or symbols)

Interior view of a metal shelving unit with grid patterns and a small room in the background (no visible text or symbols)

Important

Before connecting the unit to a power source, please let it stand upright for approximately 24 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.

The beverage cooler must be positioned so that the plug is accessible. Release the power cord and move your beverage cooler to the selected location. The beverage cooler should be installed in a suitable place where the compressor will not be subject to physical contact.

Important

For freestanding installation, the beverage cooler requires 30mm gap on both sides as well as the rear. This allows the proper air circulation to cool the compressor and condenser. For built-in installation, the beverage cooler requires 10mm space on each side and at the top as well as 30mm space at the rear. The air vent at the front must never be covered or blocked in any way.

Levelling Your Beverage Cooler

Beverage cooler must be levelled before loading your beverages. Your beverage cooler is equipped with 4 adjustable feet to facilitate easy levelling.

Close-up of a black plastic floor pushener with threaded metal and bolt (no text or symbols visible)

1. Turning on your beverage cooler. Plug in and switch on the beverage cooler by pressing on the power button for a few seconds. When you use the beverage cooler for the first time (or restart the beverage cooler it has been switch off for a long time), there will be a few degrees variance between the temperature you have selected and the one indicated on the LED readout. This is normal and it is due to the length of the activation time. Once the beverage cooler is running for a few hours everything will stabilize.

Important

If the unit is unplugged, power is lost or switched off, wait 3 or 5 minutes before restarting the unit. The beverage cooler might not start if you attempt to restart before this time delay.

1. Operating noises. To reach the desired temperature settings, Euro beverage cooler, like all beverage coolers operating with compressors and fans, may produce the following types of noises. These noises are normal and occur as follows:

- Gurgling sound, caused by the refrigerant flowing through the appliance's coils;

- Cracking/popping sounds, resulting from the contraction and expansion of the refrigerant gas to produce cold;

- Fan operating sound, to circulate the air within the beverage cooler.

1. Loading your beverage cooler. You might load your cans or bottles standing or lying in single or double rows while taking note of the following:

- If you do not have enough cans or bottles to fill your beverage cooler, it is better to distribute them throughout the beverage cooler to avoid "all on top" or "all below" type loads.

- Remove or relocate metal racks to accommodate large type of cans or bottles where necessary.

- Keep small gaps between the wall and the cans or bottles to allow air circulation.

- To facilitate air circulation, do not over load your beverage cooler.

- Avoid obstructing the internal fan (located inside on the back panel of the beverage cooler)

- To prevent the cans or bottles from falling, do not try to slide the racks outwards beyond the fixed position.

Important

Do not pull out more than one loaded rack at a time as this may cause the beverage cooler to tilt forward.

Do not cover the metal racks with aluminum foil or other materials, as it will obstruct air circulation.

Do not move your beverage cooler while it is loaded with beverages. This may distort the main cabinet.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Defrosting/Hygrometry/Condensation/Ventilation

Your beverage cooler is designed with auto defrost system. The defrost water from the beverage cooler storage compartment drains automatically and part of it goes into a drainage container, which is located at the back of the beverage cooler next to the compressor. The heat is transferred from the compressor and evaporates any condensation that has collected in the pan. Part of the remaining water is collected within the beverage cooler for humidity purposes.

All Euro beverage coolers are equipped with a triple glazed glass door to minimize condensation on the glass door. The unit is not totally sealed, fresh air admission is permitted through the drainpipe. Air is circulated through the beverage cooler by means of a fan /fans and the hollow shelves.

Close-up of a black circular fan mounted on a metal rack, with no visible text or symbols.

Important

The water collected by condensation, is therefore recycled. Under extremely dry environmental conditions, you may have to add some water into the water container provided with your beverage cooler. During the refrigerating cycle, heat is given off and disperses through the external surfaces of the beverage cooler.

Avoid touching the surfaces during those cycles.

Temperature Setting

Depending on the loading and settings chosen, it takes 24 hours for the beverage cooler temperature to stabilize. During this time, the LED temperature display may seem to move erratically. This is a normal process. This process occurs whenever the setting is modified and/or whenever large amounts of cans or bottles are added to the beverage cooler. In the event of a power interruption, all previous temperature settings are automatically erased and it will revert to the pre-set temperature setting.

Important

The LCD displays by default the actual internal air temperature. It's important to understand that there is a difference between the air temperature inside the beverage cooler and the actual temperature of the beverages" You will need to wait approximately 12 hours before noticing the effects of temperature adjustment due to the critical mass within a full beverage cooler.

Once the thermostat is set it is strongly advised not to adjust it frequently. The thermostat will maintain the temperature inside the beverage cooler within a +/- 2.5 °C range, the actual temperature of the beverages will only fluctuate 0.5 °C to 1 °C.

Beverage Cooler Control panel

The LCD displays the internal air temperature. The desired temperature can be adjusted by pressing Set button and then Up and Down buttons, the temperature setting can be adjusted from 0 °C to 10 °C. Press Set button, the set temperature will temporarily flash in the LCD display for 5 seconds.

Cooling Indicator light

When the light is on, the cooling mode is currently in operation.

Interior Light

You can turn on/off the interior light by pressing the "Globe" button.

For the best storage condition, please keep the light off except while viewing.

Interior view of a modern building with exposed steel beams and overhead lighting (no visible text or symbols)

Instruction on how to replace the inside LED light.

Take off the screws from the lids, unplug LED light and then re-plug a new LED light to instead.

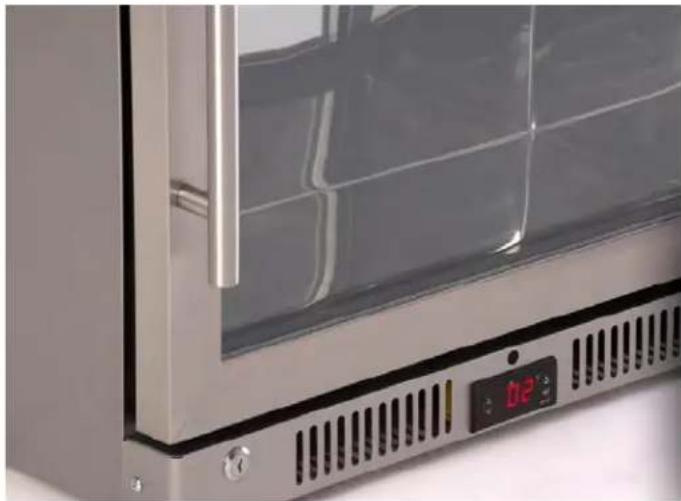

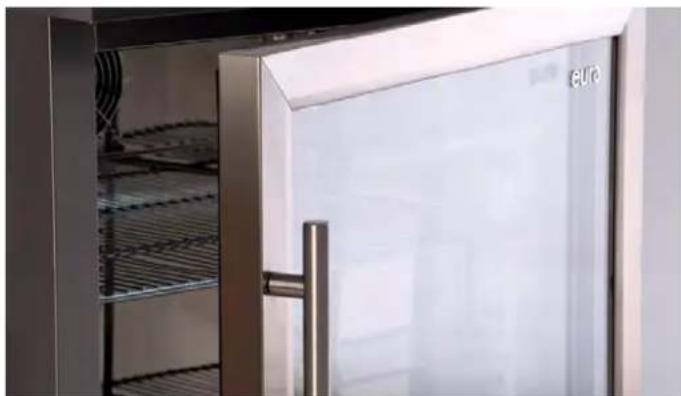

INSTALLING STAINLESS STEEL HANDLE

This beverage cooler includes a stainless steel handle that is required to operate this unit.

Close-up of a stainless steel refrigerator with visible glass doors and a digital display showing 0.2°C (no text or symbols on the main subject)

To install the handle please follow the instruction below

1. Pull away the door gasket in the area where the handle is to be installed - you can see two designated holes for handle installation. The gasket is easily displaced by hand, no tools are necessary.

2. Install the handle tightly as shown below with the two screws. Lock washers and flat washers provided (DO NOT over tighten as this will cause damage to the handle assembly and stainless steel surface of glass door).

3. Replace the door gasket to its original position.

Interior view of a modern stainless steel refrigerator with glass doors and metal railing (no visible text or symbols)

Power Failures And Operation Anomalies

In the event of a power interruption, all previous temperature settings are automatically erased and the beverage cooler will revert to a preset temperature setting. Most power failures are corrected within a short period of time. A loss of power for an hour or two will not affect your beverage cooler's temperature. To avoid sudden change of temperature while the power is off, you should avoid opening the door. For a longer period of power failure, you may want to take steps to keep your beverages cool.

Ensure that there is power to the electrical supply plug by connecting another electrical appliance to it. Check Fuse, if any. Make sure that the door is closed properly.

If your beverage cooler appears to be malfunctioning, unplug it and contact EURO after sales service on 1800 440 335. Any service on the refrigeration circuit should be performed by a refrigeration technician who should carry out an inspection of the circuit sealing system. Similarly, any service on the electrical circuit should be performed by a qualified electrician.

Important

Any service performed by a non-technician will lead to the warranty being considered as null and void.

R600a Refrigerant Warning

• This appliance contains a small quantity of R600a re-frigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect.
  ● During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged
  ● Leaking refrigerant can ignite and may damage the eyes
• In the event any damage does occur, avoid exposure to open fires and any device which creates a spark, Disconnect the appliance from the mainspower
  ● Thoroughly ventilate the room in which the appliance is located for several minutes.
• The room for installing the appliance must be at least 1 cubic metre per 8 grams of refrigerant. The refrigerant quantity contained in this appliance is noted on the rating plate of the appliance.
• Do not attempt to repair or replace any part of the bar fridge unless it is specially recommended in this manual, refer all other servicing to a qualified technician, or contact the after sales support line for advice on repair or replacement. It is hazardous for anyone other than an authorised service person to service this appliance. In queensland-the authorized service person MUST hold a gas work authorisation for hydrocarbon refrigerants, to carry out servicing or repairs which involve the removal of covers.

CARE AND MAINTENANCE

Clean the condenser

The condenser must be kept clean and free of dust at all times. It is recommended that the cleaning routine be conducted at intervals appropriate to the speed of accretion of dust on the condenser. Failure to keep the condenser clean will damage the refrigeration system and invalidate the warranty.

Important

The condenser is a delicate component and is easily damaged. Never use a stiff brush or sharp objects to clean it. Never use water.

Care when going on Vacation

1. Short Vacations

Leave the Beverage Cooler operating during vacations of less than 3 weeks.

1. Long Vacations

If the appliance will not be used for several months, remove all beverages and unplug the power cord. Clean and dry the interior thoroughly. To prevent odour and mould growth, leave the door open slightly; blocking it open if necessary or have the door removed. Do not leave access to children.

Moving your Beverage Cooler

1. Remove all the beverages.
2. Securely tape down all loose items inside your appliance.
3. Tape the doors shut.
4. When fixed or moved, the beverage cooler cannot be set horizontally or reclined to more than 45^ or positioned upside down.
5. Never move the beverage cooler while it is plugged in and operating.

Energy saving tips

The beverage cooler should be located in the coolest location, away from heat producing appliance or heating ducts, and out of the direct sunlight.

Overloading the beverage cooler forces the compressor to run longer.

Recommended Cleaning Product

• Switch off and disconnect from the power supply before cleaning
• Clean the interior of the appliance using the recommended products in accordance with local hygiene laws and regulations.
• Do not use abrasive cleaning agents, which may scratch and harm the delicate interior finishes of your appliance.
  ■ Always wipe dry after cleaning.

- AKTIVO All Purpose

AKTIVO All Purpose Cleaner is our eco-friendly, natural, citrus fresh scented and strong cleaner for your homes. Designed to be gentle and non-toxic on surfaces, good for the environment but tough on stains and big cleaning jobs around the house.

Simply spray and wipe all surfaces with a clean cloth.

- AKTIVO Glass + Window Cleaner

AKTIVO Glass + Window Cleaner cleans all the glass surfaces without streaking. It dries quickly, keeping your glass shiny, gleaming and clear and it works without the use of choking ammonia fumes, leaving behind a mild citrus scent.

Spray a fine mist of our cleaner over the surface to be cleaned. Immediately wipe over with a lint free cloth or clean dry paper towel.

- AKTIVO Stainless Steel Polish

AKTIVO Stainless Steel Polish is a light oil polish for stainless steel and architectural metals. It will remove finger marks instantly and retain a light film on the surface that resists further marking. Repels dirt and dust for long lasting shine.

Apply to a dry, lint free cloth and wipe lightly in the direction of the grain of the surface. For heavily soiled surfaces pre-clean with AKTIVO All Purpose Cleaner before applying. Do not apply onto plastic parts and moulding.

TROUBLESHOOTING GUIDE

PROBLEM POSSIBLE CAUSE
Beverage cooler does not operate Not plugged in. The appliance is turned off.The circuit breaker has tripped or a fuse has Blown.
Beverage cooler is not cold enough. Check the temperature control setting.External environment may require a higher setting.The door is opened too often.The door is not closed completely.The door gasket does not seal properly.
Turns on and off frequently The room temperature is hotter than normal.A large amount of contents has been added to the Beverage Cooler.The door is opened too often.The door is not closed completely.The temperature control is not set correctly.The door gasket does not seal properly.
The light does not work Not plugged in.The circuit breaker tripped or a blown fuse.The bulb has burned out.The light button is “OFF”.
Vibrations Check to assure that the Beverage Cooler is Level.
Beverage cooler seems to make too much noise.	Some noise may come from the flow of the refrigerant, which is normal.As each cycle ends, you may hear gurgling sounds caused by the flow of refrigerant in your Beverage Cooler.Contraction and expansion of the inside walls may cause popping and crackling noises.The Beverage cooler is not level.
The door will not close properly. The Beverage Cooler is not level.The door was reversed and not properly installed.The gasket is dirty.The shelves are out of position.

Important

If the appliance appears not to be operating correctly, turn off the appliance at the switch and then contact

the Service Department for advice.

Do not attempt to repair the appliance yourself

TECHNICAL SPECIFICATIONS

EA60 Series Stainless Steel Beverage Cooler

Item Number EA60WFSX2L EA60WFSX2R EA60SDSXL EA60SDSXR
Stype	Stainless SteelGlass DoorLeft Door open	Stainless SteelGlass DoorRight Door open	Stainless SteelSolid DoorLeft Door Open	Stainless SteelSolid DoorRight Door Open
Cooling System	Compressor Cooling Compressor Cooling
Volumn	128L 128L
Climate Glass	T T
Rated Voltage	AC220V-240V / 50Hz AC220V-240V / 50Hz
Rated Current	1.0A 1.0A
Energy Consump.	0.83kW.h/24h 0.83kW.h/24h
Refrigerant	R600a R600a
Charging Amount	35g 35g
Temp.Range	0-10'C 0-10'C
Unit Size	600x500x840mm 600x500x840mm
Net Weight	37kgs 37kgs

EA60WFSX2L EA60WFSX2R

Front view of a modern stainless steel refrigerator with multiple side dishes (no visible text or labels)

Exterior view of a modern beverage refrigerator with multiple cans on the glass (no visible text or labels)

EA60SDSXL

Front view of a white stainless steel refrigerator with a black control panel at the bottom (no visible text or symbols)

EA60SDSXR

Front view of a white stainless steel refrigerator with control panel and indicator lights (no visible text or symbols)

EA60 Series Black Beverage Cooler

Item Number EA60WFBL EA60WFBR EA60WSDBL EA60WSDBR
Stype	Black FrameGlass DoorLeft Door open	Black FrameGlass DoorRight Door open	Black FrameSolid DoorLeft Door Open	Black FrameSolid DoorRight Door Open
Cooling System	Compressor Cooling Compressor Cooling
Volumn	128L 128L
Climate Glass	T T
Rated Voltage	AC220V-240V / 50Hz AC220V-240V / 50Hz
Rated Current	1.0A 1.0A
Energy Consump.	0.83kW.h/24h 0.83kW.h/24h
Refrigerant	R600a R600a
Charging Amount	35g 35g
Temp.Range	0-10'C 0-10'C
Unit Size	600x500x840mm 600x500x840mm
Net Weight	37kgs 37kgs

EA60WFBL EA60WFBR

Front view of a black refrigerator with glass display shelves (no visible text or symbols)

Front view of a black refrigerator with multiple side dishes (no visible text or labels)

EA60WSDBL

Black rectangular electronic device with indicator lights at the bottom (no visible text or symbols)

EA60WSDBR

Black rectangular refrigerator with front panel and side buttons (no visible text or symbols)

EA90 Series Beverage Cooler

Item Number EA90SDSX EA900WFSX2 EA900WFBL EA900WSDB
Stype	Stainless SteelSolid Door	Stainless SteelGlass Door	Black FrameGlass Door	Black FrameSolid Door
Cooling System	Compressor Cooling Compressor Cooling
Volumn	208L 208L
Climate Glass	T T
Rated Voltage	AC220V-240V / 50Hz AC220V-240V / 50Hz
Rated Current	1.3A 1.3A
Energy Consump.	1.2kW.h/24h 1.2kW.h/24h
Refrigerant	R600a R600a
Charging Amount	50g 50g
Temp.Range	0-10'C 0-10'C
Unit Size	900x500x840mm 900x500x840mm
Net Weight	53.5kgs 53.5kgs

EA90SDSX EA900WFSX2

Front view of a modern stainless steel double-door refrigerator with open doors and control panel (no visible text or symbols)

Exterior view of a modern stainless steel double-decker beverage refrigerator with multiple side bays filled with Coca-Cola cans (no visible text or labels)

EA900WFBL EA900WSDB

Front view of two black beverage refrigerators with side bays and control knobs (no visible text or labels)

Exterior view of a black double-decker refrigerator with visible doors and front panel (no text or symbols)

EA60WFSX2L

EUROSTYLE GROUP PTY LTD

EA60WFSX2R

EUROSTYLE GROUP PTY LTD

EA60SDSXL

EUROSTYLE GROUP PTY LTD

EA60SDSXR

EUROSTYLE GROUP PTY LTD

EA60WFBL

EUROSTYLE GROUP PTY LTD

EA60WFBR

EUROSTYLE GROUP PTY LTD

EA60WSDBL

EUROSTYLE GROUP PTY LTD

EA60WSDBR

EUROSTYLE GROUP PTY LTD

WIRING DIAGRAM (90/900 Series)

EA90SDSX

EUROSTYLE GROUP PTY LTD

EA900WFSX2

EUROSTYLE GROUP PTY LTD

EA900WFBL

EUROSTYLE GROUP PTY LTD

EA900WSDB

EUROSTYLE GROUP PTY LTD

DIMENSION DRAWINGS

EA900WFSX2 - EA900WFBL

EA90SDSX - EA900WSDB

DIMENSION DRAWINGS

EA60WFSX2L - EA60WFBL EA60SDSXR - EA60WSDBR

EA60SDSXR - EA60WSDBR

EA60SDSXL - EA60WSDBL

Explored view of model SC-128F

Serial No	NO./Part Number	Description	Qry for each cabinet
1	211.0315.00	E-bracket	4
2	223.000.00	K-clip	8
3		Foaming body (block)	1
4	201.5C11BF.00	Shelf	2
5	521.5C11BF.00	Evaporator	1
6	402.12025.01	Evaporator-fin	1
7	16.211.5C12BF.10	Evaporator install panel(8x90455)	1
8	273.000.00	Fan cover	1
9	16.221.5C12BF.10	Evaporator bottom panel	1
10	417.3000.05	LED drive	1
11	350.002.100	Light clamp	2
12	434.5C11BF.00	LED light	1
13	350.001.02	Insert bracket	2
14	263.000.00	Upper hinge	1
15	352.04.00	Upper hinge sleeve	1
16	911.5C12BF.35	Glass door(Left hinge)	1
	911.5C12BF.33	Glass door(Peak hinge)	1
17	241.401.01	Door handle	1
18	255.000.00	Door lock	1
19	352.01.00	Bottom hinge sleeve	1
20	262.001.00	Bottom hinge	1
21	912.5C11BF.00	Gasket	1
22	366.000.01	Controller cover	1
23		Controller install panel	1
24	411.BCS.00	Digital controller	1
25	233.16.00	Foot	4
26	16.232.5C12BF.01	Fruit feet install panel	1
27	16.231.5C12BF.00	Compressor install panel	1
28	501.EYD60.00	Compressor	1
29		Compressor starter	1
30		Compressor Over-load protector	1
31	512.5C11BF.00	Condenser	1
32	282.100.10	Condenser fan blade	1
33	401.YZF5.00	Condenser fan motor	1
34	283.55.00	Condenser fan supporter	1
35	541.11.00	Filter	1
36	842.000.00	Filter install bracket	1
37	451.001.01	Power cord	1
38	16.202.5C12BF.00	Fruit panel	1
39	371.000.02	Water tray	1

Explored view of model SC-208F

Serial No.	NO. Part Number	Description	Qty for each cabinet
1	201.SC20BP.00		4
2	223.000.00	K-faner	10
3	211.035.00	K-clip	8
4	417.1900.03	LED driver	1
5	424.SC20BP.00	LED light	1
6	370.001.590	Light Clamp	2
7	221.SC20BF.00	Experance	1
8	492.12021.03	Experance tie	2
9	16.211.SC20BF.10	Experance small panel (RS145)	1
10	272.000.00	Fan candle	2
11	16.222.SC20BP.10	Experance bottom panel (RS145)	1
12	350.001.02	Internal breaker	3
13	283.000.00	Upper hinge	1
14	352.00.00	Upper hinge sleeve	1
15	413.SC20BF.00	Gasket	2
16	411.SC20BF.00	Left glass door	1
17	241.405.01	Door handle	2
18	372.00.00	Bottom hinge sleeve	1
19	261.000.01	Left Bottom hinge	1
20	265.000.00	Door lock	2
21	411.SC20BF.01	Right glass door	1
22	382.000.01	Right Defensive hinge	1
23	366.000.01	Controller cover	1
24		Controller small panel	1
25	411.BCS.00	Digital controller	1
26	253.10.00	Tout	4
27	16.333.SC20BF.01	Front feet small panel	1
28	16.231.SC20BF.00	Compressor small panel	1
29	502.CS20F.02	Compressor	1
30		Compressor stopper	1
31		Compressor Over-hand protects	1
32	216.SC20BF.00	Condenser	1
33	382.100.10	Condenser fan blade	1
34	493.Y2P7.00	Condenser fan screw	1
35	283.51.00	Condenser fan upper	1
36	241.15.00	Fibre	1
37	342.000.00	Filter small breaker	1
38	453.001.01	Power cord	1
39	16.202.SC20BF.00	Front panel	1
40	371.000.02	Water spray	1
41	16.254.SC20BF.02	Resistance bracket	1
42		Feasuring body (black)	1

Note : The information in this document is subject to modification without any prior notice.

Pronto Service + Support: 1800 440 335

Email: [e-mail]

HEAD OFFICE

65 Glynburn Road, Glynde SA 5070

Ph: 08 8165 1012

www.euroappliances.com.au
