GTP59233W - Tumble drier GRUNDIG - Free user manual and instructions
Find the device manual for free GTP59233W GRUNDIG in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Condenser Tumble Dryer |
| Energy Efficiency Class | A++ |
| Drying Capacity | 9 kg |
| Drum Volume | 120 L |
| Height | 85 cm |
| Width | 60 cm |
| Depth | 60 cm |
| Weight | 50 kg |
| Power Supply | 220-240 V, 50 Hz |
| Rated Power | 700 W |
| Noise Level | 65 dB(A) |
| Number of Programs | 15 |
| Drying Programs | Cotton, Synthetics, Delicates, Wool, Mix, Sports, Shirts, Jeans, etc. |
| Sensor Drying | Yes |
| Anti-Crease Function | Yes (up to 2 hours) |
| Delay Timer | Up to 24 hours |
| Child Lock | Yes |
| Condenser Cleaning | Manual cleaning required |
| Lint Filter | Clean after each cycle |
| Water Tank Capacity | 5 L |
| Reversible Door | Yes |
| Spare Parts Availability | Filters, belt, heating element available |
Frequently Asked Questions - GTP59233W GRUNDIG
How do I clean the lint filter?
Open the door and pull out the lint filter. Remove lint by hand or with a soft brush. Rinse under running water if necessary, then dry completely before reinserting. Clean after every cycle.

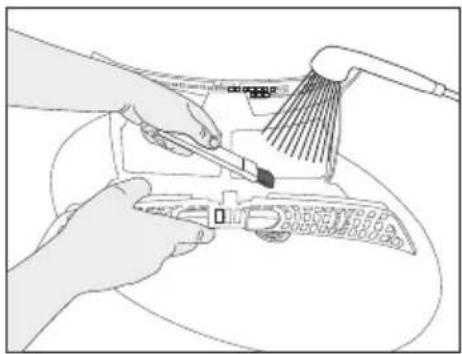

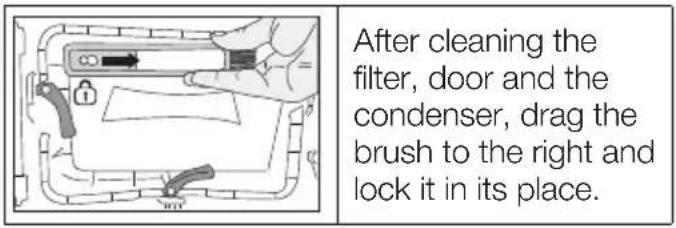

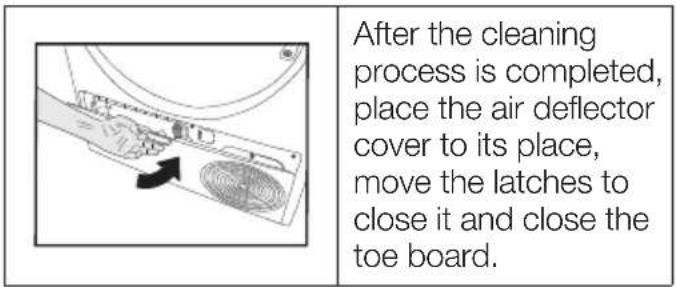

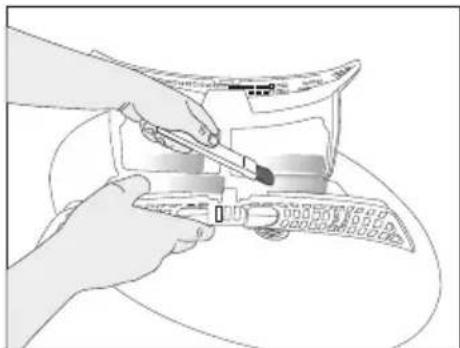

How do I clean the condenser?
Locate the condenser behind the lower front panel. Open the cover, unlock the condenser unit, and pull it out. Rinse with water from the back side to remove fluff. Let it dry and reinsert securely. Clean every 6 months or when indicator lights up.
What drying programs are available?
Your dryer offers 15 programs including Cotton, Synthetics, Delicates, Wool, Mix, Sports, Shirts, Jeans, Quick 30 min, and more. Select based on fabric type and desired dryness level.
Why is the dryer not starting?
Check if the door is fully closed, power cord is plugged in, and the child lock is deactivated. Also ensure the program is selected and the start button is pressed. If still not starting, check the fuse or circuit breaker.
Can I reverse the door?
Yes, the door is reversible. To change the opening direction, remove the door hinge covers, unscrew the hinges, reposition them on the opposite side, and reattach the door. Refer to the manual for detailed steps.
Can I dry wool items?
You can dry wool items using the Wool program, which is gentle and uses low heat. However, only machine-dryable wool should be dried. Check the garment label and avoid overloading.
What does the child lock do?
The child lock prevents unintended operation by locking the buttons. To activate, press and hold the Child Lock button for 3 seconds. Repeat to deactivate. This ensures children cannot change settings during a cycle.
How do I use the delay timer?
Select a program, then press the Delay Timer button repeatedly to set the desired delay (1-24 hours). The start will be postponed accordingly. This feature is useful to have the dryer finish at a specific time.
What is the energy consumption of this dryer?
This model has an energy efficiency class A++. The typical annual energy consumption is around 235 kWh based on 160 cycles. Actual consumption varies with program and load size.
How should I install the dryer?
Place the dryer on a level, stable surface. Ensure adequate ventilation around the appliance. Remove all packaging and keep a minimum of 10 cm clearance from walls. Level the feet using the adjustable legs to avoid vibrations.
