Product Type	Chest Freezer (Horizontal Freezer)
Model	JCH-150
Brand	Jocel
Climate Class	SN (10°C-32°C), N (16°C-32°C), ST (16°C-38°C), T (16°C-43°C)
Temperature Range	-14°C to -22°C (adjustable)
Fast Freeze Function	Yes – 52-hour continuous compressor run, activates by pressing "SUPER" button
High Temperature Alert	Yes – triggers if internal temp > -8°C for over 2 hours after 3h of operation
Control Panel	Thermostat control panel with temperature adjustment (+/-), SUPER, and lock function
Lock Function	Auto-lock after 30s; unlock by pressing +/- simultaneously for 3s
Interior Light	LED light with gravity switch (opens when door >30°)
Door Lock	Mechanical lock with key (optional external handle)
Basket	Wire basket included for storage
Defrosting	Manual defrost – drain plug inside, external drain dial for water removal
Condenser Cleaning	Recommended annually with soft brush or vacuum
Refrigerant	R-600a (isobutane, flammable)
Electrical Connection	220-240V, 50/60Hz (based on rating plate)
Warranty	2 years for home use; 6 months for industrial use
Installation Clearance	Sides 10cm, Back 10cm, Top 70cm
Spare Parts	LED lamp (special use), handle, lock catch – available from authorized service
Disposal	Do not discard with household waste; recycle per local regulations (flammable insulation)

Frequently Asked Questions - JCH-150 Jocel

How do I set the temperature on the Jocel JCH-150 freezer?

Press the '-' or '+' buttons to adjust the temperature between -14°C and -22°C. For fine adjustment, press and hold the button for 5 seconds.

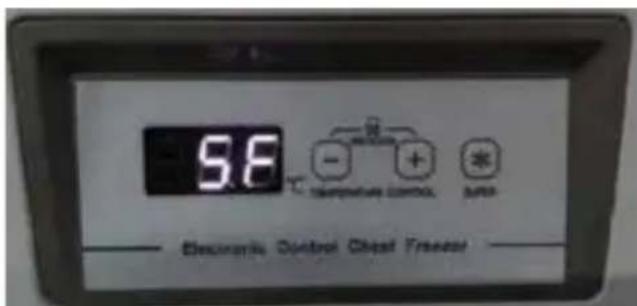

How do I activate and deactivate the fast freeze (SUPER) function?

Press the 'SUPER' button to activate fast freeze. The display shows 'SF'. The compressor runs continuously for 52 hours. To deactivate, press the 'SUPER' button again.

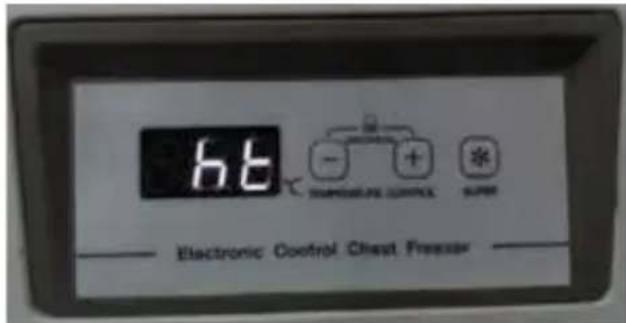

What does the 'ht' alert on the display mean?

'ht' indicates a high temperature alert. It activates if the internal temperature rises above -8°C for more than 2 hours after the freezer has been running for 3 hours. Press any button to silence the buzzer. The alert turns off automatically when the temperature drops below -12°C.

How do I unlock the control panel if it’s locked?

Press both the '-' and '+' buttons simultaneously for 3 seconds. The panel locks automatically after 30 seconds of inactivity.

How do I defrost the freezer?

Unplug the freezer. Remove the internal drain plug. Place a tray under the outer drain dial. Rotate the dial 180° to let water flow out. After defrosting, push the dial back in, replace the internal plug, and wipe dry.

How do I clean the interior of the freezer?

Switch off and unplug the freezer. Remove food. Clean with lukewarm water and mild neutral soap. Avoid abrasive cleaners. Wipe dry before restarting.

What should I do if the LED light does not turn on when I open the lid?

Check the lamp cover screws, the LED electronic part terminals, and the contacting lines for looseness. If the LED is faulty, replace it with a genuine spare part. If still not working, contact after-sales service.

How do I install the external handle on the freezer door?

Step 1: Fix the handle base to the door using the 4 screws provided. Step 2: Insert the handle cover until it clicks. Step 3: Screw the lock catch onto the cabinet with the remaining 2 screws. If the lock ring fails to hold, adjust the door position using the round head screws on the back.

What are the recommended clearances for installing the freezer?

Allow at least 10 cm on each side, 10 cm at the back, and 70 cm above the freezer for proper ventilation.

What should I do if the freezer makes unusual noises?

Check if the appliance is touching the wall or other objects. Move it slightly. If a pipe on the rear is touching another part, carefully bend it away. If the noise persists, contact the service center.

USER MANUAL JCH-150 Jocel

White industrial refrigerator with lid and label (no visible text or symbols on body)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES

Passo 1

Pure mechanical assembly diagram without any text, numbers, or symbols

Passo3

Blank white square with a thin gray border (no text or symbols)

Nota:

Simple line drawing of a rectangular frame with a small protrusion at the top (no text or symbols)

Pure technical line drawing of a rectangular frame with internal components and no text or symbols

Primeiro uso

Limpar o interior

POR FAVOR, NOTE: O CONGELADOR ESTÁ FUNCIONANDO SEM PROBLEMAS OU AVARIA EM TAIS CASOS.

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

SEDE:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

Pure mechanical assembly diagram without any text, numbers, or symbols

Paso 1

Pure mechanical assembly diagram without any text, numbers, or symbols

Paso3

Blank white image with a thin border and a small mark at the top (no text or symbols)

Nota:

Technical line drawing of two rectangular electronic devices with mounting brackets and a labeled component (no text or symbols present)

Conexión eléctrica

White industrial refrigerator with lid and label (no visible text or symbols on body)

INSTRUCTION MANUAL

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given super vision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children aged from 3 to 8 years are allowed to load and unload this appliance.

• Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are aged from 8 years and above and supervised.

- Keep all packaging well away from children. There is risk of suffocation.

Safety information

• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lack unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

⚠ WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
⚠ WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
⚠ WARNING! Do not damage the refrigerant circuit.
WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture.
⚠ WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot. 1)

⚠ WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING! Do not locate multiple portable socket-outlets or portable power suppliers at the rear of the appliance.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
• During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

- avoid open flames and sources of ignition

- thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.

• This appliance is intended to be used in household and similar applications such as

- staff kitchen areas in shops, offices and other working environments;

- farm houses and by clients in hotels, motels and other residential type environments;

- bed and breakfast type environments;

- catering and similar non-retail applications.

Safety information

CE

WARNING! Any electrical components (plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.
WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting ^1 .

• Power cord must not be lengthened.
- Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
- Make sure that you can come to the mains plug of the appliance.
- Do not pull the mains cable.
- If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
- You must not operate the appliance without the lamp.
- This appliance is heavy. Care should be taken when moving it.
- Do not remove nor touch items from the freezer compartment if you hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
- Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

• Do not put hot on the plastic parts in the appliance.

• Do not place food products directly against the rear wall.

• Frozen food must not be re-frozen once it has been thawed out. ^1)

• Store pre-packed frozen food in accordance with the frozen foodmanufacture8s instructions ^1 .
• Appliance's manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated of fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance ^1) .
• Ice lollies can cause frost burns if consumed straight from the appliance. ^1)
  • To avoid contamination of food, please respect the following instructions
• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments (if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes.

• One-, two- and three -star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.

• If the appliance is left empty for long periods, switch off, defrost, clean, dry and leave the door open to prevent mount developing within the appliance.

Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper. ^1)
• Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain.
  If the drain is blocked, water will collect the bottom of the appliance ^2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

- Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.

Safety information

CE

• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.
• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, con-denser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.

Service

• Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
• This product must be serviced by an authorized Service Center, and only genuine spare parts must be used.

Energy saving

• Don't put hot food in the appliance;
• Don’t pack food close together as this prevents air circulating;

• Make sure food don't touch the back of the compartment(s);

• If electricity goes off, don't open the door(s);

• Don't open the door(s) frequently;
• Don't keep the door(s) open for too long time;
• Don't set the thermostat on exceeding cold temperatures;
• Some accessories, such as drawers, can be removed to get larger storage volume and lower energy consumption.

Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger.

The materials used on this appliancemarked by the symbol 🌐 a re recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health,

which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose the packaging in a suitable collection containers to recycle it.

Disposal of the appliance

1. Disconnect the mains plug from the mains socket.
2. Cut off the mains cable and discard it.

WARNING! During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal.

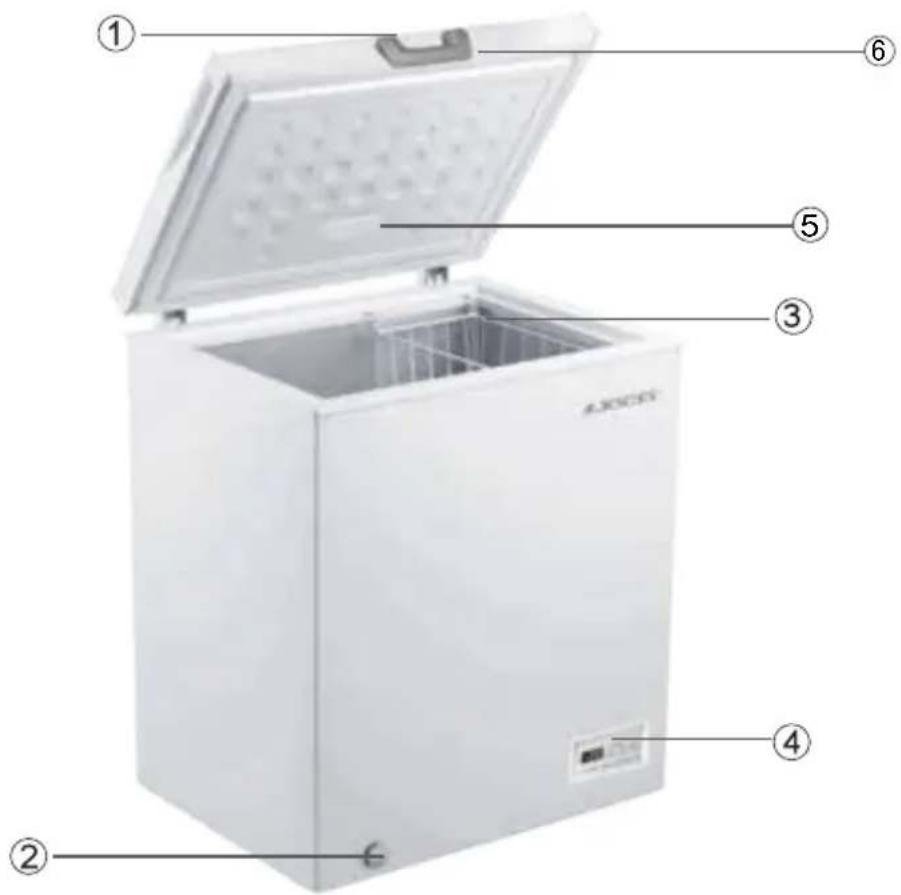

1. Handle
2. Drain Hole
3. Basket
4. Thermostat control panel
5. LED Light
6. Lock

Note: Above picture is for reference only.

Install door external handle (if external handle is present)

Step1

Architectural cross-section diagram showing structural layers and a numbered label (no text or symbols present)

Step1

Take out 4 screws ① and handle base ② from accessory bag.

Then fix the handle base ② with door by 4 screws ①.

Step2

Pure mechanical assembly diagram without any text, numbers, or symbols

Step3

Step2

Insert handle cover ③ in the handle base ② until a click.

Step3

Screw lock catch ④ on the freezer cabinet by anther 2 screws ①.

Note

Simple line drawing of a rectangular frame with a horizontal bar and small wheels at the bottom (no text or symbols)

Pure technical line drawing of a rectangular frame with internal components and no text or symbols

Note:

If the lock ring failed to hold the lock when installing handle, please unscrew the round head screws⑤on the back of door and adjust the position of door upper and lower. Then drive the screw to fix the handle

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight etc. Ensure that air can circulate freely around the back of the cabinet. To ensure best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjust-able feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supp-ly; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

Space Requirement

The following are recommend.

Clearances around the chest freezer

Sides……10cm

Back ……10cm

Top 70cm

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN	+10°C to +32°C
N	+16°C to +32°C
ST	+16°C to +38°C
T	+16°C to +43°C

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish.

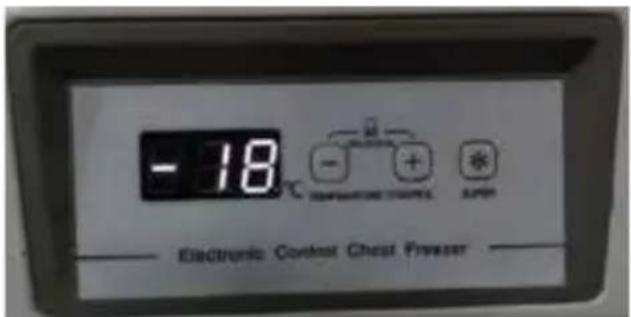

Temperature Setting

1. Temperature Setting

Temperature could be adjusted by pushing "-" or "+" button. The temperature could be adjusted from -14°C to -22°C. Keep pushing the button for 5 seconds, the temperature could be well set.

1. Lock & Unlock

The temperature setting panel would be locked automatically after 30 seconds without operation. To unlock the temperature panel, please push both "-" or "+" button in the same time for 3 seconds, then the temperature setting panel would be unlocked.

1. "SUPER" and Fast Freeze Function

Push "SUPER" button, then the freezer would activate the fast freeze function. The temperature panel would show "SF" (shown as below picture). Compressor would run for 52 hours without stopping when fast freeze function is activated.

To stop the "SUPER" function, please push the "SUPER" button again.

4. SMART MONITOR FUNCTION: High Temperature Alert

The system would monitor the temperature automatically after continuous 3 hours' working. In case of temperature inside the cabinet is higher than -8 °C for more than 2 hours, the high temperature alert would be activated. In such case, the buzzer would start warning, and the panel would show "ht" as below picture.

PLEASE NOTE: THE FREEZER IS WORKING WITHOUT MALFUCTION OR PROBLEMS IN SUCH CASE.

To stop the buzzer warning, you can press anyone of the button on the panel. When the temperature becomes lower than -12 °C, the high temperature alert would be shut off automatically. Temperature could be adjusted while the buzzer is warning.

Helpful hints and tips

Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
- only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
- prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
- wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
- do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;
• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
- be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary.
- Once defrosted, food deteriorates rapidly and cannot be refrozen.
- Do not exceed the storage period indicated by the food manufacture.

Position different food in different compartments according to below table

Chest Freezer

·Foods for long-term storage.·Raw meat, poultry, fish, frozen vegetables, chips, ice cream, frozen fruit, frozen baked goods

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. Danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice form orange peel, butyric acid, cleanser that contain acetic acid.

• Do not allow such substances to come into contact the appliance parts.
• Do not use any abrasive cleaners
• Remove the food from the freezer. Store them in a cool place, well covered.
• Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker of fuse.
• Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub dry.
• Accumulation of dust at the condenser increases energy consumption. For this reason carefully clean the condenser at the back of the appliance once a year with a soft brush or a vacuum cleaner. ^1
  • After everything is dry place appliance back into service.

Defrosting of the freezer

The freezer, however, will become progressively covered with frost. This should be removed.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as fellows:

- Unplug the unit. Remove the drain plug from the inside of the freezer. Defrosting usually takes a few hours. To defrost faster keep the freezer door open.

- For draining, place a tray beneath the outer drain plug. Pull out the drain dial.

- Rotate the drain dial 180 degree. This will let the water flow out in the tray. When done, push the drain dial in. Replug the drain plug inside the freezer compartment. Note: monitor the container under the drain to avoid overflow.

- Wipe the interior of the freezer and replace the electrical plug in the electrical outlet.

- Reset the temperature control to the desired setting.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician of competent person must do the troubleshooting that is not in this manual.

Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	Solution
Appliance dose not work	Mains plug is not plugged in or is loose	Insert mains plug.
	Fuse has blown or is defective	Check fuse, replace if necessary.
	Socket is defective	Mains malfunctions are to be corrected by an electrician.
Appliance freezes too much	Temperature is set too cold or the appliance runs at MAX setting.	Turn the temperature regulator to a warmer setting temporarily.
The food is not frozen enough.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
	Door was open for an extended period.	Open the door only as long as necessary.
	A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
	The appliance is near a heat source.	Please look in the installation location section.
Heavy build-up of frost on the door seal.	Door seal is not air-tight.	Carefully warm the leaking sections of the door seal with a hair dryer (on a cool setting). At the same time shape the warmed door seal by hand such that it sits correctly.
Unusual noises	The appliance is touching the wall or other objects.	Move the appliance slightly.
	A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.

If the malfunction shows again, contact the Service Center.

These data are necessary to help you quickly and correctly. Write the necessary data here, refer to the rating plate.

Replace the lamp

The switch of LED lamp is gravity controlled, when the angle of door-opening is bigger than 30. Degree, light will switch on and switch off when the angle is smaller than 30 degree.

Notice:

When LED lamp does not work when door is open, Please be released and check as below steps:

• Firstly, loosen screws on the lamp cover
  • Secondly, loosen the screws fixed on the lamp electronic parts

- Thirdly, check the cable terminals of electronic parts and terminals of contacting lines for door lamp is loosening or not. Please fix them if they are not fixed. Then, check the light is on or not. If the lamp is switch on please install the lamp cover; If not, please further check the electronic part is intact or not. If necessary, please replace the electronic part to check the lamp is on or not. If the lamp still does not work. Please contact with staff of after-sale service for assistance.

- The steps of Led lamp installing Fix the cable terminals of electronic parts and contacting lines in the door liner; Install LED electronic part in the door liner and fix on by screws; Install lamp cover on the holder and fix to finish all process

This list provides all Eco-design requirements (following the (EU)2019/2019 Eco-design and (EU)2019/2016 Energy labelling), if the requirement is applicable to your product.

The refrigerating appliance is not intended to be used as a built-in appliance, unless specifically shown as such into its instruction manual.

The drawers, baskets and shelves should be kept in their current position unless otherwise specified in this document.

Doors and lids of the refrigeration appliance should be removed before disposal in the landfill, to avoid children or animals getting trapped inside.

Recommended setting:

Refrigerator compartment: +4°C

Freezer compartment: -18°C

FAST FREEZE

The use of this function is recommended when placing a very high quantity of food to be frozen in the freezer compartment. 24 hours before freezing fresh food, press the Fast Freeze button to activate the Fast Freeze function. When activated, the Fast Freeze indicator turns on. After 24 hours place the food to be frozen in the freezing zone of freezer compartment. The function is automatically disabled after 72 hours, or can be manually disabled by pressing Fast Freeze button.

FAST COOL

Using Fast Cool function it is possible to increase the cooling capacity in the refrigerator compartment. The use of this function is recommended when placing a very high quantity of food in the refrigerator compartment. Press the Fast Cool button to activate Fast Cool function. When activated, the Fast Cool indicator turns on. The function is automatically disabled after 6 hours, or can be manually disabled by pressing Fast Cool button again.

How to store foodstuffs:

To avoid food waste, please refer to the recommended setting and storage times:

Fridge compartment: Different food, especially vegetable and fruit, have different storage temperature. The storage time is 1 to 3 days (temp setting: middle)

Freezer compartment: 1 week (temp setting: Min) and 1 month (temp setting: Max)

To optimize freezing speed and get more storage space, the freezer compartment can be used without the freezer drawers.

The quantity of fresh food that can be frozen in a specific time period is indicated on the rating plate. Load limits are determined by baskets, flaps, drawers, shelves etc. Make sure that these components can still close easily after loading.

To avoid food waste, please refer to the recommended setting and storage times found in the user manual.

The model information can be retrieved using the QR-Code reported in the energy label. The label also includes the model identifier that can be used to consult the portal of the registry at

https://eprel.ec.europa.eu

This product contains a light source of energy efficiency class G (if present).

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made replacement of defective parts, according to the discretion of our technical Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc..
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.

2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.

3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below

Product HORIZONTAL FREEZER

Brand JOCEL

Model JCH-150

Complies with the following European directives and standards implementation:

Low Voltage

2014/35/EU EN 60335-1:2012 + A11:2014 + A13:2017

EN 60335-2-24:2010 + A1:2019 + A2:2019

EN 62233:2008

Electromagnetic Compatibility

2014/30/EU

EN 55014-1:2006 + A1:2009 + A2:2011

EN 55014-1:2017

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013
