| Product Type | TV Antenna |
| Brand | Nedis |
| Model | ANOR5070ME |
| Frequency Range | VHF 174-230 MHz, UHF 470-862 MHz |
| Gain | 28 dBi (max) |
| Impedance | 75 Ω |
| Connector Type | F-type (coaxial) |
| Polarization | Linear (Horizontal) |
| Mounting Type | Wall mount or mast |
| Dimensions (W x H x D) | 300 x 200 x 100 mm |
| Weight | 0.5 kg |
| Cable Length | 1.5 m (integrated) |
| Color | Black |
| Power Supply | Passive (no external power needed) |
| Operating Temperature | -10°C to 50°C |
| Weather Resistance | IP54 (splash-proof) |
| Compatibility | DVB-T/T2, DVB-C |
| Included Accessories | Mounting bracket, screws, manual |
| Warranty | 2 years |
| Repairability Index | 5.0 / 10 |
| Spare Parts Availability | Replacement cables and connectors available |
Frequently Asked Questions - ANOR5070ME NEDIS
How do I install the Nedis ANOR5070ME TV antenna?
Mount the antenna on a wall or mast using the included bracket. Connect the coaxial cable to your TV or set-top box. Position the antenna towards the nearest broadcast tower for best reception. You may need to scan for channels on your TV.
What is the frequency range of the ANOR5070ME?
The antenna covers VHF (174-230 MHz) and UHF (470-862 MHz) bands, supporting digital terrestrial TV standards like DVB-T and DVB-T2.
Does this antenna require power?
No, the ANOR5070ME is a passive antenna and does not need an external power source. It works directly with your TV's tuner.
Can I use this antenna outdoors?
Yes, the antenna has an IP54 rating, making it splash-proof and suitable for outdoor use. Ensure it is mounted securely and the connection is weatherproofed.
What type of connector does it use?
The antenna uses an F-type coaxial connector. If your TV has a different input, you may need an adapter (sold separately).
How many channels can I receive?
The number of channels depends on your location and the broadcast signals available. In strong signal areas, you can expect up to 50+ channels with clear reception.
Can I split the signal to multiple TVs?
Yes, you can use a coaxial splitter, but this may reduce signal strength. For best performance, use a powered splitter or amplifier if distributing to multiple TVs.
Why am I getting poor reception?
Check that the antenna is correctly positioned and oriented towards the transmitter. Avoid obstructions like metal objects or walls. Try moving the antenna higher or to a different location.
How do I clean and maintain the antenna?
Disconnect the antenna from power (if any) and wipe with a soft, dry cloth. Do not use harsh chemicals. For outdoor units, periodically check the mounting and connections for corrosion.
Are spare parts available for the ANOR5070ME?
Yes, replacement coaxial cables and mounting brackets are available from Nedis or authorized retailers. Contact support for specific part numbers.
User questions about ANOR5070ME NEDIS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your TV antenna in PDF format for free! Find your manual ANOR5070ME - NEDIS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. ANOR5070ME by NEDIS.
USER MANUAL ANOR5070ME NEDIS
| Frequency Range | Channels | Impedance | No.of elements | Antenna Gain | Front-back ratio | Beam width H/V | Antenna Length |
| 470~694 MHz | 21-48 | 75 Ω | 7 | 10-11dBi | 15-20dB | H42°V55° | 740mm |
Antenna connection:
nedis
Antenna connection:


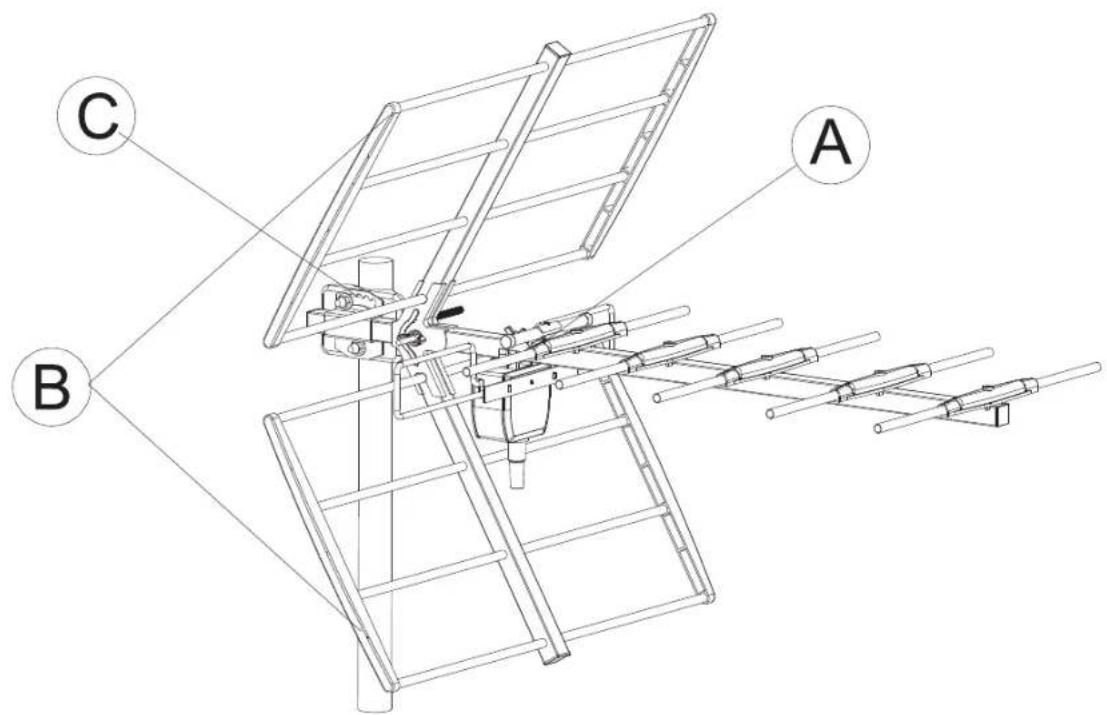

Technical line drawing of a mechanical assembly with a beam and rotating components (no text or symbols)A


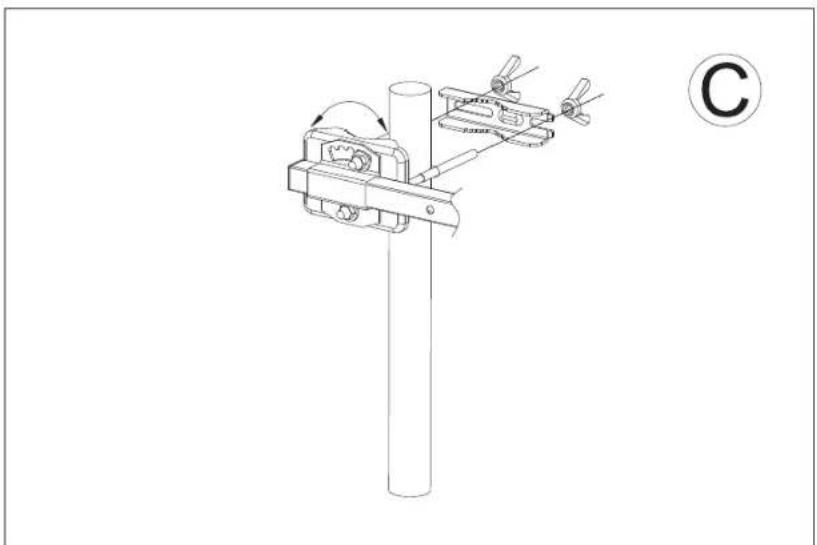

Technical line drawing of a mechanical clamp or clamp device with a cylindrical base and two levers (no text or symbols)
