ANOR5110ME - TV antenna NEDIS - Free user manual and instructions

Product Type	TV Antenna
Brand	Nedis
Model	ANOR5110ME
Category	Television antenna
Frequency Range	VHF 174-230 MHz, UHF 470-862 MHz
Gain	20 dB
Impedance	75 Ohm
Connector Type	Coaxial F-type
Cable Length	1.5 m
Mounting Type	Magnetic base or stand
Dimensions (W x H x D)	200 x 150 x 50 mm
Weight	150 g
Power Supply	Passive (no external power)
Reception Type	Digital terrestrial (DVB-T/T2)
Color	Black
Material	Plastic
Operating Temperature	-10°C to 40°C
Installation	Indoor
Warranty	2 years
Included Accessories	Antenna, coaxial cable, user manual
Maintenance	Wipe with a dry cloth
Safety	Keep away from water and moisture
Spare Parts	Not available
Repairability	Not repairable by user; no user-serviceable parts

Frequently Asked Questions - ANOR5110ME NEDIS

How do I set up the Nedis ANOR5110ME TV antenna?

Place the antenna near your TV on a flat surface or use the magnetic base. Connect the coaxial cable to the TV's antenna input. Then, run a channel scan on your TV to detect available channels.

Why is my TV not finding channels?

Ensure the antenna is properly connected and positioned near a window or higher location. Try reorienting the antenna and perform a channel scan again. Check if your TV supports DVB-T/T2.

Can I use this antenna outdoors?

The Nedis ANOR5110ME is designed for indoor use only. Outdoor use may damage the antenna due to weather exposure unless it is placed under a covered area.

What is the reception range?

Reception range depends on distance from broadcast towers and obstacles. Typically, indoor antennas like this can pick up signals within 20-30 miles under optimal conditions.

How do I clean the antenna?

Unplug the antenna and wipe it with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners, as they may damage the plastic.

Does it work with 4K TVs?

Yes, the antenna receives digital signals (DVB-T/T2) which can include HD and 4K broadcasts if available in your area. The antenna itself is passive and does not affect resolution.

What type of connector does it have?

The antenna has a standard coaxial F-type connector, compatible with most TVs and set-top boxes.

Is there a warranty?

Nedis typically offers a 2-year warranty on this product. Keep your proof of purchase for any warranty claims.

Can I mount it on a wall?

The antenna includes a magnetic base or stand, but it is not designed for wall mounting. You can place it on a shelf or TV stand for best reception.

Why is the picture pixelated?

Pixelation usually indicates a weak signal. Try moving the antenna closer to a window or higher up. Avoid placing it near large metal objects or electronic devices that may cause interference.

USER MANUAL ANOR5110ME NEDIS

Frequency	Channel	Impedance	No.of elements	Gain	Front-back ratio	Beam width Honz/vertical	Length
174-230MHz470~694MHz	5-1221-48	75Ω	11	4-7dBi6-11dBi	8-13dB15-20dB	H60°/V70°H55°/V60°	975mm

Antenna connection:

nedis

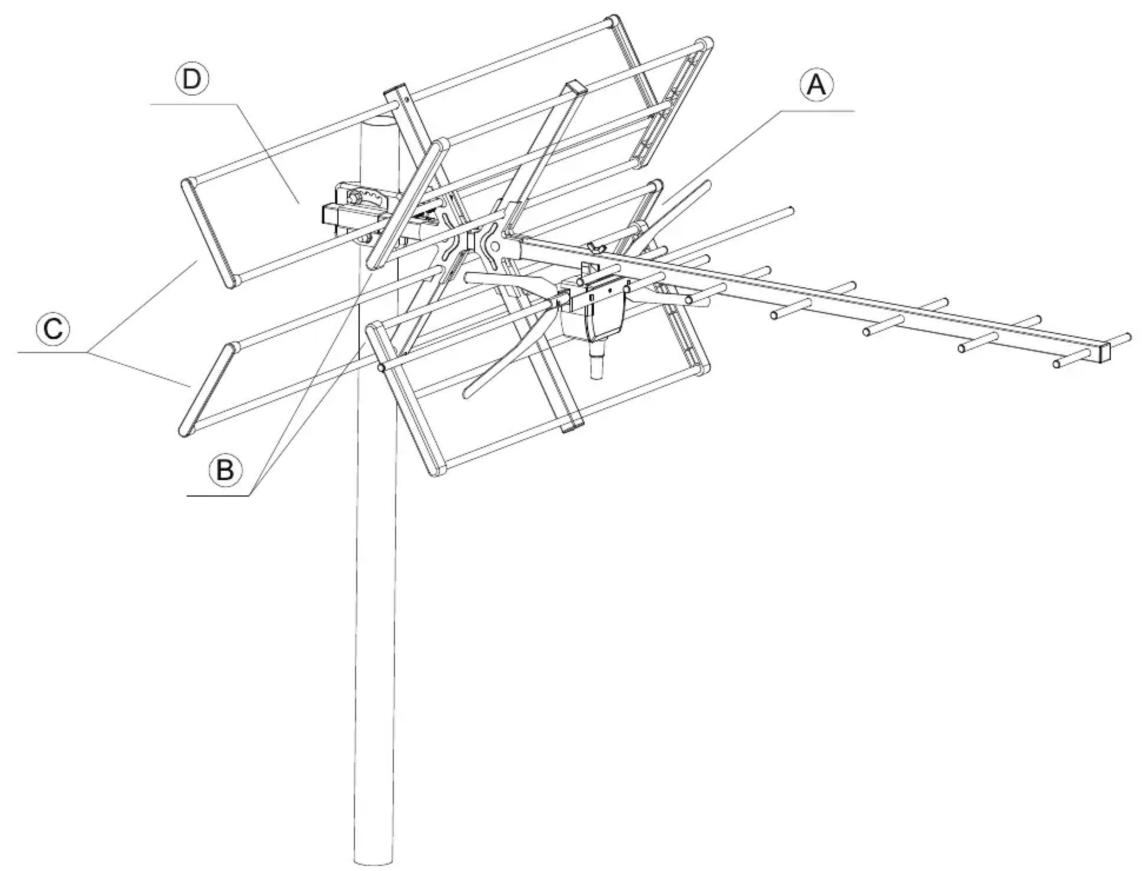

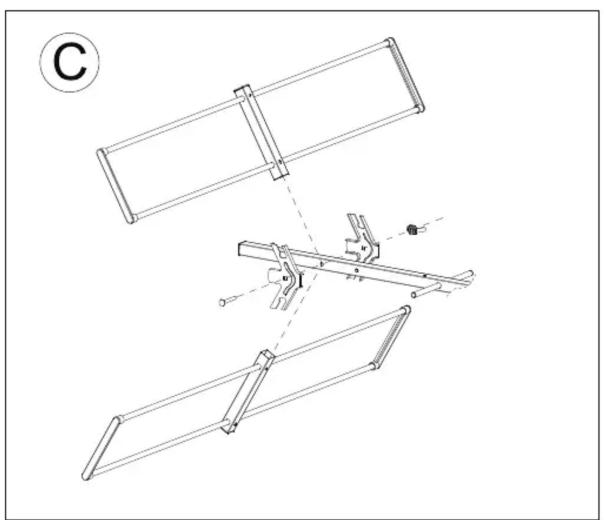

Antennaconnection:
