ESL60DS - Range hood Esatto - Free user manual and instructions
Find the device manual for free ESL60DS Esatto in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Esatto |
| Model | ESL60DS |
| Width | 60 cm (23.6 inches) |

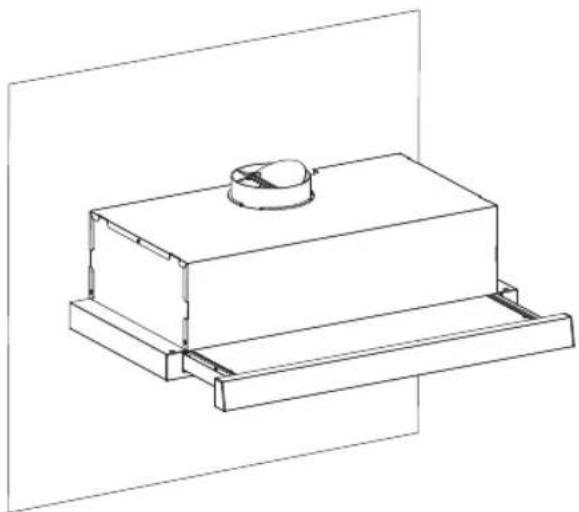

| Mounting Type | Under cabinet / Wall mount |
| Finish | Stainless steel |
| Airflow (Max) | 650 m³/h |
| Number of Speeds | 3 speeds + boost |
| Control Type | Electronic push button |
| Lighting | 2 x 1.5W LED (adjustable) |
| Filter Type | Aluminum mesh (dishwasher safe) |
| Ducting | Ducted (recirculation optional with charcoal filter) |
| Noise Level | 38 - 62 dB (depending on speed) |
| Power Consumption | 150 W (motor + lights) |
| Voltage / Frequency | 220-240V / 50Hz |
| Weight (Net) | 12 kg |

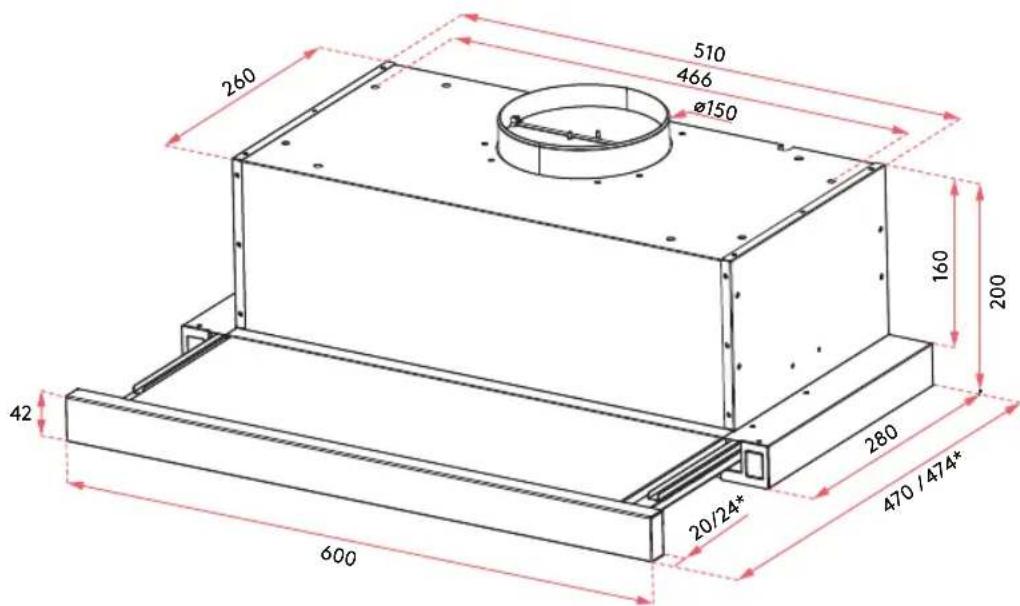

| Dimensions (W x D x H) | 60 x 50 x 15 cm (without duct cover) |
| Warranty | 2 years |
| Certification | CE, RoHS |
| Included Accessories | Mounting kit, duct adapter, manual |
| Maintenance | Clean filters monthly; replace charcoal filter every 6 months |
Frequently Asked Questions - ESL60DS Esatto
What is the recommended installation height above a gas cooktop?
For gas cooktops, install the range hood at a height of 65-75 cm above the cooking surface.
Can the ESL60DS be used in recirculation mode?
Yes, you can use it in recirculation mode by installing a charcoal filter (sold separately). This is ideal for kitchens without external ducting.
How often should I clean the aluminum mesh filters?
Clean the filters every month under normal use. They are dishwasher safe. Frequent cleaning ensures optimal airflow.
What is the noise level of this range hood?
The noise level ranges from 38 dB on the lowest speed to 62 dB on boost mode.
How do I replace the LED lights?
The LED lights are built-in and not user-replaceable. If they fail, contact Esatto customer service for assistance.
What size duct does this hood require?
The hood requires a 150 mm (6 inch) duct. An adapter is included for 120 mm if needed.
Is the hood suitable for island installation?
No, the ESL60DS is designed for wall or under-cabinet mounting only. An island hood would require a different model.
Does the hood come with a remote control?
No, the ESL60DS is operated via push buttons on the front panel. No remote control is included.
What is the power supply requirement?
The hood requires a 220-240V, 50Hz electrical connection. Ensure a dedicated circuit is used.
How long is the warranty period?
The Esatto ESL60DS comes with a 2-year warranty. Register your product on the Esatto website to extend it.
