Product Type	Li-ion Battery with V-Mount
Brand	Watson
Model	VM-160-CS-R
Capacity	158.4 Wh, 11 Ah
Voltage	14.4 V
Max Output Power	120 W
Max Output Current	10 A
D-tap Output	12 V, 10 A max
USB Output	5 V, 1 A
Mount Interface	V-Mount
Battery-Level Indicator	LED meter (4 segments)
Protection	Overload, overheat, short circuit, self-resetting fuse
Dimensions (H x W x D)	4.5 x 3.6 x 3.9 in (11.5 x 9.2 x 9.8 cm)
Weight	2.9 lb (1.3 kg)
Operating Temperature	14°F to 122°F (-10°C to 50°C)
Storage Temperature (up to 1 month)	-4°F to 122°F (-20°C to 50°C)
Storage Temperature (1-3 months)	-4°F to 104°F (-20°C to 40°C)
Storage Temperature (up to 1 year)	23°F to 86°F (-5°C to 30°C)
Relative Humidity (Storage)	45% to 75%
Charging Time (single charger)	500 min
Charging Time (dual channel)	400 min
Charging Time (four channel)	200 min
Average Run-Time	271 min @ 35 W
Maintenance	Clean with dry cloth; charge to 40% for long-term storage

Frequently Asked Questions - VM-160-CS-R Watson

How do I check the remaining battery capacity?

Press the battery-level check button. The LED meter will show the remaining capacity: 4 LEDs for 75-100%, 3 for 50-75%, 2 for 25-50%, 1 for 9-25%, and flashing LED for less than 9%.

Can I use the battery while it is charging?

Yes, the battery can power devices while charging via the D-tap or USB output, but charging may take longer.

What devices are compatible with this battery?

The battery is designed for devices with a V-Mount plate, such as professional video cameras, lights, and monitors. The D-tap and USB outputs also power accessories.

How long does it take to fully charge?

Charging time depends on the charger: approximately 500 minutes on a single-channel charger, 400 minutes on dual-channel, and 200 minutes on a four-channel charger.

Is the battery protected against overcharging or short circuits?

Yes, the battery has a built-in intelligent control circuit that protects against current/voltage overload, overheating, and short circuits. It also has a self-resetting fuse.

What is the lifespan of this battery?

Typical lifespan is 300-500 charge cycles. When run-time noticeably decreases, the battery may need replacement.

How should I store the battery for long periods?

For storage longer than one month, charge the battery to 40% and store in a cool, dry place. Recharge every 6 months to maintain health.

Can I use the D-tap output while the battery is powering a camera?

Yes, the D-tap output provides 12V up to 10A and can be used simultaneously with the main V-Mount output, as long as total power does not exceed 120W.

What does the flashing LED mean?

The leftmost LED flashing indicates the battery capacity is below 9%. Recharge the battery as soon as possible.

Is this battery compatible with Watson AM-160-CS-R?

The AM-160-CS-R has a 3-stud mount, while the VM-160-CS-R has a V-Mount. They are physically different but share the same electrical specifications. Use the appropriate mount for your equipment.

USER MANUAL VM-160-CS-R Watson

Li-ion Battery with LED

and 3-Stud or V-Mount

Thank you for choosing Watson Pro

Please read this user manual carefully, and keep it for reference before using the battery.

SAFETY INSTRUCTIONS

• Make sure the battery is fully charged before use.
• When not in use, remove the battery from its device. Some electronic equipment will draw current even when the switch is off.
• Do not short-circuit the terminals. This battery is protected with an internal self-resetting fuse, but short circuits may still cause severe damage to the battery.
• Do not attempt to open the battery case under any circumstances.
• Do not remove the battery from any equipment that is powered on. Always power off your equipment before removing the battery.
• Use the battery under proper environmental conditions: 14°F to 122°F (-10°C to 50°C) with a Relative Humidity (RH) less than 85%.
• The battery may be warm during use or recharging. This is normal.
• The battery should be charged up to 40% for storage longer than one month, and should be charged every 6 months.
• Keep the battery away from fire, heat, and high pressure.
• Do not expose the battery to rain or moisture.
• Do not drop the battery or subject it to strong shocks.
• Keep this unit away from water and any flammable gases or liquids.
• Clean the battery and terminals with only a clean, soft, and dry cloth.
• When operation time has noticeably decreased, the battery may need to be replaced.
• Keep this product away from children.
• Store the battery in a cool, dry place.

OVERVIEW

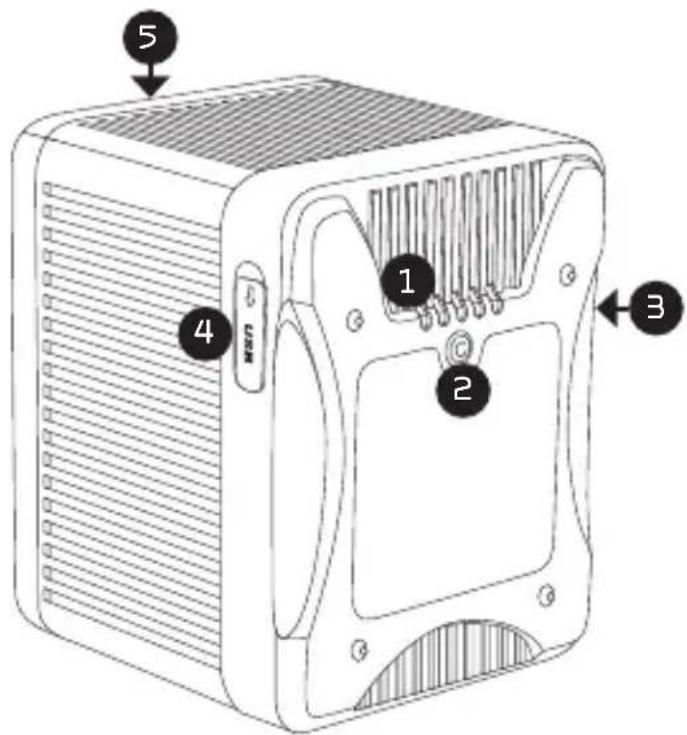

1 Battery-level LED meter Shows remaining capacity of the battery. When capacity reaches less than 9%, the leftmost LED will flash.
2. Battery-level check button
3. D-tap output 12 V, 10 A max
4 USB output Press the battery-level check button to start charging or to power your USB device.
5. Mounting interface: 3-stud or V-mount

PRODUCT FEATURES

• High-powered li-ion cells provide constant output up to 120 W and 10 A.
• Battery-level LED indicators for remaining battery capacity.
  • Built-in D-tap connector powers your camera accessories.
• 5 V/1 A USB 2.0 output for USB-powered devices.
  • Built-in intelligent control circuit protects against damage from current or voltage overload, overheating, or short circuits.

SPECIFICATIONS

Mount type	AM-160-CS-R: 3-StudVM-160-CS-R: V-Mount
Capacity 158.4 Wh, 11 Ah
Voltage 14.4 V
Max output power 120 W
Max output current 10 A
Average run-time 271 min. @ 35 W
Weight 2.9 lb. (1.3 kg)
Dimensions(H × W × D)	AM-160-CS-R: 4.5 × 3.6 × 4.2 in.(11.5 × 9.2 × 10.6 cm)VM-160-CS-R: 4.5 × 3.6 × 3.9 in.(11.5 × 9.2 × 9.8 cm)

CHARGING TIME

Battery Single channel Dual channel Four channel
AM-160-CS-RVM-160-CS-R	500 min.	400 min.200 min.	400 min.

BATTERY STORAGE

	Up to one month Up	to three months Up to one year
Storage environment	-4°F to 122°F(-20°C to 50°C)	-4°F to 104°F(-20°C to 40°C)	23°F to 86°F(-5°C to 30°C)
Relative humidity	45% to 75% 45%	to 75% 45% to 75%
